If you own a 2007 Toyota Corolla, you already know it's one of the most reliable cars ever built. But even bulletproof engines need the right amount of oil, and getting the 2007 Toyota Corolla oil capacity wrong can turn that reliable commuter into a costly headache. You're not alone if you're standing in the auto parts aisle wondering whether it's 3.9 quarts or 4.4 quarts.
Manufacturer specifications from Toyota's factory service manual confirm the answer depends on exactly which engine is under your hood. Most 2007 Corollas use the 1.8L 1ZZ-FE engine and take 3.9 quarts with a filter change. The XRS trim with the 2.4L 2AZ-FE engine needs 4.5 quarts.
Use the wrong number and you risk engine damage that no amount of "it'll be fine" can fix.
Quick Answer
Your 2007 Toyota Corolla takes 3.9 US quarts of 5W-20 oil with a filter change. This applies to the standard 1.8L 1ZZ-FE engine found in most trims. The XRS model with the 2.4L engine takes 4.5 quarts of 5W-30.
Always check your dipstick after adding. Never rely on the "add all five quarts" method.
Why Getting This Wrong Costs You Real Money
Here's the thing about the 1ZZ-FE engine. It has a known weakness for oil sludge when maintenance is neglected. That doesn't mean it's a bad engine.
It means it punishes mistakes more harshly than some of its competitors.
Overfilling by even half a quart creates real problems. The crankshaft whips through excess oil like a boat propeller, aerating it into foam. Foam doesn't lubricate well.
Metal parts that should glide past each other start grinding instead. Manufacturers have documented this effect for decades, and it's one reason the correct oil level matters as much as the correct oil type.
Underfilling is worse. The 1ZZ-FE's oil pump can suck air if the level drops too low, especially during cornering or hard braking. That air pocket reaches bearing surfaces before oil does.
Bearing damage from oil starvation is catastrophic and almost always means a new engine.
Image source: Web (Bing) / picclick.fr (Web image (fair-use with source credit))
The 2007 Corolla's engine bay looks straightforward. The oil fill cap sits front and center on the valve cover. The dipstick is right next to it.
But the drain plug on the oil pan is easy to strip if you overtighten it. That's a $200 repair to heli-coil a pan that could have been avoided with a torque wrench set to 29 foot-pounds.
The Two Engines: 1.8L 1ZZ-FE vs. 2.4L 2AZ-FE (XRS Model)
Most people don't realize Toyota offered two completely different engines in the 2007 Corolla. The standard model came with the 1.8L 1ZZ-FE. The XRS performance trim got the 2.4L 2AZ-FE, the same engine used in the Camry and RAV4 of that era.
Here's how to tell which one you have. Check your owner's manual or the emissions label under the hood. The VIN's eighth character also identifies the engine.
You can also look at the engine cover. The 1.8L has a plastic cover that says "VVT-i." The 2.4L has a larger cover that says "2.4L VVT-i."
The capacity difference matters more than most people think.
| Engine | Oil Capacity (with filter) | Recommended Oil | Common Models |
|---|---|---|---|
| 1.8L 1ZZ-FE | 3.9 US quarts (3.7L) | 5W-20 conventional or synthetic | CE, LE, S trims |
| 2.4L 2AZ-FE | 4.5 US quarts (4.3L) | 5W-30 conventional or synthetic | XRS trim only |
If you buy a five-quart jug for the 1.8L engine, you'll have about a quart left over. Store it properly and use it for top-offs between changes. Don't dump it in just because the jug is open.
The 2AZ-FE engine in the XRS model has a different oil filter location too. It's mounted on the front of the engine block rather than underneath. That makes it easier to reach but just as messy if you don't drain the pan first.

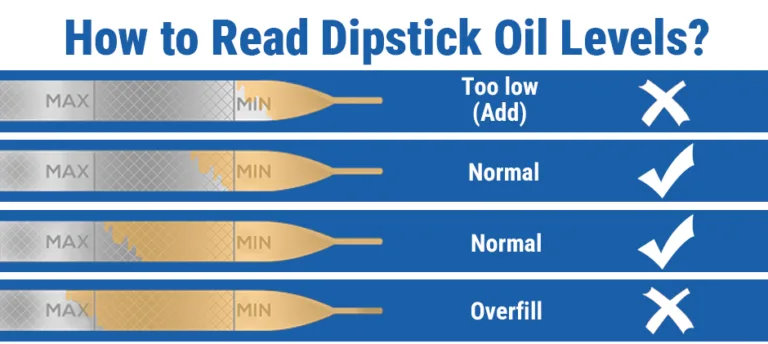

What the Dipstick Actually Tells You (And What It Doesn't)
The dipstick on a 2007 Corolla is a flat metal strip with crosshatch marks at the bottom. Two holes or dimples mark the Low and Full levels. Between them represents roughly one quart of oil.
Here's what most people get wrong. They check the oil when the engine is cold and the oil has drained completely into the pan. That gives a higher reading than what the engine actually holds when running.
Toyota designed the dipstick to be read with the engine warm and turned off for a few minutes.
The correct procedure takes thirty seconds.
- Park on level ground. Any slope throws off the reading by half a quart or more.
- Warm up the engine for a few minutes. Cold oil is thick and clings to the dipstick tube.
- Turn the engine off and wait two to three minutes. This lets oil drain back into the pan.
- Pull the dipstick, wipe it clean with a lint-free rag, and reinsert it fully.
- Pull it again and read the level. The oil should be between the Low and Full marks.
Image source: Bing (Web (fair-use with source credit))
If the level is at the Low mark, add half a quart and recheck. If it's at the Full mark, you're good. If it's above the Full mark, you have too much oil and should drain some out.
Running an overfilled engine causes the same foam problem we talked about earlier.
The dipstick cannot tell you the oil's condition. Clean oil looks amber on the dipstick. Dirty oil looks dark brown or black.
But color alone doesn't mean it's bad. Some high-quality synthetics darken quickly but still have plenty of life left. Follow the interval, not the color.
The Right Oil: Viscosity, Ratings, and What Toyota Recommends
Toyota specified 5W-20 for the 1ZZ-FE engine in the 2007 Corolla. That's not a suggestion. It's the viscosity the engine was designed around, and deviating from it affects fuel economy and cold-start protection.
The "5W" part means the oil behaves like a 5-weight oil when cold. That's thin enough to flow through tight bearing clearances at startup. The "20" means it thickens to a 20-weight at operating temperature.
That's thick enough to maintain oil pressure but thin enough to reduce drag.
Using 5W-30 instead of 5W-20 in the 1ZZ-FE isn't a disaster for one change. But doing it regularly reduces fuel economy by about one to two percent and increases wear on the variable valve timing system. Toyota issued technical service bulletins confirming the 5W-20 recommendation for this engine.
The 2AZ-FE in the XRS model uses 5W-30. That engine has different bearing clearances and doesn't benefit from the thinner oil. Putting 5W-20 in the 2.4L engine can lead to lower oil pressure at idle, especially in hot weather.
Both engines require oil that meets API service classification SL or higher. As of 2026, most conventional and synthetic oils on the shelf carry SN or SP ratings, both of which exceed this requirement. ILSAC GF-4 or higher is also acceptable and often printed on the bottle.
Synthetic oil is worth the extra money for the 1ZZ-FE engine. Here's why. That engine has a reputation for sludge buildup when conventional oil change intervals are stretched beyond 5,000 miles.
Synthetic oil resists thermal breakdown better and flows more easily at cold temperatures. If you live in a climate where winter temperatures drop below freezing, synthetic 5W-20 makes a real difference at startup.
High-mileage oil (formulated for engines over 75,000 miles) contains seal conditioners that help reduce oil leaks. Many 2007 Corollas have well over 150,000 miles as of 2026. If your engine has any minor oil seepage around the valve cover or timing chain area, switching to a high-mileage blend can slow or stop those leaks.
Step-by-Step: How to Change Your Oil the Right Way
Changing the oil on a 2007 Corolla is one of the easiest DIY jobs on any car. The oil filter is accessible from underneath without removing anything else. The drain plug points straight down.
The whole job takes about thirty minutes your first time.
Here's what you need before you start.
| Tool or Material | What to Look For |
|---|---|
| 14mm socket or wrench | For the drain plug |
| Oil filter wrench | 64mm cap-style or strap wrench |
| Drain pan | At least 6-quart capacity |
| Funnel | Long neck helps with the fill location |
| Torque wrench | 29 ft-lbs for drain plug |
| Oil | 3.9 quarts of 5W-20 (1.8L) or 4.5 quarts of 5W-30 (2.4L) |
| Oil filter | OEM 04152-YZZA1 or equivalent |
| Crush washer | 14mm copper or aluminum |
Run the engine for a few minutes before you start. Warm oil flows faster and carries more suspended contaminants out of the engine. Don't let it get hot enough to burn you.
Lukewarm is perfect.
Jack up the front of the car and support it on jack stands. Never work under a car supported only by a jack. The Corolla sits low enough that you'll need at least a foot of clearance to reach the drain plug comfortably.
Place the drain pan under the plug. Loosen the plug with the 14mm socket. Unscrew it by hand and let the oil flow.
Be ready for it to come out fast at first, then slow to a drip after a few minutes.

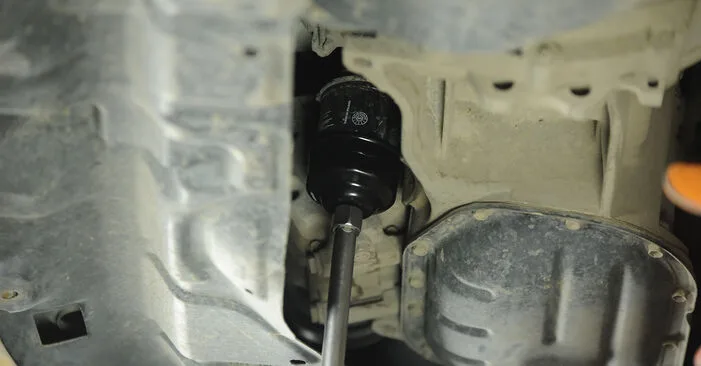

While the oil drains, move to the oil filter. It's mounted on the driver's side of the engine block, pointing downward. Loosen it with the filter wrench.
Unscrew it by hand. Some oil will spill out as you remove it, so keep the drain pan underneath.
Image source: Bing (Web (fair-use with source credit))
Before installing the new filter, dip your finger in fresh oil and rub it around the rubber gasket. This keeps the gasket from sticking and binding when you tighten it. Screw the filter on by hand until the gasket contacts the mounting surface.
Tighten it another three-quarters of a turn by hand. Don't use the wrench for final tightening. Hand tight is tight enough.
Replace the drain plug with a new crush washer. Torque it to 29 foot-pounds. If you don't have a torque wrench, snug it up with a normal socket wrench and give it another quarter turn.
Don't go crazy. Stripped drain plugs are a common DIY mistake.

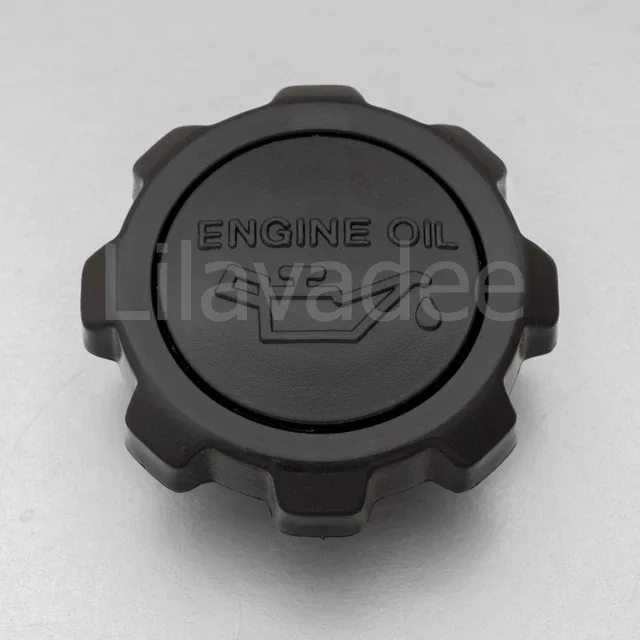

Remove the oil fill cap on top of the valve cover. Insert the funnel. Pour in 3.9 quarts for the 1.8L engine or 4.5 quarts for the 2.4L.
Replace the cap.
Start the engine and let it run for thirty seconds. The oil pressure light should turn off within a few seconds. If it stays on, shut the engine down and check for leaks or a missing filter gasket.
A dry gasket that didn't seal properly will dump oil fast.
Shut the engine off. Wait two minutes. Check the dipstick.
The level should be near the Full mark. If it's low, add a quarter quart and recheck. If it's overfilled, drain a small amount through the drain plug.
Clean up any drips. Dispose of the used oil at an auto parts store or recycling center. Most states have laws against dumping oil in the trash or down drains.
The EPA regulates used oil as hazardous waste for good reason.
The Mistakes That Kill This Engine (Sludge, Overfill, Wrong Filter)

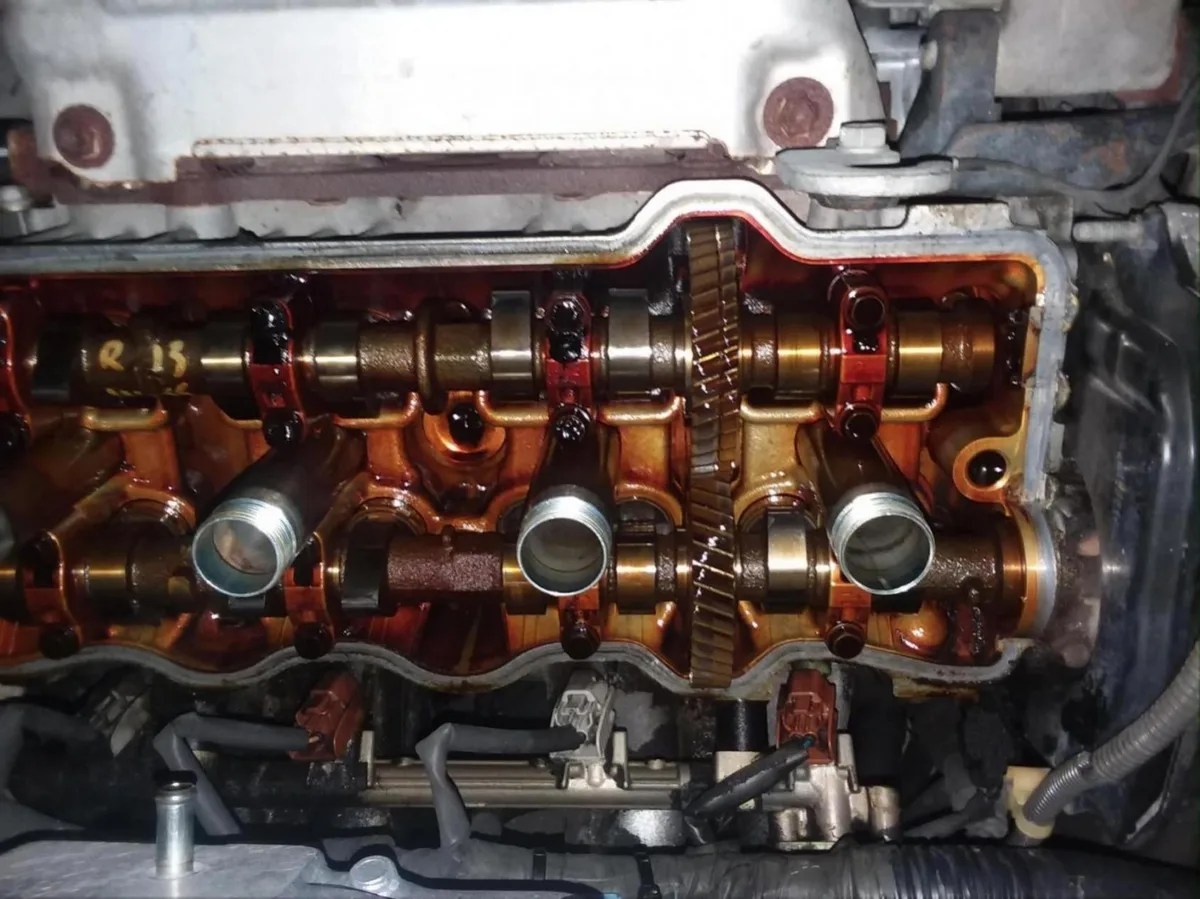

The 1ZZ-FE engine has one well-documented vulnerability that every owner should know about. It's prone to oil sludge when oil changes are neglected or done with the wrong products.
Image source: Bing (Web (fair-use with source credit))
Sludge is thick, baked-on oil residue that blocks oil passages. It starves the variable valve timing system and the camshaft bearings. Once it forms, the only fix is an engine tear-down or replacement.
Toyota faced a class-action lawsuit over this issue in the 2000s, and it's the reason many used car buyers hesitate on early 2000s Corollas.
The sludge problem has two main causes. First, stretching oil changes beyond 5,000 miles with conventional oil. Second, using cheap oil filters that lack proper bypass valves.
Let's talk about the filter because it matters more than most people think. The 1ZZ-FE requires a filter with a specific bypass valve pressure rating. Aftermarket filters that don't meet this spec can restrict oil flow during cold starts or clogged filter conditions.
That triggers the bypass valve to open early, sending unfiltered oil through the engine.
Stick with the OEM Toyota filter (part 04152-YZZA1) or a quality aftermarket equivalent from brands that publish their bypass specs. Avoid no-name filters that cost two dollars. The filter is the last line of defense between your oil pump and your bearings.
Overfilling is the second mistake we see constantly. People buy a five-quart jug and dump it all in because the container says "five quarts." The 1ZZ-FE only takes 3.9 quarts with a filter change. That extra quart gets whipped into foam by the crankshaft, and foamed oil doesn't lubricate.
The symptoms of overfilling include rough idle, blue smoke from the exhaust, and oil leaks past the valve cover gasket. If you catch it early, drain a quart out and check the level. If you drive it for weeks overfilled, you risk catalytic converter damage from oil burning in the exhaust.
Using the wrong viscosity is less dramatic but equally harmful over time. Running 10W-30 in a 1ZZ-FE during winter makes the oil pump work harder. Cold oil moves slower through tight passages.
That delay in reaching the camshaft bearings adds measurable wear every time you start the engine.
Filter Matters: Which One Fits and Why the Bypass Valve Counts
The 2007 Corolla oil filter is a spin-on cartridge that threads onto a mounting flange. It sits on the driver's side of the engine block on the 1ZZ-FE and on the front of the engine on the 2AZ-FE. Both are easy to reach from underneath the car.
The filter thread size is 3/4-16 UNF. The gasket diameter is about 64 millimeters. Most auto parts stores will cross-reference your vehicle and hand you the right filter.
But not all filters are equal.
Here's what happens inside a filter. Oil enters through small holes around the base, passes through the filter media, and exits through the center hole back into the engine. The bypass valve sits inside the filter and opens when the media gets clogged or when oil is too thick to push through.
The bypass valve pressure is critical. If the valve opens too early, unfiltered oil circulates through the engine. If it opens too late, oil flow is restricted and the engine runs dry.
Toyota specs call for a specific bypass pressure that aftermarket manufacturers don't always match.
Your best bet is the Toyota genuine filter. It costs about six to eight dollars online and includes the correct bypass valve. If you buy aftermarket, look for brands that publish their bypass pressure and thread specifications.
Fram Ultra, Mobil 1, and Wix are examples of brands that meet or exceed OEM specs for this application.
Never install a dry filter. The rubber gasket will bind against the mounting surface and won't seal properly. Dip your finger in fresh oil and wipe it around the gasket before threading the filter on.
Hand-tighten until the gasket contacts the base, then give it three-quarters of a turn. No wrench needed.
Common Questions About Oil for the 2007 Corolla
Can I use synthetic oil after years of conventional oil?
Yes, without any special procedure. Synthetic oil is compatible with conventional oil and won't cause leaks on its own. If your engine already has small leaks from worn seals, switching to synthetic might make them more noticeable because synthetic oil flows more easily.
That's not the oil causing the leak. It's just revealing an existing problem.
How often should I change the oil?
Toyota recommended every 5,000 miles for conventional oil and 7,500 for synthetic under normal driving conditions. If you do mostly short trips, stop-and-go traffic, or drive in extreme temperatures, stick with 5,000 miles regardless of oil type. Severity of driving conditions matters more than the calendar.
What happens if I accidentally put in 5W-30 instead of 5W-20?
Nothing catastrophic for one change. The engine will run slightly rougher at idle and fuel economy may drop by one to two percent. Drain it at the next interval and go back to 5W-20.
Long-term use of 5W-30 in the 1ZZ-FE increases wear on the variable valve timing system.
Why does my dipstick show overfilled when I put in exactly 3.9 quarts?
The engine may still have residual oil from the old change if you didn't drain it completely. The 1ZZ-FE's oil pan can hold up to 0.2 quarts in a low spot that doesn't drain through the plug. Check the level after running the engine.
If it's above the Full mark, drain a small amount.
Can I add oil without changing the filter?
Yes, between changes. The filter should be changed every other oil change at minimum. Our recommendation is to change the filter with every oil change.
It holds about 0.2 quarts of oil that doesn't drain with the rest, and a fresh filter ensures proper oil flow.
When to Call a Shop vs. Doing It Yourself
An oil change on the 2007 Corolla is one of the easiest you'll ever do. The filter is accessible. The drain plug faces straight down.
No underbody panels need removal. A beginner can do it in under an hour.
But there are situations where paying a shop is the smarter move.
If you don't have level ground to park on, the dipstick reading will be wrong and you'll have trouble getting the correct level. A slight slope changes the reading by half a quart. Shops have level lifts.
If you don't have jack stands or ramps, don't crawl under the car with just a scissor jack. Jack stands cost about forty dollars. A crushed car kills more DIY mechanics than almost any other hobby statistic.
Factor the safety equipment cost into your budget.
If you stripped the drain plug or cross-threaded the filter on a previous change, let a professional handle it. Helicoiling an oil pan costs about $200 at a shop. Trying to fix it yourself with the pan still on the car is risky and often makes the problem worse.
If you live in an apartment or condo complex with strict rules about fluid disposal, factor that in. Used oil can't go in the trash or down drains. Most auto parts stores accept it for free, but getting there with five quarts of sloshing oil in a drain pan is a hassle.
The cost difference matters too. A DIY change on the 2007 Corolla costs about $25 to $35 for conventional oil and a filter. A shop charges $60 to $80 for the same service.
Over four changes per year, that's a savings of $140 to $180. If you keep the car for five years, the total savings cover a full brake job.
Your Verified Oil Specs Reference Card
Here's the cheat sheet. Save this or write it on a sticky note inside your owner's manual.
2007 Toyota Corolla (1.8L 1ZZ-FE engine)
- Oil capacity with filter change: 3.9 US quarts (3.7 liters)
- Oil type: SAE 5W-20
- API rating: SL or higher
- Oil filter: Toyota 04152-YZZA1 or equivalent
- Drain plug torque: 29 ft-lbs
- Drain plug size: 14mm
- Oil change interval: 5,000 miles conventional, 7,500 miles synthetic
2007 Toyota Corolla XRS (2.4L 2AZ-FE engine)
- Oil capacity with filter change: 4.5 US quarts (4.3 liters)
- Oil type: SAE 5W-30
- API rating: SL or higher
- Oil filter: Toyota 04152-YZZA1 or equivalent
- Drain plug torque: 29 ft-lbs
- Drain plug size: 14mm
- Oil change interval: 5,000 miles conventional, 7,500 miles synthetic
Quick tips
- Always check the dipstick after filling. Don't trust the jug's markings alone.
- Warm oil drains faster and carries more contaminants. Run the engine three minutes before draining.
- A new crush washer every time costs pennies and prevents drips.
- Used oil goes to an auto parts store, not the trash or storm drain.
- If you're unsure which engine you have, check the emissions label under the hood. It lists displacement in liters.
Frequently Asked Questions
Can I switch from conventional to synthetic oil mid-life?
Yes. Synthetic oil works with any mileage and won't cause leaks. Existing leaks may become more visible because synthetic flows better, but the switch itself is safe.
What happens if I overfill by half a quart?
The crankshaft aerates the excess oil into foam. Foam doesn't lubricate properly. Drain the extra oil before driving.
Overfilling for extended periods damages bearings and seals.
How do I know if my engine has sludge?
Check under the oil fill cap. Dark, thick deposits around the cap or on the valve train indicate sludge buildup. A ticking noise from the camshaft area is another warning sign.
Is the XRS oil capacity different from the standard model?
Yes. The XRS with the 2.4L 2AZ-FE engine takes 4.5 quarts of 5W-30. The standard 1.8L takes 3.9 quarts of 5W-20.
Never mix up these specs.
How often should I check my oil level?
Check it every other fuel fill-up. The 1ZZ-FE engine can burn oil as it ages, especially past 100,000 miles. Weekly checks catch low levels before the oil pressure light comes on.
