2015 Tundra 5.7 Oil Capacity: 6.9 Quarts

The 2015 Toyota Tundra with the 5.7L V8 is a beast of a truck. It'll pull a boat, haul lumber, and run for hundreds of thousands of miles if you treat it right. But here's the thing: treating it right starts with one simple but critical number.

Getting the 2015 Toyota Tundra 5.7 oil capacity wrong by even half a quart can lead to some expensive problems down the road.

Manufacturer specifications indicate the 3UR-FE engine requires exactly 6.9 quarts of oil with a filter change. That's not a suggestion, it's the spec from Toyota. The wrong amount, the wrong viscosity, or even the wrong filter can compromise lubrication and shorten the life of one of the most reliable engines Toyota has ever built.

Let's walk through exactly what you need to know before you pop the hood.

Quick Answer

The 2015 Toyota Tundra 5.7 oil capacity is 6.9 quarts with a filter change. Toyota recommends SAE 0W-20 full synthetic oil meeting API SN or ILSAC GF-5 standards. A drain-only fill takes 6.4 quarts.

The engine takes a Toyota 04152-YZZA1 or equivalent oil filter. Always check the dipstick after the first startup.

Why Getting the Oil Capacity Right on Your 2015 Tundra 5.7 Actually Matters

It's tempting to think oil is oil. Pour some in, call it done. But the 3UR-FE engine is precision engineered.

The oil system is designed around a specific volume and pressure. Too little oil, and you risk oil starvation at the cam phasers and timing chain tensioners. Too much oil, and the crankshaft whips the oil into foam, which causes aeration and poor lubrication.

The stakes are higher than just avoiding a mess. Overfilling can cause oil to be forced past seals and gaskets. Underfilling can lead to bearing damage and rod knock.

Real-world mechanic feedback confirms that premature engine failure in the Tundra 5.7 often traces back to basic maintenance mistakes. Getting the fluid level right is the single cheapest insurance policy for your truck.

The 3UR-FE Engine: What Makes It Different

The 5.7L V8 found in the 2015 Tundra isn't just a bored-out version of a smaller engine. Toyota designed the 3UR-FE specifically for truck and SUV duty. It features a cast iron block, aluminum heads, dual independent variable valve timing (VVT-i), and a heavy-duty timing chain.

This engine regularly exceeds 300,000 miles with proper care.

What makes it a bit different for oil changes is the sump design and the oil cooler. The large capacity of 6.9 quarts isn't just for longevity between changes. It's designed to handle high oil temperatures during towing and maintain consistent pressure at idle and under load.

The oil cooler lines and the filter housing also hold some oil that doesn't drain completely unless you remove the filter.

This is why you can't just guess at the volume. The engine's oiling circuit is engineered for exactly this capacity. Cutting corners with a quart less means the oil runs hotter and degrades faster.

It's a recipe for accelerated wear on critical components.

Oil Type: Why 0W-20 Isn't Optional

Some owners wonder if they can run 5W-30 for "better protection" in hot weather. The short answer is no. Toyota specifies 0W-20 full synthetic for the 2015 Tundra 5.7, and that recommendation is backed by engineering data.

Here's why 0W-20 is the right call. The "0W" part means the oil stays fluid at extremely cold temperatures, which is critical for cold starts. The "20" part means it's thin enough at operating temperature to flow through tight oil passages in the VVT-i phasers and hydraulic chain tensioners.

Thicker oil can clog those passages or reduce flow, leading to timing chain rattle and reduced performance.

Oil must meet API SN or ILSAC GF-5 standards. As of 2026, you'll also find SP-rated oils on shelves, which offer better protection against low-speed pre-ignition and timing chain wear. Those are fully backward compatible and fine to use.

Stick with a major brand synthetic like Mobil 1, Pennzoil Platinum, or Valvoline Advanced. Keep the correct oil type in mind if you're used to other Toyota models. The same 0W-20 spec applies to many of them, but checking the specific recommendations for your other vehicles is always smart.

Step-by-Step: How to Do the Oil Change Right

This process is straightforward, but a few details separate a good oil change from a great one. Follow this sequence to get it right the first time.

What You'll Need (Tools and Parts)

• 6.9 quarts of SAE 0W-20 full synthetic oil

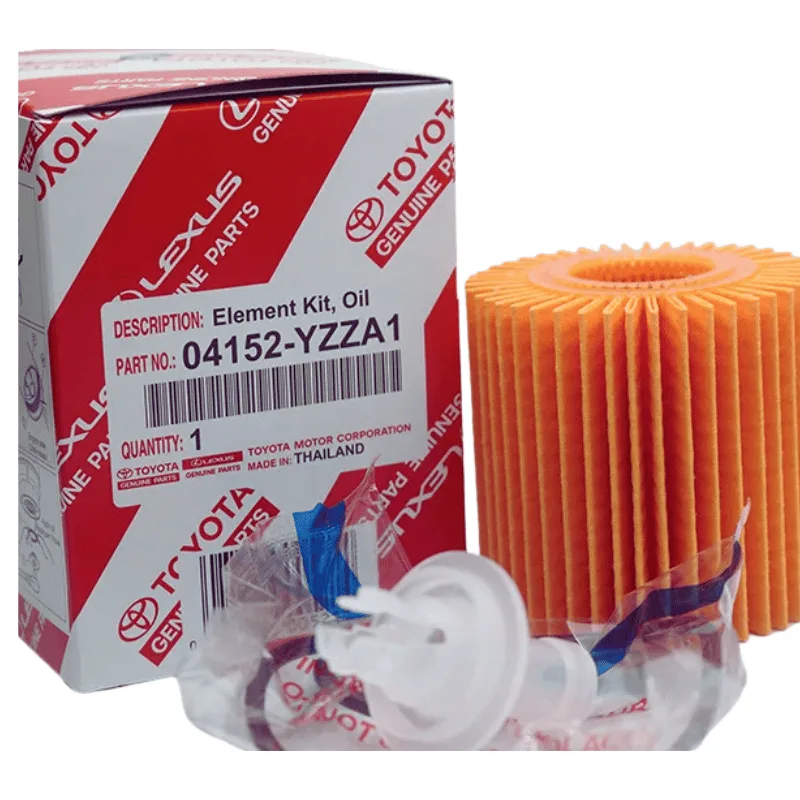

• Toyota oil filter (part 04152-YZZA1 or 04152-38010)
• 14mm socket or wrench for the drain plug
• 64mm oil filter cap socket (15 flutes)
• New crush washer for the drain plug
• Torque wrench (recommended, not optional)
• Funnel, drain pan, gloves, and safety glasses

The Correct Sequence (Step by Step)

Step 1: Warm up the engine. Run it for about three minutes. Warm oil flows faster and drains more completely. Hot oil also holds more contaminants in suspension, so you're getting a better drain.

Step 2: Remove the oil fill cap. This prevents a vacuum from forming and helps the oil drain faster. Set the cap on a clean surface.

Step 3: Drain the old oil. Locate the 14mm drain plug on the oil pan. Place your drain pan underneath. Loosen with a socket, then unscrew by hand.

Be careful, the oil will be hot. Let it drain completely for at least five minutes. Replace the crush washer and torque the plug to 27 lb-ft.

Step 4: Remove and replace the oil filter. The filter sits on the side of the engine block. Use the 64mm socket to loosen the cap. Pull the filter element out and let the remaining oil drain.

Wipe the housing clean. Install the new filter element, lubricate the new O-ring with fresh oil, and hand tighten the cap to 18 lb-ft or hand-tight plus three-quarters of a turn.

Step 5: Pre-fill the new filter. This is a pro tip that's often skipped. Pour fresh oil into the new filter element until it's about three-quarters full before installing it. This prevents a dry start, which is when the engine cranks for several seconds before oil pressure builds.

Step 6: Add the new oil. Pour in 6.9 quarts of 0W-20. Replace the oil fill cap. Start the engine and let it idle for about 30 seconds.

The oil pressure light should turn off within a few seconds. If it stays on, shut down immediately and check for leaks.

Step 7: Check the dipstick. Shut the engine off. Wait two minutes for the oil to settle. Pull the dipstick, wipe it clean, reinsert, and check the level.

It should be between the Low and Full marks. Top up if necessary.

The Risks of Getting It Wrong

The margins on the 3UR-FE are tighter than you might think. Half a quart either way can cause measurable problems. Let's break down what actually happens when you miss the mark.

Overfilling (Yes, It's as Bad as Underfilling)

Adding extra oil seems harmless. Maybe even cautious. But the crankshaft spins through the oil in the pan.

When the oil level is too high, the crankshaft whips air into the oil. This creates foam.

Foam does not lubricate well. Air bubbles collapse under load, leaving metal surfaces unprotected. The hydraulic lifters and VVT-i phasers rely on consistent oil pressure.

Aerated oil causes them to chatter and wear prematurely. Over time, foaming also forces oil past seals and gaskets, causing leaks. If you've overfilled, drain the excess immediately.

Underfilling and Oil Starvation

Running low on oil is more immediately dangerous. The oil pickup tube sits at the bottom of the pan. On steep inclines or during hard cornering, low oil levels can cause the pickup to suck air.

This is called oil starvation.

Oil starvation damages bearings first. You'll hear a knocking sound from the bottom of the engine. That's the connecting rods hitting the crankshaft with inadequate lubrication.

By the time you hear it, bearing damage is already done. Repair costs easily run into the thousands. The transmission and engine share a cooling circuit on some Tundra models, so engine heat can also affect related components.

Keep that in mind when you're checking other fluids regularly.

Wrong Viscosity Damage

Thicker oil, like 5W-30, seems like it offers "more protection." But the 3UR-FE's oil passages are designed for 0W-20. Thick oil flows slower through tight clearances. This delays oil pressure buildup during cold starts.

Every cold start with thick oil is a few seconds of metal-on-metal contact.

Thin oil, like 0W-16, is also a problem. It cannot maintain adequate film strength at high temperatures, especially when towing. The oil film shears away, leaving bearings unprotected.

Stick with 0W-20. Toyota engineers made that call for a reason.

Common Mistakes and How to Avoid Them

Even experienced DIYers slip up on this engine. A few small oversights cause big headaches. Here are the ones we see most often.

Forgetting the Crush Washer

The drain plug uses a crush washer. It's a soft metal ring that deforms when torqued, creating a seal. Reusing an old crush washer is risky.

The deformed metal will not seal properly. You'll get a slow drip that worsens over time.

Buy a pack of new crush washers. They cost pennies. Replace it every single oil change.

The drain plug torque is 27 lb-ft. Overtightening without a fresh washer can also damage the oil pan threads.

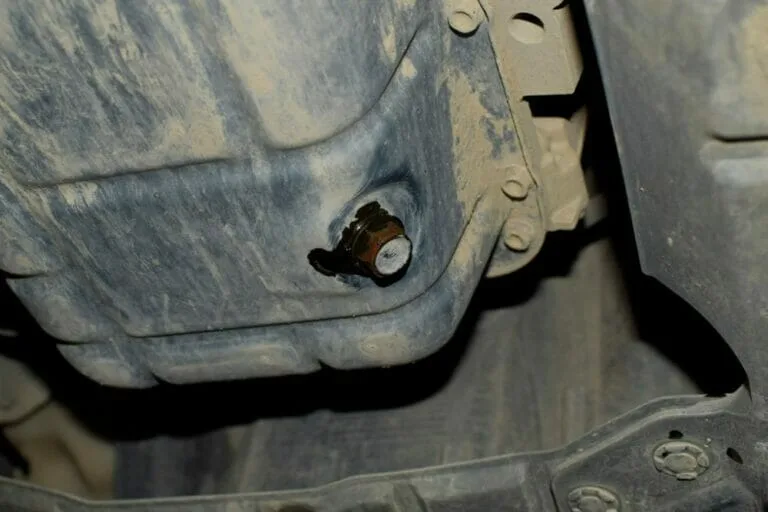

Overtightening the Drain Plug

The oil pan on the 2015 Tundra is aluminum. The threads are soft. Overtightening the steel drain plug strips these threads easily.

Once stripped, you need a repair kit or a new oil pan.

Use a torque wrench. 27 lb-ft is not much. If you don't have a torque wrench, tighten the plug until it seats, then give it a quarter turn. That's it.

Going tighter does not make a better seal.

Not Pre-Filling the Oil Filter

This is the most common mistake we see. Most people install a dry filter, then start the engine. The engine runs for several seconds without oil pressure.

Those seconds wear the bearings and chain tensioners.

Pre-fill the new filter element with fresh oil before installation. Pour oil into the center hole until it soaks into the media. Install it quickly to minimize spillage.

Your engine will thank you at every startup.

Normal vs. Severe Service: Which Schedule Fits You?

Toyota gives two maintenance schedules. Most owners should follow the severe schedule. Here is how to tell which one applies to you.

If you use your Tundra as a daily commuter on the highway in a mild climate, the normal schedule works. But if you tow a boat, drive on dirt roads, or live where summers hit triple digits, you are in severe service. Change the oil every 5,000 miles.

Oil analysis from real-world Tundra owners confirms that 0W-20 degrades faster under heavy load. The viscosity breaks down and the additive package depletes. At 5,000 miles under severe service, the oil still has protective properties.

At 7,500 to 10,000 miles under the same conditions, it is often marginal. Stick with the shorter interval. It's cheap insurance for a $50,000 truck.

When to Call a Pro (Even If You're a DIY Person)

Some situations are better left to a mechanic. Here is when to hand over the keys.

If you stripped the drain plug threads. Helicoil kits exist, but they are tricky. A pro can evaluate the damage and install a repair insert correctly. One mistake here means a new oil pan.

If you have a persistent oil leak. A slow drip from the oil pan gasket or rear main seal requires specialized tools. A DIY repair on a rear main seal involves removing the transmission. That is not a driveway job.

If the engine makes noise after an oil change. A knocking or ticking sound after fresh oil means something is wrong. It could be the wrong oil weight, a clogged filter, or a failing component. A mechanic with a stethoscope can pinpoint the source quickly.

If you need to flush the engine. Switching from conventional to synthetic or cleaning sludge requires a professional flush. DIY chemical flushes can dislodge deposits that then clog oil passages. Let a shop handle it.

If you drive a different Toyota model and need the correct fluid specs, we have detailed guides for many popular vehicles. You can find the full specs for the 2024 Tacoma at the link, or check the complete guide for the 2025 Corolla. For SUV owners, we also cover the Highlander oil type requirements in depth.

Specs at a Glance: Oil Capacity, Filter, and Torque Values

Here is every number you need, all in one place. Bookmark this section for your next oil change.

The dipstick on the 2015 Tundra 5.7 has two marks. The lower one is "L" for low. The upper one is "F" for full.

The difference between them is about one quart. Always check the level on a level surface with the engine off and cold for the most accurate reading.

Frequently Asked Questions

Can I use 5W-30 instead of 0W-20?

No. Toyota specifies 0W-20 for the 3UR-FE engine. Thicker oil reduces flow through the VVT-i phasers and hydraulic tensioners.

This can cause timing chain rattle and reduced engine performance over time. Stick with 0W-20.

Is the capacity the same with a remote filter?

No. Remote oil filter kits add extra hose length and filter housing volume. Total capacity increases by roughly 0.3 to 0.5 quarts depending on the kit.

Consult the kit manufacturer for the exact fill volume. Always check the dipstick after adding the initial amount.

How do I know if I overfilled?

Check the dipstick on a level surface. If the oil level is above the "F" mark, you have overfilled. Symptoms include a rough idle, oil leaks from seals, and a burning oil smell.

Drain the excess immediately by loosening the drain plug slightly.

Does towing change how much oil I need?

The total capacity stays the same at 6.9 quarts. But towing is considered severe service. Change the oil every 5,000 miles instead of 10,000.

The oil degrades faster under load and higher temperatures. More frequent changes protect the engine better than adding extra oil.

What happens if I use the wrong oil filter?

The wrong filter may not flow enough oil at idle. It can also have a different bypass valve pressure rating. This starves the engine of oil during cold starts or high RPM operation.

Always use a filter that meets or exceeds Toyota's specifications. The OEM 04152-YZZA1 is the safest choice.

Can I switch from synthetic to conventional oil?

You can, but it is not recommended. The 3UR-FE engine was designed for synthetic 0W-20. Conventional oil does not hold up as well under high heat and load.

It breaks down faster, especially during towing. Stick with synthetic for the best protection and longest engine life.

The Bottom Line: What to Remember

The 2015 Toyota Tundra 5.7 oil capacity is 6.9 quarts with a filter change. Use 0W-20 full synthetic oil meeting API SN or ILSAC GF-5 standards. Change the filter every time.

Pre-fill the filter before installation. Torque the drain plug to 27 lb-ft. Follow the severe service schedule if you tow, drive in dust, or take short trips.

These simple steps will keep the 3UR-FE running strong for well over 300,000 miles. Your Tundra is built to last. Give it the right oil, and it will return the favor.
