If you're searching for answers about 2017 toyota rav4 problems, you're not alone. Owners have reported everything from excessive oil consumption to a frustrating transmission shudder between 30 and 45 mph. Some issues are minor annoyances.
Others need attention before they turn into expensive repairs.
Toyota's own technical service bulletins confirm several of these complaints. TSB 0060-17 addresses oil consumption on the 2.5L engine, and TSB 0057-17 covers the transmission hesitation. Knowing which bulletin applies to your car saves time and money at the shop.
Let's walk through the most common problems step by step.
Image source: Bing (Web (fair-use with source credit))
Quick Answer
The most common 2017 Toyota RAV4 problems are excessive oil consumption, transmission shudder, infotainment freezing, and water leaks. Toyota has issued technical service bulletins for most of these issues. The good news is that many have straightforward fixes.
What's Your 2017 RAV4 Doing? Start Here (Symptom Identification)
The first step is matching your symptom to the right problem. Different issues show up at different times and under different conditions. Here is what to look for based on what you are experiencing.
If you notice a shudder or vibration between 30 and 45 mph when the engine is warm, that points to the transmission. If the engine is using more than a quart of oil every 1,000 miles, you are looking at the oil consumption issue. A clicking sound behind the dashboard when you adjust the temperature means the blend door actuator is failing.
Water on the passenger side floor usually comes from clogged sunroof drains.
Common symptoms and their likely causes:
- Shudder at 30-45 mph, Transmission torque converter or valve body
- Oil level dropping fast, Piston ring or PCV valve issue
- Clicking behind dash, Blend door actuator
- Infotainment screen frozen, Entune software glitch
- Water on floor mats, Clogged sunroof drains
- Brake pedal vibration, Warped front rotors
- Clunk from rear, Loose sway bar links
- Check engine light, Several possibilities (see the code section below)
If you are experiencing more than one symptom, start with the one that affects drivability first. Oil consumption and transmission issues take priority over interior noises. Focus on safety-related problems immediately.
Engine Oil Consumption: Is It Normal or a Problem?
The short answer is no. Not when it exceeds one quart per 1,000 miles.
Toyota's 2.5L 2AR-FE engine in the 2017 RAV4 has a known issue with oil consumption. The problem stems from piston ring design that allows oil to bypass the rings and burn in the combustion chamber. Owners report adding a quart of oil every 1,000 to 2,000 miles once the engine passes 60,000 miles.
Image source: Bing (Web (fair-use with source credit))

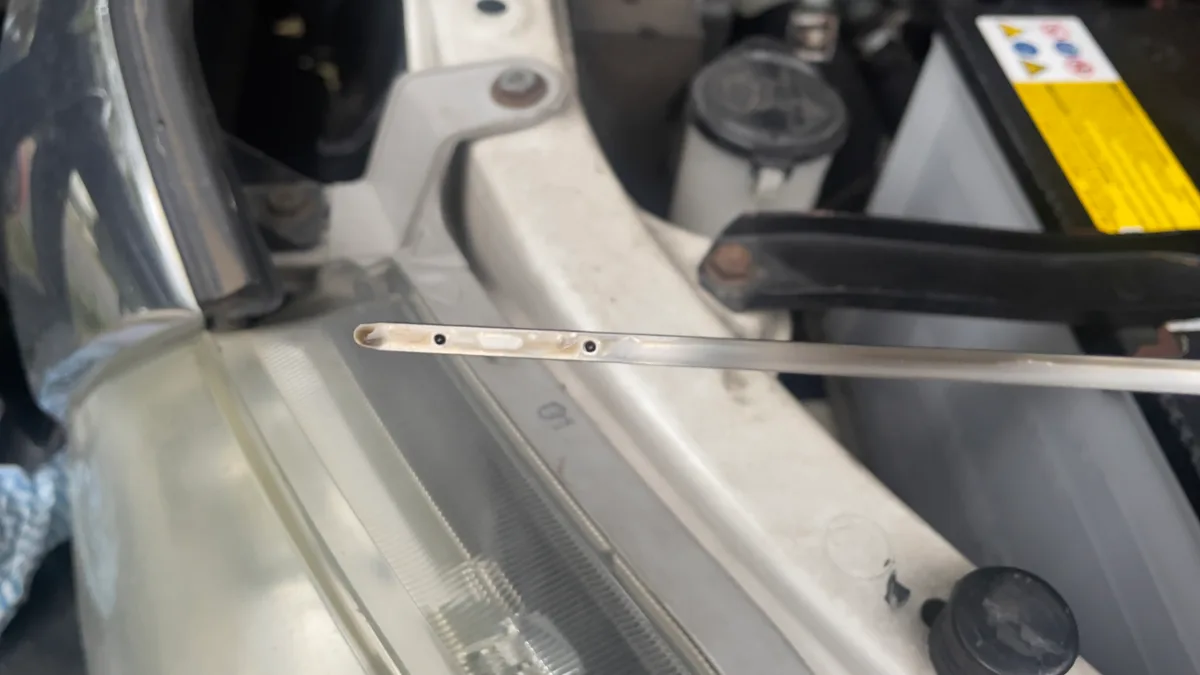

How to check your oil consumption correctly
- Park on level ground and let the engine cool for at least 10 minutes.
- Pull the dipstick, wipe it clean, and reinsert it fully.
- Pull it again and check the level. It should be between the low and full marks.
- Top off to the full mark and note the mileage.
- Drive for 1,000 miles and check again. If the level drops below the low mark, you have excessive consumption.
What to do about it
If you are still under warranty or within the powertrain warranty extension, Toyota may cover a piston ring replacement. The fix involves replacing the rings and often the short block. Out of warranty, expect to pay $3,000 to $5,000 for the repair.
Some owners report success with switching to a high-mileage oil or using a piston ring cleaner additive. These are temporary measures at best. The permanent fix is mechanical.
If your RAV4 is under 10 years old or has under 100,000 miles, check your VIN on the National Highway Traffic Safety Administration website for any warranty extension coverage on this issue. Toyota has offered goodwill repairs in some cases.
Transmission Shudder or Hesitation: A Step-by-Step Diagnosis
If you feel a shudder or hesitation between 30 and 45 mph, especially when the engine is warm and you are lightly accelerating, you are dealing with the 6-speed automatic transmission's most common issue.
The cause is usually the torque converter clutch not engaging smoothly. Toyota issued TSB 0057-17 for this exact problem. The fix depends on the severity.
Step 1: Confirm the symptom
Pay attention to when the shudder happens during your next drive. It typically occurs in 4th or 5th gear at light throttle. If the transmission is cold, the problem may not appear.
Drive for 15 to 20 minutes first.
Step 2: Check the transmission fluid
The 2017 RAV4 has a sealed transmission with no dipstick. Checking fluid level requires a scan tool and a lift. If you are not comfortable with this, skip to step 3.
Step 3: Try the fluid flush
Toyota's first recommended fix is a transmission fluid exchange using Toyota WS fluid. This costs $150 to $300 at a dealership. Many owners report the shudder disappears after a flush.
Step 4: If the flush does not work
The next step is a valve body replacement or a torque converter replacement. This is more expensive, typically $1,500 to $2,500. Some owners have had success with a transmission control module reprogramming first.
If you are still under warranty, push for the torque converter replacement. It is the most complete fix.
Infotainment and Electrical Glitches: Quick Fixes vs. Deeper Issues
The Entune 3.0 system in the 2017 RAV4 has a reputation for freezing, lagging, and dropping Bluetooth connections. The good news is that most of these issues are software-related and fixable without a trip to the dealer.
Quick fixes to try first
- Reset the system. Hold the power button for 10 to 15 seconds until the screen goes black. Wait 30 seconds and turn it back on.
- Update the firmware. Toyota has released several updates for Entune. Check for updates on the Toyota website using your VIN. You can download the update to a USB drive and install it yourself.
- Reset your phone connection. Delete the RAV4 from your phone's Bluetooth settings and delete your phone from the car. Pair them again fresh.
If the screen is unresponsive or shows a blank display, the issue could be a loose connection behind the head unit. This is less common but worth checking if you are handy with trim removal tools.
Battery drain is another electrical complaint. Some owners find their battery dead after sitting for a few days. The culprit is often a module that does not go to sleep, like the telematics unit or the blind spot monitor system.
A dealer can run a parasitic draw test to identify the offending module.
The rear view camera is part of the same infotainment system. If your camera shows a blank screen or distorted image, check the wiring harness in the liftgate. The wires can break from repeated opening and closing.
We have covered this in more detail in our guide on common Toyota camera issues.
Suspension Noises and Ride Quality: What That Clunk Means
A clunking or knocking sound from the rear of your 2017 RAV4 is almost always the sway bar links. These are the small metal rods that connect the sway bar to the suspension. They wear out over time, especially on vehicles driven on rough roads.
How to check
Park on level ground. Reach behind the rear wheel and grab the sway bar link. If it moves freely or makes a clunking sound when you shake it, it needs replacement.
A good link should be tight with no play.
Replacement is straightforward and affordable. A pair of aftermarket sway bar links costs $30 to $60. Labor adds another $50 to $100 if you have a shop do it.
If you are handy with basic tools, you can do it yourself in under an hour.
Other suspension noises to watch for
- A creaking sound from the front when turning at low speed often points to worn strut mounts.
- A knocking from the front over bumps could be loose stabilizer links or worn control arm bushings.
- A grinding noise when turning is usually a failing wheel bearing.
If you are unsure about the source, have a mechanic inspect the suspension components. A loose sway bar link will not cause a safety issue immediately, but it will wear out other parts faster.
Brake Vibration and Premature Wear: Warped Rotors or Something Else?
A pulsing brake pedal or vibration through the steering wheel when you stop is a common complaint. The usual culprit is warped front rotors. The 2017 RAV4 is heavy enough to put real heat into the brakes, and the factory rotors are not the thickest.
How to tell if your rotors are warped
You will feel the vibration most at highway speeds when you apply moderate brake pressure. The steering wheel may shake. If the vibration is only in the brake pedal, the rear rotors may be the cause.
If the whole car shudders, all four rotors could be the issue.
The factory rotors on the 2017 RAV4 measure 11.65 inches in the front and 11.06 inches in the rear. Minimum thickness is stamped on the rotor hat. A machinist's micrometer will tell you if they are still in spec.
What to do about it
Brake rotors are a wear item. They are not covered under warranty after the first year or 12,000 miles. Your options are resurfacing or replacement.
| Option | Cost | Time | Best For |
|---|---|---|---|
| Resurface rotors | $40 to $80 per axle | 30 minutes | Rotors above minimum thickness |
| Replace with OEM rotors | $200 to $400 per axle | 1 hour | Owners keeping the car long term |
| Replace with aftermarket rotors | $120 to $250 per axle | 1 hour | Budget-conscious owners |
A note on premature wear
If you are replacing rotors every 20,000 miles or less, check for a stuck caliper slide pin. A caliper that does not release fully will overheat the rotor and warp it quickly. Replace the caliper hardware or the entire caliper if needed.
Water Leaks and Cabin Moisture: Finding the Source
Finding water on the passenger side floor is frustrating. The 2017 RAV4 has a known issue with clogged sunroof drains. The drains are small rubber tubes that run from the sunroof frame down the A-pillars to the ground.
Leaves, dirt, and debris can block them.
How to test the drains
Open the sunroof fully. Pour a small amount of water into the drain channel at the front corners. The water should flow out onto the ground near the front tires.
If it pools in the channel or spills into the cabin, the drain is clogged.
Image source: Bing (Web (fair-use with source credit))
Clearing the clog
Use a piece of weed trimmer line or a specialized drain cleaning tool. Gently feed it into the drain opening and push it through. Do not use compressed air.
You can blow the tube off the nipple and create a bigger leak.
Other leak sources to check
- Roof rail gaskets. If your RAV4 has roof rails, the bolts can leak. Remove the rail covers and apply a bead of silicone sealant around each bolt.
- Door seals. A torn or misaligned door seal will let water in. Inspect the rubber seals for cracks and gaps.
- Windshield seal. A failing windshield seal is rare but possible. Look for water running down the inside of the glass.
If you find standing water, dry the carpet thoroughly. Lift the carpet and remove the foam padding if it is soaked. Mold can develop quickly in warm climates.

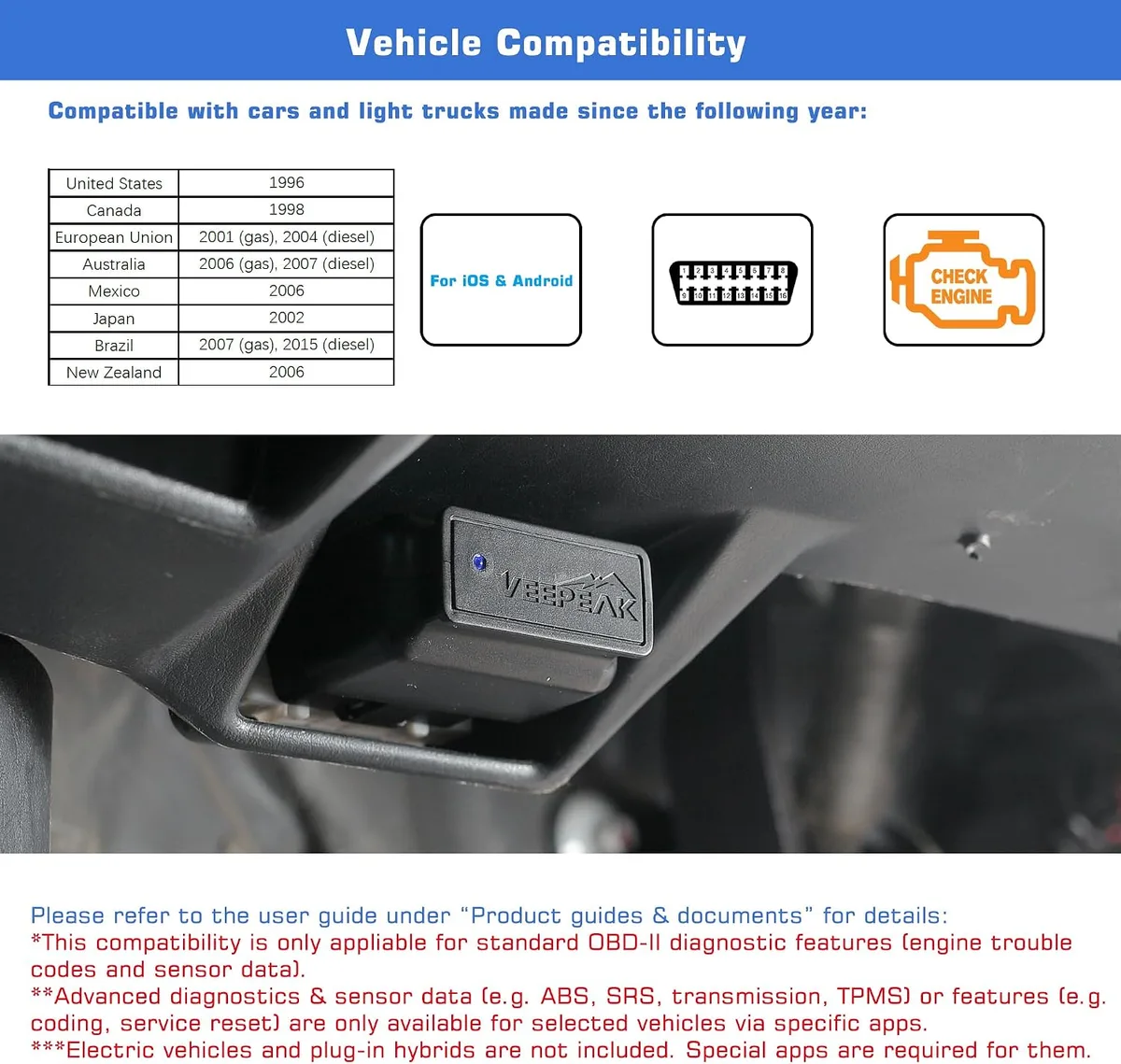

Check Engine Light: Reading the Code and Deciding the Next Step
A check engine light can mean anything from a loose gas cap to a failing catalytic converter. The 2017 RAV4 has several common codes that point to specific problems.
Image source: Web (Bing) / manuals.plus (Web image (fair-use with source credit))
Common codes and what they mean
| Code | What It Means | Most Likely Fix |
|---|---|---|
| P0171 | System too lean | Clean MAF sensor, check for vacuum leaks |
| P0420 | Catalyst efficiency below threshold | Replace catalytic converter (often oil-related) |
| P0300 | Random misfire | Replace ignition coils and spark plugs |
| P0455 | Evaporative emission system large leak | Tighten gas cap, replace cap if needed |
| P0012 | Variable valve timing over-retarded | Replace VVT solenoid, check oil level |
Step-by-step for a check engine light
- Read the code. Use an OBD-II scanner. They cost $20 to $50 for a basic model. Many auto parts stores will read the code for free.
- Look up the code. Match it to the table above or search for it online. Write down the code and the freeze frame data.
- Check the gas cap. This is the simplest fix. Tighten it until it clicks. If the light does not go off after 20 to 30 miles, move to the next step.
- Clear the code and drive. If the light comes back immediately, you have an active problem. If it stays off for a week, it may have been a temporary glitch.
- Diagnose further. Use the code to guide your repair. P0171 often means a dirty MAF sensor. Clean it with CRC MAF cleaner. P0300 usually means coils or plugs.
If the code is P0420 and you have oil consumption, the catalytic converter is likely damaged. Replace the converter only after fixing the oil consumption issue. Otherwise the new converter will fail too.
A/C and Climate Control Malfunctions: When to Repair vs. Replace
The most common A/C problem in the 2017 RAV4 is a clicking sound behind the dashboard. That is the blend door actuator. It controls the temperature blend door.
When the plastic gears inside strip, the actuator clicks and cannot move the door properly.
Is it the actuator or the A/C system?
If the A/C blows cold but you cannot control the temperature, it is the actuator. If the air is warm all the time, you have a refrigerant issue.
Blend door actuator replacement
The actuator is behind the glove box. You can replace it yourself in about 30 minutes. The part costs $40 to $80.
Remove the lower trim panel, unbolt the old actuator, and install the new one. No special tools are needed.
Refrigerant issues
If the A/C blows warm air, check the refrigerant pressure first. The 2017 RAV4 uses R-1234yf refrigerant. This is newer and more expensive than older R-134a.
A recharge kit for R-1234yf costs $50 to $100.
If the system has a leak, you will need a shop to find and repair it. Common leak points are the compressor shaft seal and the condenser. Compressor replacement runs $800 to $1,200.
Condenser replacement runs $400 to $700.
Recalls and Warranty: What's Covered and How to Check
The 2017 RAV4 has several recalls and warranty extensions. Checking your vehicle's status is free and takes two minutes.
How to check for recalls
Go to the NHTSA website and enter your VIN. The 17-digit VIN is on the driver side dashboard near the windshield and on the driver door jamb sticker. The site will show any open recalls for your specific vehicle.
Key recalls for the 2017 RAV4
- Shift cable grommet (20TA). The grommet that holds the shift cable can deteriorate, causing the shift lever to not match the transmission position. This is a safety issue. Toyota replaces the grommet for free.
- Fuel pump (20SB). The fuel pump can fail, causing a stall. This affects some 2017 RAV4s. Replacement is free.
- Curtain airbag inflator. Some vehicles have a Takata inflator that can rupture. Toyota replaces the inflator at no charge.
Warranty extensions
Toyota has extended the warranty on the oil consumption issue for some vehicles. The coverage is typically 10 years or 100,000 miles from the original in-service date. This applies to the piston ring repair only.
Your powertrain warranty covers the engine and transmission for 5 years or 60,000 miles. The bumper-to-bumper warranty covers everything else for 3 years or 36,000 miles. If you bought a Certified Pre-Owned RAV4, you get an additional 7-year or 100,000-mile limited warranty from the original sale date.
If you are out of warranty but have a known issue, call Toyota Customer Experience at 1-800-331-4331. They may offer goodwill assistance, especially if you have service records from a Toyota dealer.
Maintenance Schedule That Prevents Most Problems
Stick to the factory maintenance schedule and you will avoid most of the common issues. Toyota recommends oil changes every 5,000 miles for the 2.5L engine. Use 0W-20 synthetic oil.
Ignore the 10,000-mile interval in the owner's manual. That interval is too long for this engine.
The transmission fluid is labeled as lifetime fill. Do not believe it. Plan a fluid exchange every 60,000 miles.
This alone prevents the shudder issue.
Coolant needs replacement at 50,000 miles and then every 30,000 miles after that. Brake fluid should be flushed every 30,000 miles. Replace the cabin air filter every 15,000 miles.
Clogged filters reduce A/C performance.
Common Mistakes Owners Make (and How to Avoid Them)
The biggest mistake is ignoring the oil level. Check it every 1,000 miles. Run it low and you risk engine damage.
Another common error is using the wrong transmission fluid. The 2017 RAV4 requires Toyota WS fluid. Aftermarket fluids can cause shifting problems.
Do not skip the TSB checks. Many owners pay for repairs that Toyota would have covered under a bulletin. Always check for open recalls and TSBs before paying a mechanic.
DIY vs. Dealer: The Cost Breakdown for Common Repairs
Some jobs are straightforward DIY. Others require dealer tools and software.
| Repair | DIY Cost | Dealer Cost | Best For |
|---|---|---|---|
| Oil change | $30 to $40 | $60 to $80 | DIY |
| Brake pads and rotors | $150 to $250 | $400 to $600 | Either |
| Transmission fluid flush | $50 to $80 | $150 to $300 | Dealer |
| Blend door actuator | $40 to $80 | $200 to $400 | DIY |
| Spark plugs and coils | $150 to $250 | $400 to $600 | DIY |
| Valve body replacement | N/A | $1,500 to $2,500 | Dealer only |
Stick to DIY for oil, brakes, and the actuator. Leave transmission work and internal engine repairs to the dealer.
Should You Buy or Sell a 2017 RAV4? A Decision Guide
If you already own one, keep it. The issues are well documented and mostly fixable. The RAV4 still holds strong resale value.
Selling it now means taking a loss on a car that has years of life left.
If you are buying one used, get a pre-purchase inspection. Check the oil consumption history. Look for service records.
Avoid examples with multiple transmission repairs. A clean 2017 RAV4 with 60,000 to 80,000 miles is a solid buy at $18,000 to $22,000 as of 2026.
The 2017 model is better than the 2016 in terms of features. It is worse than the 2019 redesign in terms of engine refinement. But it is cheaper than both.
Frequently Asked Questions
How much oil does a 2017 RAV4 burn?
Some owners report burning one quart every 1,000 to 2,000 miles. Toyota considers this excessive. The fix involves replacing the piston rings under warranty extension.
Is the transmission shudder covered under warranty?
Yes, if you are within the 5-year or 60,000-mile powertrain warranty. Toyota TSB 0057-17 covers this issue. A fluid flush or torque converter replacement is the fix.
Can I fix the oil consumption myself?
Not permanently. You can try a piston ring cleaner additive or switch to high-mileage oil. These are temporary.
The permanent fix is a piston ring replacement by a dealer.
Does the 2017 RAV4 hybrid have the same problems?
No. The hybrid uses a different transmission and a different engine. It does not have the oil consumption or transmission shudder issues.
The hybrid is more reliable overall.
How do I check for recalls on my 2017 RAV4?
Enter your 17-digit VIN on the NHTSA website. The site shows all open recalls. You can also call Toyota at 1-800-331-4331.
