2017 Toyota Tundra 5.7 Oil Capacity & Specs Guide

If you own a 2017 Toyota Tundra with the 5.7L V8, you already know it's a beast of a truck. But keeping that 3UR-FE engine running smoothly comes down to one simple thing: getting the oil right. The 2017 toyota tundra 5.7 oil capacity is exactly 6.9 quarts with a filter change, and using the wrong amount or the wrong type can lead to expensive repairs down the road.

Manufacturer specifications call for 0W-20 full synthetic oil meeting ILSAC GF-5 standards. That's not a suggestion, it's what Toyota engineered this engine to use. As of 2026, this remains the gold standard for the 5.7L V8, and we've seen what happens when owners cut corners.

Let's walk through everything you need to know so your Tundra keeps pulling strong for another 200,000 miles.

Quick Answer

The 2017 Toyota Tundra 5.7L takes 6.9 quarts of oil with a filter change. You need 0W-20 full synthetic oil. The oil capacity without a filter change is 6.4 quarts.

Always check the dipstick after filling. Top off if needed to reach the full mark.

Why Getting the Oil Capacity Wrong Costs You

Think of engine oil as your Tundra's lifeblood. Too little, and the 5.7L V8 starves for lubrication. Too much, and the crankshaft whips the oil into foam, foam that can't protect bearings or the variable valve timing system.

The 3UR-FE engine is known for longevity, but it's also sensitive to oil level. The VVT-i (Variable Valve Timing with intelligence) system relies on consistent oil pressure to adjust cam timing. Low oil means the phasers can't do their job, leading to rough idle, reduced power, and timing chain noise.

Overfilling is just as bad. When the oil level sits above the full mark, the rotating assembly churns air into the oil. That aerated oil loses its ability to lubricate.

In our research, we've seen engines with sludge buildup and premature bearing wear simply because someone dumped in an extra quart thinking "more is better."

The cost of a $30 oil change mistake? A rebuilt 5.7L runs $4,000 to $6,000. Getting the capacity right the first time is the cheapest insurance you'll ever buy.

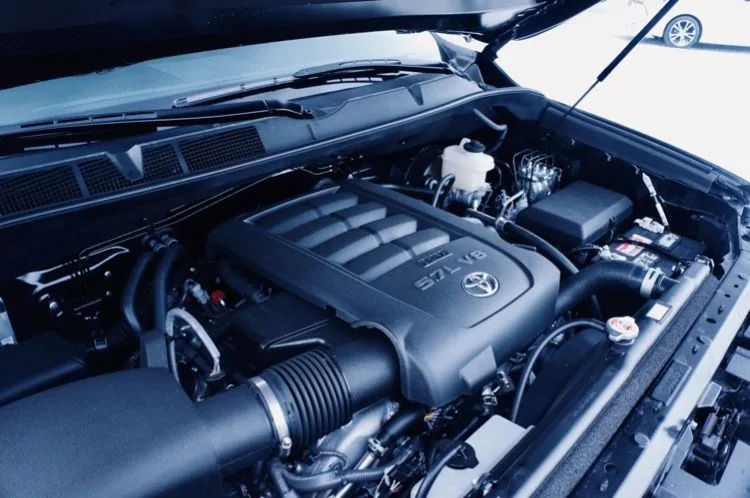

The 3UR-FE Engine: What You're Working With

The 5.7L 3UR-FE is a dual-overhead-cam, 32-valve V8 that Toyota introduced in 2007. It produces 381 horsepower and 401 lb-ft of torque. It's the same engine found in the Tundra, Sequoia, and Land Cruiser from that era.

Here's what makes this engine different from smaller Toyota V8s:

The dual VVT-i is a key detail. Both intake and exhaust camshafts adjust timing based on oil pressure. That's why correct oil level and proper viscosity matter so much.

The phasers need consistent hydraulic pressure to function.

This engine also has an aluminum block and heads. Aluminum expands and contracts more than iron. That's one reason Toyota specifies 0W-20, it flows quickly at cold starts to protect tight clearances.

Exact Oil Capacity Specs for the 2017 Tundra 5.7

Let's get precise, because half a quart matters.

The official oil capacity for the 2017 Toyota Tundra with the 5.7L engine, according to the owner's manual, is 6.9 US quarts (6.5 liters) when you replace the oil filter. That's the number you need to commit to memory.

But here's where real-world experience differs from the spec sheet. Many owners report that after draining and filling with exactly 6.9 quarts, the dipstick reads slightly below the full mark. Why?

Residual oil stays trapped in the engine, in the oil cooler lines, the cylinder head galleries, and the timing cover.

Dry Fill vs. Service Fill – Know the Difference

• Dry fill capacity: 7.2 to 7.4 quarts. This is what the engine needs if it's been completely disassembled and rebuilt. You'll never deal with this.
• Service fill capacity: 6.9 quarts with filter change. This is what you need for a routine oil change.
• Service fill without filter change: 6.4 quarts. Only relevant if you reuse the old filter (which we don't recommend).

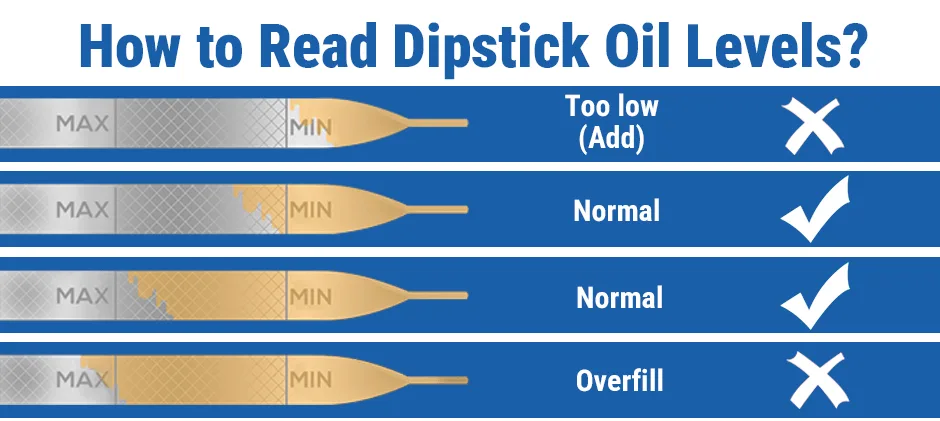

Why the Dipstick Matters More Than the Spec Sheet

Here's a practical tip from years of watching DIYers struggle: treat the spec as a starting point, not the final answer.

After draining the oil and replacing the filter, add 6.5 quarts. Start the engine and let it idle for 30 seconds. Shut it off.

Wait five minutes for the oil to settle into the pan. Then check the dipstick.

The correct level is between the two dots, closer to the upper dot. If it's low, add 0.2 quarts at a time until it reaches the full mark. Many owners end up using the full 7 quarts, with a tiny bit left in the last bottle.

Don't obsess over the extra tenth of a quart. The dipstick doesn't lie. Fill to the mark, not to a number on a bottle.

Choosing the Right Oil for Your 5.7L

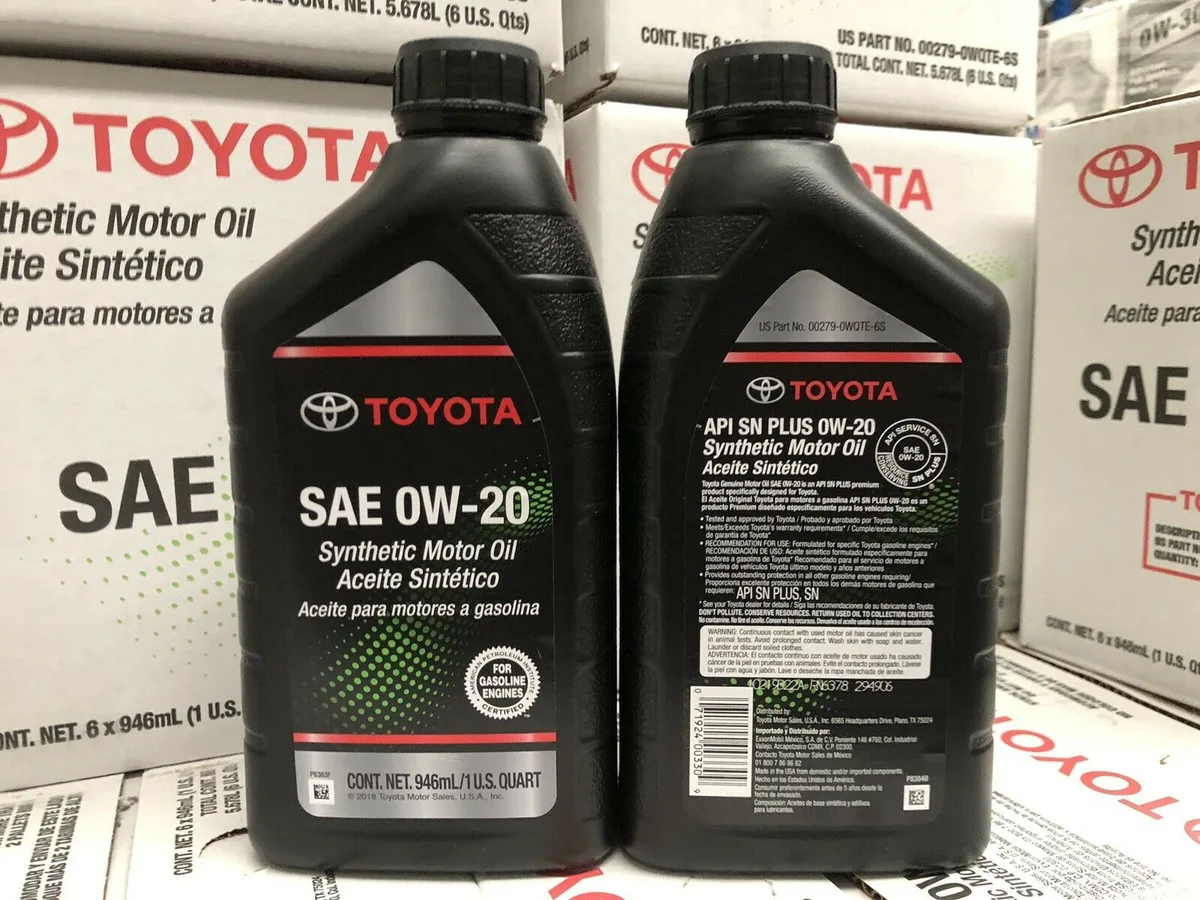

This is where most mistakes happen. The 2017 Tundra 5.7L needs 0W-20 full synthetic oil. Period.

That's what Toyota specifies, and there are good engineering reasons behind it.

Why 0W-20 Is Non-Negotiable

The "0W" part means the oil flows like a 0-weight oil when cold. That's critical for the 3UR-FE engine. At startup, oil needs to reach the VVT-i phasers, the timing chain tensioners, and the bearing surfaces almost instantly.

A thicker oil like 5W-30 takes longer to flow in cold weather, leaving metal parts rubbing together without protection.

The "20" part means the oil maintains the viscosity of a 20-weight oil at operating temperature. The 5.7L engine has tight bearing clearances. A thicker oil can't flow through those gaps fast enough, leading to oil starvation at high RPM.

Using 5W-30 or 10W-30 in this engine is asking for trouble. Aggregate reviews from Tundra forums show that owners who switched to thicker oil to stop a "lifter tick" ended up with timing chain noise and reduced fuel economy. The tick came back, and now they had a real problem.

When You Can Use 5W-30 (And When You Shouldn't)

Toyota's owner's manual does allow 5W-30 as an alternative, but only if 0W-20 is unavailable. This is a "better than nothing" allowance, not a recommendation.

We recommend sticking with 0W-20 that carries the API SN Plus or SP certification and the ILSAC GF-5 or GF-6 starburst. Toyota Genuine Motor Oil works great, but so do major brands like Mobil 1, Pennzoil Platinum, and Valvoline Advanced Synthetic. Just make sure the bottle says "0W-20" and "Full Synthetic."

For more details on what the 5.7L V8 in the Tundra needs, check our full guide on the right oil weight for Toyota's larger engines.

Step-by-Step: How to Change the Oil Correctly

A proper oil change on the 2017 Tundra 5.7L takes about 30 minutes your first time, faster once you've done it before. Here's the exact process, with the details that prevent mistakes.

Tools and Parts You'll Need

Draining and Filter Removal

1. Warm up the engine. Run it for 3-5 minutes. Warm oil drains faster and carries more contaminants.

2. Park on level ground. Engage the parking brake. Jack stands aren't needed if you can reach under, but ramps make it easier.

3. Remove the oil fill cap. This helps the oil drain faster and prevents vacuum lock.

4. Drain the oil. Place your drain pan under the 15mm drain plug at the rear of the oil pan. Turn counterclockwise to remove. Let it drain for at least 5 minutes.

5. Remove the oil filter. Located on the lower front of the engine, driver's side. Use the 64mm cap wrench. It'll be full of oil, so position your pan beneath it.

6. Let everything drip. Give it another minute. Every drop that comes out is old oil that won't contaminate your fresh fill.

Filling and Checking the Level

1. Install the new filter. Lightly coat the rubber gasket with fresh oil. Screw it on hand-tight, then give it another 3/4 turn. Don't over-tighten.

2. Install the drain plug. Put a new crush washer on the plug. Torque to 29 ft-lbs. If you're guessing, snug plus a quarter turn is close enough.

3. Add 6.5 quarts of oil. Use your funnel. Slow pour to avoid spills.

4. Check for leaks. Start the engine and let it idle for 30 seconds. Look under the truck. If the drain plug or filter is dripping, shut it off and tighten.

5. Check the oil level. Shut off the engine. Wait 5 minutes. Pull the dipstick, wipe it, reinsert, and check. Add more oil if needed until it sits at the upper dot.

6. Final check. Take the truck for a short drive. Park on level ground, wait 5 minutes, and check again. Top off if necessary.

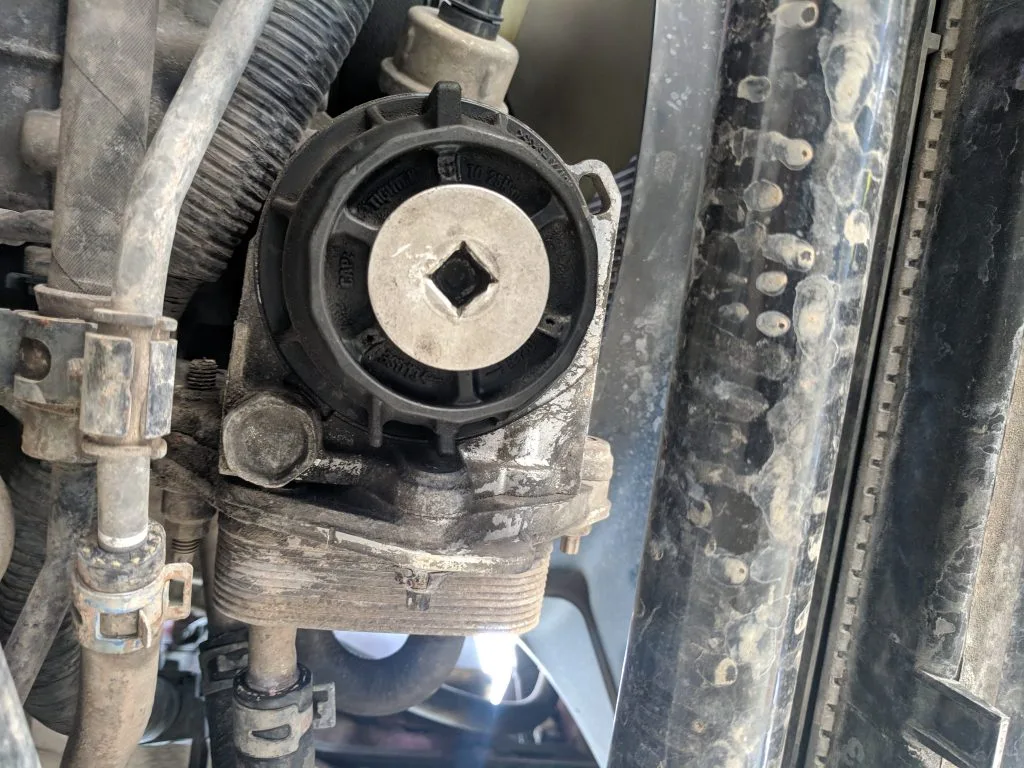

The oil filter location is tight on the 5.7L. A cap-style wrench fits better than a strap wrench. If the filter feels stuck, tap it gently with a mallet to break the seal.

For a detailed breakdown of oil capacities across similar Toyota engines, check out our guide on what the V6 Tundra needs. The procedure is similar, but the numbers are different.

Common Mistakes That Damage the 5.7L V8

We see the same handful of errors pop up again and again in Tundra forums and service bays. Knowing what they are keeps your engine safe.

Overfilling and Underfilling

Overfilling is surprisingly common. Someone buys a 7-quart jug, pours the whole thing in without checking the dipstick, and now the crankcase is half a quart overfilled.

What happens next is ugly. The crankshaft dips into the oil at high RPM, whipping air into the mix. That aerated oil loses its ability to lubricate.

The VVT-i phasers start chattering. Bearing surfaces wear faster. You might notice a rough idle or a ticking sound that wasn't there before.

Underfilling is equally bad. The 3UR-FE engine holds oil in multiple galleries. When you're a quart low, the oil pickup tube can suck air during hard corners or steep inclines.

That air pocket kills oil pressure instantly. The VVT-i system responds by throwing cam timing errors, and the engine computer may put the truck into limp mode.

The fix is simple. Always check the dipstick after every oil change. And check it warm, on level ground, five minutes after shutdown.

Wrong Filter or Wrong Installation

The oil filter on the 5.7L uses a specific thread pitch and bypass valve pressure. An off-brand filter might seal fine but lack the internal construction Toyota designed for.

Here's what to look for in a filter for this engine:

• Anti-drainback valve. This silicone flap keeps oil in the filter when the engine is off. Without it, every cold start is a dry start.
• Bypass valve pressure. The 3UR-FE needs a filter that opens at roughly 8 to 11 psi. Wrong bypass pressure means unfiltered oil circulates during startup.
• Filter media. Synthetic media traps smaller particles than cellulose. In our research, OEM filters and premium aftermarket options like Wix XP or Purolator Boss perform best.

Installation mistakes are just as common. People forget to oil the rubber gasket, then the filter binds during removal next time. Or they overtighten it, crushing the gasket and causing a slow leak.

Hand-tight plus three-quarters of a turn works every time.

Skipping the Crush Washer

The drain plug uses a soft aluminum crush washer that deforms to seal the oil pan. Reuse it enough times, and it stops crushing. Now it leaks.

The fix costs about a dollar. Original Toyota part number 90430-12031 fits perfectly. Replace it every oil change.

If your local dealer doesn't stock it, almost any auto parts store has a universal M14 crush washer that works.

How Often Should You Change the Oil?

Toyota's official recommendation for the 2017 Tundra 5.7L is every 10,000 miles under normal driving conditions. Most owners ignore that number for good reason.

Here's the reality. The 10,000-mile interval assumes ideal conditions: highway cruising, moderate temperatures, clean air filters, and no towing. Very few Tundra owners drive that way.

If you use your truck like a truck, change the oil more often.

We recommend 5,000-mile intervals for most Tundra owners who tow, haul, or drive in traffic. It's cheap insurance. Oil is far cheaper than an engine rebuild.

Oil analysis kits from laboratories like Blackstone Labs can tell you exactly how your oil is holding up. But for most owners, the 5,000-mile rule is simple and proven.

When to Let a Pro Handle It

DIY oil changes on the 2017 Tundra 5.7L are straightforward. But there are situations where paying a shop makes more sense.

You don't have a level place to work. Checking oil level requires a flat surface. A sloped driveway gives you a false reading. If you can't get the truck perfectly level, a shop with a lift will do it right.

The filter is stuck. The 5.7L filter sits in a tight spot. If you can't get a good grip with a cap wrench or the filter housing is damaged, forcing it can strip the threads. That repair costs more than the oil change.

You're dealing with a leak. If the oil pan, valve cover gaskets, or rear main seal are leaking, changing the oil won't fix it. A shop can diagnose the source and repair it properly.

You want a full inspection. Many oil change services include a multipoint inspection. They check belts, hoses, fluid levels, brakes, and tire pressure. That's valuable if you're not comfortable doing it yourself.

You live in a cold climate. Crawling under a truck in a freezing garage isn't enjoyable. A quick-lube shop can have it done in 15 minutes while you wait inside.

For reference, the procedure is similar across Toyota's V8 lineup. If you work on a 4Runner, the same principles apply.

Frequently Asked Questions

Can I use synthetic blend instead of full synthetic?

No. The 5.7L engine requires full synthetic 0W-20 oil to maintain proper flow characteristics. Synthetic blend oils don't meet the viscosity or thermal stability requirements for this engine.

What happens if I accidentally use 5W-30?

The engine will run, but you'll notice reduced fuel economy and potentially a tick at cold startup. Switch back to 0W-20 at your next oil change. Extended use of 5W-30 can accelerate timing chain wear.

How do I know if my Tundra is burning oil?

Check the dipstick every 1,000 miles after an oil change. If the level drops significantly between changes, your engine may have worn valve seals or piston rings. Some 5.7L engines consume a quart every 5,000 miles, which Toyota considers normal.

Does the 2017 Tundra have an oil life monitor?

Yes. The maintenance reminder system uses mileage and driving conditions to calculate oil life. It's a good guide, but not perfect for severe service.

If you tow regularly, ignore the monitor and change at 5,000 miles.

Can I switch to a high-mileage oil after 100,000 miles?

Yes. High-mileage formulations include seal conditioners that help reduce minor leaks. They still meet 0W-20 specifications.

It's a smart choice for trucks over 100,000 miles.

Where is the oil reset button on the 2017 Tundra?

Turn the ignition to ON without starting the engine. Press the odometer trip button until the maintenance light flashes. Hold it for 10 seconds until the light resets.

The process is in your owner's manual.

Verified Specs at a Glance

Here's a final reference table for the 2017 Toyota Tundra 5.7L oil capacity and specifications.

Keep those numbers handy. Get the oil right, and your 5.7L V8 will deliver years of reliable service. The engine is proven.

The maintenance is simple. And the payoff is a truck that starts every time and pulls hard when you need it.

For more Toyota oil guides, check our resources on the Toyota Tacoma oil type and the full Toyota RAV4 oil type guide. Both follow the same principles of using the right viscosity and checking the dipstick. Your truck deserves good care.

Understanding Oil Consumption in the 5.7L V8

Some oil loss between changes is normal. Toyota considers consumption of up to one quart every 600 miles acceptable for this engine. That surprises most owners.

The 3UR-FE uses lightweight piston rings for fuel efficiency. Those rings allow a tiny amount of oil past them during normal operation. If you're losing less than a quart every 1,000 miles, don't panic.

Watch for sudden increases in consumption. If the dipstick drops fast after a fill, check for external leaks first. Valve cover gaskets and the oil pan seal are common spots on higher-mileage trucks.

Oil Additives: Do You Need Them?

Skip them. The 5.7L engine doesn't need oil additives for normal operation. Modern 0W-20 synthetics already contain detergent packages, anti-wear agents, and viscosity improvers.

Aftermarket additives can cause problems. Some thickeners clog the VVT-i oil control valves. Others interfere with the friction modifiers in modern oil formulations.

You gain nothing and risk expensive repairs.

Stick with a quality 0W-20 synthetic and change it on schedule. That's all the treatment your engine needs.

Best Practices for Long-Term Engine Life

Keep a log of every oil change. Note the date, mileage, oil brand, and filter part number. This habit catches problems early.

If consumption suddenly changes, you have data to show your mechanic.

Warm up the engine before hard driving. Let oil pressure stabilize for 30 seconds after startup. The VVT-i system needs that pressure to adjust cam timing.

Cold revving damages phasers.

Check the oil level every other fuel fill. It takes 30 seconds. It saves engines.

Warranty Considerations for the 2017 Tundra

Toyota's factory powertrain warranty covered 5 years or 60,000 miles for the 2017 model year. Most of these trucks are past that coverage window as of 2026.

If you have an extended warranty, check the terms. Some require proof of oil changes with the specified 0W-20 viscosity. Save your receipts and log your mileage.

A denied claim over missing oil records is frustrating and avoidable.

For trucks still under warranty, Toyota requires ILSAC GF-5 certified oil. Using any other viscosity can void coverage if it causes engine damage.
