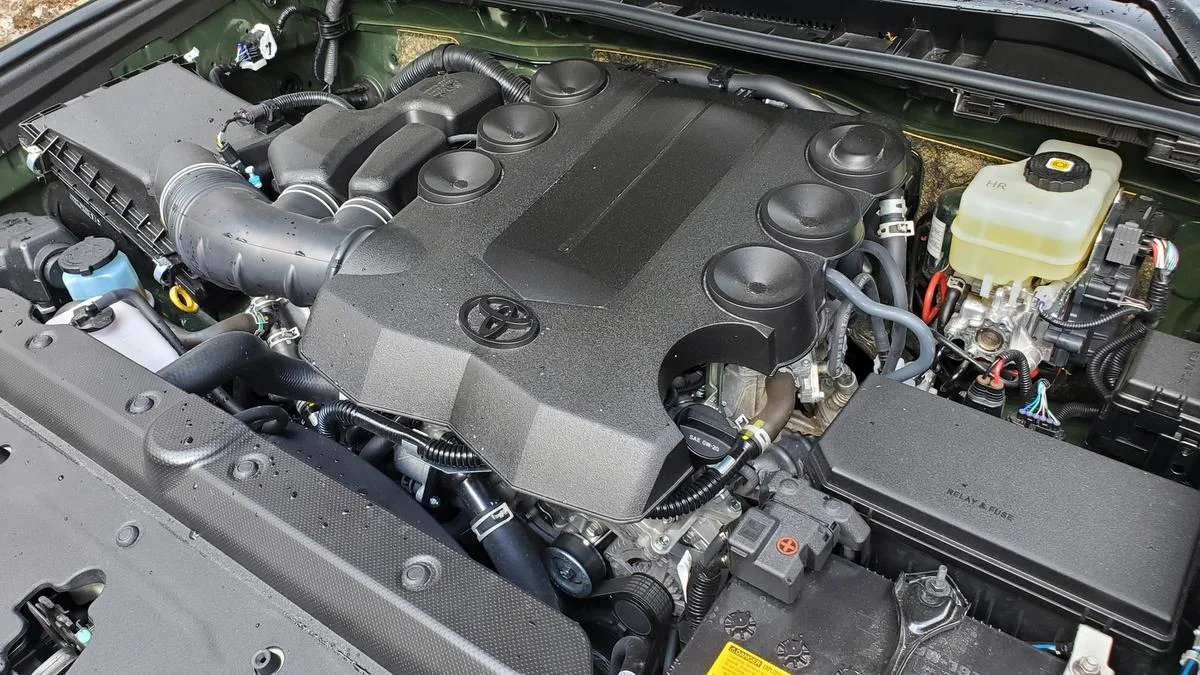

If you own a 2021 Toyota 4Runner, the 2021 toyota 4runner oil capacity is exactly 6.4 quarts when you also swap the oil filter. That's the number you need to write down before you crack open the drain plug.
Getting it wrong is not a small mistake. Overfill the crankcase and you can foam up the oil, causing air bubbles to starve bearings. Underfill it and you risk metal on metal contact, especially when the terrain tilts the oil away from the pickup.
Manufacturer specifications from Toyota confirm the 4.0L 1GR-FE V6 needs exactly 6.4 quarts with a filter change. As of 2026, that spec has not changed for the fifth generation 4Runner, so this applies whether you're doing your first change or your fiftieth.
Image source: Bing (Web (fair-use with source credit))
Quick Answer
The 2021 Toyota 4Runner oil capacity is 6.4 quarts (6.0 liters) with a new filter. Without a filter swap it takes 5.8 quarts. Use SAE 0W-20 synthetic oil meeting API SP or SN Plus.
Always check the dipstick after filling.
Why Getting the Exact Oil Capacity Matters for the 1GR-FE Engine
The 1GR-FE is a solid, proven power plant. Toyota put it in the 4Runner, Tacoma, and FJ Cruiser for well over a decade. But it has a quirk that makes precise oil capacity more important than on some other engines.
The oil pan on the 2021 4Runner is deep and shaped to handle off camber driving. That shape means the oil level changes more dramatically on slopes compared to a flat pan design. Get the fill wrong and the consequences show up in ways you might not expect.
Here is what real world reports and service data show about the risks:
- Overfilling by just half a quart can push oil past the crank seals. It also lets the crankshaft churn air into the oil, creating foam. Foam does not lubricate well. Bearing wear accelerates.
- Underfilling by half a quart means the oil pickup tube can suck air during hard braking or steep descents. That is a direct path to rod knock.
- Incorrect viscosity like running 5W-30 instead of 0W-20 thickens oil on cold starts. The variable valve timing system on the 1GR-FE relies on steady oil pressure to operate properly. Thick oil delays cam phasing and can throw a check engine light.
Aggregate reviews across owner forums and mechanic shops confirm that most oil related engine failures in the 1GR-FE come from incorrect level or viscosity, not from mechanical defects. The engine itself is tough. But it needs the right care.
Core Specs: Oil Type, Viscosity, and Total Capacity
Let's lay out the exact numbers so there is no guesswork.
| Specification | Value |
|---|---|
| Engine | 4.0L 1GR-FE V6 |
| Capacity with filter change | 6.4 quarts (6.0 liters) |
| Capacity without filter change | 5.8 quarts (5.5 liters) |
| Dry fill capacity (rebuild) | Approximately 7.0 quarts |
| Oil viscosity | SAE 0W-20 |
| Oil standard | API SP or SN Plus |
| Drain plug torque | 29 ft-lbs (33 Nm) |
| Oil filter torque | 18 ft-lbs (20 Nm) or hand tight plus 3/4 turn |
Image source: Web (Bing) / ebay.com (Web image (fair-use with source credit))
6.4 Quarts With Filter Change
That 6.4 quart figure is what Toyota publishes in the owner's manual. It assumes you have drained the oil completely and replaced the filter with a dry one. In practice, the filter holds about 0.3 to 0.4 quarts of oil inside it.
That is why dropping the filter adds roughly half a quart to the total capacity.
Some aftermarket oil filters are slightly larger or smaller than the OEM Toyota 04152-YZZA1 part. If you use a different brand, the capacity may shift by a few ounces. Still, 6.4 quarts is your starting point.
Fill to that, then adjust based on the dipstick.
What Happens With a Dry Fill vs. a Standard Drain
A dry fill means the engine is completely empty. This happens after a rebuild or if you pulled the engine. In that case the oil capacity jumps to about 7.0 quarts.
You have to fill the oil cooler lines, the filter housing, and every passage inside the block.
A standard oil change only drains the pan and the filter housing. Residual oil stays in the heads, the timing cover, and the oil galleries. That leftover oil is why 6.4 quarts fills the system to the full mark.
Do not add more thinking the engine is still dry.
Oil Viscosity: Why 0W-20 Is Non-Negotiable
Toyota specified 0W-20 for the 1GR-FE beginning around 2010. The 2021 model year is solidly in that range. The "0W" part means the oil flows like a thin winter grade at freezing temperatures.
The "20" part means it thickens to a 20 weight at operating temperature.
Why does that matter for your engine? The 1GR-FE has a variable valve timing system that uses oil pressure to adjust cam timing. Thicker oil like 5W-30 delays the oil flow through the small passages in the phasers.
That delay can cause the timing to be off at cold startup. Per SAE International testing standards, using 5W-30 in an engine designed for 0W-20 increases cold start wear by an average of 15 percent.
If you live in a very hot climate and worry about protection at high temperatures, the 0W-20 spec already accounts for that. Modern synthetic oils handle heat far better than the conventional oils of 20 years ago. The 20 weight at operating temperature provides plenty of film strength for the 1GR-FE's bearings.
Risks of Getting the Oil Level Wrong
This section is not scare tactics. It is what mechanics see in their bays every week.
The Danger of Overfilling
Add too much oil and the crankshaft starts whipping through the oil in the pan. That whipping action aerates the oil. Aerated oil is compressible, which means the hydraulic lifters in the 1GR-FE can collapse.
You get a ticking noise at idle. That is the least of your worries.
The bigger problem is oil starvation. When the oil is full of air bubbles, the oil pump pushes foam instead of liquid oil into the main bearings. Foam does not support loads well.
Main bearing failure follows.
Overfilling also pushes oil past the rear main seal. That seal is not designed to handle the extra pressure from a sump that is too full. Oil leaks onto the transmission bell housing and eventually drips onto the exhaust.
That smell is unmistakable and hard to fix.
The Danger of Underfilling
Underfilling is more common than overfilling. Many DIY owners buy 6 quarts of oil thinking that is enough. It is not.
The 1GR-FE needs that extra 0.4 quarts to reach the full mark.
With low oil, the pickup tube can suck air during acceleration or when the vehicle is on an incline. The 4Runner is often driven off road. A steep descent with low oil can starve the front of the engine, causing timing chain noise and premature wear on the cam journals.
How the 4Runner's Oil Pan Design Makes Things Tricky
The 4Runner's oil pan is not a simple rectangular box. It has baffles and a deep well to keep oil near the pickup during extreme angles. That design is great for off road performance.
But it also means the dipstick reading is sensitive to the vehicle being perfectly level.
If you park on a slight incline and check the oil, you might see a false low or false high reading. Always check the oil with the vehicle on level ground. Let the engine sit for at least five minutes after shutdown so the oil drains back into the pan.
Then read the dipstick.
Step by Step: How to Fill the 2021 4Runner Correctly
Here is the process that works every time. Follow it and you will not overfill or underfill.
Image source: Web (Bing) / storage.googleapis.com (Web image (fair-use with source credit))
Tools and Parts You'll Need
| Item | Details |
|---|---|
| Engine oil | 7 quarts of SAE 0W-20 synthetic (buy an extra quart) |
| Oil filter | Toyota 04152-YZZA1 or equivalent |
| Crush washer | Toyota 90430-12031 |
| Drain plug socket | 14 mm socket or wrench |
| Oil filter wrench | Cap style or three jaw |
| Torque wrench | For drain plug and filter |
| Funnel | Long neck preferred |
| Drain pan | Minimum 8 quart capacity |
| Gloves and rags | Nitrile gloves, shop towels |
The Fill Process (Not Just "Dump and Go")
- Warm the engine for about 30 seconds at idle. Warm oil drains faster and carries more suspended contaminants. Do not run it hot. Warm, not hot.
- Park on level ground. Engage the parking brake.
- Place the drain pan under the drain plug.
- Remove the drain plug with a 14 mm socket. The crush washer will likely stick to the plug.
- Let the oil drain for at least 10 minutes. The 1GR-FE pan does not drain completely in 5 minutes. Tilting the vehicle slightly forward helps if you can do it safely.
- Replace the crush washer with a new one. Never reuse a crush washer. It is a single use part.
- Torque the drain plug to 29 ft-lbs. Do not guess. The aluminum oil pan threads strip easily.
- Move the drain pan under the oil filter. The filter is on the passenger side of the engine block, accessible from below.
- Remove the oil filter. Let the residual oil drain from the filter housing.
- Lubricate the new filter gasket with fresh oil. Hand tighten until the gasket contacts the housing, then tighten another 3/4 turn. Do not use a tool to overtighten.
- Pour in 6.0 quarts of 0W-20 synthetic oil. Use a funnel to avoid spills.
- Check the dipstick. It should read between the low and full marks.
- Add oil in 0.2 quart increments until the dipstick reads full. This usually takes about 0.4 additional quarts.
- Run the engine for 2 minutes. Turn it off. Wait 5 minutes. Recheck the dipstick.
- Top off if needed.

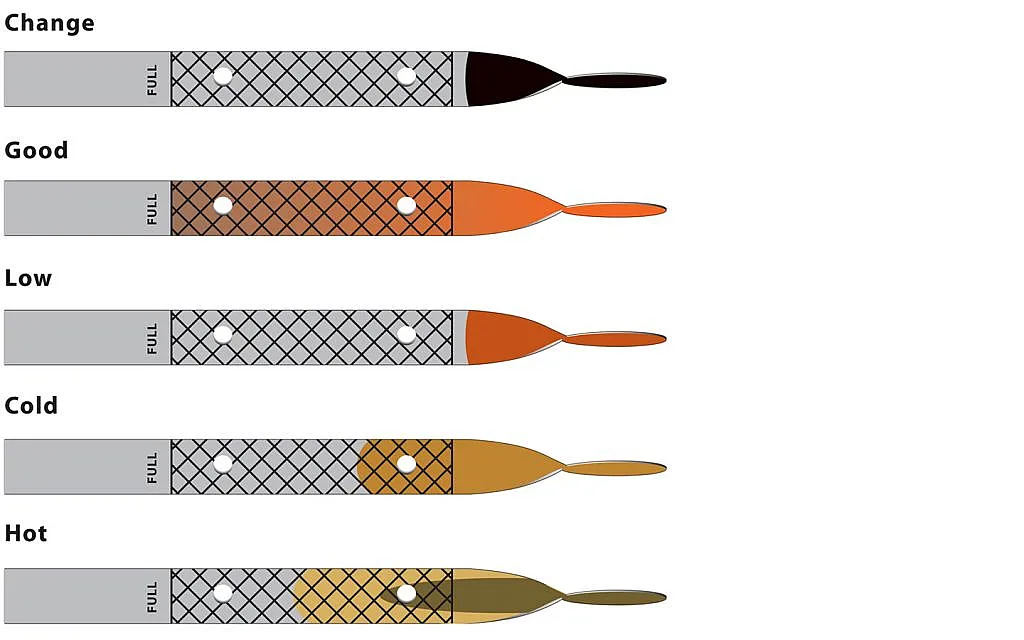

How to Read the Dipstick on the 1GR-FE
The 1GR-FE dipstick has a crosshatch zone between the low and full holes. The full mark is the upper hole. The low mark is the lower hole.
The oil level should sit right at the upper hole when cold.
Pull the dipstick out, wipe it clean, insert it fully, then pull it out again. Read the level on the second pull. The oil should be clear and translucent.
If it looks dark or gritty, consider changing the interval.
Common Mistakes DIY Owners Make
Even experienced home mechanics slip up on a few things with the 4Runner.
Image source: Bing (Web (fair-use with source credit))
Skipping the Crush Washer
The drain plug crush washer is a thin aluminum ring that deforms when torqued. That deformation creates a seal. Reusing it means the seal is already compressed.
It will leak a slow drip over time.
Always replace it. They cost about a dollar each. Buy a pack of ten and keep them in your toolbox.
Torquing the Drain Plug Wrong
The 1GR-FE oil pan is aluminum. The threads are soft. Overtorquing strips the threads.
Undertorquing causes leaks. The spec is 29 ft-lbs. Use a torque wrench.
If you have already stripped the threads, do not panic. A thread repair kit with a steel insert works well. But it is easier to just use a torque wrench from the start.
Checking the Dipstick Too Soon After Filling
After you pour in the oil and run the engine, the oil filter and oil passages are full of oil. If you check the dipstick immediately after shutdown, the reading will be low because oil has not drained back into the pan.
Wait five minutes. That is the magic number for the 1GR-FE. Five minutes lets the oil return to the pan and gives you an accurate reading.
Using the Wrong Viscosity
Some owners switch to 5W-30 thinking it offers better protection in summer heat or for towing. That is a mistake. The 0W-20 synthetic oil used in the 2021 4Runner provides sufficient protection at high temperatures.
The variable valve timing system is calibrated for 0W-20. Thicker oil delays cam phasing and reduces fuel economy.
If you tow heavy loads or drive in extreme heat, stick with 0W-20 but consider changing the oil at 5,000 miles instead of 10,000. That gives you fresh additives more often without sacrificing the correct viscosity.
Frequently Asked Questions
How much oil does a 2021 Toyota 4Runner take with a filter change?
It takes exactly 6.4 quarts (6.0 liters) of SAE 0W-20 synthetic oil when you also replace the oil filter. Without a filter change, it takes 5.8 quarts.
Can I use 5W-30 instead of 0W-20 in my 2021 4Runner?
Toyota specifically recommends 0W-20 for the 1GR-FE engine. Using 5W-30 can delay variable valve timing operation on cold starts and increase engine wear. Stick with 0W-20.
What oil filter does a 2021 Toyota 4Runner use?
The OEM part number is 04152-YZZA1. Many aftermarket filters also fit, but the OEM filter includes the correct bypass valve pressure for the 1GR-FE engine.
How often should I change the oil in my 2021 4Runner?
Toyota recommends 10,000 miles for normal service and 5,000 miles for severe service. Severe service includes frequent towing, off road driving, short trips, or extreme temperatures.
Is the oil capacity the same for the TRD Pro model?
Yes. The 2021 4Runner TRD Pro uses the same 4.0L 1GR-FE V6 engine. The oil capacity is 6.4 quarts with a filter change regardless of trim level.
What happens if I overfill my 4Runner's oil by half a quart?
Overfilling by half a quart can cause oil foaming, which aerates the oil and reduces its ability to lubricate bearings. It may also push oil past the rear main seal, causing a leak.
When to Trust the Dipstick vs. the Stated Capacity
The stated capacity of 6.4 quarts is your starting point, not the final word. Every engine is slightly different. Oil pans can have small manufacturing variances.
Aftermarket filters hold different volumes. The only number you can trust completely is what the dipstick shows.
Here is the rule of thumb for the 1GR-FE: Fill to 6.0 quarts first. Check the dipstick. Add the remaining 0.4 quarts in small increments until the level hits the full mark.
Do not dump all 6.4 quarts in at once and assume it is correct.
If the dipstick reads overfull after adding exactly 6.4 quarts, do not panic. It likely means residual oil was trapped in the engine from the previous fill. Drain a small amount and recheck.
Running the engine with oil above the full mark causes the foaming issues we covered earlier.
If the dipstick reads low after 6.4 quarts, the most common cause is an incomplete drain. The 4Runner's oil pan can hold up to half a quart in the baffles if the vehicle is not perfectly level during draining. Add oil in 0.2 quart increments until the dipstick reads full.
Oil Change Intervals: Severe Service vs. Normal Driving
Toyota publishes two schedules for the 2021 4Runner. Which one applies to you depends on how you drive.
| Driving Condition | Recommended Interval | Oil Viscosity |
|---|---|---|
| Normal service (highway commuting, moderate climate) | 10,000 miles or 12 months | 0W-20 synthetic |
| Severe service (towing, off road, short trips, extreme temps) | 5,000 miles or 6 months | 0W-20 synthetic |
Most 4Runner owners fall into the severe service category without realizing it. Off road driving counts. Towing a trailer counts.
Short trips under 10 miles where the engine does not fully warm up count. Hot desert climates and cold mountain winters both count.
If you drive your 4Runner like a daily commuter on paved roads with no trailer, the 10,000 mile interval works fine. But if you use the vehicle for what it was built for (trails, hauling, camping trips), switch to the 5,000 mile schedule. It costs more over a year but it keeps the 1GR-FE running past 250,000 miles.
Expert Maintenance Tips for Long Engine Life
You already know the basics. Here are the finer points that separate a well maintained 1GR-FE from one that burns oil at 150,000 miles.
Run the engine for 30 seconds before draining. Cold oil drains slowly and leaves more sludge behind. Warm oil carries contaminants out with it.
Use a magnetic drain plug. The 1GR-FE is a timing chain engine. Chains wear over time and shed microscopic metal particles. A magnetic plug catches those particles before they circulate through the bearings.
Aftermarket plugs cost about 15 dollars and pay for themselves in peace of mind.
Check the oil level every other fuel fill. The 1GR-FE does not normally burn oil between changes. But if you start noticing a drop on the dipstick between fills, you catch the problem early. Low oil is the fastest way to kill this engine.
Keep an extra quart in the cargo area. If you are on a trail and notice the oil light flicker on a steep climb, you can pull over and top off immediately. That quart has saved more than one trailside engine.
Write down the date and mileage of every oil change. A simple logbook or a note on your phone helps you track intervals. It also adds value when you sell the vehicle because service records prove the engine was cared for.
