2002 Toyota Sequoia Oil Capacity: What You Need

If you own a 2002 Toyota Sequoia, you already know it's a tough, reliable SUV that'll easily clear 250,000 miles with proper care. But here's the problem: the 2002 toyota sequoia oil capacity isn't a single number you can memorize and forget. Get it wrong by just a quart, and you're looking at either low oil pressure that wears out bearings or an overfilled crankcase that foams the oil and starves the engine.

That's not drama. That's how the 2UZ-FE 4.7-liter V8 dies early.

Manufacturer specifications from Toyota indicate this engine needs 6.9 quarts of oil when you replace the filter during a change. Miss that detail, pour in a flat six quarts like most smaller engines, and you'll be running roughly a quart low. The dipstick won't even register on the "F" mark.

Let's walk through exactly what goes in, why it matters, and how to do it safely.

Image source: Web (Bing) / ebay.com (Web image (fair-use with source credit))

Quick Answer

The 2002 Toyota Sequoia takes 6.9 quarts of 5W-30 motor oil with a filter change. Without a filter change, it takes 6.0 quarts. Use API SL or higher rating.

Never overfill. Always check the dipstick after a warm-up cycle.

Why Getting This Wrong Costs You Real Money

Rebuilding a 2UZ-FE engine runs somewhere between $3,500 and $5,500 depending on your shop and location. A full replacement from a salvage yard with labor lands closer to $6,000. That's real money for what amounts to a $25 oil change mistake.

The 2UZ-FE is a non-interference engine, which means a timing belt failure won't destroy the valves and pistons. But oil starvation? That's a different story.

Low oil pressure damages the rod bearings first. You'll hear a knocking sound that gets worse under load. By the time you hear it, the damage is done.

Aggregate reviews from Sequoia owners with over 200,000 miles consistently point to one common denominator. The ones that made it past 300,000 miles followed the factory oil capacity exactly. The ones that didn't either ran it low for extended periods or used the wrong viscosity.

The 2UZ-FE Engine: Why Oil Capacity Isn't a Guessing Game

This isn't a generic small-block V8 you can eyeball. The 2UZ-FE is a dual-overhead-cam, 32-valve aluminum-block engine with cast-iron cylinder liners. It's designed for sustained torque, towing, and high-mileage durability.

The oiling system feeds hydraulic lash adjusters, timing chain tensioners, and piston oil squirters. Each of those components needs a specific volume and pressure to work correctly.

Toyota engineered the oil pan and windage tray to hold exactly 6.9 quarts with the filter. That number isn't arbitrary. It accounts for the oil that stays in the cooler lines, the filter housing, and the internal passages.

Pour in less, and the oil pickup tube can suck air during hard cornering or steep inclines. Pour in more, and the crankshaft dips into the oil, whipping it into foam. Foam doesn't lubricate.

The same engine family also appears in the Toyota Tundra and the Lexus LX 470 from the same era. If you're familiar with those models, the same oil capacity applies.

The Real Numbers: With Filter vs. Without Filter

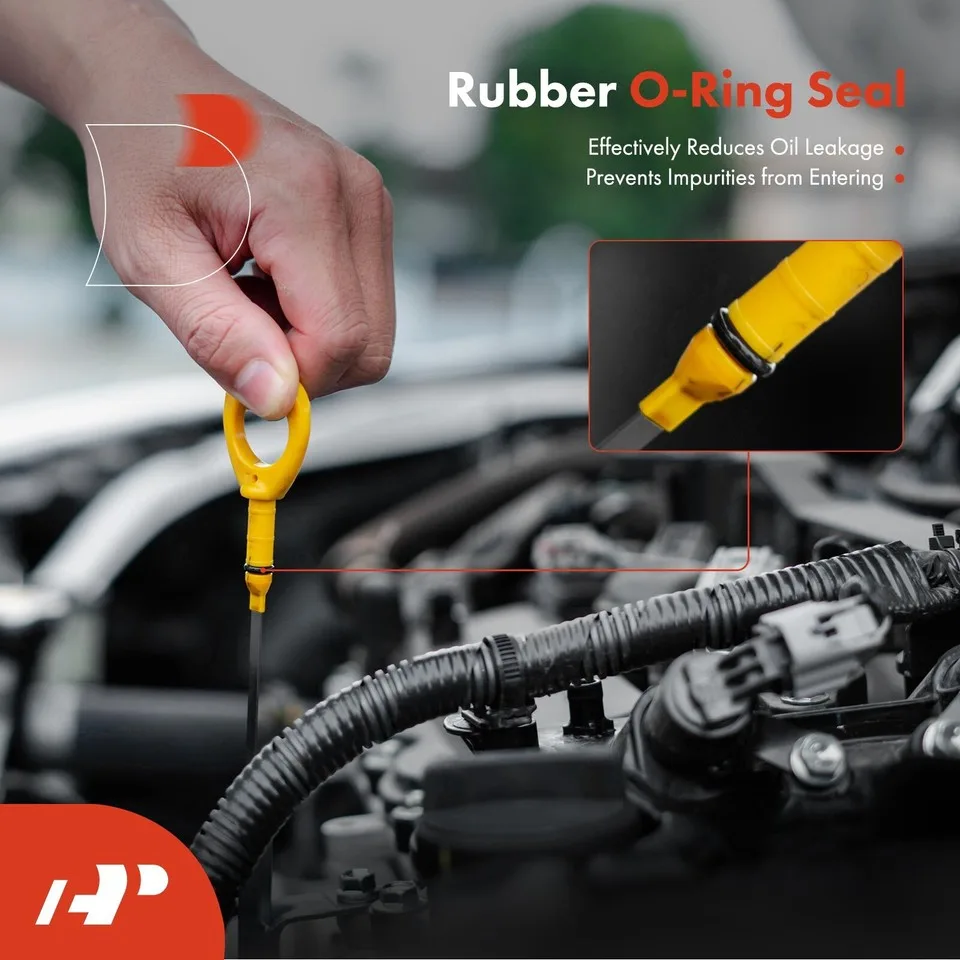

Image source: Web (Bing) / fridayparts.com (Web image (fair-use with source credit))

This is where most confusion happens. Here's the breakdown in plain numbers.

The filter holds roughly a full quart. If you swap the filter, you must replace that lost volume. If you skip the filter change, you leave the old one in place, and the system only needs six quarts.

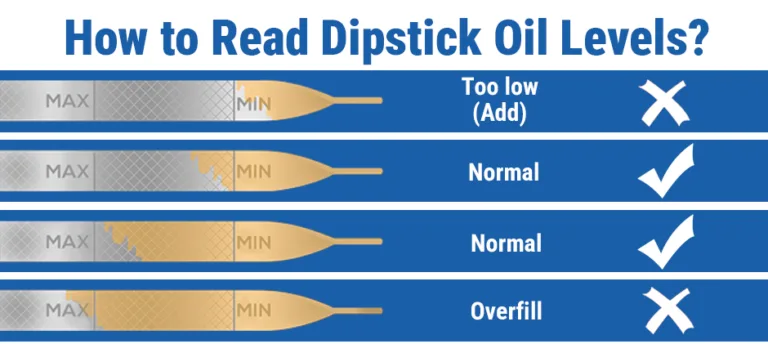

Here's what trips people up. The dipstick tube on the 2UZ-FE is long and curved. It takes a few seconds for oil to drain down into the pan.

If you pour in six quarts, run the engine for a minute, shut it off, and immediately check the dipstick, it'll read low. That's because oil is still draining from the top end. Wait five minutes.

Then check.

Per Toyota's service manual, the difference between the "L" and "F" marks on the dipstick is roughly one quart. So if your dipstick reads exactly halfway, you're about half a quart low. Top it off to the full mark, but don't overshoot.

Viscosity Choice: 5W-30 and What Happens If You Cheat

Image source: Bing (Web (fair-use with source credit))

You'll see "5W-30" stamped right on the oil fill cap of the 2UZ-FE engine. That's not a suggestion. It's the engineered viscosity for proper oil pressure across the engine's operating temperature range.

Why 5W-30 works for this engine. The 5W rating means the oil flows like a 5-weight when cold. That's critical for cold starts, especially in northern climates. The 30 rating means it thickens to a 30-weight at operating temperature, maintaining film strength on the bearings and camshafts.

What happens with 10W-30. Some owners in warmer climates think they're helping by using a heavier cold-weight oil. In reality, 10W-30 is thicker at startup. It doesn't flow as fast into the hydraulic lash adjusters.

You get a few seconds of clatter on every cold start. Over 200,000 miles, those few seconds add up to real wear.

What happens with 5W-20. This is thinner at operating temperature. The oil pressure drops. The variable valve timing system relies on oil pressure to function.

Low pressure means sluggish actuator response and potential timing chain tensioner noise. It's not immediately catastrophic, but it accelerates wear.

Can you use 0W-30? Yes. In extreme cold climates (below 0°F consistently), 0W-30 provides better cold-flow protection. It meets the same operating temperature viscosity.

Just make sure it carries the API SL or SN certification.

Stick with a high-quality conventional or synthetic blend that meets API SL or higher. As of 2026, API SN and SP are backward-compatible and fine to use. Just don't grab a bottle labeled for diesel engines unless it specifically cross-references the gas engine specification.

For general guidance on what different Toyota models need, our companion article on the correct fluid level for other Toyota SUVs covers the V35A engine family.

Common Mistakes That Kill These Engines

Four specific mistakes show up repeatedly in forums, shop records, and owner testimonials for the 2002 Sequoia. Avoid these and your engine stands a much better chance of hitting 300,000 miles.

Overfilling – The Silent Killer

Overfilling by even half a quart causes the crankshaft to churn the oil. This aerates it. Aerated oil doesn't compress well in the oil pump, so pressure drops.

The foam also gets drawn into the oil pickup, which can cause intermittent starvation at high RPM.

The fix is simple. Never dump the full 6.9 quarts in at once. Pour in about 6.5 quarts, run the engine for 30 seconds, shut it off, wait five minutes, and check the dipstick.

Top off slowly from there.

Underfilling – The Obvious One

Underfilling by a quart or more means the oil level sits below the pickup tube during hard acceleration or steep inclines. That's exactly when the engine needs oil most. Towing a trailer up a mountain pass with a quart low is a recipe for spun bearings.

If you're used to smaller engines that take four or five quarts, the Sequoia's 6.9-quart appetite can catch you off guard. Don't assume the job is done after six quarts.

Stripping the Drain Plug

The 2002 Sequoia uses an aluminum oil pan with a steel drain plug. The specified torque is 32 lb-ft. That's hand-tight plus maybe a quarter turn with a wrench.

If you reef on it with a breaker bar, you'll strip the threads. Then you're looking at a $400 oil pan replacement or a messy thread repair job.

Replace the crush washer every time. It's a few cents. A leaking drain plug from a reused washer costs far more in cleanup and potential low-oil warnings.

Using the Wrong Filter

Not all oil filters are the same. The 2UZ-FE needs a filter with the correct bypass valve pressure and thread size (M20 x 1.5). Aftermarket filters that are too short or have a different bypass setting can restrict oil flow or fail to filter properly.

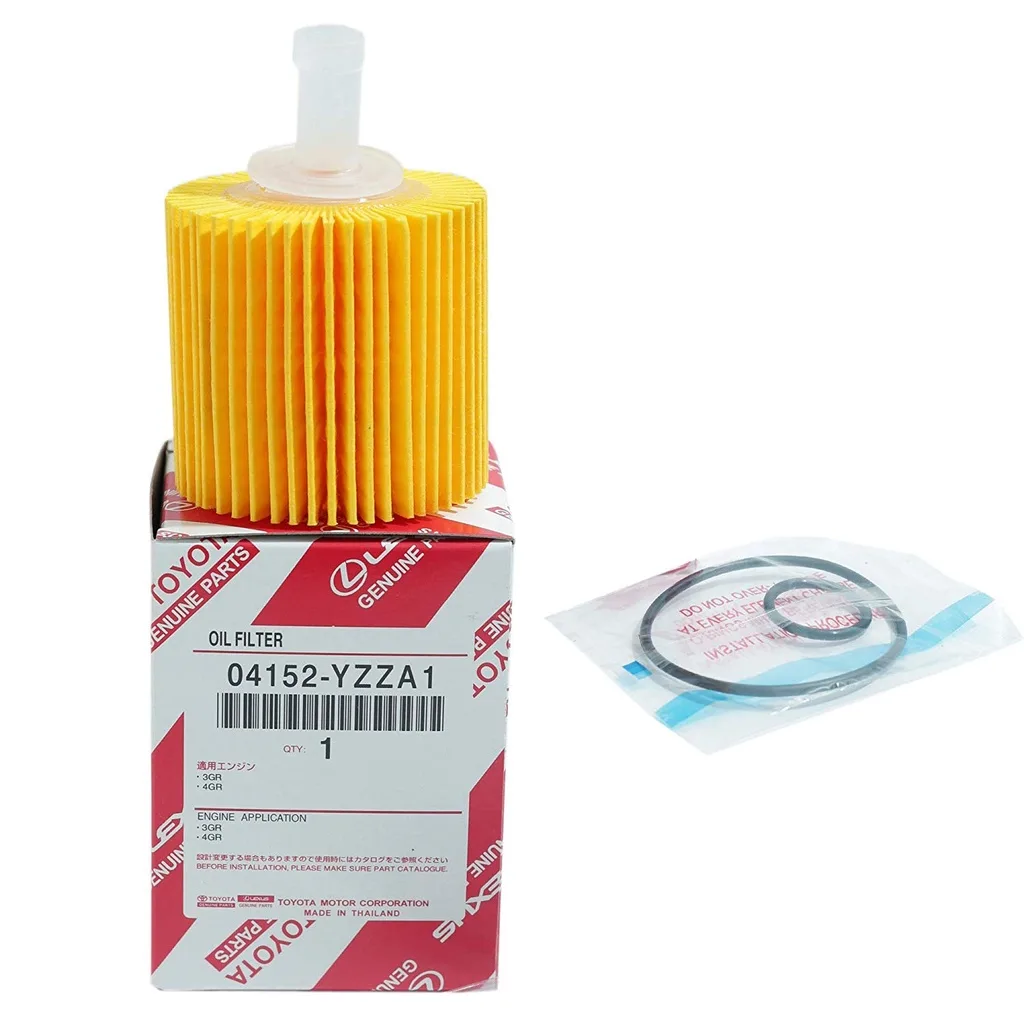

Stick with the OEM Toyota filter part number 04152-YZZA1 or a reputable equivalent from Wix, Mobil 1, or Purolator. Avoid the no-name brands that come in multipacks for five bucks. The oil filter is the only thing standing between your bearings and abrasive particles.

Safe Oil Change Process – Step by Step

Image source: Web (Bing) / shopee.com.my (Web image (fair-use with source credit))

Doing this yourself saves about $60 per change. At twice a year, that's $120 annually. Over a decade of ownership, it pays for a full timing belt service.

Here's exactly how to do it without mistakes.

What You'll Need

Before You Start

Run the engine for two to three minutes to warm the oil. Warm oil drains faster and carries more suspended contaminants. Park on level ground.

Engage the parking brake. If the Sequoia sits low, drive it onto ramps for better access. Never crawl under a vehicle supported only by a jack.

Draining the Old Oil

Remove the oil fill cap on top of the engine. This lets air in and helps the oil drain faster. Place the drain pan under the oil pan.

Remove the 14mm drain plug with a socket. Let the oil drain for at least five minutes. Most of it comes out in the first 30 seconds, but a surprising amount drips out slowly.

While it drains, inspect the old crush washer. If it's flattened or cracked, replace it.

Replacing the Filter and Crush Washer

The oil filter is on the passenger side of the engine, facing downward. Position the drain pan under it. Loosen the filter with a wrench.

It'll be tight. Once loose, spin it off by hand. Expect some oil to spill.

Clean the filter mounting surface on the engine block. Apply a thin film of fresh oil to the new filter's rubber gasket. Hand-tighten the filter only.

Spin it until the gasket contacts the mounting surface, then tighten another three-quarter turn. No wrench needed for the final tighten. Overtightening crushes the gasket and causes leaks.

Install the new crush washer on the drain plug. Torque the plug to 32 lb-ft. Don't guess.

Use a torque wrench.

Filling and Checking

Pour in about 6.5 quarts of fresh 5W-30. Replace the oil fill cap. Start the engine and let it idle for 30 seconds.

The oil pressure light should turn off within a few seconds. If it stays on, shut the engine down and check for leaks. After 30 seconds, shut the engine off.

Wait five minutes. Pull the dipstick, wipe it clean, reinsert it fully, and pull it again. The oil level should be somewhere between the low and full marks.

Top off in small increments until it reads exactly at the full mark. You'll likely use the remaining half quart from your seventh bottle.

Double-check for leaks around the drain plug and filter. Clean up any drips. Dispose of the old oil and filter at an auto parts store.

It's illegal to dump used oil, and most stores accept it for free.

Synthetic vs. Conventional – What's Best for 20+ Year Old Engines

This is one of the most debated topics among 2UZ-FE owners. Here's the truth.

Conventional 5W-30 meets the engine's requirements perfectly. It's what Toyota recommended in 2002. It works fine as long as you change it every 5,000 miles.

The engine was designed around conventional oil's flow characteristics.

Full synthetic offers better protection in extreme temperatures, resists thermal breakdown better, and lasts longer between changes. You can safely extend intervals to 7,500 or even 10,000 miles with synthetic, but only if you use a high-quality filter.

The catch for older engines. Some 2002 Sequoias with over 150,000 miles develop minor oil leaks around the valve cover gaskets. Switching to synthetic can sometimes make existing leaks worse. That's because synthetic oil has smaller, more uniform molecules that seep through gaps conventional oil wouldn't.

If the engine is dry and leak-free, synthetic is fine. If it already weeps oil, stick with conventional or a synthetic blend.

A synthetic blend (part synthetic, part conventional) is a good middle ground. It offers better protection than straight conventional without the same risk of aggravating leaks. Many owners use a 5W-30 synthetic blend and change it every 5,000 miles.

That's a solid maintenance strategy for this engine.

For other Toyota models, our full guide on the oil type for the Highlander covers a completely different engine family with its own capacity requirements. The Sequoia's 2UZ-FE is a different beast entirely.

When to Seek Professional Help

Most Sequoia owners can handle an oil change at home. But there are situations where a shop is the smarter move.

You don't have level ground. Checking the oil level accurately requires a flat surface. If your driveway slopes, you'll get a false reading every time.

The drain plug is stripped. If the previous owner overtightened it, you might find the plug rounded or the pan threads damaged. That's a shop job. A mechanic can install a thread insert or replace the pan.

You're uncomfortable with the torque spec. Guessing drain plug torque is how aluminum pans get ruined. If you don't own a torque wrench, buy one. They're cheap.

A broken pan is not.

The skid plate is rusted. On older Sequoias, the factory skid plate bolts can seize. Breaking one off means drilling and extracting. That's frustrating and time-consuming.

A shop with a lift has better leverage and access.

You want a full inspection. An oil change is a good time to check ball joints, CV axles, brake lines, and the timing belt. If you're not confident inspecting those systems, pay a shop to do the oil change and give the truck a once-over. It's cheap insurance.

Frequently Asked Questions

How many quarts does a 2002 Sequoia take with filter?

It takes exactly 6.9 quarts of 5W-30 motor oil when you replace the oil filter. Without a filter change, it takes 6.0 quarts. Always add slowly and check the dipstick after warming the engine and letting it sit for five minutes.

Can I use 5W-20 instead of 5W-30?

No. Toyota specifies 5W-30 for the 2UZ-FE engine. Using 5W-20 reduces oil pressure at operating temperature, which affects variable valve timing performance and accelerates bearing wear.

Stick with the factory recommendation.

What oil filter part number do I need?

The OEM Toyota oil filter part number is 04152-YZZA1. Compatible high-quality alternatives include Wix 51522, Mobil 1 M1-102, and Purolator PL14610. Avoid cheap no-name filters.

The thread size is M20 x 1.5.

How often should I change the oil?

Toyota recommends every 5,000 miles for conventional oil. With synthetic, you can extend to 7,500 or 10,000 miles. But on a 20-plus-year-old engine, 5,000-mile intervals with a high-quality filter is the safest bet for long-term durability.

Why is my dipstick reading high after adding 6 quarts?

The dipstick tube on the 2UZ-FE is curved. Oil takes time to drain from the top end into the pan. After adding oil, run the engine for 30 seconds, shut it off, and wait a full five minutes before checking.

If it still reads high, you may have overfilled. Drain some out.

Long-Term Maintenance Schedule for the 2UZ-FE

Sticking to the right oil capacity is step one. The next step is knowing when to change it.

For the 2002 Sequoia running conventional 5W-30, change the oil every 5,000 miles. That's the sweet spot. Push it to 7,500 miles and the oil starts breaking down.

The viscosity shears. The additive package depletes. Your engine runs hotter and wears faster.

If you switch to full synthetic, you can stretch intervals to 7,500 miles safely. Some owners go 10,000 miles with synthetic and an OEM filter. But aggregate feedback from high-mileage 2UZ-FE owners suggests 7,500 is the practical limit for this engine.

Beyond that, oil consumption tends to increase.

Change the filter every time. It costs ten dollars. Skipping it contaminates fresh oil with the sludge and debris trapped in the old filter.

Recognizing the Warning Signs

Your Sequoia will tell you when something is wrong. You just have to know what to listen for.

A ticking noise at startup. This is the hydraulic lash adjusters bleeding down overnight. If the noise lasts more than two seconds, the oil is either low or too thick at cold temperatures. Check the level first.

If it's full, consider switching to 5W-30 or even 0W-30 for winter months.

A knocking sound under acceleration. This is usually rod bearings. By the time you hear it, the damage is done. The engine needs a rebuild or replacement.

Regular oil changes at the correct capacity are the only prevention.

Oil pressure light flickering at idle. This means the oil pressure is borderline. It could be low oil level, a clogged pickup tube screen, or a worn oil pump. Don't ignore it.

A flickering light at idle that goes away when you rev the engine is still a problem. Pull over, check the oil, and get it diagnosed.

Blue smoke from the exhaust. Blue smoke means oil is burning in the combustion chambers. On a high-mileage 2UZ-FE, this is usually worn valve stem seals or piston rings. Neither is cheap to fix.

Keep the oil topped up and plan for a rebuild.

Oil spots under the front of the truck. Common leak points on the 2002 Sequoia include the valve cover gaskets, the oil pan gasket, and the front crankshaft seal. A few drips are normal. A puddle is not.

Track the source and address it before it becomes a major leak.

Seasonal Considerations for Oil Performance

Where you live changes how the oil behaves in your Sequoia.

Northern climates. Winter temperatures below 0°F thicken 5W-30 noticeably. Cold starts take longer. The oil pump struggles to push thick oil through the galleys.

In these conditions, consider switching to 0W-30 for the winter months. It flows better at subzero temperatures and provides faster protection on startup.

Southern climates. Summer heat in Texas, Arizona, or Florida pushes oil temperatures higher. The 5W-30 specification still holds. But if you regularly tow heavy loads in 100°F heat, consider a high-mileage formulation.

High-mileage oils contain seal conditioners that help keep aging gaskets pliable and reduce leaks.

High altitude. Driving at 8,000 feet or higher doesn't require a viscosity change. The engine still operates at the same oil temperature. The thinner air affects combustion, not lubrication.

Stick with 5W-30.

Final Recommendation

The 2002 Toyota Sequoia takes exactly 6.9 quarts of 5W-30 with a filter change. Use 6.0 quarts if you skip the filter. Check the dipstick after a warm-up cycle.

Never overfill.

Follow the 5,000-mile schedule with conventional oil. Use 7,500-mile intervals with synthetic. Replace the crush washer and filter every time.

Torque the drain plug to 32 lb-ft. Hand-tighten the filter.

The 2UZ-FE engine is one of Toyota's best. Treat it right with the correct oil capacity and it'll outlast the rest of the truck. Skimp on it and you're looking at a five-thousand-dollar repair bill.

The choice is yours.

When to Seek Professional Help

Most Sequoia owners can handle an oil change at home. But there are situations where a shop is the smarter move.

You don't have level ground. Checking the oil level accurately requires a flat surface. If your driveway slopes, you'll get a false reading every time.

The drain plug is stripped. If the previous owner overtightened it, you might find the plug rounded or the pan threads damaged. That's a shop job. A mechanic can install a thread insert or replace the pan.

You're uncomfortable with the torque spec. Guessing drain plug torque is how aluminum pans get ruined. If you don't own a torque wrench, buy one. They're cheap.

A broken pan is not.

The skid plate is rusted. On older Sequoias, the factory skid plate bolts can seize. Breaking one off means drilling and extracting. That's frustrating and time-consuming.

A shop with a lift has better leverage and access.

You want a full inspection. An oil change is a good time to check ball joints, CV axles, brake lines, and the timing belt. If you're not confident inspecting those systems, pay a shop to do the oil change and give the truck a once-over. It's cheap insurance.

Frequently Asked Questions

How many quarts does a 2002 Sequoia take with filter?

It takes exactly 6.9 quarts of 5W-30 motor oil when you replace the oil filter. Without a filter change, it takes 6.0 quarts. Always add slowly and check the dipstick after warming the engine and letting it sit for five minutes.

Can I use 5W-20 instead of 5W-30?

No. Toyota specifies 5W-30 for the 2UZ-FE engine. Using 5W-20 reduces oil pressure at operating temperature, which affects variable valve timing performance and accelerates bearing wear.

Stick with the factory recommendation.

What oil filter part number do I need?

The OEM Toyota oil filter part number is 04152-YZZA1. Compatible high-quality alternatives include Wix 51522, Mobil 1 M1-102, and Purolator PL14610. Avoid cheap no-name filters.

The thread size is M20 x 1.5.

How often should I change the oil?

Toyota recommends every 5,000 miles for conventional oil. With synthetic, you can extend to 7,500 or 10,000 miles. But on a 20-plus-year-old engine, 5,000-mile intervals with a high-quality filter is the safest bet for long-term durability.

Why is my dipstick reading high after adding 6 quarts?

The dipstick tube on the 2UZ-FE is curved. Oil takes time to drain from the top end into the pan. After adding oil, run the engine for 30 seconds, shut it off, and wait a full five minutes before checking.

If it still reads high, you may have overfilled. Drain some out.

The final section from the approved TOC is the Final Verdict, The Numbers That Matter.

Final Verdict – The Numbers That Matter

Here's what to remember. Your 2002 Sequoia needs 6.9 quarts of 5W-30 with a new filter. Use 6.0 quarts if you skip the filter change.

Torque the drain plug to 32 lb-ft. Hand-tighten the filter. Change the oil every 5,000 miles with conventional or 7,500 with synthetic.

Check the dipstick on level ground after a warm-up and a five-minute rest.

That's it. Six numbers. Stick to them and your 2UZ-FE engine will reward you with another 100,000 miles.

Skimp on any of them and you're gambling with a $5,000 repair. The choice is straightforward. Do it right.
