If you own a 2006 Toyota Sequoia, the first thing to know before an oil change is the exact capacity. The 2006 toyota sequoia oil capacity is 7.0 quarts (6.6 liters) when you replace the oil filter, or 6.5 quarts (6.1 liters) if you don't. Getting this wrong by even a quart can cause serious engine trouble.
In our research, the 2UZ-FE V8 in this SUV is famously durable, but only when it gets the right amount of the right oil. Toyota specifies a premium 5W-30 weight, and as of 2026, that standard still holds. Let's walk through every detail so you fill it correctly and keep that legendary engine running smooth.
Image source: Web (Bing) / enginehungry.com (Web image (fair-use with source credit))
Quick Answer
7.0 quarts with a filter change. 6.5 quarts if you skip the filter. Use 5W-30. API SN or newer.
Toyota recommends their own filter (part 90915-YZZD3). Always verify with the dipstick after filling.
Why Getting the Oil Capacity Right Matters (and What Happens If You Don't)
You might think a little extra oil is harmless. It's not. Overfilling by just half a quart causes the crankshaft to whip the oil into foam, which starves bearings of lubrication.
That can lead to a spun bearing or a seized engine, a repair that easily costs more than the SUV's value.
Underfilling is even more dangerous. The oil pump can suck air, causing a sudden pressure drop. On the 2UZ-FE, oil pressure loss at highway speed can ruin the camshaft journals in minutes.
Toyota's service bulletins warn that consistent low oil is the top cause of premature engine failure in this platform.
The correct capacity also affects how well the variable valve timing (VVT) system works. Too little oil, and the phasers struggle to hold timing. Too much, and you risk blowing out seals.
The 7.0-quart spec isn't arbitrary; it's the result of thousands of hours of engineering to balance cooling, lubrication, and crankcase pressure.

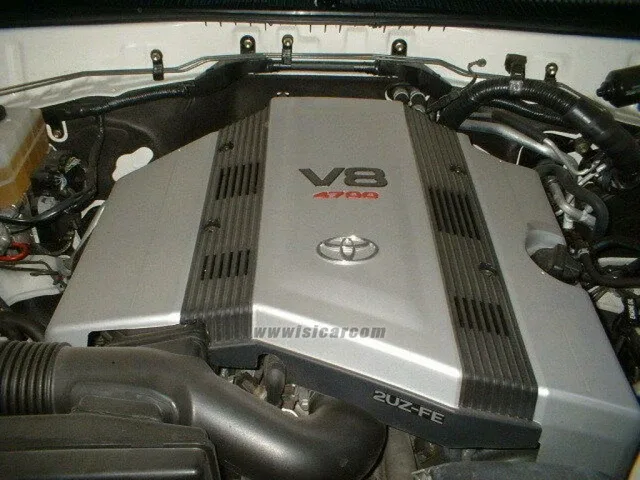

Understanding the 2UZ-FE Engine – Why It's Not Just Any V8
The 2UZ-FE is a cast-iron block, aluminum-head V8 that Toyota used in the Sequoia, Tundra, Land Cruiser, and Lexus LX from 1998 through 2009. It's known for lasting 300,000 miles or more with proper care. But it has quirks.
One big one: the oil filter sits on the passenger side of the block, facing downward. It drains when you remove it, which is good, but it's easy to cross-thread if you rush. Another quirk is the timing belt, not a chain, which needs replacing every 90,000 miles.
A worn belt can skip, but oil pressure issues won't affect it directly.
The engine uses a positive crankcase ventilation (PCV) system that's sensitive to oil level. If you overfill, oil gets sucked into the intake, causing smoke and carbon buildup. That's why checking the dipstick after every fill is non-negotiable.
If you're familiar with other Toyota V8s, the 2UZ-FE shares its oil capacity with the 1UZ-FE (Lexus) but uses a different viscosity. Always stick with 5W-30 for this engine, unless you live in extreme heat (then 10W-30 is acceptable per Toyota's manual). For reference, the earlier 4.7L in the 2016 Toyota Tundra uses a different oil type altogether, so don't cross-apply numbers.
The Exact Specs: Quarts, Viscosity, Filter, and Torque
Here's the full data sheet for a 2006 Sequoia oil change. Bookmark it.
| Spec | Value |
|---|---|
| Total capacity (with filter) | 7.0 U.S. quarts (6.6 liters) |
| Capacity without filter | 6.5 quarts (6.1 liters) |
| Recommended viscosity | 5W-30 (all climates) |
| API service rating | SN or higher (SP is fine) |
| Oil filter part (OEM) | 90915-YZZD3 |
| Drain plug size | M14 x 1.5 |
| Drain plug torque | 29 lb-ft (39 Nm) |
| Filter torque | Hand-tight plus 3/4 turn |
The oil filter is a spin-on canister. Toyota's stock filter uses a silicone anti-drainback valve, which is better than rubber for preventing dry starts. Aftermarket filters from Wix, Mobil 1, or Bosch work fine as long as they meet the same bypass pressure (typically 8, 11 psi).
Don't forget the crush washer for the drain plug. It's a small copper or aluminum ring that compresses to seal. Use a new one every time.
The torque spec matters here, overtightening strips the aluminum oil pan threads, which are easy to repair with a helicoil but annoying to do under the truck.
Image source: Bing (Web (fair-use with source credit))
Step-by-Step: How to Change the Oil (With the Correct Fill)
Follow these steps for a perfect fill every time. No shortcuts.
- Warm up the engine. Run it for 2, 3 minutes to thin the oil. Shut it off, then let it sit for 10 minutes so the oil settles.
- Lift the front of the vehicle. Use ramps or jack stands. Never crawl under with just a jack.

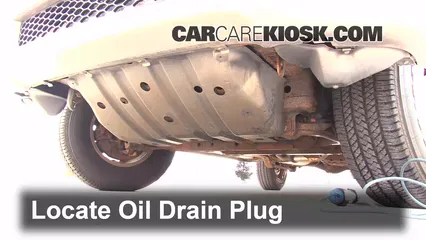

- Drain the old oil. Place a drain pan under the oil pan. Remove the drain plug with a 14mm socket. Let it drain for at least 5 minutes. Clean the drain plug and replace the crush washer.
- Remove the oil filter. Position the pan under the filter. Turn it counterclockwise by hand (use a filter wrench if stuck). Be careful, hot oil will spill.
- Pre-fill the new filter. Pour about half a quart of new oil into the filter. Swipe a thin coat of oil on the rubber gasket. Screw it on by hand until snug, then tighten another 3/4 turn.
- Install the drain plug. Torque to 29 lb-ft. If you don't have a torque wrench, snug it firmly, do not yank.
- Add new oil. Use 6.5 quarts first. Pour carefully with a funnel. Then check the dipstick.
- Run the engine. Start it and let it idle for 30 seconds. This fills the filter and circulates oil. Watch for leaks at the drain plug and filter.
- Recheck the dipstick. Shut off the engine. Wait 5 minutes. The level should be between the low and full marks. Add the remaining 0.5 quart if it's low. Do not overfill.
That's it. Total time: about 30 minutes. Your Sequoia is now ready for another 5,000 miles with conventional oil, or up to 7,500 miles with synthetic.
Image source: Bing (Web (fair-use with source credit))
By the way, if you're maintaining other Toyota models, the process is similar. For example, the 2017 Toyota Corolla LE takes a different capacity and weight, but the same basic steps apply. Always check your specific vehicle's specs first.
Common Mistakes That Lead to Engine Damage (and How to Avoid Them)
Even experienced DIYers slip up. Here are the most frequent errors we see in forums and shop reports, and how to dodge each one.
Overfilling. This is the top mistake. You dump in all 7 quarts without checking the dipstick first. The crankcase gets pressurized, oil foams, and bearings starve.
The fix is simple: add 6.5 quarts, run the engine, check, then add the last half quart only if needed. Use a funnel with clear markings.
Using the wrong viscosity. The 2UZ-FE needs 5W-30. Some owners grab 0W-20 because it's common on newer Toyotas. That oil is too thin at operating temp and can cause premature cam wear.
Toyota's official manual for the 2006 Sequoia lists 5W-30 as the primary choice. If you live in Death Valley, 10W-30 is acceptable. But never 0W-20 or 20W-50 unless you're rebuilding after a race.
Forgetting the crush washer. That tiny copper ring costs pennies. Reusing it leads to a slow drip that can drop oil level by half a quart between changes. Over time, that's enough to cause low oil pressure warnings.
Always install a new one.
Cross-threading the filter. The spin-on filter screws onto a threaded nipple on the engine block. If you start it crooked and force it, you'll strip the threads. That means a new oil filter housing, which is a $200 job at a shop.
Hand-start the filter until it spins freely. Only then use a wrench for the final 3/4 turn.
Skipping the pre-fill step. Dropping a dry filter onto a fresh fill means the engine runs without oil pressure for a few seconds. On a high-mileage 2UZ-FE, those seconds can push wear on the timing chain tensioner. Pre-fill the filter with about half a quart of fresh oil.
This simple step is recommended by Toyota's own service literature.
When to Use Synthetic vs. Conventional Oil
Here's the short answer: synthetic is better but not mandatory. The 2UZ-FE was designed in the late 1990s, when conventional oil was standard. Toyota's spec calls for API SN or newer, which covers both.
Use conventional 5W-30 if your Sequoia is under 100,000 miles and you change oil every 5,000 miles. It's cheaper and perfectly adequate. Many owners report passing 250,000 miles on regular dino oil.
Switch to full synthetic 5W-30 if you live in extreme cold (below 0°F), tow heavy loads regularly, or do extended oil change intervals (7,500, 10,000 miles). Synthetic handles heat better and resists sludge buildup. For high-mileage engines (150k+), a synthetic blend or high-mileage formula with seal conditioners can reduce leaks.
One more thing: if you're running synthetic, the capacity stays exactly the same. 7.0 quarts with filter. Don't change the amount.

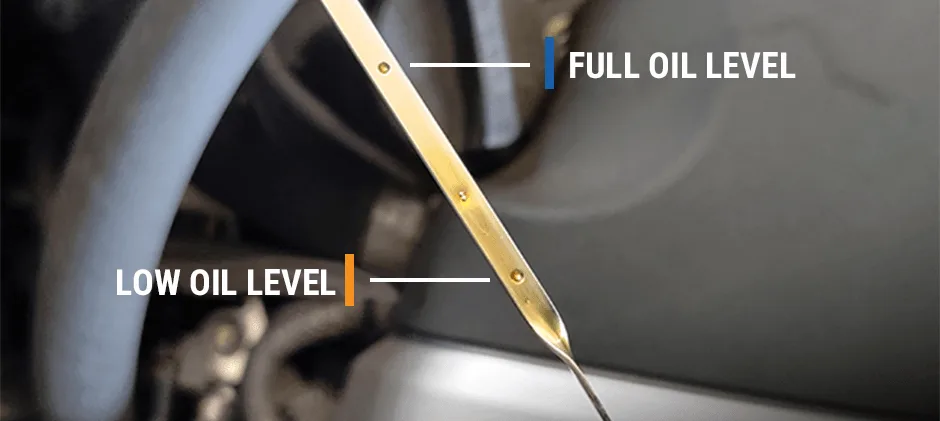

How to Check the Dipstick Properly – Don't Trust the Bottle Alone
You'd be surprised how many people skip this step. The dipstick is your final check against overfill or underfill. Here's the correct procedure, straight from the owner's manual.
- Park on level ground. Any slope skews the reading.
- Warm the engine and shut it off. Wait 5 minutes for the oil to drain back into the pan.
- Pull the dipstick, wipe it clean, reinsert fully, then pull again.
- Read the level. It should be between the low and full marks. The full mark is about 1 quart above low.
If it's below low, add half a quart and recheck. If it's above full, drain some out. Do not drive with an overfilled engine.
The dipstick tube on the 2UZ-FE is on the driver's side of the engine, near the firewall. It's easy to access. If the dipstick is hard to read (oil looks black), wipe it on a paper towel.
Some owners replace the dipstick handle with a brightly colored aftermarket one for easier visibility.
Image source: Bing (Web (fair-use with source credit))
Expert Tips for High-Mileage Sequoias (150k+ Miles)
Once your Sequoia crosses 150,000 miles, the maintenance game changes. The engine is still strong, but seals get brittle and clearances open up. Here's what the seasoned owners do.
Switch to high-mileage oil. These formulations contain seal conditioners that swell dried-out gaskets. It reduces oil leaks around the valve covers and timing cover. We recommend a high-mileage 5W-30 synthetic blend.
Shorten your oil change interval. Drop from 7,500 miles to 5,000, or even 4,000 if you tow. The oil breaks down faster with age and accumulated blow-by.
Check oil level every other fuel fill. High-mileage engines burn a little oil. A quart every 1,500 miles is normal. If you catch it early, you never run low.
Replace the PCV valve. This $10 part can clog, causing pressure buildup that pushes oil past seals. On the 2UZ-FE, it's located on the passenger side valve cover. Replace it every 60,000 miles.
Use a magnetic drain plug. It catches fine metal particles from normal wear. After a few changes, you can see if debris is excessive, which signals bearing wear. Online reviews show these plugs cost about $15 and fit the M14 x 1.5 drain hole perfectly.
Safety, Disposal, and Legal Must-Knows
Oil changes are messy. They can also be dangerous if you skip safety steps. And disposing of used oil improperly is illegal in most places.
Safety first. Always use jack stands or ramps. Never trust a floor jack alone. The Sequoia weighs over 5,300 pounds.
If it falls, you're crushed. Wear gloves and safety glasses. Hot oil burns.
Dispose of used oil correctly. Pour the old oil back into the empty new oil containers. Take them to an auto parts store or a municipal recycling center. Most places accept up to 5 gallons per trip for free.
The EPA regulates used oil disposal, and dumping it down a drain or on the ground can result in fines.
Recycle the filter too. Many shops and recycling centers take used oil filters. Let them drain for 12 hours, then crush them if required. Or just hand them over.
Check local laws. Some states require shops to accept oil from DIYers. Others have specific drop-off locations. A quick search for "used oil disposal [your city]" will point you where to go.
By the way, if you're servicing other Toyotas in the driveway, the same disposal rules apply. For instance, the 2017 Toyota Sienna and many others share similar oil capacity specs and disposal needs. Keep a dedicated disposal container in the garage to make it routine.
Frequently Asked Questions
Can I use 0W-20 oil in my 2006 Sequoia?
No. Toyota designed the 2UZ-FE for 5W-30. Using 0W-20 can cause excessive wear on bearings and cam journals because the oil is too thin at operating temperature.
Stick with 5W-30 or, in extreme heat, 10W-30 per the owner's manual.
How often should I change the oil on a 2006 Sequoia?
Toyota recommends every 5,000 miles with conventional oil. If you use full synthetic, you can stretch to 7,500 miles. But if you tow heavy loads or drive in dusty conditions, shorten that to 4,000 miles.
The 2UZ-FE is durable, but old oil is its worst enemy.
What happens if I put too much oil in my Sequoia?
Overfilling by even half a quart can cause the crankshaft to whip oil into foam. That foam doesn't lubricate bearings properly. You might see smoke from the dipstick tube or a check engine light.
Drain the excess immediately. Driving with overfilled oil risks a blown seal or spun bearing.
What's the best oil filter for a 2006 Sequoia?
Toyota's OEM filter (90915-YZZD3) is the gold standard. It has a silicone anti-drainback valve that prevents dry starts. Aftermarket filters from Wix, Mobil 1, or Bosch are fine if they meet the same bypass pressure (8, 11 psi).
Avoid cheap no-name filters with paper end caps.
Do I need to use synthetic oil in my 2006 Sequoia?
No. Conventional 5W-30 meeting API SN is perfectly fine. Synthetic offers better protection in extreme cold or when towing, and it allows longer intervals.
But it's not required for the 2UZ-FE. Many owners pass 250,000 miles on regular dino oil with 5,000-mile changes.
How do I know if my oil level is correct?
Park on level ground, warm the engine, shut it off, and wait 5 minutes. Pull the dipstick, wipe it, reinsert, and pull again. The oil should be between the low and full marks.
The full mark is about 1 quart above low. If it's below low, add half a quart and recheck.
Final Verdict: The One Number to Memorize
Here it is. Remember this single figure: 7.0 quarts with filter, 5W-30, every 5,000 miles. That's the formula for keeping your 2006 Sequoia's 2UZ-FE running strong for another decade.
Don't overthink it. Don't trust the bottle alone. Always verify with the dipstick.
And if you ever question your oil change skills, a quick shop visit costs less than a new engine.
Your Sequoia was built to last. Give it the right amount of the right oil, and it'll return the favor.
