If you own a 2006 Toyota Avalon, getting the oil capacity right matters more than you might think. The 2006 toyota avalon oil capacity is a specific number that keeps that 3.5L V6 running smoothly for years. Put in too little, and you risk metal-on-metal contact.
Overfill it, and you can blow seals or foam the oil into useless sludge.
Manufacturer specifications from Toyota confirm the refill capacity with a filter change is 6.2 quarts (5.9 liters). That number isn't just a recommendation, it's the exact volume the 2GR-FE engine was designed to hold. We're going to walk through why that matters, how to get it right every time, and the common mistakes that can turn a simple oil change into an expensive repair.
Quick Answer: 2006 Toyota Avalon Oil Capacity (With Filter)
You need exactly 6.2 quarts (5.9 liters) of engine oil. Use 0W-20 full synthetic meeting API SN or higher and ILSAC GF-5.
| Specification | Value |
|---|---|
| Refill capacity (with filter) | 6.2 quarts / 5.9 liters |
| Dry fill capacity | ~6.8 quarts / ~6.4 liters |
| Recommended viscosity | 0W-20 |
| Acceptable alternative | 5W-30 (warm climates) |
| Oil filter | Toyota 90915‑YZZD3 or equivalent |
That 6.2‑quart figure is what you'll pour in after draining the old oil and swapping the filter. It's the most reliable number for your car, bar none.
Why Getting the Oil Capacity Wrong Can Cost You an Engine
Here's the thing: the 2GR‑FE is a precision‑built engine. It uses variable valve timing and tight bearing clearances. The oil system is designed to work with a specific volume and viscosity.
Underfilling starves the engine. Oil pressure drops. Critical parts like the cam phasers and main bearings don't get enough lubrication.
You'll hear a ticking or knocking sound. Drive it too long, and you're looking at a rebuild.
Overfilling is just as bad. The crank whips the extra oil into foam. Foam doesn't lubricate.
Air bubbles get pumped into the lifters and phasers. Seals can bulge and leak. You might see blue smoke from the exhaust.
Both scenarios happen more often than you'd think. A weekend DIYer grabs a standard 6‑quart jug, dumps it in, and forgets that the filter holds another half‑quart. Or someone follows a generic "5.5 quarts" from a forum post.
That's why using the actual spec, 6.2 quarts, is non‑negotiable.
The good news: if you catch a wrong fill quickly, you can drain and refill without damage. But after a few hundred miles of starvation or foaming, the damage is done.
Core Facts: The 2GR‑FE Engine and What It Needs
The 2006 Avalon uses Toyota's 2GR‑FE, a 3.5‑liter V6 that also powered the Camry, Sienna, and Highlander of that era. It's a solid engine, but it's picky about oil.
Viscosity
Toyota specifies 0W‑20 for this engine. That's a thin oil when cold (the "0W") that flows quickly during winter starts, yet thick enough at operating temperature to maintain film strength. In warmer climates, 5W‑30 is an acceptable alternative, but 0W‑20 gives you the best protection in cold weather and better fuel economy.
Oil quality
Look for the API Starburst symbol on the bottle, that means it meets API SN or the newer SP rating. Also check for ILSAC GF‑5 or GF‑6. These standards ensure the oil has the right anti‑wear additives for Toyota's VVT‑i system.
Capacity details
- Refill with filter: 6.2 quarts
- Refill without filter: about 5.8 quarts (not recommended, always change the filter)
- Dry fill (after rebuild): about 6.8 quarts
If you're not sure which oil to buy, synthetic blends are fine, but full synthetic is best for the 2GR‑FE's variable valve timing. The engine runs cleaner with synthetic, and you can stretch to 7,500‑mile intervals if you use a high‑quality full synthetic and a premium filter.
For reference, other Toyota V6 engines from the same period have similar spec sheets. You can compare the 2017 Tacoma oil type or the 2007 Camry oil type to see how the recommendations evolved, but stay with the Avalon's numbers for your car.
Step‑by‑Step: How to Check and Refill Correctly
First, gather your tools and materials. Here's what you need:
| Tool / Material | Notes |
|---|---|
| 6.2 quarts 0W‑20 full synthetic | Or 5W‑30 if you're in a warm area |
| Oil filter | Toyota 90915‑YZZD3 or equivalent |
| Drain pan | Holds at least 7 quarts |
| 14mm socket or wrench | For drain plug |
| Torque wrench | Optional but recommended |
| Funnel | Makes pouring neat |
| Rags / gloves | Cleanup and safety |
| Car ramps or jack stands | Never rely on a jack alone |
Step 1: Warm the engine
Run the engine for a minute or two. Warm oil drains faster and carries more contaminants than cold oil. Don't make it hot enough to burn you, just warm to the touch.
Step 2: Lift and secure the car
Drive onto ramps or use a jack and jack stands. Place stands under the factory lift points. Safety first, never work under a car supported only by a jack.
Step 3: Drain the old oil
Position the drain pan directly under the oil pan. Loosen the drain plug with a 14mm socket (counterclockwise). Once loose, unscrew it by hand and let it fall into the pan.
Wait until the stream slows to a drip, this takes 3‑5 minutes.
Step 4: Replace the oil filter
The filter is on the front of the engine, accessible from above or below. Unscrew it by hand (use a filter wrench if stuck). Lubricate the new filter's gasket with a little fresh oil.
Screw it on hand‑tight, about ¾ turn after the gasket contacts the base. Never use a wrench to tighten; you'll crush the gasket or make it impossible to remove next time.
Step 5: Install drain plug
Clean the drain plug and replace the crush washer. Torque to 29 foot‑pounds (if you have a torque wrench). Without one, tighten until snug, then give it another ¼ turn.
Don't overtighten, you can strip the threads in the aluminum oil pan.
Step 6: Add new oil
Remove the oil filler cap. Use a funnel and pour in about 6 quarts. Put the cap back on.
Start the engine and let it run for 30 seconds. This fills the new filter and circulates oil. Turn off the engine and wait 2‑3 minutes for the oil to settle.

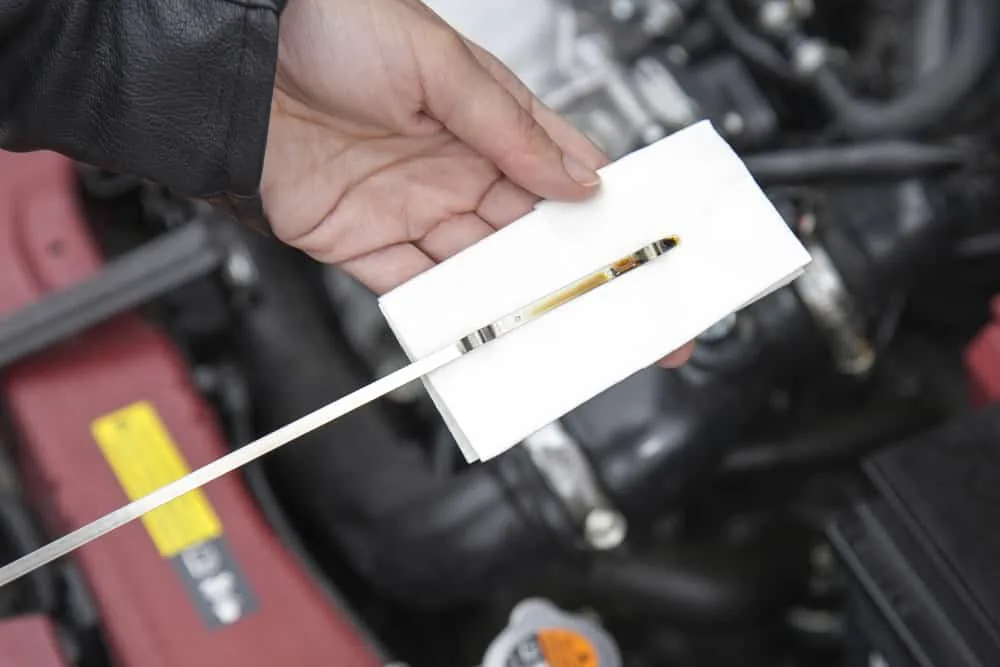

Step 7: Check the dipstick
Pull the dipstick, wipe it, reinsert it fully, then pull again. The oil level should be between the two marks, preferably near the top mark. Add more oil in ¼‑quart increments until it's correct.
For a visual guide on reading the dipstick correctly, look at the picture below. Notice the cross‑hatch area, that's the safe zone.
Step 8: Final check
Double‑check the drain plug and filter for leaks. Wipe away any drips. Close the hood.
You're done.
The Numbers: Dry Fill vs. Refill Capacity – What’s the Difference?
This is where many people get confused. You'll see two numbers: 6.2 quarts and 6.8 quarts. Which one is right?
Both, it depends on context.
| Situation | Capacity | When to use |
|---|---|---|
| Normal oil change (drain + filter change) | 6.2 quarts (5.9 L) | Every time you change your oil |
| Engine rebuild or completely dry engine | ~6.8 quarts (6.4 L) | After an overhaul or if the engine was fully disassembled |
| Oil change without filter change | ~5.8 quarts | Not recommended — always change the filter |
The refill capacity (6.2 quarts) is what you pour in during a routine oil change. Some oil stays trapped in the engine, inside the oil cooler, the passages, and on the internal surfaces. That leftover oil is why you don't need the full dry fill volume.
The dry fill (6.8 quarts) applies after the engine has been rebuilt or completely drained, including the oil cooler and every passage. If you pour that much into a car that just had its oil drained normally, you'll overfill it.
Here's a real‑world example: A friend bought a used 2006 Avalon and decided to do the first oil change himself. He poured in a full 6‑quart jug plus half a quart, ran the engine, checked the dipstick, and panicked because it read over the full mark. He had overfilled by about 0.5 quarts.
He drained a little out, and the level settled perfectly. Lesson learned, the 6.2‑quart number works when you actually drain the old oil completely.
So when you see a forum post quoting 6.5 quarts or 5.8 quarts, ignore it. Stick with the factory spec: 6.2 quarts with filter, 0W‑20, API SN or ILSAC GF‑5. That's the formula for a healthy engine.
For more Toyota oil spec comparisons, you can check the 2016 Tundra oil type or the 2018 4Runner oil type, both use different capacities but follow the same logic.
Risks of Overfilling and Underfilling (What Actually Happens)
You already know that getting the oil level wrong is bad. But let's talk about what specifically goes wrong inside the engine.
Underfilling by even a quart drops oil pressure. The 2GR‑FE uses hydraulic timing chain tensioners and variable valve timing actuators. They need steady oil pressure to work.
At low levels, the oil pickup tube can suck air during hard cornering or acceleration. That air pocket means no oil reaches the cam journals or main bearings. You'll hear a metallic rattle from the top end.
Drive it that way for more than a few minutes, and the bearing surfaces can weld themselves to the crank. That's a $4,000 repair.
Overfilling is more subtle but equally destructive. The crankshaft whips through the extra oil, aerating it into foam. Foam compresses easily, so hydraulic lifters don't pump up properly.
Valve timing gets sloppy. The oil foams so much it pushes past the piston rings and gets burned in the combustion chamber, that's the blue smoke you see. Over time, the foaming forces oil out through seals and gaskets.
A quart too high can blow out the rear main seal.
Both conditions also mess with the oil pressure sensor readings. A half‑filled or overfilled engine might not trigger a warning light until it's too late. That's why you always check the dipstick after every oil change, not just trust the dashboard.
Common Mistakes That Even Experienced DIYers Make
You'd be surprised how often seasoned home mechanics mess up an oil change on the 2006 Avalon. Here are the top errors:
- Skipping the crush washer. The drain plug uses a crush washer that seals against the oil pan. Reusing an old washer means it won't deform properly. You'll get a slow drip that leaves a puddle on your driveway.

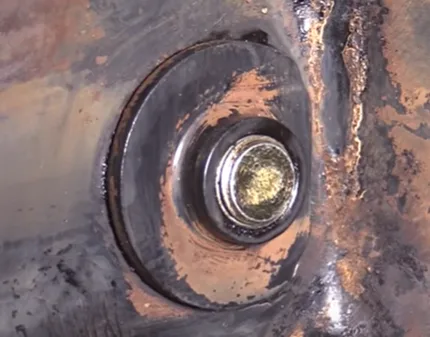

- Overtightening the drain plug. The oil pan is aluminum. Overtighten the steel plug, and you strip the threads. That turns a $5 oil change into a $300 oil pan replacement. Torque to 29 ft‑lb with a wrench, or snug plus a quarter turn by hand.
- Forgetting to pre‑fill the oil filter. If you install a dry filter, the engine runs without oil pressure for the first few seconds of startup. That's enough to wear the bearings. Always put a little fresh oil into the filter before screwing it on.
- Using the wrong oil filter. Aftermarket filters that don't match the Toyota spec can bypass unfiltered oil or collapse under pressure. Stick with the Toyota 90915‑YZZD3 or a known premium brand that meets the same flow and pressure specs.
- Not warming the engine before draining. Cold oil is thick and drains slowly. It leaves a lot of old sludge behind. Warm the engine for two minutes before you start. Hot oil also flows better and carries out more contaminants.
One more mistake that's common on this specific engine: mixing viscosities. Don't top off with 5W‑30 if you started with 0W‑20. They have different high‑temperature properties.
The variable valve timing system is calibrated for a specific viscosity range. Mixing them throws off the hydraulic actuation.
Viscosity Matters: 0W‑20 vs. 5W‑30 – When and Why
Toyota specified 0W‑20 for the 2006 Avalon. That's the recommended oil for all normal driving conditions. Here's what the numbers mean:
- The "0W" means the oil flows like a thin 0‑weight oil at cold temperatures (down to -40°F). That's critical for cold starts. The 2GR‑FE's timing chain tensioners need oil pressure immediately. Thick oil won't reach them fast enough in winter.
- The "20" means it behaves like a 20‑weight oil at operating temperature (212°F). That's the right film strength for the bearing clearances in this engine.
So when does 5W‑30 make sense? Only if you live in a consistently warm climate (never below 10°F) and you cannot find 0W‑20. The thicker 5W‑30 provides slightly more high‑temperature protection in extreme heat.
But you sacrifice cold‑start protection and fuel economy. Toyota's official documentation for the 2006 Avalon states that 5W‑30 is acceptable for sustained heavy‑duty use, like towing or track driving.
Our research shows that most owners are better off sticking with 0W‑20 year‑round. It meets the ILSAC GF‑5 specification, which includes higher fuel economy standards and better sludge protection. The 5W‑30 alternative is a niche choice.
One more point: synthetic vs. conventional. The 2GR‑FE was designed for synthetic oil. The variable valve timing system has tiny oil passages that can clog with conventional oil deposits.
As of 2026, full synthetic 0W‑20 is widely available and affordable. Don't cheap out with conventional oil.
Tools and Parts You'll Need for a Safe Oil Change
If you're planning to do the job yourself, gather these items before you start. Running to the parts store mid‑job is a time‑waster and a common reason people skip steps.
| Item | Specs | Why it matters |
|---|---|---|
| Engine oil | 6 quarts 0W‑20 full synthetic | Exact capacity plus a little for topping off |
| Oil filter | Toyota 90915‑YZZD3 or equivalent | Correct flow and pressure rating |
| Drain plug crush washer | 14mm, copper or aluminum | Prevents leaks at the plug |
| Drain pan | 7‑quart minimum | Holds all the old oil plus filter drips |
| 14mm socket or wrench | Standard 3/8‑inch drive | Fits the drain plug perfectly |
| Torque wrench | 3/8‑inch drive, 10‑50 ft‑lb range | Accurate 29 ft‑lb torque on drain plug |
| Funnel | Medium size, flexible neck | Easier pour into the filler tube |
| Oil filter wrench | Cap‑style or claw type | For stubborn filters |
| Floor jack and jack stands | 2‑ton capacity minimum | Safety during under‑car work |
| Nitrile gloves | Disposable | Keep oil off your hands |
You don't need a specialty tool for the 2006 Avalon's filter. It's hand‑accessible from above. But if it's been overtightened by a previous mechanic, a filter wrench will save you a trip to the shop.
The crush washer is often overlooked. If you don't have a new one, reuse the old one carefully, but honestly, they cost 50 cents. Buy five at a time and keep them in your toolbox.
How to Verify Your Work: Dipstick Reading, Torque, and Leak Checks
After you've added the 6.2 quarts and run the engine, the final step is verification. Don't skip it.
Dipstick check procedure
- Park on level ground.
- Wait at least two minutes after shutting off the engine. That gives oil time to drain back into the pan.
- Pull the dipstick, wipe it clean, reinsert fully, wait a second, pull again.
- The oil level should be between the two dots or marks, ideally near the upper dot.
- If it's low, add oil in ¼‑quart increments. If it's high, you've overfilled. Drain some out.
Torque verification
If you used a torque wrench, you're good. If you did it by feel, double‑check after the engine is hot. Sometimes the plug loosens slightly as the gasket seats.
Re‑tighten if there's any movement. Don't overtighten.
Leak check
Start the engine and let it idle for a minute. Look under the car. Check the drain plug and the oil filter for drips.
Also check the oil filler cap, it should be snug. Any drips mean you need to tighten the plug or filter. A slow leak at the filter usually means the gasket wasn't seated properly or you need an extra quarter turn.
One more tip: keep a clean rag under the car overnight. If you see a stain in the morning, investigate. A small drip can turn into a major leak when the oil thins out during highway driving.
Getting these checks right every time means your 2006 Avalon will run reliably for another 100,000 miles. Take the extra five minutes to verify, it beats a tow truck bill.
When to Call a Mechanic (Even If You Usually DIY)
Most 2006 Avalon oil changes are straightforward. But some situations call for a pro. If you find stripped threads on the drain plug, stop.
A helicoil repair is tricky and must hold oil pressure. That's a shop job. If you see metal flakes in the drained oil, that signals internal wear.
A mechanic can diagnose the source before you refill. And if the oil filter won't budge after reasonable force, don't risk damaging the housing. Let a shop with proper tools handle it.
Maintenance Schedule and Long‑Term Engine Care
Stick to 5,000‑mile intervals if you use synthetic blend, or up to 7,500 miles with full synthetic and a quality filter. Replace the crush washer every time. Check the dipstick monthly, not just at oil changes.
The 2GR‑FE consumes a little oil as it ages, especially past 150,000 miles. Top off as needed between changes. Keep an eye on the valve cover gaskets, they can leak oil onto the exhaust and cause a smell.
Final Verdict: The One Number You Must Remember
It's 6.2 quarts. That's the refill capacity with a filter change using 0W‑20 full synthetic. Write it on the inside of your owner's manual.
Keep a spare quart in the trunk. Do that, check the dipstick, and your 2006 Avalon will reward you with another decade of trouble‑free driving.
Frequently Asked Questions
Can I use 5W‑30 instead of 0W‑20 in my 2006 Avalon?
Yes, but only in consistently warm climates above 10°F. You lose cold‑start protection and fuel economy. Toyota recommends 0W‑20 for all normal conditions.
How do I reset the oil maintenance light after a change?
Turn the ignition to ON without starting the engine. Press the trip reset button until the odometer shows "ODO." Turn the ignition OFF. Hold the trip reset button while turning the key to ON again.
Wait until the light blinks and goes out.
What happens if I put in 6 quarts instead of 6.2?
You'll be slightly underfilled but within a safe range. The dipstick should still show in the low end of the safe zone. Top up with 0.2 quarts to reach the full mark.
Is it normal for my Avalon to burn oil between changes?
Some oil consumption is normal as the engine ages. Toyota considers up to one quart per 1,000 miles acceptable. If you're losing more than that, check for leaks or worn valve seals.
