2007 Toyota Avalon Oil Capacity: Exact Quarts

If you've searched for the 2007 toyota avalon oil capacity, you probably already know that getting it wrong can mean trouble. One too many quarts and you risk foaming, aeration, and bearing damage. One too few and you're looking at oil starvation, overheating, and a potential engine rebuild.

This isn't a "close enough" kind of number.

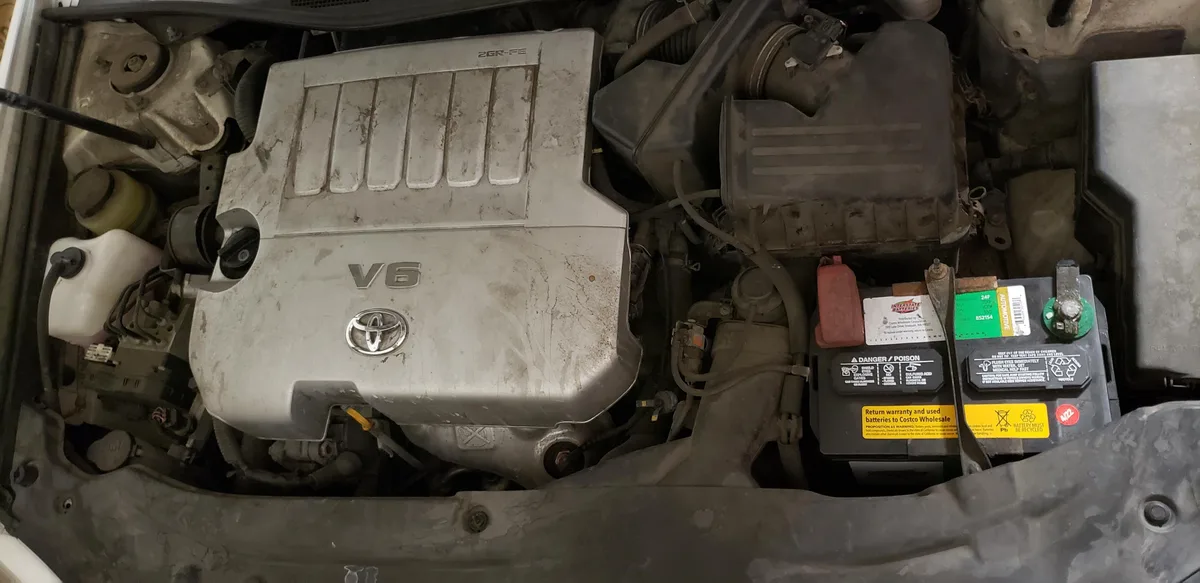

Manufacturer specifications confirm the 2007 Avalon with the 2GR-FE engine takes exactly 6.1 quarts (5.8 liters) of 5W-30 oil with a filter change. That figure comes straight from Toyota's factory service manual, and as of 2026, it hasn't changed. Let's walk through everything you need to know to get this right the first time.

Image source: Bing (Web (fair-use with source credit))

Quick Answer

The 2007 Toyota Avalon takes 6.1 quarts of 5W-30 oil. This is with a filter change. Without a filter change, it takes 5.8 quarts.

Always check your dipstick after filling. Do not dump all six quarts in at once.

Why One Wrong Number Can Cost You an Engine

The 2007 Avalon is a reliable car. The 2GR-FE V6 engine regularly hits 250,000 miles with proper care. But the oil capacity is one of the most commonly botched specs on this model, and the reason is simple: confusion between two different engines.

Toyota used the 3MZ-FE 3.3L V6 in the 2005 and 2006 Avalon. That engine takes only 4.4 quarts. If you grab the wrong number from an old forum post or a parts store lookup that hasn't been updated, you'll pour in two quarts less than what the 2007 engine needs.

Running on 4.4 quarts instead of 6.1 is a fast track to oil starvation and engine damage.

The 2007 model year is a clean break. Every 2007 Avalon sold in North America came with the 2GR-FE 3.5L V6. No exceptions, no trim-level variation.

The capacity is 6.1 quarts with a filter change. Full stop.

The Two Engines You Need to Know About

The Standard 2GR-FE (3.5L V6)

This is the engine in your 2007 Avalon unless someone swapped the powertrain, which is extremely rare. It's a 3.5-liter V6 that produces 268 horsepower and 248 lb-ft of torque. It uses a cartridge-style oil filter located at the front of the engine, accessible from underneath the car.

Key specs:

• Oil capacity with filter change: 6.1 quarts (5.8 liters)
• Oil capacity without filter change: 5.8 quarts (5.5 liters)
• Dry fill (new or rebuilt engine): 6.6 quarts (6.2 liters)
• Recommended viscosity: 5W-30
• API rating: SL or newer (SM, SN, SN+)

The Rare 3MZ-FE (3.3L V6) – What Year is Your Car?

If you own a 2005 or 2006 Avalon, stop here. That car uses the 3MZ-FE engine and takes 4.4 quarts with a filter change. Do not follow the 2007 specs.

If you own a 2007 Avalon, you almost certainly have the 2GR-FE. Double-check your production date on the door jamb sticker. If your car was built after August 2006, you have the 2GR-FE.

Exact Oil Capacity by Scenario

With Filter Change

This is the standard scenario for a routine oil change. You drain the old oil, replace the oil filter, and fill fresh oil. The correct volume is 6.1 quarts.

Buy a 5-quart jug and one additional quart. That's 6 quarts total, which leaves you slightly under. You'll need to add about 0.1 quarts (roughly 3 ounces) to reach the full mark on the dipstick.

Without Filter Change

If you're only draining and refilling without swapping the filter, you'll remove roughly 5.8 quarts. This is a less common scenario, and we don't recommend it. Always change the filter with the oil.

But if you do skip the filter, use 5.8 quarts as your starting point, then top off as needed.

Dry Fill (Engine Rebuild or New Motor)

After a complete engine rebuild or replacement, the system is completely empty. This requires 6.6 quarts (6.2 liters). Start by adding about 6 quarts, run the engine for 30 seconds to fill the filter and passages, shut it off, wait 5 minutes, then check and top off.

The dry fill spec is always higher than the service fill spec because oil is required to fill the cooler lines, passages, and filter housing from empty.

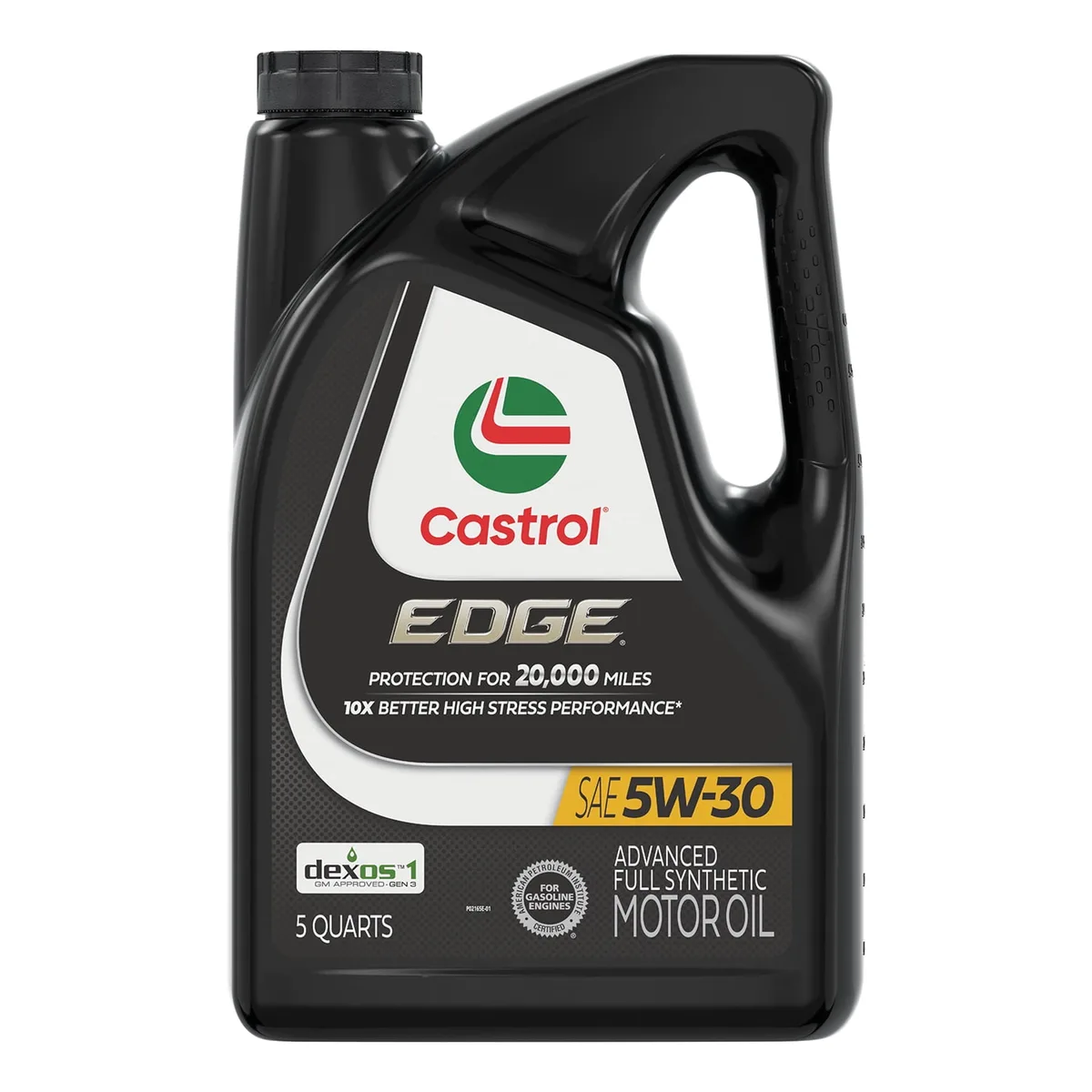

What Type of Oil to Use

Viscosity: Why 5W-30 is the Right Choice

Toyota specifies 5W-30 for the 2007 Avalon. This is the viscosity recommended in the owner's manual, and it's what the engine was designed to use. The 5W part means the oil flows like a 5-weight when cold, giving you good protection during startup in winter.

The 30 part means it thickens to a 30-weight at operating temperature, providing proper film strength for the bearings and valvetrain.

Can you use something else? Some owners in very cold climates switch to 0W-30 for better cold-flow performance. That's fine.

But do not use 10W-30 or 10W-40. Those heavier viscosities can cause sluggish oil flow during cold starts, leading to increased wear.

Image source: Web (Bing) / business.walmart.com (Web image (fair-use with source credit))

Conventional vs. Synthetic – Does It Matter?

Toyota didn't require synthetic oil for the 2GR-FE from the factory. Conventional 5W-30 works perfectly well, provided you change it every 5,000 miles. Synthetic oil offers better high-temperature stability, longer change intervals (up to 7,500 miles), and improved cold-start protection.

If your Avalon has over 100,000 miles and you're unsure of its maintenance history, synthetic is a safer bet. You can also use a synthetic blend, which gives you some of the benefits of synthetic at a lower price point.

Just make sure whatever you buy carries the API certification label with the starburst symbol. That's your guarantee it meets the minimum standards for your engine.

continued mid-article…

Tools and Parts You'll Need

Before you drain a drop, gather everything on this table. Running to the parts store mid-job with a car on jack stands is frustrating and avoidable.

Oil Filter Part Numbers

The OEM filter for the 2GR-FE is Toyota part number 04152-31090. A common superseded version is 04152-YZZA1. Both fit.

Aftermarket options from Purolator, Fram, and Mobil 1 also work, but stick with a name brand. Cheap no-name filters can collapse internally or bypass unfiltered oil.

Crush Washer Specs

The drain plug uses a copper or aluminum crush washer. Toyota part number 90301-08050 is the factory piece. It costs less than a dollar.

Replace it every oil change. Reusing an old crush washer increases the chance of a slow drip that can look like a rear main seal leak.

Recommended Torque Settings

The drain plug torque spec is 30-35 ft-lbs. The oil filter spins on hand-tight plus about 3/4 turn. Do not overtighten the drain plug.

The oil pan on the 2GR-FE is aluminum. Stripped threads mean a new oil pan or a thread repair insert.

Step-by-Step: How to Do It Right

This process works whether you're in your driveway or a garage. Follow it exactly and you'll get the right oil level every time.

Step 1: Warm the Engine and Lift Safely

Run the engine for two to three minutes. Warm oil drains faster and carries more suspended contaminants out of the engine. Park on level ground.

Lift the front of the car with a jack and place jack stands under the frame rails. Shake the car to confirm stability before sliding underneath.

Step 2: Drain and Replace the Filter

Position the drain pan under the oil pan. Loosen the drain plug with a 14mm socket. Unscrew it by hand carefully to avoid dropping it into the pan.

Let the oil drain for five to seven minutes until it slows to a drip.

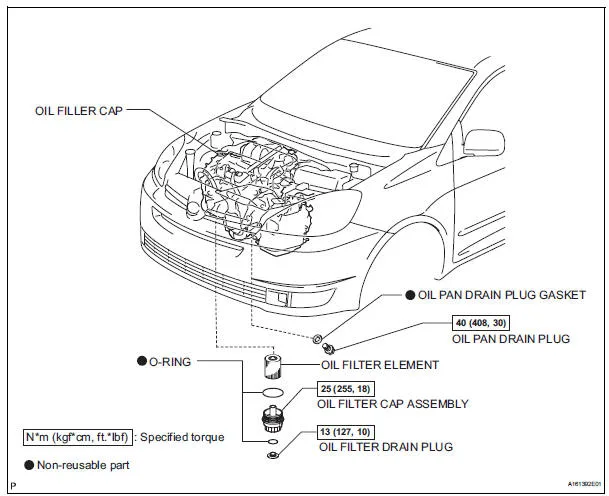

While the oil drains, locate the oil filter. On the 2GR-FE, it sits at the front of the engine, on the passenger side, facing downward. Remove it with a filter wrench.

Wipe the mounting surface clean. Lubricate the new filter's gasket with fresh oil. Screw it on by hand until the gasket makes contact, then tighten another 3/4 turn.

Image source: Bing (Web (fair-use with source credit))

Step 3: Add Oil the Smart Way (Don't Dump It All)

Install the drain plug with a new crush washer. Torque it to 30-35 ft-lbs. Lower the car off the stands.

Pour in about 5.5 quarts of 5W-30. That's the full 5-quart jug plus roughly half your single quart. Stop there.

Do not pour the remaining oil automatically.

Step 4: Check the Dipstick Like a Pro

Start the engine and let it run for 30 seconds. This fills the new filter and oil passages. Shut the engine off.

Wait five minutes for the oil to settle back into the pan.

Pull the dipstick, wipe it clean, and reinsert it fully. Pull it again and read the level. It should be somewhere between the low and full marks.

Add oil in small increments, about 1/4 quart at a time, until the level reaches the upper dot.

Step 5: Reset the Maintenance Light

The 2007 Avalon has a maintenance reminder light on the dash. To reset it, turn the ignition to the ON position without starting the engine. Press and hold the trip odometer reset button until the light blinks and then turns off.

This usually takes about five seconds. It confirms the car knows fresh oil is in the system.

Common Mistakes That Cause Real Damage

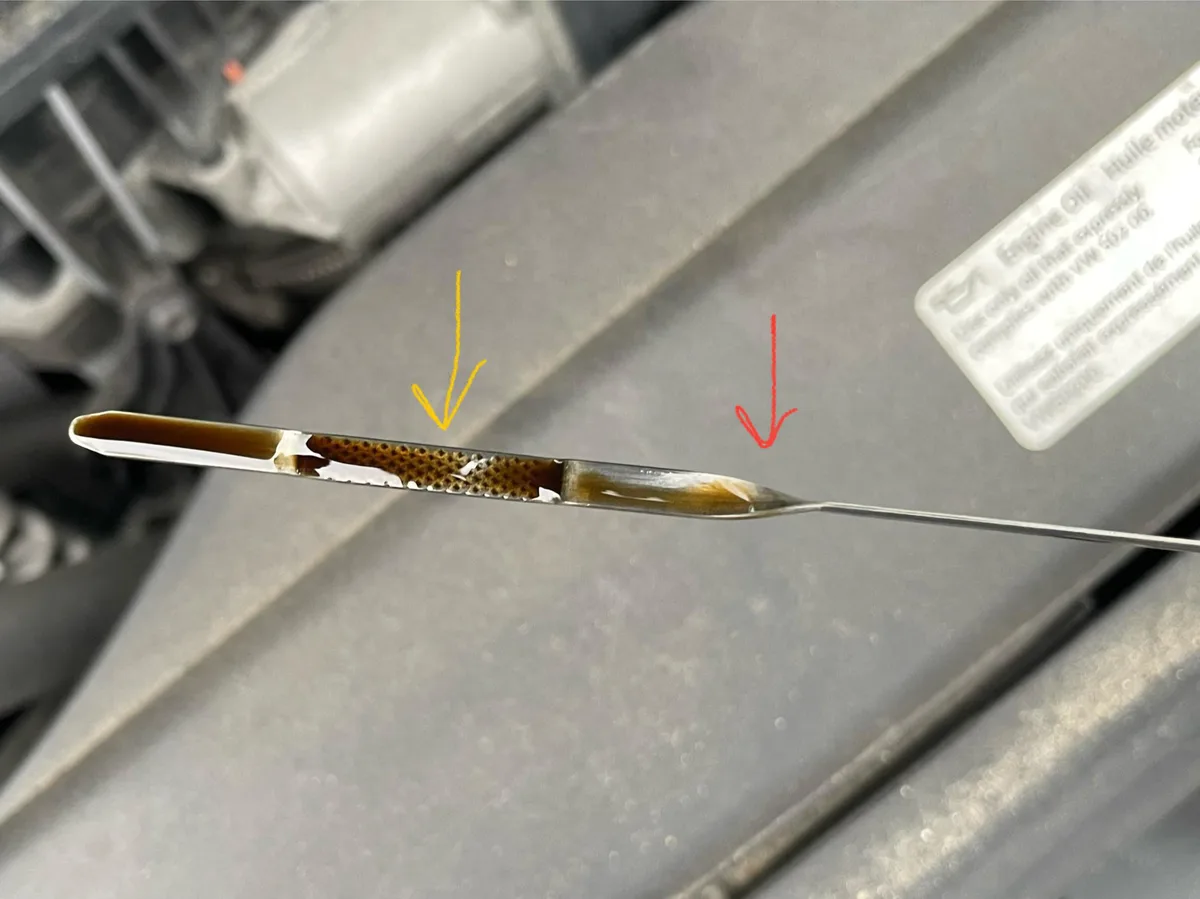

Overfilling (Yes, This Is Worse Than Underfilling)

If you dump all six quarts in at once, you will almost certainly overfill the engine. The crankshaft whips through excess oil, aerating it into foam. Foam does not lubricate bearings properly.

Over time, this causes accelerated wear and can lead to catastrophic bearing failure.

Image source: Web (Bing) / reddit.com (Web image (fair-use with source credit))

The dipstick tells the true story. If the oil level sits above the full mark, drain some out. It is safer to be slightly below the full mark than even a hair above it.

Using the Wrong Viscosity

The 2GR-FE was designed around 5W-30. Thicker oil like 10W-40 does not flow fast enough during cold starts. This leaves critical components dry for precious seconds after ignition.

Over years of cold starts, that extra wear adds up.

Stripping the Drain Plug

Aluminum oil pans are soft. If you overtighten the drain plug or cross-thread it, you can strip the pan. The repair involves either a thread repair insert like a Time-Sert or a full oil pan replacement.

Both are far more expensive than a proper torque wrench. If you do not have a torque wrench, tighten the drain plug snugly with a short-handled ratchet. Stop the moment you feel resistance increase.

Skipping the Dipstick Check

The oil capacity numbers in this article are accurate for a theoretical engine. Your specific car may hold slightly more or less depending on how well the old oil drained, how much residual oil clings to internal surfaces, and whether the car is perfectly level. The dipstick never lies.

Check it every time, even if you know the exact capacity.

It takes ten seconds and prevents a mistake that can cost thousands.

Cost Breakdown: DIY vs. Dealership

Money matters. Let's look at what you're actually spending either way.

The DIY route saves you $35 to $90 per change. Over five years and 75,000 miles, that's $350 to $900 saved. Enough to cover a set of tires or a major service.

The tradeoff is your time and the need to dispose of used oil properly. Most auto parts stores accept used oil for free. Some states require you to keep it in a sealed container and drop it at a collection center.

Check your local regulations.

If you do not have tools, a safe place to work, or the confidence to get it right, paying a shop is the better choice. The cheapest oil change is not the one that saves you five dollars. It is the one that uses the right oil, the right filter, and the right torque.

A stripped drain plug or an overfilled crankcase from a rushed DIY job costs far more than any dealership markup.

When to Ask a Mechanic Instead

You can handle the oil change yourself safely if you have a level driveway, a jack and stands, and basic hand tools. But there are situations where paying a pro is smarter.

You have no safe lifting equipment. Ramps are the easiest option for the 2007 Avalon. It has decent ground clearance. If you do not own ramps or stands, buying them just for an oil change may not be worth it.

You suspect an oil leak. If you notice oil on your driveway or smell burning oil while driving, do not just change the oil and hope. The 2GR-FE can develop a timing chain cover leak or a valve cover gasket leak as it ages past 150,000 miles. A mechanic can diagnose the source and tell you whether it is a simple gasket or something more involved.

You cannot get the drain plug loose. If the plug is seized or rounded off, do not force it. A shop with an impact driver and experience can extract it without damaging the pan.

You want a professional inspection. Many independent shops will include a multi-point inspection with an oil change. They check belts, hoses, fluid levels, and brake condition. That is valuable for a 2007 car that is closing in on two decades old.

For everything else, DIY is perfectly safe. The 2GR-FE is one of the easier engines to service. The filter is accessible.

The drain plug is straightforward. And the capacity is a simple number once you know it.

FAQs from Avalon Owners

Can I Use 0W-20 or 10W-30?

Stick with 5W-30. The 2GR-FE engine was calibrated for that viscosity at the factory. Using 0W-20 may cause slightly higher operating temperatures and increased wear under load.

Using 10W-30 can lead to sluggish cold starts and reduced oil flow to the variable valve timing system. If you live in extreme cold, 0W-30 is an acceptable alternative.

How Often Should I Change the Oil?

Toyota recommends every 5,000 miles for conventional oil and every 7,500 miles for synthetic. The 2007 Avalon's maintenance reminder light was programmed for the 5,000-mile interval. If you use synthetic and drive mostly highway miles, you can safely stretch to 7,500.

For stop-and-go city driving or dusty conditions, stick to 5,000 regardless of oil type.

Why Does My Dipstick Read High Right After a Change?

This is normal. Fresh oil takes a few minutes to circulate through the filter housing and valve train. If you check immediately after running the engine, some oil is still suspended in the upper engine.

Wait five minutes after shutdown. That gives the oil time to settle back into the pan for an accurate reading.

Does the 2008 Avalon Use the Same Amount of Oil?

Yes. The 2008 Avalon uses the same 2GR-FE engine and the same 6.1-quart capacity with a filter change. The only difference is the oil filter part number may be a superseded version.

Always confirm engine type rather than model year alone.

The Bottom Line: What to Trust and What to Ignore

The 2007 Toyota Avalon takes 6.1 quarts of 5W-30 oil with a filter change. That number is verified by Toyota's factory service manual and thousands of successful oil changes. Ignore any source that says otherwise unless it specifies the 3MZ-FE engine from the 2005-2006 models.

Trust the dipstick more than any spec sheet. Capacity numbers are accurate for a clean, dry engine on a level surface. Real-world conditions vary slightly.

The dipstick accounts for every variable.

Trust a new crush washer every time. Trust hand-tight plus 3/4 turn on the filter. Trust 5W-30 from any major brand with the API starburst.

And trust that your 2007 Avalon, with the right oil and regular changes, will see well past 200,000 miles without breaking a sweat.
