2009 Toyota Corolla Oil Type: What You Need to Know

Image source: Web (Bing) / picclick.fr (Web image (fair-use with source credit))

If you're looking up the 2009 toyota corolla oil type, you're probably doing the right thing. Getting this wrong can cost you real money. A single mistake here can lead to sludge buildup, reduced fuel economy, or even a seized engine.

The 2009 Corolla came with two different engines that year. Each one needs a different oil viscosity. That's not a guess.

It's a specification from Toyota. As of 2026, many of these cars are still on the road. Using the wrong oil remains one of the most common maintenance errors.

Our editorial approach focuses on giving you the exact answer, not general advice.

Why Getting the Right Oil Matters

You might think oil is oil. It's not. The 2009 Corolla's 1.8-liter engine uses a variable valve timing system (VVT-i) that depends on proper oil pressure and flow.

Use the wrong viscosity, and that system can't work correctly. Over time, you'll get timing chain noise, rough idling, or a check engine light.

The bigger risk is sludge. Modern engines run hot. The wrong oil can break down faster, leaving deposits inside your engine.

Once sludge builds up, it's expensive to fix. Some owners end up replacing the entire engine.

Here's what else can go wrong:

• Reduced fuel economy. Thicker oil than needed creates more drag, so you burn more gas.
• Hard cold starts. The wrong winter-grade oil thickens too much in cold weather, starving the engine of lubrication.
• Oil leaks. Using an oil with the wrong additive package can cause seals to shrink or swell.
• Voided warranty. If your Corolla is still under a powertrain warranty, the wrong oil can void coverage.

Many 2009 Corollas are well past 200,000 miles on the original engine if maintained correctly. Getting the right oil is part of that equation.

Quick Answer: What Oil Does a 2009 Corolla Take?

The 2009 Toyota Corolla takes either 5W-30 or 0W-20. It depends on which engine you have.

• 1ZZ-FE engine, use 5W-30
• 2ZR-FE engine, use 0W-20

Both engines are 1.8-liter four-cylinders. The oil capacity is about 4.4 quarts with a filter change. Use oil that meets API SN or SP and ILSAC GF-5 or GF-6 standards.

That's the fast answer. But if you want to know exactly which engine is in your car, keep reading. That's the part most guides get wrong.

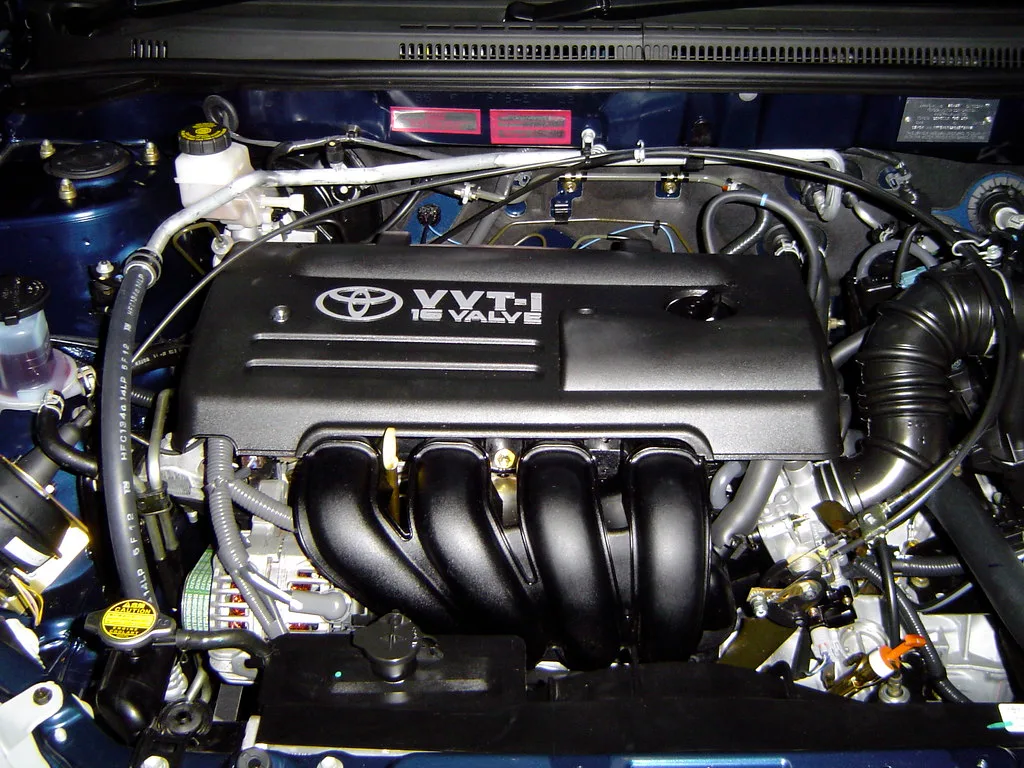

The 1ZZ-FE vs 2ZR-FE Engine – Why It's the Most Important Detail

Image source: Web (Bing) / flickr.com (Web image (fair-use with source credit))

Toyota switched engines during the 2009 model year. Early 2009 Corollas have the 1ZZ-FE. Later ones have the 2ZR-FE.

If you own a 2009, you could have either one.

The 1ZZ-FE was an older design. It uses 5W-30 oil. The 2ZR-FE is a newer engine that uses 0W-20 for better fuel economy.

Put the wrong oil in either one, and you risk problems.

How to check which engine you have

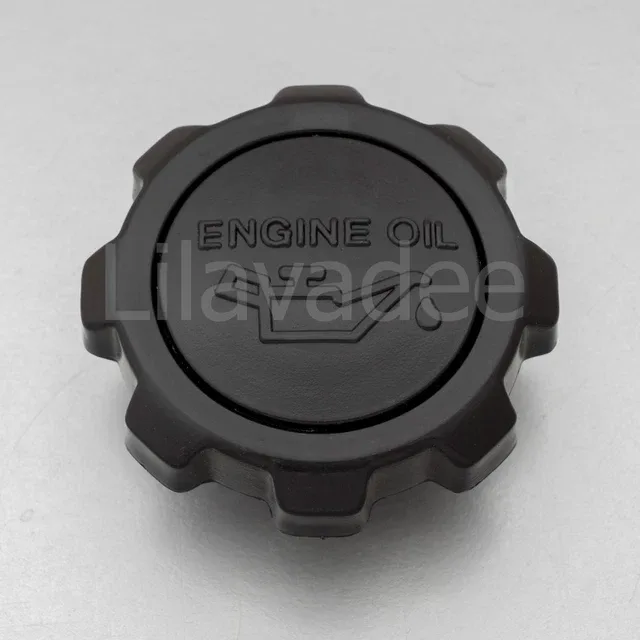

1. Look at the oil fill cap.

Pop the hood. The oil fill cap is usually a yellow or black plastic cap on top of the valve cover. On many 2009 Corollas, the oil fill cap has the recommended viscosity printed right on it.

It might say "5W-30" or "0W-20." That's the easiest check.

2. Check the owner's manual.

If you still have the original manual, look in the specifications section. It lists the recommended oil for your specific engine.

3. Use the VIN.

Your vehicle identification number (VIN) is on the dashboard near the windshield or on the driver's door jamb. You can look it up online or call a Toyota dealer. They can tell you which engine was installed at the factory.

Why this matters

The 1ZZ-FE engine is more tolerant of different oils. You can run 5W-30 or even 10W-30 in a pinch. The 2ZR-FE is different.

It was designed for thinner 0W-20 oil because of tighter bearing clearances and the VVT-i system. Using 5W-30 in a 2ZR-FE can cause oil pressure issues, especially in cold weather.

Some owners have run 5W-30 in a 2ZR-FE for short periods without obvious damage. But it's not recommended. Toyota technical service bulletins (TSBs) caution against using the wrong viscosity in the 2ZR-FE.

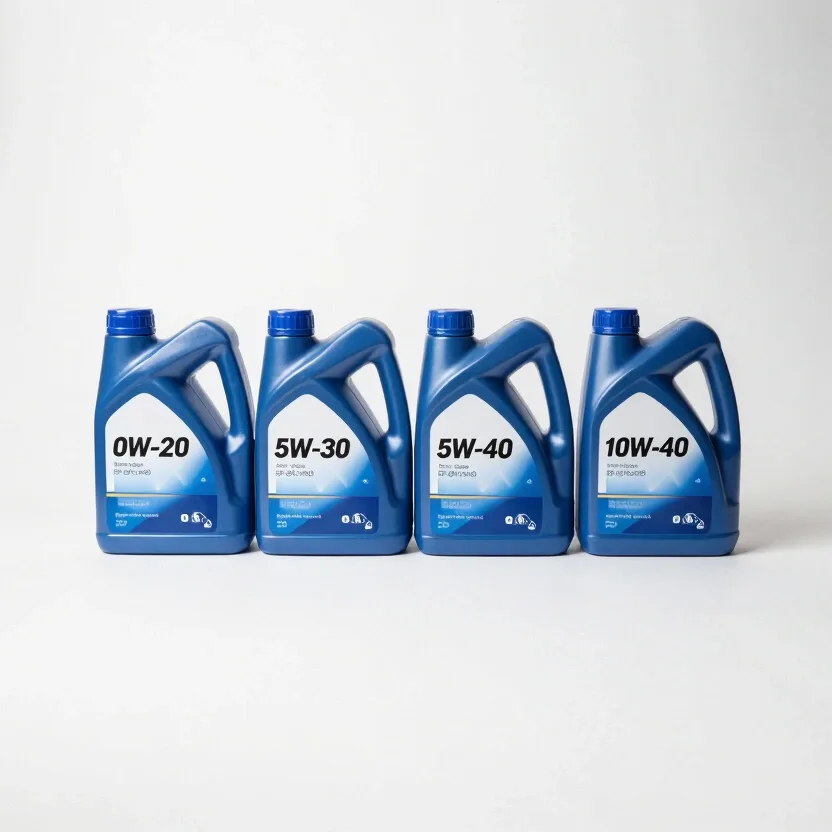

SAE Viscosity: 5W-30 vs 0W-20 – What the Numbers Mean

Image source: Bing (Web (fair-use with source credit))

The SAE (Society of Automotive Engineers) sets the viscosity standards. The "W" stands for winter, not weight.

5W-30:

• The "5W" means the oil flows well at cold temperatures down to about -30°C (-22°F).
• The "30" means it thickens to a certain viscosity at 100°C (212°F), which is engine operating temperature.
• It's a middle-ground oil. Thick enough for older engines, thin enough for modern ones.

0W-20:

• The "0W" means it flows even better in extreme cold, down to -40°C (-40°F).
• The "20" means it's thinner at operating temperature than 5W-30.
• This is a fuel economy oil. Less resistance inside the engine means slightly better mileage.

Which one is better for your engine?

The answer depends on your engine, not your preference.

If you live in a very cold climate, 0W-20 is better for cold starts in either engine. For the 1ZZ-FE, Toyota officially recommends 5W-30. Some owners in cold areas use 0W-20 in the 1ZZ-FE without issue, but it's a deviation from the spec.

Can you use 5W-30 in a 2ZR-FE?

We strongly advise against it. The 2ZR-FE engine was designed for 0W-20. Using 5W-30 can cause higher oil pressure, reduced fuel economy, and potential VVT-i actuator problems.

In cold weather, the thicker oil may not flow quickly enough to lubricate the valvetrain on startup.

If you're in a hot climate and worried about thin oil, don't be. Modern 0W-20 oils have excellent high-temperature protection. They meet the same API and ILSAC standards as thicker oils.

The additive packages handle the heat.

API and ILSAC Ratings – Don't Ignore the Certifications

Image source: Web (Bing) / motoroilguide.com (Web image (fair-use with source credit))

You've seen the symbols on the back of oil bottles. The donut-shaped API certification mark and the starburst ILSAC logo. They aren't just decoration.

They tell you the oil meets industry standards.

What is API?

The American Petroleum Institute (API) sets minimum performance standards for motor oil. You'll see a two-letter code like "SN" or "SP." The letters go in alphabetical order. As of 2026, the latest standard is API SP.

Per the API motor oil standards, you need at least API SN for a 2009 Corolla. API SP is better and backward compatible.

What is ILSAC?

The International Lubricant Standardization and Approval Committee (ILSAC) sets fuel economy and engine protection standards. The current standard is GF-6. For your 2009 Corolla, GF-5 or GF-6 is recommended.

Why these ratings matter

• They ensure the oil has proper additives for sludge control, wear protection, and oxidation resistance.
• They guarantee the oil meets fuel economy requirements set by automakers.
• They are required by Toyota's warranty. Using an oil without these certifications could void your engine coverage.

What to look for on the bottle

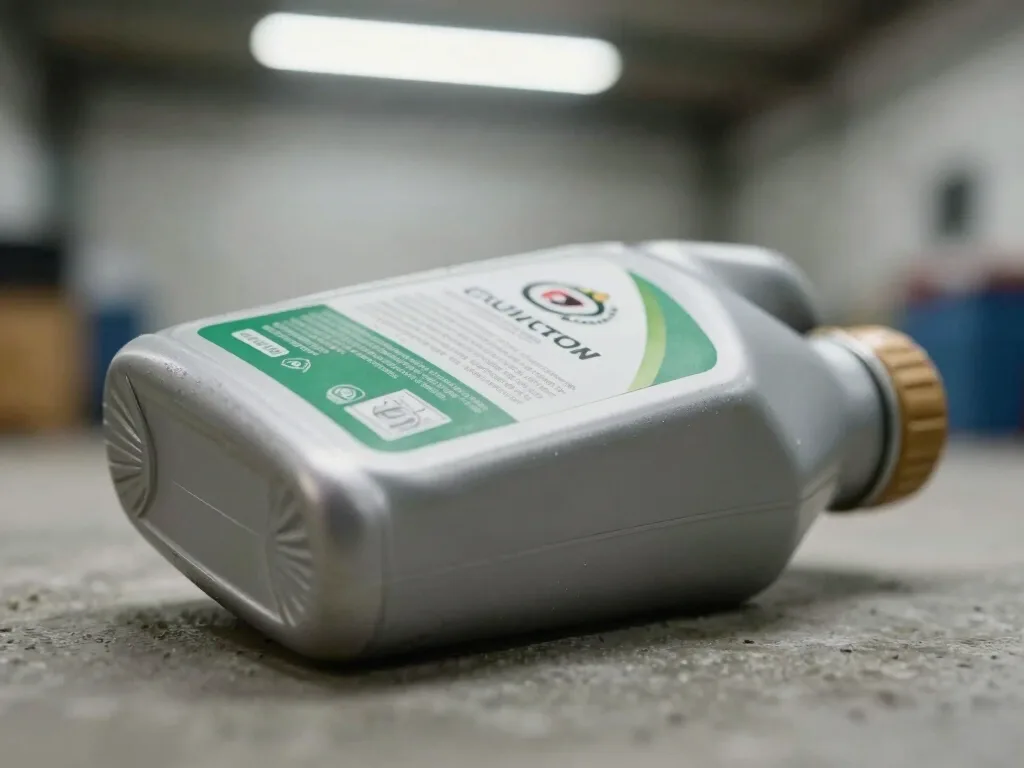

When you're at the store, flip the bottle over. Look for the API donut with "SN" or "SP" inside and the ILSAC starburst with "GF-5" or "GF-6." If you don't see these marks, don't buy it. Some store brands carry these marks.

Some don't. Check before you buy.

Conventional vs Synthetic vs High-Mileage Oil – Which Should You Use?

Conventional 5W-30 or 0W-20 works perfectly fine for a 2009 Corolla if you change it on schedule. Toyota didn't require synthetic for these engines. That said, each type has its place.

Conventional oil is the cheapest option. It meets API and ILSAC standards. For a Corolla that gets regular oil changes every 5,000 miles, it's all you need.

The downside is that it breaks down faster under extreme heat or heavy load.

Synthetic blend mixes conventional oil with synthetic base stocks. It offers better protection than straight conventional without the full synthetic price. It's a solid middle ground.

Full synthetic is the best protection you can buy. It flows better in cold weather. It resists breakdown at high temperatures.

It also allows longer oil change intervals, typically 7,500 miles or more. For a 2009 Corolla, full synthetic is overkill but not harmful. If you live in a very hot or cold climate, it's worth the extra cost.

High-mileage oil is designed for engines with over 75,000 miles. It contains seal conditioners that help reduce oil leaks. It also has higher detergent levels to clean sludge.

If your Corolla has 100,000 miles or more, this is a smart choice.

Step-by-Step: How to Check and Change Your Oil Safely

How to check your oil level

1. Park on level ground. Turn the engine off and let it sit for 5 minutes.
2. Pull the dipstick out. Wipe it clean with a rag.
3. Insert it all the way back in. Pull it out again.
4. Check where the oil film sits. It should be between the low and full marks.
5. If it's low, add oil a quarter quart at a time. Recheck after each addition.

Do not overfill. Too much oil causes foaming. That can starve the engine of lubrication.

The difference between the low and full marks is about one quart.

How to change your oil

You'll need a drain pan, a socket wrench (14mm for the drain plug), an oil filter wrench, and the correct oil and filter.

1. Warm up the engine for a few minutes. Warm oil drains faster.
2. Place the drain pan under the drain plug. Remove the plug with a 14mm socket.
3. Let the oil drain completely. This takes 3 to 5 minutes.
4. Remove the old oil filter. Use the wrench. Expect some oil to spill.
5. Lubricate the rubber gasket on the new filter with a bit of fresh oil.
6. Install the new filter. Tighten it hand tight. Do not overtighten.
7. Reinstall the drain plug. Torque it to about 30 foot-pounds. Do not strip it.
8. Add the correct amount of oil. About 4.4 quarts with a filter change.
9. Check the dipstick. Add more if needed. Do not overfill.
10. Start the engine. Let it run for 30 seconds. Check for leaks around the filter and drain plug.
11. Turn off the engine. Wait 5 minutes. Recheck the dipstick.

One common mistake is overtightening the drain plug. The oil pan is aluminum. Strip it, and you're looking at a costly repair.

Use a torque wrench if you have one.

The OEM filter part number is 04152-YZZA1. Aftermarket filters from Fram, Mobil 1, or Purolator work fine. Just match the specifications.

Common Mistakes That Can Damage Your Engine

Using the wrong viscosity. This is number one. Check your engine type before you buy oil.

Ignoring the oil change interval. Oil breaks down over time. Toyota recommends every 5,000 miles for severe service. That means stop-and-go driving, short trips, or extreme temperatures.

For highway driving, 7,500 miles is acceptable.

Skipping the filter change. Always replace the oil filter with every oil change. A clogged filter bypasses oil around the filter media. Dirty oil circulates through your engine.

Overtightening the drain plug. The torque spec is around 30 foot-pounds. Hand tight plus a quarter turn is usually enough.

Underfilling or overfilling. Underfilling means low oil pressure. Overfilling means foaming and potential seal damage. Always check the dipstick after adding oil.

Using an oil without the right certification. API SN or SP and ILSAC GF-5 or GF-6 are required. If the bottle doesn't have these marks, don't use it.

Forgetting to check for leaks. After an oil change, run the engine for a minute. Look under the car. A small drip can turn into a big mess.

Not disposing of old oil properly. Used oil is hazardous waste. Most auto parts stores accept it for free. Never pour it down the drain or into the ground.

Real-World Scenarios

Cold climate

If winters get below freezing, 0W-20 is better for cold starts. It flows faster at low temperatures. This reduces engine wear on startup.

If you have the 1ZZ-FE engine, you can run 5W-30 year-round. But 0W-20 helps in extreme cold.

For the 2ZR-FE, 0W-20 is required. Using 5W-30 in subzero temperatures can cause oil starvation on startup.

Hot climate

Heat breaks down oil faster. Full synthetic handles high temperatures better than conventional. If you live in Arizona or Texas, consider a synthetic 5W-30 for the 1ZZ-FE.

For the 2ZR-FE, stick with 0W-20. Modern synthetic 0W-20 oils have excellent high-temperature protection.

High mileage

Aging engines develop small leaks. Seals shrink and harden. High-mileage oil contains seal conditioners that help restore flexibility.

It also has extra detergents to clean sludge.

If your 2009 Corolla has over 100,000 miles, switch to a high-mileage oil. Use the same viscosity recommended for your engine. Many owners report fewer oil leaks after the switch.

How Often Should You Change the Oil?

Toyota's official recommendation for the 2009 Corolla is every 5,000 miles under severe service. Severe service includes stop-and-go driving, short trips, extreme temperatures, and dusty conditions. That describes most city driving.

For normal highway driving, Toyota says every 7,500 miles is fine. Normal service means long trips, moderate temperatures, and clean roads.

If you use full synthetic oil, you can extend the interval to 7,500 miles even in severe service. If you use conventional oil, stick with 5,000 miles.

Change the oil at least once a year even if you don't hit the mileage. Oil absorbs moisture over time. That moisture causes corrosion inside the engine.

Expert Tips

Stick with one brand and type of oil once you find one that works. Consistency helps you track how the engine responds.

Check your oil level at every other fuel fill-up. A quick glance at the dipstick takes 30 seconds.

Replace the PCV valve every 60,000 miles. A clogged PCV valve causes pressure buildup. That can push oil past seals and create leaks.

Use a quality oil filter. Cheap filters can collapse or bypass, sending unfiltered oil through your engine. Stick with OEM or reputable aftermarket brands.

Keep an eye on the oil color. Fresh oil is amber. As it darkens, it's picking up contaminants.

If it looks like thick black sludge, you've waited too long. You can review our site usage rules for more on our content standards.

Frequently Asked Questions

Can I use 10W-30 in my 2009 Corolla?

You can in the 1ZZ-FE engine in a pinch. But 5W-30 is the correct spec. For the 2ZR-FE, do not use 10W-30.

It's too thick and can cause oil pressure issues.

What happens if I accidentally use the wrong oil?

One mistake won't destroy your engine. Drain it and refill with the right oil. If you run the wrong viscosity for thousands of miles, you risk sludge, poor fuel economy, and VVT-i problems.

How many quarts does a 2009 Corolla take?

About 4.4 quarts with a filter change. Always check the dipstick after adding. Add a little at a time to avoid overfilling.

Is synthetic oil worth it for an older Corolla?

Yes, especially if you live in extreme climates or want longer intervals. For a high-mileage engine, high-mileage synthetic is a solid choice. Conventional works fine if you change it on time.

Should I use Toyota brand oil?

No. Any brand that meets API SN or SP and ILSAC GF-5 or GF-6 standards is fine. Toyota doesn't require their own oil.

How do I know if my oil is low?

Pull the dipstick. Wipe it. Reinsert and pull again.

If the oil level is below the low mark, add a quart. If it's between low and full, you're fine.

Final Recommendation

For the 1ZZ-FE engine, use 5W-30. For the 2ZR-FE engine, use 0W-20. Both must meet API SN or SP and ILSAC GF-5 or GF-6.

Choose conventional oil if you change it every 5,000 miles. Go with high-mileage oil if your engine has over 75,000 miles. Pick full synthetic if you want the best protection and longer intervals.

Check your engine first. Pop the hood. Look at the oil fill cap.

That's your guide. Follow that spec every time.

Your 2009 Corolla is a reliable car. It can easily reach 200,000 miles or more with the right maintenance. Using the correct oil is the single easiest thing you can do to make that happen.

If you have questions about your specific situation, get in touch with our team. See our data handling practices and legal information for more details.
