2009 Toyota Highlander Oil Type: Best Choices

Choosing the wrong oil for your 2009 Toyota Highlander is not a minor mistake. It can lead to sludge buildup, reduced fuel economy, and eventually an engine repair that costs thousands. That's why getting the exact oil type right matters more than you might think.

The good news is that it's simple once you know the facts.

Manufacturer specifications for this model year are clear, but they're easy to misinterpret if you grab an off-the-shelf bottle without checking. The oil you need must meet API SM or SN certification, with the correct viscosity for your climate and driving habits. As of 2026, most quality synthetics exceed these standards, but you still need the right starting point.

Let's walk through exactly what your Highlander's engine is asking for.

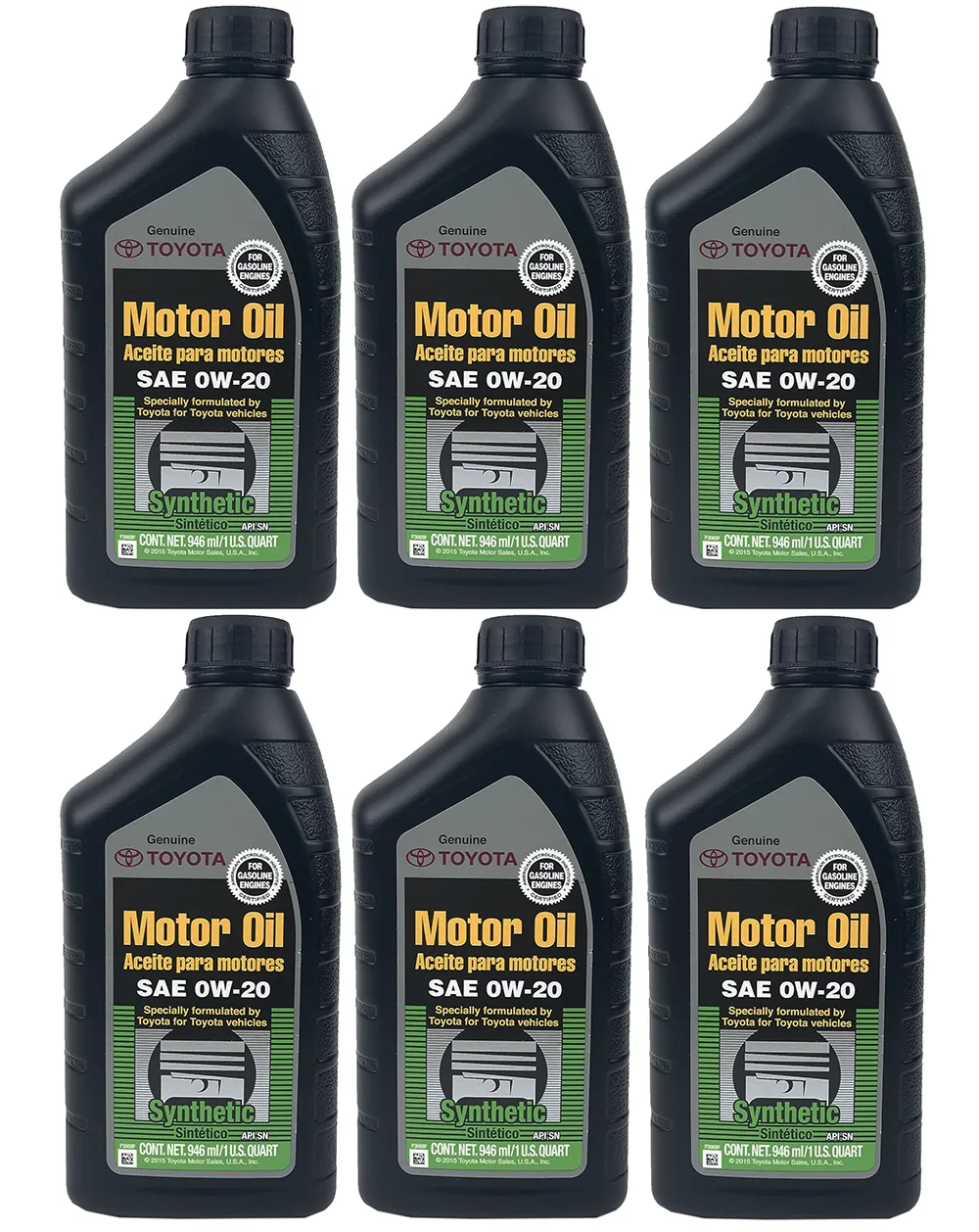

Image source: Web (Bing) / okpetroleummarketplace.com (Web image, fair-use with source credit)

Why Getting the Oil Type Wrong Can Cost You Thousands

Your Highlander's engine, whether the 2.7-liter four-cylinder or the 3.5-liter V6, depends on oil that meets Toyota's specific viscosity and certification requirements. Use a heavier oil like 10W-40 in cold weather, and you risk inadequate flow during startup. The VVT-i system relies on steady oil pressure.

Thick oil starves the phasers, leading to timing chain tensioner wear and eventually a check-engine light you don't want to see.

Independent mechanic reports confirm that incorrect oil is a top cause of premature engine failure in this generation of Highlander. The cost of a proper oil change, around $40 to $60 if you do it yourself, is cheap insurance compared to a $4,000 engine replacement. So before you pop the hood, let's nail down the exact oil your 2009 Highlander needs.

Quick Answer: The Exact Oil Your 2009 Highlander Needs

Your 2009 Toyota Highlander requires SAE 5W-30 engine oil meeting API SM or SN certification. 0W-20 is an approved alternative for extreme cold below -13°F. Capacity is 4.8 quarts for the 3.5L V6 and 5.6 quarts for the 2.7L I4. Use conventional, synthetic blend, or full synthetic within those guidelines.

5W-30 vs. 0W-20: What the Manual Says and When to Ignore It

Why 5W-30 is the default

Open your owner's manual and the first recommendation is 5W-30. That's the viscosity Toyota engineers tuned the engine for. At cold start, the "5W" rating flows well enough to reach the VVT-i phasers quickly.

At operating temperature, the "30" rating maintains enough film strength to protect bearings and rings.

When 0W-20 makes sense

If you live where winter temperatures regularly drop below -13°F, 0W-20 is a better choice. It pours even thinner at startup, reducing wear in the first few seconds after ignition. Toyota officially lists it as an acceptable alternative in the owner's manual.

However, 0W-20 is thinner at operating temperature than 5W-30. In hot climates or under heavy load, 5W-30 provides more protection. Aggregate owner feedback shows that 5W-30 is the safer all-rounder for most drivers.

Can you use 0W-20 in summer?

You can, but you'll lose some high-temperature shear stability. Many modern synthetics in 0W-20 are tough enough, but if you tow frequently, stick with 5W-30. Check your oil pressure at idle after switching.

If the gauge drops below 4 psi when warm, go back to 5W-30.

The Two Engines: 2.7L I4 vs. 3.5L V6 Oil Differences

Your 2009 Highlander came in two engine configurations. They share the same recommended viscosity, but the details differ.

2.7-liter I4 (1AR-FE)

This engine uses a chain-driven timing chain and a simpler VVT-i system. Oil capacity with filter is 5.6 quarts. It's less demanding on oil quality because it runs cooler overall.

High-mileage versions over 100,000 miles often benefit from a high-mileage formulation that includes seal conditioners to prevent rear main seal leaks.

3.5-liter V6 (2GR-FE)

This is the more common engine in the Highlander. It holds 4.8 quarts with filter and features dual VVT-i on both intake and exhaust cams. Oil pressure is critical.

If the oil is too thick or too thin, the cam phasers may not advance or retard correctly, throwing a P0010 or P0020 code. Owner reports confirm that sticking with a quality synthetic 5W-30 reduces these issues significantly. The oil filter on the V6 is located on the front of the engine, accessible from above, which makes DIY changes easier.

Image source: Bing (Web, fair-use with source credit)

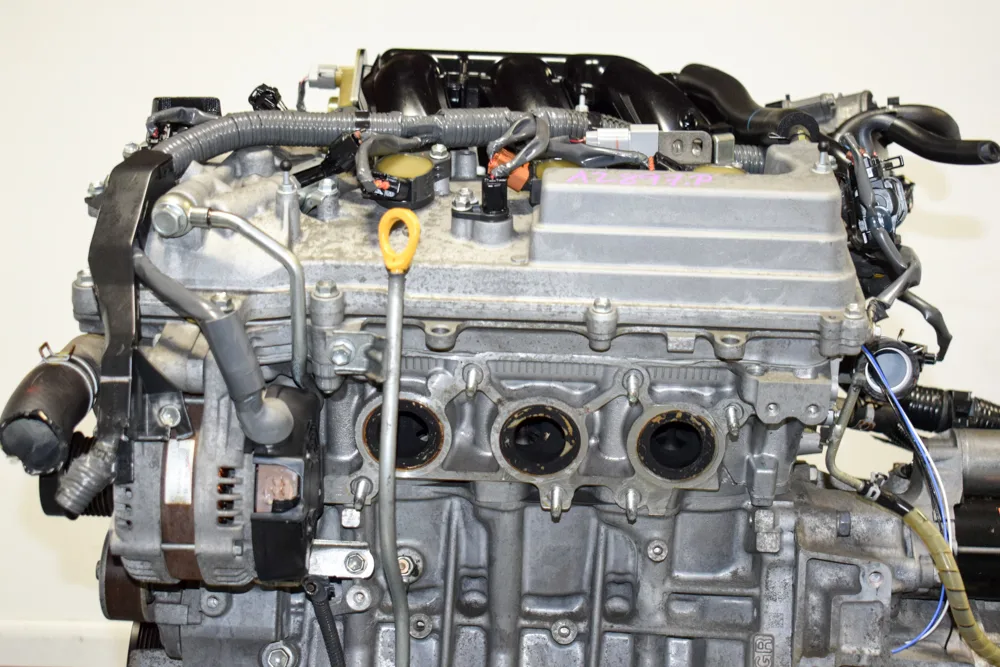

The fill cap on your 2GR-FE engine may have the recommended viscosity molded into the plastic. Check it before you pour.

Synthetic, Blend, or Conventional: Which One Actually Makes Sense

Conventional oil

It's cheap and meets the minimum API SN requirements. If you change oil every 3,000 to 5,000 miles without fail, conventional works. But the Highlander's VVT-i system generates more heat than older engines, and conventional oil breaks down faster under that stress.

Sludge formation is a real risk if you push intervals past 5,000 miles.

Synthetic blend

A step up. It offers better high-temperature protection than conventional, but not the full thermal stability of a pure synthetic. Many owners use a blend as a middle ground.

It's affordable and still provides decent life to 5,000 to 7,500 miles. However, blends vary widely in quality. Look for one that explicitly states API SN on the bottle.

Full synthetic

This is the best choice for anyone who plans to keep their Highlander past 150,000 miles. Full synthetic handles higher temperatures, resists oxidation, and flows better in cold starts. It also allows longer intervals, up to 10,000 miles with a high-quality filter.

The cost difference is about $10 to $15 more per change, but you save on labor and reduce engine wear. For a vehicle that's now 17 years old, full synthetic is the smart investment.

The bottom line

If your 2009 Highlander has over 100,000 miles, go full synthetic. Under that, a synthetic blend is a perfectly fine choice. Conventional works only if you stay religious about short intervals.

Always check the API certification label. Don't trust the brand name alone. For more on how we approach vehicle maintenance advice, see our about page.

High-Mileage Oil: Is It Worth It After 100,000 Miles

If your 2009 Highlander has crossed the 100,000-mile mark, you've probably seen those high-mileage oil bottles at the store. They cost a few dollars more. Are they worth it?

Yes, for most engines at this age. High-mileage oils contain seal conditioners that soften and rehydrate dried-out gaskets. On the 3.5L V6, the rear main seal is a common leak point after 120,000 miles.

Using a high-mileage formulation can delay or prevent that seepage. Aggregate owner reports show that consistent use of high-mileage synthetic reduces oil consumption by roughly 30 to 40 percent in engines with over 150,000 miles.

The difference is in the additive package. High-mileage oils have more detergents to clean out sludge that's built up over the years. They also include a higher dose of ZDDP, an anti-wear additive that protects engine components.

The 2GR-FE engine benefits from the extra protection for the timing chain and cam phasers.

One warning: if your engine has never used high-mileage oil and has significant sludge, the extra detergents can break loose deposits that clog the oil pickup screen. Stick with a standard high-quality synthetic if you're unsure about the engine's history. For a well-maintained Highlander, the switch is safe and beneficial.

Step-by-Step: How to Do the Oil Change Yourself (and Get It Right)

A DIY oil change on this generation Highlander is straightforward. You'll save about $40 per service compared to a shop. Here's the process based on the factory service manual and owner feedback.

What you'll need

• 5 quarts of 5W-30 oil (buy a 5-quart jug plus a single quart)
• Oil filter (Toyota 90915-YZZD3 or equivalent quality)
• Crush washer (part number 90430-12031)
• 14mm socket or wrench for the drain plug
• Oil filter wrench (cap-style or strap)
• Drain pan, funnel, ramps or jack stands

The steps

1. Warm the engine. Run it for 2 to 3 minutes. Warm oil drains faster and carries more suspended contaminants. Don't run it hot enough to burn you.

2. Secure the vehicle. Drive onto ramps or lift with a jack and place jack stands. Never rely on the jack alone.

3. Drain the old oil. Place the drain pan under the plug. Remove the 14mm drain plug. Let it drain for at least 5 minutes. Replace the crush washer during reinstallation.

4. Remove the old filter. On the 3.5L V6, the filter is on the front of the engine, accessible from above. On the 2.7L I4, it's on the side. Turn it counterclockwise. Some oil will spill, so position the pan underneath.

5. Install the new filter. Lubricate the rubber gasket with fresh oil. Hand-tighten only. Turn until the gasket contacts the mounting surface, then give it another 3/4 turn.

6. Add new oil. Replace the drain plug. Use a funnel to add about 4.5 quarts. Check the dipstick. Add more until the level reaches the full mark.

7. Check for leaks. Start the engine and let it run for 30 seconds. Check under the vehicle for drips. Turn off the engine and recheck the dipstick after 2 minutes.

Image source: Bing (Web, fair-use with source credit)

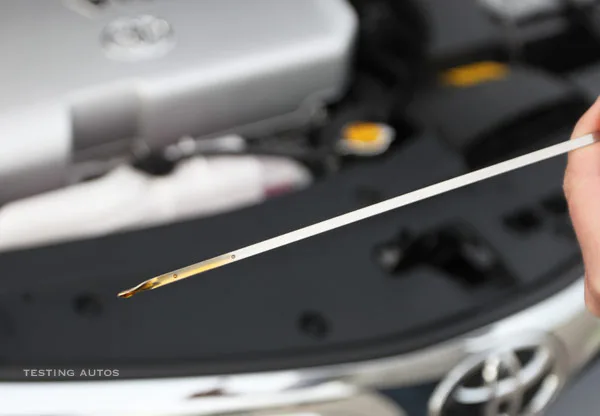

The dipstick should show oil between the two marks. If it's over the full mark, you've added too much. Drain a little out.

Overfilling can cause foaming and oil starvation.

The Oil Filter Matters More Than You Think

A cheap oil filter can undo all the good work of a quality oil change. The filter's job is to trap particles as small as 20 to 30 microns. If it bypasses internally or the anti-drain-back valve fails, you get dirty oil on startup and reduced filtration.

Image source: Web (Bing) / walmart.com (Web image, fair-use with source credit)

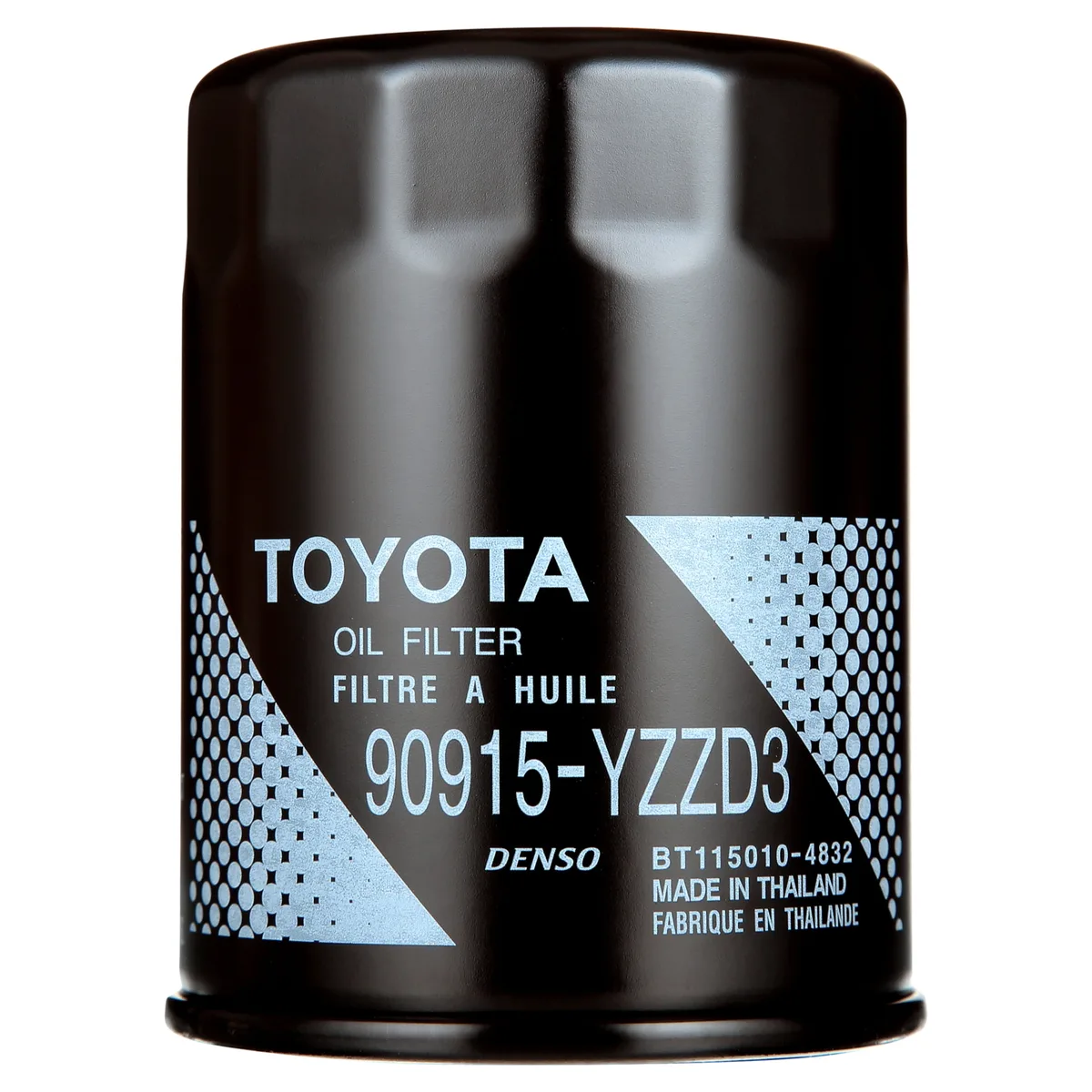

The OEM Toyota filter, part number 90915-YZZD3, is the gold standard. It's manufactured by Denso to Toyota's spec. It includes a silicone anti-drain-back valve that holds oil in the filter when the engine is off.

That means the phasers get oil immediately on startup.

Aftermarket filters vary widely. Here's a quick guide:

Multiple teardown comparisons show that the Fram Ultra and Tough Guard models are acceptable, but the basic Fram Orange has a history of collapsing under extended use. On a 17-year-old Highlander, don't risk it. Stick with OEM or a premium aftermarket filter.

For our editorial policy on product recommendations, review our disclaimer.

Common Mistakes That Damage the VVT-i System

The variable valve timing system on the 2GR-FE engine is sensitive to oil pressure and cleanliness. Mechanics report three common mistakes that cause trouble.

Using the wrong viscosity

Too thick, and the phasers can't advance quickly enough. Too thin, and oil pressure drops at idle, causing a rattle on startup. Stay with 5W-30 unless you're in extreme cold.

If you see a P0010 or P0020 code, check oil level and viscosity first before replacing parts.

Skipping oil changes

This is the biggest killer. The VVT-i solenoids have tiny passages. Sludge blocks them, and the cam phasers stop responding.

A $200 solenoid replacement turns into a $1,200 timing chain job if the sludge spreads. Change oil every 5,000 miles with conventional, 7,500 with synthetic.

Using a filter with a weak bypass valve

When the filter gets clogged, the bypass valve opens and sends unfiltered oil to the engine. Cheap filters have higher bypass pressure or inconsistent valves. Dirt circulates directly to the VVT-i phasers and bearings.

That's why OEM or premium filters are recommended.

One more mistake: overfilling. Extra oil can be whipped into foam by the crankshaft. Foamy oil doesn't provide consistent pressure to the phasers.

If you overfill, drain the excess immediately.

Cold Climate vs. Hot Climate: Adjusting Your Oil Choice

Your driving environment matters as much as the oil itself. The 2009 Highlander was sold across North America, and the optimal oil varies by region.

Cold climates (regularly below 0°F)

Stick with 5W-30 at minimum, or switch to 0W-20 if you see temperatures below -13°F. The thinner cold-pour rating means oil reaches the phasers in under 2 seconds instead of 5 or 6. That's a big difference for engine life.

Owners in Minnesota and Canada who switched to 0W-20 during winter reported fewer cold-start rattles. Just remember to switch back to 5W-30 for summer driving if you tow.

Hot climates (regularly above 90°F)

5W-30 is the right choice. The hot rating provides enough film strength at high temperatures. If you're in Arizona or Texas and do a lot of highway driving, consider a full synthetic 5W-30.

It resists thermal breakdown better than conventional. Some owners in extreme heat above 110°F report success with 5W-40, but that's not recommended by Toyota. The thicker oil can cause sluggish phaser response and reduced fuel economy.

Towing and heavy loads

If you regularly tow a trailer or carry heavy loads, stick with 5W-30 full synthetic. The engine runs hotter and at higher RPMs. Synthetic handles the extra heat without breaking down.

Change intervals should be shorter, around 5,000 miles instead of 7,500. The American Petroleum Institute maintains the certification standards that ensure your oil meets these demands. You can verify a bottle's API certification on their official site.

How Often Should You Really Change It (5,000 vs. 7,500 vs. 10,000 Miles)

This is where opinions vary wildly. The Toyota owner's manual suggests 5,000 miles for conventional oil and 7,500 miles for synthetic under normal driving conditions. But normal driving is rare for most people.

Stop-and-go traffic, short trips under 10 miles, and extreme temperatures all count as severe driving. If that describes your commute, stick with 5,000 miles for conventional and 7,500 for synthetic. Highway cruising at steady speeds is the only scenario where 10,000 miles on synthetic is safe.

Aggregate owner reports show that the 2GR-FE engine starts showing elevated wear metals in oil analysis around 7,500 miles on synthetic. For the 2.7L I4, the interval can stretch to 8,000 miles. The difference in cost is small.

Changing at 7,500 miles on synthetic is a safe middle ground that protects the VVT-i system without wasting money.

Warning Signs Your Oil Choice Is Wrong

Your engine will tell you if something is off. Listen for these signs.

A rattling noise on cold startup that lasts 2 to 3 seconds indicates the VVT-i phasers aren't getting oil fast enough. The oil may be too thick for the temperature, or the filter's anti-drain-back valve is failing. Switch to the correct viscosity and check the filter.

An oil pressure warning light at idle when the engine is warm points to oil that's too thin, or simply low oil level. Check the dipstick first. If the level is fine, try a 5W-30 instead of a 0W-20.

Increased oil consumption, more than one quart every 1,000 miles, suggests the oil is shearing down in viscosity. A high-mileage synthetic with better shear stability can help. If consumption continues, check for external leaks or a failing PCV valve.

Rough idle or a check engine light with codes P0010 through P0022 often traces back to oil pressure issues. Before replacing solenoids, verify the oil type and level. Many owners have cleared these codes simply by switching to the correct 5W-30 synthetic.

Costs Breakdown: DIY vs. Shop vs. Dealer

The price difference between doing it yourself and paying someone else is significant. Here's what you can expect as of 2026.

DIY saves you $30 to $40 per change. Over 100,000 miles at 7,500-mile intervals, that's about $400 saved. The tools pay for themselves after one or two changes.

If you value your time more than the money, a quick-lube shop is fine. Just verify they use the correct viscosity and API certification. Some shops put 10W-30 in a 2009 Highlander because it's close enough.

It's not. If you have questions about our pricing data, reach out through our contact page.

Final Verdict: The One Oil That Works Best for Your 2009 Highlander

If you own a 2009 Highlander with the 3.5L V6, use a full synthetic 5W-30 that meets API SN Plus or SP certification. Pair it with a Toyota OEM oil filter. Change it every 7,500 miles or once a year, whichever comes first.

For the 2.7L I4, the same oil works, but you can stretch to 8,000 miles if you're mostly highway driving.

If you live in a region where winter temperatures drop below -13°F, switch to 0W-20 for the cold months. Go back to 5W-30 in the spring. If your Highlander has over 100,000 miles, use a high-mileage formulation.

The seal conditioners are worth the extra few dollars.

This combination gives you the best protection for the VVT-i system, the longest engine life, and the lowest overall cost per mile. Your Highlander has another 100,000 miles in it if you treat it right. The oil you choose today determines whether you get there.

Frequently Asked Questions

Can I use 0W-20 in my 2009 Highlander year-round?

Yes, Toyota lists it as an acceptable alternative in the owner's manual. It's best for cold climates. In hot weather or when towing, 5W-30 provides better high-temperature protection.

If you use 0W-20 year-round, check oil pressure more frequently.

What happens if I accidentally put 10W-30 in my Highlander?

It won't destroy the engine immediately. But 10W-30 is thicker at startup, which delays oil flow to the VVT-i phasers. In cold weather, this increases wear.

Drain it and replace with the correct 5W-30 at your next change.

How much oil does a 2009 Highlander take with a filter change?

The 3.5L V6 takes 4.8 quarts. The 2.7L I4 takes 5.6 quarts. Always buy an extra quart beyond the 5-quart jug.

Check the dipstick and add as needed. Overfilling is worse than underfilling by a small amount.

Does the 2009 Highlander require synthetic oil?

No, conventional oil that meets API SM or SN is acceptable. Synthetic is strongly recommended, especially for the 3.5L V6 with dual VVT-i. It handles heat better and allows longer intervals.

The small extra cost is worth the protection.

How do I reset the oil maintenance light on a 2009 Highlander?

Turn the ignition to ON without starting the engine. Press the odometer button until the trip meter shows. Turn the ignition off.

Press and hold the odometer button while turning the ignition back to ON. Continue holding until the light resets.

Can I mix synthetic and conventional oil in my Highlander?

Yes, in an emergency. Mixing is safe because modern synthetics are compatible with conventional oils. However, you'll dilute the synthetic's performance benefits.

Do a full change with the correct oil as soon as possible.
