2009 Toyota Camry Oil Type: What You Need to Know

The exact 2009 toyota camry oil type isn't just a suggestion. It's a specification that directly affects how long your engine lasts. Use the wrong viscosity or quality, and you're asking for sludge, increased wear, and expensive repairs.

The good news is that getting it right is simple once you know what to look for.

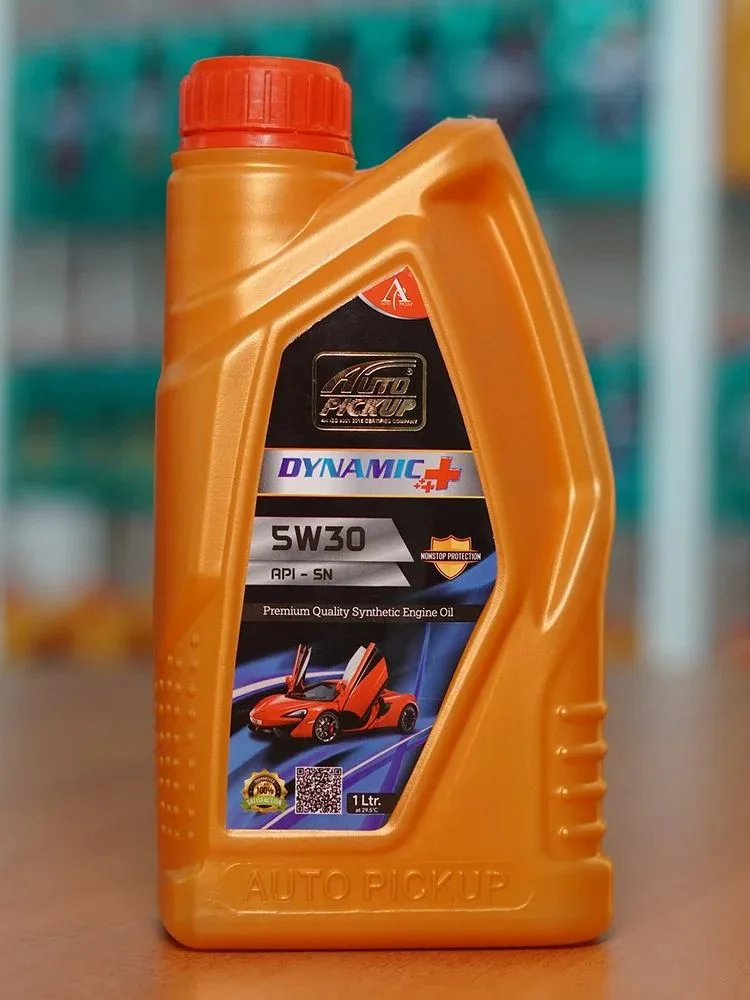

Manufacturer specifications call for SAE 5W-30 motor oil meeting API SN or ILSAC GF-5 standards. The 2.4L engine in this generation has a known oil consumption quirk that the right oil can help manage. Let's walk through exactly what you need to know.

Image source: Web (Bing) / indiamart.com

Quick Answer – The Exact Oil Type for Your 2009 Camry

Use 5W-30 motor oil. It must meet API SN or higher. It must also meet ILSAC GF-5 or higher.

Your 2.4L engine takes 4.5 quarts with a filter change. Your 3.5L V6 takes 6.0 quarts.

You can use conventional, synthetic blend, or full synthetic. Just make sure the bottle shows the API donut and the correct viscosity. Full synthetic offers better protection in extreme temperatures and longer change intervals.

Why This Matters – Get the Oil Right or Risk the Engine

The 2.4L four-cylinder engine (2AZ-FE) is particularly sensitive. It has a known tendency to consume oil as it ages, largely due to piston ring design. Using the wrong oil viscosity can accelerate that consumption.

Thicker oil can starve the variable valve timing (VVT-i) system of proper flow, leading to rough idling and reduced performance.

The 3.5L V6 (2GR-FE) is more forgiving. But it still relies on correct oil pressure for its timing chain tensioners. Low-quality oil or the wrong viscosity can lead to chain stretch over time.

Both engines share a common enemy: sludge. Skipping oil changes or using oil that doesn't meet the API SN standard allows deposits to build up. That's a problem for any engine, especially one with variable valve timing.

The Two Engines – 2.4L Four-Cylinder vs 3.5L V6

The 2009 Camry came with two engine options. They share the same oil viscosity recommendation, but the details differ.

Image source: Web (Bing) / storage.googleapis.com

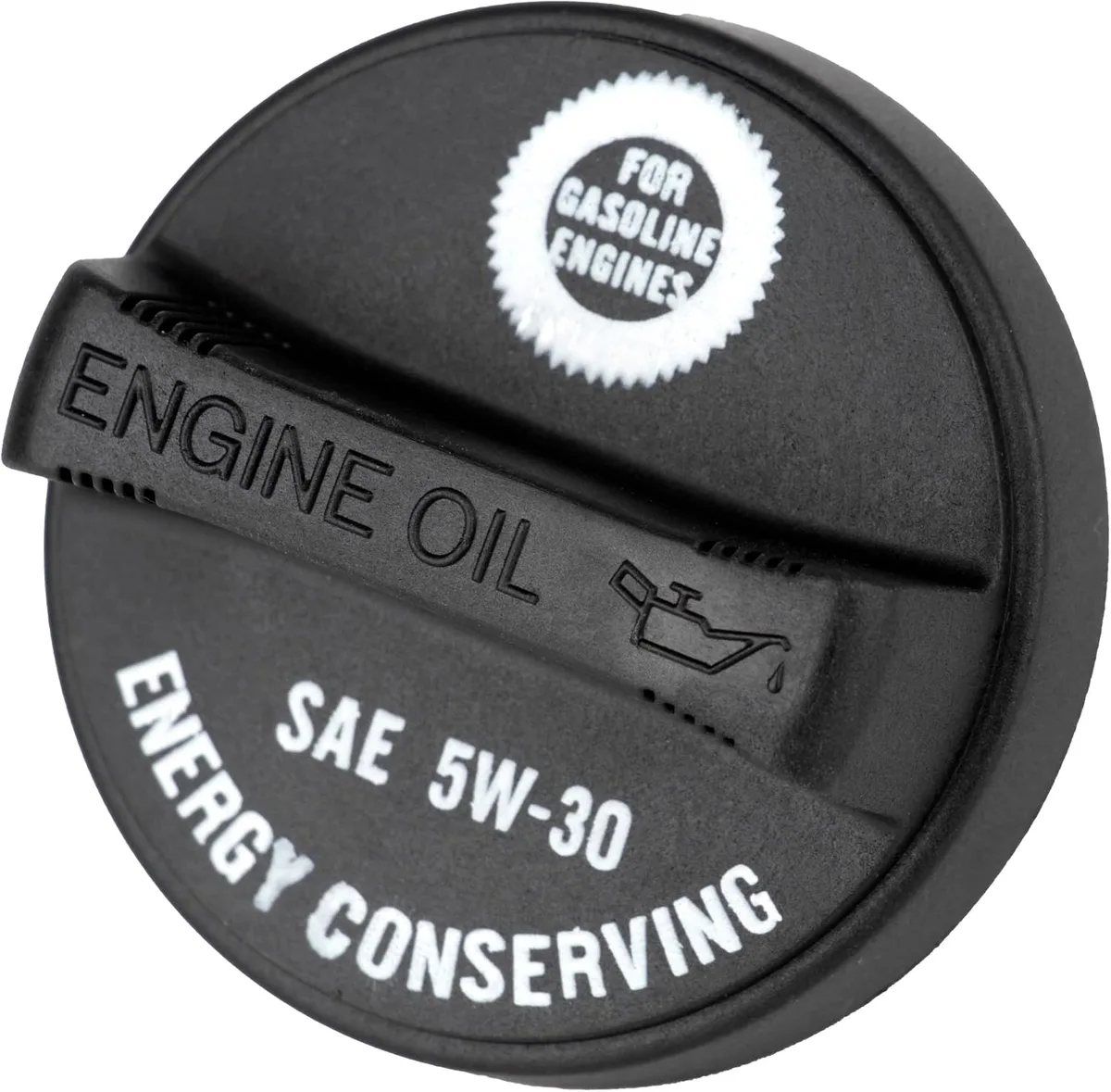

2.4L 2AZ-FE

This is the base engine. It's a four-cylinder with a cast-iron block and aluminum heads. It's reliable but has a known appetite for oil as the miles pile up.

• Oil capacity: 4.5 quarts (with filter)
• Oil filter part: 90915-YZZD3 (OEM) or equivalent
• Known issue: Oil consumption after 75,000 miles. High-mileage oil can help manage this.

3.5L 2GR-FE

This is the V6. It's smoother, more powerful, and generally less prone to oil consumption issues.

• Oil capacity: 6.0 quarts (with filter)
• Oil filter part: 90915-YZZF2 (OEM) or equivalent
• Known issue: Timing chain tensioners can wear if oil changes are neglected.

Viscosity Explained – What 5W-30 Actually Means

The "5W" stands for winter viscosity. It measures how well the oil flows when cold. A 5W oil flows well down to about -30°C.

That's plenty for most climates. The "30" measures the oil's thickness at operating temperature (100°C). A 30-grade oil provides good protection without starving the engine's tight passages.

Toyota engineered the engine around this specific viscosity. The VVT-i system relies on proper oil pressure at idle. Too thick and the system can't adjust timing quickly.

Too thin and you lose wear protection at high RPM.

What about alternatives?

Stick with 5W-30. It's what the engine was designed for. If you live in a very cold climate, 0W-30 is also acceptable.

But don't switch to 0W-20 unless you have a specific Toyota Service Bulletin for your VIN.

API and ILSAC Ratings – The Secret Codes on the Bottle

The viscosity is only half the story. The quality rating is just as important.

Image source: Web (Bing) / motoroilguide.com

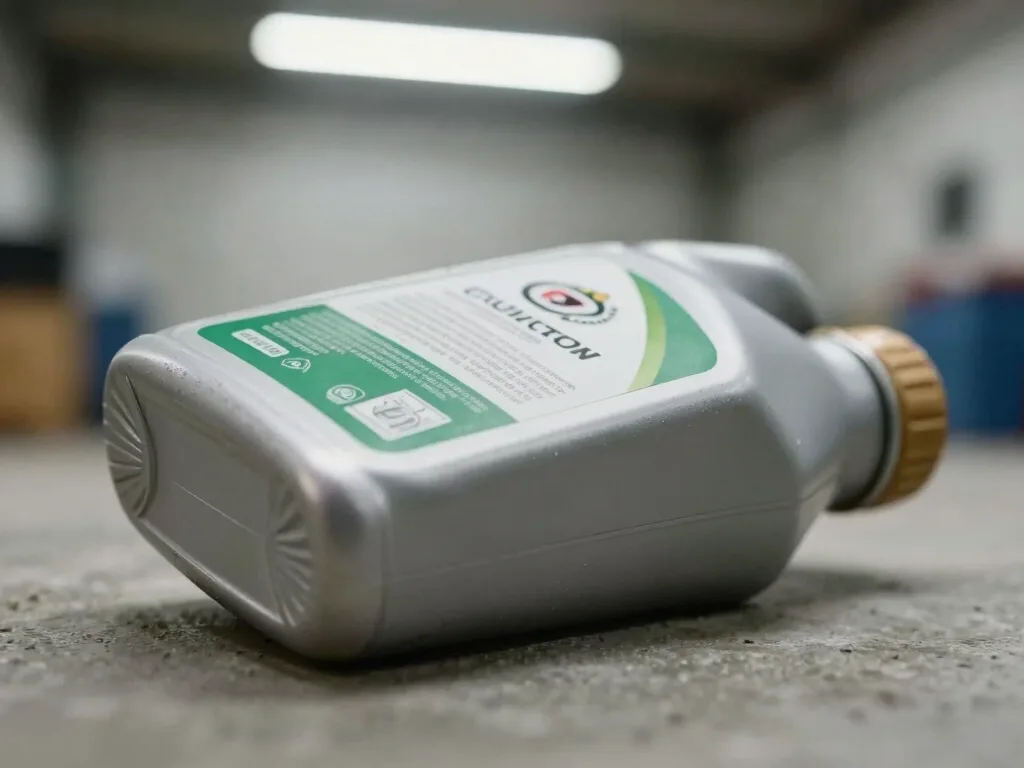

The API Donut

Look for the API Service Symbol on the back of the bottle. It looks like a donut with the letters "API" in the center. The current standard for your Camry is API SN.

Newer oil may carry API SP, which is backward-compatible.

What do these letters mean?

• API SN (introduced in 2010): Provides better piston deposit control, sludge protection, and seal compatibility.
• API SP (introduced in 2020): Adds protection against low-speed pre-ignition and timing chain wear.

Either is fine for your 2009 Camry. Never use oil rated API SL or older. Those lack the detergents needed to prevent sludge.

The ILSAC Standard

Look for ILSAC GF-5 or GF-6 on the bottle. ILSAC stands for International Lubricant Standardization and Approval Committee. It's essentially the same as API but with additional fuel economy requirements.

Quick checklist for buying oil

• Viscosity: SAE 5W-30
• API: SN or SP
• ILSAC: GF-5 or GF-6
• Capacity: 4.5 quarts (2.4L) or 6.0 quarts (3.5L)

If the bottle checks all these boxes, it's the right oil. Brand doesn't matter as long as the certification is there.

Conventional vs Synthetic vs High-Mileage

You've got three main choices. Each has its place.

Conventional oil is the cheapest. It meets API SN if labeled correctly. But it breaks down faster under heat.

Change it every 3,000 to 5,000 miles. If your Camry is low mileage and you stay on top of changes, it works fine.

Synthetic blend is a mix of conventional and synthetic base oils. It handles heat better and costs less than full synthetic. For most Camry owners, this is the sweet spot.

Change it every 5,000 to 7,500 miles.

Full synthetic is engineered for maximum stability. It flows better in cold weather and resists breakdown. It also resists sludge better than any other type.

If you live in a very cold climate or do many short trips, it's worth the extra cost.

High-mileage oil contains seal conditioners that help swollen gaskets and reduce leaks. If your Camry has over 75,000 miles, especially on the 2.4L engine, it's a smart choice.

Step-by-Step Oil Change

The 2009 Camry is straightforward to work on. You don't need special tools. But you do need to follow the steps in order.

Image source: Web (Bing) / ebay.com

What you'll need

• 4.5 quarts (2.4L) or 6.0 quarts (3.5L) of 5W-30 oil
• A new oil filter (OEM or equivalent)
• A drain pan
• A 14mm socket or wrench for the drain plug
• An oil filter wrench
• A new crush washer
• Jack stands and a floor jack

The process

1. Warm the engine. Run it for two minutes. Warm oil drains more completely.
2. Lift the car safely. Use jack stands. Never rely on the jack alone.
3. Drain the old oil. Remove the plug with the 14mm socket. Let it drain for 5 minutes.
4. Replace the crush washer. Always use a new one. Torque the plug to 29 ft-lb (2.4L) or 30 ft-lb (3.5L).

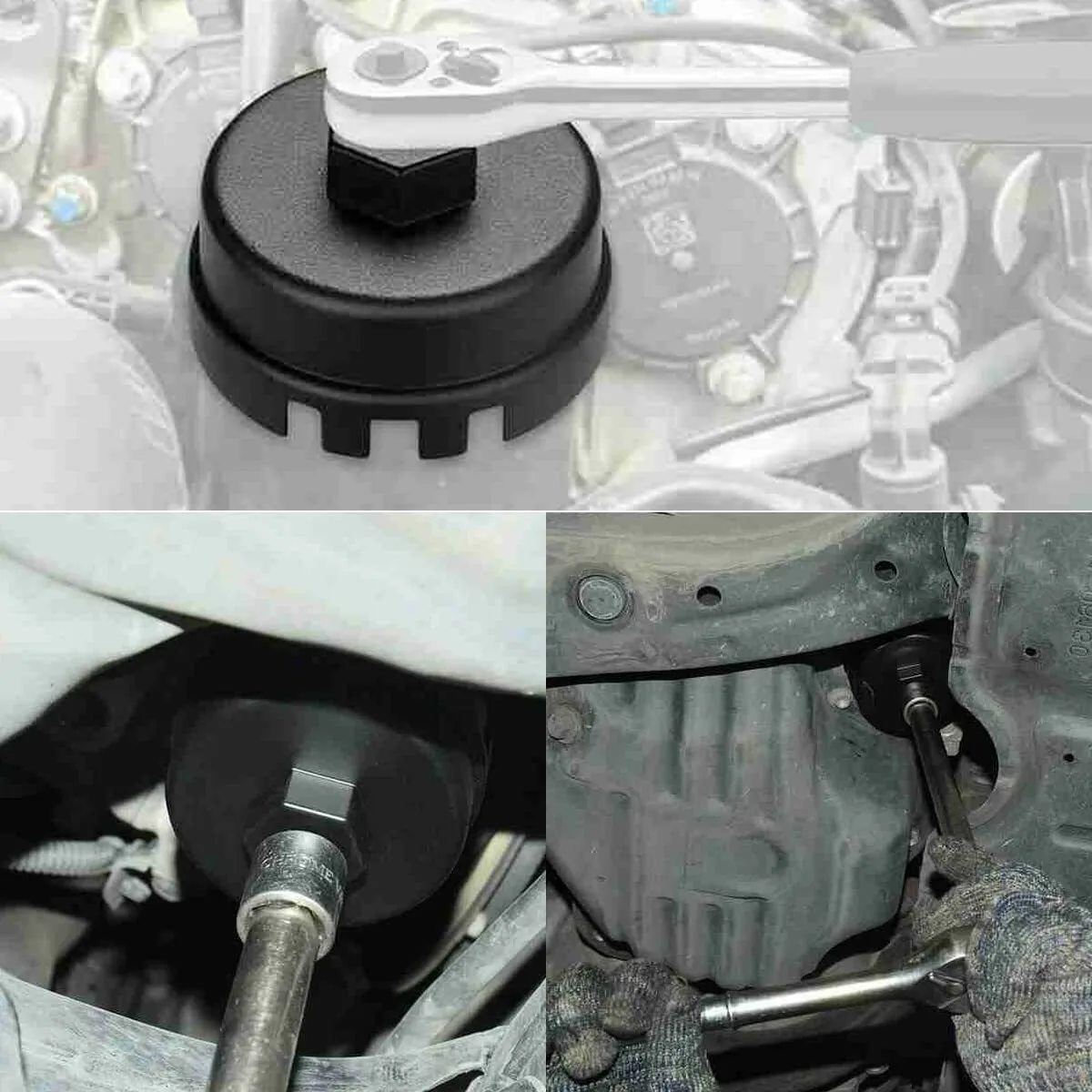

5. Remove the old filter. Use the filter wrench. Expect some oil to spill.
6. Pre-fill the new filter. Pour fresh oil into the new filter. Rub oil on the rubber gasket.
7. Install the new filter. Hand-tighten until the gasket contacts the surface. Then tighten another 3/4 turn.
8. Add new oil. Pour in 4.5 quarts (2.4L) or 6.0 quarts (3.5L).
9. Check for leaks. Start the engine and let it idle for a minute.
10. Check the oil level. Turn off the engine. Wait two minutes. Check the dipstick.
11. Reset the maintenance light. Turn the key to ON. Press the trip reset button until the light stops flashing.

Oil Capacity and Specs

Check the oil level at every other fuel fill. It takes 30 seconds. It's the best way to catch the 2.4L's oil consumption early.

Common Mistakes – What Hurts This Engine Most

Using the wrong viscosity. The biggest mistake is putting 10W-40 or 20W-50 in the engine. Someone thinks thicker oil is better for an older car. It's not.

Thicker oil can't flow through the VVT-i passages fast enough.

Ignoring the API rating. Some bargain oils still carry API SL or older ratings. These don't have enough detergents to keep a modern engine clean. Sludge builds up slowly.

By the time you notice, the damage is done.

Reusing the crush washer. The crush washer is a one-time use item. Reusing it almost guarantees a slow drip.

Over-tightening the filter. Hand-tight plus 3/4 turn is all you need. Over-tightening makes the next change a nightmare.

Skipping the pre-fill. Installing a dry filter means the engine runs without oil pressure for a few seconds on startup. Pre-filling the filter is cheap insurance.

The 2.4L Oil Consumption Problem

The 2AZ-FE engine burns oil. Toyota even issued a technical service bulletin about it. The problem is the piston rings.

They don't seal as well as they should, especially as the engine ages.

How much is normal?

One quart every 1,200 miles is within Toyota's tolerance. If you're losing more than that, you have a problem.

What you can do

• Switch to high-mileage oil. The seal conditioners can help.
• Use 5W-30 consistently. Don't try 10W-30 to slow consumption.
• Check the oil level weekly. Keep a spare quart in the trunk.
• Consider a heavier viscosity only if approved by your manual.

When to seek help

If you're losing more than a quart every 1,000 miles, or if you see blue smoke from the exhaust, the rings are worn past the point of maintenance. A piston ring replacement is the only fix. For many owners, it's more cost-effective to keep topping off the oil.

When to Use 0W-20 Instead of 5W-30

Your 2009 model was not designed for 0W-20. Toyota later issued service bulletins allowing it in some 2.4L engines for improved fuel economy. But it's not a blanket recommendation.

Stick with 5W-30 unless you have a specific Toyota Technical Service Bulletin for your VIN. The 0W-20 is thinner at operating temperature. It can reduce fuel consumption by a small amount.

But it provides less wear protection in hot conditions or under heavy load.

Severe Service Conditions

Toyota defines severe service in the owner's manual. Short trips under five miles in cold weather count. So does stop-and-go city driving, towing, and driving on dusty roads.

If your driving fits this description, change your oil more often. Conventional oil every 3,000 miles. Synthetic blend or full synthetic every 5,000 miles.

The oil breaks down faster under these conditions.

Cost Breakdown

Here's what you can expect to spend at a parts store as of 2026.

A quality oil filter adds $4 to $10. A crush washer is about $1. The total DIY cost for a synthetic blend change is roughly $35 for the 2.4L engine.

Expert Tips

Keep a log of oil consumption. Write down the mileage when you add a quart. That tells you if the problem is getting worse.

Use a torque wrench on the drain plug. Over-tightening strips the oil pan threads. The spec is 29 ft-lb for the 2.4L and 30 ft-lb for the 3.5L.

Warm the oil before draining. A two-minute idle is enough. Cold oil drains slowly and leaves a film behind.

Dispose of used oil properly. Most auto parts stores accept it for free. The EPA regulates used oil disposal, so never pour it down a drain or on the ground.

Frequently Asked Questions

Can I use 10W-30 in my 2009 Camry?

Only if you live in a very hot climate and the owner's manual lists it as an alternative. For most owners, 5W-30 is the correct choice year-round. Thicker oil can cause VVT-i issues.

How often should I change the oil?

Every 5,000 miles for conventional oil. Every 7,500 miles for synthetic blend or full synthetic. If you drive in severe conditions, cut those intervals in half.

What happens if I use the wrong oil type?

Using the wrong viscosity can cause sludge, poor fuel economy, and engine wear. Using oil that doesn't meet API SN standards can lead to deposit buildup and reduced engine life.

Does synthetic oil cause leaks in older engines?

No. That's a myth. Synthetic oil doesn't cause leaks.

It can reveal existing leaks by cleaning deposits that were temporarily sealing them. High-mileage oil is a better choice for older engines.

Do I need to use Toyota brand oil?

No. Any brand that meets the API SN and ILSAC GF-5 standards is fine. The certification on the bottle is what matters.

Final Verdict

If you own a 2009 Camry with the 2.4L engine, use 5W-30 synthetic blend with API SN certification. Change it every 5,000 miles. If your car has over 75,000 miles, switch to a high-mileage variant.

For the 3.5L V6, the same oil works. You just need 6.0 quarts instead of 4.5.

The right oil won't fix a worn engine. But it will keep a healthy one running for another 100,000 miles. Check the level every other fuel fill.

Change it on schedule. That's all it takes.
