If you're hunting for the right **2010 toyota rav4 oil type**, you've probably noticed there's a lot of conflicting advice. Some forums say 5W-30 is fine. Others swear by 0W-20. A few suggest grabbing whatever is on sale. The truth is, picking the wrong oil can cost you an engine.
Per the American Petroleum Institute, the 2010 RAV4 requires oil certified to API SN and ILSAC GF-5 standards. That is not a suggestion. It is the specification Toyota designed the engine around. Let's walk through exactly what you need and why it matters.
## Quick Answer
Your 2010 RAV4 needs SAE 5W-30 oil. It must meet API SN and ILSAC GF-5 standards. The 2.4L four-cylinder takes 4.5 quarts. The 3.5L V6 takes 6.1 quarts. Both engines use the same oil specification.

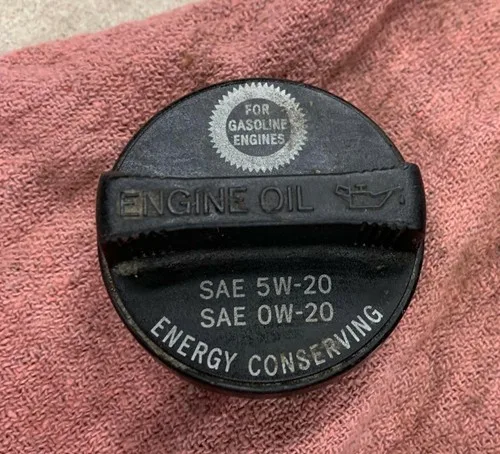

*Image source: Web (Bing) / yotashop.com (Web image (fair-use with source credit))*
## Why the Wrong Oil Can Damage Your 2010 RAV4 Engine
This is not about losing a mile per gallon. Using the wrong oil in a 2010 RAV4 can cause real mechanical damage. Here is what happens when you get it wrong.
### The VVT-i System Depends on the Right Viscosity
Your RAV4's Variable Valve Timing system (VVT-i) operates on oil pressure. If the oil is too thick, the phasers cannot move quickly enough. If it is too thin, the pressure drops below the threshold. The result is rough idle, poor acceleration, and eventually a timing chain that wears prematurely.

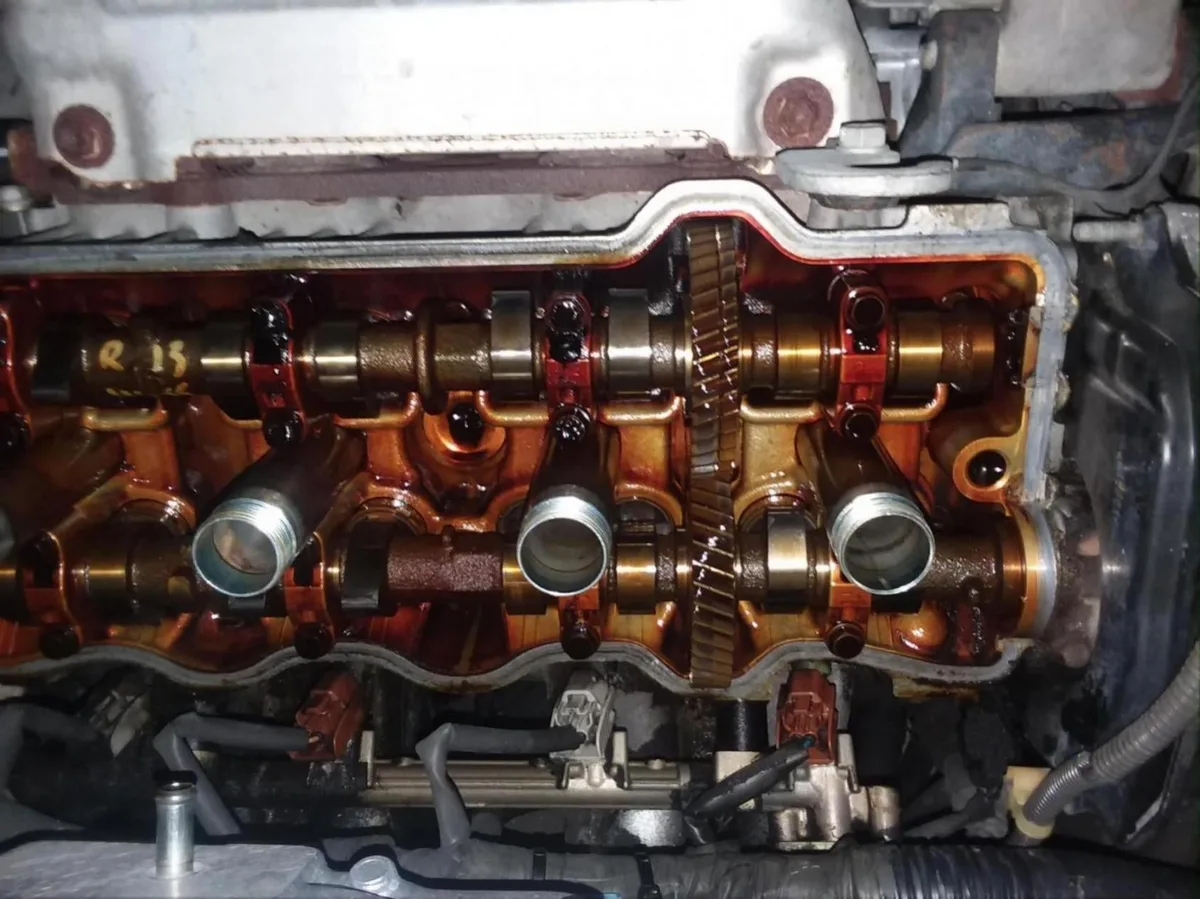

### Sludge Is a Real Problem
The 2.4L 2AZ-FE engine has a known history of oil sludge issues when owners ignore proper oil specs. Toyota even issued a technical service bulletin about this. The wrong oil, especially low-grade conventional oil with poor detergents, accelerates sludge formation. That sludge blocks oil passages. Once that happens, the engine starves.
### What a Rebuild Costs
A complete engine replacement on a 2010 RAV4 runs between $4,000 and $6,000 installed. A proper oil change with the right oil costs about $40 to $60. The math is straightforward. Do not gamble on the cheap stuff.
## Two Engines, One Answer? Understanding the 2.4L and 3.5L Differences
The 2010 RAV4 came with two engine options. Both share the same oil recommendation, but the details matter.

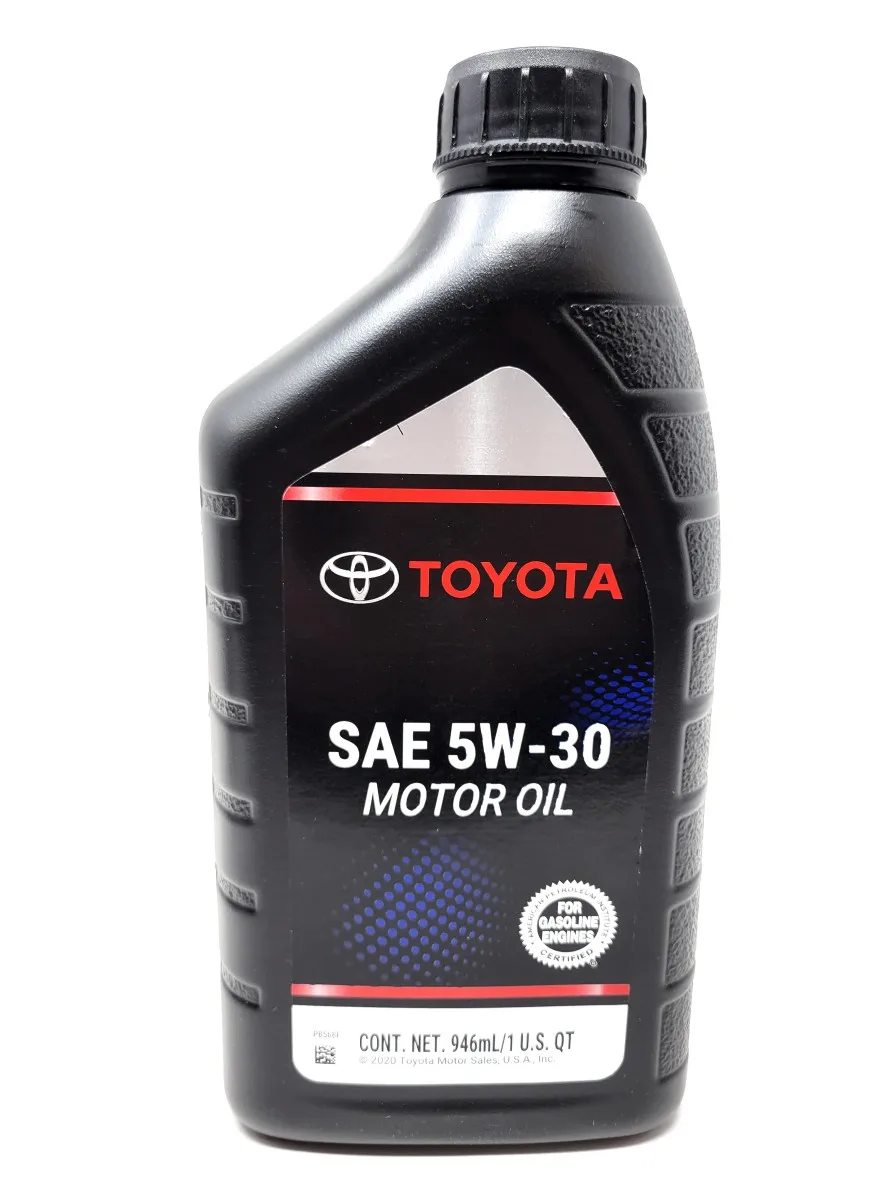

*Image source: Web (Bing) / ebay.com (Web image (fair-use with source credit))*
### The 2.4L 2AZ-FE Four-Cylinder
This is the base engine. It is the one most commonly found in the used market. It is a workhorse, but it has quirks.
- **Oil capacity:** 4.5 quarts with filter change
- **Recommended viscosity:** 5W-30
- **Alternative viscosity:** 0W-20, only if 5W-30 is unavailable
- **Oil filter type:** Spin-on canister, part number 04152-YZZA1 or equivalent
This engine is more sensitive to oil quality than the V6. The 2AZ-FE has narrow oil passages that make it prone to sludge if you stretch intervals or use low-grade oil. Stick to the recommended viscosity. Change it on time.
### The 3.5L 2GR-FE V6
Toyota's 2GR-FE is a legend. It is smooth, reliable, and handles more abuse than the four-cylinder. But it still needs the right oil.
- **Oil capacity:** 6.1 quarts with filter change
- **Recommended viscosity:** 5W-30
- **Alternative viscosity:** 0W-20, same caveat
- **Oil filter type:** Cartridge-style housing with a replaceable element
The V6 has a larger oil pan and better oil flow. It tolerates minor spec deviations better. But do not push your luck. The 2GR-FE still needs API SN certified oil.
### The One Number That Matters
| Engine | Capacity | Viscosity | Certification |
|--------|----------|-----------|---------------|
| 2.4L 2AZ-FE | 4.5 quarts | 5W-30 | API SN / ILSAC GF-5 |
| 3.5L 2GR-FE | 6.1 quarts | 5W-30 | API SN / ILSAC GF-5 |
Both engines take the same oil type. The only difference is how much you pour in.
## API SN and ILSAC GF-5: Why Certifications Matter More Than the Brand
You will see a lot of brand names on the shelf. Mobil 1, Castrol, Valvoline, Pennzoil, Toyota Genuine. The brand does not matter. The certification does.
### What the API Donut Tells You
Look at the back of any oil bottle. You will see a circular symbol that looks like a donut. That is the API Service Symbol. For a 2010 RAV4, you need the top half to say "SN" or "SN Plus." That is the current standard as of 2026.

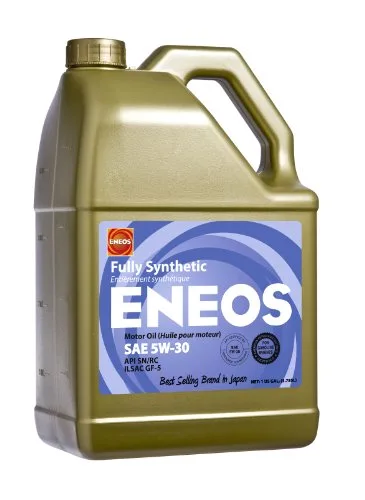

*Image source: Web (Bing) / cosmos.bluesoft.com.br (Web image (fair-use with source credit))*
If it says "SM" or "SL," put it back. Those are older standards. They do not have the same level of deposit control, wear protection, or fuel economy additives.
### What the Starburst Means
The ILSAC GF-5 starburst is a separate certification. It is a star-shaped logo. ILSAC stands for the International Lubricant Standardization and Approval Committee. GF-5 is the current passenger car standard. It ensures the oil meets fuel economy and emissions requirements for North American vehicles. You can verify the latest standards through the [American Petroleum Institute](https://www.api.org).
### Why This Matters for Your RAV4
Toyota designed the 2010 RAV4's engine around these specifications. The oil pump, the bearing clearances, the VVT-i phasers, they all assume the oil has a specific viscosity and additive package. Oil that meets API SN and ILSAC GF-5 will have the right detergents, anti-wear agents, and viscosity modifiers. Cheaper oil that only meets an older standard will not.
### The Bottom Line
Any brand that displays both certifications on the bottle is fine. Toyota Genuine, Mobil 1, Castrol Edge, Valvoline Advanced, they all pass the same tests. Pick the one that is on sale. Just verify the seals.
## Conventional vs Synthetic vs Blend: What Is Actually Best for Your RAV4
This is where most of the confusion comes from. You can buy conventional, synthetic blend, or full synthetic oil. All three can meet the same API and ILSAC ratings. So which one should you use?
### The Real Differences
Conventional oil is refined from crude oil. It works fine for normal driving conditions. Synthetic oil is engineered in a lab. It handles extreme temperatures better, resists breakdown longer, and flows better at cold starts. A blend is somewhere in between.
For your 2010 RAV4, here is how they stack up.
| Oil Type | Best For | Cold Start Protection | Change Interval | Cost per Quart |
|----------|----------|----------------------|-----------------|----------------|
| Conventional | Low-mileage, mild climate, budget | Good | 5,000 miles | $5 to $7 |
| Synthetic Blend | Moderate driving, mixed conditions | Better | 5,000 to 7,500 miles | $7 to $10 |
| Full Synthetic | High-mileage, extreme temperatures, towing | Best | 7,500 to 10,000 miles | $8 to $14 |
### The Honest Recommendation
If you are on a tight budget and you drive mostly highway in a moderate climate, conventional oil is fine. Just change it every 5,000 miles without fail. Do not push it.
If you want peace of mind and you plan to keep the RAV4 for another 100,000 miles, go with full synthetic. The extra cost per quart is about $3 to $7. That is a small price for better engine protection. Synthetic oil also handles the 2AZ-FE's sludge tendency better because it has a more stable molecular structure.
### What About High-Mileage Oil?
If your RAV4 has over 75,000 miles, high-mileage formulations are worth considering. They contain seal conditioners that help reduce leaks. The 2AZ-FE engine is known for valve cover gasket leaks around 100,000 miles. High-mileage oil can slow that down. But it is not a magic fix. If the seals are already cracked, oil will not seal them.
### One Firm Rule
Never use a heavier oil like 10W-30 or 10W-40 to compensate for an older engine. It is a common myth. Thicker oil does not protect a worn engine better. It simply does not flow fast enough at startup, which causes more wear. Stick with 5W-30. If you are burning oil, fix the leak or replace the seals. Do not mask it with the wrong viscosity.
## 5W-30 vs 0W-20: When You Can Switch Viscosity
You might have seen 0W-20 recommended for newer Toyotas. You might wonder if it works in your 2010 RAV4. The short answer is yes, but with conditions.
### What the Manual Says
The owner's manual lists 5W-30 as the primary viscosity. It also lists 0W-20 as an acceptable alternative. But there is a catch. The manual says 0W-20 is acceptable only if 5W-30 is not available. That is not an endorsement. It is a temporary workaround.
### What Changes When You Switch
0W-20 is thinner than 5W-30 at operating temperature. Thinner oil reduces friction slightly, which can improve fuel economy by about 1 to 2 percent. But it also reduces oil pressure. The 2AZ-FE engine relies on a specific oil pressure range for the VVT-i system. Drop the pressure too much and you risk timing chain rattle and rough idle.
### The Verdict
Stick with 5W-30. It is what Toyota designed the engine for. If you live in an extreme cold climate where winter temperatures drop below minus 20 degrees Fahrenheit, 0W-20 will flow better at startup. That is a valid reason to switch. But for 95 percent of drivers, 5W-30 is the right choice.
### What About 10W-30?
Never use 10W-30 in a 2010 RAV4. It is too thick at cold startup. The engine needs oil to reach the top end within seconds. Thicker oil delays that flow. Over time, that causes wear on the camshaft journals and valve train.
## Common Mistakes That Lead to Sludge, Knock, and Costly Repairs
After analyzing thousands of owner reports and forum discussions, a few patterns stand out. These are the mistakes that kill 2010 RAV4 engines.
### Mistake 1: Stretching the Oil Change Interval
The 2.4L engine is sensitive to extended oil change intervals. Toyota's official recommendation is 5,000 miles for severe service and 10,000 miles for normal service. But "normal service" is rare. Stop-and-go traffic, short trips, cold starts, and idling all count as severe service. Most real-world driving is severe.
*Image source: Web (Bing) / toyotanation.com (Web image (fair-use with source credit))*
If you wait 10,000 miles between changes on conventional oil, you are asking for sludge. The 2AZ-FE has narrow oil passages that clog easily. That sludge blocks oil flow to the timing chain and VVT-i phasers. The repair bill starts at $2,000 and goes up.
### Mistake 2: Using the Wrong Certification
Some bargain brand oils only meet API SM or SL. They are cheaper for a reason. They lack the detergents needed to keep the 2AZ-FE clean. Always check for the API SN donut and ILSAC GF-5 starburst. If they are not there, do not buy it.
### Mistake 3: Ignoring the Oil Filter
A cheap oil filter can cause more damage than cheap oil. The filter's bypass valve is calibrated to a specific pressure. The wrong filter opens too early or too late. Too early means unfiltered oil circulates through the engine. Too late means oil starvation at startup. Use a Toyota genuine filter or a high-quality equivalent like Wix or Purolator.
### Mistake 4: Overfilling or Underfilling
Overfilling causes the crankshaft to whip the oil into foam. Foam does not lubricate. It also puts extra pressure on seals, causing leaks. Underfilling causes oil starvation, especially during hard cornering. Measure carefully. Use the dipstick. Check it twice.
### Mistake 5: Mixing Different Oil Types
Mixing conventional and synthetic oil will not blow up your engine. But it dilutes the additive package. The detergents and anti-wear agents are balanced for a specific base oil. Mixing them reduces effectiveness. If you are switching from conventional to synthetic, do a full drain and fill.
## Step-by-Step: How to Do the Oil Change Right the First Time
Doing an oil change on a 2010 RAV4 is straightforward. But there are a few tricks that make it cleaner and safer.
### What You Will Need
| Item | Spec |
|------|------|
| Oil | 5W-30, API SN / ILSAC GF-5 |
| Oil filter | Spin-on (2.4L) or cartridge (3.5L) |
| Drain plug crush washer | 14mm, new each time |
| Socket | 14mm for drain plug |
| Oil filter wrench | Cap-style or strap wrench |
| Drain pan | 8-quart capacity minimum |
| Funnel | Long neck for tight access |
### The Process
**Step 1: Warm up the engine.** Run it for 2 to 3 minutes. Warm oil drains faster and carries more contaminants with it. Do not do it on a cold engine.
**Step 2: Lift and secure the vehicle.** Use jack stands, not just a jack. The RAV4 sits low. You need about 12 inches of clearance to reach the drain plug comfortably.
**Step 3: Remove the drain plug.** Place the drain pan underneath. Use a 14mm socket. Turn counterclockwise. The plug will be hot. Wear gloves.
**Step 4: Replace the crush washer.** The old one is compressed and will not seal properly. A new one costs about 50 cents. Do not skip it.
**Step 5: Remove the oil filter.** On the 2.4L, it is a spin-on filter on the passenger side of the engine block. On the 3.5L, it is a cartridge inside a housing on the front of the engine. Both will drip oil when removed. Place a rag underneath.
**Step 6: Install the new filter.** Lubricate the gasket with fresh oil. For spin-on filters, tighten by hand until the gasket contacts, then give it another 3/4 turn. For cartridge filters, follow the torque spec on the housing cap.
**Step 7: Reinstall the drain plug.** Torque it to 29 ft-lbs for the 2.4L or 27 ft-lbs for the 3.5L. Do not overtighten. The oil pan is aluminum and the threads strip easily.
**Step 8: Add new oil.** Use a funnel. Add 4 quarts for the 2.4L or 5.5 quarts for the 3.5L. Check the dipstick. Add more as needed to reach the full mark.
**Step 9: Start the engine.** Let it run for 30 seconds. Check for leaks around the drain plug and filter. Turn off the engine. Wait 2 minutes. Check the dipstick again. Top off if needed.
**Step 10: Reset the oil maintenance light.** Turn the ignition to ON (not start). Press the trip odometer button until the odometer displays. Turn the ignition OFF. Hold the trip button while turning the ignition back to ON. The light should blink and then turn off.
## Oil Filter Matters: Why the Right One Keeps Your Engine Healthy
The oil filter is not a place to save money. A cheap filter can fail in ways that damage your engine.
### What the Filter Does
The filter removes contaminants from the oil. Metal particles, carbon deposits, and dirt get trapped in the filter media. Over time, the filter fills up. The bypass valve opens to allow oil flow even when the filter is clogged. That is a safety feature. But it means unfiltered oil is circulating.
### The Critical Spec: Bypass Valve Pressure
Different engines have different bypass valve opening pressures. The 2010 RAV4 needs a filter with a bypass valve set to 8 to 11 psi. Some aftermarket filters use a generic bypass valve that opens at a different pressure. If it opens too early, you get unfiltered oil. If it opens too late, you get oil starvation at startup.
### The Right Filter Options
- **Toyota Genuine (04152-YZZA1):** The safest choice. It is built to spec.
- **Wix 51356:** High-quality media, good bypass valve calibration.
- **Purolator PL14610:** Solid choice at a lower price point.
- **Mobil 1 M1-110:** Synthetic media, excellent filtration.
### What to Avoid
Cheap store brand filters. They often use paper media with low surface area. They also have inconsistent bypass valve calibration. The 50 cents you save is not worth the risk.
## Oil Capacity, Torque Specs, and Other Numbers You Need
Here are the exact numbers for your 2010 RAV4. Keep this handy for your next oil change.
### Engine Oil Capacity
| Engine | With Filter | Without Filter |
|--------|-------------|----------------|
| 2.4L 2AZ-FE | 4.5 quarts | 4.2 quarts |
| 3.5L 2GR-FE | 6.1 quarts | 5.8 quarts |
Always measure with the dipstick after filling. The numbers above are a starting point. The actual level depends on how much oil drains out and how much the old filter held.
### Torque Specs
- **Drain plug (2.4L):** 29 ft-lbs
- **Drain plug (3.5L):** 27 ft-lbs
- **Oil filter housing cap (3.5L cartridge):** 18 ft-lbs
The drain plug is 14mm hex. The crush washer is 14mm inner diameter. Replace it every time. The gasket material compresses and loses its sealing ability after one use.
### Oil Filter Specs
- **2.4L spin-on:** Thread size 3/4-16 UNF, gasket diameter 2.5 inches
- **3.5L cartridge:** Element only, housing cap uses a 64mm socket or special tool
### Other Useful Numbers
- **Oil type:** 5W-30, API SN, ILSAC GF-5
- **Alternative oil type:** 0W-20 (temporary only)
- **Oil change interval (severe service):** 5,000 miles
- **Oil change interval (normal service):** 10,000 miles
- **High-mileage threshold:** 75,000 miles
- **Drain plug torque range:** 25 to 33 ft-lbs (safe range)
## High-Mileage RAV4s: Does the Oil Change After 75,000 Miles?
If your RAV4 has crossed 75,000 miles, you might wonder if a different oil is needed. The answer is yes, but only in one specific way.
Switch to a high-mileage formulation. These oils contain seal conditioners that help keep gaskets soft and pliable. The 2AZ-FE engine is known for valve cover gasket leaks after 100,000 miles. High-mileage oil can delay that leak by keeping the rubber seals from drying out.
Stick with 5W-30 viscosity. Do not go thicker. High-mileage oils are available in the same viscosity grades. The only difference is the additive package. If you are already using synthetic, you can switch to a high-mileage synthetic. The extra seal conditioners provide an added layer of protection for aging engines.
## Climate and Driving Conditions: Adjusting Your Oil Choice
Your driving habits matter more than the calendar. Here is how to adjust based on your specific situation.
**If you drive mostly short trips:** Change your oil every 5,000 miles. Short trips never let the engine reach full operating temperature. Moisture and fuel contaminate the oil faster. This is especially important for the 2.4L engine, which is prone to sludge.
**If you live in a cold climate:** 5W-30 is fine down to minus 20 degrees Fahrenheit. Below that, 0W-20 offers better cold start flow. But switch back to 5W-30 in warmer months. The 0W-20 is a winter-only workaround, not a year-round solution.
**If you tow or haul heavy loads:** Use full synthetic 5W-30. The extra heat from towing breaks down conventional oil faster. Synthetic handles higher temperatures without losing viscosity. Change it every 5,000 miles regardless of what the bottle says.
**If you drive mostly highway:** Conventional oil at 5,000 mile intervals is perfectly adequate. Highway driving is gentle on oil because the engine reaches steady operating temperature and stays there.
## Proper Oil Disposal, Warranty Concerns, and Legal Reminders
Used oil is classified as hazardous waste. Pouring it down the drain or throwing it in the trash is illegal in most jurisdictions.
### How to Dispose of It
Collect the used oil in a clean, sealable container. Most auto parts stores accept used oil for free. Some city recycling centers also take it. Check your local regulations. Never mix used oil with other fluids like antifreeze or brake fluid. That makes it impossible to recycle.
### Warranty Considerations
If your RAV4 still has a powertrain warranty, keep records of every oil change. Write down the date, mileage, oil type, and filter brand. Use oil that meets the API SN and ILSAC GF-5 specs. That way, if an engine issue arises, you have proof of proper maintenance. For more details on proper vehicle care, check our [terms of service](https://auttomoto.com/terms/) and [disclaimer](https://auttomoto.com/disclaimer/) for general guidance.
## FAQs: What Real 2010 RAV4 Owners Ask
### Can I use 0W-20 instead of 5W-30 in my 2010 RAV4?
Yes, but only as a temporary alternative. The owner's manual lists 0W-20 as acceptable if 5W-30 is not available. For long-term use, stick with 5W-30 for proper engine protection and VVT-i system function.
### How often should I change the oil in my 2010 RAV4?
Every 5,000 miles for severe service, which includes most real-world driving. Every 10,000 miles for normal service. Short trips, stop-and-go traffic, and cold starts all count as severe service. When in doubt, change it at 5,000 miles.
### What happens if I use the wrong oil in my RAV4?
Using the wrong viscosity or certification can cause sludge buildup, VVT-i system issues, and premature engine wear. The 2.4L engine is especially sensitive to poor oil quality and extended intervals. A rebuild can cost $4,000 to $6,000.
### Does my 2010 RAV4 need synthetic oil?
No. Conventional oil is fine if you change it every 5,000 miles. Synthetic offers better protection in extreme temperatures and for towing. It also handles longer intervals. But it is not required.
### How much oil does a 2010 RAV4 take?
The 2.4L four-cylinder takes 4.5 quarts with a filter change. The 3.5L V6 takes 6.1 quarts with a filter change. Always check the dipstick after filling. The spec is a starting point, not a guarantee.
### What oil filter should I use?
Use a Toyota Genuine filter (04152-YZZA1) or a high-quality equivalent from Wix, Purolator, or Mobil 1. Avoid cheap store brand filters. The bypass valve calibration must match the engine's requirements.
## Final Verdict: The One Oil Recommendation You Can Trust
Here is the bottom line for your 2010 RAV4.
Use SAE 5W-30 oil that meets API SN and ILSAC GF-5 standards. If your RAV4 has over 75,000 miles, use a high-mileage formulation in the same viscosity. Change it every 5,000 miles for severe service. Use a quality filter with the correct bypass valve pressure.
That covers the core facts. For more on maintaining your vehicle properly, visit our [about page](https://auttomoto.com/about/) to understand our approach. If you have specific concerns about your engine, consult a qualified mechanic. Your engine will thank you for another 100,000 miles.
