2013 Toyota RAV4 Oil Capacity: Exact Specs

If you’re looking up the 2013 Toyota RAV4 oil capacity, you’re probably standing in an auto parts store with a bottle in one hand and your phone in the other. Or maybe you’re about to drain the oil pan for the first time and just want to make sure you don’t mess it up.

I’ve been there. And here’s the thing: this isn’t a one-size-fits-all answer. The 2013 RAV4 came with two different engines, and each takes a different amount of oil.

Put in the wrong volume and you risk engine damage, poor performance, or a mess on your garage floor.

Manufacturer specifications for this model year confirm the variance. The 2.5L four-cylinder engine takes 4.5 quarts with a filter change. The 3.5L V6 takes 6.4 quarts.

Getting the number wrong by even half a quart can cause problems. Let’s walk through exactly what you need to know, step by step. As of 2026, this information remains the factory standard for every 2013 RAV4 still on the road.

2013 toyota rav4 oil capacity

Image source: Web (Bing) / storage.googleapis.com (Web image (fair-use with source credit))

Quick Answer

The 2013 Toyota RAV4 oil capacity is 4.5 quarts for the 2.5L four-cylinder engine and 6.4 quarts for the 3.5L V6 engine. Both engines require 0W-20 full synthetic oil with API SN or ILSAC GF-5 certification. Always check the dipstick after filling to confirm the correct level.

Why Getting the Oil Capacity Right Matters (and Why It’s Not Just One Number)

Oil is the lifeblood of your engine. It lubricates, cools, and cleans internal components under extreme pressure and heat. When you use the wrong amount, you compromise all three functions.

Too little oil and the engine starves. Metal parts grind against each other. Bearing surfaces overheat.

In severe cases, you can seize the engine entirely. That’s a repair bill that runs into thousands of dollars.

Too much oil is just as dangerous. Overfilling causes the crankshaft to whip the oil into foam. Foam doesn’t lubricate.

Air bubbles collapse under pressure, leaving critical parts dry. You also risk blowing out seals and gaskets because the internal pressure gets too high.

The 2013 RAV4 is a reliable vehicle. Plenty of them pass 200,000 miles without major issues. But that longevity depends on maintaining the correct oil level.

Toyota designed these engines with precise tolerances. The oil capacity isn’t a suggestion. It’s an engineering requirement.

This is especially important if you bought the vehicle used. Previous owners may have used the wrong oil. A fresh, properly measured change gives you a clean baseline.

It also helps you spot any existing leaks or oil consumption issues early.

Two Engines, Two Capacities: Which One Is Under Your Hood?

Before you buy oil, you need to confirm which engine your RAV4 has. This is straightforward. You just need to know where to look.

The 2.5L four-cylinder (engine code 2AR-FE) is the standard engine for most 2013 RAV4 models. It delivers adequate power for daily driving and gets better fuel economy than the V6.

The 3.5L V6 (engine code 2GR-FE) is the optional upgrade. It produces significantly more horsepower and torque. You’ll find it in some Limited and Sport trims, though it is less common overall.

How to identify your engine

Option 1: Check the emissions sticker under the hood. Pop the hood and look for a large white or silver sticker on the underside of the hood or near the radiator support. It lists engine displacement in liters. If it says 2.5L, you have the four-cylinder.

If it says 3.5L, you have the V6.

Option 2: Look at the engine cover. The plastic cover on top of the engine may have branding or displacement markings. On the 2.5L, you will often see "2.5L" or "VVT-i" molded into the cover. The V6 engine cover is larger and spans more of the engine bay.

Option 3: Count the spark plug wires or coil packs. The 2.5L has four coil packs on top of the engine. The 3.5L has six. You can see them easily once the engine cover is removed.

Option 4: Check your owner’s manual or VIN. The manual lists the engine type. You can also run your VIN through a Toyota parts lookup to confirm.

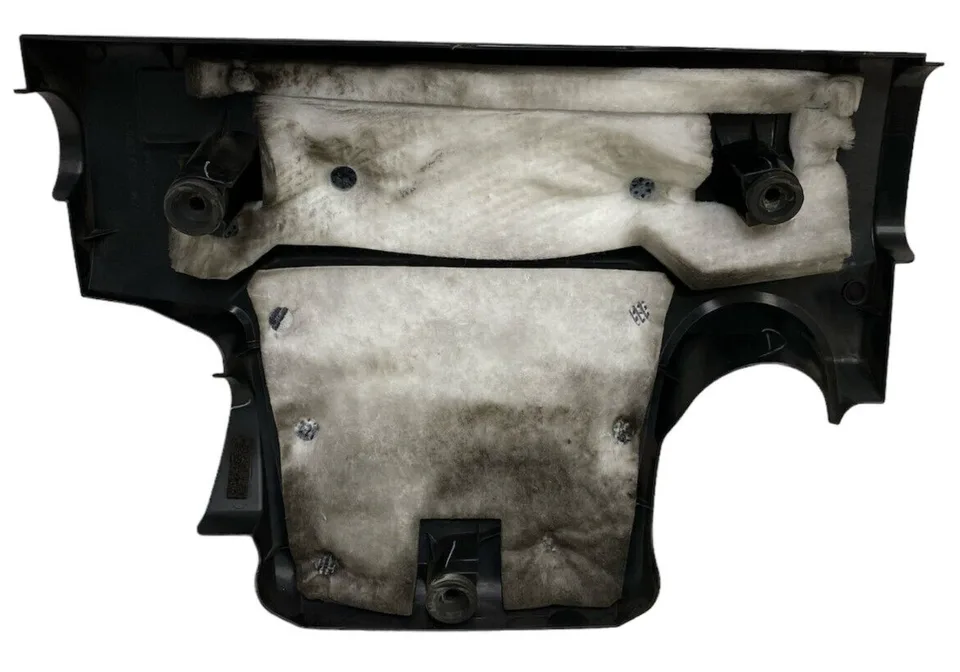

2.5L engine identification

Image source: Bing (Web (fair-use with source credit))

Capacity comparison at a glance

Engine Displacement Oil Capacity (with filter) Recommended Oil
2AR-FE (4-cylinder) 2.5L 4.5 quarts (4.3 liters) 0W-20 full synthetic
2GR-FE (V6) 3.5L 6.4 quarts (6.1 liters) 0W-20 full synthetic

The V6 takes nearly two full quarts more than the four-cylinder. That extra volume is necessary because the V6 has a larger oil pan and more internal components that require lubrication.

The Right Oil Type Matters Just as Much as the Amount

Putting in the correct amount is half the battle. The other half is using the right oil. The 2013 RAV4 is designed for 0W-20 full synthetic motor oil.

This is non-negotiable.

Why 0W-20 specifically?

The "0W" part means the oil flows like a thin 0-weight oil when cold. This is critical for cold starts. The oil reaches bearing surfaces faster, reducing wear during those first few seconds of engine operation.

It also helps the engine start easier in cold weather.

The "20" part means the oil thickens to a 20-weight at operating temperature. This provides the proper film strength to protect engine components without creating excessive drag.

Toyota specified 0W-20 for the 2013 RAV4 to meet strict fuel economy targets. Thinner oil reduces internal friction. That translates to better gas mileage and lower emissions.

What about using 5W-30 instead?

Some owners think a thicker oil provides better protection, especially in older engines or hot climates. That is not correct for this engine.

Using 5W-30 instead of 0W-20 will reduce fuel economy by 1 to 3 percent. It may also cause sluggish oil flow during cold starts. In a well-maintained engine with proper clearances, 0W-20 provides all the protection you need.

Stick with the manufacturer’s recommendation. Your owner’s manual is very clear on this.

Certification matters

Not all 0W-20 oils are created equal. Look for the API SN certification mark on the bottle. Newer oils may carry API SP, which is backward-compatible and also fine to use.

These certifications indicate the oil meets or exceeds Toyota’s requirements for wear protection, sludge control, and fuel economy.

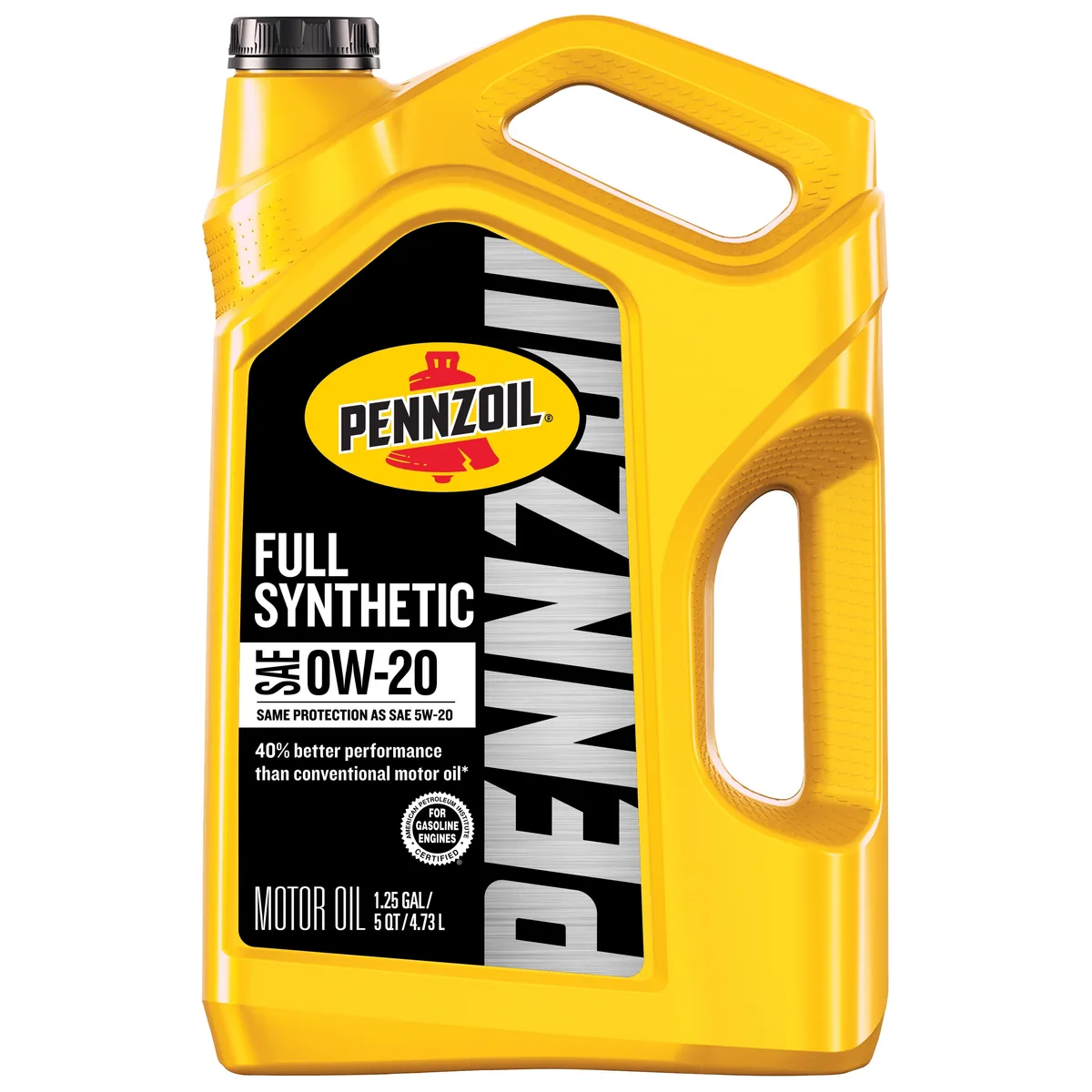

0W-20 oil specification

Image source: Web (Bing) / walmart.com (Web image (fair-use with source credit))

Synthetic vs. conventional

Toyota calls for full synthetic oil in the 2013 RAV4. You can use a synthetic blend in a pinch, but do not make a habit of it. Full synthetic oil handles higher temperatures better, resists breakdown longer, and flows more consistently across temperature extremes.

Here is a quick rule of thumb: if you plan to go the full 7,500 miles between oil changes, use full synthetic. Synthetic blend will degrade faster and may require a change at 5,000 miles instead.

What about high-mileage oil?

If your 2013 RAV4 has over 75,000 miles, high-mileage oil is an option worth considering. It contains seal conditioners that can reduce minor leaks and oil consumption. High-mileage oil still meets API SN standards, so it is safe to use.

Just make sure it is still 0W-20 full synthetic.

Step-by-Step: How to Do the Oil Change Yourself (With the Right Amount)

You can save between $40 and $80 by changing the oil yourself. The process is straightforward and requires only basic tools. Here is how to do it correctly.

What you will need

Item Notes
0W-20 full synthetic oil 5 quarts for 2.5L, 7 quarts for V6
Oil filter Toyota Genuine or quality aftermarket
14mm socket or wrench For the drain plug
Oil filter wrench For removing the old filter
Drain pan Large enough to hold 6+ quarts
Crush washer New one for the drain plug (size 14mm)
Funnel Helps avoid spills when adding oil
Rags or shop towels For cleanup
Ramps or jack stands To lift the vehicle safely

Step 1: Prepare the vehicle

Park on level ground. Run the engine for a couple of minutes to warm the oil. Warm oil drains faster and carries more suspended contaminants out with it.

Turn the engine off and let it sit for about five minutes.

Step 2: Lift the vehicle safely

Use ramps or jack stands. Never crawl under a vehicle supported only by a jack. If you are using jack stands, place them at the factory lift points under the frame rails.

Step 3: Remove the oil fill cap

Go under the hood and remove the oil fill cap. This allows air to enter the system and helps the oil drain more completely.

Step 4: Drain the old oil

Place your drain pan under the oil pan. Locate the drain plug. It is a 14mm bolt at the lowest point of the oil pan.

Use your wrench to loosen it counterclockwise. Once it is loose, unscrew it by hand. Be careful.

The oil is hot.

Let the oil drain completely. This takes about three to five minutes. While the oil drains, inspect the old crush washer on the drain plug.

It should be replaced with a new one every oil change.

Step 5: Remove and replace the oil filter

The oil filter is located on the front of the engine. On the 2.5L, it is near the oil pan on the passenger side. On the V6, it is higher up and easier to reach.

Use your oil filter wrench to loosen the old filter. It will be full of oil, so have your drain pan positioned underneath. Once removed, wipe the filter mounting surface on the engine clean.

Take your new oil filter. Dip your finger in fresh oil and lightly coat the rubber gasket on the top of the new filter. This prevents the gasket from sticking and ensures a proper seal.

Screw the new filter on by hand until the gasket touches the mounting surface. Then tighten it another three-quarters of a turn by hand. Do not use the wrench to tighten the filter.

Hand-tight is sufficient.

Step 6: Reinstall the drain plug

Put the new crush washer on the drain plug. Thread the plug in by hand to avoid cross-threading. Tighten it to 29 ft-lbs using a torque wrench.

If you do not have a torque wrench, snug it firmly with a standard wrench. Excess torque can strip the threads in the oil pan.

Step 7: Add the new oil

Lower the vehicle back to the ground. Place your funnel in the oil fill hole. Pour in the correct amount of oil.

For the 2.5L engine, add 4.5 quarts. Start with a full 5-quart jug and measure out the last half-quart using the markings on the bottle.

For the V6 engine, add 6.4 quarts. You will need a 5-quart jug and a 1-quart bottle. Pour the full 5 quarts, then add approximately 1.4 quarts from the smaller bottle.

Step 8: Check the dipstick

Replace the oil fill cap. Start the engine and let it run for about 30 seconds. This circulates the oil throughout the engine and fills the new filter.

Turn the engine off and wait two minutes.

Pull the dipstick out, wipe it clean, insert it fully, and pull it out again. The oil level should be between the low and full marks. If it is low, add a small amount and check again.

Avoid the temptation to overfill. The difference between the low and full marks on the dipstick is about one quart. If your level is on the low mark, you are still within the safe range.

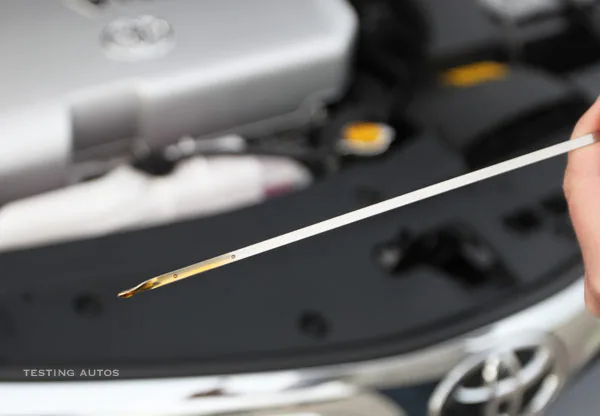

dipstick oil level check

Image source: Bing (Web (fair-use with source credit))

Step 9: Check for leaks

With the engine running, look under the vehicle. Check the drain plug and the oil filter for any drips. If you see oil, turn the engine off immediately and tighten the affected component.

Step 10: Dispose of the old oil properly

Used motor oil is hazardous waste. Do not pour it down a drain, onto the ground, or into the trash. Take it to any auto parts store that accepts used oil.

Most locations accept up to five gallons per visit at no charge.

The Biggest Mistakes I See People Make

Even experienced DIYers slip up on oil changes. The 2013 RAV4 has a few quirks that catch people off guard. Here are the most common errors and how to avoid them.

Mistake 1: Pouring in the V6 amount for a 4-cylinder engine

This is the number one mistake. Someone reads "2013 RAV4 oil capacity" online and grabs a single number without checking their engine. They dump in 6.4 quarts on a 2.5L engine.

The result is a severely overfilled crankcase. The engine runs rough. Oil may leak past seals.

In extreme cases, the catalytic converter gets damaged from burning oil.

How to avoid it: Confirm your engine type before you buy oil. Write the correct capacity on a piece of tape and stick it under the hood for next time.

Mistake 2: Overfilling because you don’t run the engine first

You drain the oil. You add the full 4.5 quarts. Then you check the dipstick and it reads high.

Panic sets in.

Here is what happened. The oil filter was empty. Some oil stayed in the engine passages.

The dipstick reading was artificially high because the system had not fully cycled yet.

How to avoid it: Always run the engine for 30 seconds after filling. Then wait two minutes and check the dipstick. That gives the oil time to settle in the pan and give you an accurate reading.

Mistake 3: Using the wrong filter or forgetting to lube the gasket

An oil filter that does not fit properly will leak. A filter installed without lubricating the gasket will seize onto the mounting surface. Next change, you will fight to get it off.

How to avoid it: Buy a filter specifically for the 2AR-FE or 2GR-FE engine. Apply a thin coat of fresh oil to the rubber gasket before installation. Hand-tighten only.

Mistake 4: Stripping the drain plug

The oil pan on the 2013 RAV4 is aluminum. The threads are softer than steel. Over-torquing the drain plug strips them out.

That means a new oil pan or a costly repair insert.

How to avoid it: Use a torque wrench set to 29 ft-lbs. Replace the crush washer every time. If you do not own a torque wrench, snug the plug firmly with a standard wrench and stop.

Do not lean into it.

Mistake 5: Forgetting the crush washer

The crush washer creates the seal between the drain plug and the oil pan. Reusing an old washer increases the chance of a slow drip. Over time, that drip costs you oil and leaves a stain on your driveway.

How to avoid it: Crush washers cost about fifty cents. Buy a pack of ten and keep them with your oil change supplies. Replace one every single time.

What Happens When You Get It Wrong (Real Consequences)

A mistake during an oil change does not always show up immediately. Some problems take miles to develop. Here is what can go wrong if you use the wrong capacity or the wrong oil.

Symptoms of overfilled oil

Foaming: The crankshaft whips through the oil surface and aerates it. Air bubbles get pumped into bearing journals. Metal-to-metal contact follows.

Seal leaks: Excess pressure pushes oil past valve cover gaskets, the rear main seal, and the camshaft seals. You will see drips on your garage floor.

Rough idle: The engine works harder to spin the crankshaft through extra oil. You may notice a vibration at stoplights.

Blue smoke from the exhaust: Oil gets past the piston rings and burns in the combustion chamber. This is a clear sign of overfilling.

Risks of underfilling and oil starvation

Underfilling is more dangerous than overfilling because it happens faster. The oil pickup tube sits at the bottom of the oil pan. If the oil level drops below the pickup, the engine loses oil pressure instantly.

At highway speeds, a few seconds of oil starvation can destroy bearings. The engine may start knocking. Once you hear that sound, the damage is usually permanent.

Toyota engines are resilient, but they cannot run without oil pressure. The 2AR-FE and 2GR-FE both rely on a consistent supply of oil to variable valve timing components. Low oil levels can cause these systems to malfunction, leading to reduced performance and check engine lights.

How wrong viscosity affects engine wear and fuel economy

Using 5W-30 instead of 0W-20 does not immediately destroy the engine. But it does cause measurable changes.

Cold starts become harder on the engine. Thicker oil takes longer to reach bearing surfaces. Every cold start with 5W-30 adds more wear than a cold start with 0W-20.

Fuel economy drops by 1 to 3 percent. On a vehicle that averages 25 mpg, that is a loss of roughly 0.25 to 0.75 mpg. Over 12,000 miles per year, you burn through an extra 15 to 30 gallons of gasoline.

The V6 engine is especially sensitive to viscosity changes. Its variable valve timing system uses oil pressure to adjust cam timing. Thicker oil can delay these adjustments, reducing power and efficiency.

Pro Tips from a Mechanic’s Perspective

These tips come from years of working on Toyotas and seeing what makes a difference between a good oil change and a great one.

Pre-fill the oil filter

This is a small step that pays off. Before installing the new filter, pour fresh oil into it until it is about two-thirds full. This reduces the time the engine runs without oil pressure on the first start.

For the 2.5L engine, the filter holds roughly half a quart. For the V6, the filter is larger and holds closer to three-quarters of a quart. Account for this when measuring your total oil volume.

If you pre-fill the filter, you may need slightly less oil from the bottle.

Read the dipstick correctly

The dipstick on the 2013 RAV4 has a crosshatched area between the low and full marks. Read it at eye level. Wipe it clean first.

Insert it fully. Pull it straight out.

Do not check the dipstick immediately after adding oil. The oil needs time to drain down from the top of the engine into the pan. Two minutes is the minimum wait time.

Tighten the drain plug by feel if you lack a torque wrench

A torque wrench is ideal. But many home mechanics do not own one. If you are tightening by hand, use a short ratchet or combination wrench.

Snug the plug until you feel resistance increase. Then give it a quarter turn. That is usually enough.

If you overtighten and feel the plug suddenly turn easier, you have stripped the threads. Stop immediately. Do not try to torque it further.

You will need a thread repair kit or a new oil pan.

Dispose of old oil legally and responsibly

Used motor oil is classified as hazardous waste under EPA regulations. Pouring it down a storm drain, onto the ground, or into household trash is illegal in all 50 states.

Most auto parts stores accept used oil for recycling at no charge. Some municipalities offer curbside collection for hazardous waste. Call ahead to confirm.

Store the oil in a clean, sealable container. Do not mix it with antifreeze, solvents, or other chemicals.

For more details on oil specifications across other Toyota models, you can check the full guide for compatible engine fluids.

When to Let a Shop Handle It

DIY oil changes save money. But they are not for everyone. Here are situations where paying a shop is the smarter call.

Signs you are in over your head

You do not have a safe way to lift the vehicle. Ramps and jack stands are essential. Using a scissor jack or the factory emergency jack is dangerous. If you cannot get the vehicle safely off the ground, take it to a shop.

You live in an apartment or condo. Many rental properties do not allow oil changes on the premises. Fines can exceed the cost of a professional oil change.

You have a physical limitation. Crawling under a vehicle and wrenching a drain plug requires mobility. If your back, knees, or hands make this difficult, do not risk injury.

You stripped the drain plug or rounded it off. At this point, you need a professional with extraction tools. Trying to force a damaged plug will only make it worse.

What a dealership charges vs. an independent mechanic

Dealerships typically charge $80 to $120 for an oil change on a 2013 RAV4. This includes Toyota Genuine oil, a Toyota filter, and a new crush washer. They also perform a multi-point inspection.

Independent mechanics charge $50 to $80 for the same service. They may use aftermarket oil and filters. Ask what brand they use before handing over the keys.

Quick-lube chains charge $40 to $70. These are the most affordable option, but quality varies. Some chains use bulk oil drums and generic filters.

Check the oil level before leaving the lot.

How to verify they used the correct oil and amount

After a shop changes your oil, confirm the work was done correctly. Check the dipstick before you drive away. The level should be between the low and full marks.

Ask to see the oil bottles or the invoice specifying the weight and certification. If the invoice says "5W-30 conventional" but your engine requires 0W-20 synthetic, speak up before you leave.

Some shops will show you the old oil filter as proof of replacement. This is a good sign of a thorough technician.

Quick Reference Specs for Your Garage Wall

Print this table and keep it in your glove box or on the inside of your garage cabinet. It saves time on every oil change.

Spec 2.5L 4-Cylinder (2AR-FE) 3.5L V6 (2GR-FE)
Oil capacity (with filter) 4.5 quarts 6.4 quarts
Oil type 0W-20 full synthetic 0W-20 full synthetic
API certification SN or higher SN or higher
ILSAC certification GF-5 or higher GF-5 or higher
Oil filter part number 04152-YZZA6 (Toyota) 04152-38020 (Toyota)
Drain plug torque 29 ft-lbs 29 ft-lbs
Drain plug size 14mm 14mm
Crush washer 14mm inner diameter 14mm inner diameter
Recommended interval 5,000-7,500 miles 5,000-7,500 miles

The filter part numbers listed are for Toyota Genuine filters. Aftermarket equivalents are available from brands like Mobil 1, Wix, and Fram. Cross-reference with your vehicle’s VIN to confirm fitment.

The recommended oil change interval depends on driving conditions. Severe service conditions, such as frequent short trips, towing, or extreme temperatures, warrant the 5,000-mile end of the range. Highway driving in moderate climates can safely stretch to 7,500 miles.

Frequently Asked Questions

How do I know if my 2013 RAV4 has the 2.5L or 3.5L engine?

Check the emissions sticker under the hood. It lists the engine displacement in liters. You can also look at the engine cover.

The 2.5L has four spark plug coil packs. The 3.5L V6 has six coil packs.

Can I use 5W-30 instead of 0W-20 in my 2013 RAV4?

You can, but you should not make it a habit. Using 5W-30 reduces fuel economy by 1 to 3 percent. It also slows oil flow during cold starts, increasing engine wear.

Toyota designed these engines for 0W-20 viscosity. Stick with it.

What if I accidentally put in too much oil?

Do not drive the vehicle. Drain some oil immediately. Overfilled oil can cause foaming, seal damage, and catastrophic engine failure.

Use the drain plug to let out a small amount, then recheck the dipstick until the level is correct.

Does the V6 really take almost 2 more quarts than the 4-cylinder?

Yes. The 3.5L V6 engine holds 6.4 quarts with a filter change. The 2.5L four-cylinder holds 4.5 quarts.

The V6 has a larger oil pan and more internal components that require lubrication.

How often should I change the oil on a 2013 RAV4?

Toyota recommends every 5,000 to 7,500 miles depending on driving conditions. Short trips, towing, and extreme weather fall under severe service. Use the 5,000-mile interval for severe service and 7,500 miles for normal highway driving.

What happens if I use conventional oil instead of synthetic?

Conventional oil will work in a pinch, but it degrades faster. You will need to change it more frequently, likely every 3,000 to 5,000 miles. Full synthetic oil handles higher temperatures, resists breakdown, and flows better in cold weather.

For the 2013 RAV4, synthetic is the recommended choice.

Pro Tips from a Mechanic's Perspective

These tips come from years of working on Toyotas and seeing what makes a difference between a good oil change and a great one.

Pre-fill the oil filter

This is a small step that pays off. Before installing the new filter, pour fresh oil into it until it is about two-thirds full. This reduces the time the engine runs without oil pressure on the first start.

For the 2.5L engine, the filter holds roughly half a quart. For the V6, the filter is larger and holds closer to three-quarters of a quart. Account for this when measuring your total oil volume.

If you pre-fill the filter, you may need slightly less oil from the bottle.

Read the dipstick correctly

The dipstick on the 2013 RAV4 has a crosshatched area between the low and full marks. Read it at eye level. Wipe it clean first.

Insert it fully. Pull it straight out.

Do not check the dipstick immediately after adding oil. The oil needs time to drain down from the top of the engine into the pan. Two minutes is the minimum wait time.

Tighten the drain plug by feel if you lack a torque wrench

A torque wrench is ideal. But many home mechanics do not own one. If you are tightening by hand, use a short ratchet or combination wrench.

Snug the plug until you feel resistance increase. Then give it a quarter turn. That is usually enough.

If you overtighten and feel the plug suddenly turn easier, you have stripped the threads. Stop immediately. Do not try to torque it further.

You will need a thread repair kit or a new oil pan.

Dispose of old oil legally and responsibly

Used motor oil is classified as hazardous waste under EPA regulations. Pouring it down a storm drain, onto the ground, or into household trash is illegal in all 50 states.

Most auto parts stores accept used oil for recycling at no charge. Some municipalities offer curbside collection for hazardous waste. Call ahead to confirm.

Store the oil in a clean, sealable container. Do not mix it with antifreeze, solvents, or other chemicals.

When to Let a Shop Handle It

DIY oil changes save money. But they are not for everyone. Here are situations where paying a shop is the smarter call.

Signs you are in over your head

You do not have a safe way to lift the vehicle. Ramps and jack stands are essential. Using a scissor jack or the factory emergency jack is dangerous. If you cannot get the vehicle safely off the ground, take it to a shop.

You live in an apartment or condo. Many rental properties do not allow oil changes on the premises. Fines can exceed the cost of a professional oil change.

You have a physical limitation. Crawling under a vehicle and wrenching a drain plug requires mobility. If your back, knees, or hands make this difficult, do not risk injury.

You stripped the drain plug or rounded it off. At this point, you need a professional with extraction tools. Trying to force a damaged plug will only make it worse.

What a dealership charges vs. an independent mechanic

Dealerships typically charge $80 to $120 for an oil change on a 2013 RAV4. This includes Toyota Genuine oil, a Toyota filter, and a new crush washer. They also perform a multi-point inspection.

Independent mechanics charge $50 to $80 for the same service. They may use aftermarket oil and filters. Ask what brand they use before handing over the keys.

Quick-lube chains charge $40 to $70. These are the most affordable option, but quality varies. Some chains use bulk oil drums and generic filters.

Check the oil level before leaving the lot.

How to verify they used the correct oil and amount

After a shop changes your oil, confirm the work was done correctly. Check the dipstick before you drive away. The level should be between the low and full marks.

Ask to see the oil bottles or the invoice specifying the weight and certification. If the invoice says "5W-30 conventional" but your engine requires 0W-20 synthetic, speak up before you leave.

Some shops will show you the old oil filter as proof of replacement. This is a good sign of a thorough technician.

Quick Reference Specs for Your Garage Wall

Print this table and keep it in your glove box or on the inside of your garage cabinet. It saves time on every oil change.

Spec 2.5L 4-Cylinder (2AR-FE) 3.5L V6 (2GR-FE)
Oil capacity (with filter) 4.5 quarts 6.4 quarts
Oil type 0W-20 full synthetic 0W-20 full synthetic
API certification SN or higher SN or higher
ILSAC certification GF-5 or higher GF-5 or higher
Oil filter part number 04152-YZZA6 (Toyota) 04152-38020 (Toyota)
Drain plug torque 29 ft-lbs 29 ft-lbs
Drain plug size 14mm 14mm
Crush washer 14mm inner diameter 14mm inner diameter
Recommended interval 5,000-7,500 miles 5,000-7,500 miles

The filter part numbers listed are for Toyota Genuine filters. Aftermarket equivalents are available from brands like Mobil 1, Wix, and Fram. Cross-reference with your vehicle's VIN to confirm fitment.

The recommended oil change interval depends on driving conditions. Severe service conditions, such as frequent short trips, towing, or extreme temperatures, warrant the 5,000-mile end of the range. Highway driving in moderate climates can safely stretch to 7,500 miles.

Frequently Asked Questions

How do I know if my 2013 RAV4 has the 2.5L or 3.5L engine?

Check the emissions sticker under the hood. It lists the engine displacement in liters. You can also look at the engine cover.

The 2.5L has four spark plug coil packs. The 3.5L V6 has six coil packs.

Can I use 5W-30 instead of 0W-20 in my 2013 RAV4?

You can, but you should not make it a habit. Using 5W-30 reduces fuel economy by 1 to 3 percent. It also slows oil flow during cold starts, increasing engine wear.

Toyota designed these engines for 0W-20 viscosity. Stick with it.

What if I accidentally put in too much oil?

Do not drive the vehicle. Drain some oil immediately. Overfilled oil can cause foaming, seal damage, and catastrophic engine failure.

Use the drain plug to let out a small amount, then recheck the dipstick until the level is correct.

Does the V6 really take almost 2 more quarts than the 4-cylinder?

Yes. The 3.5L V6 engine holds 6.4 quarts with a filter change. The 2.5L four-cylinder holds 4.5 quarts.

The V6 has a larger oil pan and more internal components that require lubrication.

How often should I change the oil on a 2013 RAV4?

Toyota recommends every 5,000 to 7,500 miles depending on driving conditions. Short trips, towing, and extreme weather fall under severe service. Use the 5,000-mile interval for severe service and 7,500 miles for normal highway driving.

What happens if I use conventional oil instead of synthetic?

Conventional oil will work in a pinch, but it degrades faster. You will need to change it more frequently, likely every 3,000 to 5,000 miles. Full synthetic oil handles higher temperatures, resists breakdown, and flows better in cold weather.

For the 2013 RAV4, synthetic is the recommended choice.

Leave a Comment
