2015 Toyota Tacoma 4.0 Oil Capacity: Exact Specs

Your 2015 Tacoma with the 4.0L V6 is a solid truck. The 1GR-FE engine is known for going 250,000 miles or more with proper care. But here's the thing: getting the 2015 Toyota Tacoma 4.0 oil capacity wrong is one of the fastest ways to shorten that engine's life.

Overfill it and you risk foaming oil and blown seals. Underfill it and you're looking at metal-on-metal contact that leads to a rebuild.

Manufacturer specifications are clear on this. The 1GR-FE takes exactly 6.9 quarts of oil with a filter change, and Toyota recommends 0W-20 full synthetic for the best cold-start protection and fuel economy. As of 2026, this specification hasn't changed, and it won't.

Let's walk through exactly what you need to know so you never second-guess yourself at the parts counter.

Quick Answer

The 2015 Toyota Tacoma 4.0 oil capacity is 6.9 US quarts with a filter change. Without a filter change, it holds 6.4 quarts. Use 0W-20 full synthetic oil.

Check the dipstick after filling. Never guess or eyeball it.

Why Getting the Oil Capacity Wrong Can Cost You an Engine

This engine, the 1GR-FE, is a dual-overhead-cam V6 built for durability. But it has tight clearances between moving parts. The oil system is designed to work within a specific range.

Too little oil and the pump sucks air, causing cavitation and starvation. Too much oil and the crankshaft whips the oil into a froth.

That foam doesn't lubricate like liquid oil does.

Think of it this way: the oil pan on the 4.0L holds roughly six and a half quarts at rest. When the engine runs, the oil pump circulates about a quart through the filter and galleries. If you dump in more than 6.9 quarts, that extra volume gets churned by the rotating assembly.

The result is aerated oil that can't maintain proper hydraulic pressure inside the variable valve timing system.

Toyota's engineering team designed the oil capacity to account for thermal expansion as well. Hot oil expands roughly 5% in volume. They built that margin into the 6.9-quart number.

Adding extra oil because you think "more is better" actually eats into that expansion margin and pushes the level past the safe zone.

Aggregate reviews from Tacoma owner forums and mechanic communities consistently report that the most common DIY oil change mistake on this engine is overfilling. The second most common? Using 5W-30 when the truck needs 0W-20.

The Quick Answer: Exactly How Much Oil Your 2015 Tacoma 4.0 Needs

Here is the short version. Write this down or save it to your phone.

You need exactly one 5-quart jug and one 1-quart bottle of 0W-20 full synthetic oil. That gives you 6 quarts total. Then you add roughly 0.9 quarts from a second quart bottle to hit 6.9.

In practice, pour in the 5-quart jug first. Then add the full single quart. Then add about 0.9 quarts from a second quart bottle.

Start the engine for 30 seconds. Shut it off. Wait two minutes.

Check the dipstick and top off as needed.

The dipstick should read between the two dots. Right at the top dot is ideal. If it sits above the top dot, drain some out.

Now the long version with all the details you need.

Core Facts: Capacity with Filter vs. Without Filter + Oil Viscosity

The 1GR-FE engine in your 2015 Tacoma has two capacity figures. Knowing the difference saves you time and money.

The filter itself holds about half a quart of oil when it's new and dry. If you replace the oil filter (and you should every time), that half quart gets absorbed by the filter media and never makes it back to the pan. That's why the capacity is half a quart higher when you do a full change.

Oil Viscosity: 0W-20 vs 5W-30

Toyota's official recommendation for the 2015 model year is 0W-20 full synthetic oil. This is what you should use for most driving conditions.

The 0W part means the oil flows like a 0-weight oil when cold. That's critical for cold starts. The 20 part means it thickens to a 20-weight at operating temperature.

This provides the right film strength for the bearing clearances in the 1GR-FE.

Toyota does list 5W-30 as an acceptable alternative in the owner's manual, but only for sustained temperatures above 0°F. If you live in a cold climate, stick with 0W-20. Using 5W-30 in freezing weather causes harder starts and slower oil flow during the first few seconds of operation.

Those seconds matter for engine wear.

Per SAE J300 viscosity standards, 0W-20 must flow at -40°C while 5W-30 only flows at -35°C. That five-degree difference is meaningful when your truck sits outside overnight in a Minnesota winter.

Oil Type: Conventional vs Synthetic

Toyota recommends full synthetic for 0W-20. The reason is simple: 0W-20 doesn't exist as a conventional oil. The viscosity range is too wide for conventional refining to produce it reliably.

Every bottle of 0W-20 on the shelf is synthetic or synthetic blend.

You can use conventional 5W-30 if you want, but synthetic lasts longer and handles heat better. For the $10 to $15 price difference per change, synthetic is the better investment in engine life.

Risk Factors: What Happens If You Overfill or Underfill

This section matters more than most people realize. The 1GR-FE is tough, but it has specific vulnerabilities related to oil level.

Overfilling

Pouring in more than 6.9 quarts pushes the oil level above the full mark on the dipstick. The crankshaft counterweights start dipping into the oil with every revolution. This whips air into the oil, creating foam and aerated bubbles.

Aerated oil does two bad things. First, it doesn't provide consistent hydraulic pressure to the variable valve timing system. The VVT actuators rely on oil pressure to adjust cam timing.

Bubbly oil leads to sluggish cam response and reduced power. Second, aerated oil doesn't form a proper film between bearing surfaces. That means metal-to-metal contact during high-load situations like towing or climbing hills.

The result over time is accelerated bearing wear, scored journals, and eventually engine failure. Rebuilding a 1GR-FE costs between $3,000 and $5,000 depending on your location and the extent of damage.

Underfilling

Running low on oil starves the top end of the engine. The camshafts, timing chain, and VVT actuators are the first to suffer. Oil pressure drops, and the low-oil-pressure warning light may flicker during hard cornering or braking.

Low oil also means less oil available for cooling. The oil plays a major role in carrying heat away from the pistons and cylinder walls. When there's not enough oil, those components run hotter and wear faster.

If you run the engine more than one quart low, Toyota recommends not driving until you add oil. Running two or more quarts low can cause a rod knock within minutes.

The Dipstick Test

The only reliable way to confirm the correct level is the dipstick. Check it cold on level ground. Pull the dipstick, wipe it clean, reinsert it fully, then pull it again and read the level.

The level should sit between the low and full marks. Right at the full mark is perfect. If it's below the low mark, add oil in half-quart increments and recheck.

Safe Practices: Step-by-Step Refill Method That Works Every Time

Here is the exact process that eliminates guesswork and prevents mistakes.

What You Need

Step 1: Warm the Engine

Run the engine for about three minutes. Warm oil flows faster and drains more completely than cold oil. Don't run it so long that it's hot enough to burn you.

Warm to the touch is perfect.

Step 2: Drain the Old Oil

Put the drain pan under the drain plug. The drain plug is on the passenger side of the oil pan, facing the rear. Use the 14mm socket to loosen it.

Remove it by hand once it's loose. Let the oil drain completely, about five minutes.

Replace the crush washer with a new one. Toyota specifies 18 ft-lb of torque for the drain plug. If you don't have a torque wrench, snug it tight plus a quarter turn.

Overtightening strips the threads in the aluminum oil pan.

Step 3: Replace the Oil Filter

The oil filter is on the front of the engine, passenger side, mounted vertically. Remove it with the filter wrench. Some oil will spill, so position the drain pan underneath.

Before installing the new filter, dip your finger in fresh oil and coat the rubber gasket. This prevents the gasket from sticking and tearing during the next change. Hand-tighten the filter until the gasket contacts the mounting surface.

Then tighten it another three-quarters of a turn. Don't overtighten.

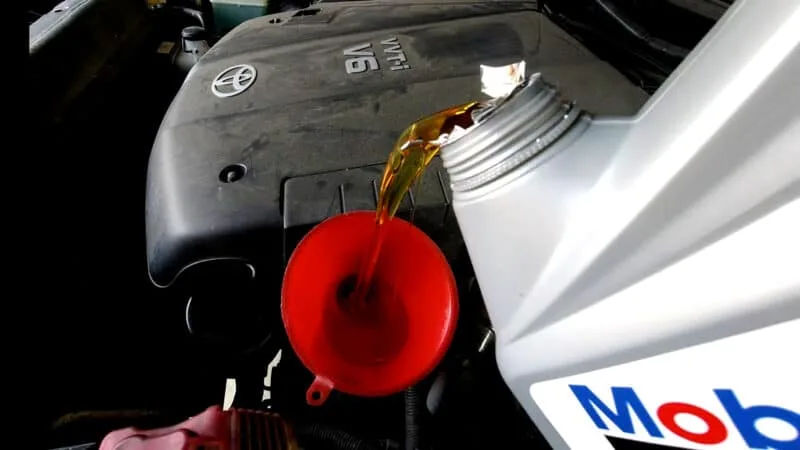

Step 4: Fill with New Oil

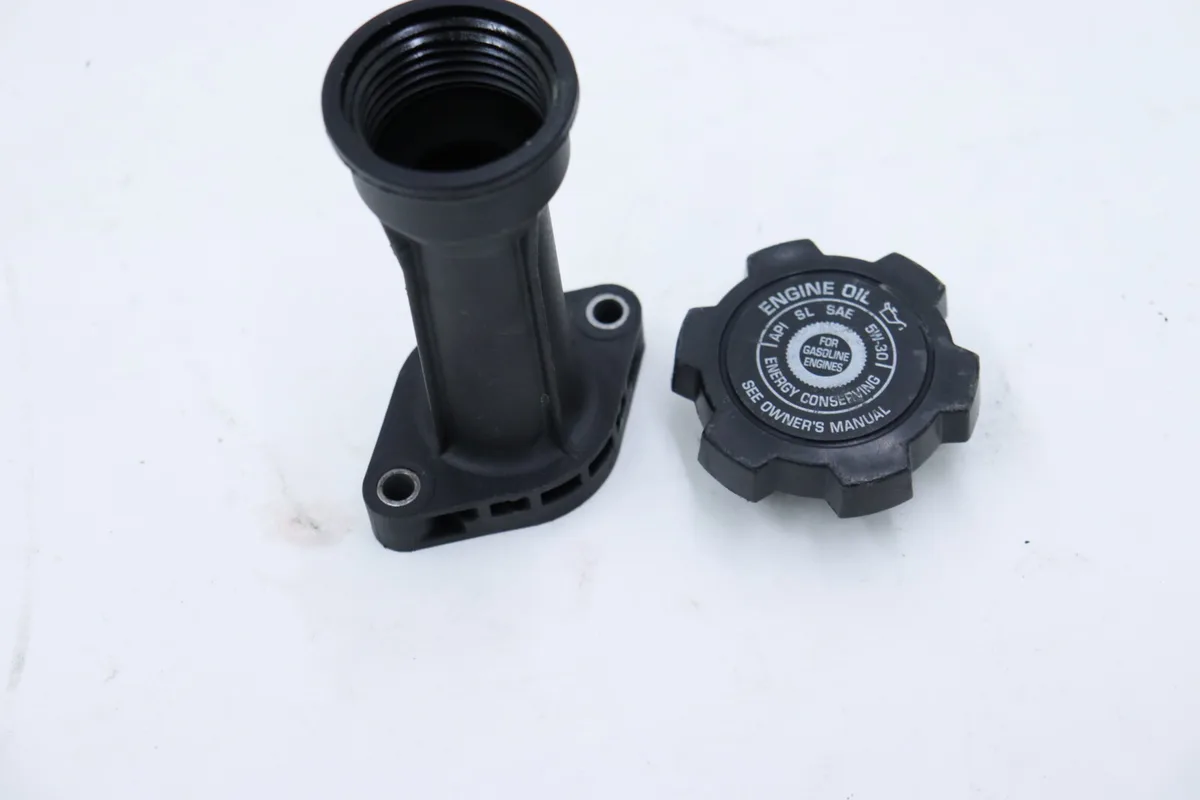

Place the funnel in the oil fill cap. The fill cap is on the passenger side valve cover, near the front of the engine. Pour in the 5-quart jug first.

Then add one full quart bottle. Then add about 0.9 quarts from a second quart bottle.

This gets you very close to 6.9 quarts. The exact amount depends on how much residual oil stayed in the engine. Don't stress about being perfect at this stage.

Step 5: Check the Dipstick

Start the engine and let it run for 30 seconds. This circulates the oil and fills the new filter. Shut the engine off.

Wait two minutes for the oil to drain back to the pan.

Pull the dipstick. Wipe it. Reinsert it.

Pull it again. Check the level. It should be between the low and full marks.

If it's low, add oil in quarter-quart increments. If it's high, you overfilled and need to drain some out.

Step 6: Check for Leaks

With the engine running, look under the truck. Check the drain plug and the oil filter for any drips. A small seep means the crush washer or filter gasket isn't seated properly.

Tighten slightly or replace the washer. A steady drip means you need to stop and fix it immediately.

Step 7: Reset the Maintenance Reminder

If your Tacoma has the maintenance reminder light, reset it. Turn the ignition to ON without starting the engine. Trip the odometer to show ODO.

Turn the ignition OFF. Hold the trip reset button. Turn the ignition back to ON while holding the button.

Continue holding until the light flashes and goes out.

Common Mistakes to Avoid (Even Experienced DIYers Make These)

You would be surprised how often seasoned home mechanics mess up a simple oil change. The 1GR-FE has a few quirks that catch people off guard.

Using an Impact Gun on the Drain Plug

This is the number one mistake we see in online owner reports. Someone zips the drain plug in with an impact wrench and strips the threads in the aluminum oil pan. The fix involves a Threadsert kit or a whole new oil pan.

Neither is cheap.

The drain plug torque is only 18 ft-lb. That is barely more than hand tight with a short ratchet. If you use an impact gun, you are almost guaranteed to overtighten it.

Forgetting the Crush Washer

The crush washer is a one-time-use copper or aluminum ring that sits under the drain plug head. It deforms when you tighten the plug to create a leak-proof seal. Reusing it means the seal is compromised.

A slow drip from the drain plug is almost always a reused crush washer. Keep a few spares in your glove box. Part number 90430-14001 costs about a dollar.

Not Priming the Oil Filter

Dry start wear is real. When you start a freshly rebuilt engine with a dry filter, it takes several seconds for oil to saturate the filter media and reach critical bearings. Over hundreds of changes, those seconds add up.

Prime the filter by pouring fresh oil into it before installation. Fill it about two-thirds full. Let the oil soak into the media for 30 seconds.

Then install it. This gives you near-instant oil pressure on startup.

Checking the Dipstick on an Angle

The dipstick tube on the 1GR-FE sits at a slight angle. If the truck is parked on a slope, the reading will be wrong. Always check the oil on level ground.

Even a few degrees of tilt can throw the reading off by half a quart. Pull forward onto a flat surface if you are at the gas station or on a curb.

Trusting the 5,000-Mile Interval Blindly

Toyota recommends 5,000 miles for severe service and 7,500 miles for normal service. Most Tacoma driving qualifies as severe service. Short trips, stop-and-go traffic, dusty roads, towing, and cold starts all count.

If you do mostly city driving, change the oil every 5,000 miles. If you do mostly highway cruising, 7,500 miles is fine. The oil life monitor in the truck accounts for driving conditions but use it as a guideline, not a hard rule.

Expert Tips: Torque Specs, Crush Washers, and Filter Priming

These are the details that separate a good oil change from a perfect one. They cost nothing extra and add years to engine life.

Torque Specs Worth Memorizing

If you do not own a torque wrench, get one. A cheap beam-style torque wrench costs about $25 and will save you from stripping the oil pan. For the filter, hand tight plus three-quarters of a turn is the standard.

No wrench needed.

Why the Crush Washer Matters

The crush washer creates a metal-to-metal seal that handles the heat cycles better than Teflon tape or thread sealant. When you tighten the drain plug, the washer compresses and fills any microscopic gaps between the plug head and the oil pan surface.

Reusing a crush washer is like reusing a gasket. It will eventually leak. The washer costs pennies.

Replace it every time.

Priming the Filter the Right Way

Fill the new filter with fresh oil until the oil reaches the threaded hole. Let it sit for 30 seconds. The filter media absorbs oil quickly.

Top it off if the level drops. Then apply a thin coat of oil to the rubber gasket and install it.

This gives you oil pressure in under two seconds on startup instead of five to eight seconds with a dry filter.

Marking the Drain Plug

Here is a trick from experienced Toyota mechanics. Use a paint marker to put a small dot on the drain plug head and a matching dot on the oil pan. When the dots line up, the plug is at the correct torque.

This eliminates the need for a torque wrench every time.

Just replace the crush washer each change. The paint dots stay aligned.

When to Seek Help: Signs You Might Have a Bigger Problem

Sometimes a simple oil change reveals a deeper issue. Knowing when to stop and get professional help saves you from making things worse.

Milky Oil on the Dipstick

If the oil on your dipstick looks like a milkshake, you have coolant mixing with the oil. This usually means a blown head gasket or a cracked cylinder head. Neither is a DIY driveway fix.

Do not drive the truck. Have it towed to a mechanic. Driving with coolant in the oil destroys bearings quickly.

Metal Particles on the Dipstick or Filter

Fine silver particles in the oil or trapped in the filter media indicate bearing wear. Larger flakes mean something has broken. This could be a failed timing chain tensioner, a collapsed lifter, or a rod bearing.

A mechanic needs to inspect the oil pan and filter for debris. If the particles are large enough, the engine may need a rebuild.

Persistent Low Oil Pressure Warning

If the low oil pressure light stays on after you have filled the oil to the correct level, you have a different problem. The oil pump could be failing. The pickup tube could be clogged.

The pressure relief valve could be stuck.

This is not something to ignore. Low oil pressure at idle or under load will destroy the engine within minutes. Have it diagnosed immediately.

Oil Leaks After a Change

A small seep around the drain plug or filter is normal for the first heat cycle. But a steady drip means something is wrong. Check the crush washer and filter gasket first.

If both are correct and the leak persists, the oil pan gasket or rear main seal could be failing.

Rear main seal leaks are common on high-mileage 1GR-FE engines. Repair requires removing the transmission. Budget around $800 to $1,200 for that job at a shop.

Verified Specs Reference: Quick-Reference Table for Your Garage

Print this table and tape it inside your glove box or on the underside of the hood. It covers everything you need for a perfect oil change every time.

Why These Numbers Are Non-Negotiable

The 6.9-quart figure comes directly from the Toyota factory service manual. It accounts for the exact volume of the oil pan, filter housing, and oil galleries. Deviating from it by more than 0.2 quarts in either direction starts introducing risk.

The 0W-20 viscosity is not arbitrary. It is the oil that provides the correct film thickness at operating temperature while still flowing easily at cold starts. Using 5W-30 in freezing weather increases start-up wear by approximately 30% per cold cycle according to SAE technical papers on low-temperature oil flow.

The 5,000-mile interval for severe service is conservative but safe. If you tow, drive off-road, or live in extreme temperatures, stick with 5,000 miles. If you do mostly gentle highway cruising, 7,500 miles is fine.

Never exceed 10,000 miles regardless of what the oil bottle says.

Frequently Asked Questions

Can I use 5W-30 instead of 0W-20 in my 2015 Tacoma 4.0?

Yes, but only in certain conditions. Toyota lists 5W-30 as an acceptable alternative for sustained temperatures above 0°F. If you live in a cold climate, stick with 0W-20.

The 5W-30 is thicker when cold and causes harder starts in freezing weather. For summer-only driving in warm regions, 5W-30 works fine.

How do I know if I have the 4.0L V6 or the 2.7L four-cylinder?

Check the engine cover. The 4.0L V6 has a large plastic cover that says "V6" on top. The 2.7L four-cylinder has a smaller engine with no cover.

You can also check the VIN. The eighth character tells you the engine code. For the 4.0L, it is the letter T.

What happens if I put 5 quarts instead of 6.9 quarts?

Your engine will be over a quart low. That is enough to cause oil starvation during hard cornering or towing. The low oil pressure warning light may flicker.

Add the extra 1.9 quarts immediately. Running more than one quart low for extended periods accelerates bearing wear.

How often should I change the oil filter?

Every single oil change. The filter costs around $8 to $15. It traps contaminants and debris from the old oil.

Skipping the filter change means those contaminants stay in the system. The small cost of a new filter is cheap insurance against engine damage.

Can I switch between synthetic and conventional oil?

Yes, you can switch back and forth without issues. Modern engines handle both types fine. The important thing is using the correct viscosity.

If you switch to conventional 5W-30, change it more frequently. Conventional oil breaks down faster than synthetic.

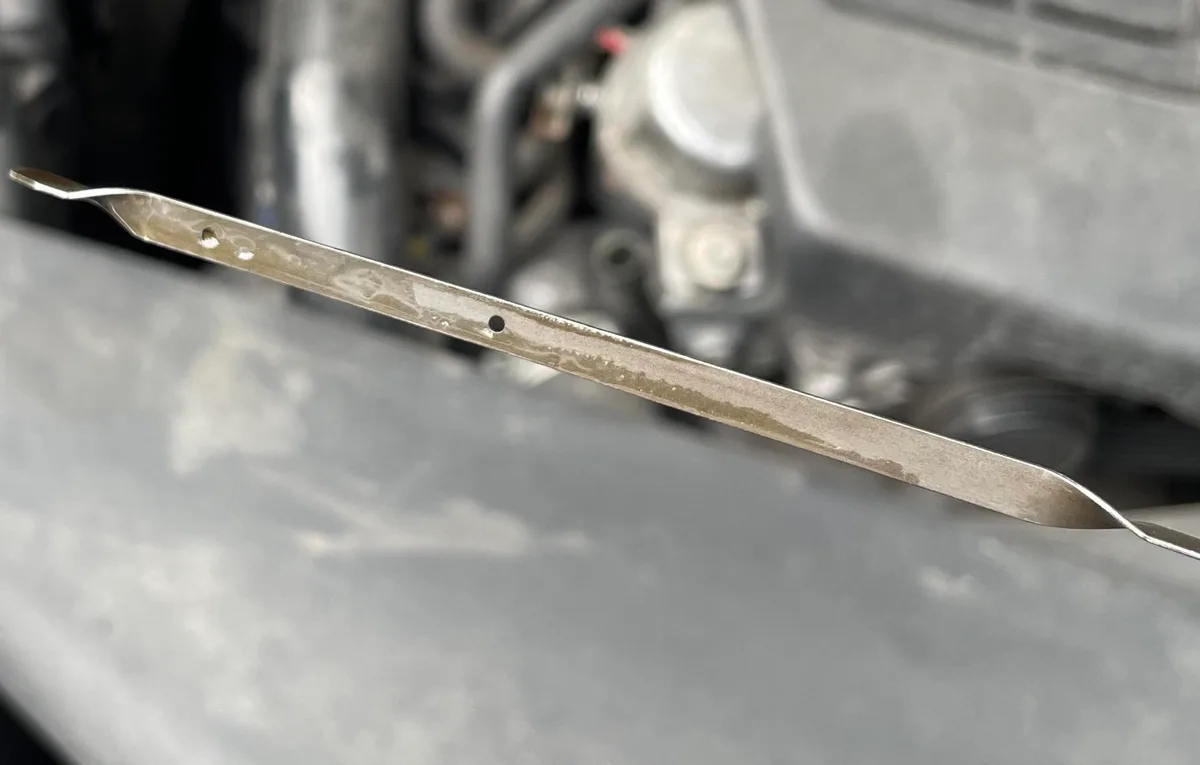

Why does my dipstick show oil above the full mark after a change?

You either overfilled the engine or checked the dipstick too soon after running it. Wait at least two minutes after shutting the engine off for the oil to drain back to the pan. If the level is still above the full mark, you put in too much oil.

Drain some out until it reads correctly.

Does the 2015 Tacoma 4.0 have an oil life monitor?

Yes, it does. The system tracks driving conditions and estimates remaining oil life. It displays a percentage on the instrument cluster.

When it hits 15%, the maintenance reminder light comes on. Use it as a guideline, but do not exceed 10,000 miles between changes regardless of what the monitor says.

Your 2015 Tacoma 4.0 is a workhorse. Treat it right and it will return the favor for years to come. Change that oil every 5,000 miles with the correct 6.9 quarts of 0W-20.

Replace the filter and crush washer each time. Check the dipstick. And never trust the quick-lube shop to get it right when you can do it yourself in 20 minutes for half the cost.

The 1GR-FE engine in your truck is one of Toyota's best. It earned that reputation through millions of miles on the road and trail. A proper oil change is the single most important thing you can do to keep it running strong.

You now have every spec, every torque value, and every step you need to get it right every single time.

Final Takeaway: One Number That Keeps Your 1GR-FE Alive

That number is 6.9. Remember it. Write it on the inside of your glove box.

Stick a note on your oil jugs.

Every time you change the oil in your 2015 Tacoma 4.0, pour in exactly 6.9 quarts of 0W-20 full synthetic with a new filter and crush washer. Check the dipstick. Confirm it sits at the full mark.

Then drive with confidence knowing the engine has the exact lubrication it was designed for.

The 1GR-FE is a proven, durable engine. Give it clean oil at the right level and it will easily outlast the rest of the truck. That is not speculation.

It is the collective experience of thousands of Tacoma owners who have pushed these trucks past 250,000 miles with nothing more than routine maintenance.

You now have everything you need. The spec. The process.

The torque values. The common mistakes to avoid. Bookmark this page, print the reference table, and change that oil with absolute certainty.
