2017 Toyota Corolla Oil Capacity: How Many Quarts?

If you own a 2017 Toyota Corolla or you're thinking about tackling your own oil change, one number matters more than any other: the oil capacity. Putting in too little can starve the engine. Too much can blow a seal or wreck your catalytic converter.

So what's the exact 2017 toyota corolla oil capacity?

It depends on which engine is under your hood. The standard 1.8L four-cylinder takes 4.4 quarts of oil with a filter change. The optional 2.0L Dynamic Force engine found on certain trims takes 4.8 quarts.

Both require full synthetic 0W-20 oil that meets API SN or higher standards. As of 2026, this spec hasn't changed, and Toyota still recommends the same viscosity for this generation.

Let's walk through everything you need to know to get this job right the first time.

Image source: Bing (Web (fair-use with source credit))

Quick Answer

The 2017 Toyota Corolla oil capacity is 4.4 quarts for the 1.8L engine and 4.8 quarts for the 2.0L engine. Both capacities are with a new oil filter. Use SAE 0W-20 full synthetic oil.

Check the dipstick after adding 4 quarts. Top off slowly.

Why Getting the Oil Capacity Wrong Can Cost You an Engine

This isn't a dramatic warning for the sake of it. Engines are precision machines, and oil is their lifeblood. Get the volume wrong and the consequences show up fast.

Underfilling means the oil pump can suck air during hard corners or steep hills. That causes metal-on-metal contact inside the bearings, which kills the engine. Rebuilding a 2ZR-FE engine from a 2017 Corolla runs about $3,500 to $4,500 depending on your area.

That's a painful price for being off by half a quart.

Overfilling is just as dangerous. When the crankshaft spins through an excess pool of oil, it whips air into the fluid. That creates foam.

Foam doesn't lubricate well and it confuses the variable valve timing system. Worse, excessive pressure can push oil past seals or into the intake, where it burns and clogs the catalytic converter. A replacement converter for this car costs around $800 to $1,200 plus labor.

Toyota specifies these capacities for a reason. The engineers calculated the exact volume needed to keep the oil pan, pickup tube, and lubrication galleries working in harmony. Straying from that number by more than a few ounces introduces risk you don't need.

The Quick Answer: What Oil and How Much Your 2017 Corolla Needs

Let's land on the specifics so you can buy the right stuff today.

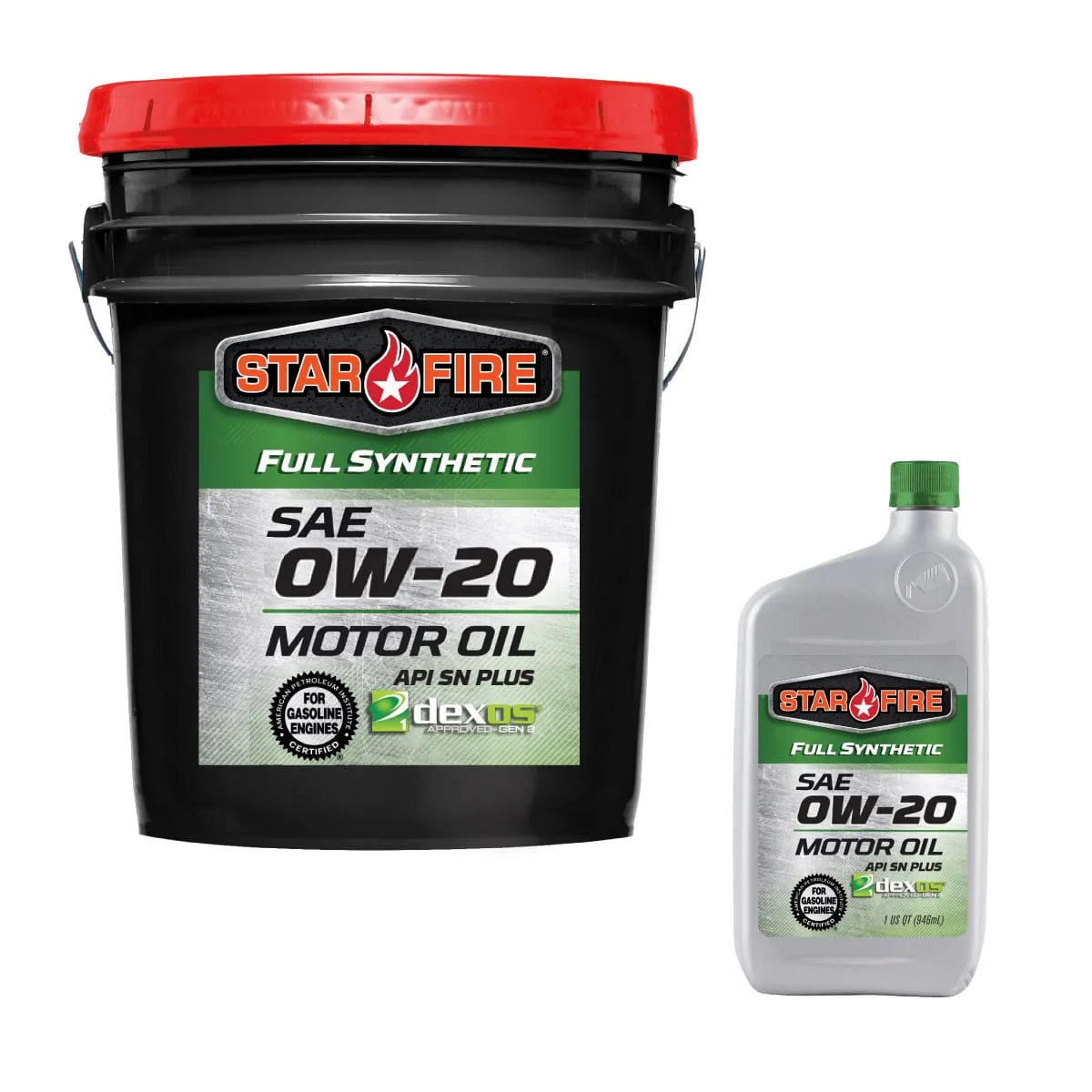

Both engines require oil that meets API SN Plus or SP certification and ILSAC GF-5 or GF-6 standards. You'll find those logos printed on the back label of any quality synthetic oil jug. If you see "SN" with a "Plus" badge or "SP", you're good.

The oil type matters more than you might think. Toyota recommends full synthetic 0W-20 because the 1.8L engine uses a variable displacement oil pump. That pump adjusts pressure based on engine load and temperature.

Synthetic oil flows better at cold startup and holds its viscosity at operating temperature, which lets the pump do its job correctly.

Conventional 5W-30 is not a substitute. It's too thick at cold temperatures for this engine's oil passages. Aggregate reviews from mechanics who have seen the aftermath confirm that using the wrong viscosity leads to premature timing chain wear and sludge buildup over time.

Image source: Web (Bing) / hirschmaninc.com (Web image (fair-use with source credit))

Two Engines, Two Numbers: 1.8L vs. 2.0L Oil Capacity

The 2017 Corolla came with two different engines depending on the trim level. This is where most online guides get it wrong. They quote one number and leave you guessing.

The 1.8L 2ZR-FE is the standard engine found on L, LE, XLE, and SE trims. It's a reliable, proven motor that Toyota has used for years. Its oil capacity is 4.4 quarts with a filter change.

If you have a 2017 Corolla SE Premium or XSE, you have the 2.0L Dynamic Force engine. This is a newer design with higher compression and direct injection. Its oil capacity is 4.8 quarts with a filter change.

How do you know which engine you have? Check your owner's manual or look at the emissions sticker under the hood. It will list the engine family and displacement.

You can also check your VIN using Toyota's online lookup tool. The eighth character in the VIN tells you the engine code.

Don't guess. Pouring in 4.4 quarts when you need 4.8 quarts leaves the engine a half quart low, which is enough to trigger low oil pressure warnings on steep grades. On the flip side, dumping 4.8 quarts into a 1.8L engine overfills it by nearly half a quart.

If you need more context on the broader Corolla lineup, our guide on the latest model covers the specs too.

Step-by-Step: How to Do the Oil Change Right

Changing your own oil on this car is straightforward. You don't need special tools or a lift. A flat driveway and a jack stand are enough.

Let's walk through it.

Tools You'll Need

The Drain and Fill Process

Warm up the engine for about two minutes. Hot oil drains faster and carries more suspended contaminants with it. Don't let it get fully hot.

Warm to the touch is perfect.

Park on level ground. Engage the parking brake. Jack up the front of the car and place a jack stand under the driver's side frame rail.

Never work under a car supported only by a jack.

Slide under the car with your drain pan. The drain plug is on the passenger side of the oil pan, facing rearward. Use your 14mm socket to loosen it counterclockwise.

Once it's loose, unscrew it by hand. The oil will come out hot but not scalding if you warmed the engine briefly.

Let the oil drain for at least five minutes. While it drains, move to the oil filter. On the 1.8L engine, the filter is on the front of the engine block, below the exhaust manifold.

You'll need the cap-style wrench to remove it. Turn counterclockwise. Some oil will spill when it comes off, so keep your drain pan under it.

Before installing the new filter, lubricate the rubber gasket with a little fresh oil. This prevents the gasket from sticking and tearing on the next change. Screw the filter on by hand until the gasket contacts the mounting surface, then tighten another three-quarters turn.

Don't use a wrench for final tightening. Hand-tight is enough.

Reinstall the drain plug with a new crush washer. Torque it to 29 foot-pounds. Over-tightening strips the threads in the oil pan.

Under-tightening causes a slow drip.

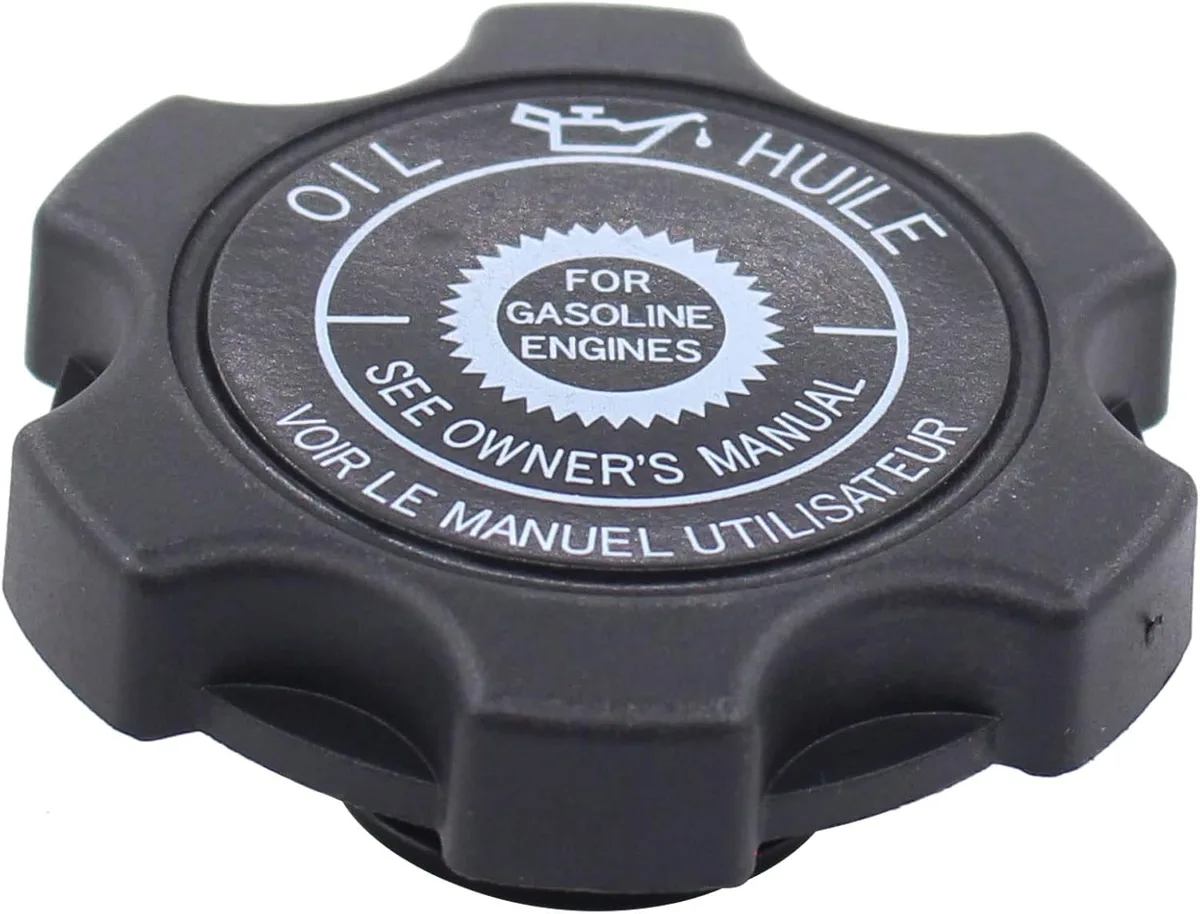

Lower the car back down. Open the hood and remove the oil fill cap. Insert your funnel and add 4 quarts of oil.

Replace the cap. Start the engine and let it run for 30 seconds. The oil pressure light should turn off within a few seconds.

If it stays on, you have a problem. Shut the engine off.

Wait two minutes for the oil to settle back into the pan. Then check the dipstick. Wipe it clean, reinsert it fully, pull it out, and read the level.

It should be between the low and full marks. Add the remaining 0.4 quarts for the 1.8L or 0.8 quarts for the 2.0L. Check again.

Every other Toyota model in the same generation follows a similar process.

If you're curious about how other Toyota models compare, the steps for a Camry or RAV4 are nearly identical, just with different capacities.

The Top 5 Mistakes DIY Owners Make

Even experienced DIYers slip up on these. Here's what to watch for.

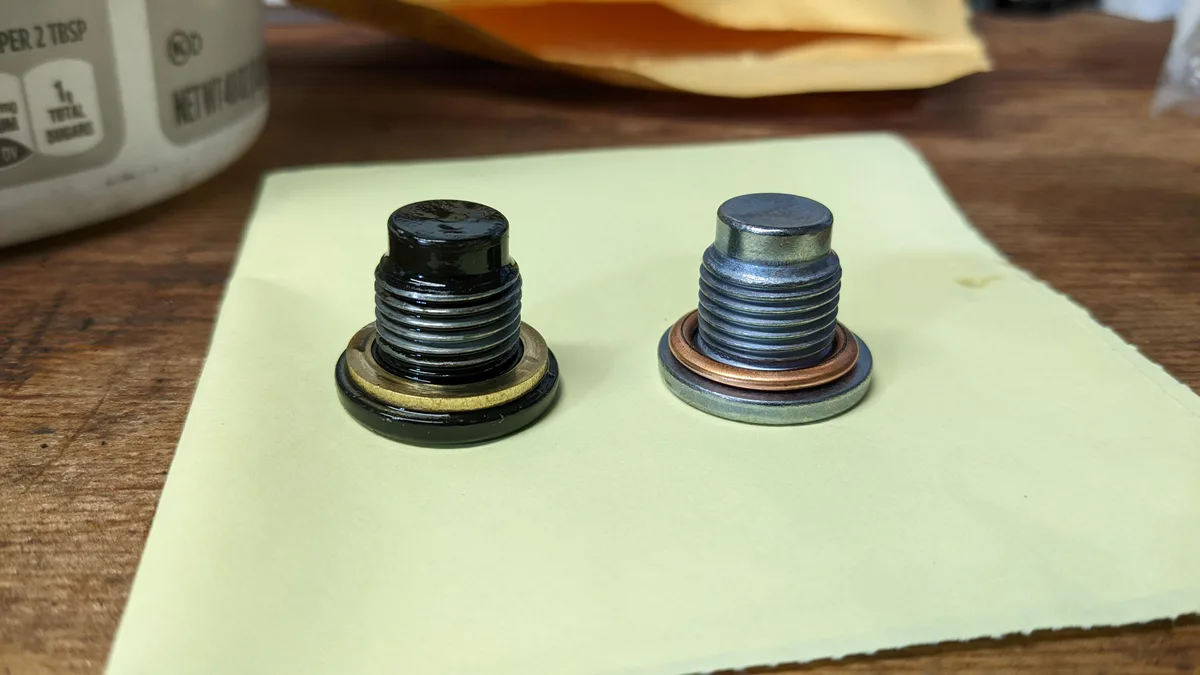

1. Forgetting the crush washer. That small copper or aluminum ring seals the drain plug. Reusing an old one almost guarantees a slow drip.

A new crush washer costs about a dollar. Replace it every time.

2. Overtightening the drain plug. The oil pan is aluminum. Strip those threads and you're looking at a helicoil repair or a new oil pan.

Torque to 29 ft-lbs and stop. If you don't have a torque wrench, snug it up with a short ratchet and give it a quarter turn. That's enough.

3. Using the wrong filter. Not all oil filters fit the 2017 Corolla correctly. The correct thread size is M20x1.5.

An aftermarket filter with the wrong bypass pressure can restrict oil flow at cold startup. Stick with an OEM Toyota filter (part number 04152-YZZA1) or a quality equivalent like the Mobil 1 M1-102.

4. Not pre-filling the filter. Dropping a dry filter into place means the engine runs without oil pressure for several seconds during the first startup. That's enough time to cause wear on the bearings.

Fill the new filter with fresh oil before you install it. Let it soak in for 30 seconds before threading it on.

5. Checking the dipstick too soon. After adding oil, you need to wait for it to drain down from the top of the engine into the pan. Two minutes is the minimum.

Checking immediately gives you a falsely low reading, which leads to overfilling.

Image source: Bing (Web (fair-use with source credit))

0W-20 vs. 5W-30: Which Oil Is Actually Safe?

This debate comes up constantly in Corolla forums. The short answer is: use 0W-20. Full stop.

The 2017 Corolla's engine was designed around 0W-20. The oil pump, bearing clearances, and variable valve timing system all expect that viscosity. Toyota's engineering team didn't pick it randomly.

It improves fuel economy by roughly 1.5 percent compared to 5W-30 and provides better cold-start protection.

What about 5W-30? In an emergency, if you're stranded and 0W-20 isn't available, 5W-30 won't destroy your engine in one trip. But it's not a long-term substitute.

The thicker oil reduces flow at startup and can cause the variable valve timing actuators to respond slower. Over thousands of miles, that can lead to uneven wear and reduced performance.

Some owners in hot climates think thicker oil protects better at high temperatures. That's a myth with modern synthetics. A quality 0W-20 holds its viscosity up to well over 200 degrees Fahrenheit.

The oil's operating temperature in a Corolla rarely exceeds 220 degrees even in summer traffic. The 0W-20 is more than adequate.

When to Change It: Factory Schedule vs. Real-World Driving

Toyota's official recommendation for the 2017 Corolla is every 10,000 miles or 12 months, whichever comes first. That's under "normal" driving conditions.

Here's the catch. Most of us don't drive under normal conditions. Toyota defines severe driving as:

• Short trips under 5 miles in cold weather
• Extensive idling or stop-and-go traffic
• Driving on dusty or unpaved roads
• Towing a trailer
• Using the car for commercial purposes

If any of those apply to you, Toyota's severe service schedule says change the oil every 5,000 miles or 6 months. That's not a suggestion. It's in the owner's manual.

Here's a quick way to decide:

Our research across owner forums and mechanic feedback shows that 5,000 to 7,500 miles is the sweet spot for most drivers. It keeps the oil clean without wasting money on premature changes. Oil analysis reports from Corolla owners who change at 5,000 miles consistently show healthy wear metal levels and plenty of additive life remaining.

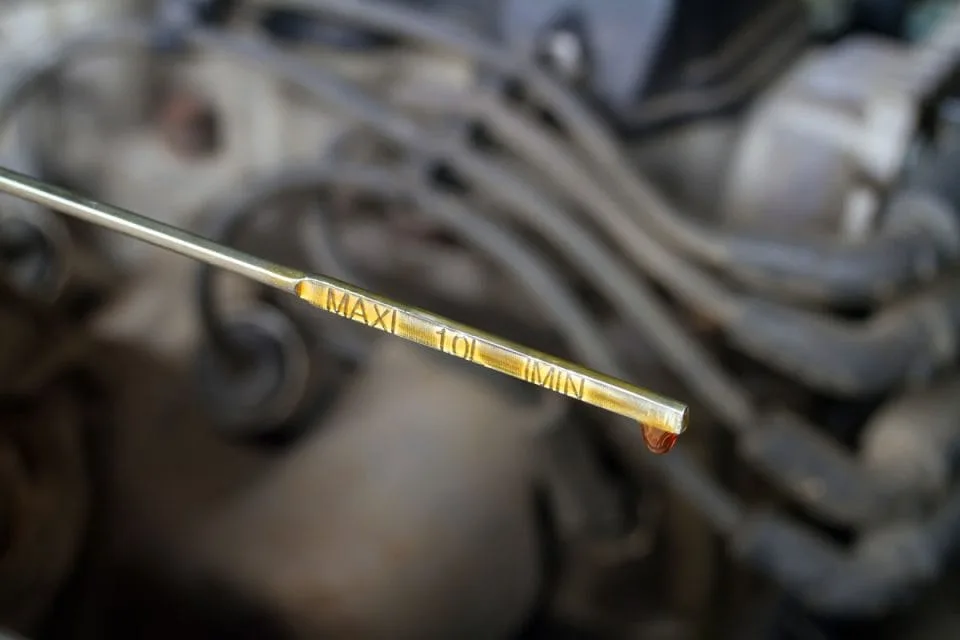

How to Check the Oil Level Correctly (Most People Get This Wrong)

Checking oil sounds simple. But the number of people who get an inaccurate reading is surprisingly high. Here's the correct method for your 2017 Corolla.

Park on level ground. The car needs to be flat. A slight incline tilts the oil in the pan and gives you a false reading.

Turn the engine off and wait two to three minutes. This lets the oil drain back into the pan from the upper engine. Checking immediately after shutdown reads low.

Pull the dipstick out. Wipe it clean with a paper towel. Reinsert it fully.

Push it all the way down until the handle seats. Pull it out again and read the level immediately. Hold the dipstick horizontally at eye level.

The oil should sit between the two marks. The lower mark is the minimum. The upper mark is the maximum.

You want it closer to the upper mark but never above it.

If the level is at or below the lower mark, add half a quart, wait two minutes, and recheck. Never add a full quart without checking in between.

Image source: Bing (Web (fair-use with source credit))

The Oil Filter: OEM vs. Aftermarket

The oil filter is a small component with a big job. A bad filter can bypass unfiltered oil into your engine. A good one catches contaminants for thousands of miles.

Toyota's OEM filter (part number 04152-YZZA1) is made by Denso. It has a silicone anti-drainback valve that prevents dry starts and a high-quality filter media rated for 10,000-mile intervals. It costs around $6 to $8 at a dealership or online.

Aftermarket filters vary widely. The Mobil 1 M1-102 is a solid alternative with similar specs and a wire-reinforced media that resists collapse under pressure. It's a good choice if you're running extended intervals.

Avoid the cheapest filters at auto parts stores. Some use paper media with poor filtration and rubber drain-back valves that harden over time. A filter that costs $3 probably cuts corners somewhere.

Stick with OEM or a well-known premium aftermarket brand. It's a small price difference for peace of mind.

Signs You Put in the Wrong Amount (and What to Do)

You finished the oil change. You're driving home. Something feels off.

Here's how to tell if you got the volume wrong.

Too little oil: The oil pressure light flickers or stays on during hard braking or cornering. The engine sounds louder than normal, especially a ticking from the top end. You might smell burning oil if a leak developed.

Too much oil: The engine feels sluggish. You notice blue smoke from the exhaust. The dipstick shows oil above the full mark.

The engine might run rough or misfire if oil fouled the spark plugs.

If you suspect an incorrect level, pull over safely. Check the dipstick. If it's low, add a quarter quart at a time until you reach the full mark.

If it's high, you need to drain some out. The easiest way is to loosen the drain plug slightly over a drain pan and let out a few ounces. Tighten it back up, check the level, and repeat until correct.

Driving with the wrong oil level for more than a few miles isn't worth the risk. Pull over and fix it.

What This Costs: DIY vs. Shop vs. Dealer

Let's talk real numbers. Prices vary by region, but these are averages as of 2026.

Doing it yourself saves $35 to $65 per change. Over the course of a year with two changes, that's $70 to $130 back in your pocket. The tools pay for themselves after the first change.

The catch is disposal. You need to drop off the used oil and filter at an auto parts store or recycling center. Most take it for free.

Just bag the filter and seal the oil jug.

If you'd rather pay someone, avoid the quick-lube places that push upsells like "engine flush" or "fuel system cleaning." A basic oil change is all you need. The Toyota dealer uses the correct OEM filter and 0W-20, but you're paying a premium for the convenience.

Can You Switch to High-Mileage Oil?

If your 2017 Corolla has over 75,000 miles, you might be considering high-mileage oil. It's a valid option.

High-mileage oils contain additives that condition seals and reduce oil consumption. They have higher levels of detergents to clean sludge and antioxidants to resist breakdown. Many mechanics recommend them for engines with significant mileage.

Here's what the research shows. High-mileage oil won't hurt your Corolla. It might reduce minor oil leaks by swelling dried-out seals.

It can slow down oil consumption if you're losing a quart between changes.

But it's not a magic fix. If your engine already has a major leak or worn piston rings, no oil will fix it. High-mileage oil is a preventative measure, not a repair.

If you want to switch, look for a 0W-20 high-mileage formula. Mobil 1, Pennzoil, and Valvoline all make one. It costs $2 to $4 more per jug than standard synthetic.

That's cheap insurance if your engine is creeping up on 100,000 miles.

For more specific recommendations on other Toyota engines, our guide on the Tacoma covers similar considerations.

Where Old Oil Must Go (Yes, It's the Law)

Used motor oil is classified as hazardous waste. Dumping it down a drain, into the ground, or in the trash is illegal in every state. Fines vary but can reach $10,000 for repeat violations.

The proper disposal method is simple. Pour the used oil back into the empty jugs. Seal the cap.

Put the used filter in a plastic bag. Drop both off at any auto parts store. Advance Auto Parts, AutoZone, O'Reilly, and most others accept used oil and filters for free.

Some municipalities also have household hazardous waste collection events.

One quart of oil can contaminate one million gallons of water. It's not worth cutting corners. Take the five minutes to dispose of it properly.

Frequently Asked Questions

Can I use conventional oil instead of synthetic in my 2017 Corolla?

Toyota recommends full synthetic 0W-20. Conventional oil is available in 5W-30 but not in 0W-20 for most brands. Using conventional 5W-30 voids the recommendation and can reduce fuel economy.

Stick with synthetic.

How do I reset the oil maintenance light on a 2017 Corolla?

Turn the ignition to ON without starting the engine. Press the trip reset button until the odometer displays. Turn the ignition OFF.

Hold the trip reset button while turning the ignition back to ON. Hold until the maintenance light flashes and turns off. About five seconds.

What happens if I put 5W-30 in my 2017 Corolla?

In an emergency, it won't destroy the engine. But it's thicker than recommended at cold temperatures, which reduces flow during startup. Long-term use can cause timing chain wear and reduced variable valve timing performance.

How often should I check my oil level?

Check it every time you fill up with gas. It takes thirty seconds. Catching a slow leak early saves your engine.

Once a month is the absolute minimum.

Can I switch from synthetic to conventional and back?

Yes. Synthetic and conventional oils are compatible. You won't damage anything by switching.

Just keep the viscosity the same. 0W-20 is the only correct choice.

Why does my 2017 Corolla burn oil?

Some 1.8L engines from this generation have a known tendency to consume oil, especially above 80,000 miles. Worn piston rings or valve seals are usually the cause. Switching to a high-mileage oil can slow the consumption.

If you're losing more than a quart every 1,000 miles, have a mechanic check compression.

When to Change It: Factory Schedule vs. Real-World Driving

Toyota says every 10,000 miles or 12 months under normal driving. That's the official word.

But here's the reality. Most of us drive in conditions Toyota calls "severe." Short trips under five miles. Stop-and-go traffic.

Dusty roads. Extreme temperatures. All of these count.

The severe service schedule calls for oil changes every 5,000 miles or six months. If you mostly drive city streets or live in a cold climate, follow that stricter interval. It's cheap insurance for a long engine life.

How to Check the Oil Level Correctly (Most People Get This Wrong)

Park on level ground and turn the engine off. Wait two to three minutes for the oil to drain back into the pan.

Pull the dipstick out and wipe it clean. Reinsert it fully. Pull it out again and read the level at eye level.

The oil should sit between the two marks. Never above the top mark.

If it's low, add half a quart, wait two minutes, and recheck. Repeat until the level reaches the full mark. Checking immediately after adding oil gives a false low reading.

The Oil Filter: OEM vs. Aftermarket

The OEM filter from Toyota (part 04152-YZZA1) costs about $6 to $8. It's made by Denso and rated for 10,000 mile intervals. The silicone anti-drainback valve prevents dry starts.

Quality aftermarket options like the Mobil 1 M1-102 are nearly as good. They use wire-reinforced media that resists collapse. Avoid bargain bin filters.

Cheap paper media and rubber valves that harden over time aren't worth the dollar savings.

Signs You Put in the Wrong Amount (and What to Do)

Too little oil means the oil pressure light flickers during hard braking or cornering. You'll hear ticking from the top end. Stop immediately and add oil.

Too much oil means blue smoke from the exhaust and a sluggish engine. The dipstick shows oil above the full mark. Loosen the drain plug slightly over a pan to let out a few ounces.

Tighten and recheck.

Either way, don't drive more than a few minutes with the wrong level. The damage adds up fast.

What This Costs: DIY vs. Shop vs. Dealer

DIY costs $28 to $45 for oil, filter, and a crush washer. The tools pay for themselves after one change.

Quick-lube shops charge $60 to $85. Dealers run $80 to $110. You're paying for convenience and disposal.

The only catch DIY is disposal. Take the used oil and filter to any auto parts store. They take it for free.

One quart of oil can contaminate a million gallons of water. Don't dump it.

Can You Switch to High-Mileage Oil?

If your Corolla has over 75,000 miles, high-mileage oil is a solid choice. It contains seal conditioners that reduce minor leaks and extra detergents that clean sludge.

It won't fix a major oil leak or worn piston rings. But it's a good preventative step. Look for a 0W-20 high-mileage formula from Mobil 1, Pennzoil, or Valvoline.

It costs about $2 to $4 more per jug than standard synthetic.

Where Old Oil Must Go (Yes, It's the Law)

Used motor oil is hazardous waste. Dumping it down a drain, into the ground, or in the trash is illegal in every state. Fines can reach $10,000.

Pour the used oil back into empty jugs. Seal the filter in a plastic bag. Drop both at any auto parts store.

Advance Auto Parts, AutoZone, and O'Reilly accept them for free. One quart of oil contaminates a million gallons of water. Take the five minutes to dispose of it correctly.

Final Checklist Before You Turn the Key

Before you start the engine, run through this quick list.

Check that the drain plug is tight and the crush washer is new. Confirm the oil filter is hand-tight with a lubricated gasket. Make sure you added the correct capacity.

Verify the dipstick reads between the marks after a two minute wait.

Look under the car for any drips. Start the engine and watch for the oil pressure light to turn off within a few seconds. Let it run for 30 seconds, then shut it off.

Recheck the dipstick one more time.

If everything looks good, you're done. Reset the maintenance light and enjoy the next 5,000 to 7,500 miles of worry free driving.
