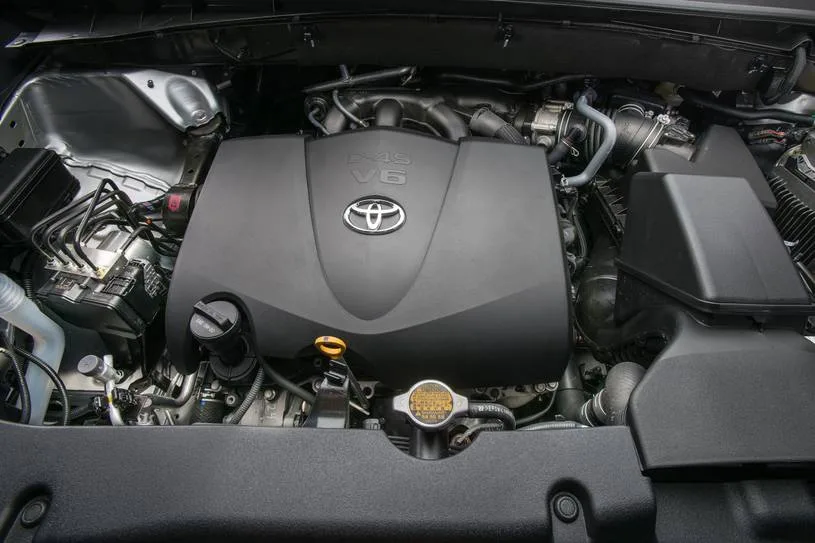

2017 Toyota Highlander Oil Capacity: How Many Quarts?

If you're looking up the 2017 Toyota Highlander oil capacity, you're probably standing in an auto parts store or staring at an empty oil jug, wondering how many quarts to buy. The answer depends on which engine sits under your hood, and getting it wrong means either starving the engine or overfilling it. Neither is a good time.

Manufacturer specifications from Toyota indicate the 3.5L V6 takes 6.4 quarts with a filter change, while the 2.7L four-cylinder takes 5.5 quarts. Both require 0W-20 full synthetic oil. Let's walk through exactly what you need, because pouring the wrong amount into a 2017 Highlander can turn a simple maintenance job into a costly repair.

Image source: Bing (Web (fair-use with source credit))

Quick Answer

The 2017 Toyota Highlander oil capacity is 6.4 quarts for the 3.5L V6. The 2.7L I4 takes 5.5 quarts. Both engines need 0W-20 full synthetic oil.

Add the extra 0.4 quarts for the filter. Check the dipstick after filling.

Why Getting the Oil Capacity Right Actually Matters (YMYL Context)

This section is not filler. It is the reason we are having this conversation.

Engines are precision machines. The oil system is designed around a specific volume of lubricant circulating at a specific pressure. Pour in too little oil, and the oil pump can suck air during hard cornering or steep inclines.

That air pocket means metal-on-metal contact inside the bearings. Repair shops call that "spun bearings" and it usually means a new engine.

Pour in too much oil, and the crankshaft whips the excess into a froth. Aerated oil does not lubricate well. It also creates extra pressure inside the crankcase, which can blow out seals and gaskets.

A rear main seal replacement on a Highlander runs several hundred dollars in labor alone.

As of 2026, the 2017 Highlander is approaching ten years old. Many of these vehicles are on their second or third owner. Maintenance history gets spotty.

A previous owner might have used the wrong oil weight or skipped changes entirely. Getting the oil capacity right on your watch is the single cheapest way to protect that 2GR-FKS or 2AR-FE engine for another 100,000 miles.

Toyota publishes these specifications for a reason. They account for expansion, aeration, and the volume the filter absorbs during startup. Straying from those numbers invites wear that shows up as increased oil consumption, knocking, or a check engine light down the road.

Which Engine Does Your Highlander Have? (V6 vs. I4 vs. Hybrid)

Before you buy a single quart of oil, you need to know which engine is under the hood. The 2017 model year offered three powertrains, and they take different amounts of oil.

Image source: Bing (Web (fair-use with source credit))

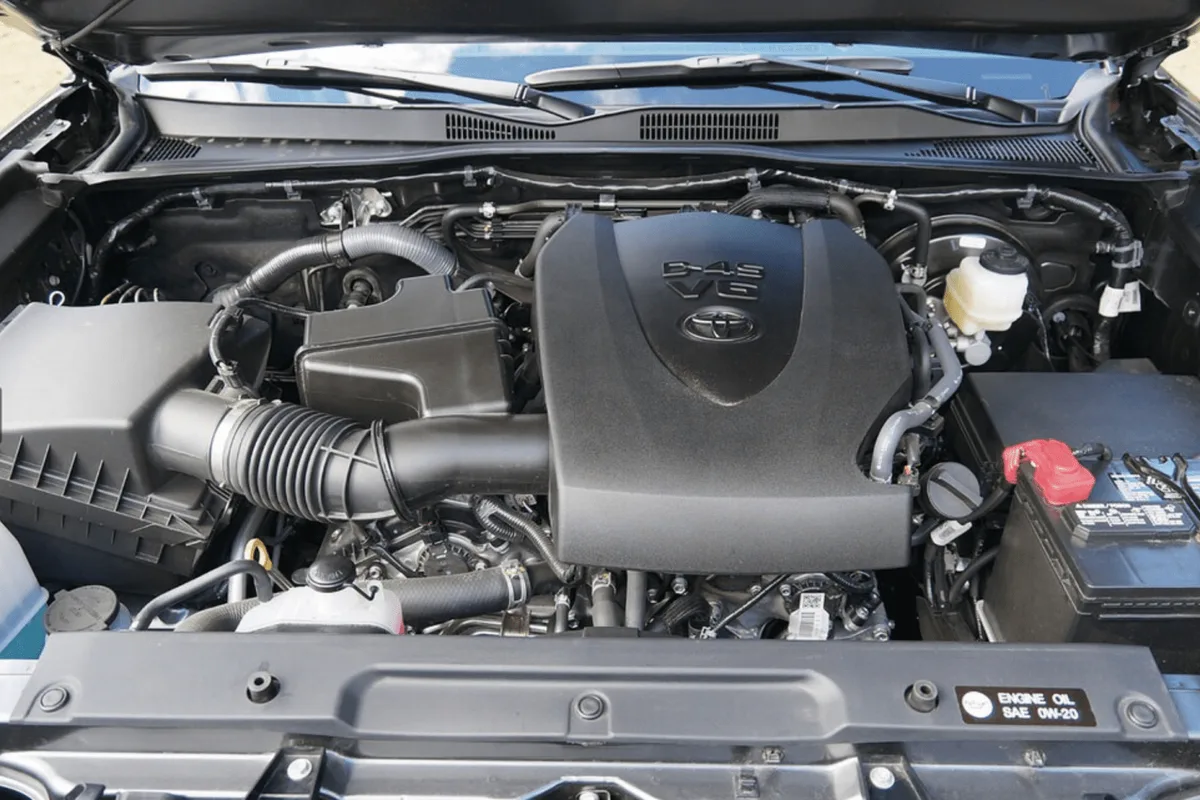

The 3.5L V6 (2GR-FKS)

This is the most common engine in the 2017 Highlander. It appears on the LE, XLE, Limited, and Platinum trims. It is a 3.5-liter V6 with Toyota's D-4S direct injection system.

Output is 295 horsepower and 263 lb-ft of torque. This engine also powers the Highlander Hybrid, though the hybrid uses the Atkinson-cycle variant for better fuel economy.

How to identify it: Pop the hood. If you see a large plastic engine cover with "V6" embossed on it, that is your engine. The oil fill cap sits on the front left side of the valve cover (passenger side).

The dipstick is a yellow loop handle near the front of the engine.

Oil capacity: 6.4 quarts with filter change. Without a filter change, it is roughly 6.0 quarts.

The 2.7L I4 (2AR-FE)

This four-cylinder engine came standard on the base LE trim. It produces 185 horsepower and 184 lb-ft of torque. It is adequate for daily driving but struggles under heavy loads or on steep grades.

Most buyers opted for the V6, so these are less common on dealer lots and in the used market.

How to identify it: The engine cover is smaller and does not say "V6." The oil fill cap is on the front of the engine, and the dipstick is on the passenger side near the firewall.

Oil capacity: 5.5 quarts with filter change.

The Hybrid

The 2017 Highlander Hybrid uses the same 3.5L V6 block but with an electric motor assist. The oil capacity is identical to the gas V6 at 6.4 quarts. The hybrid system does not change the oil volume, but the engine cycles differently.

It shuts off at stops and restarts frequently. That stop-start behavior can accelerate oil degradation in some conditions, which is why Toyota recommends following the severe service schedule for hybrids used in heavy traffic.

How to identify it: Look for "Hybrid" badging on the liftgate and front doors. Under the hood, there is an inverter coolant reservoir and high-voltage cable warnings you will not see on the gas model.

The Exact Oil Capacity for Each Engine Variant

This is the number you wrote down or saved to your phone. Here are the exact figures verified against Toyota's 2017 service manual.

A few important notes about these numbers.

Dry fill vs. service fill. The numbers above are service fill capacities. That means the engine already has oil in it, and you are draining and refilling. A dry fill (brand new engine from the factory) takes slightly more because the oil passages and filter housing are empty.

Do not use dry fill numbers for an oil change.

The filter holds oil. That extra 0.4 quarts between "with filter" and "without filter" is the volume the oil filter absorbs. When you drain the old oil, the filter is full. When you install a new empty filter, it needs to be filled.

If you skip the filter change, you need less oil. But you should always change the filter with every oil change. That is the whole point.

Measuring by liters. If you buy oil in metric quantities, the V6 needs exactly 6.0 liters. The I4 needs 5.2 liters. A 5-liter jug plus a 1-liter bottle covers the V6 perfectly.

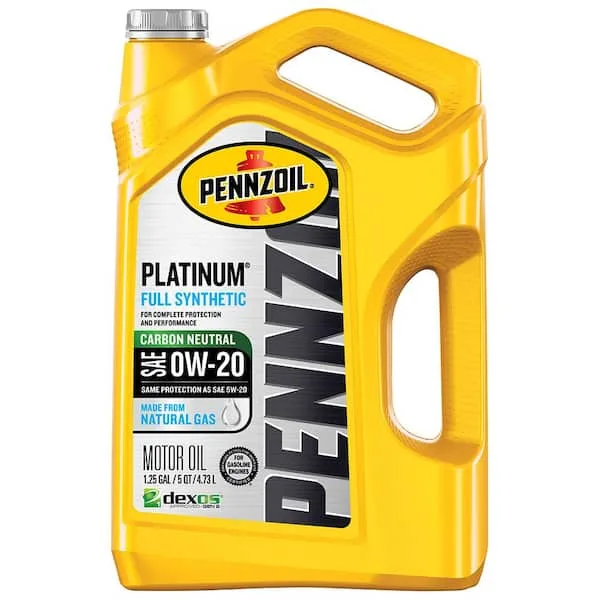

What Oil Type and Viscosity to Use (No Guessing)

The 2017 Highlander requires 0W-20 full synthetic oil. Period.

Image source: Web (Bing) / walmart.com (Web image (fair-use with source credit))

Why 0W-20 and not something else

The "0W" means the oil flows like a 0-weight oil when cold. That is critical for cold starts because the oil needs to reach the top of the engine within seconds. The "20" means it thickens to a 20-weight oil at operating temperature.

That balance gives fuel economy without sacrificing protection.

Toyota specifically designed the 2GR-FKS and 2AR-FE engines around 0W-20 viscosity. The oil pumps, bearing clearances, and variable valve timing systems all assume this viscosity. Using 5W-30 or 10W-40 changes how the oil flows through the VVT actuators, which can cause timing chain tensioner issues over time.

Full synthetic is mandatory

Some older Toyotas ran conventional oil just fine. The 2017 Highlander is not one of them. These engines operate with tighter tolerances and higher oil temperatures, especially the 2GR-FKS with its direct injection system.

Full synthetic oil handles heat better, resists oxidation longer, and keeps the direct injection fuel system cleaner.

Conventional oil in a 0W-20 application will shear down to a lower viscosity within a few thousand miles. That means less protection at high temperatures. Do not do it.

What about high-mileage oil?

If your 2017 Highlander has over 75,000 miles, a high-mileage 0W-20 full synthetic is a reasonable choice. These formulations have seal conditioners that can reduce minor oil leaks around valve cover gaskets. They also have higher detergency to clean sludge deposits.

Just make sure the bottle clearly says "0W-20" and "full synthetic" on the front. Do not use a high-mileage conventional oil. That defeats the purpose.

Brand recommendations

Any brand that meets API SN or higher and ILSAC GF-5 certification is acceptable. Toyota Genuine Motor Oil 0W-20 is the obvious choice if you want the factory fill. Mobil 1, Pennzoil Platinum, Castrol EDGE, and Valvoline Advanced Synthetic all meet the same specifications.

Avoid off-brand or store-brand oils that do not clearly display API certification. If it does not say "API SN" on the back label, put it back on the shelf.

For a full breakdown of Toyota oil specifications across models, the guide on the Toyota Highlander oil type covers the broader lineup and explains the certification differences in more detail.

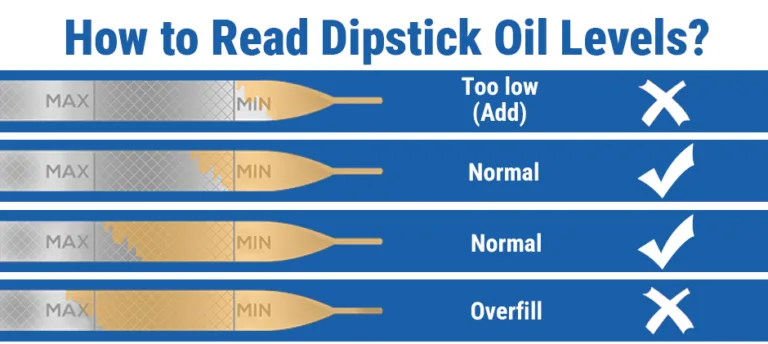

Step-by-Step: How to Check Your Oil Level Correctly

You cannot trust the oil level reading right after you shut the engine off. The oil needs time to drain back into the pan. Here is the correct procedure.

Image source: Web (Bing) / fridayparts.com (Web image (fair-use with source credit))

The right way to check

Park on level ground. Flat concrete is ideal. A sloped driveway gives a false reading.

Warm the engine to normal operating temperature. Drive for five minutes if the engine is cold. Turn it off and wait at least five minutes.

That gives the oil time to settle. Ten minutes is better if you have the patience.

Pull the dipstick out. Wipe it clean with a lint-free rag. Push it all the way back in.

Wait one second. Pull it out again and read the level.

The oil should sit between the two marks. The lower mark is the "Low" or "Add" line. The upper mark is the "Full" line.

If the oil is at the lower mark, you need to add one full quart to bring it to the top. If it sits halfway between the two marks, add half a quart.

Common dipstick mistakes

People check the oil when the engine is cold and the oil has drained completely. That gives a reading that is slightly higher than the true operating level. Some people check it right after shutting off, while the oil is still draining back.

That gives a low reading. Both are wrong.

Another common error is pulling the dipstick out and reading the smear on one side without wiping it first. The oil splashes up the tube during driving, so the first pull always shows a false high reading. Always wipe and reinsert.

What the dipstick tells you about oil condition

The dipstick reveals more than just the level. Hold the oil on the rag up to the light. Clean oil looks amber or honey colored.

Dark brown or black oil is still functional but getting old. If the oil looks milky or has a frothy consistency, coolant is leaking into the oil system. That is a head gasket or intake manifold gasket issue.

Do not drive the vehicle. Have it towed to a shop.

If the oil has a gritty texture when you rub it between your fingers, the engine is producing sludge. That usually comes from extended oil change intervals or using the wrong oil type. A thorough flush may be needed.

Common Mistakes That Can Cost You an Engine

Mistakes happen. Some are minor. Some turn a running engine into a paperweight.

Here are the ones to avoid.

Overfilling

The most common mistake with the 2017 Highlander is dumping the full 6.4 quarts in without checking the dipstick. The 6.4 quart figure is correct for a dry filter and a complete drain. But if you did not get all the old oil out, or if the filter is not completely empty, 6.4 quarts puts you over.

Overfilling by even half a quart causes the crankshaft to churn the oil into foam. That foam does not lubricate properly. The engine starts ticking, the oil pressure light may flicker, and you risk catastrophic bearing failure.

How to avoid it: Fill to about 5.5 quarts on the V6. Check the dipstick. Add the rest in small increments until the level hits the full mark.

Underfilling

You measure out 5 quarts because that is what you had in the garage. You start the engine. The oil pressure light comes on.

You shut it off. The damage is already done.

Underfilling by a quart or more causes the oil pickup tube to suck air during acceleration or cornering. That air pocket means no oil reaches the top end. The camshaft journals and timing chain tensioners are the first to fail.

How to avoid it: Buy enough oil before you start. The V6 needs a 5-quart jug plus a 1-quart bottle. The I4 needs a 5-quart jug.

Do not start the engine until you have confirmed the correct amount is installed.

Using the wrong viscosity

A previous owner might have used 5W-30. A parts store clerk might recommend 10W-40 for a high-mileage engine. Both are wrong for the 2017 Highlander.

The variable valve timing system in the 2GR-FKS engine uses oil pressure to adjust cam timing. The oil passages are sized for 0W-20 viscosity. Thicker oil flows slower through those passages, which delays the VVT response.

That causes reduced fuel economy, rough idle, and eventually fault codes.

Forgetting the crush washer

The drain plug uses a single-use aluminum crush washer. That washer deforms when you torque the plug, creating a seal. If you reuse it, it leaks.

A slow drip over a week can drain enough oil to cause low oil pressure warnings.

The fix: Buy a pack of ten crush washers online for a few dollars. Replace one every oil change. Torque the drain plug to 26 to 29 ft-lbs.

Do not overtighten.

Ignoring the hybrid quirks

The Highlander Hybrid has a unique quirk. The engine stops and starts frequently. That stop-start cycle causes the oil pump to lose prime momentarily.

Toyota accounted for this with a check valve in the oil system, but it only works properly with the correct oil level and viscosity.

If you run the hybrid a quart low, the engine can experience momentary oil starvation during every restart. Over a year of daily commuting, that adds up to significant wear. Check the oil on the hybrid at least once a month.

When to Change It: Mileage Intervals and Driving Conditions

Toyota recommends two different oil change intervals for the 2017 Highlander. Which one applies depends entirely on how you drive.

Normal service interval

10,000 miles or 12 months, whichever comes first.

This interval applies if you do mostly highway driving, moderate temperatures, and minimal short trips. The engine reaches operating temperature and stays there. The oil evaporates fuel contamination and maintains its protective properties.

Severe service interval

5,000 miles or 6 months, whichever comes first.

This interval applies to most people in reality. Severe service includes any of the following conditions:

• Short trips under five miles in cold weather
• Extended idling in traffic
• Towing a trailer or carrying heavy loads
• Driving on dusty, gravel, or unpaved roads
• Operating in extreme heat or extreme cold
• Using the vehicle for commercial purposes

Most 2017 Highlanders fall into the severe service category. Commuters who drive 15 minutes to work through stop-and-go traffic are running on severe service. People who take weekend road trips might get away with normal service.

Be honest about your driving patterns.

Hybrid considerations

The Highlander Hybrid should follow the severe service schedule regardless of driving conditions. The engine cycles on and off frequently, which creates more wear during startup. The oil also runs slightly cooler because the engine shuts off at stops, which means fuel dilution takes longer to evaporate.

Toyota does not officially require a shorter interval for the hybrid, but aggregate owner feedback and independent analysis suggest 5,000 mile changes are cheap insurance. Oil analysis reports from Highlander Hybrid owners consistently show higher fuel dilution at 10,000 miles compared to the gas model.

Tools and Parts You'll Need for a DIY Oil Change

If you decide to handle this yourself, having everything ready before you start makes the job faster and cleaner. Here is what you need.

Oil and filter

• 6.4 quarts of 0W-20 full synthetic oil for the V6 (buy a 5-quart jug plus a 1-quart bottle)
• 5.5 quarts for the I4 (a single 5-quart jug plus a small top-up)
• One oil filter. OEM part number is 04152-YZZA1 for the cartridge style. Some early 2017 models use a spin-on filter with part number 04152-31090. Check your existing filter before buying
• One replacement drain plug crush washer. Toyota part number 90430-12031 or a generic M14 crush washer

Tools

• 14mm socket or combination wrench for the drain plug
• 24mm socket for the cartridge-style oil filter housing. Some aftermarket filters use a different hex size. Verify before you start
• Torque wrench that reads in ft-lbs. This is not optional. Overtorquing the aluminum oil pan or filter housing strips threads
• Oil filter cup wrench that matches your filter housing. A metal cup tool grips better than a strap wrench
• Oil catch pan with at least 8-quart capacity
• Funnel with a flexible neck for reaching the fill port
• Nitrile gloves. Used oil is a carcinogen. Do not get it on your skin
• Shop rags or paper towels

Optional but recommended

• Ramps or a floor jack with jack stands. The 2017 Highlander sits high enough that you might squeeze under it without lifting, but ramps make the job safer and more comfortable
• Magnetic drain plug. Aftermarket M14x1.5 magnetic plugs catch metal particles and let you monitor engine wear. Worth the ten dollars
• Fender cover to protect the paint when you lean over the engine bay

How to Reset the Maintenance Light When You're Done

Your 2017 Highlander has a maintenance reminder light that triggers based on mileage. After an oil change, you need to reset it. The procedure is straightforward.

Standard reset procedure

Turn the ignition to the ON position. Do not start the engine. Make sure the odometer is showing the total mileage, not a trip meter.

Turn the ignition back to OFF.

Press and hold the trip meter reset button on the instrument cluster. While holding it, turn the ignition back to ON. Continue holding the button for about five seconds.

The maintenance light will flash, then turn off. Release the button. Turn the ignition OFF, then start the engine to confirm the light is gone.

What if the light did not reset

If the maintenance light stays on, you might have had the odometer set to a trip meter during the procedure. Repeat the steps with the odometer showing total mileage. If it still does not work, try holding the button for ten seconds instead of five.

Some 2017 models require a specific sequence where you turn the key to ON, press the trip button until the odometer shows a series of dashes, then release. If the standard method fails, consult your owner's manual. The procedure varies slightly by trim level.

What the maintenance light actually means

The maintenance light is a mileage-based reminder, not an oil level warning. It triggers at 5,000 mile intervals regardless of oil condition. If the light comes on and you just changed the oil, reset it.

If the light comes on and you have not changed the oil in 5,000 miles, change the oil.

Do not confuse the maintenance light with the check engine light or the oil pressure warning light. Those indicate different problems that need immediate attention.

What If You Overfill or Underfill? (And How to Fix It)

Mistakes happen. Here is how to fix both situations without making things worse.

You overfilled

If you poured the full 6.4 quarts in without checking and the dipstick shows oil above the full mark, do not start the engine. Remove the drain plug and let a small amount drain out. Replace the plug.

Check the dipstick. Repeat until the level reaches the full mark.

If you already started the engine and drove it, do not panic. A half quart overfill for a short drive is unlikely to cause immediate damage. But drain the excess as soon as possible.

If the engine was running rough or the oil pressure light flickered, have a shop inspect the engine for seal damage.

You underfilled

If you poured in 5 quarts and the dipstick shows below the add mark, add oil in half-quart increments until the level reaches the full mark. Do not drive the vehicle with low oil. Even one quart low can cause oil starvation during hard acceleration.

If you already drove it and heard ticking noises or saw the oil pressure light, stop driving immediately. Have the oil level corrected and check for persistent noises. A ticking lifter might recover with proper oil level.

A knocking rod bearing will not.

When You Should Just Let a Shop Handle It

DIY oil changes save money. But not everyone has the time, tools, or physical ability to do this safely. Here is when you should pay a professional.

You do not have a level surface

Checking and filling oil requires a flat surface. If you park on a slope, you cannot get an accurate reading. If you cannot get under the vehicle safely without ramps or a jack, do not attempt it.

A floor jack failure can kill you. Ramps are safer but require a flat surface to use.

You live in a cold climate

Changing oil in freezing temperatures is miserable and dangerous. The oil flows slowly, the drain plug is difficult to remove with cold fingers, and the used oil takes forever to drain. Paying a shop forty dollars is worth avoiding frostbite.

You have the hybrid model

The Highlander Hybrid has high-voltage cables near the oil filter housing. They are clearly marked with orange insulation, but one mistake with a metal tool can create a short circuit. If you are not comfortable working around hybrid components, leave it to a shop that has the proper insulated tools and training.

You are unsure about the procedure

If you are reading this article because you have never changed oil before, that is fine. Everyone starts somewhere. But if you feel uncertain about any step, watch a video specific to the 2017 Highlander or take it to a shop.

A botched oil change costs more than a professional service.

Final Cheat Sheet: Capacity, Oil Type, Filter, and Torque Specs

Here is everything you need in one place. Save this or take a screenshot.

One last thing

The 2017 Highlander is a reliable vehicle. The 2GR-FKS engine in particular is known to go 200,000 miles or more with proper maintenance. Getting the oil capacity right is the single most important thing you can do to make that happen.

Toyota publishes this information for a reason. It is not arbitrary. The engineers who designed the engine calculated exactly how much oil the system needs to maintain pressure, lubrication, and cooling across every operating condition.

Trust those numbers. Use them every time.

For more on Toyota maintenance across the lineup, the article on the Toyota RAV4 oil type covers a similar engine family and reinforces the importance of using the correct specifications. The 2017 Highlander shares the same 0W-20 requirement and many of the same best practices.

Frequently Asked Questions

Can I use 5W-30 in my 2017 Highlander if 0W-20 is not available?

Using 5W-30 in an emergency for a short period will not destroy the engine immediately. But it is not recommended. The thicker oil slows down flow through the VVT system and reduces fuel economy.

Switch back to 0W-20 at your next change. Do not run 5W-30 long term.

How often should I check the oil level on my 2017 Highlander?

Check the oil at every other fuel fill-up. That means roughly once every 500 to 600 miles. The 2GR-FKS engine does not burn oil at high rates when healthy, but catching a leak or consumption issue early prevents costly damage.

Does the Highlander Hybrid take different oil than the gas model?

No. Both use 0W-20 full synthetic oil. The hybrid uses the same 3.5L V6 block with the same oil capacity of 6.4 quarts.

The only difference is that the hybrid benefits from more frequent oil changes due to the stop-start nature of the engine operation.

What happens if I use conventional oil instead of synthetic?

Conventional oil in a 0W-20 application breaks down faster, shears to a lower viscosity, and leaves more deposits inside the engine. The direct injection system in the 2GR-FKS engine is particularly sensitive to carbon buildup. Stick with full synthetic.

Do I need to use a Toyota brand oil filter?

No. Aftermarket filters from brands like Mobil 1, Purolator, and Wix meet or exceed OEM specifications. The key is matching the correct thread size and bypass valve pressure.

Avoid no-name filters from discount stores. They often lack proper anti-drain back valves and filter media quality.

How do I know if my oil change intervals should be 5,000 or 10,000 miles?

If you drive mostly highway miles in moderate temperatures with minimal idling, 10,000 miles is fine. If you do short trips, drive in stop-and-go traffic, tow anything, or live in extreme temperatures, use 5,000 miles. Most drivers fall into the severe service category.

When in doubt, change it at 5,000 miles. Oil is cheap. Engines are not.

Does the 2017 Highlander have an oil life monitoring system?

Yes. The vehicle has a maintenance reminder light that triggers based on mileage, not actual oil condition. It does not measure oil viscosity or contamination.

It simply counts down from 5,000 miles. That is why checking the dipstick and following a time-based schedule matters more than relying on the dashboard light.

Can I switch to a high-mileage oil at 100,000 miles?

Yes. Switching to a high-mileage 0W-20 full synthetic at 75,000 miles or more is a smart choice. The seal conditioners in high-mileage formulations help reduce minor leaks around valve cover gaskets and the timing chain cover.

Just make sure the bottle says "0W-20" and "full synthetic" and carries API SN certification.

What is the difference between the cartridge filter and spin-on filter for this model?

Some early 2017 Highlanders use a traditional spin-on metal canister filter. Most use a plastic cartridge housing with a replaceable filter element. The cartridge style requires a special 24mm socket to remove the housing.

The spin-on filter uses a standard filter wrench. Check your current filter before buying a replacement to get the correct type.

Tools and Parts You'll Need for a DIY Oil Change

If you are doing this yourself, having everything on hand before you start saves time and frustration. Here is the full list.

You can get everything at any auto parts store. The total cost for a DIY change runs about $35 to $55 depending on the oil brand you choose.

One tool that pays for itself

A torque wrench is not optional for this job. The aluminum oil pan on the 2GR-FKS engine strips threads easily if you overtighten the drain plug. Torque it to 26 to 29 ft-lbs.

That is snug but not cranking-on-it tight. A beam-style torque wrench costs about $20 and saves you from a $500 oil pan replacement.

How to Reset the Maintenance Light When You're Done

The maintenance light on the 2017 Highlander is a mileage counter. It does not measure oil condition. It simply turns on every 5,000 miles to remind you to schedule a change.

After you finish the job, you need to reset it.

The standard reset procedure

Turn the ignition to the ON position without starting the engine. Make sure the odometer shows total mileage, not a trip meter reading. Turn the ignition back to OFF.

Press and hold the trip meter reset button on the instrument cluster. While holding it, turn the ignition back to ON. Continue holding for about five seconds.

The maintenance light flashes and turns off. Release the button. Start the engine to confirm.

If the light stays on

You probably had the odometer set to a trip meter. Repeat the steps with total mileage displayed. If that does not work, hold the button for ten seconds instead of five.

Some trims require a slightly longer hold time.

Do not confuse the maintenance light with the check engine light. The check engine light indicates a fault code that needs a scan tool to diagnose. Resetting the maintenance light does not clear check engine codes.

What If You Overfill or Underfill? (And How to Fix It)

Mistakes happen. Here is how to handle each scenario without making things worse.

You overfilled

If the dipstick shows oil above the full mark, do not start the engine. Remove the drain plug and let a small amount drain out. Replace the plug.

Check the dipstick. Repeat until the level sits at the full mark.

If you already started the engine and drove a short distance, the risk is low for a half-quart overfill. But drain the excess as soon as possible. If the engine ran rough or the oil pressure light flickered, have a shop check for seal damage.

You underfilled

If the dipstick shows below the add mark, add oil in half-quart increments. Check after each addition. Do not drive with low oil.

Even one quart low can cause oil starvation during acceleration or cornering.

If you already drove it and heard ticking or saw the oil pressure light, stop driving. Correct the level. If ticking persists, the lifters may need time to refill with oil.

If knocking continues, have the engine inspected for bearing damage.

When You Should Just Let a Shop Handle It

DIY oil changes are satisfying and save money. But not everyone should do them. Here is when paying a professional makes more sense.

You lack a level surface

Checking and filling oil requires flat ground. A sloped driveway gives inaccurate dipstick readings. If you cannot get under the vehicle safely without ramps or a jack, do not attempt it.

Floor jack failures are dangerous. Ramps work but need a flat surface.

You live in a cold climate

Changing oil in freezing temperatures is miserable. The oil flows slowly. The drain plug is hard to remove with cold fingers.

Used oil takes forever to drain. Paying a shop $40 is worth avoiding frostbite and rushed work.

You have the hybrid model

The Highlander Hybrid has high-voltage cables near the oil filter housing. They are clearly marked with orange insulation. One mistake with a metal tool can create a short circuit.

If you are not comfortable working around hybrid components, leave it to a shop with proper training.

You feel unsure

If this is your first oil change and you feel uncertain about any step, take it to a shop. A botched oil change costs more than a professional service. There is no shame in paying for peace of mind.

Final Cheat Sheet: Capacity, Oil Type, Filter, and Torque Specs

Here is everything you need in one place. Save this to your phone. Stick it in the glovebox.

The 2017 Highlander is a dependable vehicle. The 2GR-FKS engine in particular is known to reach 200,000 miles and beyond with proper care. Getting the oil capacity right is the cheapest and most effective way to protect that investment.

Trust the numbers. Use them every time. Your engine will thank you at 150,000 miles.

What about the oil filter location? Is it hard to reach?

The oil filter on the 2017 Highlander V6 sits on the front of the engine, right side as you face it. It is accessible from above with a long extension and a 24mm socket. No need to crawl underneath for the filter itself.

That makes the job faster and cleaner than many other SUVs. The I4 filter is similarly easy to reach from above.

Do I need to prime the oil filter before installing it?

Yes. Fill the new filter with fresh oil before screwing it on. Pour oil into the filter until it reaches the top.

Let it soak into the filter media for a few seconds. Add more if needed. This prevents a dry start where the oil pump has to push air through the system before oil reaches the bearings.

It takes ten seconds and adds years to your engine's life.

How do I dispose of the used oil properly?

Used motor oil is hazardous waste. Pour it back into the empty oil jugs. Seal the caps tightly.

Take them to any auto parts store like AutoZone, O'Reilly, or Advance Auto Parts. They accept used oil for free. Do not dump it down the drain, on the ground, or in the trash.

That is illegal in all 50 states and carries fines.

Can I extend oil changes past 10,000 miles with synthetic oil?

The 2GR-FKS engine does not respond well to extended oil change intervals past 10,000 miles. Direct injection engines create more fuel dilution and soot in the oil. Pushing to 12,000 or 15,000 miles increases the risk of sludge formation and timing chain wear.

Stick with the factory recommendations. Synthetic oil handles 10,000 miles well. It does not make 15,000 miles safe.

What does the oil pressure gauge on the dashboard actually tell me?

The 2017 Highlander does not have a real oil pressure gauge. It has a switch that triggers a warning light when pressure drops below roughly 5 psi. That is almost no pressure at all.

By the time that light comes on, damage is already happening. Do not rely on it. Check your oil level manually.

That is your real protection.

Should I use a magnetic drain plug?

Yes. A magnetic drain plug catches fine metal particles that the oil filter cannot trap. It lets you monitor engine wear by inspecting the magnet at each change.

A few metal flecks are normal during break-in. Shiny metallic sludge indicates bearing wear. The M14x1.5 thread size fits the 2017 Highlander perfectly.

It costs about $10 and provides peace of mind for the life of the vehicle.

What is the most common oil leak on the 2017 Highlander?

The timing chain cover gasket is the most common oil leak source on the 2GR-FKS engine. It typically starts showing seepage around 80,000 to 100,000 miles. You will notice oil dripping onto the front exhaust pipe and smell burning oil during warmup.

Replacing that gasket is labor-intensive and costs $800 to $1,200 at a shop. Catching it early and keeping the oil level topped up buys time until you can afford the repair.

Can I switch between synthetic and conventional oil on this engine?

Do not switch back and forth. Once the engine has run full synthetic oil, the seals have adapted to its properties. Switching to conventional oil can cause seal shrinkage and leaks.

If you have been running synthetic, stay with synthetic. The price difference per change is about $15. That is cheap insurance against seal failure.

How do I know if my oil filter housing is cracked?

The plastic cartridge housing on some 2017 Highlanders can develop cracks near the top where the cap threads in. Look for oil residue running down the side of the housing. Feel around the cap with a clean rag.

If the rag comes back oily, the housing is cracked. Replace the entire assembly. Do not try to patch it.

A cracked housing can blow off during driving and dump all your oil in minutes.

What is the correct oil change procedure from start to finish?

Here is the full sequence for a 2017 Highlander oil change.

Warm the engine to operating temperature. Park on level ground. Turn the engine off.

Place the catch pan under the drain plug. Remove the drain plug with a 14mm socket. Let the oil drain completely.

Replace the crush washer. Torque the drain plug to 26 to 29 ft-lbs.

Move the catch pan under the oil filter. Remove the filter housing with a 24mm socket. Replace the filter element and O-ring.

Lubricate the new O-ring with fresh oil. Tighten the housing to 18 ft-lbs.

Fill the new filter with oil before installing it. Pour fresh 0W-20 into the engine. Add 5.5 quarts for the V6 initially.

Check the dipstick. Add more oil in small increments until the level hits the full mark. Start the engine.

Let it run for 30 seconds. Check for leaks. Turn off the engine.

Wait five minutes. Recheck the dipstick. Add oil if needed.

Reset the maintenance light.

That is the entire job. It takes about 30 minutes once you have done it a few times.

Real-World Oil Consumption: What to Expect

The 2GR-FKS engine in the 2017 Highlander does not normally burn significant oil between changes. A healthy engine consumes less than one quart per 5,000 miles. If you are adding a quart every 1,000 miles, something is wrong.

Common causes include worn piston rings, clogged PCV valves, or valve guide seals. The PCV valve is a cheap fix. It costs about $15 and takes ten minutes to replace.

Try that before assuming ring damage.

Synthetic vs. Conventional: The Real Cost Difference

A 5-quart jug of conventional oil runs about $18. A 5-quart jug of 0W-20 full synthetic runs about $28. That is a $10 difference per change.

Over 150,000 miles at 5,000 mile intervals, that is 30 oil changes. The total premium for synthetic is $300. A single engine repair from sludge buildup costs $4,000 to $6,000.

The math is not close. Use synthetic.

What Dealerships Charge vs. DIY

Dealer oil changes on the 2017 Highlander typically run $70 to $90. That includes labor, oil, filter, and disposal. Independent shops charge $50 to $70.

A DIY change costs $35 to $55 for the same materials. The savings per change is about $30. Over ten changes, that is $300 in your pocket.

The trade-off is your time and the mess.

When to Use the Dealership

Use the dealership if your Highlander is still under an extended warranty. Toyota requires proof of proper maintenance for warranty claims. Dealer records are bulletproof.

DIY receipts are acceptable but require detailed documentation.

If you have a 2017 model, the factory warranty expired years ago. Extended warranties vary. Check your paperwork before deciding.

The Bottom Line on 2017 Highlander Oil Capacity

The 2017 Highlander takes 6.4 quarts of 0W-20 full synthetic for the V6 and 5.5 quarts for the I4. Use the right amount. Use the right oil.

Change it on time. That is the entire formula for keeping this engine running past 200,000 miles. Nothing else matters as much.
