If you own a 2001 Toyota Camry, knowing the exact oil capacity is one of those small details that can save you a big headache. The 2001 toyota camry oil capacity is not a single number. It depends on which engine you have under the hood.
Put in too little and you risk engine damage. Pour in too much and you can cause foaming and leaks.
Manufacturer specifications from Toyota confirm that the 2.2L four-cylinder takes 4.5 quarts with a filter change. The 3.0L V6 needs 5.5 quarts. Both engines call for 5W-30 viscosity as the standard recommendation.
Image source: Bing (Web (fair-use with source credit))
The Problem: Why Getting the Right Oil Capacity Matters for Your 2001 Camry
The 2001 Camry is famously reliable. Owners routinely hit 200,000 or 300,000 miles without major repairs. That kind of longevity depends on consistent, correct maintenance.
Oil changes are the single most important part of that routine.
If you use the wrong amount of oil, two things can happen. With too little, the oil pump can suck air instead of oil. Metal parts start grinding against each other.
That leads to worn bearings, scored cylinders, and eventually a seized engine. With too much oil, the crankshaft whips the oil into foam. Foam does not lubricate well.
It also puts extra pressure on seals, which can cause leaks.
Toyota designs each engine for a specific volume of oil. That number accounts for the oil pan shape, the pump capacity, and the clearances inside the engine. Guessing is not worth the risk.
A quart of oil costs a few dollars. A replacement engine costs thousands.
Quick Answer: Oil Capacity at a Glance
The 2001 Toyota Camry oil capacity depends on the engine. The 2.2L four-cylinder holds 4.5 quarts with a filter change. The 3.0L V6 needs 5.5 quarts.
Both engines require 5W-30 viscosity. Always check the dipstick after refilling.

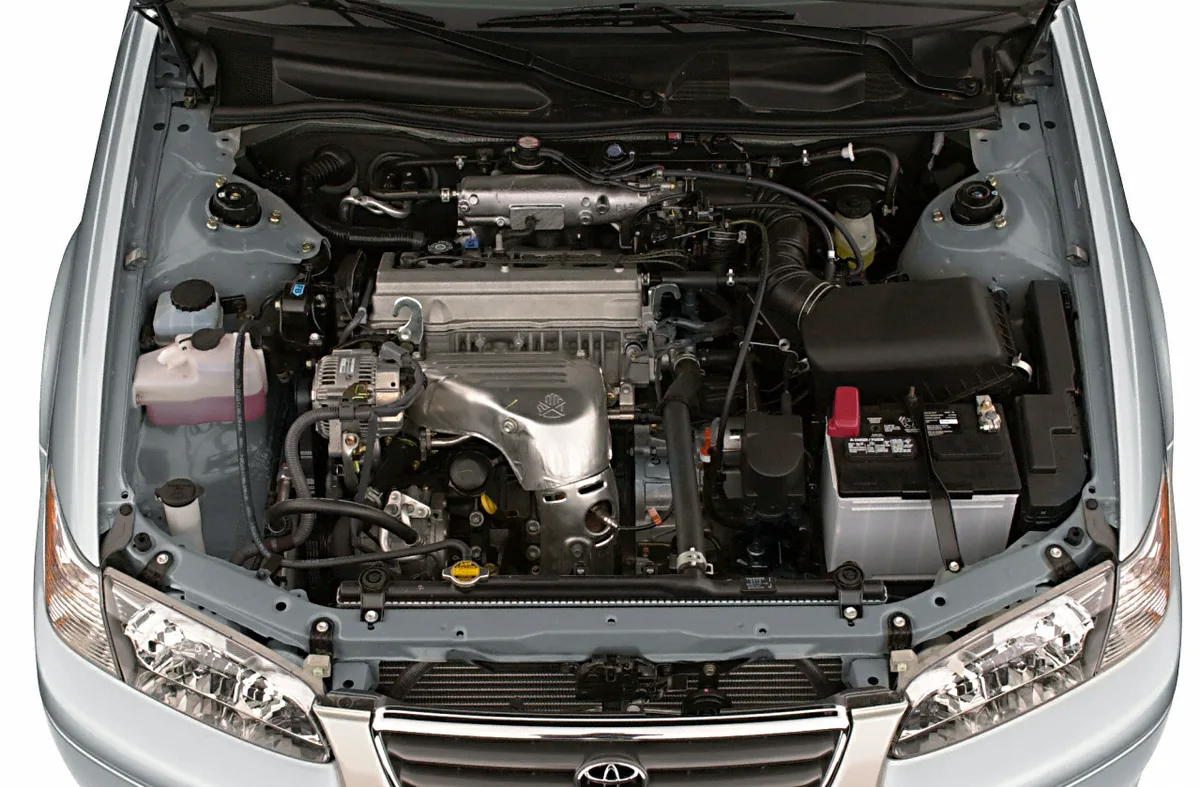

First Decision: Which Engine Is Under Your Hood?
This is the most important step. The 2001 Camry came with two completely different engines. They share the same car but have different oil capacities, different oil filters, and different drain plugs.
You cannot guess which one you have.
Image source: Web (Bing) / pinterest.com (Web image (fair-use with source credit))
How to Spot the 2.2L 4-Cylinder (5S-FE)
The 2.2L engine is the standard option. It has a single engine cover that says "Toyota 16-Valve DOHC" on top. The spark plug wires run across the front of the valve cover in a straight line.
The oil fill cap is on the passenger side of the engine, near the front. The engine block itself is narrow and tall. The 5S-FE engine is known for being bulletproof.
It uses a timing belt, not a chain.
How to Spot the 3.0L V6 (1MZ-FE)
The 3.0L V6 is wider and fills the engine bay more completely. The engine cover says "Toyota 24-Valve DOHC V6." There are two cylinder heads instead of one. The oil fill cap is on the front of the engine, centered or slightly to the driver side.
The 1MZ-FE engine is also extremely reliable. It uses a timing belt as well.
Using the VIN to Confirm Your Engine
The eighth character of the VIN tells you the engine code. For the 2001 Camry, "F" or "G" means the 2.2L 4-cylinder. "M" or "V" means the 3.0L V6.
The VIN is visible through the windshield on the driver side.
Engine Type Decision Guide
Once you know which engine you have, the rest is straightforward.
2.2L 4-Cylinder Oil Capacity
The 2.2L engine holds 4.5 US quarts with a filter change. Without a filter change, it holds 4.0 quarts. The filter holds roughly 0.5 quarts that will not drain out otherwise.
3.0L V6 Oil Capacity
The 3.0L V6 needs 5.5 US quarts with a filter change. Without a filter change, it takes 5.0 quarts. The V6 has a larger oil pan and a bigger filter housing.
Oil Capacity Table: With and Without Filter Change
| Engine | With Filter Change | Without Filter Change |
|---|---|---|
| 2.2L 4-cylinder (5S-FE) | 4.5 quarts (4.3 L) | 4.0 quarts (3.8 L) |
| 3.0L V6 (1MZ-FE) | 5.5 quarts (5.2 L) | 5.0 quarts (4.7 L) |
The numbers assume SAE 5W-30 oil that meets API SL or newer certification. For very hot climates, 10W-30 is acceptable. For cold climates, 0W-30 provides better protection during startup.
Choosing the Right Oil Type and Viscosity
Toyota recommends SAE 5W-30 for the 2001 Camry in most driving conditions. That is the standard viscosity for both engines.
| Viscosity | Best For | Notes |
|---|---|---|
| 5W-30 | Standard year-round use | Toyota's factory recommendation |
| 10W-30 | Warmer climates (above 0°F) | Acceptable but not ideal for cold starts |
| 0W-30 | Cold climates (below 0°F) | Better protection during winter startup |
5W-30 vs. 10W-30 vs. High-Mileage Blends
Stick with 5W-30 unless you have a specific reason to switch. Many owners of high-mileage 2001 Camrys report good results with high-mileage oil blends. These contain seal conditioners that help reduce minor leaks.
The viscosity remains 5W-30, but the additive package is different.
High-mileage oil is worth considering if your Camry has over 100,000 miles. Most 2001 models are well past that point as of 2026. The seal conditioners can help keep the rear main seal and valve cover gaskets from leaking.
Many owners notice a reduction in minor oil consumption after switching to a high-mileage blend.
Conventional vs. Synthetic: What Makes Sense for a 20-Year-Old Camry
Conventional oil is cheaper. Synthetic oil lasts longer and handles heat better. For a 25-year-old engine, either option works well.
Synthetic oil offers better protection during cold starts. It also resists breakdown at high temperatures. If you do a lot of highway driving or live in a hot climate, synthetic is the better choice.
Conventional oil is fine for short trips and moderate driving.
The most important factor is changing the oil on schedule. A high-quality conventional oil changed every 5,000 miles is better than synthetic oil left in the engine for 10,000 miles. Consistency matters more than the label on the bottle.
Toyota's guidelines for the 2001 Camry do not require synthetic oil. The engine was designed for conventional oil. But synthetic will not hurt it.
Step-by-Step: How to Do the Oil Change Correctly
Doing the oil change yourself saves money and ensures the job is done right.
Tools and Supplies You'll Need
- 4.5 or 5.5 quarts of 5W-30 oil (depending on your engine)
- Oil filter (check the correct part number for your engine)
- Oil filter wrench
- 14mm socket for the drain plug
- Socket wrench or ratchet
- Drain pan (at least 6-quart capacity)
- Funnel
- Crush washer (replacement for the drain plug)
- Jack and jack stands (or ramps)
- Gloves and shop rags
The crush washer is often overlooked. It seals the drain plug and prevents leaks. Replace it every time.
Drain, Filter Swap, and Refill Sequence
Warm up the engine for a few minutes. Warm oil drains faster and carries more contaminants out. Do not run it until it is hot.
Hot oil can burn you.
Park on level ground. Engage the parking brake. Jack up the front of the car and place it on jack stands.
Never crawl under a car supported only by a jack.
Locate the drain plug on the bottom of the oil pan. Place the drain pan underneath. Use the 14mm socket to loosen the plug.
Remove it by hand once it is loose. Let the oil drain completely. This takes about five minutes.
While it drains, remove the old oil filter. It is on the side of the engine block. Use the filter wrench if it is tight.
Turn it counterclockwise. Keep the drain pan under it.
Image source: Web (Bing) / agscompany.com (Web image (fair-use with source credit))
Lubricate the gasket on the new filter with a dab of fresh oil. Screw it on by hand until it contacts the mounting surface. Tighten it another three-quarters of a turn.
Do not overtighten.
Install the new crush washer on the drain plug. Tighten it to 29 ft-lbs for the 4-cylinder or 33 ft-lbs for the V6. If you do not have a torque wrench, snug it firmly.
Do not crank it.
Lower the car. Remove the oil fill cap. Insert the funnel.
Pour in the correct amount of oil. Replace the oil fill cap.

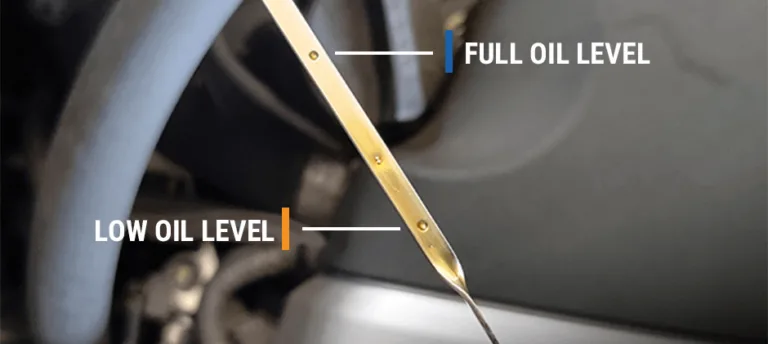

How to Check the Dipstick the Right Way
Start the engine and let it run for 30 seconds. This fills the new filter with oil. Shut the engine off.
Wait two minutes. The oil needs time to settle back into the pan.
Image source: Bing (Web (fair-use with source credit))
Pull out the dipstick. Wipe it clean. Insert it fully.
Pull it out again and read the level. The oil should be between the L and F marks. Add a little more if it is low.
Overfilling is worse than underfilling, so add slowly.
Common Mistakes That Cause Problems
Overfilling or Underfilling
Overfilling can cause the crankshaft to whip the oil into foam. Foam does not lubricate. It also causes pressure buildup that can blow out seals.
Underfilling means low oil pressure. The bearings and cylinder walls do not get enough lubrication.
Always add oil in stages. Pour in the full amount from the bottle. Check the dipstick.
If it reads low, add a quarter quart at a time. Check again.
Stripping the Drain Plug or Oil Filter
The oil pan is made of aluminum. It is soft. The steel drain plug can easily strip the threads if overtightened.
A stripped oil pan means a replacement pan or a helicoil repair. Tighten the drain plug by hand with the socket. Stop when it feels snug.
The same logic applies to the oil filter. Hand tight plus a quarter turn is enough.
Using the Wrong Viscosity
Using 10W-40 or 20W-50 in a 2001 Camry increases engine drag and reduces fuel economy. The oil pump struggles to move thick oil through the engine. Stick with 5W-30.
It is the viscosity Toyota designed the engine around.
Expert Tips for a High-Mileage 2001 Camry
When to Switch to High-Mileage Oil
Consider switching to high-mileage oil around 100,000 miles. The additive package includes seal conditioners that help keep the engine's seals flexible. Over time, rubber seals dry out and shrink.
That leads to oil leaks. High-mileage oil also contains detergents that help clean sludge deposits.
Watching for Oil Consumption and Leaks
The 2001 Camry does not burn oil by design. But at 200,000 miles, some oil consumption is normal. If you are adding a quart between changes, that is acceptable.
More than that indicates a problem.
Common leak points include the valve cover gaskets, the oil pan gasket, and the rear main seal. Check underneath the car after it has been parked overnight. A few drops of oil on the ground is worth investigating.
A puddle means you need a repair.
Check the oil level every time you fill up with gas. It takes 30 seconds. It is the cheapest insurance you can buy for a high-mileage engine.
Safety and Disposal: Doing It Right
Used motor oil is classified as hazardous waste. Pouring it down the drain, onto the ground, or into the trash is illegal in most places. Collect the used oil in the drain pan.
Pour it into a clean, sealable container. Most auto parts stores accept used oil for recycling.
The oil filter is also regulated. Drain it by poking a hole in the dome end and letting it drip into the drain pan. Put the drained filter in a plastic bag.
Many recycling centers accept them alongside the oil.
Never work under a car supported only by a jack. Use jack stands or ramps. The jack can fail.
The stands will not. Hot oil can cause serious burns. Let the engine cool for 10 minutes after a short drive.
Warm oil flows well. Hot oil is dangerous.
Frequently Asked Questions
Can I use 5W-30 in a V6?
Yes. Toyota recommends 5W-30 for both the 4-cylinder and V6 engines in the 2001 Camry. The viscosity is the same across both engines.
Only the total capacity changes.
What if I can't find the owner's manual?
Check the VIN. The eighth character tells you the engine. Then use the capacity table in this guide.
You can also look under the hood for the emissions sticker. It sometimes lists the oil type and capacity.
How often should I change the oil?
Every 5,000 miles or six months, whichever comes first. If you use synthetic oil, you can stretch to 7,500 miles. For a high-mileage engine, sticking to 5,000 miles is safer.
Short trips and cold weather mean more frequent changes.
Final Decision Guide: Your Engine, Your Oil, Your Capacity
Here is the bottom line. If you have the 2.2L 4-cylinder, use 4.5 quarts of 5W-30 with a new filter. If you have the 3.0L V6, use 5.5 quarts.
Check the dipstick after refilling. Keep the oil level between the marks. Change the oil every 5,000 miles.
That routine will keep your 2001 Camry running strong for years to come.
