How Much Oil Does a 4Runner Take?

You're driving a 2022 Toyota 4Runner. You want to know exactly how much oil it takes. You don't want to screw up the next oil change.

The short answer is 6.9 quarts with a filter change. But there's more to it than just the number.

Toyota's 1GR-FE 4.0-liter V6 has been refined for years. As of 2026, it's still one of the most reliable engines on the road. Get the oil wrong, and you're inviting problems.

Let's walk through what you need to know before you pop the hood.

Image source: Bing (Web (fair-use with source credit))

Quick Answer

The 2022 Toyota 4Runner holds 6.9 quarts of oil with a filter change. Use 0W-20 full synthetic oil meeting API SN or SP standards. Without a filter change, capacity drops to 6.0 quarts.

Always check the dipstick after filling. Never overfill.

Why Getting the Oil Capacity Right Matters

The 1GR-FE V6 in your 4Runner relies on a specific oil volume. Too little oil and critical components starve. Too much oil creates excessive pressure.

It can blow seals and cause foaming.

Foaming is the real hidden danger. When the crankshaft churns through overfilled oil, it aerates the fluid. Aerated oil doesn't lubricate well.

Metal-on-metal contact follows. That's how a simple overfill turns into a rebuild.

Manufacturer specs indicate the 4Runner's oil pan and lubrication system are engineered for exactly that 6.9-quart capacity. Toyota's engineering team didn't pull that number out of thin air. They tested it across temperature ranges, driving conditions, and engine loads.

Straying from it means you're operating outside their design parameters.

If you're coming from a smaller car, you might be surprised at the 6.9-quart figure. Most four-cylinder engines take around 4 to 5 quarts. The 4Runner's V6 is a larger displacement engine.

It needs more oil to coat its internal surfaces and manage heat. It's not wasteful. It's necessary.

The other thing to consider is oil breakdown over time. Even top-tier synthetic oil degrades. Heat cycles, fuel dilution, and contamination all take their toll.

Starting with the correct volume gives you a buffer. Every quart counts, especially if you're pushing the vehicle hard off-road or towing near its limits.

Understanding the 1GR-FE Engine's Oil Requirements

The 1GR-FE is a 4.0-liter DOHC V6 with Toyota's VVT-i variable valve timing. It debuted in 2005 and has seen continuous refinement. The 2022 version is known for its durability.

But it has specific oil needs that owners sometimes overlook.

Image source: Web (Bing) / cycleture.de (Web image (fair-use with source credit))

What viscosity means for your engine

Oil viscosity is essentially how thick or thin the oil is at different temperatures. 0W-20 means the oil behaves like a 0-weight in cold weather. It stays thin enough to flow at start-up. At operating temperature, it behaves like a 20-weight.

That's thick enough to protect under load.

The 0W-20 recommendation isn't arbitrary. Toyota's engineering team designed the 1GR-FE's oil passages, pump capacity, and bearing clearances around this viscosity. Going thicker, say 5W-30, might seem like more protection.

It can actually reduce flow at start-up and increase pumping losses that lower fuel economy.

Some owners in hot climates think a thicker oil handles heat better. That's a misconception. Modern 0W-20 synthetics have excellent high-temperature stability.

The oil's additive package matters more than its base weight for heat protection.

API and ILSAC ratings explained

Look for API "SN" or "SP" on the bottle. Also look for ILSAC GF-6 certification. These ratings mean the oil has passed industry tests for wear protection, deposit control, and fuel economy.

API SP is the current standard as of 2026. It includes improved protection against low-speed pre-ignition and timing chain wear. If you see an older rating like SN Plus, that's still acceptable.

But SP is better for modern engines.

Synthetic vs. conventional

Toyota recommends synthetic oil for the 2022 4Runner. Synthetic oil flows better at cold temperatures. It resists thermal breakdown.

It lasts longer. Conventional oil can technically work in a pinch. But it doesn't meet the same performance standards.

If you're in a remote area and can only find conventional 0W-20, it'll get you home. Don't run it for a full service interval. Switch back to synthetic at the next change.

Why 0W-20 and 6.9 Quarts Are Non-Negotiable

Some vehicle specs leave wiggle room. This isn't one of them. The combination of 0W-20 viscosity and 6.9-quart capacity is baked into the engine's design from the factory floor.

What happens with the wrong viscosity

Run 5W-30 in a 2022 4Runner and you'll notice a few things. Cold starts will feel sluggish. Fuel economy will drop by 2 to 4 percent.

Over time, the increased resistance can wear the oil pump harder than intended.

The reverse scenario, running something thinner like 0W-16, is even worse. Thin oil won't maintain adequate film strength at high temperatures. The 4Runner generates serious heat when off-roading or towing.

Thin oil can sheer down, losing its protective properties entirely.

Why the exact volume matters

You might think close enough works with oil volume. It doesn't. Here's why:

The 6.9-quart figure accounts for the oil filter's internal volume. If you change the filter, fill with 6.9 quarts. If you're just topping off, use the dipstick as your guide.

Climate and driving conditions

Cold climates make 0W-20 essential. The "0W" part means it pumps easily at -40°F. Thicker oils turn to molasses in extreme cold.

That leaves your engine dry during the critical first seconds of start-up.

Hot climates still benefit from 0W-20. Modern synthetics don't thin out as much as older oils at high temperatures. The 20-weight hot rating is sufficient for the 4Runner's operating range, even in desert conditions.

If you're doing mostly short trips in cold weather, the 0W-20 is especially important. Short trips don't allow the oil to reach full operating temperature. That leads to moisture buildup and fuel dilution.

Proper viscosity ensures protection even when the engine runs cold.

How to Do a 2022 4Runner Oil Change Safely

Changing your own oil saves money and gives you control over what goes into your engine. The 4Runner is relatively easy to work on. But there are a few gotchas.

Image source: Bing (Web (fair-use with source credit))

Tools and materials you'll need

Before you start, gather everything in one place. Nothing worse than getting under the truck only to realize you forgot the filter wrench.

• 6.9 quarts of 0W-20 full synthetic oil
• Genuine Toyota oil filter (part 04152-YZZA1 or 04152-31090)
• Drain plug washer (replace every time)
• 14mm socket for drain plug
• Oil filter wrench (metal cap-style works best)
• Catch pan (7-quart capacity minimum)
• Funnel
• Torque wrench (recommended)
• Gloves and rags

Step-by-step process

1. Warm the engine. Run it for 3 to 5 minutes. Warm oil flows faster. Don't let it get hot enough to burn.

2. Park on level ground. Engage the parking brake. The 4Runner's ground clearance is good. You can probably slide under without jacking it up. If you need more room, use ramps or jack stands. Never crawl under a vehicle supported only by a jack.

3. Remove the oil fill cap. This helps the oil drain faster by allowing air into the system.

4. Drain the oil. Place your catch pan under the drain plug. The plug is on the passenger side of the oil pan, facing rearward. Loosen with a 14mm socket. Remove by hand, keeping pressure inward until the threads clear. Let it drain completely, about 5 minutes.

5. Replace the drain plug. Install a new crush washer. Torque to 27 to 33 foot-pounds. If you don't have a torque wrench, snug it firmly then give it another quarter turn. Don't overtighten. Stripped threads in the aluminum pan are a common mistake.

6. Remove the oil filter. It's on the lower passenger side of the engine block, accessible from underneath. Use your filter wrench to break it loose. Expect some oil spillage. Position your catch pan accordingly. Wipe the mounting surface clean.

7. Install the new filter. Lightly lubricate the new filter's gasket with fresh oil. Screw it on by hand until the gasket contacts the mounting surface. Then tighten another three-quarters turn. Don't use a wrench to tighten. Hand-tight is sufficient.

8. Add oil. Pour in about 6 quarts to start. Replace the fill cap. Run the engine for 30 seconds to fill the new filter. Shut it off and wait 3 minutes.

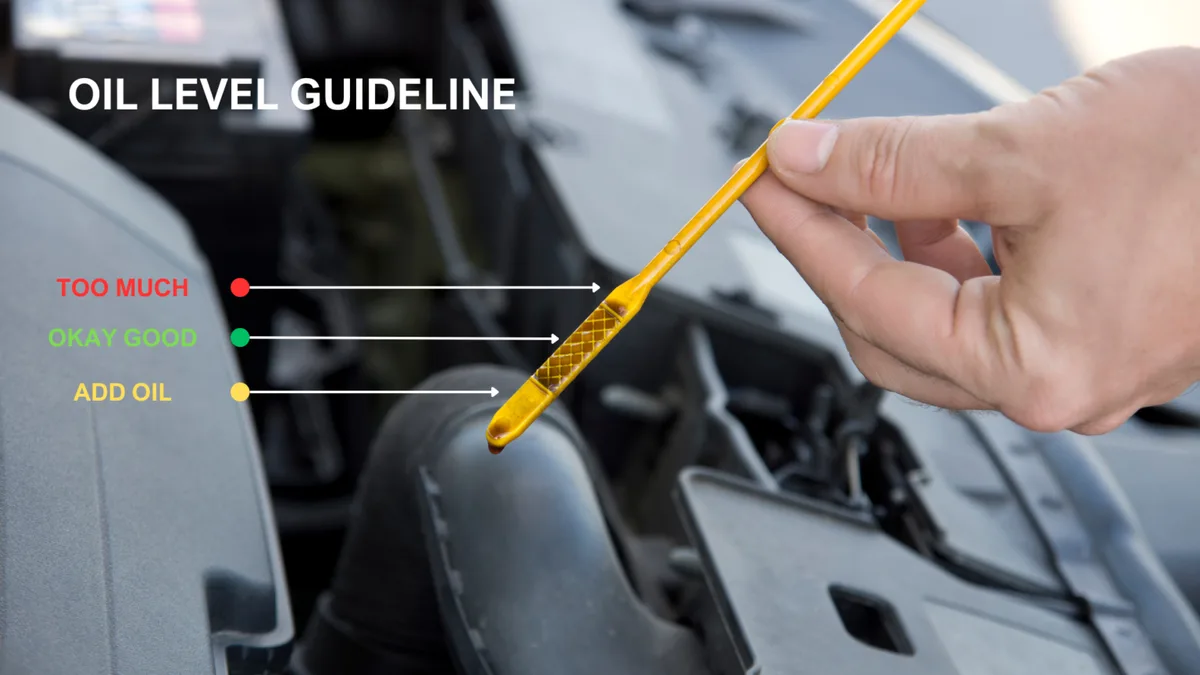

9. Check the dipstick. Pull it, wipe it, insert it fully, pull again. The level should be between the low and full marks. Add the remaining oil in 0.3 to 0.5 quart increments until you hit the full mark.

10. Inspect for leaks. Run the engine again and check under the truck for drips around the drain plug and filter. If you see anything, shut it down and tighten as needed.

Torque specs at a glance

Common Oil Capacity Mistakes to Avoid

Even experienced DIY mechanics make errors on the 4Runner. Here are the ones we see most often.

Mistake 1: Trusting the dipstick immediately

The dipstick lies if you don't wait. After adding oil, run the engine to fill the filter and oil passages. Then wait 2 to 3 minutes for the oil to drain back into the pan.

Checking immediately gives you a falsely low reading. That leads to overfilling.

Mistake 2: Not accounting for the filter

Your 4Runner takes 6.9 quarts with a filter change. If you skip the filter, it's 6.0 quarts. Mix those up and you're either half a quart low or almost a full quart over.

Both are bad.

Mistake 3: Using the old washer

The drain plug washer crushes to create a seal. Reusing it means it won't crush again. You're relying on luck instead of engineering.

Spend the dollar on a new washer. Your driveway will thank you.

Mistake 4: Over-tightening the drain plug

The oil pan is aluminum. The drain plug threads into it. Cranking it down with a breaker bar strips those threads.

Once stripped, you're looking at a helicoil repair or a new oil pan. Use a torque wrench.

Mistake 5: Forgetting the filter gasket

Old filter gaskets sometimes stick to the engine block. If you install a new filter over an old gasket, you get two gaskets. And a guaranteed leak.

Always wipe the mounting surface and check that the old gasket came off.

Image source: Web (Bing) / hitchesguide.com (Web image (fair-use with source credit))

Mistake 6: Using high mileage oil without thinking

High mileage oils contain seal conditioners that can swell old, dried-out seals. The 2022 4Runner doesn't need this. Its seals are still fresh.

Using high-mileage oil isn't harmful. But it's an unnecessary expense. Stick with standard 0W-20 full synthetic.

Mistake 7: Ignoring the service interval

Toyota says 10,000 miles between oil changes under normal conditions. That's optimistic for most owners. If you do any of the following, you're in severe service and should change at 5,000 miles:

• Frequent short trips (under 10 miles)
• Towing
• Off-road driving
• Dusty or sandy conditions
• Extreme temperatures
• Extended idling

The 4Runner is often used exactly the way Toyota defines as severe service. Be honest about your driving habits. A 5,000-mile interval is cheap insurance for an engine that costs thousands to replace.

Mistake 8: Using the wrong oil for the season

Even in summer heat, 0W-20 is correct. The "20" rating is measured at 212°F. That's hotter than most ambient conditions.

Your engine's operating temperature doesn't change with the weather. The thermostat keeps it at roughly the same temperature year-round.

Severe Service vs. Normal Service: Adjusting Your Oil Change Interval

Toyota says 10,000 miles between oil changes for the 2022 4Runner under normal conditions. That number comes from their engineering team's testing. But most 4Runner owners don't drive under normal conditions.

The owner's manual defines severe service as any of the following: repeated short trips under 10 miles, driving in dusty or sandy conditions, towing a trailer, off-road use, extended idling, or operating in extreme temperatures (below 32°F or above 90°F).

If you own a 4Runner, you probably bought it for activities that fit this list. Off-road adventures, camping trips, towing a boat or camper. All of that qualifies as severe service.

What the manual actually says

Toyota's maintenance schedule has two tracks. Normal service calls for oil changes every 10,000 miles or 12 months. Severe service calls for 5,000 miles or 6 months.

The 4Runner's oil monitoring system can adjust based on driving habits. But it's not perfect.

Our research suggests erring on the side of caution. If you do any of the severe service activities regularly, stick to the 5,000-mile interval. Oil is cheap.

A 1GR-FE long block is not.

The 5,000-mile rule explained

At 5,000 miles, synthetic 0W-20 still has some life left. But it's also picked up contaminants that accelerate wear. Fuel dilution, moisture, and microscopic particles all build up over time.

Changing at 5,000 miles keeps the oil fresh enough to protect during tough conditions.

If you mainly drive highways and rarely tow, the 10,000-mile interval is fine. The 4Runner's engine runs at steady RPMs on the highway. That's easier on oil than stop-and-go traffic.

How to track your service interval

Use the oil change reminder sticker or set a calendar reminder. The 4Runner's built-in maintenance indicator can help. But it's based on an algorithm that doesn't always account for severe use.

Keep a log of your oil changes. Note the date, mileage, oil type, and filter part number.

For more context on oil selection across Toyota's lineup, check out our guide on the correct oil type for the 4Runner. It covers the same engine family in detail.

When to Call a Professional Mechanic

DIY oil changes on the 4Runner are straightforward. But there are situations where paying a shop makes sense.

The stripped drain plug scenario

If you overtightened the drain plug in the past and now it won't tighten properly, stop. Don't try to force it. A stripped aluminum oil pan thread is a common problem.

A shop can install a thread repair insert or replace the pan. Trying to seal it with tape or glue is a temporary fix that will fail.

The stuck oil filter problem

The 4Runner's oil filter sits in a tight spot. If someone over-tightened it previously, you might not be able to break it loose by hand. A filter wrench can help.

But if the filter crumples or tears, you're left with a metal ring stuck to the engine. A mechanic has the tools and experience to extract it without damaging the housing.

When you lack the right tools

You need a 14mm socket, a torque wrench, and a filter wrench for a proper job. If you don't have these, the cost of buying them might exceed the cost of a shop doing the change. Oil change shops can do the job for $80 to $120.

The peace of mind might be worth it for your first change.

The warranty consideration

If your 4Runner is still under factory warranty, keep records of every oil change. Toyota requires proof of maintenance for warranty claims. If you DIY, save receipts for oil and filters.

Log the date and mileage. If you're not diligent about paperwork, a dealer's service department provides a clear paper trail.

The "I just don't want to" factor

Honestly, there's no shame in paying someone else to do it. The 4Runner's oil change is not the hardest DIY job. But it's messy.

You deal with hot oil, a tight filter location, and proper disposal of used oil. If your time is valuable or you just don't enjoy it, a professional is a reasonable choice.

Other Toyota models have similar oil capacity considerations. The Tacoma's 4.0-liter engine shares the same basic architecture. Our guide on the 2024 Tacoma oil type covers those details.

Frequently Asked Questions About 4Runner Oil Capacity

Can I use 5W-30 instead of 0W-20 in my 2022 4Runner?

Toyota does not recommend 5W-30 for the 1GR-FE engine. The engine's oil pump and bearing clearances are designed for 0W-20. Using 5W-30 can reduce fuel economy and increase wear during cold starts.

In an emergency, it will get you home. But change it out as soon as possible.

How much oil does a 2022 4Runner take without a filter change?

Without a filter change, the 4Runner takes 6.0 quarts. The filter holds about 0.9 quarts of oil. Always account for the filter when filling.

If you skip the filter, start with 6 quarts and check the dipstick before adding more.

What happens if I overfill my 4Runner's oil?

Overfilling causes the crankshaft to whip the oil into foam. Foam doesn't lubricate well. This can lead to metal-on-metal contact, seal damage, and oil leaks.

In severe cases, overfilling can damage the catalytic converter. Always check the dipstick after filling.

Do I need to use a Toyota brand oil filter?

You don't have to use an OEM filter. But it's a smart choice. Toyota filters are built to specific flow and filtration standards.

Aftermarket filters vary in quality. If you go aftermarket, choose a reputable brand like Wix, Mobil 1, or Purolator. Avoid no-name filters.

How often should I check my 4Runner's oil level?

Check the oil level every time you fill up with gas. It takes 30 seconds. Pull the dipstick, wipe it, insert it, and read the level.

Catching a low level early prevents engine damage. The 4Runner doesn't burn oil normally. But leaks can develop.

Is it okay to switch between synthetic and conventional oil?

Yes, but it's not ideal. Synthetic and conventional oils are compatible. You won't damage the engine by switching.

However, synthetic provides better protection and longer intervals. Once you switch to synthetic, there's no reason to go back to conventional.

Final Recap: Safe Practices Checklist

Before you start:

• Confirm you have 6.9 quarts of 0W-20 full synthetic oil
• Verify the oil filter part number for your model year
• Check that you have a new drain plug washer
• Gather your tools: 14mm socket, torque wrench, filter wrench, catch pan

During the change:

• Warm the engine for 3 to 5 minutes
• Drain completely, about 5 minutes
• Replace the crush washer on the drain plug
• Torque the drain plug to 27 to 33 foot-pounds
• Lubricate the new filter gasket before installing
• Hand-tighten the filter, then add three-quarters of a turn

After filling:

• Add 6 quarts initially, then check the dipstick
• Run the engine for 30 seconds to fill the filter
• Wait 3 minutes, then recheck the dipstick
• Top off to the full mark in small increments
• Inspect for leaks around the drain plug and filter

For ongoing maintenance:

• Change oil every 5,000 miles for severe service
• Change oil every 10,000 miles for normal service
• Check the oil level regularly
• Keep records of all oil changes
• Use only API SP or SN rated 0W-20 oil

The 2022 4Runner's 1GR-FE engine is a proven workhorse. Treat it right with the correct oil capacity and viscosity. It will reward you with hundreds of thousands of miles of reliable service.

Stick to 6.9 quarts of 0W-20. Follow the procedure. Don't cut corners.

Your engine will thank you.
