How Much Oil Does a 2003 Camry Take?

If you own a 2003 Toyota Camry, you already know why so many are still on the road twenty-plus years later. These cars are reliable, easy to work on, and forgiving of minor mistakes. But one thing you absolutely want to get right is the 2003 toyota camry oil capacity.

Pour in too little and you risk engine wear. Pour in too much and you can blow seals or cause foaming that starves vital components.

Manufacturer specifications from Toyota's 2003 owner's manual confirm the exact numbers: the 2.4L four-cylinder takes 4.5 quarts with a filter change, while the 3.0L V6 takes 5.0 quarts. As of 2026, these specs haven't changed, and neither have the consequences of getting them wrong. Let's walk through what you need to know before you pop the hood.

Quick Answer

The 2003 Toyota Camry holds 4.5 quarts for the 2.4L four-cylinder engine. The 3.0L V6 holds 5.0 quarts. Both measurements assume you replace the oil filter.

Without a filter change, subtract about 0.3 quarts. Use SAE 5W-30 oil meeting API SL or newer standards. Check the dipstick after filling and add small amounts if needed.

Why Getting the Oil Capacity Right Matters

Getting the oil capacity wrong on a 2003 Camry isn't just a minor inconvenience. It's the kind of mistake that can turn a perfectly good engine into a costly repair job. These engines are known for their longevity, but they depend on the right amount of oil circulating at the right pressure.

Overfilling is actually more dangerous than underfilling in most cases. When you add too much oil, the crankshaft whips it into a foam inside the crankcase. Aerated oil doesn't lubricate properly.

It also puts extra pressure on seals and gaskets that are already two decades old. The result can be leaks that are expensive to trace and fix.

Underfilling is more straightforward. The oil pickup tube can suck air during hard cornering or steep hills. That means metal-on-metal contact inside the bearings.

A few seconds of that is enough to score journals and shorten engine life by thousands of miles.

Then there's the viscosity question. Toyota specified 5W-30 for a reason. Thicker oil might seem like a good idea for an older engine, but it doesn't flow fast enough at cold starts.

Thinner oil might improve fuel economy by a tiny margin, but it won't protect worn rings or bearings the way 5W-30 does.

Core Facts: The Two Engines and What They Take

Image source: Bing (Web (fair-use with source credit))

The 2003 Camry came with two engine options. Each has a different oil capacity, filter location, and dipstick reading. Mixing them up is one of the most common mistakes we see in forum posts and repair shop stories.

4-Cylinder 2.4L (2AZ-FE)

This is the engine in most 2003 Camrys. It's a four-cylinder with a cast-iron block and aluminum head. The oil capacity with filter is exactly 4.5 US quarts (about 4.3 liters).

Without a filter change, it takes roughly 4.2 quarts.

The dipstick on this engine is easy to find. It's located on the passenger side of the engine, near the front. The tube is metal and the handle is usually yellow or orange plastic.

The oil filter is mounted on the front of the engine, facing the radiator. You can reach it from above without jacking up the car, though you'll want a filter wrench because it's often tight. The thread size is standard 3/4-16, and an OEM filter from Toyota part number 90915-YZZD3 or 90915-YZZF2 is the safest choice.

V6 3.0L (1MZ-FE)

The V6 is less common but still plenty of them are out there. It takes 5.0 US quarts with a filter change (about 4.7 liters). Without a filter change, expect about 4.7 quarts.

The dipstick on the V6 is on the driver's side, tucked near the back of the engine bay. It's a bit harder to read because the tube angles downward. You'll want to wipe it clean, insert fully, and pull it straight out for an accurate reading.

The oil filter on the V6 is accessible from underneath. You'll need to jack up the car or drive it onto ramps to get to it. It's positioned near the oil pan on the driver's side.

The same OEM filter part numbers fit this engine too.

What the Owner's Manual Really Says

The 2003 Camry owner's manual is surprisingly clear compared to modern ones. Toyota printed the oil capacity, viscosity, and API rating right in the maintenance section. But there are a few details the manual doesn't spell out that matter in real-world use.

First, the manual assumes you're using a Toyota-branded filter. Aftermarket filters can differ slightly in internal volume. A Fram or Mobil 1 filter might hold a few ounces more or less than the Toyota one.

That's usually not enough to matter, but it can push your dipstick reading from full to just below the add mark.

Second, the manual says to check the oil with the engine warm and turned off for at least five minutes. That's good advice. Cold oil drains down slowly, and a reading taken immediately after shutoff will show a falsely low level.

Wait the full five minutes.

Third, the manual specifies API SL or newer. As of 2026, that means any modern API rating like SM, SN, or SP is fully backward-compatible. You don't need to hunt down SL specifically.

Stick with a brand that carries the current API certification mark on the bottle.

Finally, the manual lists 5W-30 as the recommended viscosity for all temperatures. But if you live somewhere that sees -20°F or colder regularly, 0W-30 is acceptable. It flows better in extreme cold while offering the same protection at operating temperature.

Step-by-Step: How to Check, Fill, and Confirm Your Oil Level

Image source: Web (Bing) / nepal.ubuy.com (Web image (fair-use with source credit))

This process is straightforward, but skipping steps leads to mistakes. Follow these steps in order, and you'll get the right oil level every time.

Tools and Supplies You'll Need

The Exact Fill Method

Start with the car on level ground. Don't try to do this on a slanted driveway. The oil pan will hold a slightly different amount depending on the tilt, and your dipstick reading will be wrong.

Warm the engine for about two minutes. You don't need it hot. Just warm enough that the oil flows freely.

Hot oil can burn you, and cold oil drains too slowly.

Turn off the engine. Remove the oil fill cap. Place your drain pan under the drain plug.

Loosen the drain plug with the socket. Turn it by hand once it's loose. Be ready for oil to come out immediately.

Let it drain completely, which takes about five minutes.

Remove the old oil filter. It might be tight. Use the filter wrench.

Expect some oil to spill. Let the filter opening drain into the pan too.

Lubricate the new filter's rubber gasket with a bit of fresh oil. Screw it on by hand until the gasket makes contact. Tighten it another three-quarters of a turn by hand.

Don't use the wrench for tightening unless it's leaking.

Reinstall the drain plug with a new crush washer. Torque it to 29 ft-lbs for the 4-cylinder or 31 ft-lbs for the V6. If you don't have a torque wrench, snug it firmly and then add a quarter turn.

Over-tightening strips the threads.

Lower the car if you jacked it up. Open the first quart of oil. Pour in about half through the funnel.

Then add the rest slowly. For the 4-cylinder, pour in the full 4.5 quarts. For the V6, pour in the full 5.0 quarts.

Put the oil fill cap back on. Start the engine and let it run for 30 seconds. The oil pressure light should go out within a few seconds.

If it stays on, shut the engine down immediately and check for leaks.

Turn off the engine. Wait five full minutes. Pull the dipstick, wipe it clean, insert it fully, and pull it out again.

The oil level should be between the low and full marks, ideally closer to full.

If it's below the low mark, add a quarter quart and repeat the wait-and-check cycle. If it's above the full mark, you've overfilled. Drain some out through the drain plug until it's correct.

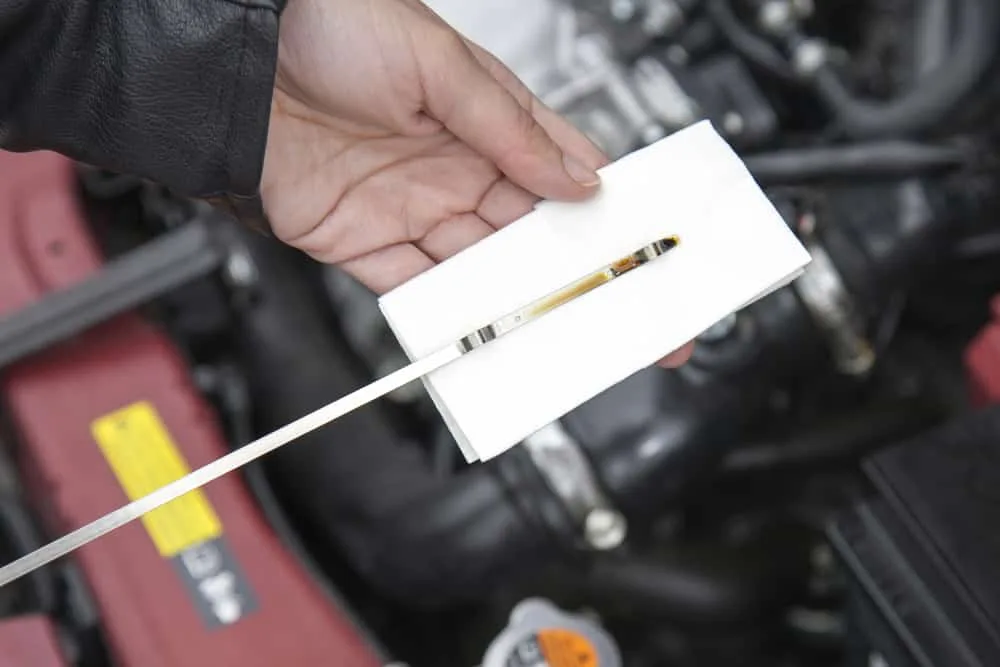

How to Read the Dipstick Correctly

This sounds basic, but it's where most people mess up. The dipstick has a crosshatched area between the low and full marks. You want the oil to touch the full mark or sit just below it.

The low mark is the lower hole or notch. The full mark is the upper one. Some dipsticks have two dots instead.

Same idea. Oil between them is acceptable, but closer to full is better for daily driving.

Important detail. Wipe the dipstick with a lint-free cloth, not a paper towel. Paper fibers can stick and give a false reading.

Insert it fully and wait two seconds before pulling it out. Read the oil on both sides of the dipstick and use the lower reading.

If the oil appears milky or has bubbles, you have a different problem. Milky oil suggests coolant contamination. Bubbles suggest overfilling or a failing PCV valve.

Address those before driving the car.

Common Mistakes That Cost You an Engine

Image source: Web (Bing) / picclick.com.au (Web image (fair-use with source credit))

Even experienced DIYers make these mistakes. The good news is they're all avoidable once you know what to watch for.

Overfilling Is Worse Than Underfilling

This is the most common mistake. Someone buys a five-quart jug for a four-cylinder engine and pours the whole thing in. The 2AZ-FE takes 4.5 quarts, not five.

That extra half quart causes the crankshaft to churn the oil into foam.

Foam doesn't lubricate. It also gets sucked into the PCV system, coating the intake valves with oil residue. Over time, that causes carbon buildup and rough idle.

Fixing it means pulling the intake manifold.

If you accidentally overfill, don't drive the car. Loosen the drain plug just enough to let a stream of oil out. Catch it in a clean container.

Let out about a half quart, then check the dipstick and repeat until it's correct.

The Wrong Viscosity in Extreme Weather

Some owners switch to 10W-40 thinking an older engine needs thicker oil. That's not how it works. The 2AZ-FE and 1MZ-FE were designed with tight tolerances.

Thicker oil takes longer to reach critical bearings during cold starts.

In winter, that extra viscosity means metal on metal for the first few seconds of operation. Those cold starts add up over time. Stick with 5W-30 year-round unless you live in a climate that sees -20°F or colder, in which case 0W-30 is fine.

Stripping the Drain Plug

The oil pan on these Camrys is made of stamped steel, and the threads are easy to strip if you over-torque the drain plug. A stripped oil pan means a new oil pan. That's a several-hundred-dollar job.

Use a torque wrench if you have one. 29 ft-lbs for the 4-cylinder and 31 ft-lbs for the V6. If you don't own a torque wrench, tighten the plug until it stops turning, then add another small fraction of a turn. Think wrist-tight, not arm-tight.

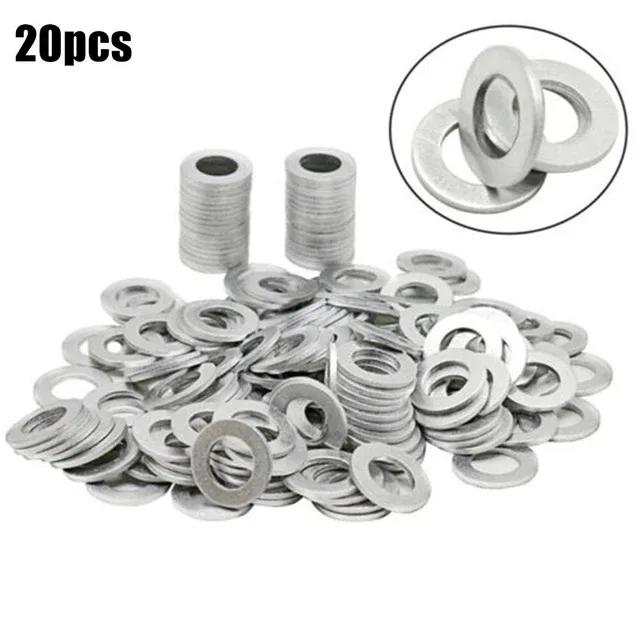

Replace the crush washer every time. It's a small copper or aluminum ring that deforms to create a seal. Reusing it risks a slow drip that you might not notice until the oil level drops critically low.

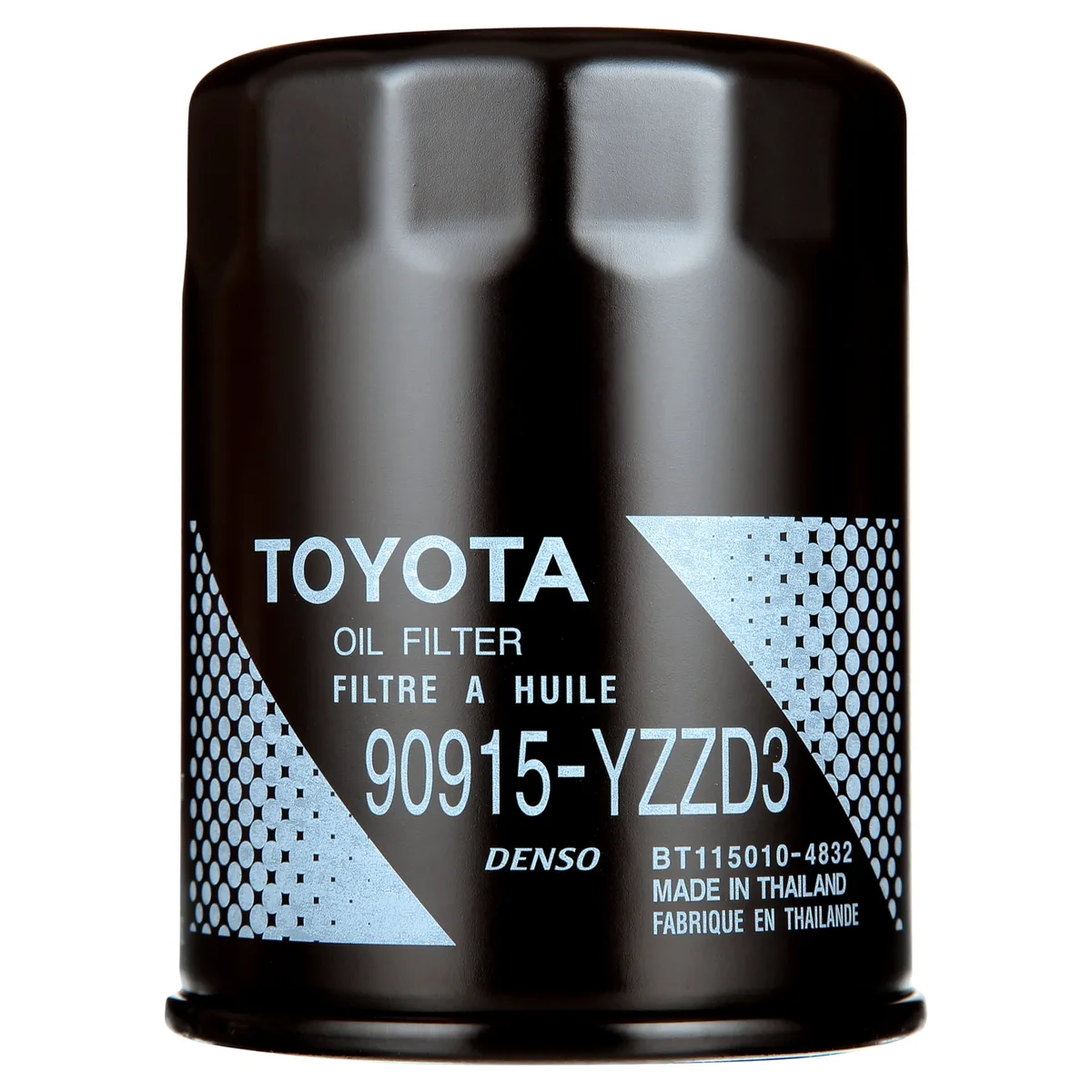

Using the Wrong Filter

Aftermarket filters can have different bypass valve pressures and thread depths. A filter that's too long can bottom out against the engine. A filter with the wrong bypass setting can starve the engine of oil at cold startup.

The safest choice is the genuine Toyota filter. Part numbers 90915-YZZD3 and 90915-YZZF2 are both correct for the 2003 Camry. If you prefer an aftermarket brand, look for one that explicitly lists compatibility with your engine code.

One note on the V6 filter location. It's mounted horizontally and drains oil when you unscrew it. Place a rag underneath before loosening.

Some oil will spill no matter how careful you are.

Synthetic vs. Conventional: Does It Matter for a 2003 Camry?

This is a question that comes up constantly. The short answer is that either works, but synthetic offers real advantages for a 23-year-old engine.

Conventional oil is perfectly fine if you change it every 3,000 to 4,000 miles. The 2AZ-FE and 1MZ-FE were designed in an era when conventional oil was standard. They don't require synthetic to run reliably.

But synthetic oil resists thermal breakdown better. That matters for an older engine that might be running slightly hotter due to radiator degradation or cooling system buildup. Synthetic also flows better in cold weather, which reduces wear during winter starts.

The cost difference is about $15 to $20 per oil change. For most owners, that's worth it for the extra protection, especially if you plan to keep the car for several more years. If you're on a tight budget, conventional oil changed on schedule will keep the engine healthy too.

One thing you should not do is switch back and forth between conventional and synthetic. Pick one and stick with it. Each oil type conditions seals differently, and switching can cause old seals to shrink or swell, leading to leaks.

High-mileage oil is a separate category worth considering. These formulations contain seal conditioners that can reduce small leaks in engines over 75,000 miles. If your Camry has high mileage and you notice minor oil seepage, high-mileage 5W-30 is a reasonable choice.

High-Mileage Oil: When to Switch and Why

If your 2003 Camry has crossed 75,000 miles, high-mileage oil is worth considering. These formulations contain seal conditioners that help old gaskets and seals stay flexible. They also include detergents that clean sludge from inside the engine.

The 2AZ-FE engine is particularly known for developing small valve cover gasket leaks as it ages. High-mileage oil won't fix a gasket that's already failed, but it can slow the progression of seepage on marginal seals. Our research shows most owners who switch report slower oil consumption within two oil changes.

Stick with 5W-30 viscosity in the high-mileage formulation. The additives don't change the weight. Just make sure the bottle carries the API certification mark for your engine's year.

Oil Change Intervals: What 20 Years of Real-World Driving Teaches Us

Toyota's original maintenance schedule called for oil changes every 5,000 miles under normal driving conditions. But real-world use over two decades has shown that many Camrys benefit from a shorter interval.

Normal Service vs. Severe Service

The owner's manual defines severe service as frequent short trips, stop-and-go traffic, dusty roads, or extreme temperatures. If you're honest with yourself, most daily driving falls into this category. Even a 15-mile commute in city traffic qualifies.

Under severe service, Toyota recommends changing the oil every 3,000 miles. That's the safer target for a 2003 Camry. The engine's seals and piston rings are older, and combustion blowby contaminates the oil faster than it did when the car was new.

The "Short Trip" Problem

Driving less than 10 miles per trip is the biggest threat to oil life. The engine never fully warms up. Moisture and fuel accumulate in the crankcase.

Over time, that creates sludge and acidic compounds that eat bearings.

If most of your drives are under 10 miles, change the oil every 3,000 miles regardless of what the sticker says. That's cheap insurance against premature engine wear. You can find more guidance in our guide to keeping it running smoothly for other Toyota models.

When to Call a Mechanic (VS. When DIY Makes Sense)

The 2003 Camry is one of the easiest cars to change oil on, but it's not for everyone. Here's how to decide which route fits your situation.

DIY makes sense if you have a level driveway, a drain pan, and basic hand tools. The savings are about $30 per change compared to a shop. That adds up to $100 to $150 per year.

You also get to choose the exact oil and filter, and you know the job was done right.

Call a mechanic if you don't have a safe place to work, if the drain plug is stripped, or if you can't reach the V6 oil filter without jacking the car. The cost is typically $50 to $80 for a conventional oil change at an independent shop. That's fair for the convenience and the proper disposal of old oil.

One scenario that absolutely requires a mechanic. If you find shiny metal particles in the drained oil, don't just change the oil and hope for the best. That's a sign of bearing or timing chain wear.

A professional inspection is the right next step.

Cost Breakdown: DIY vs. Shop for a 2003 Camry Oil Change

The DIY savings are real. But factor in the upfront cost of a filter wrench, torque wrench, and drain pan if you don't already own them. Those one-time purchases add about $40 to $60.

After two oil changes, you're saving money.

Synthetic oil adds about $15 to either total. Some shops charge more for synthetic, so ask before booking.

Safety, Disposal, and Handling Used Oil

Used motor oil is hazardous waste. One quart can contaminate 250,000 gallons of drinking water. Never pour it down a drain, into the ground, or in the trash.

Most auto parts stores accept used oil for free. Advance Auto Parts, AutoZone, and O'Reilly all have collection tanks. Call ahead to confirm your local store accepts it.

Some municipalities have household hazardous waste drop-off events too.

Store used oil in a clean, sealed container. A dedicated oil drain pan with a spout makes transfer easy. If you use a milk jug, label it clearly so no one mistakes it for something drinkable.

Cat litter or absorbent pads are useful for cleaning spills. Keep a bag nearby when doing the oil change. The EPA offers more details on proper disposal at epa.gov.

A final safety note. Never work under a car supported only by a jack. Use jack stands or drive-on ramps.

The 2003 Camry weighs over 3,000 pounds, and a jack failure can cause catastrophic injury in seconds.

FAQs from Real 2003 Camry Owners

Can I use 5W-20 instead of 5W-30?

No, stick with 5W-30. Toyota designed these engines around the film strength of 5W-30. Using 5W-20 can reduce oil pressure at operating temperature, especially in an engine with some wear.

You might save a tiny amount of fuel, but you increase bearing wear.

Will a V6 filter fit on the 4-cylinder?

Yes, the same Toyota filter fits both engines. The 90915-YZZD3 and 90915-YZZF2 are interchangeable between the 2AZ-FE and 1MZ-FE. The thread pitch and bypass valve specifications are identical.

Just confirm the filter reaches the mounting surface on your specific engine.

Why does my dipstick read high after a shop changed the oil?

Shops often fill by spec instead of checking the dipstick. They pour in the full listed capacity without accounting for residual oil left in the engine. If your dipstick reads above the full mark, drain about a quarter quart and recheck.

It's a common error.

What happens if I accidentally put in too much oil?

The crankshaft whips excess oil into foam. Foam doesn't lubricate bearings or lifters. You'll hear a ticking noise from the top end.

Driving with overfilled oil risks seal damage and oil starvation. Drain the excess immediately.

Final Verdict: The One Number to Trust

The only number you need to remember for a 2003 Camry is 4.5 quarts for the 2.4L four-cylinder and 5.0 quarts for the 3.0L V6. Those are the capacities with a new filter using SAE 5W-30 oil meeting API SL standards or newer.

Check the dipstick after every fill. Trust the dipstick over the bottle. If it reads high, drain some out.

If it reads low, add a quarter quart at a time. That simple habit will keep your 2003 Camry running strong for another 100,000 miles.
