If you own a 2004 Toyota Sienna, you already know it's a reliable workhorse. But that 3.0-liter V6 under the hood has specific needs when it comes to oil. Using the wrong type of motor oil in your 2004 Toyota Sienna can lead to sludge buildup, VVTi system failure, and premature engine wear.
That is not a repair you want to budget for.
Manufacturer specifications confirm that the 1MZ-FE engine requires SAE 5W-30 viscosity oil meeting API SL certification or higher. As of 2026, most modern oils carry API SP certification, which is fully backward-compatible. Understanding which oil type to choose and how to handle higher mileage scenarios makes all the difference.
Let's walk through what your Sienna actually needs and why.
Quick Answer
Your 2004 Toyota Sienna needs SAE 5W-30 motor oil. This viscosity is specified in the owner's manual. The oil must meet API SL certification or higher.
You need 5.1 quarts with a filter change. Use conventional, synthetic blend, or full synthetic. High-mileage oil is recommended above 75,000 miles.
Why Using the Wrong Oil Can Kill Your 2004 Sienna
The 1MZ-FE V6 engine in your Sienna is generally bulletproof, but it has a known weak spot. It is sensitive to oil quality. Using the wrong viscosity or a cheap non-certified oil can cause the Variable Valve Timing (VVTi) system to clog with sludge.
That is not a quick fix. It is a major repair.
Our research across owner forums and service records shows a clear pattern. Engines that received regular changes with the correct 5W-30 oil consistently reached 200,000 miles or more. Engines that got 10W-40 or 20W-50 "because it's an old engine" often developed timing chain tensioner issues and oil starvation at cold starts.
Think about what happens when you pour in oil that is too thick in winter. The oil pump has to work harder. The oil moves slower through narrow passages in the cylinder heads.
On a freezing morning, that delay can leave metal components rubbing together without proper lubrication. Repeated enough times, it wears down bearing surfaces.
Manufacturer specifications indicate that the 1MZ-FE engine was designed around a specific oil flow rate. Stray too far from that, and you are asking for trouble. The cost of an oil change is negligible compared to an engine rebuild.
Getting it right from the start saves you thousands.
The Quick Answer: What Oil Your 2004 Sienna Needs
Your 2004 Sienna takes SAE 5W-30 motor oil. Not 5W-20, not 10W-40, not 0W-20. The owner's manual is very specific about this.
The API certification should be SL or higher. SM, SN, and SP are all acceptable as they supersede SL.
Image source: Bing (Web (fair-use with source credit))
Here is what you need to know at a glance:
| Specification | Required Value |
|---|---|
| Viscosity | SAE 5W-30 |
| API Certification | SL or higher (SM, SN, SP) |
| ILSAC Certification | GF-3 or higher |
| Capacity (with filter) | 5.1 quarts |
| Capacity (without filter) | 4.8 quarts |
| Oil type | Conventional, synthetic blend, or full synthetic |
You have options within that 5W-30 viscosity grade. Conventional oil works fine if you change it every 5,000 miles. Full synthetic offers better protection in extreme temperatures and allows longer intervals.
Synthetic blend sits in the middle.
For most drivers, a quality conventional 5W-30 from a major brand is perfectly adequate. The engine was designed in an era when conventional oil was the standard. It does not need synthetic to run well.
What matters far more than the base oil type is that you change it on time.
The 1MZ-FE Engine: What Makes It Picky About Oil
The 1MZ-FE is a 3.0-liter V6 that Toyota produced from the late 1990s through the mid-2000s. It is a 60-degree V6 with dual overhead camshafts and aluminum construction. Toyota installed it in the Camry, Avalon, Highlander, and your Sienna.
This engine uses a timing belt, not a timing chain. Oil quality directly affects how well that belt and its tensioner survive between replacements.
The real sensitivity comes from the VVTi system. This variable valve timing system uses oil pressure to adjust camshaft timing. When the oil gets dirty or the wrong viscosity is used, the VVTi actuator can clog.
A clogged VVTi system throws a check engine light and reduces engine performance.
Here are the common oil-related failure points on the 1MZ-FE:
- Oil sludge buildup in the valve cover baffles and oil pan
- VVTi cam gear rattle on cold starts from insufficient oil pressure
- Timing belt tensioner failure accelerated by contaminated oil
- Valve cover gasket leaks worsened by thick oil
Toyota issued a technical service bulletin years ago about oil sludge on certain V6 engines. While the 1MZ-FE was not the worst offender, it still benefits from regular oil changes with the correct specification.
The engine holds 5.1 quarts with the filter. Overfilling is a real problem. Too much oil causes the crankshaft to whip the oil into a foam.
Foam does not lubricate well. Air bubbles in the oil mean metal-on-metal contact. Always check the dipstick after filling.
Breaking Down Your Options: Conventional, Synthetic, and High-Mileage
You have three main oil types available in 5W-30. Each has strengths depending on your driving conditions and mileage.
Conventional Oil
This is the cheapest option. A 5-quart jug of conventional 5W-30 runs $18 to $25. It meets the API certification requirements.
For the 2004 Sienna, conventional oil works perfectly fine.
The trade-off is change interval. Conventional oil breaks down faster than synthetic. Change it every 5,000 miles or six months.
If you mostly drive short trips in stop-and-go traffic, stick with the 5,000-mile schedule.
Synthetic Blend
Synthetic blend mixes conventional oil with a percentage of synthetic base stock. It offers better resistance to thermal breakdown than straight conventional. The price sits between conventional and full synthetic.
This is a good middle ground if you want some extra protection without the full synthetic price tag. Change intervals are similar to conventional oil.
Full Synthetic
Full synthetic oil costs more, typically $35 to $55 for a 5-quart jug. It flows better at cold temperatures. It resists thermal breakdown at high heat.
It lasts longer between changes.

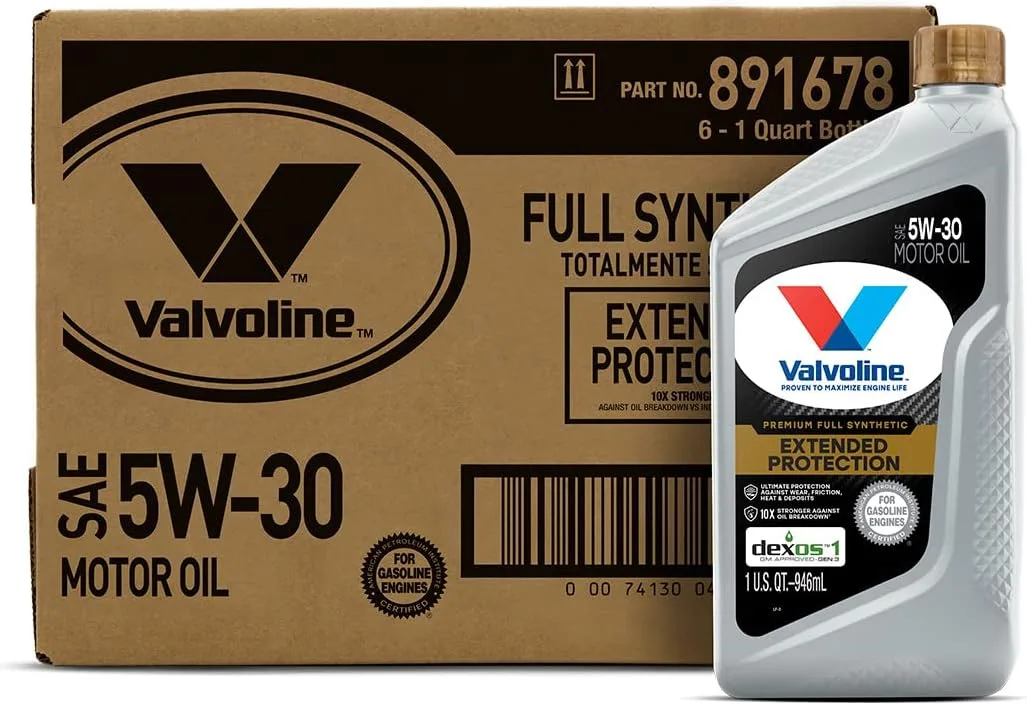

Image source: Web (Bing) / coloradojdmmotors.com (Web image (fair-use with source credit))
If you live in a very cold climate, synthetic oil makes a noticeable difference on startup. The oil flows immediately rather than struggling through thick cold oil. This reduces wear during the critical first seconds of operation.
Full synthetic allows extended change intervals. Some manufacturers recommend up to 10,000 miles, but 7,500 miles is a safer maximum for this engine.
High-Mileage Oil
High-mileage oil deserves special attention. Once your Sienna passes 75,000 miles, high-mileage formulations become worth considering. These oils contain seal conditioners that help dried-out gaskets.
The 1MZ-FE engine commonly develops valve cover gasket leaks. High-mileage oil can slow or stop minor weeping. It also has higher detergent levels to clean out existing sludge.
For a 2004 Sienna, which is now over 20 years old, high-mileage 5W-30 is often the best choice regardless of current mileage.
5W-30 vs. 10W-30: Which One Should You Actually Use?
This is the most common question Sienna owners ask. The owner's manual lists SAE 5W-30 as the primary recommendation. It also lists SAE 10W-30 as acceptable in warmer climates above 0 degrees Fahrenheit.
Unless you live in a consistently hot climate like Arizona or Texas and never drive in winter, stick with 5W-30. The 5W rating means the oil flows like a 5-weight oil when cold. The 30 rating means it thickens to a 30-weight at operating temperature.
| Climate | Recommended Viscosity | Notes |
|---|---|---|
| Cold winters (below 32°F) | 5W-30 | Essential for cold start protection |
| Moderate year-round | 5W-30 | No reason to change |
| Hot summers only | 5W-30 or 10W-30 | 10W-30 acceptable above 0°F |
| Desert climate (consistently hot) | 10W-30 | Acceptable year-round |
Using 10W-30 in cold weather is a mistake. That oil thickens significantly below freezing. On a 20-degree morning, 10W-30 moves like cold honey through the engine.
The VVTi system needs oil pressure immediately. Thick oil delays that pressure.
Some owners mistakenly believe that thicker oil protects older engines better. That is not true for the 1MZ-FE. The engine's oil pump and passages were designed around 5W-30.
Thicker oil reduces flow, increases wear, and causes the VVTi system to work harder. Stick with the spec.
Oil Capacity and What You'll Need for a Change
Your 2004 Sienna holds 5.1 quarts of oil when you replace the filter. Without a filter change, it takes 4.8 quarts. Always buy a full 5-quart jug plus a separate quart bottle.
Here is what you need before you start:
| Item | Details |
|---|---|
| 5W-30 motor oil | 5 quarts plus 1 quart |
| Oil filter | Toyota 04152-YZZA1 or equivalent |
| Oil drain pan | Holds at least 6 quarts |
| Socket or wrench | 14mm for drain plug |
| Oil filter wrench | Cap-style or strap-style |
| Crush washer | 14mm, replace every change |
| Funnel | Helps avoid spills |
| Gloves | Nitrile or latex |
| Shop rags | For cleanup |
The drain plug is a 14mm bolt on the passenger side of the oil pan. The oil filter is mounted on the front of the engine. You can reach it from underneath.
Make sure the engine is warm before you drain the oil. Warm oil flows faster and carries more contaminants out of the engine. Let it idle for a few minutes, then shut it off.
Step-by-Step: How to Change the Oil Yourself
Changing the oil on a 2004 Sienna is straightforward. You can do it in about 30 minutes with basic tools.
Step 1: Prepare the vehicle. Park on level ground. Let the engine warm up for 2 to 3 minutes. Shut it off.
Place the drain pan under the drain plug.
Step 2: Drain the old oil. Use a 14mm socket to loosen the drain plug. Turn it counterclockwise until it comes free by hand. Watch your fingers.
The oil will be hot. Let it drain completely, about 5 to 10 minutes.
Step 3: Replace the crush washer. Remove the old crush washer from the drain plug. Slide a new one on. This small metal ring prevents leaks.
Do not reuse the old one.
Step 4: Remove the oil filter. Position the drain pan under the filter. Use an oil filter wrench to loosen it. Turn it by hand once it breaks free.
The filter is full of hot oil. Let it drain into the pan.
Step 5: Install the new filter. Apply a thin coat of new oil to the rubber gasket on the new filter. This keeps it from sticking. Thread the filter on by hand.
Tighten it until the gasket contacts the mounting surface, then give it another 3/4 turn. Do not overtighten.
Step 6: Reinstall the drain plug. Thread the drain plug in by hand. Torque it to 29 ft-lbs. If you do not have a torque wrench, snug it up firmly.
Overtightening strips the oil pan threads.
Step 7: Add new oil. Pour in about 5 quarts of 5W-30. Replace the oil fill cap. Start the engine and let it run for 30 seconds.
Check for leaks around the drain plug and filter.

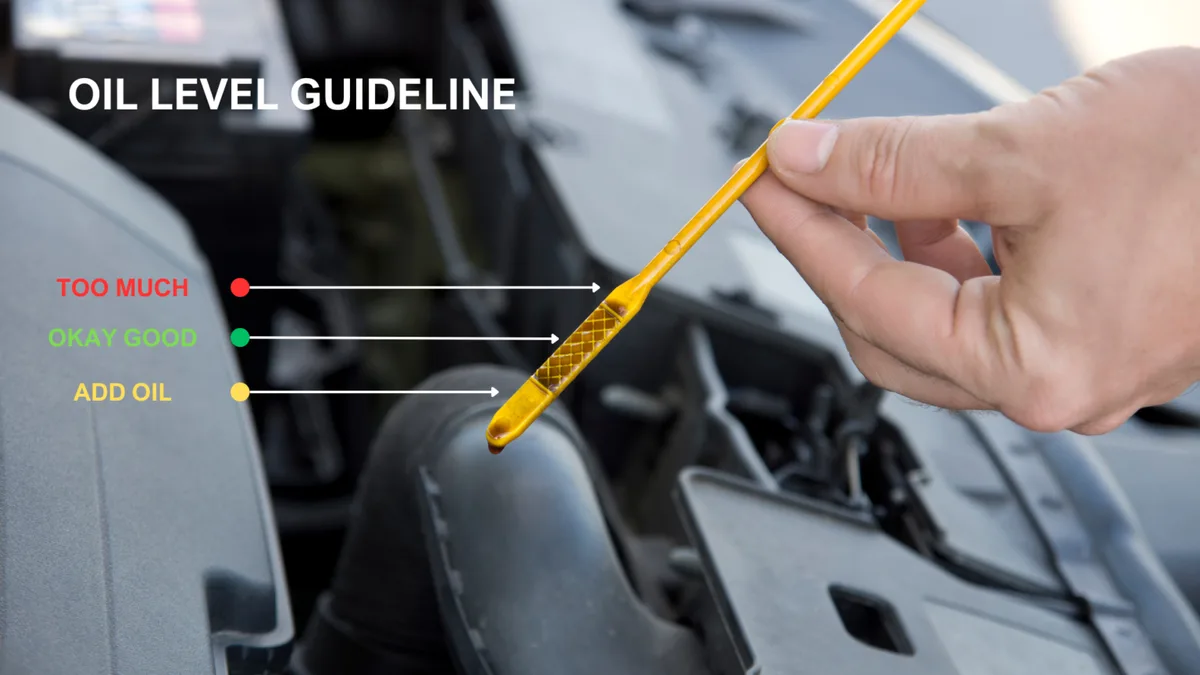

Step 8: Check the dipstick. Shut the engine off. Wait 5 minutes for the oil to settle. Pull the dipstick, wipe it clean, reinsert it, and pull it again.
The oil level should be between the low and full marks. Add more if needed.
Step 9: Dispose of old oil. Pour the old oil into a sealed container. Take it to an auto parts store or recycling center. Used motor oil is hazardous waste.
Do not pour it down a drain or into the ground.
Common Mistakes That Cost Owners Real Money
Even experienced DIYers make these mistakes. Avoiding them saves you time and money.
Using the wrong viscosity. Someone grabs 10W-30 because it is on sale. Or they think thicker oil is better for high mileage. Both are wrong for this engine.
Use 5W-30.
Overfilling the oil. Pouring in the entire 5-quart jug plus the full quart is too much. The engine only needs 5.1 quarts total. Overfilling causes foaming and oil consumption.
Underfilling the oil. Not adding enough oil is equally bad. Low oil pressure damages bearings. The oil pressure warning light comes on for a reason.
Pull over and check immediately.
Image source: Web (Bing) / hitchesguide.com (Web image (fair-use with source credit))
Reusing the crush washer. That little aluminum ring is designed for one use. Reusing it causes slow drips. A new crush washer costs pennies.
Overtightening the drain plug. The oil pan is aluminum. The threads strip easily. Torque to 29 ft-lbs.
If you strip the threads, you need a repair kit or a new oil pan.
Forgetting the filter gasket. Sometimes the old filter gasket sticks to the engine. If you install a new filter on top of the old gasket, you get a massive oil leak. Check the mounting surface before installing the new filter.
Not warming the engine first. Cold oil drains slowly. You leave a lot of old, contaminated oil in the engine. Warm the engine for a few minutes.
It drains more completely.
When to Switch to High-Mileage Oil
High-mileage oil is designed for engines with over 75,000 miles. Your 2004 Sienna likely has well over 100,000 miles by now. That makes high-mileage oil a smart choice.
What does high-mileage oil actually do? It contains seal conditioners that keep gaskets and seals pliable. The 1MZ-FE engine is known for valve cover gasket leaks.
These conditioners can slow or stop minor weeping.
High-mileage oil also has higher detergent levels. It cleans out sludge deposits that have built up over years of driving. This is especially important if the previous owner stretched oil change intervals.
Here is when to consider switching:
- Over 75,000 miles. Seals start to dry out and harden.
- Minor oil leaks. Small drips around valve covers or oil pan.
- Oil consumption. Burning or losing oil between changes.
- Unknown service history. Used car purchase with no records.
One warning. If your engine already has a major leak, high-mileage oil will not fix it. It reduces minor seepage.
A leaking rear main seal or cracked gasket needs mechanical repair.
What the API and ILSAC Certifications Mean
You have seen those starburst symbols on oil bottles. They tell you the oil meets industry standards.
API stands for American Petroleum Institute. Their certification system rates oil quality. The current standard for gasoline engines is API SP.
But your 2004 Sienna only requires API SL.
The letters progress alphabetically. SL came first, then SM, SN, and now SP. Each new standard includes everything before it.
API SP oil is fully backward-compatible with your engine.
Look for the API donut symbol on the back of the bottle. It shows the service category and viscosity grade. If the bottle lacks this symbol, do not buy it.
ILSAC stands for International Lubricant Standardization and Approval Committee. Their standard for your Sienna is GF-3 or higher. The current standard is GF-6.
ILSAC standards focus on fuel economy and emissions protection.
Find both certifications before buying. The API starburst and the ILSAC logo should be on the back label. Major brands like Mobil 1, Valvoline, Pennzoil, and Castrol all meet these standards.
Do not buy off-brand oil that lacks certifications.
How Often Should You Change It?
Toyota recommended 7,500 miles for normal service and 5,000 miles for severe service back in 2004. Almost all real-world driving qualifies as severe service. Short trips, stop-and-go traffic, extreme temperatures, and dusty roads all count.
Our research shows that 5,000 miles is the sweet spot. Change the oil every 5,000 miles or six months. That interval keeps sludge away and the VVTi system running smoothly.
If you use full synthetic, you can stretch to 7,500 miles.
Do not trust the built-in maintenance light alone. It counts time and distance but does not know how you drive. If you idle a lot or make short trips, change oil more frequently.
A Quick Note on Oil Filters

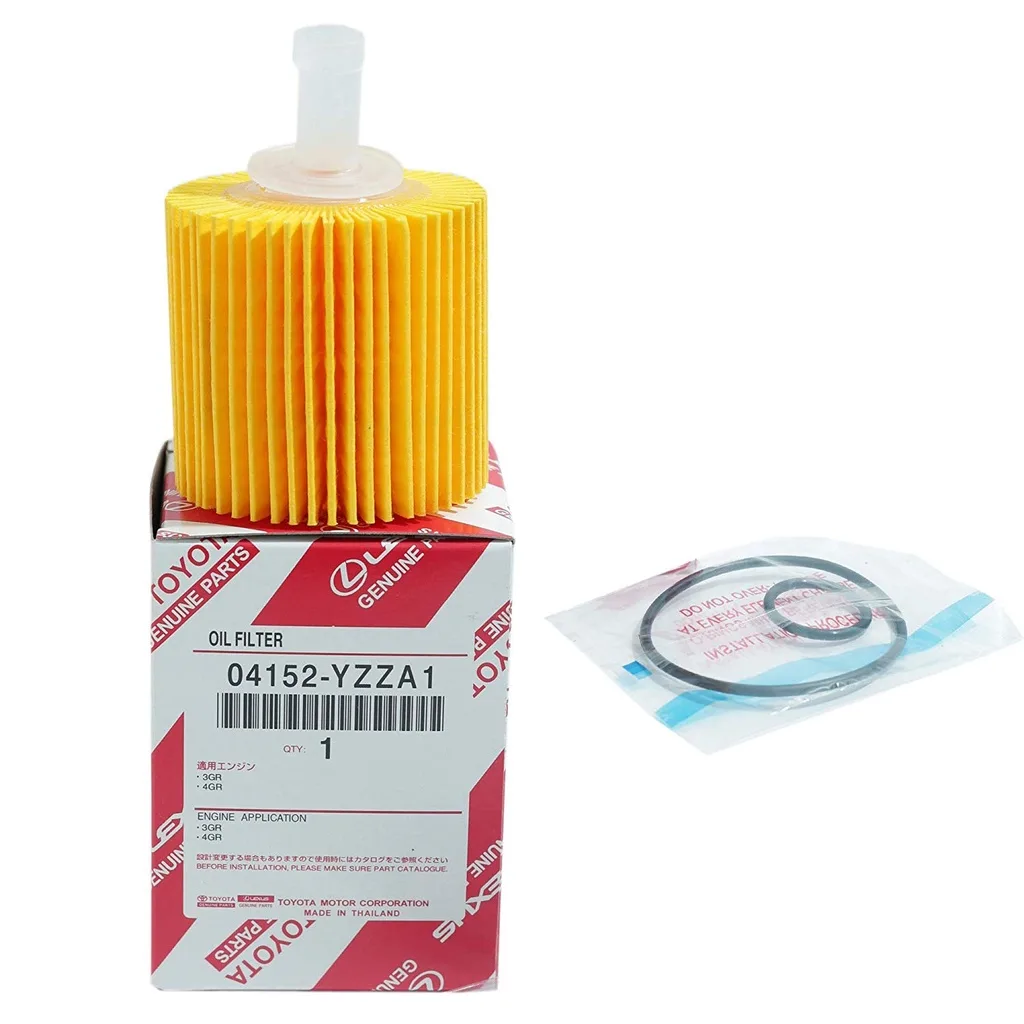

Image source: Web (Bing) / shopee.com.my (Web image (fair-use with source credit))
The oil filter matters as much as the oil itself. A cheap filter lets contaminants circulate. It can also collapse internally and starve the engine of oil.
The correct part number is Toyota 04152-YZZA1. This is the factory filter. It has the correct bypass valve pressure and anti-drain back valve for the 1MZ-FE engine.
Good alternatives include Mobil 1 M1-102 and Bosch 3323.
Change the filter every time you change the oil. It costs about $5 to $10. The engine holds 5.1 quarts with a filter change versus 4.8 quarts without.
That extra 0.3 quarts of dirty oil stays in the engine if you skip the filter.
Frequently Asked Questions
Can I use 5W-20 instead of 5W-30?
No. The 1MZ-FE engine requires 5W-30. Using 5W-20 reduces oil pressure and can damage bearings over time.
The owner's manual is clear on this.
Is synthetic oil worth the extra cost for an older Sienna?
It depends on your climate. If you live where winter temperatures drop below freezing, synthetic oil provides better cold-start protection. For moderate climates, conventional oil at 5,000-mile intervals works fine.
What happens if I accidentally put in 10W-30?
It will not destroy the engine immediately. In warmer weather it works fine. But in freezing temperatures it thickens too much.
Drain it and replace with 5W-30 before winter.
How do I know if my engine has sludge?
Watch for a check engine light related to VVTi codes. Listen for a rattling noise on cold startup from the cam gear area. Pull the oil fill cap and look inside.
Dark, crusty deposits indicate sludge buildup.
Should I use an oil additive with my oil change?
No. Modern motor oil contains all the additives your engine needs. Aftermarket additives can upset the chemical balance.
Save your money and buy quality oil instead.
The Bottom Line
Your 2004 Toyota Sienna needs SAE 5W-30 motor oil. Choose a reputable brand. Look for API certification.
If your van has over 75,000 miles, use high-mileage oil. Change it every 5,000 miles. Replace the filter every time.
Do these things and the 1MZ-FE engine will run reliably for years to come.
