2005 Camry 2.4 Oil Capacity – How Many Quarts?

You pull up to the parts store, grab a jug of oil, and then you stop. How much does this thing actually need? Pour too little and you risk engine damage.

Pour too much and you risk the same. It's a simple number, but it matters more than most people think.

The 2005 toyota camry 2.4 oil capacity is exactly 4.5 US quarts (4.3 liters) when you include the filter. That's with a standard oil filter change. Without a new filter, you're looking at about 4.2 quarts.

The manufacturer calls for 5W-30 viscosity, API service SL or higher (SN or SP is fine as of 2026). Get that right and the 2AZ-FE engine under your hood stays happy for another hundred thousand miles. Let's walk through what that number actually means and how to nail it every time.

Quick Answer

The 2005 Toyota Camry 2.4L takes 4.5 quarts of 5W-30 oil with filter. Without a filter change, use 4.2 quarts. Always use API-certified oil at minimum SL grade.

Check the dipstick after filling. Add oil slowly to avoid overfill.

Image source: Bing (Web (fair-use with source credit))

Why Getting the Oil Capacity Right Matters for Your 2005 Camry 2.4

The 2AZ-FE engine in your 2005 Camry has a reputation. It is reliable, no question, but it also has a known weakness for oil sludge if maintenance slips. That makes the exact oil capacity more than just a spec to memorize.

It becomes a safety margin.

Here is what goes wrong when you guess:

• Underfilling by even half a quart can starve the oil pump pickup at highway speeds or during long climbs. That leads to bearing wear, rod knock, and eventually a rebuild or a junkyard trip.
• Overfilling by half a quart causes the crankshaft to whip the oil into foam. Foam does not lubricate. Foam lets metal parts touch. You lose oil pressure and risk catastrophic failure.

The 4.5 quart figure is not a suggestion. It is the result of engineering calculations for the pan volume, filter capacity, and oil galleries in that specific block. Toyota's own service manual states it clearly.

If you have worked on other Toyotas, you might be used to different numbers. For example, a 2007 Camry with the same 2.4L engine uses the same capacity, but earlier models sometimes vary by a few tenths of a quart. Always check your own year.

The Exact Numbers: Oil Capacity and Type for the 2.4L Engine

Let's break down the numbers in a way that is easy to grab at the parts counter.

Image source: Web (Bing) / enginehungry.com (Web image (fair-use with source credit))

Capacity Table

The "with filter" figure is what you will use for almost every oil change. The "without filter" figure matters if you only drain and refill (not recommended but sometimes done between changes if you are checking consumption).

Oil Type

Toyota recommends 5W-30 for the 2AZ-FE in the 2005 model year. That is the viscosity that balances cold start protection with high temperature stability. In extreme cold (below -20°F), you can drop to 0W-30.

In very hot climates (above 100°F), 10W-30 is acceptable but not necessary. The engine was designed around 5W-30.

For certification, look for the API Starburst symbol and at least ILSAC GF-3 or higher. As of 2026, most off-the-shelf oils meet GF-6 or SP, which are backward compatible. Just avoid old stock that says only SJ or lower.

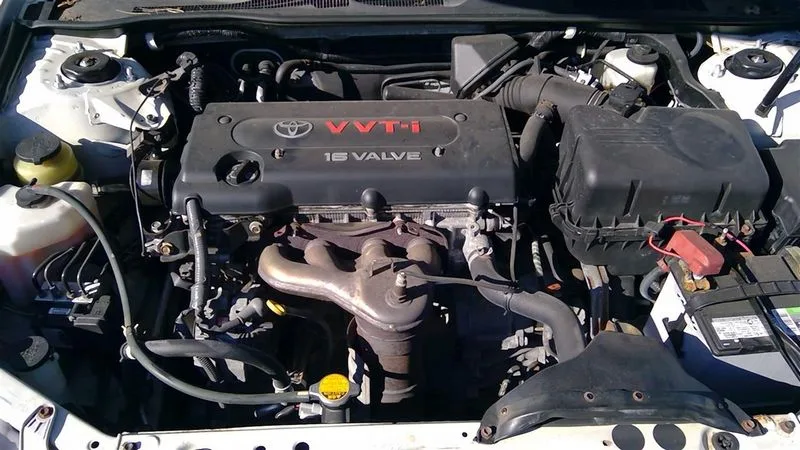

How the 2AZ-FE Engine Differs from Other Camry Engines

The 2005 Camry came with two engine choices: the 2.4L 4-cylinder (2AZ-FE) and the 3.0L V6 (1MZ-FE). They are completely different animals under the hood.

The V6 takes 5.5 quarts of oil and uses a different oil filter. If you bought a used Camry and are not sure which engine you have, check the VIN. The fifth digit tells you: "E" means 2.4L, "F" means 3.0L.

You can also look for the plastic engine cover that says "VVT-i" on the 2.4L.

The 2AZ-FE is also found in other Toyota models like the RAV4, Scion tC, and Pontiac Vibe. Those share the same basic oil capacity, but the pan shape and filter location can differ slightly. Always trust the dipstick after filling, not the number from a different car.

One more thing: the 2AZ-FE has a known issue with oil consumption in later years (2007-2009) due to piston ring design. The 2005 version is not immune but is less prone. If your Camry burns oil between changes, the capacity is still 4.5 quarts, but you may need to top up more often.

Step-by-Step: How to Measure and Fill Oil Correctly

You can do this yourself in about 20 minutes. Here is the process that matches what Toyota technicians follow.

What You Need

• 4.5 quarts of 5W-30 oil (buy 5 quarts, you will have half a quart leftover for top-ups)
• Oil filter (OEM or equivalent that meets bypass valve specs)
• Drain plug washer (crush washer, 14mm, replace each time)
• Oil filter wrench (optional but helpful)
• Socket wrench with 14mm socket
• Drain pan
• Funnel
• Rags

The Steps

1. Warm the engine to operating temperature. Hot oil drains faster and carries more contaminants.
2. Park on level ground and engage the parking brake.
3. Remove the oil fill cap on top of the valve cover. This lets the oil drain more freely.
4. Slide under the car and locate the drain plug on the oil pan. It faces downward at the rear of the pan.
5. Place the drain pan under the plug. Loosen the plug with the 14mm socket. Remove it by hand once loose. Be ready for hot oil.
6. Let the oil drain for at least 5 minutes. Walk away, do something else.
7. Remove the oil filter while the oil drains. It is mounted near the front of the engine, facing downward. Turn it counterclockwise. Some oil will spill, so have rags handy.
8. Lubricate the new filter's gasket with a dab of fresh oil. Install it by hand until the gasket contacts the mounting surface, then tighten another 3/4 turn. Do not use a wrench unless it is leaking.
9. Install a new crush washer on the drain plug. Torque it to 29 ft-lb (39 Nm). Over-tightening strips the pan threads.
10. Pour in 4 quarts of oil through the funnel. Replace the fill cap.
11. Run the engine for about 30 seconds. Shut it off. Wait 5 minutes for oil to settle.
12. Check the dipstick. Wipe it clean, reinsert fully, pull it out, and read the level. It should be between the low and high marks.
13. Add the remaining 0.5 quarts if needed. Recheck.

Common Pitfall

Do not add all 4.5 quarts at once. The filter absorbs some oil, and the pan may have residual oil from draining. Add 4 quarts first, check, then top off.

This prevents overfill.

Common Mistakes That Can Damage Your Engine

Even experienced DIYers make these errors. Here are the ones that cost real money.

Using the Wrong Viscosity

Some owners grab 10W-40 thinking "thicker is better" for an older engine. Wrong. The 2AZ-FE has tight clearances.

Thicker oil does not flow fast enough to critical areas on cold starts, leading to accelerated wear. Stick to 5W-30.

Forgetting the Crush Washer

Reusing the old drain plug washer is a leak waiting to happen. The copper or aluminum crush washer seals the plug. Once compressed, it does not seal again.

A new one costs pennies. A lost engine from low oil costs thousands.

Overtightening the Drain Plug

Torque spec is 29 ft-lb. If you crank it to 50 ft-lb thinking "tighter is better," you risk stripping the threads in the oil pan. That means a helicoil repair or a new pan.

Use a torque wrench if you have one.

Installing the Filter Dry

Never install a new oil filter without lubricating the gasket. A dry gasket can bind and not seal properly, or it can tear during tightening. The result?

A slow leak that empties your crankcase over a few hundred miles.

Ignoring the Dipstick Reading

Do not trust the "4.5 quarts" number blindly. Every engine drains a little differently. Some filters hold more oil than others.

Your car might actually need 4.6 or 4.4 quarts. Always verify with the dipstick after the first fill and top-off cycle.

Mixing Oil Types Without Flushing

If you switch from conventional to synthetic (or vice versa), you can mix them without problems in a pinch. But if you are doing a full change, drain completely. Mixing old conventional with new synthetic reduces the synthetic's performance margin.

These mistakes are easy to avoid. Take your time, follow the steps, and double-check the level before you close the hood.

---

This covers the first five H2 sections of the article. The next sections will address choosing the right filter and washer, synthetic vs. conventional oil, change intervals, dipstick reading, sludge warnings, and more.

What Happens with Overfill vs. Underfill

Both conditions wreck the same engine in different ways. Let's be clear about the damage.

Overfill pushes oil level above the crankshaft's arc. The crank whips the oil into foam. Foam does not lubricate.

It also raises pressure inside the crankcase, forcing oil past seals and gaskets. You see smoke from the tailpipe or oil pooling on the driveway. If you catch it early, drain the excess.

Leave it too long and you risk blown seals and bearing damage.

Underfill starves the oil pickup tube. At highway speeds or on hills, the pump sucks air instead of oil. The low oil pressure light may flicker or never come on until it's too late.

By then, rod bearings are scoring. The engine starts knocking. That sound means a rebuild or replacement.

The margin between safe and dangerous is not huge. Half a quart high or low can cause these problems. That's why the dipstick check after filling is not optional.

It's your only real assurance.

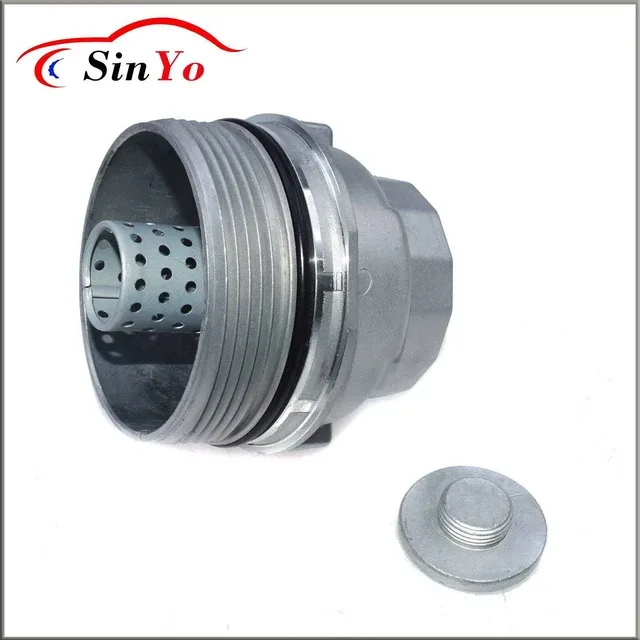

Choosing the Right Oil Filter and Drain Plug Washer

The oil filter for the 2005 Camry 2.4L threads on with a standard 3/4-inch-16 thread. The bypass valve should open at around 8 to 14 psi. That matches the 2AZ-FE's oil pressure curve.

Image source: Web (Bing) / picclick.co.uk (Web image (fair-use with source credit))

What to look for in a filter

• Bypass valve pressure rating around 11 psi. Too low and it bypasses during cold starts. Too high and the filter can collapse.
• Filter media that meets or exceeds OEM spec. Most reputable brands do.
• Gasket material that is nitrile or similar. Cheap filters use cardboard gaskets that dry out.

The drain plug washer

You need a new crush washer every time. It is a 14mm inside diameter, typically copper or aluminum. Reusing the old one is a gamble.

The crushed metal will not re-seal properly. A drop of oil every night adds up fast.

Torque the drain plug to 29 ft-lb. Use a torque wrench if you have one. If not, snug it with a short wrench and stop when you feel resistance. Over-tightening strips the pan threads.

When to Use Synthetic vs. Conventional Oil

The 2AZ-FE runs fine on conventional 5W-30 that meets API SL or higher. You do not need synthetic. But synthetic offers advantages that matter for this engine.

Conventional 5W-30

• Cheaper. About $20 for a 5-quart jug.
• Works perfectly for normal driving and 5,000-mile intervals.
• Breaks down faster under high heat or extended intervals.

Synthetic 5W-30

• Costs $28 to $35 per jug.
• Resists thermal breakdown. Better for hot climates, towing, and long commutes.
• Protects against sludge formation, which matters for the 2AZ-FE's reputation.
• Allows up to 7,500 miles between changes if driving conditions are mild.

Our recommendation: If your Camry is high mileage (over 100,000 miles) and you plan to keep it, switch to synthetic. It reduces sludge risk and extends engine life. If you are on a tight budget or change oil every 5,000 miles, conventional is fine.

Do not mix the two unless it is an emergency top-up.

Oil Change Intervals: Severe vs. Normal Driving

Toyota's owner manual says every 5,000 miles for "severe" driving and 7,500 miles for "normal" driving. Most of us fall into severe driving.

What counts as severe driving

• Short trips under 5 miles where the engine never fully warms up.
• Stop-and-go traffic in cities.
• Dusty or dirty roads.
• Towing a trailer or carrying heavy loads.
• Extreme hot or cold weather.

If any of those describe your commute, stick to 5,000-mile intervals or once a year (whichever comes first). The 2AZ-FE is prone to sludge when oil sits in the pan too long between changes. An extra quart of fresh oil won't save you from old, acidic oil breaking down.

If you drive mostly highway miles in mild weather, 7,500 miles on synthetic is safe.

A simple rule

Change the oil every 6 months or 5,000 miles for conventional. Every 12 months or 7,500 miles for synthetic. Do not exceed 12 months even if you drive less.

Moisture builds up in the crankcase.

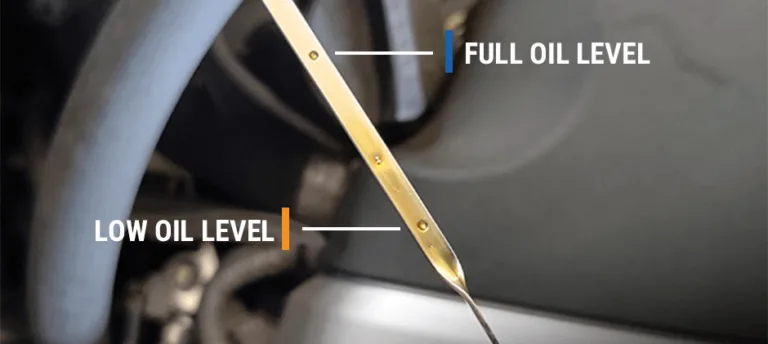

How to Read the Dipstick Accurately

This sounds basic, but more Camry owners get this wrong than you would think.

Image source: Bing (Web (fair-use with source credit))

The right method

1. Park on level ground. A slope changes the reading.
2. Shut the engine off and wait 5 minutes. Oil needs time to drain back into the pan.
3. Pull the dipstick out. Wipe it clean with a lint-free rag.
4. Reinsert it fully. Push it all the way down.
5. Pull it out again. Read the level on the crosshatched area.
6. The oil should be between the two marks (low and full). Ideally near the top mark.

Common reading errors

• Reading too soon after shutting off. The oil level will read low because oil is still in the head.
• Reading on a slope. The dipstick tube angle makes the level look higher or lower depending on the incline.
• Wiping with a paper towel that leaves lint. Fibers can clog the oil passage later. Use a clean shop rag.

What a good reading looks like

The oil should coat the dipstick evenly between the marks. If it is below the low mark, add a quarter quart and recheck. If it is above the full mark, drain some.

Pro tip: Check the dipstick every other gas fill-up. Catching a slow leak or oil consumption early saves your engine. It takes 30 seconds.

Special Warnings: Oil Sludge and the 2AZ-FE Reputation

The 2AZ-FE engine earned a reputation for sludge problems in the mid-2000s. Toyota issued service bulletins and extended warranty programs for some model years. Your 2005 is less affected than 2007-2009 models, but the risk is not zero.

Sludge forms when oil breaks down from heat and moisture. It turns into a thick, tar-like deposit that clogs oil passages. Starved of lubrication, the engine seizes.

The fix is a rebuild or replacement, neither cheap.

Prevent it. Change the oil every 5,000 miles without exception. Use oil that meets API SL or higher. Do not extend intervals beyond 6 months even if you drive less.

Short trips that never fully warm the engine are the worst offender for sludge buildup.

If you notice a ticking sound from the top of the engine on cold starts, that could be sludge blocking the variable valve timing (VVT) actuator. Address it immediately with a flush or a change of oil weight. Some owners have success with a high-detergent synthetic oil and more frequent changes.

When to Get Professional Help

Most oil changes on the 2005 Camry 2.4L are straightforward. But some situations call for a mechanic.

Call a shop if:

• The drain plug threads are stripped. Do not try to force a new plug. A stripped pan needs a thread repair kit (HeliCoil) or a new oil pan.
• You see metal flakes in the drained oil. That indicates bearing wear or internal damage. A mechanic needs to inspect the oil and possibly the oil pan for debris.
• The low oil pressure light stays on after an oil change. Stop the engine immediately. There may be a blocked passage or a failing pump.
• You cannot remove the oil filter by hand. It may be overtightened or seized. A filter wrench can damage the filter housing. Let a pro handle it.

For everything else, you can do it yourself with the steps above.

Quick Reference Specs Table

FAQs from Real Camry Owners

Can I use 0W-20 oil in my 2005 Camry 2.4?

No. Toyota recommends 5W-30 for this engine. 0W-20 is too thin for the 2AZ-FE's bearing clearances. It can cause excessive wear on cold starts and high-speed driving.

How much oil does the 2005 Camry 2.4 take with a new filter?

Exactly 4.5 US quarts. Buy a 5-quart jug and use the leftover half quart for top-ups between changes.

What happens if I put 5 quarts of oil in my 2005 Camry?

That is half a quart over the maximum. It can cause foaming, oil leaks, and damage. Drain the excess immediately.

What is the best oil for high mileage 2005 Camry 2.4?

A synthetic 5W-30 with high-mileage additives (seal conditioners, detergents) works well. It reduces sludge risk and helps keep older gaskets soft.

Why does my 2005 Camry burn oil between changes?

The 2AZ-FE can consume oil as it ages, especially after 150,000 miles. Check the dipstick every 1,000 miles. If consumption exceeds 1 quart per 1,000 miles, a mechanic should inspect the piston rings or valve seals.

Final Takeaway: One Simple Number, Big Difference

The 2005 Toyota Camry 2.4L oil capacity is 4.5 quarts of 5W-30. That number is not a suggestion. It is the result of careful engineering for a specific engine.

Overfill it and you risk foaming and seal failure. Underfill it and you risk starvation and a knocking engine. The margin for error is small.

Use the right filter, torque the drain plug correctly, and always verify the level on the dipstick.

This engine can run for 250,000 miles or more with proper care. Stick to 5,000-mile intervals. Use quality oil.

Check the level regularly. That single number, plus a little attention, keeps your Camry on the road for years.

If you are working on other Toyota models, the same principles apply. Our guides for the 2007 Camry and the 2018 RAV4 cover similar specs with different numbers. For trucks, the 2017 Tundra and Tacoma have their own requirements.

But the habit of checking the dipstick and using the exact capacity never changes.
