2006 Toyota 4Runner Oil Capacity: How Many Quarts?

If you're looking up the 2006 toyota 4runner oil capacity, you're probably standing over an open hood with a wrench in one hand and a bottle of oil in the other. Or maybe you're just stocking up before the weekend job. Either way, you need the exact number, not a guess, not "about five quarts," and definitely not what worked for your buddy's Honda.

The 2006 4Runner came with three different engines, and each one takes a different amount of oil. Put in the wrong amount, and you're either starving the engine or foaming the crankcase. Both can lead to expensive repairs.

As of 2026, these trucks are between 17 and 20 years old, which means many are high mileage and even more sensitive to getting the details right. Let's break it down by engine so you get exactly what your truck needs.

Image source: Bing (Web (fair-use with source credit))

Quick Answer

The 2006 Toyota 4Runner oil capacity depends on the engine. The 4.0L V6 takes 5.0 quarts with a filter change. The 4.7L V8 takes 6.5 quarts.

The 2.7L I4 takes 4.5 quarts. Use 5W-30 or 0W-20 depending on climate. Always check the dipstick after filling.

Why Getting the Oil Capacity Wrong Can Cost You an Engine

This isn't one of those "close enough" car maintenance tasks. The oil system in a 2006 4Runner is designed around a specific volume. When you overfill, the crankshaft whips through the oil like a boat propeller.

That aerates the oil, turning it into foam. Foam doesn't lubricate well, and it doesn't build proper oil pressure.

Underfilling is just as dangerous. When the oil level drops below the pickup tube, the oil pump sucks air. That means metal-on-metal contact inside your bearings, your camshaft, and your valvetrain.

On a 4Runner with 200,000 miles, that's a death sentence for an engine that could otherwise go another 100,000.

The other risk is using the wrong viscosity. If you pour in 10W-40 because that's what's on sale, you'll get sluggish oil flow in cold weather and potential sludge buildup over time. Toyota specifically engineered these engines around a certain weight.

Stick to what the manual says.

The Three Engines and Their Exact Oil Needs

The 2006 model year sits right in the middle of the fourth-generation 4Runner run. Toyota offered three engines that year, and they aren't interchangeable when it comes to oil capacity.

Image source: Web (Bing) / stmtuned.com (Web image (fair-use with source credit))

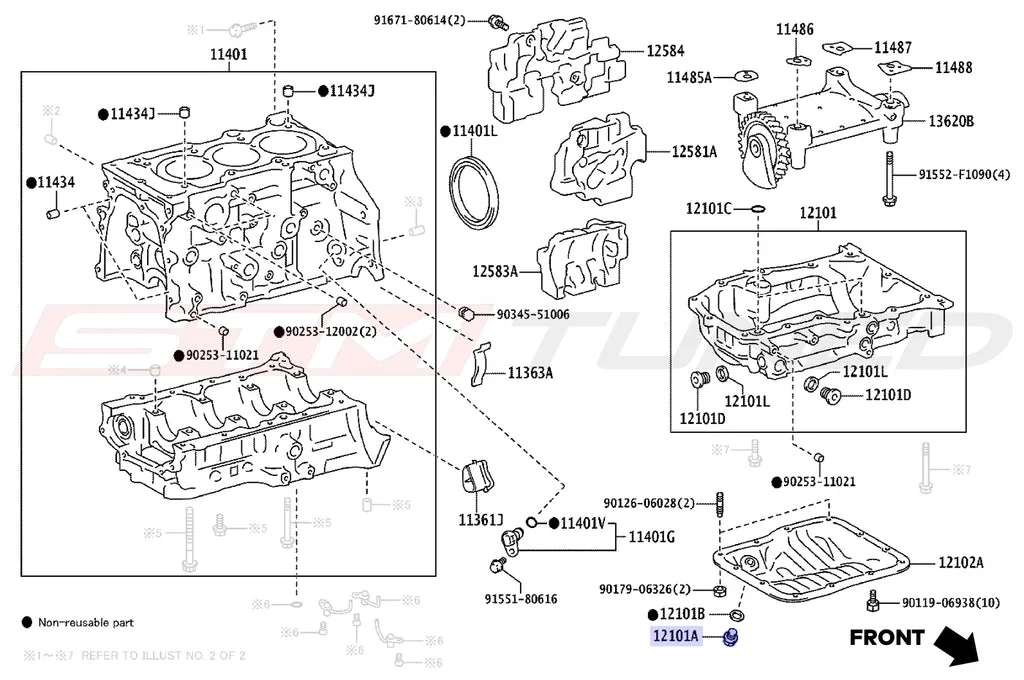

1GR-FE (4.0L V6) – The Most Common

This is the engine you'll find in the vast majority of 2006 4Runners. It's a 4.0-liter V6 with variable valve timing. It's known for being reliable, but it's also sensitive to oil level.

The dry fill capacity (if you're assembling a new engine or filling after a complete rebuild) is 5.5 quarts. But for a normal oil change where you drain the old oil and swap the filter, you need 5.0 quarts. That half-quart difference is the oil that stays trapped in the engine block and cooler lines.

Many owners report that 5.0 quarts puts the oil level right at the full mark on the dipstick. If you dump in the full 5.5 quarts, you'll be overfilled. That's the most common mistake on this engine.

2UZ-FE (4.7L V8) – The Towing Beast

The V8 was optional but popular with buyers who towed trailers or wanted extra grunt. It takes more oil than the V6, and it's easier to get wrong because the numbers aren't as intuitive.

For a filter change, the V8 takes 6.5 quarts. The dry fill is 7.0 quarts. Again, the extra half-quart stays in the engine during a normal drain.

The V8 has a steel oil pan, which is less prone to stripped threads than the V6's aluminum pan. But the oil filter location is tighter, wedged between the engine block and the front differential. You'll need a filter wrench or some patience to get it off.

2TR-FE (2.7L I4) – The Base Model

The four-cylinder was the base engine for the 2006 4Runner. It's underpowered for a truck this size, but it's nearly indestructible if maintained. It takes 4.5 quarts with a filter change.

This engine is less common, so if you have it, double check your VIN. A lot of aftermarket parts listings assume you have the V6. The oil capacity is smaller, and the dipstick markings are different from the V6 and V8.

Oil Type Matters: 0W-20 vs. 5W-30 and What Toyota Actually Says

Toyota originally recommended 5W-30 for the 2006 4Runner. That's what the owner's manual says, and it's what most dealerships put in for years. But Toyota later updated their recommendation for many of these engines to 0W-20.

Here's what that means for you. If you live in a cold climate where winter temperatures drop below freezing, 0W-20 flows better at startup. It reaches critical engine parts faster, reducing wear during those first few seconds after you turn the key.

If you live in a hot climate or you tow frequently, 5W-30 provides a thicker oil film at operating temperature. Some owners with high-mileage 4Runners also prefer 5W-30 because it can help reduce oil consumption in engines with worn rings or valve seals.

The official Toyota spec for these engines calls for API SN or SP certification. Look for the API starburst on the bottle. If you see "energy conserving" on the label, don't use it in your 4Runner.

That rating is for newer engines with different requirements.

For more on oil type recommendations across Toyota's lineup, our guide on the right 4Runner oil type covers viscosity choices and certification details.

Synthetic vs. Conventional: What a High-Mileage 4Runner Really Needs

Most 2006 4Runners on the road today have well over 100,000 miles. Many are past 200,000. At this mileage, the question isn't whether synthetic is better, it's whether switching now could cause problems.

The short answer is no. Switching from conventional to synthetic on a high-mileage engine is safe. Synthetic oil has better thermal stability, resists sludge formation, and flows better in cold weather.

It's the better choice for an older engine that's already prone to wear.

Some people worry that synthetic oil will clean out sludge deposits and cause leaks. That's a myth that won't die. Modern synthetic oils are formulated to be compatible with older engines.

If a leak appears after switching, the leak was already there, the gasket was just sealed by sludge. The synthetic didn't cause it; it just revealed it.

For a 2006 4Runner that's been on conventional oil its whole life, switching to a high-mileage synthetic blend is a solid middle ground. It has seal conditioners that help older gaskets stay flexible. It costs less than full synthetic but still provides better protection than conventional.

Change intervals matter more than oil type. A 4Runner on synthetic can safely go 7,500 to 10,000 miles between changes. But if you drive in dusty conditions, do a lot of short trips, or tow regularly, stick to 5,000 miles regardless of what oil you use.

That's the single best thing you can do for engine longevity.

The Correct Oil Filter and Why It's Not Optional

The oil filter on a 2006 4Runner isn't just a parts counter afterthought. It's a critical component that maintains oil pressure and traps contaminants before they circulate through your bearings.

Image source: Web (Bing) / mrparts.ng (Web image (fair-use with source credit))

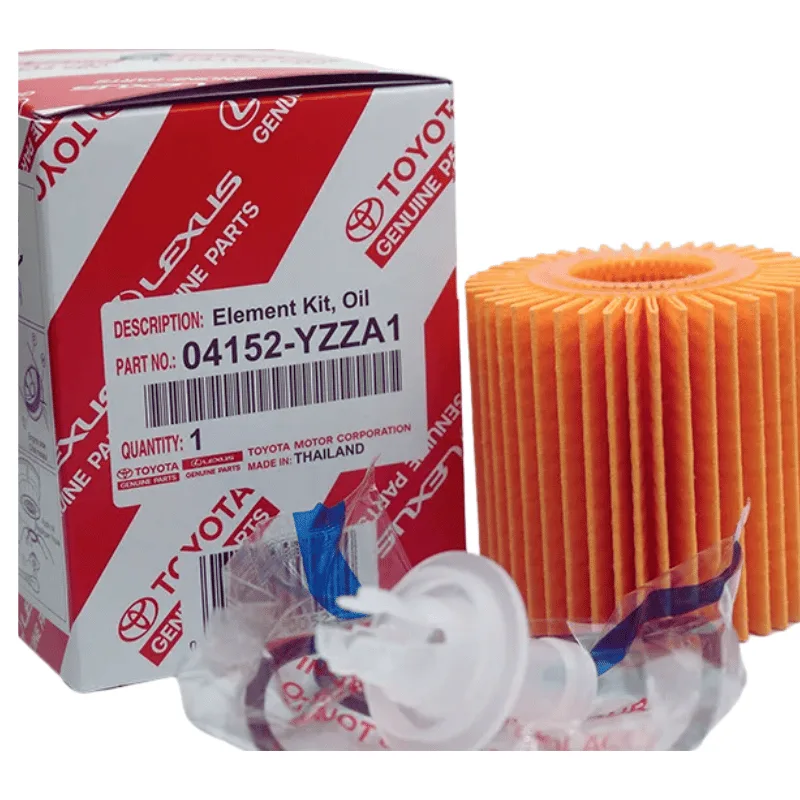

The OEM Toyota filter carries part number 04152-YZZA1 for the V6 and 04152-38030 for the V8. Both are made by Denso and have a built-in bypass valve calibrated to the engine's oil pressure curve. Aftermarket filters sometimes use a generic bypass valve that opens at the wrong pressure.

On the V6, the filter sits on the front of the engine behind the skid plate. You can reach it from above with a long extension, but most people find it easier to go underneath. The V8 filter is tucked between the engine block and the front differential.

A strap wrench or a cap-style filter wrench works better than the claw type in that tight space.

Always pre-fill the new filter with fresh oil before installing it. This primes the oil system and reduces the time the engine runs with zero oil pressure on startup. Rub a thin layer of oil on the gasket too.

That keeps it from sticking and tearing when you go to remove it next time.

Step-by-Step: How to Fill It Right (Without Over or Underfilling)

Getting the oil into the engine is the easy part. Getting the right amount in there takes a little patience.

Start by warming the engine to operating temperature. Hot oil drains faster and carries more suspended contaminants out with it. Park on level ground.

If your driveway slopes, find a flat spot.

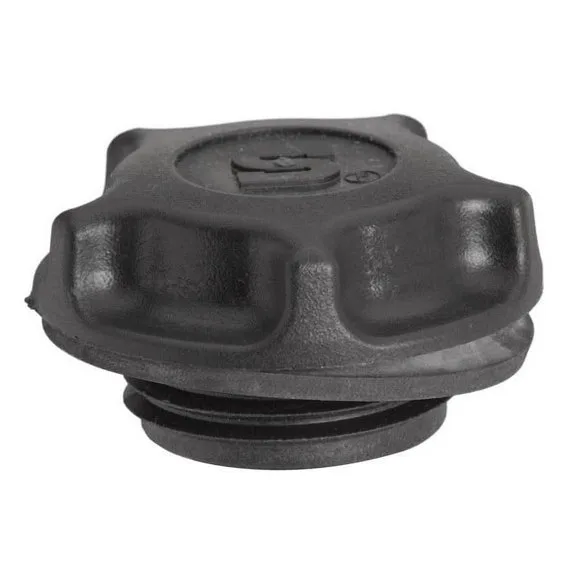

Remove the oil fill cap on top of the valve cover. This prevents a vacuum lock that can slow the drain. Get under the truck and loosen the drain plug with a 17mm socket.

Let the oil drain for at least five minutes. Walk away if you have to. Let every last drop come out.

Replace the crush washer on the drain plug. These are single-use aluminum washers that deform to create a seal. Reusing one is asking for a drip.

Torque the plug to 30 ft-lbs on the V6's aluminum pan and 33 ft-lbs on the V8's steel pan.

Remove the old filter. It's normal for some oil to spill. Have a rag ready.

Install the new pre-filled filter and tighten it hand tight plus three-quarters of a turn. No wrenches needed for the final tighten.

Now add oil. For the V6, pour in 4.5 quarts first. Check the dipstick.

Top off slowly until it reaches the full mark. Leaving the last half quart out and adding it gradually is how you avoid overfilling.

Run the engine for 30 seconds. Shut it off. Wait five minutes for the oil to settle back into the pan.

Check the dipstick again. Top off if needed.

The correct oil level routine for other Toyota models follows a similar approach, and you can see how it applies to the 2025 Corolla oil capacity guide for more modern vehicles.

Common Mistakes That Wreck 4Runner Engines

Stripping the Drain Plug (The Aluminum Pan Problem)

The V6's oil pan is aluminum. The drain plug threads into aluminum. Aluminum is soft.

If you reef on the drain plug with a breaker bar, you will strip those threads. A stripped oil pan means a new oil pan. That's a several hundred dollar repair.

Use a torque wrench set to 30 ft-lbs. That's not very tight. It's about the same force you'd use to tighten a lug nut by hand.

If you feel resistance stop. You're done.

The Double-Gasket Filter Disaster

This one kills engines quietly. When you remove the old oil filter, the rubber gasket sometimes stays stuck to the engine block. If you don't notice it and screw the new filter on top of it, you have two gaskets.

The new filter can't seal. It leaks oil under pressure.

Within a few minutes of starting the engine, you'll lose most of your oil. The first warning is usually a low oil pressure light followed by knocking sounds. By then, the damage is done.

Always wipe your finger around the filter mounting surface before installing the new one. If you feel a rubber ring, that's the old gasket. Pick it off.

Confusing Oil Capacity with Other Fluids

The 4Runner has separate fluid reservoirs for the engine, transmission, transfer case, front differential, and rear differential. They all take different amounts and different fluids.

Engine oil goes in the yellow cap. Transmission fluid has a red dipstick. Differential fluid is filled through a side plug, not the top.

Mixing them up is rare but catastrophic. Double check which cap you're opening.

Torque Specs You Should Not Ignore (Drain Plug and Filter)

Torque specs on a 2006 4Runner aren't suggestions. They're engineering tolerances.

Hand tightening the filter is the safest approach. You get enough grip to seal the gasket without crushing it. If you must use a tool, a torque wrench set to 18 ft-lbs is better than guessing with a filter wrench.

The drain plug crush washer should be replaced every time. A pack of ten costs about five dollars. Skipping it causes slow drips over time.

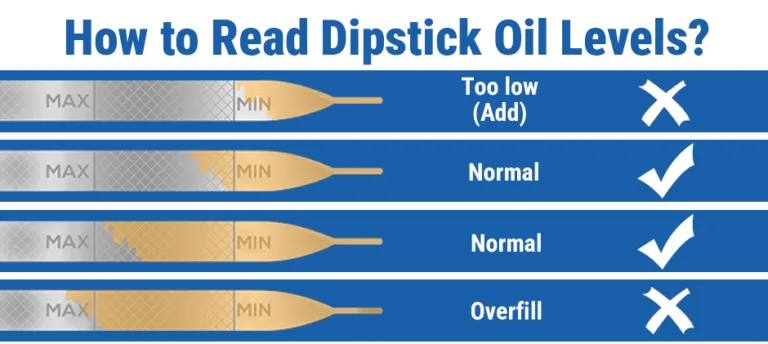

When and How to Check Your Oil Level (Hot vs. Cold)

There's a right way to read a dipstick and a wrong way.

Image source: Bing (Web (fair-use with source credit))

The accurate method is to check the oil when the engine is warm and has been off for about five minutes. That gives the oil time to drain back into the pan but not so long that everything has settled cold. A warm engine with five minutes of rest gives the most repeatable reading.

Pull the dipstick out. Wipe it clean with a rag. Push it all the way back in.

Pull it out again and read the level. The oil should be between the two marks. If it's below the low mark, add half a quart and check again.

If it's above the full mark, you've overfilled.

Cold readings are less accurate. Oil expands when hot, so a cold reading will show lower than the actual operating level. If you check it cold, aim for the lower mark on the dipstick.

That accounts for the expansion that happens as the engine warms up.

Check your oil at every other fuel fill up. On a 20 year old 4Runner, oil consumption is normal. Catching it early prevents low oil pressure events that damage bearings.

How Often Should You Change It? Interval Guidance by Driving Style

Oil change intervals for the 2006 4Runner aren't a one-size-fits-all number. Toyota originally recommended 5,000 miles for normal driving. But "normal" doesn't apply to everyone.

If you mostly drive highway miles at steady speeds, synthetic oil can safely go 7,500 to 10,000 miles. The engine stays at operating temperature, moisture burns off, and contaminants stay suspended in the oil.

If you do short trips under five miles, your oil never fully warms up. Moisture and fuel accumulate in the crankcase. That turns your oil acidic over time.

Change it at 5,000 miles no matter what oil you use.

Off-road driving is the hardest on oil. Dust, mud, and steep angles push contaminants into the engine. If you take your 4Runner on trails, cut the interval to 3,500 miles.

The same goes for towing. A loaded trailer puts constant heat into the oil, breaking down its viscosity faster.

The Toyota Tundra shares a similar V6 platform with the 4Runner, and the oil change guidance for that engine follows the same logic you'd apply here.

Risks of Using the Wrong Capacity or Viscosity

Every quart you add above the full mark puts the crankshaft deeper into the oil. That creates foam. Foam doesn't lubricate.

Foam also triggers false low oil pressure warnings because the oil pump can't build pressure against aerated fluid.

Underfilling is faster to cause damage. At one quart low, oil pressure drops noticeably during hard cornering or steep climbs. At two quarts low, the pickup tube can suck air on any incline.

Bearing damage happens in seconds, not miles.

Wrong viscosity brings slower but real damage. 10W-40 is too thick for the 4Runner's oil passages at cold startup. The engine starves for oil during the first minute of running. Over time, that accelerates camshaft and timing chain wear.

Thinner oils like 0W-16 are too thin for the bearing clearances in a 2006 engine and won't maintain a proper film at operating temperature.

When to Call a Pro vs. DIY

An oil change on a 2006 4Runner is one of the easiest DIY jobs you can do. The drain plug is accessible. The filter is reachable.

The oil capacity is straightforward.

Call a pro if you don't have a level spot to park. Call a pro if you can't safely lift the truck. These trucks sit high enough that you don't need jack stands for an oil change, but you do need clearance to slide under.

Call a pro if your drain plug is already stripped or rounded off. A shop has tools to extract it. You at home with a pair of pliers will make it worse.

The other reason to call a shop is if your 4Runner burns oil. If you're adding a quart every 1,000 miles, a pro can diagnose whether it's rings, valve seals, or a PCV system issue. That's beyond a DIY oil change.

Final Verified Specs Reference (Print This for Your Garage)

Keep this reference card handy. Stick it on the inside of your garage cabinet or tape it under the hood.

OEM filter part numbers: 04152-YZZA1 (V6) and 04152-38030 (V8). API SN or SP certification required. Change interval 5,000 miles for severe duty, 7,500 for normal highway driving on synthetic.

Write your current mileage and last change date on the filter with a permanent marker. That simple habit prevents guesswork later.
