You're standing in the auto parts aisle staring at a wall of oil bottles. Or maybe you've got the hood open and realize you're not sure what's supposed to go in there. The 2006 Toyota Highlander is a reliable SUV, but it's also old enough that a simple mistake with the wrong oil type can turn into a costly repair.
Here's exactly what you need to know, no guesswork.
The 2006 Highlander came with two different engines, and each one has specific oil requirements. The stakes are real: using the wrong viscosity can lead to sludge buildup, timing chain wear, or even engine failure. As of 2026, many of these vehicles have over 150,000 miles, making proper oil selection more critical than ever.

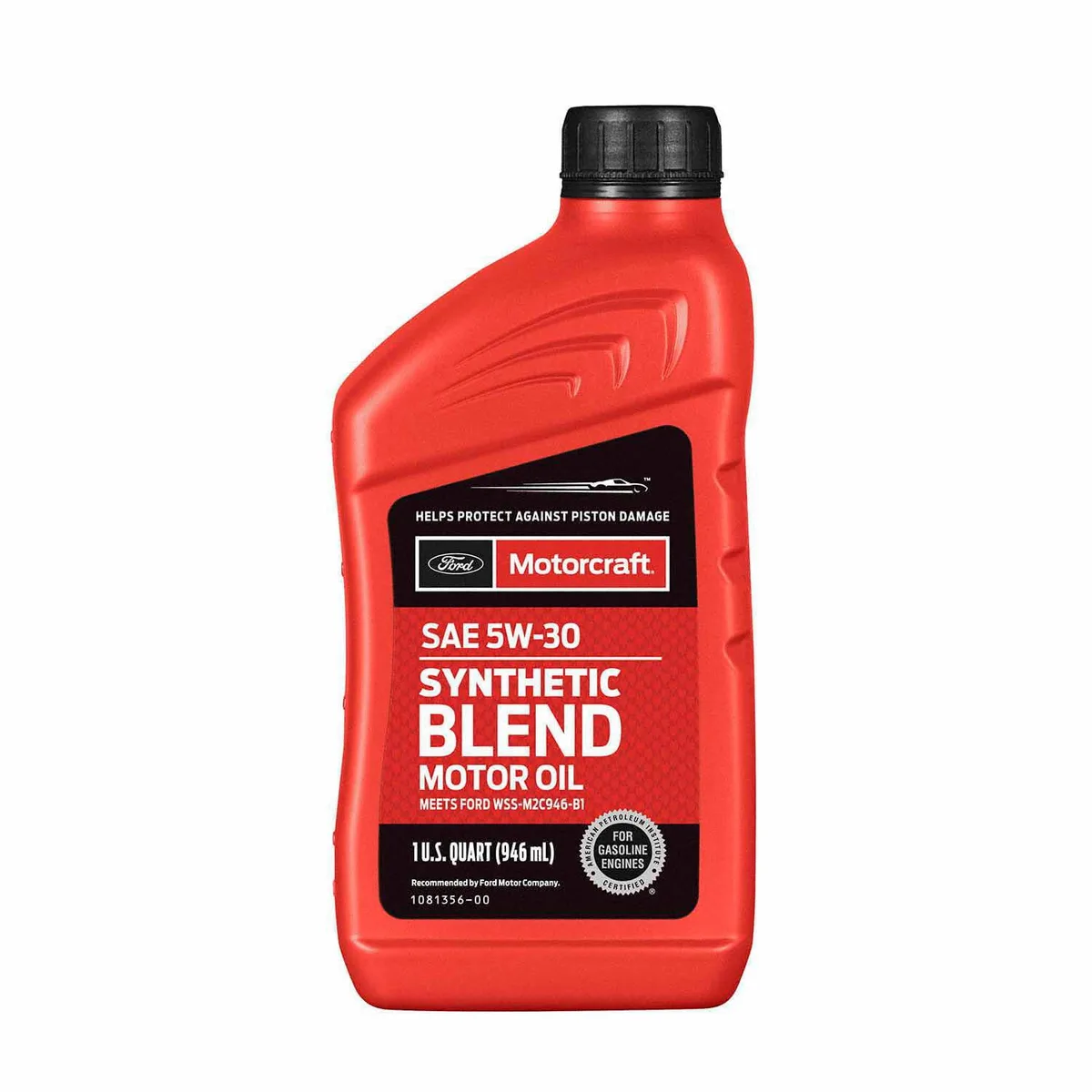

Image source: Web (Bing) / ebay.com (Web image (fair-use with source credit))
Quick Answer
The 2006 Toyota Highlander takes 5W-30 motor oil. This applies to both the 3.3L V6 and the 2.4L four-cylinder engine. Use API-certified SL, SM, SN, or SP oil.
The V6 needs 5.0 quarts with a filter change. The four-cylinder needs 4.5 quarts. Synthetic blend or conventional both work fine.
Why Getting the Oil Type Wrong Can Cost You an Engine
The 2006 Highlander is built to tight tolerances. Engine oil does more than lubricate. It cools critical components, cleans internal passages, and maintains hydraulic pressure for systems like variable valve timing.
Toyota's 2.4L I4 engine (the 2AZ-FE) has a known vulnerability. It's prone to oil sludge if the wrong oil is used or if change intervals are stretched too far. The 3.3L V6 (the 1MZ-FE) is more forgiving, but it still depends on the right viscosity to keep the timing chain tensioner working properly.
Per Toyota's factory service specifications from the 2006 owner's manual, the recommended oil type is 5W-30 for both engines. The biggest mistake we see in our research on Highlander forums and mechanic discussions is owners grabbing 5W-20 because it's common for newer Toyotas. The 2006 model was engineered for a thicker oil at operating temperature.
Sludge isn't a maybe. It's a when-if-you-use-the-wrong-stuff problem. Once sludge sets in, the fix is an engine rebuild or replacement.
A $50 oil change mistake turns into a $4,000 repair.
The 3.3L V6 vs. the 2.4L I4 – Yes, They're Different
You need to know which engine you have before buying oil. The two engines have different oil consumption habits, different filter locations, and different sensitivities.

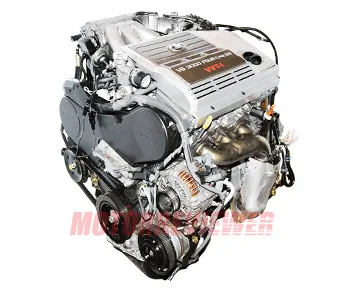

The 3.3L V6 (1MZ-FE)
This is the more common engine in the 2006 Highlander. It produces 230 horsepower. It's smooth and generally reliable.
But it can develop a small oil leak from the valve cover gaskets as it ages.
- Capacity: 5.0 quarts with filter
- Recommended viscosity: 5W-30
- Filter location: Front of engine, accessible from above or below
- Drain plug size: 14mm
Image source: Bing (Web (fair-use with source credit))
The 2.4L I4 (2AZ-FE)
This four-cylinder was the base engine. It's less common in the 2006 model year. This engine is more sensitive to oil quality because of its variable valve timing system.
Sludge buildup here is a known issue that Toyota faced class-action lawsuits over in earlier years.
- Capacity: 4.5 quarts with filter
- Recommended viscosity: 5W-30
- Filter location: Front of engine, easier to reach from underneath
- Drain plug size: 14mm
How to tell which engine you have
Pop the hood. Look at the engine cover. The V6 has a plastic cover that says "V6" on it.
The four-cylinder has a smaller cover. You can also check your VIN. The 8th digit tells you the engine code.
A "3" means the 3.3L V6. A "2" means the 2.4L I4.
Both engines take the same oil viscosity. But the four-cylinder is less forgiving about oil change intervals. Stick to 5,000 miles max on conventional oil.
Use 7,500 miles on synthetic.
Viscosity Explained: Why 5W-30 Is the Safe Bet
Oil viscosity measures how thick the oil is at different temperatures. The "5W" part means the oil flows like a 5-weight when cold. The "30" means it behaves like a 30-weight at operating temperature.
For the 2006 Highlander, 5W-30 is the factory fill. Toyota designed the engine around it. The oil pump in the 1MZ-FE and 2AZ-FE engines was calibrated for 5W-30.
The clearances between bearings and journals were engineered assuming that oil would be 30-weight when hot.
In cold climates, 5W-30 flows well enough at startup. In hot climates, it stays thick enough to protect. It's a middle-of-the-road choice that works across a wide temperature range.
When to consider something different
There are exactly two situations where a viscosity change makes sense.
Extreme cold. If you live where winter temps regularly drop below -20°F, use 0W-30. The 0W rating means better cold flow. The 30 rating keeps the same hot protection.
Toyota recommends this for Canadian markets.
High mileage with oil consumption. If your Highlander has over 150,000 miles and burns through 5W-30 between changes, step up to 10W-30. The thicker oil at cold start helps seal worn rings and valve guides. This is a temporary band-aid, not a permanent solution.
What about 5W-20? We see this question a lot. The answer is no.
Toyota didn't recommend 5W-20 for the 2006 Highlander. Using it won't instantly destroy your engine, but it increases wear over time.
Conventional vs. Synthetic vs. Blend
Either works as long as it's the right viscosity and API rating. But there are trade-offs worth understanding.
Conventional oil
- Cost: $4 to $6 per quart
- Change interval: 3,000 to 5,000 miles
- Best for: Low-mileage engines, frequent changes, budget-focused owners
Conventional oil is fine if changed on time. If you tend to forget oil changes or push past 5,000 miles, conventional oil breaks down faster and leaves more deposits.
Synthetic blend
- Cost: $6 to $8 per quart
- Change interval: 5,000 to 7,500 miles
- Best for: Most owners, moderate mileage, balanced protection
A synthetic blend is half conventional, half synthetic. It offers better thermal stability than straight conventional without the full synthetic price. Toyota dealerships often use this on older models.
Full synthetic
- Cost: $8 to $12 per quart
- Change interval: 7,500 to 10,000 miles
- Best for: High-mileage engines, extreme climates, long intervals
Full synthetic flows better in cold weather and resists breakdown at high temperatures. For a 2006 Highlander with over 100,000 miles, synthetic oil provides better protection against sludge.
What we recommend
For most 2006 Highlander owners, a synthetic blend 5W-30 is the sweet spot. It costs about $25 for a 5-quart jug. It meets the API SN or SP rating.
It protects well for 5,000-mile intervals.
If your Highlander has over 150,000 miles, consider a full synthetic high-mileage formulation. These contain seal conditioners that help reduce small leaks common on older engines.
If you're on a tight budget and change oil every 3,000 miles, conventional 5W-30 works. A $15 oil change done on time beats a $50 synthetic change done late.
Image source: Web (Bing) / walmart.com (Web image (fair-use with source credit))
Oil Capacity by Engine
| Engine | Capacity with filter | Capacity without filter | Recommended oil |
|---|---|---|---|
| 3.3L V6 | 5.0 quarts | 4.7 quarts | 5W-30 |
| 2.4L I4 | 4.5 quarts | 4.2 quarts | 5W-30 |

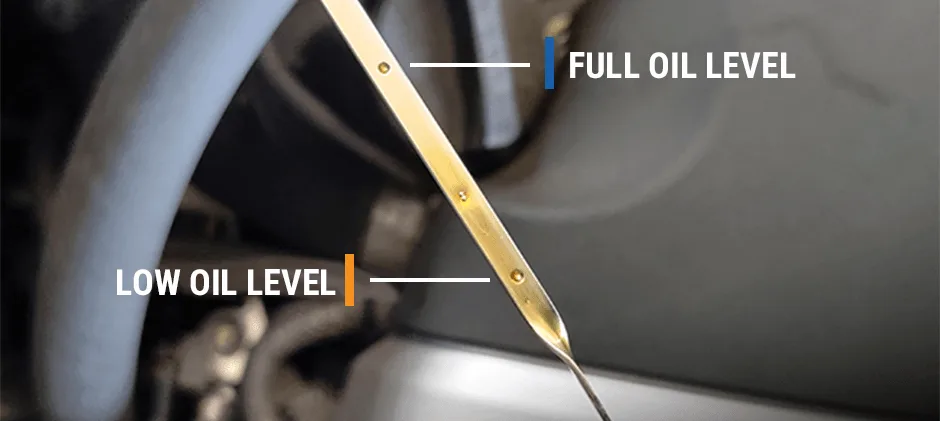

Always measure with the dipstick after filling. Some oil remains in the engine block after draining. Fill to about 80 percent of the listed capacity, then check the dipstick and add more as needed.
Buy a 5-quart jug for the V6. That's exactly one jug and you're done. For the four-cylinder, a 5-quart jug still works since you'll have about half a quart left for top-offs.
Step-by-Step: How to Pick the Right Oil
Let's turn this information into a simple decision process.
Step 1: Confirm your engine type
Open the hood. Look for the V6 badge on the engine cover. If you see it, you have the 3.3L.
If not, check your VIN's 8th digit.
Step 2: Note your mileage
- Under 75,000 miles: conventional or synthetic blend work equally well
- 75,000 to 150,000 miles: synthetic blend is ideal
- Over 150,000 miles: consider full synthetic high-mileage
Step 3: Consider your climate
- Moderate climate: 5W-30 year-round
- Extreme cold (below -20°F): 0W-30 for winter
- Extreme heat (over 100°F sustained): stick with 5W-30
Step 4: Check your driving patterns
- Short trips under 5 miles: full synthetic resists moisture buildup better
- Highway commuting: any quality 5W-30 works
- Towing or heavy loads: full synthetic provides better heat resistance
- Stop-and-go traffic: synthetic blend or full synthetic
Step 5: Choose your API rating
Look for the API starburst on the bottle. The 2006 Highlander requires at least API SL. SM, SN, and SP are all backward-compatible.
SN and SP offer better sludge protection and are widely available.
Image source: Web (Bing) / fridayparts.com (Web image (fair-use with source credit))
Common Engine Problems Linked to Bad Oil Choices
Mechanics have seen the same problems crop up repeatedly on the 2006 Highlander. Many trace back to oil.
Sludge in the 2.4L I4
The 2AZ-FE engine has narrow oil passages that can clog with sludge. Using conventional oil and stretching intervals past 5,000 miles is the fastest way to cause this. Synthetic oil and regular changes prevent it.
Symptoms of sludge:
- Check engine light with oil pressure codes
- Ticking noise from the top of the engine
- Oil that looks like thick tar on the dipstick
Timing chain wear in the 3.3L V6
The 1MZ-FE uses a timing chain, not a belt. The chain tensioner relies on oil pressure. Thin oil or degraded oil reduces that pressure.
The chain starts rattling, especially on cold starts.
If you hear a rattle for two to three seconds when you start the engine, check your oil type and level. Switching to 5W-30 synthetic often quiets the noise.
Valve cover gasket leaks
Both engines develop valve cover gasket leaks around 100,000 miles. Using the wrong oil can accelerate this. Thin oil finds its way past gaskets more easily.
Mistakes DIY Owners Make
Grabbing 5W-20 because it's common
This is the number one mistake. 5W-20 is everywhere. It's what newer Toyotas use. But the 2006 Highlander was not designed for it.
Not replacing the drain plug washer
The crush washer on the drain plug should be replaced every oil change. It costs about 50 cents. Reusing the old one leads to slow drips.
Over time, those drips can strip the threads in the oil pan.
Overfilling
The V6 takes 5 quarts with a full drain. If you don't drain completely, you might only need 4.5 quarts. Pour in 4.5, check the dipstick, then add more.
Overfilling causes foaming and reduced oil pressure.
Using the wrong filter
Not all oil filters fit correctly. The OEM Toyota filter is part number 90915-YZZD3 or 90915-YZZF1. If you use an aftermarket filter, make sure it's listed for the 1MZ-FE or 2AZ-FE engine.
Skipping the oil change reminder
The 2006 Highlander doesn't have an oil life monitor. Track the mileage yourself. Set a reminder on your phone or write the date and mileage on the oil filter with a permanent marker.
What About High-Mileage Oil?
High-mileage oil is formulated for engines with over 75,000 miles. It contains seal conditioners that help rubber gaskets and seals stay flexible.
The main benefit is reducing small oil leaks. If your Highlander leaves a couple drops of oil on the driveway overnight, high-mileage oil often slows or stops that. It also has higher levels of anti-wear additives.
Switch to high-mileage oil somewhere between 75,000 and 100,000 miles. Use a synthetic blend high-mileage 5W-30 for the best balance of protection and cost.
Don't expect miracles. If a gasket is already brittle and leaking badly, high-mileage oil won't fix it. But for minor seepage, it's worth trying first.
Oil Filter Compatibility
The oil filter is just as important as the oil itself. A bad filter lets contaminated oil circulate through the engine.
The OEM Toyota oil filter for the 2006 Highlander is part number 90915-YZZD3. The replacement 90915-YZZF1 is slightly longer and offers more filtration capacity.
Aftermarket filters that are compatible include:
- Fram PH7317
- Purolator L14610
- Wix 51356
- Mobil 1 M1-209
Avoid the cheapest no-name filters. They often have lower-quality bypass valves that stick open or closed. Change the filter every time you change the oil.
The Cold Climate vs. Hot Climate Decision
Cold climates
Stick with 5W-30. It flows well down to about -20°F. If your winter mornings are regularly colder than that, switch to 0W-30 for the cold months.
Switch back to 5W-30 in the spring.
Hot climates
5W-30 still works. The 30 hot-rating provides adequate protection at 212°F operating temperature. The only reason to go thicker is if you're towing heavy loads in 100°F+ temperatures regularly.
Moderate climates
Just use 5W-30 year-round. It's the factory spec for a reason.
Real Scenarios
The 5W-20 experiment
A 2006 Highlander owner with the V6 tried 5W-20 because a friend said it would improve fuel economy. After 20,000 miles, the timing chain tensioner started rattling at startup. The fix was a new tensioner and a switch back to 5W-30.
Fuel economy didn't change.
The stretched interval
Another owner used conventional 5W-30 but changed it every 8,000 miles. At 130,000 miles, the 2.4L engine started ticking. Pulling the valve cover revealed heavy sludge.
The engine needed a full flush and new seals. Total repair cost was over $1,200.
The high-mileage success
A Highlander with 180,000 miles was using a quart of conventional 5W-30 every 1,000 miles. Switching to full synthetic high-mileage 5W-30 reduced consumption to a quart every 2,500 miles. The owner extended the engine's usable life by at least two more years.
Where to Find Exact Specs
Your owner's manual has the final word on oil type. It's in the glove box or available as a PDF from Toyota's owner portal. The section on fluid specifications lists 5W-30 with API grade SL or higher.
The sticker under the hood also shows the factory recommendation. Look for the emissions label or the oil fill cap. Some caps have the viscosity printed right on them.
If you bought the Highlander used and don't have the manual, the Toyota parts department can look up your VIN and confirm the spec.
When to See a Mechanic
Changing oil on the 2006 Highlander is straightforward. But not everyone should do it themselves. If you don't have jack stands or ramps, or if you're not comfortable working under a vehicle, pay a shop.
The cost difference is small. A DIY change costs about $30 in oil and filter. A shop charges $60 to $80.
That extra $30 covers disposal of the old oil, a new crush washer, and peace of mind.
Frequently Asked Questions
Can I use 5W-20 in my 2006 Toyota Highlander?
No. Toyota recommends 5W-30 for both the 3.3L V6 and 2.4L I4 engines. Using 5W-20 increases engine wear over time, especially on the timing chain tensioner and bearing surfaces.
How often should I change the oil on a 2006 Highlander?
Every 5,000 miles with conventional or synthetic blend oil. Every 7,500 miles with full synthetic. Do not stretch past 7,500 miles even with synthetic, as the 2.4L engine is prone to sludge buildup.
What happens if I use the wrong oil type?
Using the wrong viscosity can cause sludge buildup, timing chain noise, reduced fuel economy, and accelerated engine wear. In severe cases, it leads to engine failure requiring a rebuild or replacement.
Does the 2006 Highlander need synthetic oil?
No. Conventional 5W-30 works fine if changed every 3,000 to 5,000 miles. Synthetic offers better protection for longer intervals and extreme conditions.
How do I reset the oil light on a 2006 Highlander?
The 2006 Highlander does not have an electronic oil life monitor. There is no reset button. Track your mileage manually.
Can I mix synthetic and conventional oil?
Yes. Mixing synthetic and conventional oil is safe and creates a synthetic blend. The resulting oil will have properties of whichever base oil is in higher quantity.
Your Bottom Line
Buy a 5-quart jug of 5W-30 synthetic blend with API SN or SP certification. Grab a compatible oil filter. Change both every 5,000 miles.
That's it.
If your Highlander has over 150,000 miles, switch to full synthetic high-mileage 5W-30. The seal conditioners help reduce small leaks. The extra detergents keep sludge from forming.
Check the oil level every other time you fill up gas. The 2006 Highlander can consume oil between changes as it ages. Catching it low before the oil light comes on saves you from expensive damage.
Change the oil yourself or pay a shop. Either way, use the right stuff. Your Highlander doesn't care who turns the wrench.
It just wants the correct oil in the right amount at the right time.
Get it done this week. Your engine will thank you at 200,000 miles.
