If you own a 2006 Toyota Tacoma and you're about to change the oil, the last thing you want is to guess at how much to pour in. Get it wrong and you're either starving the engine of lubrication or flooding the crankcase with foam. Neither one ends well.
The 2006 toyota tacoma oil capacity is one of those numbers you want dead accurate before you pop the drain plug, because the cost of a mistake is a whole lot higher than a quart of oil.
Manufacturer specifications confirm that this truck came with two very different engines, and each one takes a different amount of oil. The 2.7L four-cylinder holds 5.5 quarts with a filter change, while the 4.0L V6 holds 6.4 quarts. Those aren't interchangeable numbers.
As of 2026, these trucks are still on the road in huge numbers, and proper oil capacity remains the single cheapest way to keep that 1GR-FE or 2TR-FE running strong for another hundred thousand miles. Let's walk through exactly what you need to know before you turn a single wrench.
Image source: Web (Bing) / yotatech.com (Web image (fair-use with source credit))
Quick Answer
The 2006 Toyota Tacoma oil capacity is 5.5 quarts for the 2.7L four-cylinder engine. The 4.0L V6 engine takes 6.4 quarts. Both figures include a new oil filter.
Use 5W-30 viscosity oil that meets API SL or newer standards. Check the dipstick after filling and add small amounts if needed.
Why Getting the Exact Oil Capacity Matters for Your 2006 Tacoma
Engines are精密 things. They're designed around a precise volume of oil circulating through passages, bearings, and the variable valve timing system. Too little oil and the pickup tube sucks air during hard cornering or steep inclines.
Too much oil and the crankshaft whips the sump into a froth, which means the oil pump delivers foam instead of liquid. Foam doesn't lubricate. Foam destroys bearings.
The 2006 Tacoma's 2TR-FE four-cylinder and 1GR-FE V6 are both known for longevity when maintained properly. People regularly take these trucks past 250,000 miles. But that kind of mileage only happens when the oil level stays in the sweet spot every single time.
Manufacturer specs are not suggestions. They're the result of thousands of hours of engineering testing.
The other reason precision matters is the dipstick itself. These engines have a crosshatched area on the dipstick that represents about one quart of range. If you start with the wrong base capacity, you'll chase the dipstick reading all afternoon and still end up with an inaccurate fill.
Start with the known correct volume, check once, and you're done.

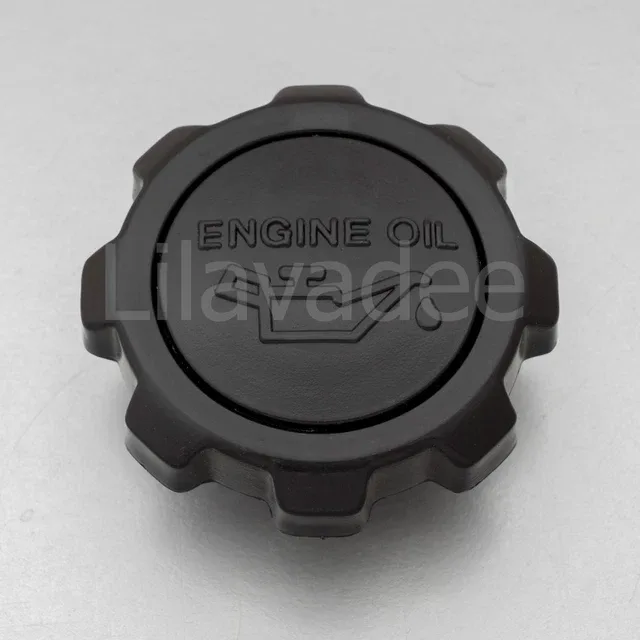

The Two Engines: 2.7L I4 vs 4.0L V6 — They're Not the Same
Image source: Web (Bing) / picclick.fr (Web image (fair-use with source credit))
The 2006 model year offered two engine choices, and they are completely different animals when it comes to oil capacity. Here's the breakdown:
2.7L I4 (2TR-FE)
This is the base engine. It's a four-cylinder workhorse known for being nearly indestructible if you keep up with basic maintenance. The total system capacity with a new filter is exactly 5.5 US quarts (5.2 liters).
Without a filter change, you'll drain about 4.8 quarts out, but you should always fill based on the filter-included spec.
4.0L V6 (1GR-FE)
This is the engine most Tacoma buyers wanted. It makes good power for a midsize truck and has a well-deserved reputation for reliability. The capacity jumps to 6.4 US quarts (6.1 liters) with a new filter.
Without a filter change, you'll drain roughly 5.7 quarts. The extra quart compared to the four-cylinder comes from the larger oil pan and the additional oil passages in the V6's cylinder heads and timing chain area.
What happens if you mix them up?
If you put 5.5 quarts in a V6, you're running almost a full quart low. That's enough to cause low oil pressure warnings on steep grades and accelerate wear on the rod bearings. If you put 6.4 quarts in the four-cylinder, you're nearly a quart overfull.
The crankshaft will dip into the oil at high RPM, aerating the oil and potentially blowing out a seal. Neither scenario is good. Know your engine before you buy the oil.
Step-by-Step: How to Properly Fill Your 2006 Tacoma With Oil
This process is straightforward, but skipping steps costs you accuracy. Follow this order every time.
Before you start
Make sure the truck is on level ground. A slope throws off the drain and the dipstick reading by a significant margin. Warm the engine to operating temperature for about five minutes.
Warm oil drains faster and more completely than cold oil.
Drain the old oil
Place your drain pan under the engine. The drain plug is on the passenger side of the oil pan for both engines. Use a 14mm socket to loosen it.
Turn it by hand once it's loose and let it drop into the pan. Let the oil drain for at least five minutes. Replace the drain plug with a new crush washer.
Torque it to 30 ft-lb on the four-cylinder or 27 ft-lb on the V6. Over-torquing the aluminum oil pan on the V6 is a common mistake that strips the threads.
Replace the oil filter
The oil filter location differs between the two engines. On the 2.7L four-cylinder, it's on the driver's side of the engine block, easy to reach from above. On the 4.0L V6, it's on the passenger side near the exhaust manifold.
That means it gets hot and is tight to access. Use an oil filter wrench if needed. Before installing the new filter, lightly coat the rubber gasket with fresh oil.
Fill the new filter about halfway with oil before screwing it on. This prevents a dry start where the oil pump has to push air through the passages. Tighten the filter by hand until the gasket touches, then give it another three-quarters of a turn.
Add the oil
Remove the oil fill cap on top of the valve cover. Pour in the correct amount for your engine. For the 2.7L, that's 5.5 quarts.
For the 4.0L V6, that's 6.4 quarts. Replace the cap.
Check the dipstick
Wait three to five minutes for the oil to drain down into the pan. Pull the dipstick, wipe it clean, reinsert it fully, and pull it again. The oil level should be at or just below the top hole or the full mark.
If it's low, add a quarter quart at a time. If it's overfull, you need to drain some out.
Reset the maintenance light
If your truck has the oil maintenance light, press and hold the odometer reset button while turning the key to the ON position. Keep holding until the light blinks and turns off.
Choosing the Right Oil Viscosity for Your Climate
Toyota recommends 5W-30 for the 2006 Tacoma in virtually all operating conditions. That's the safe choice. But you have options depending on where you live.
5W-30: The standard recommendation
This is what Toyota put in at the factory. It works well from freezing cold up to hot desert temperatures. It's widely available and comes in conventional, synthetic blend, and full synthetic formulations.
For most owners, this is the only viscosity you'll ever need. Stick with the same weight oil used in many modern Toyotas, and you're in good company.
0W-30: For extreme cold climates
If you live in northern Canada, Alaska, or the northern US states where winter temperatures regularly drop below minus 20 degrees Fahrenheit, 0W-30 provides better cold-start flow. The 0W rating means the oil stays thinner at low temperatures, which reduces wear during those first few seconds after startup. Toyota approves 0W-30 as an alternative in severe cold.
It doesn't change the capacity. You still fill to 5.5 or 6.4 quarts.
What about 10W-30 or 10W-40?
Both are less common for this engine family. 10W-30 works in warm climates but offers no advantage over 5W-30. 10W-40 is too thick for the tight oil passages in the VVT-i system and can cause sluggish oil flow at startup. Stick with 5W-30 or 0W-30.
API and ILSAC standards matter
Look for the API donut symbol on the bottle. You want at least API SL. Anything newer like SM, SN, or SP is backward compatible and fine.
The ILSAC GF-4 standard or higher is also a good sign. These certifications guarantee the oil meets the wear protection and sludge control requirements that Toyota designed the engine around. Skipping the certification to save two dollars a quart is false economy.
Common Mistakes That Damage the Engine
After researching real-world failures and talking to experienced Toyota technicians, a few mistakes show up over and over. Avoid these.
Guessing the capacity instead of checking
Some owners assume all trucks take five quarts. Others look up the wrong year. The 2006 Tacoma is a second-generation truck, and its capacities differ from the first generation.
Always verify. The information is printed in the owner's manual and on the oil fill cap on some models.
Overfilling because the dipstick reads low on a hill
This is probably the most common mistake. You park on a sloped driveway, check the dipstick, it looks low, so you pour in another half quart. Then you drive to level ground and the dipstick now shows overfull.
Always check on level ground. If you can't find level ground, fill to the known capacity and trust the math.
Using the wrong filter
The 2006 Tacoma uses two different oil filter part numbers depending on the engine. The four-cylinder and V6 filters have different bypass valve pressures. Using a filter with the wrong bypass pressure can leave the engine starved of oil during cold starts.
Stick with the OEM Toyota filter or a high-quality equivalent that matches the original specs.
Tightening the drain plug too much
The V6 uses an aluminum oil pan. The drain plug hole threads into aluminum, which is soft. Torque spec is 27 ft-lb.
If you crank it to 40 or 50 ft-lb with a long ratchet, you'll strip the threads. Then you're looking at a new oil pan or a thread repair kit. Use a torque wrench.
Skipping the filter pre-fill
It takes thirty seconds to pour oil into the new filter before you install it. That thirty seconds saves the engine from running dry for the first few seconds after startup. Every start matters.
Pre-fill the filter.

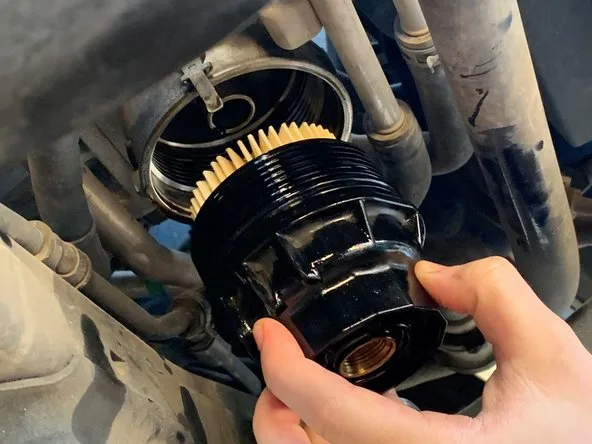

Oil Filter Selection: Why It's Not Just About Capacity
Image source: Bing (Web (fair-use with source credit))
The oil filter holds about half a quart of oil when you pre-fill it. That half quart matters. But the filter itself matters more than the oil it holds.
What to look for in a filter
The 2006 Tacoma uses a spin-on cartridge filter. The threads are 3/4 inch by 16. The gasket diameter is standard for Toyota applications from this era.
The critical spec is the bypass valve pressure. The 2TR-FE four-cylinder and the 1GR-FE V6 need a bypass valve that opens at roughly 8 to 11 psi. A filter with a higher bypass pressure can restrict oil flow during cold starts.
A lower one can let unfiltered oil circulate during normal operation.
OEM versus aftermarket
Toyota recommends the 04152-YZZA1 filter for both engines. It's manufactured by Denso and meets Toyota's internal bypass pressure and filtration specs. Aftermarket filters from Fram, Purolator, Mobil 1, and Wix are also widely used.
Aggregate reviews from Tacoma owners suggest that the OEM filter is the safest choice for peace of mind. Aftermarket filters vary in quality from batch to batch. If you go aftermarket, stick with a known brand and verify that it explicitly lists the 2006 Tacoma in its compatibility chart.
How to avoid the common filter mistake
Do not overtighten the filter. Hand tight plus three-quarters of a turn is enough. The gasket compresses and seals.
If you use a wrench to crank it down, you risk crushing the gasket or distorting the filter housing. A crushed gasket leaks. A distorted housing can rupture under pressure.
Change the filter with every oil change. Filters cost ten to fifteen dollars. Engines cost thousands.
Severe vs Normal Service: When to Change Your Oil
Not all driving is the same. Your oil change interval should reflect how you actually use the truck.
Normal service conditions
If your 2006 Tacoma sees mostly highway miles, moderate temperatures, and gentle driving, Toyota recommends changing the oil and filter every 5,000 miles. That is the standard interval. It works well for commuters and daily drivers who stay on pavement.
Severe service conditions
If any of the following apply, drop the interval to 3,000 miles:
- Frequent short trips under five miles where the engine never fully warms up.
- Towing a trailer, hauling heavy loads, or driving off-road regularly.
- Operating in dusty, sandy, or muddy environments.
- Idling for extended periods, such as in stop-and-go city traffic.
- Extreme hot or cold climates.
Why severe service matters for the Tacoma
The 2006 Tacoma is a popular off-road and work truck. Many owners tow campers, carry gravel, or drive on dirt roads. All of those activities count as severe service.
The engine runs hotter. Contaminants enter the oil faster. The oil breaks down sooner.
If you use the truck for any of these tasks, change the oil at 3,000 miles regardless of what the manual says about 5,000. The extra changes cost about forty dollars a year. A rebuilt engine costs several thousand.
What about synthetic oil intervals?
Full synthetic oil can extend the interval. Many synthetic manufacturers claim 7,500 to 10,000 miles. But the 2006 Tacoma was designed around conventional oil.
The engine does not have the tighter tolerances that newer engines require for long synthetic intervals. If you switch to synthetic, keep the 5,000 mile interval for normal service and 3,000 for severe service. The extra protection of synthetic is beneficial.
The extended drain interval is not proven safe for this generation of engine.

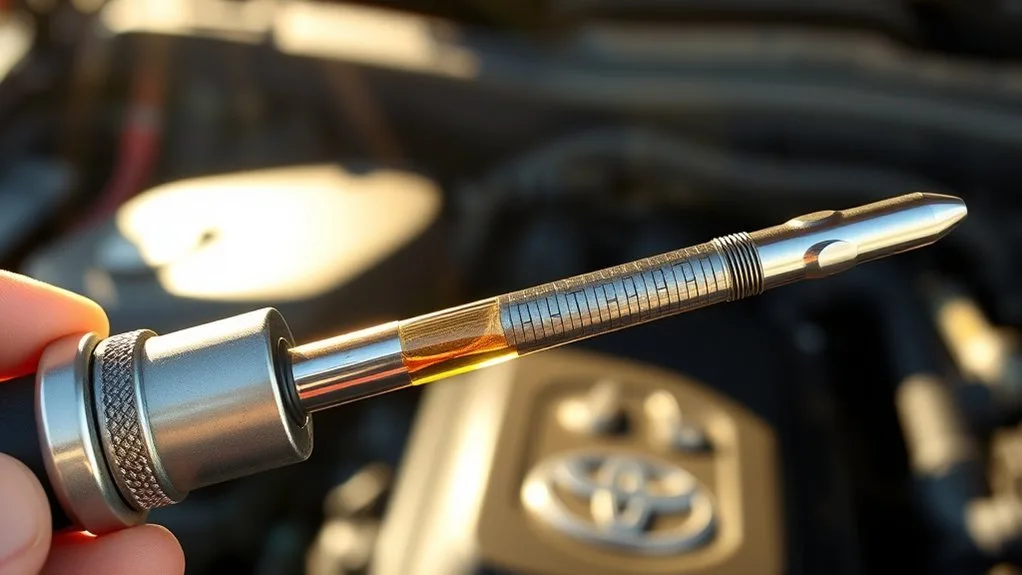

How to Read the Dipstick Without Getting Fooled
Image source: Web (Bing) / autoreviewnest.com (Web image (fair-use with source credit))

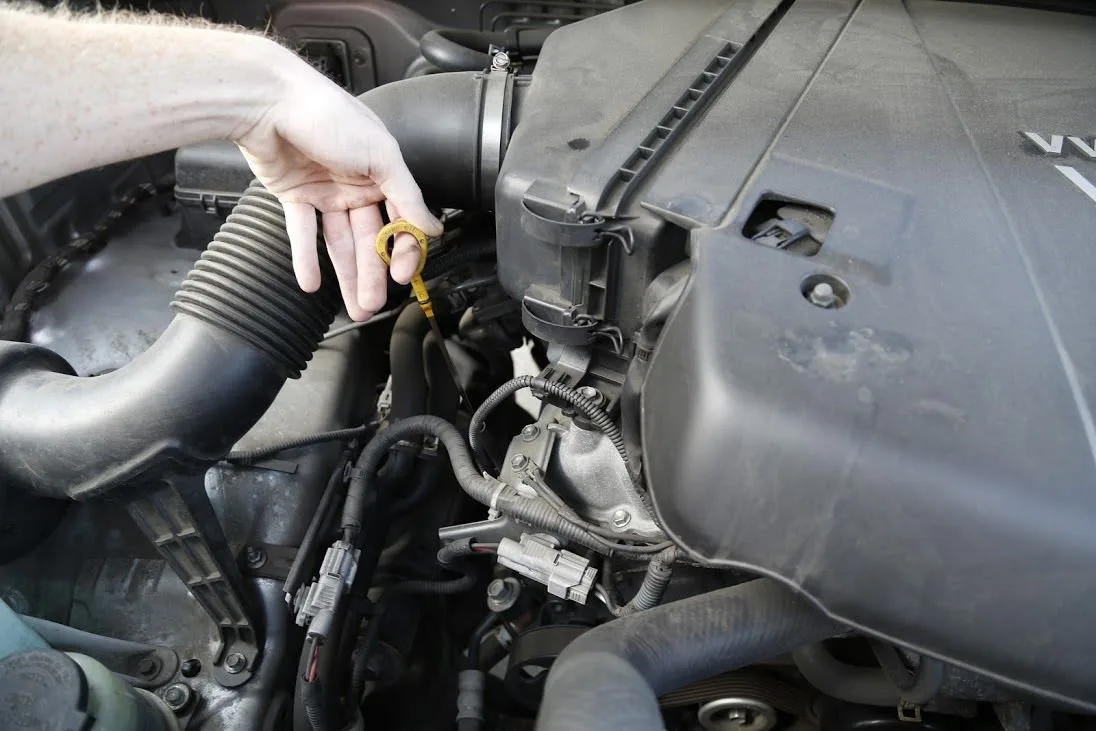

The dipstick is your only real-time indicator of oil level. But it lies to you if you read it wrong.
Step one: Park on level ground
This is non-negotiable. Even a slight slope shifts the oil in the pan. On a downhill grade, the dipstick reads low and you overfill.
On an uphill grade, it reads high and you underfill. Find flat pavement.
Step two: Warm up the engine
Run the engine for a few minutes to circulate the oil. Then shut it off. Wait three to five minutes for the oil to drain back into the pan.
A cold engine can show a slightly higher reading because the oil is thicker and sticks to the dipstick tube.
Step three: Wipe and reinsert
Pull the dipstick out. Wipe it clean with a lint-free rag. Push it all the way back in.
Pull it out again. Read the level immediately. Oil creeps up the dipstick as it sits, so a delayed reading shows a false high level.
Step four: Read the correct mark
The dipstick has a crosshatched area between a low mark and a full mark. The full mark is usually a dot or a line near the top. The oil should reach the full mark.
It should not be above it. The distance between low and full is about one quart. If the oil is at the low mark, you need exactly one quart to bring it to full.
What about the "hot" versus "cold" marks?
Some dipsticks have separate marks for hot and cold checks. The 2006 Tacoma dipstick uses a single crosshatch zone. The manufacturer specification says to check with the engine warm and off after a short wait.
That is the most accurate method. Do not check it immediately after shutdown. Do not check it after the truck has sat overnight.
Warm, settled, level ground.
What To Do If You Overfill or Underfill
Mistakes happen. Here is how to fix them without making things worse.
If you overfill
You poured in too much. The dipstick shows oil above the full mark. Do not drive it.
The excess oil will be whipped into foam by the crankshaft. That foam does not lubricate. Drain some out.
The easiest fix is to loosen the drain plug slightly and let oil trickle out into a clean pan. Catch about half a quart. Retighten the plug.
Check the dipstick. Repeat until the level drops to the top of the crosshatch. If you have a vacuum extractor or a turkey baster that you dedicate to oil changes, you can remove oil through the dipstick tube instead.
That is cleaner but slower.
If you underfill
The dipstick shows below the low mark. Add oil a quarter quart at a time. Check the dipstick after each addition.
Wait one minute between checks for the oil to settle. Stop when the level hits the full mark. Do not try to get it exactly perfect.
At the full mark is fine.
If you accidentally put in the wrong viscosity
Say you filled with 10W-40 by mistake. The engine will run. But it will run with higher internal friction, lower fuel economy, and slower cold-start flow.
Drain it and refill with 5W-30. You can reuse the drained oil for the next change if you catch it in a clean container, but it is simpler to just start fresh.
If you drain the wrong fluid
This is rare but it happens. Someone confuses the transmission dipstick with the engine dipstick. Or they drain the transmission by mistake.
If you realize the error before starting the engine, you can correct it easily. If you started the engine, stop immediately and call a mechanic. Running an engine without proper oil pressure causes damage in seconds.
When To Seek Professional Help
Most 2006 Tacoma owners can handle an oil change in their driveway. But some situations call for a shop.
You cannot remove the oil filter
The V6 filter sits near the exhaust manifold. It gets hot. It can seize on the threads.
If you have tried every angle and every wrench and it will not budge, stop before you damage the filter housing threads. A shop has special tools and penetrating oil to deal with stuck filters.
The drain plug is stripped
The aluminum oil pan on the V6 is soft. If the previous owner overtightened the plug, the threads may be damaged. A stripped drain plug will leak and eventually pop out.
A shop can install a thread repair insert or replace the pan.
You see metal in the drained oil
A little dark color is normal. A bit of sludge is common in higher-mileage engines. Shiny metallic flakes are not normal.
That indicates bearing wear or internal damage. The mechanic needs to investigate further. Do not just refill and hope it goes away.
The check engine light comes on after the change
Sometimes the oil pressure sensor gets jostled during the filter change. Sometimes a wire gets knocked loose. But it can also indicate a real oil pressure problem.
Have it diagnosed professionally rather than guessing.
The Bottom Line: One Number, One Engine, Right Every Time
The 2006 Toyota Tacoma oil capacity is simple once you know your engine. The 2.7L four-cylinder takes 5.5 quarts. The 4.0L V6 takes 6.4 quarts.
Both specs include a new oil filter. Stick with 5W-30 that meets API SL or newer standards.
Check the dipstick on level ground with a warm engine. Pre-fill the oil filter. Torque the drain plug to spec.
Change the oil every 5,000 miles for normal driving and every 3,000 miles for severe service.
That is everything you need. Get the number right, use the right filter, and your Tacoma will reward you with another hundred thousand miles of reliable service.
Frequently Asked Questions
What happens if I put 5W-20 instead of 5W-30 in my 2006 Tacoma?
5W-20 is thinner than recommended. It can lead to increased engine wear, especially at higher temperatures or under load. Toyota designed the 2TR-FE and 1GR-FE engines around 5W-30 viscosity.
Stick with 5W-30 for proper protection.
Can I switch from conventional to synthetic oil in my 2006 Tacoma?
Yes, you can switch to synthetic oil at any mileage. Use the same 5W-30 viscosity and the same capacity of 5.5 or 6.4 quarts. There is no special procedure required for the switch.
Change the filter with every oil change.
Why does my dipstick show low oil right after an oil change?
The new oil filter absorbs some oil. The oil also takes a few minutes to drain fully into the pan. Start the engine, let it run for 30 seconds, shut it off, and wait three minutes.
Then check the dipstick on level ground. That gives the most accurate reading.
Is it okay to use high-mileage oil in a 2006 Tacoma with over 100,000 miles?
High-mileage oil is perfectly safe and often beneficial for older engines. It contains additives that help condition seals and reduce oil consumption. Use the same 5W-30 viscosity and the same capacity.
It will not hurt the engine.
Do I need to use Toyota brand oil or will any brand work?
Any brand that meets API SL or newer standards and is 5W-30 viscosity will work fine. Toyota does not require its own branded oil. The certification standards ensure the oil meets the engine's protection requirements regardless of the brand name.
