2008 Toyota Highlander Oil Capacity: Exact Specs

If you're about to change the oil on a 2008 Toyota Highlander, the first thing you need is the exact capacity. The 2008 toyota highlander oil capacity depends on which engine is under the hood. Manufacturer specifications confirm the 3.3L V6 takes 5.5 quarts with a filter change, while the 2.4L four-cylinder takes 4.8 quarts.

The recommended viscosity is 5W-30, meeting API SN or higher standards. Getting this right is the foundation of a healthy engine. Use the wrong amount, and you risk expensive repairs.

Why Getting the Oil Capacity Right Matters

This isn't a "close enough" situation. Using the wrong amount can cause real damage.

Underfilling risks. Too little oil means the pump can suck air. That leads to low oil pressure and metal grinding against metal. You'll get bearing wear, camshaft damage, and eventually engine knock.

A rebuild on this generation Highlander runs $4,000 to $6,000.

Overfilling risks. Adding too much oil is surprisingly common. The crankshaft whips through the extra oil, creating foam. Foam doesn't lubricate well.

It also puts pressure on seals, causing leaks. In extreme cases, overfilling can blow out a rear main seal or force oil past the piston rings.

The 2AZ-FE has a known quirk. The 2.4L four-cylinder in some 2008 Highlanders burns oil as it ages. Using the correct capacity and checking the dipstick regularly is critical. Toyota issued technical service bulletins about this issue.

The viscosity matters too. Toyota spec'd 5W-30 for a reason. Thicker oil won't flow fast enough on cold starts. Thinner oil may not maintain film strength at operating temperature.

Stick with the spec.

Our research shows the #1 cause of premature engine failure in older Toyotas is improper oil maintenance. A few quarts of the right oil, changed on schedule, is the cheapest insurance you'll ever buy. For a deeper look at lubricant choices across the lineup, check out our full guide on the right oil for this vehicle.

The Quick Answer: 2008 Highlander Oil Capacity at a Glance

Here's the cheat sheet. Print it or save it on your phone.

Important note: The numbers above include the oil that stays in the filter. If you're just topping off, add slowly and check the dipstick. The difference between "Low" and "Full" on the dipstick is roughly one quart.

A quick word on the hybrid. The 2008 Highlander Hybrid uses a different powertrain setup. It shares the 3.3L V6 engine block, but the hybrid system has its own cooling and a different oil pan design. The hybrid oil capacity is still 5.5 quarts with filter, but double-check your owner's manual if you're working on a hybrid.

Two Engines, Two Capacities: Which One Do You Have?

Before you buy oil, you need to know which engine is in your car. This is the most common mistake we see.

Check the VIN. The 8th digit of your Vehicle Identification Number tells you the engine. "V" means the 3.3L V6. "G" means the 2.4L four-cylinder.

Find the VIN on the driver's side dashboard or the door jamb sticker.

Look under the hood. The V6 engine cover is larger and says "3.3L V6" or "VVT-i" on it. The four-cylinder cover is narrower and says "2.4L" or "VVT-i."

Count the spark plug wires. The V6 has six spark plugs. The 2.4L has four. This is a surefire way to identify the engine without reading labels.

Why this matters for capacity. The V6 takes 5.5 quarts, the 2.4L takes 4.8 quarts. That's a 0.7 quart difference. Pour V6 capacity into a 2.4L engine, and you'll overfill it by about 15 percent.

What Oil Should You Use? Viscosity, Type, and Certification

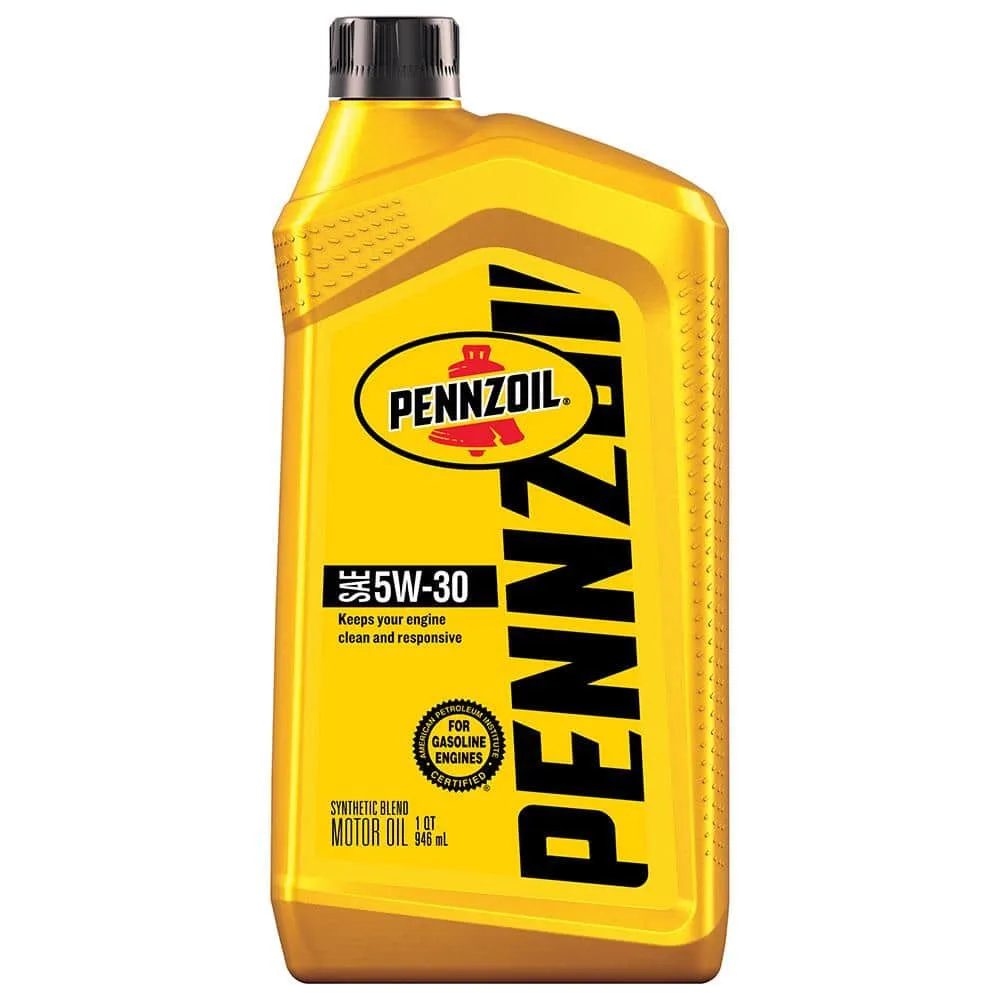

5W-30 Is the Factory Spec

Toyota's official recommendation for the 2008 Highlander is 5W-30 motor oil. This applies to both engines and all climates. The owner's manual states this clearly.

Why 5W-30? The "5W" means the oil flows like a 5-weight oil when cold, allowing easy startup. The "30" means it behaves like a 30-weight oil at operating temperature, providing proper film strength. This balance works well across a wide temperature range.

Can you use 0W-20? Toyota does not list 0W-20 as an approved viscosity for the 2008 Highlander in the owner's manual. There is no technical service bulletin that retroactively approves it. Stick with 5W-30 unless you live in extreme cold and have consulted a Toyota technician.

Conventional vs. Synthetic

Conventional 5W-30. This is the minimum spec. It works fine for normal driving. Change it every 5,000 miles.

It costs about $4 to $6 per quart as of 2026.

Synthetic 5W-30. This is the better choice for most owners. It handles heat better, resists breakdown longer, and provides better cold-start protection. It's ideal for towing, stop-and-go driving, or hot climates.

Change it every 7,500 to 10,000 miles. It costs $8 to $12 per quart.

Our recommendation. If you plan to keep the Highlander for a while, use full synthetic 5W-30. The extra cost is about $20 to $25 per oil change. The protection benefits are worth it, especially for the 2.4L engine.

For a detailed comparison of synthetic versus conventional across Toyota models, see our guide on synthetic vs conventional oil for the RAV4.

API and ILSAC Certifications

Look for the API starburst symbol on the bottle. It should say "API SN" or "API SN Plus" for the 2008 Highlander. Also look for "ILSAC GF-5" certification.

These standards ensure the oil meets modern protection requirements. Don't use oil labeled API SJ or SL. Those are older standards.

The American Petroleum Institute sets these certification standards for engine oil quality.

Tools and Parts You'll Need for a DIY Oil Change

If you're doing this yourself, you need specific tools. Skimping here leads to stripped threads, leaks, or the wrong filter.

Oil and filter. Buy 6 quarts of 5W-30 oil and the correct oil filter. The Toyota OEM filter (04152-YZZA1) is the gold standard. Aftermarket filters from Purolator, Mobil 1, or Wix are fine too, but make sure they have the correct bypass valve setting.

Crush washer. This is a single-use copper or aluminum washer that seals the drain plug. Never reuse the old one. A pack of 10 costs about $5.

Socket set. You need a 14mm socket and ratchet for the drain plug. Some aftermarket drain plugs use a 13mm or 15mm head, so check yours first.

Filter wrench. A cap-style filter wrench that fits the filter's fluted end works best. A strap wrench also works, but it's easier to damage the filter housing without the right tool.

Torque wrench. A 3/8-inch drive torque wrench that reads in foot-pounds. You'll need it for the drain plug (29 ft-lbs) and the filter (18 ft-lbs). Guessing is how threads get stripped.

Jack and jack stands or ramps. Ramps are easier and safer for a flat driveway. Jack stands are required if you're using a floor jack. Never rely on the jack alone.

Drain pan, funnel, shop towels, and gloves. A 6-quart drain pan with a spout. A long-neck funnel. Nitrile gloves.

Shop towels for spills.

Step-by-Step: How to Change the Oil on a 2008 Highlander

Step 1: Prep and Safety

Park on level ground. If using ramps, drive up and set the parking brake. If using jack stands, chock the rear wheels.

Warm the engine for 30 seconds, then shut it off. Warm oil drains faster and carries more contaminants.

Step 2: Drain the Old Oil

Locate the drain plug. On the 3.3L V6, it's on the passenger side of the oil pan. On the 2.4L, it's on the driver side.

Place your drain pan underneath. Use a 14mm socket to loosen the plug counterclockwise.

Important: Remove the oil filler cap before draining. This lets air in and helps the oil flow faster. Wait at least 5 minutes for the oil to fully drain.

Step 3: Replace the Filter

Move the drain pan under the oil filter. The filter is on the front of the engine, accessible from below. Use your filter wrench to loosen it.

It will spill some oil, so keep the pan ready.

Before installing the new filter: Rub a small amount of fresh oil on the rubber gasket. This prevents the gasket from sticking. Screw the filter on by hand until the gasket contacts the mounting surface.

Then tighten it an additional 3/4 turn. Do not use a wrench for final tightening.

Step 4: Add the Right Amount of New Oil

Install a new crush washer on the drain plug. Torque it to 29 ft-lbs. Lower the car.

Use a funnel to add oil through the filler port.

For the 3.3L V6: Pour in 5.5 quarts. For the 2.4L: Pour in 4.8 quarts. Add slowly and check the dipstick as you approach the final amount. It's easier to add more than to drain excess.

Step 5: Check the Level and Clean Up

Start the engine and let it run for 30 seconds. This fills the new filter. Shut the engine off.

Wait 5 minutes. Pull the dipstick, wipe it clean, reinsert it, and pull it again. The level should be between the "L" and "F" marks.

Top off if needed. Dispose of the old oil and filter properly. The EPA recommends recycling used oil at a collection center.

Most auto parts stores accept it for free.

Common Mistakes That Cost Highlander Owners Real Money

Overfilling

This is the most frequent error. Owners pour in the full 5-quart jug plus an extra quart because they think "more is better." The 3.3L V6 only needs 5.5 quarts. The 2.4L only needs 4.8 quarts.

What happens: The crankshaft whips through the excess oil, aerating it into foam. The oil pump can't push foam effectively. Critical parts run dry.

The result is accelerated bearing wear and potential seal damage. Repair costs easily exceed $1,500.

The fix: Measure carefully. Add oil in stages. Check the dipstick after the first 5 quarts for the V6 or 4.5 quarts for the 2.4L.

Then add the remaining amount slowly.

Using the Wrong Filter or Skipping the Crush Washer

A cheap aftermarket filter might save you $3, but it can cost you an engine. The wrong filter may have an incorrect bypass valve pressure or a different gasket diameter.

The crush washer matters. The drain plug crush washer deforms when tightened, creating a perfect seal. Reusing an old one means the metal has already been crushed flat. It won't seal properly.

You'll get a slow drip that loses oil over time.

Our advice: Always use a new crush washer. Always buy a filter that meets or exceeds OEM specifications. The Toyota 04152-YZZA1 filter is proven for this application.

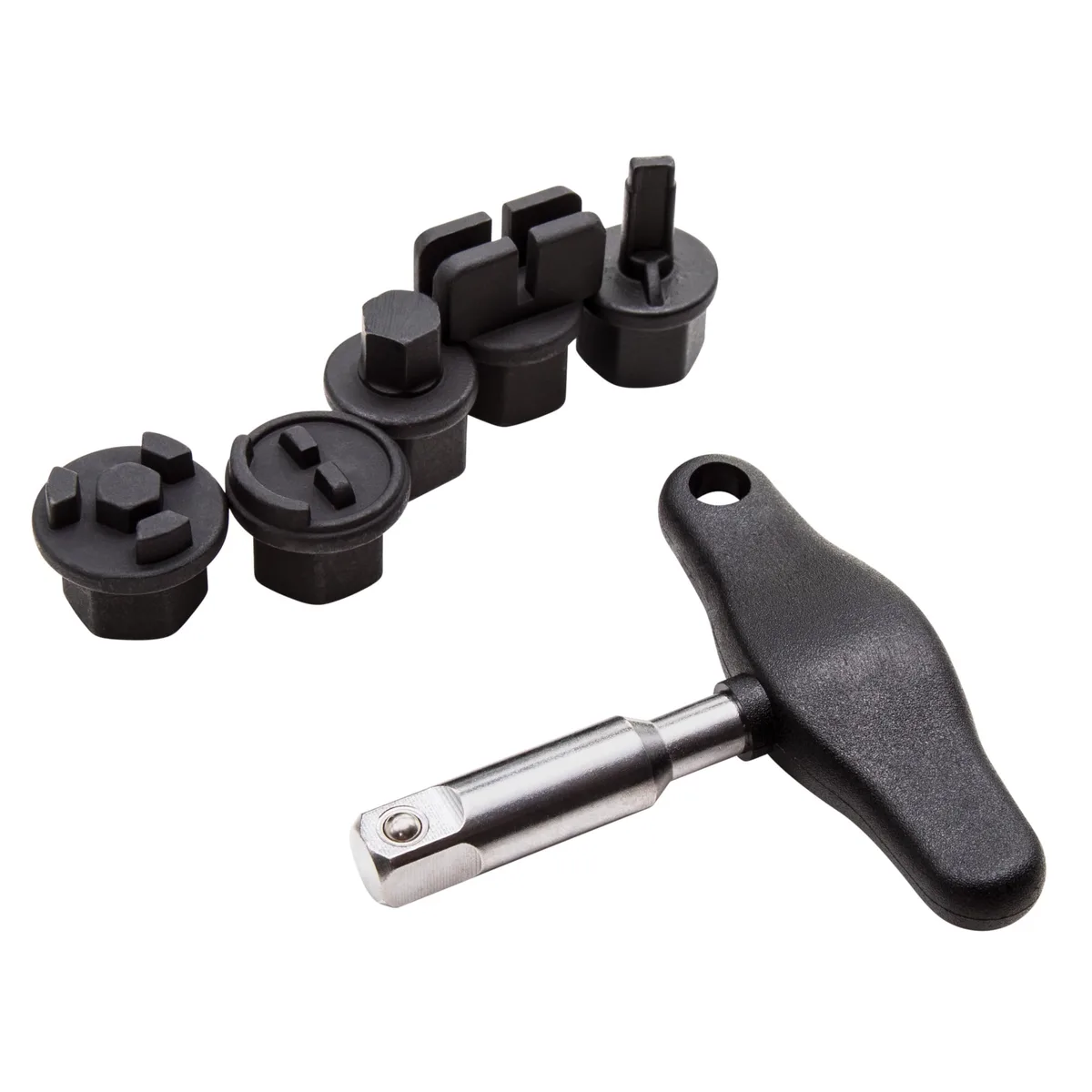

Torque Specs You Shouldn't Ignore

Torque specs are not suggestions. The 2008 Highlander's oil pan is made of aluminum. Over-tightening the drain plug can strip the threads permanently.

Under-tightening can cause leaks.

Drain plug torque: 29 ft-lbs (39 Nm). Use a torque wrench set to this value. If you strip the aluminum threads, the repair involves a replacement oil pan or a thread repair insert.

That's a $200 to $500 job.

Oil filter torque: 18 ft-lbs (24 Nm). Most people overtighten filters. Hand-tight plus 3/4 turn is usually enough.

Over-tightening can crush the filter gasket or damage the housing threads.

How Often Should You Change the Oil?

Toyota's original recommendation was 5,000 miles between oil changes using conventional oil. This is a conservative, safe interval. With full synthetic oil, you can extend that to 7,500 miles.

But consider your driving conditions. If you do a lot of short trips, stop-and-go traffic, towing, or driving in dusty conditions, you're in the "severe service" category. Toyota's severe service schedule recommends 3,000 to 3,750 miles between changes.

Time matters too. Even if you don't drive 5,000 miles in a year, change the oil annually. Oil breaks down over time from moisture absorption and temperature cycling. A car that sits for 12 months needs fresh oil.

Our recommendation: Change the oil every 5,000 miles or 12 months, whichever comes first. Use full synthetic 5W-30. For the 2.4L engine, check the oil level every 1,000 miles and top off as needed.

When to Call a Pro vs. Doing It Yourself

DIY oil changes save money. A 2008 Highlander oil change costs about $35 to $45 in parts with conventional oil. Full synthetic bumps that to about $55 to $70.

A shop charges $80 to $120 for the same service.

Do it yourself if: You have the tools, a safe workspace, and you're comfortable getting under the car. You also know exactly what oil and filter went in.

Call a pro if: You lack the tools, don't have a level surface, or aren't comfortable with the process. A shop also handles oil disposal and can spot other issues like leaking valve cover gaskets.

For reference on other Toyota models, our guides on the Toyota Camry oil type and Toyota Sienna oil type cover the specific recommendations for each platform.

Quick Reference Spec Sheet

Print this and keep it in your glove box.

One last tip: Write the date and mileage on the oil filter with a permanent marker after each change. It makes tracking your maintenance history effortless.

FAQs

Can I use 0W-20 oil in my 2008 Highlander?

Toyota does not list 0W-20 as an approved viscosity for the 2008 model year. Stick with 5W-30 unless a Toyota technician advises otherwise for extreme cold.

What happens if I put in too much oil?

Overfilling causes oil foaming, seal damage, and potential bearing failure. If you overfill, drain the excess immediately. Running with too much oil can cause thousands in engine damage.

How do I check the oil level correctly?

Park on level ground. Let the engine cool for 5 minutes after running. Pull the dipstick, wipe it clean, reinsert it fully, then pull it again.

The level should sit between the "L" and "F" marks.

Is synthetic oil worth the extra cost?

Yes, especially for the 2.4L engine. Synthetic oil resists breakdown better, handles heat more effectively, and provides superior cold-start protection. The extra $20 per change is cheap insurance.

Where can I dispose of old oil?

Most auto parts stores accept used oil and filters for free. Never pour oil down drains, onto the ground, or into household trash. It's illegal and environmentally harmful.
