Toyota Camry 2.5 Oil Capacity: Exact Amount

If you own a 2010 Toyota Camry with the 2.5-liter four-cylinder engine, there's one number you need to have absolutely right: the oil capacity. Get it wrong and you're either starving the engine of lubrication or creating enough internal pressure to blow out seals and damage the variable valve timing system. The 2010 toyota camry 2.5 oil capacity is 4.4 quarts when you change the filter, or 5.3 quarts for a completely dry engine after a rebuild or major repair.

That half-quart difference between a standard oil change and a dry fill is where most people slip up. Manufacturer specifications from Toyota's official owner's manual confirm these numbers, and as of 2026, they haven't changed. Let's break down exactly what you need, why the number matters more than you think, and how to do it right every time.

Image source: Bing (Web (fair-use with source credit))

Quick Answer

The 2010 Camry 2.5 takes 4.4 quarts of oil with a filter change. Use SAE 0W-20 synthetic. The dry fill capacity is 5.3 quarts.

Check the dipstick after adding. Add oil in small increments. Never exceed the full mark.

Why Getting the Oil Capacity Wrong Can Cost You an Engine

This isn't one of those topics where "close enough" works. The 2AR-FE engine in your 2010 Camry uses a variable valve timing system that relies on oil pressure to function correctly. Put in too little oil and the VVT actuators can't build enough pressure.

The engine runs rough, throws a check engine light, and over time the cam phasers wear out prematurely.

Too much oil is actually worse in some ways. When the crankshaft spins through an overfilled oil pan, it whips the oil into a foam. Aerated oil doesn't lubricate well.

Air bubbles collapse under load, leaving metal surfaces dry. That's how you get scored bearings, damaged piston rings, and eventually a rod knock that means a new engine.

Here's what the aggregate owner feedback across Toyota forums and service records consistently shows: the most common oil-related failure on this engine isn't using the wrong viscosity. It's overfilling by a quart or more because someone assumed "a little extra can't hurt." It can. And it does.

The 2AR-FE is otherwise a bulletproof engine. Toyota designed it to easily clear 200,000 miles with basic maintenance. But that reliability depends on getting the basics right.

Oil capacity is the most basic of those basics.

The 2AR-FE Engine: What You're Working With

The 2AR-FE is a 2.5-liter inline-four that Toyota introduced in 2009. It replaced the older 2.4-liter 2AZ-FE engine. The big change was moving from a timing chain that needed occasional replacement to a more robust chain design, plus adding dual variable valve timing on both the intake and exhaust cams.

This engine appeared in the 2010 Camry, the RAV4, the Scion tC, and several other Toyota models. It's known for being smooth, quiet, and fuel-efficient. But the VVT system is sensitive to oil level and pressure in ways that older engines weren't.

The oil pan on the 2010 Camry 2.5 holds less oil than you might expect for a modern four-cylinder. That 4.4-quart service fill is deliberately calibrated. Toyota engineers designed the oil system so the oil level sits at a specific height relative to the windage tray and crankshaft counterweights.

Fill it higher and you're literally splashing moving parts through oil that should be sitting quietly in the pan.

The oil filter is mounted on the front of the engine, accessible from above. That's actually convenient for DIY changes. You don't need to crawl under the car to reach it.

We'll cover that in the step-by-step section.

Dry Fill vs. Service Fill: Why the Difference Matters

This is where confusion starts. If you look up the oil capacity for the 2010 Camry 2.5 in different places, you might see 4.4 quarts or 5.3 quarts. Both are correct.

It depends on the situation.

Service fill (4.4 quarts) is what you need for a routine oil change. You drain the old oil, replace the filter, and refill. The engine still has a film of oil coating internal surfaces, and the oil cooler and passages hold some residual oil.

You don't need to fill it to the dry capacity.

Dry fill (5.3 quarts) applies when the engine has been completely disassembled and rebuilt, or when a new short block has been installed. Every oil passage, the oil cooler, the filter housing, and the pan are completely empty. You need the extra 0.9 quarts to bring everything up to the proper level.

Here's a quick reference table:

If you're doing a standard oil change on a running engine, always use 4.4 quarts. Start with 4 quarts, check the dipstick, then add the remaining 0.4 quarts as needed. Never dump the full 5.3 quarts into an engine that wasn't completely dry.

The Right Oil for Your 2010 Camry 2.5 (Viscosity & Type)

Toyota specifies SAE 0W-20 full synthetic oil for the 2AR-FE engine. That's what the oil fill cap says, and that's what the owner's manual calls for. Use it.

0W-20 is a thin oil at cold temperatures. That "0W" part means it flows easily in freezing weather, getting to engine components quickly during startup. Once warm, it maintains the viscosity of a 20-weight oil.

Modern engines are built with tighter tolerances than older engines. They need thin oil to flow through narrow passages, especially into the VVT actuators.

Can you use 5W-30 in a pinch? Technically yes, but it's not recommended by Toyota for this engine. Thicker oil reduces fuel economy, and in cold weather it doesn't circulate as fast during startup.

That extra wear adds up over time. If you're stranded and 0W-20 isn't available, 5W-30 will get you home. Change it back to the correct viscosity at your next service.

For the oil type by newer Toyota models, the specs have remained fairly consistent. The principles of keeping the right viscosity and capacity apply across generations. Toyota's standard for modern gasoline engines is 0W-20 synthetic, and that hasn't changed much over the years.

What about conventional oil? Don't bother. The 2AR-FE was designed around synthetic oil's properties.

Conventional oil breaks down faster under heat and doesn't flow as well at low temperatures. The price difference between conventional and synthetic is maybe $10 per oil change. That's cheap insurance for an engine that can easily run past 200,000 miles with good care.

Step-by-Step: How to Check and Fill Oil the Right Way

Let's walk through a proper oil check and top-up on the 2010 Camry 2.5. This is the process you should follow every time, whether you're doing a full change or just verifying the level between services.

Step 1: Warm the engine. Cold oil drains slowly and reads low on the dipstick. Idle the engine for about five minutes, then shut it off. Wait two minutes for the oil to settle back into the pan.

Step 2: Park on level ground. Any slope throws off the reading. Pull onto a flat surface. If you're on a slight incline, the dipstick will show either overfull or underfull, neither of which is accurate.

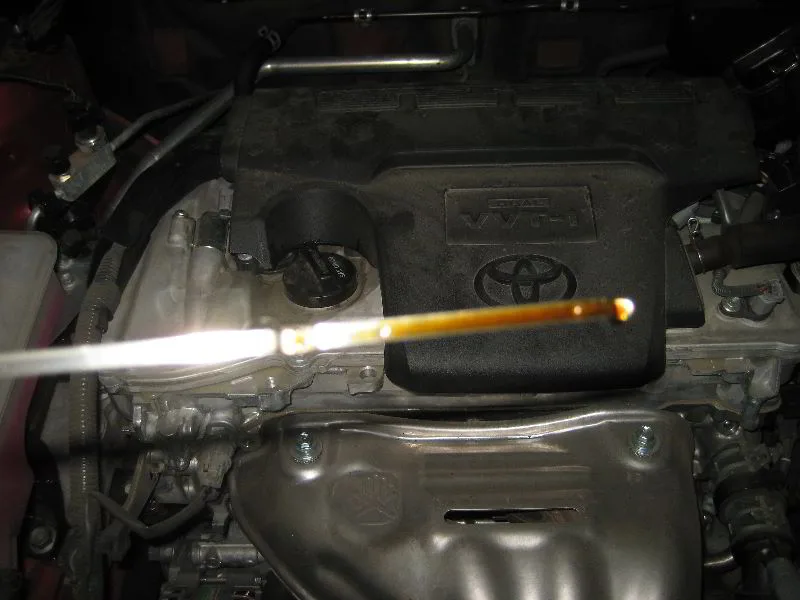

Step 3: Pull the dipstick and wipe it clean. The dipstick on the 2AR-FE is easy to spot. It has a bright yellow handle near the front of the engine on the passenger side. Pull it out, wipe it with a lint-free rag, and push it back in all the way.

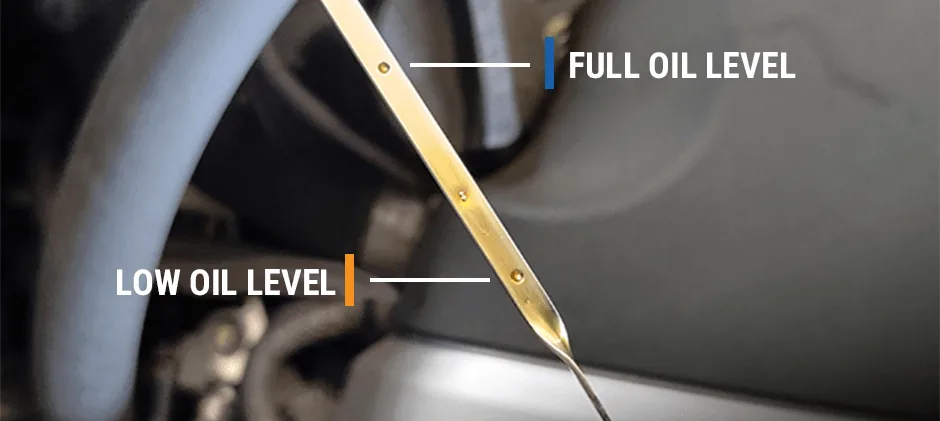

Step 4: Pull it again and read the level. The dipstick has two marks: a lower mark (low) and an upper mark (full). The oil level should sit between them, closer to the full mark. If it's at or below the lower mark, you need oil.

Step 5: Add oil in small amounts. Add half a quart at a time. Wait 30 seconds for it to drain into the pan. Check the dipstick again.

Repeat until the level reaches the full mark. Never dump in a full quart without checking mid-way.

Image source: Web (Bing) / paulstravelpictures.com (Web image (fair-use with source credit))

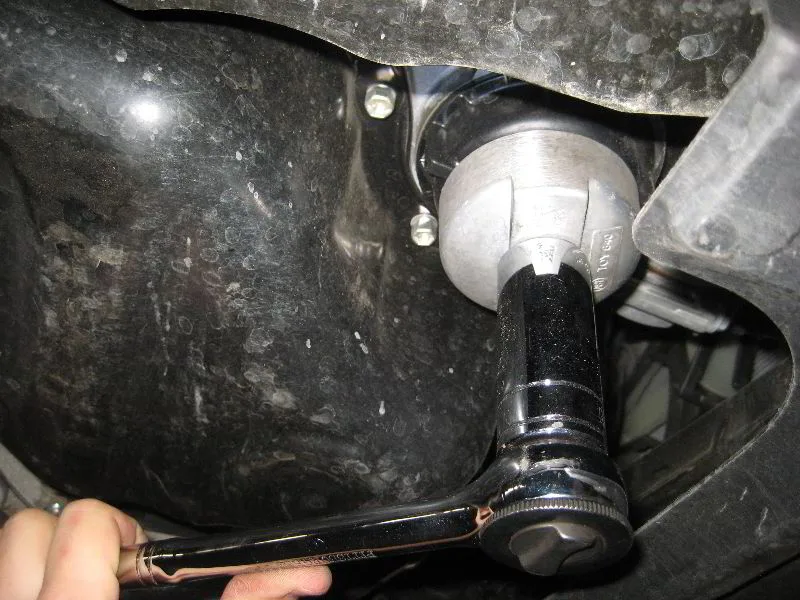

Step 6: Check the oil filter if you're doing a change. The filter sits on the front of the engine, accessible from above. It's a cartridge-style filter inside a plastic housing. You'll need a 64mm socket or a specialized filter wrench to remove the cap.

Replace the O-ring on the cap every time.

For a full oil change, the process is straightforward. Drain the pan using a 19mm socket on the drain plug. Replace the crush washer.

Install the new filter. Add 4 quarts of 0W-20, check the level, add the remaining 0.4 quarts as needed. Torque everything to spec, which we'll cover next.

Critical Mistakes That Damage the VVT System

The variable valve timing system on the 2AR-FE needs consistent oil pressure to function. Here are the mistakes that hurt it most.

Overfilling by even half a quart. This is the biggest one. The crankshaft sits close to the oil level in the pan. When the level is too high, the crank whips oil into foam.

Foam doesn't compress. The oil pump picks up aerated oil and sends it to the VVT actuators. They rattle, they stick, and eventually they fail.

A replacement VVT actuator runs about $300 plus labor. That's an expensive lesson in reading a dipstick.

Using the wrong viscosity. Thicker oil doesn't flow through the VVT oil control valves fast enough. The engine may set a P0010 or P0011 code for VVT system performance. If you see those codes on a 2010 Camry, check the oil level and viscosity before you start replacing parts.

A simple oil change with the correct 0W-20 fixes it more often than you'd think.

Ignoring the oil change interval. Toyota recommends 5,000 miles for severe service and 10,000 miles for normal service. Most driving counts as severe service. Short trips, stop-and-go traffic, extreme temperatures.

Stick to 5,000-mile intervals with synthetic oil. Sludged oil clogs the VVT oil control screens. Once those screens block up, the actuators stop moving, and you get a check engine light that won't go away without a teardown.

Skipping the oil filter change. The filter on the 2AR-FE has a bypass valve. When the filter gets clogged, the bypass opens and sends unfiltered oil through the engine. That includes unfiltered oil going directly into the VVT actuators.

Debris in the oil control valves causes sticking and premature wear. Always replace the filter with every oil change.

Torque Specs and Hardware You Shouldn't Ignore

The hardware on the 2010 Camry 2.5 oil system needs specific torque values. Guessing or "tight enough" is not acceptable here.

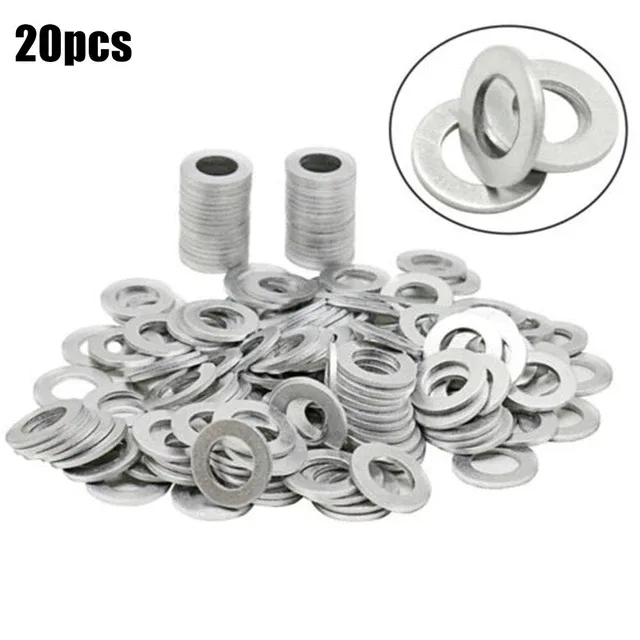

The drain plug uses an aluminum crush washer. This is a single-use part. Toyota part number 90430-12031 is the factory spec.

Replace it every oil change. The washer compresses to create a seal. Reusing a crushed washer almost always leads to a slow drip.

Image source: Web (Bing) / picclick.com.au (Web image (fair-use with source credit))

The oil filter housing cap needs the O-ring replaced at every change as well. The O-ring comes with most quality replacement filters. Lubricate it with fresh oil before installing.

Dry rubber binds against the housing and can cause the cap to seize, leading to a frustrating removal job next time.

Why torque specs matter on a drain plug? Overtightening strips the threads in the oil pan. The 2010 Camry uses an aluminum oil pan.

Aluminum threads strip much easier than steel. A stripped drain plug means a new oil pan or a helicoil repair. Neither is fun on a Sunday afternoon.

When 5W-30 Is Okay (And When It's Not)

This comes up constantly in our research. Someone is on a road trip in a cold climate, they realize they're low on oil, and the only store nearby sells 5W-30. Can they use it?

The honest answer is yes, temporarily. But there are conditions.

When 5W-30 is acceptable:

• You're in an emergency situation and 0W-20 isn't available.
• You're topping off less than one quart.
• You'll change the oil back to 0W-20 at the next service.
• The ambient temperature is above freezing.

When 5W-30 is not acceptable:

• You're filling the entire crankcase with it.
• You live in a cold climate where winter temperatures drop below 20°F.
• You plan to run it for a full oil change interval.
• The car is still under any remaining powertrain warranty.

Why the distinction? 5W-30 is thicker at startup. In cold weather, it flows slower. The VVT system needs oil pressure within seconds of starting.

Thicker oil delays that pressure buildup. Over years of cold starts, that delay adds measurable wear to the cam phasers and timing chain tensioner.

One quart of 5W-30 mixed into 4.4 quarts of 0W-20 barely changes the overall viscosity. A full crankcase of 5W-30 is a different story. If you absolutely must run 5W-30 for a full change, do it in summer, not winter, and switch back at the next interval.

What Happens If You Overfill or Underfill

Let's be clear about the symptoms so you can catch a problem before it becomes a repair.

Underfilling symptoms:

• The oil pressure warning light flickers during hard cornering or braking.
• The engine sounds slightly noisier, especially at idle.
• The VVT system sets codes P0010 through P0014.
• Fuel economy drops because the engine runs slightly hotter.

Running a quart low won't destroy the engine immediately. But it does increase oil temperature because there's less oil to absorb and carry away heat. Higher oil temperature means faster oxidation and shorter oil life.

Over time, the bearings see more stress. If the level drops to two quarts low, you risk oil starvation during acceleration when the oil sloshes away from the pickup tube.

Image source: Web (Bing) / fridayparts.com (Web image (fair-use with source credit))

Overfilling symptoms:

• A rough idle that smooths out when you rev the engine.
• Blue smoke from the exhaust if oil gets past the piston rings.
• Oil pressure readings that fluctuate wildly.
• A strong smell of burning oil from the engine bay.

Overfilling by a full quart is where the real damage happens. The crankshaft counterweights slap the oil surface. This creates foam.

Foam aerates the oil. The oil pump can't build proper pressure with aerated oil. The VVT actuators rattle and may stop moving entirely.

In extreme cases, the excess pressure blows out the front main seal or the camshaft seals. Both repairs cost well over $500.

The fix for overfilling is simple. Drain some oil. Loosen the drain plug and let out a small amount.

Check the level. Repeat until the dipstick reads correctly. Do not try to siphon oil out through the dipstick tube.

It doesn't work well and you risk damaging the tube.

Oil Capacity for the 3.5L V6 — Don't Mix Them Up

The 2010 Camry came with two engine options. The 2.5-liter four-cylinder we've been discussing, and the 3.5-liter V6. They use different oil capacities and different filters.

Mixing them up is easy if you're not careful.

The V6 2GR-FE engine takes 6.1 quarts of oil with a filter change. That's nearly two quarts more than the four-cylinder. If you pour 6.1 quarts into the 2.5-liter engine, you're overfilling by almost 40 percent.

That's catastrophic.

The oil filter is also different. The V6 uses a cartridge filter mounted on the front of the engine, similar to the four-cylinder but not interchangeable. The part numbers are different.

The O-ring sizes are different. Don't assume they're the same just because they look similar.

If you're buying a used 2010 Camry, check the engine size before you stock up on oil. The V6 has a silver engine cover that says "V6" on it. The four-cylinder has a black cover.

Look for that badge and save yourself a headache.

Where to Find Your Car's Exact Specs (Owner's Manual vs. Online)

The owner's manual is the single best source for your 2010 Camry's oil specs. It lives in the glove box. Page 435 or thereabouts lists the exact capacity, viscosity, and API rating.

If you don't have the physical manual, Toyota provides digital copies on their official website.

Online sources are hit or miss. Some forums have accurate information. Others repeat old data from earlier model years.

The 2010 model year was the first for the 2.5-liter engine in the Camry. Information from 2009 or earlier applies to the 2.4-liter engine and will be wrong.

Here's a quick reference for where to find the numbers:

• Owner's manual: Glove box, maintenance section
• Oil fill cap: Stamped with 0W-20
• Toyota official site: Free digital manual download
• VIN decoder: Confirms engine size and build date

If you're still unsure after checking these, call a Toyota dealership parts department. Give them your VIN. They can confirm the exact capacity for your specific car in under a minute.

A Note on High-Mileage Engines (150k+ Miles)

High-mileage 2AR-FE engines sometimes develop a small appetite for oil. It's normal for these engines to consume a quart between changes as they age. The oil capacity doesn't change, but your checking frequency should.

If your 2010 Camry has over 150,000 miles, check the oil level every 1,000 miles. Top off with 0W-20 as needed. Some owners switch to a high-mileage synthetic blend.

That's fine if you want, but the viscosity and capacity stay the same.

One thing to watch for. If oil consumption suddenly increases above one quart per 1,000 miles, you likely have a problem beyond normal wear. Stuck piston rings, valve guide wear, or a clogged PCV valve can cause excessive consumption.

A compression test and a PCV valve replacement are good diagnostic steps.

Don't try to mask high consumption by overfilling. That creates the foaming problem we covered earlier. Keep the level at the full mark and no higher.

If you're burning oil, fix the cause instead of compensating with extra quarts.

FAQ: Quick Answers to Common Questions

How often should I change the oil in my 2010 Camry 2.5?

Toyota recommends every 5,000 miles for severe service or 10,000 miles for normal service. Most driving qualifies as severe service. Short trips, stop-and-go traffic, and extreme temperatures all count.

Stick to 5,000-mile intervals with synthetic 0W-20 for the best engine life.

Can I use conventional oil instead of synthetic?

You can, but we don't recommend it. The 2AR-FE engine was designed around synthetic oil's properties. Conventional oil breaks down faster under heat and doesn't flow as well in cold weather.

The price difference is about $10 per change. That's cheap insurance.

What happens if I accidentally put in 5 quarts instead of 4.4?

You've overfilled by 0.6 quarts. That's enough to cause foaming at higher RPMs. Drain some oil through the drain plug until the dipstick reads correctly.

Run the engine for a minute, then recheck the level. Do not drive it with the level above the full mark.

Why does my dipstick show oil above the full mark right after I added oil?

That's normal. The added oil hasn't fully drained into the pan yet. Wait two to three minutes after adding oil before checking the level.

Always check with the engine off and the car parked on level ground.

Does the 2010 Camry 2.5 burn oil as it ages?

Some consumption is normal after 100,000 miles. Expect about half a quart between changes. If consumption exceeds one quart per 1,000 miles, investigate further.

Check the PCV valve first. It's cheap and often the culprit.

The Bottom Line: One Number, One Spec, No Shortcuts

The 2010 Toyota Camry 2.5 takes exactly 4.4 quarts of SAE 0W-20 synthetic oil with a filter change. That's the number. That's the only number that matters for a routine oil change.

Don't guess. Don't round up. Don't assume "a little extra is better." The 2AR-FE engine rewards precision.

Overfill it and you risk foaming, aeration, and damaged VVT actuators. Underfill it and you risk oil starvation and bearing wear. Four point four quarts.

Every time.

Keep a quart of 0W-20 in your trunk for top-offs between changes. Check the dipstick every time you fill up with gas if you're running high miles. Replace the crush washer and filter O-ring at every change.

Torque the drain plug to 29 ft-lb and no more.

Do those things and that 2.5-liter Camry will carry you past 200,000 miles without breaking a sweat. It's not complicated. It's just precise.
