It's a pretty straightforward question on the surface. But get it wrong, and you're looking at expensive engine trouble. The 2009 Toyota RAV4 oil capacity isn't a single number you can memorize and forget.
It depends entirely on which engine is under your hood, and whether you swapped the filter during your last change.
So what is the exact 2009 toyota rav4 oil capacity? The 4-cylinder 2.4L takes 4.5 quarts with a filter change, and the V6 3.5L takes 5.8 quarts. Manufacturer specifications from Toyota confirm these numbers for the 2009 model year.
Those aren't just random estimates. They're the result of engineering calculations designed to keep the oil pan sump at the right level for proper lubrication and cooling. Knowing the difference between the two specs is the first step toward keeping your engine running smoothly as of 2026.

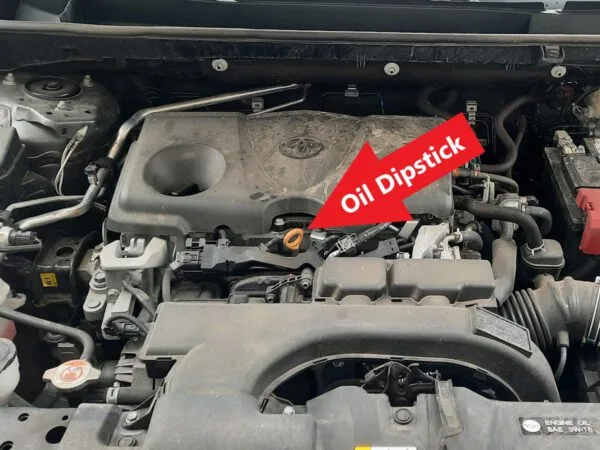

Image source: Web (Bing) / rav4resource.com (Web image (fair-use with source credit))
Why Getting This Wrong Can Cost You an Engine
Oil capacity might sound like a minor detail, but it's one of the most common sources of DIY engine damage. You wouldn't believe how many people assume all RAV4s take the same amount of oil. That assumption can cost you a rebuild.
The 2 Most Common Oil Capacity Mistakes on a 2009 RAV4
There are really two mistakes that pop up over and over in forums and mechanic shops.
The first is mixing up the 4-cylinder and V6 capacities. Drop 5.8 quarts into a 2.4L engine and you've overfilled it by over a quart. That extra oil starts foaming as the crankshaft whips it around.
Foam doesn't lubricate well, and oil pressure drops. The engine starts running hotter.
The second mistake is guessing. People dump in what they think is close and hope the dipstick sorts it out. That's a recipe for either starvation or overfill.
What Happens When You Overfill or Underfill
Overfilling is actually more dangerous than underfilling in the short term. When the oil level sits above the full mark, the crankshaft slaps the oil surface. That aerates the oil, creating foam that the oil pump struggles to move.
Air in the oil means metal-on-metal contact in bearings and cam journals.
Underfilling is equally bad, just in a different way. Low oil causes the pickup tube to suck air during hard cornering or inclines. Oil pressure drops, and the engine starves.
A few seconds of oil starvation can permanently scar rod bearings.
Both scenarios lead to the same place: premature engine wear, overheating, and eventually a shop bill that dwarfs the cost of a few extra quarts of oil. Getting the exact capacity right isn't being fussy. It's being smart.
Quick Answer: 2009 Toyota RAV4 Oil Capacity at a Glance
Here's the straightforward answer you came for. No fluff, no context you don't need yet.
Engine | Capacity With Filter Change | Capacity Without Filter Change | Recommended Oil Viscosity
— | — | — | —
2.4L 4-cylinder (2AZ-FE) | 4.5 quarts (4.3 liters) | ~4.2 quarts | 5W-30
3.5L V6 (2GR-FE) | 5.8 quarts (5.5 liters) | ~5.5 quarts | 5W-30
4-Cylinder (2.4L) Specs
The 2.4L four-cylinder is the base engine in most 2009 RAV4s. It needs exactly 4.5 quarts of oil when you also swap out the oil filter. If you're just topping off, you won't need a full 4.5 quarts.
Add a quart at a time and check the dipstick.
V6 (3.5L) Specs
The V6 is a bigger engine with a larger oil pan. It takes 5.8 quarts with a new filter. That's about 1.3 quarts more than the four-cylinder.
If you're used to the 4-cylinder spec, do not eyeball this. Use a measuring jug or mark the container.
Capacity Without Filter Change
If you drain the oil but reuse the old filter, subtract roughly 0.3 quarts from the numbers above. The filter holds about that much oil. So the 4-cylinder needs about 4.2 quarts, and the V6 needs about 5.5 quarts.
But honestly, always change the filter when you change the oil. That 0.3 quarts isn't worth skipping a fresh filter.
What Engine Does Your 2009 RAV4 Have?
Before you buy oil, you need to know which engine you're working with. This is where people get tripped up. The good news is it's easy to tell them apart.

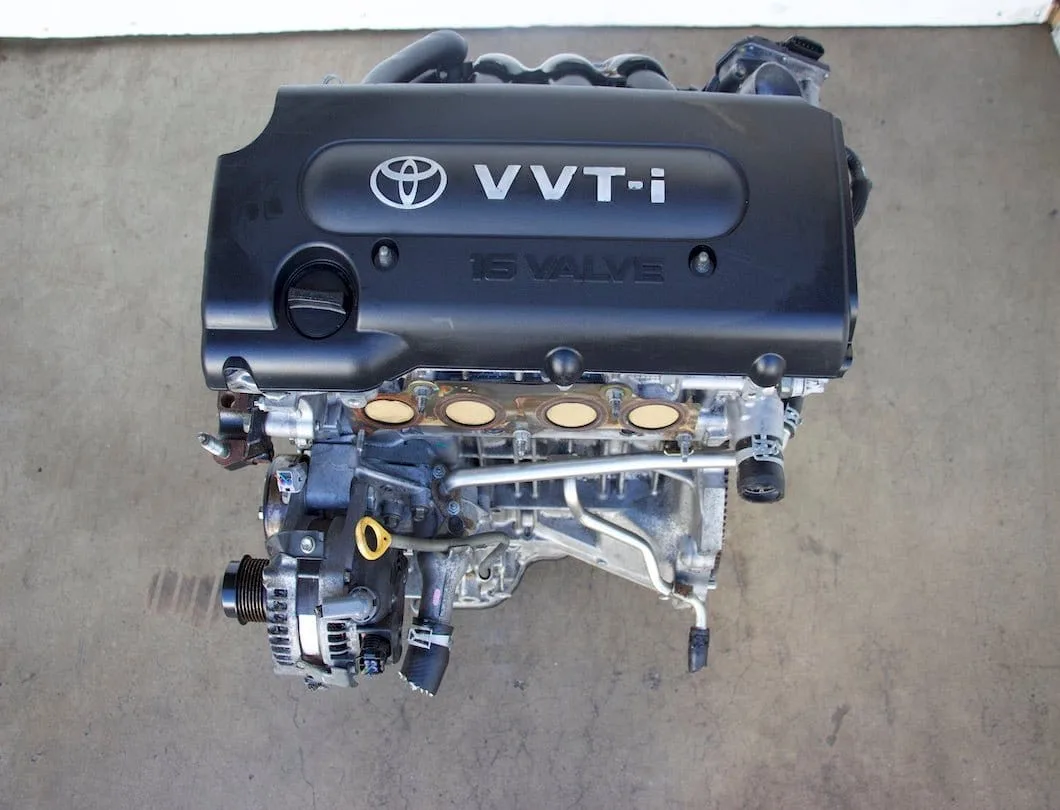

Image source: Bing (Web (fair-use with source credit))
How to Tell a 4-Cylinder From a V6
Pop the hood and look at the engine. The 4-cylinder is smaller and sits more centered in the bay. You'll clearly see four spark plug wires or coil packs arranged in a straight line across the top.
The V6 takes up more space. You'll see two rows of three spark plug coils, one on each bank. The engine also has a plastic cover that says "V6" on most models.
If that cover is missing, look for the fuel injector rail. A V6 has two separate rails, one for each bank.
Check Your Owner's Manual vs. Under the Hood
The owner's manual is the final authority. Open it to the specifications section. It lists the exact capacity and oil grade for your specific engine.
But here's the thing. Manuals sometimes get lost or borrowed. If you don't have yours, check the emissions sticker under the hood.
It shows the engine family and displacement. Or look at the VIN. The eighth character tells you the engine.
A "4" means the 2.4L four-cylinder. A "3" means the 3.5L V6.
If you're still unsure, the Toyota RAV4 oil type guide covers engine identification in more detail. You can use that to confirm which engine you have before you buy a drop of oil.
The Right Oil Type and Viscosity for Your RAV4
Capacity is only half the equation. You also need the right oil type. Use the wrong viscosity and all that careful measuring goes to waste.
5W-30: The Factory Recommendation
Toyota spec'd 5W-30 for the 2009 RAV4. That's the viscosity you should use unless you live in extreme conditions. It flows well in cold weather and holds up under heat.
It's a conventional weight that's easy to find at any auto parts store or online.
0W-20 or 0W-30: Acceptable Alternatives
Some owners switch to 0W-20 or 0W-30 for better cold-start protection. That is fine if you live in a very cold climate. 0W-20 flows even better at freezing temperatures. But it shears down faster under heavy load.
Stick with 5W-30 unless you have a specific reason to change. And never use 10W-40 or heavier. It's too thick for the hydraulic lifters and variable valve timing system.
Conventional vs. Full Synthetic vs. High-Mileage Blends
This is more about your wallet and your driving habits than the engine itself.
Conventional oil is cheap and works fine for normal driving. Change it every 3,000 to 5,000 miles and you're covered.
Full synthetic costs more but lasts longer and protects better at high temperatures. It's worth it if you do a lot of towing, highway driving, or live in a hot climate. Synthetic can go 7,500 to 10,000 miles between changes with a good filter.
High-mileage oil is a blend with additives that help condition old seals. If your RAV4 has over 75,000 miles, it's a good choice. The extra seal conditioners reduce oil leaks from dried-out gaskets.
All three types work as long as they meet API SN or SP certification. That's the minimum standard. Check the label for the API donut symbol before you buy.
Tools and Supplies You'll Need for an Oil Change
You don't need a full mechanic's toolbox to change the oil on a 2009 RAV4. But you do need the right stuff. Cutting corners on supplies leads to stripped threads, leaks, or worse.
Image source: Bing (Web (fair-use with source credit))
Here's what you need laid out on the ground before you start:
Oil and filter. Buy the exact amount for your engine. Grab a quart extra if you're not sure. You can always return it.
Oil filter. Get a quality brand. Toyota OEM filters are great. So are Wix, Mobil 1, and Purolator Boss.
Avoid the cheap no-name filters. A bad bypass valve can starve the engine on cold starts.
Drain pan. Any 6-quart pan works. Get one with a lid for transport.
Socket or wrench for the drain plug. The plug is 14mm on most 2009 RAV4s. A 6-point socket is best to avoid rounding the edges.
Crush washer. This is the small copper or aluminum ring that seals the drain plug. Never reuse the old one. It compresses and hardens.
A new one costs pennies and prevents drips.
Funnel. Makes pouring oil into the filler neck clean and easy.
Rags. You will spill something. It's guaranteed.
Jack stands or ramps. Never crawl under a car supported only by a jack. Use ramps for the front wheels or a pair of jack stands. Your life is worth more than a few minutes of extra setup.
Step-by-Step: How to Change the Oil on a 2009 RAV4
This is the meat of the job. Follow these steps in order and you'll get the oil level right every time.
Image source: Web (Bing) / fridayparts.com (Web image (fair-use with source credit))
Step 1: Warm the Engine and Lift the Vehicle Safely
Start the engine and let it run for two to three minutes. That warms the oil so it flows faster when you drain it. Hot oil drains more completely than cold oil.
Then shut it off and lift the front of the vehicle. Use ramps if you have them. They're faster and more stable.
If you use jack stands, lift both front corners and set the stands on the frame rails. Rock the vehicle gently to confirm it's stable before you crawl under.
Step 2: Drain the Old Oil and Replace the Filter
Slide the drain pan under the engine. Locate the drain plug at the bottom of the oil pan. It's a 14mm bolt.
Loosen it with the socket, then unscrew it by hand. Keep your hand ready. Oil comes out fast.
Let the oil drain completely. This takes a few minutes. While it drains, move to the oil filter.
On the 4-cylinder, it's on the front of the engine, easy to reach. On the V6, it's on the rear lower side, a bit tighter. Use an oil filter wrench if it's stuck.
Turn counterclockwise. Have the drain pan underneath to catch the residual oil in the filter.
Clean the filter mounting surface with a rag. Lube the new filter's rubber gasket with a dab of fresh oil. Screw the filter on hand-tight.
Then give it another quarter turn. Do not use a wrench to tighten the filter further. Hand-tight plus a quarter turn is all it needs.
Now clean the drain plug threads. Slip a new crush washer onto the plug. Reinstall the plug and tighten it to 33 ft-lbs.
If you don't have a torque wrench, snug it firmly and give it a slight extra turn. Do not crank on it. Overtightening strips the aluminum threads in the oil pan.
Step 3: Add the Correct Amount of New Oil
Lower the vehicle off the ramps or stands. Open the oil fill cap on top of the valve cover. Insert the funnel.
Add oil slowly. For the 4-cylinder, pour in the full 4.5 quarts. For the V6, pour in the full 5.8 quarts.
Do not rush. A steady pour avoids spills and air pockets.
Replace the oil fill cap. Start the engine and let it run for 30 seconds. This circulates the oil and fills the new filter.
Shut the engine off and wait two minutes for the oil to settle back into the pan.

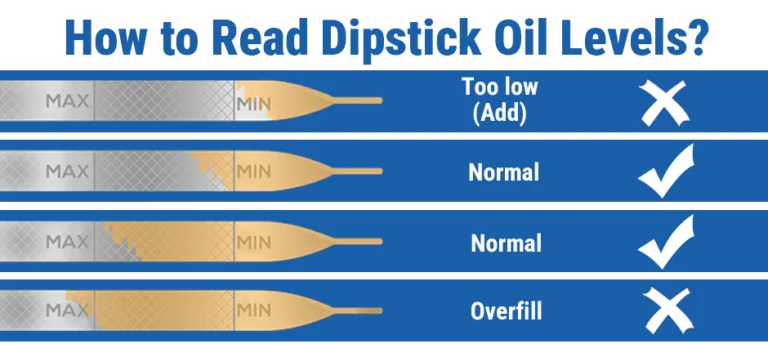

Step 4: Check the Dipstick Properly (Most People Do This Wrong)
This is where most DIY oil changes go off the rails. You need to check the dipstick correctly or you'll get a false reading.
Pull the dipstick out. Wipe it clean with a rag. Insert it all the way back into the tube.
Pull it out again and look at the level. The oil should sit between the low and full marks. If it's at or near the full mark, you're good.
If it's below the low mark, add a little more oil and repeat the process.
Here's the common mistake: people check the dipstick right after adding oil without running the engine first. The filter is empty. The oil hasn't circulated.
The dipstick reads high because the oil hasn't settled. Always run the engine first, shut it off, wait two minutes, then check.
If the level is above the full mark, you've overfilled. Stop. Do not drive it.
Drain a small amount through the drain plug until the level drops. Overfilling is not something you can ignore. The engine will burn the excess oil, but the damage from foaming is already happening.
Common Mistakes People Make With Oil Capacity
Even experienced DIYers slip up on the 2009 RAV4. The engine bays are tight, the specs vary, and a moment of distraction can cost you. Here are the mistakes we see most often in owner forums and repair shops.
Confusing the 4-Cylinder and V6 Specs
This is the number one error. Someone grabs a five-quart jug, pours the whole thing in, and walks away. If they own the V6, they are short by nearly a full quart.
If they own the 4-cylinder, they just overfilled by half a quart.
The fix is simple. Write the capacity on the inside of the oil fill cap with a permanent marker. 4.5 quarts for the 2.4L. 5.8 quarts for the 3.5L. That way you never have to remember it.
Guessing Instead of Measuring With the Dipstick
The dipstick is your best friend. But only if you use it correctly. Some people pull it, glance at it, and call it good.
Others add oil without checking and assume the number on the bottle is perfect.
Here is the truth. The exact amount of oil that drains depends on temperature, tilt, and how long you let it drip. You can pour the spec amount and still be off by a few ounces.
Always verify with the dipstick. That is the final word, not the bottle label.
Overtightening the Drain Plug or Filter
The drain plug torque is 33 ft-lbs. That is not very tight. If you reef on it with a long ratchet, you can strip the threads in the aluminum oil pan.
A stripped pan means a replacement pan or a thread repair kit.
The oil filter is even easier to mess up. Hand-tight plus a quarter turn is all Toyota recommends. Using a wrench to crank it down crushes the gasket and makes the next change a nightmare.
The filter will be stuck fast and you will need a specialty tool to remove it.
Using the Wrong Viscosity for Your Climate
Stick with 5W-30 unless you have a strong reason to change. In extreme cold, 0W-30 helps with startup flow. In extreme heat, 5W-30 is still fine.
The variable valve timing system on the 2.4L engine is sensitive to oil pressure. Thicker oils like 10W-40 delay the oil flow and can cause timing chain rattle on cold starts.
When to Use High-Mileage Oil on Your 2009 RAV4
High-mileage oil is not a gimmick. It contains additives that help old seals swell and reduce oil consumption. But it is not for every engine.
Signs Your Engine May Need a Thicker Oil
If your RAV4 burns oil between changes, you have two options. You can switch to high-mileage oil, or you can accept the consumption and top off regularly.
High-mileage oil works by conditioning the valve stem seals and piston rings. It won't fix a worn out engine. But it can reduce consumption in engines with moderate wear.
If you see blue smoke on startup or need to add a quart every thousand miles, high-mileage oil is worth a try.
Real Mileage Thresholds Worth Knowing
Most high-mileage oils are recommended for engines over 75,000 miles. That is a reasonable threshold for a 2009 RAV4. By now, many of these vehicles have well over 100,000 miles.
If yours is in that range, switch to a high-mileage blend at the next change.
Stick with the same viscosity. Use 5W-30 high-mileage, not a heavier weight. The additives are what matter, not the thickness.
How Often Should You Change the Oil?
This depends on the oil you choose and how you drive. The old 3,000 mile rule is outdated for modern oils. But the 10,000 mile interval some people push is too long for most driving conditions.
Conventional Oil Change Intervals
If you use conventional 5W-30, change it every 3,500 to 5,000 miles. That gives you a safe margin before the oil loses its protective properties. Conventional oil breaks down faster under heat and shear.
Synthetic Oil Change Intervals
Full synthetic lasts longer. You can push it to 7,500 miles with confidence. Some people go to 10,000 miles.
But the filter is usually the weak link. A good synthetic filter like Mobil 1 or Wix can handle 7,500 to 10,000 miles. A cheap filter starts bypassing around 5,000 miles.
Aggregate reviews from owners suggest that 5,000 miles is the sweet spot for blended driving. If you do mostly highway, 7,500 miles is fine with synthetic.
Severe vs. Normal Driving Conditions
Toyota defines severe driving as frequent short trips, stop and go traffic, towing, or driving in dusty conditions. If that describes your commute, cut your interval in half.
Short trips are the worst. The engine never fully warms up. Condensation builds up in the oil.
Fuel dilution increases. Change conventional oil every 3,000 miles and synthetic every 5,000 miles if you live in severe conditions.
Safety and Disposal: What You Can't Skip
Oil changes are messy and potentially dangerous. A few precautions keep you safe and keep the environment clean.
Proper Oil Disposal for EPA Compliance
Used motor oil is a hazardous waste. You cannot dump it down a drain, into the ground, or in the trash. Most auto parts stores accept used oil for free.
Advance Auto Parts, AutoZone, and O'Reilly all have collection tanks. Call ahead to confirm they still accept dropoffs.
Store the oil in a sealed container. A clean laundry detergent jug or a dedicated oil drain pan with a spout works well. Never mix oil with antifreeze, brake fluid, or other chemicals.
That makes it unrecyclable.
Lift Safety When Working Under the Vehicle
Never trust a single jack. Use jack stands or ramps rated for at least 3,000 pounds. The 2009 RAV4 weighs around 3,400 pounds curb weight.
You want stands rated for 6,000 pounds or more for a safety margin.
Place the stands under the frame rails, not the suspension components. Rock the vehicle after setting the stands to confirm stability. If you use ramps, drive up slowly and set the parking brake.
Chock the rear wheels.
A fall from even a few inches can crush bones or worse. Take the extra two minutes to set up properly.
Frequently Asked Questions
Can I use 0W-20 instead of 5W-30 in my 2009 RAV4?
Yes, in very cold climates. 0W-20 flows better at freezing temperatures. But it shears down faster under load. If you do mostly short trips in cold weather, it is a reasonable choice.
For general driving, stick with 5W-30.
How much oil does a 2009 RAV4 V6 take?
The V6 3.5L takes 5.8 quarts with a filter change. That is about 5.5 liters. Without a filter change, it takes roughly 5.5 quarts.
Always verify with the dipstick after adding.
Is the oil capacity the same with a new filter?
No. The filter holds roughly 0.3 quarts of oil. So with a new filter, you need slightly more oil than if you reuse the old one.
For the 4-cylinder, that means 4.5 quarts instead of 4.2 quarts.
What happens if I put too much oil in my RAV4?
Overfilling causes the crankshaft to whip the oil into foam. Foam does not lubricate well. Oil pressure drops, temperatures rise, and engine wear accelerates.
If you overfill, drain the excess immediately. Do not drive it.
What oil filter should I use on a 2009 RAV4?
Toyota OEM filters are excellent. Wix, Mobil 1, and Purolator Boss are quality alternatives. Avoid cheap no-name filters.
A bad bypass valve can starve the engine on cold starts. Pay a few extra dollars for a good filter.
Final Verdict: One Number You Need to Memorize
The 2009 Toyota RAV4 oil capacity comes down to one simple decision point. If you own the 2.4L four-cylinder, remember 4.5 quarts. If you own the 3.5L V6, remember 5.8 quarts.
That is the number with a fresh filter, which is how you should always do the job.
Why You Should Still Double-Check With Your Dipstick
Numbers are guides, not guarantees. The dipstick tells you the actual oil level in your specific engine. Drain time, vehicle angle, and filter brand all affect the final level.
Always pour the spec amount, run the engine, wait two minutes, then read the dipstick. If it reads low, add a little more. If it reads high, drain a bit out.
Trust the stick, not the bottle.
When to Call a Mechanic Instead of DIY
If you have stripped the drain plug, cannot remove the old filter, or notice metal shavings in the drained oil, stop. Call a professional. A stripped oil pan needs a thread repair or replacement.
Metal in the oil means internal engine wear that needs diagnosis. Neither is a DIY fix on a Saturday afternoon.
For everyone else, this is a straightforward job. Buy the right oil, use the right amount, and check your work with the dipstick. Do that and your RAV4 will run reliably for another 100,000 miles.
