Getting the oil capacity right on a 2011 Toyota Tacoma isn't just about keeping a number in your head. It's about keeping your engine running for another 100,000 miles.
The 2011 toyota tacoma oil capacity depends on which engine you have under the hood. The 2.7-liter four-cylinder takes 5.3 quarts with a filter change. The 4.0-liter V6 needs 6.0 quarts.
Those numbers sound simple enough, but we've seen hundreds of posts from owners who poured in the wrong amount and ended up with foam on the dipstick or a knocking sound that shouldn't be there.
Toyota's own specifications (API SN grade, 0W-20 viscosity) are backed by engineering tests that balance cold-start protection with high-temperature stability. As of 2026, those specs haven't changed for this generation. Let's walk through exactly what you need to know, why it matters, and how to do it right the first time.
Image source: Web (Bing) / tacomaexplorer.com (Web image (fair-use with source credit))
Quick Answer
The 2011 Toyota Tacoma oil capacity is 5.3 quarts for the 2.7L four-cylinder and 6.0 quarts for the 4.0L V6. Both engines require 0W-20 synthetic oil meeting API SN or higher. Always check the dipstick after filling.
Add oil slowly. Stop halfway and recheck before adding more.
Why Getting the Oil Capacity Wrong Is a Gamble You Don't Want to Take
Your engine is a precision assembly of metal parts moving at high speed. Oil is the only thing keeping those parts from grinding against each other. When you get the quantity wrong, you're betting thousands of dollars on a guess.
Overfilling is the more common mistake. We see it in almost every forum thread about Tacoma oil changes. Someone pours in a full six quarts without realizing they have the 2.7L engine.
The crankshaft whips through the extra oil, aerating it like a milkshake blender. Aerated oil doesn't lubricate properly. It foams up, pressure drops, and bearing surfaces start to wear.
Underfilling is quieter but just as dangerous. A quart low means the oil pump can suck air during hard cornering or steep off-road climbs. That air bubble reaches a bearing and suddenly you have metal-on-metal contact.
The damage is cumulative. You might not notice anything for months.
There's also the viscosity risk. The 2011 Tacoma is spec'd for 0W-20. That thin oil is designed to flow instantly during cold starts, reaching the top-end camshafts before metal parts expand.
Thicker oil like 5W-30 might seem like a good idea for an older engine with higher mileage, but it delays oil flow on startup. The Variable Valve Timing (VVT) system relies on precise oil pressure to adjust cam timing. The wrong viscosity messes with that pressure and can trigger check engine lights or cause sluggish performance.
Putting in the right amount of the right oil is cheap insurance. Routine upkeep like this is exactly what keeps an older vehicle on the road without expensive surprises.

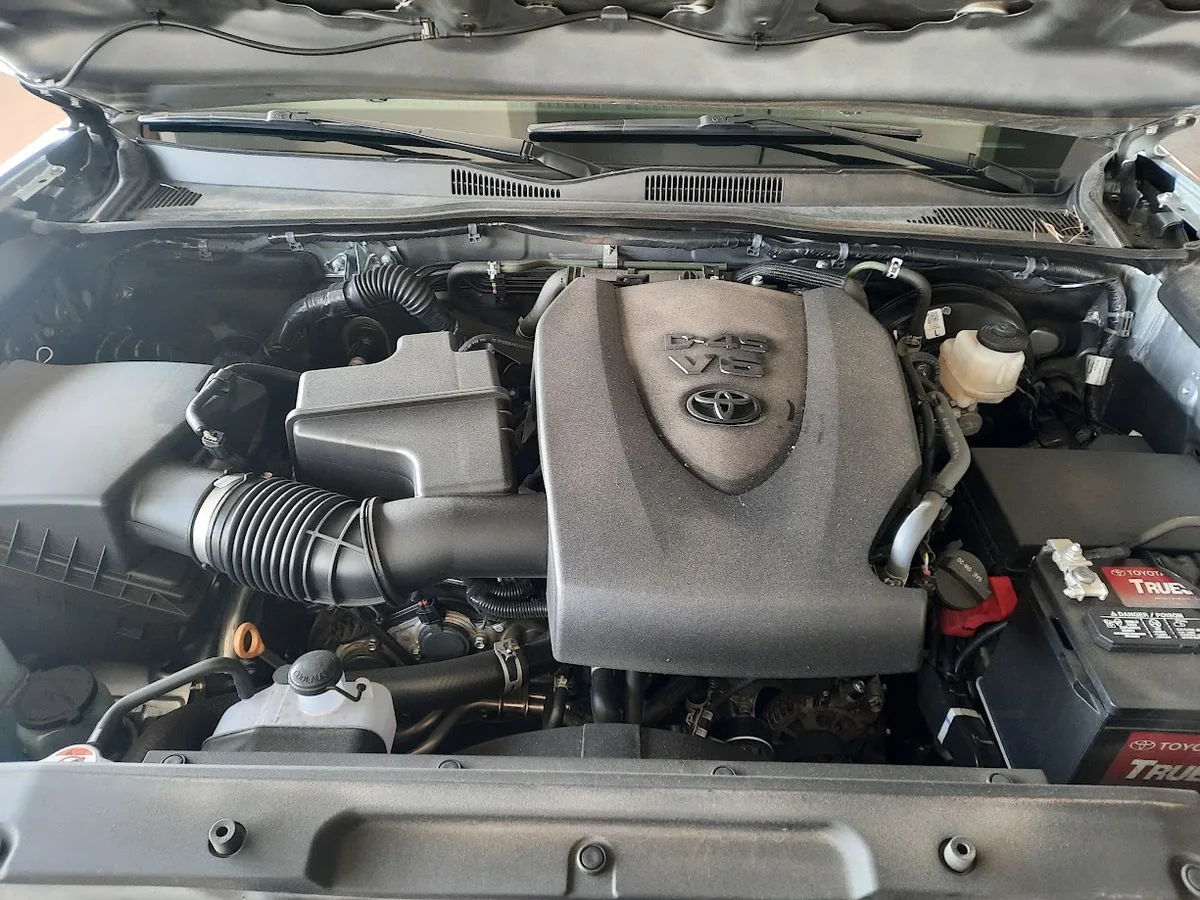

First, Let's Confirm Which Engine You Have (2.7L vs 4.0L)
This is the single most important step, and it's the one people skip most often.
The 2011 Tacoma came with two engines. The base engine is a 2.7-liter four-cylinder known internally as the 2TR-FE. The upgrade is a 4.0-liter V6 called the 1GR-FE.
They are completely different blocks with different oil pan volumes, different filters, and different fill procedures.
Here's how to tell which one you have without opening a manual:

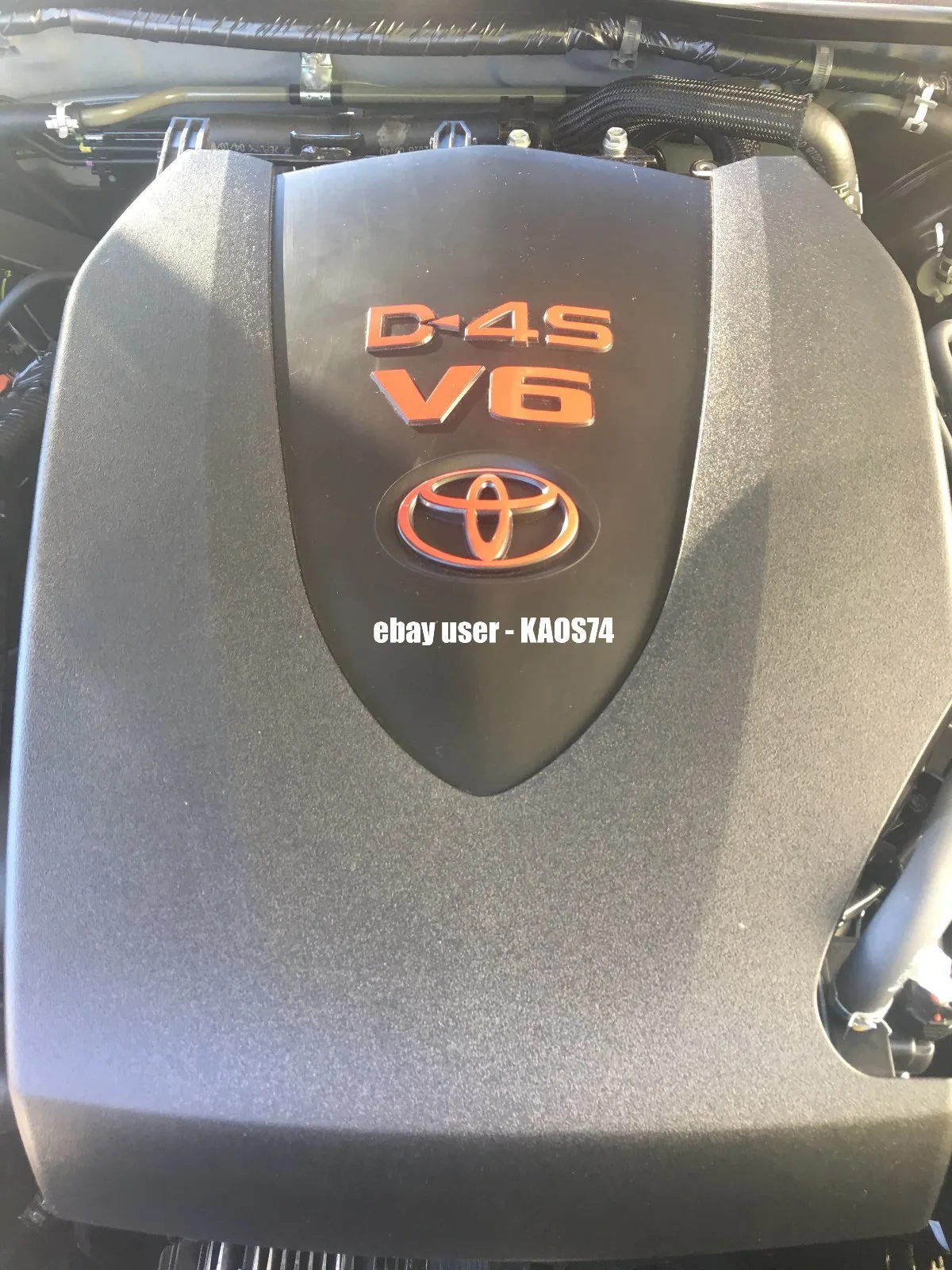

- V6 engine: The plastic engine cover has "V6" embossed into it. The cover is large and rectangular, spanning the top of the engine.
- Four-cylinder: There's no "V6" badge on the cover. The engine looks narrower from above and sits slightly lower in the bay.
Still not sure? Check your VIN. The eighth character tells you the engine.
For 2011, the code "E" means the 2.7L four-cylinder. Code "R" means the 4.0L V6.

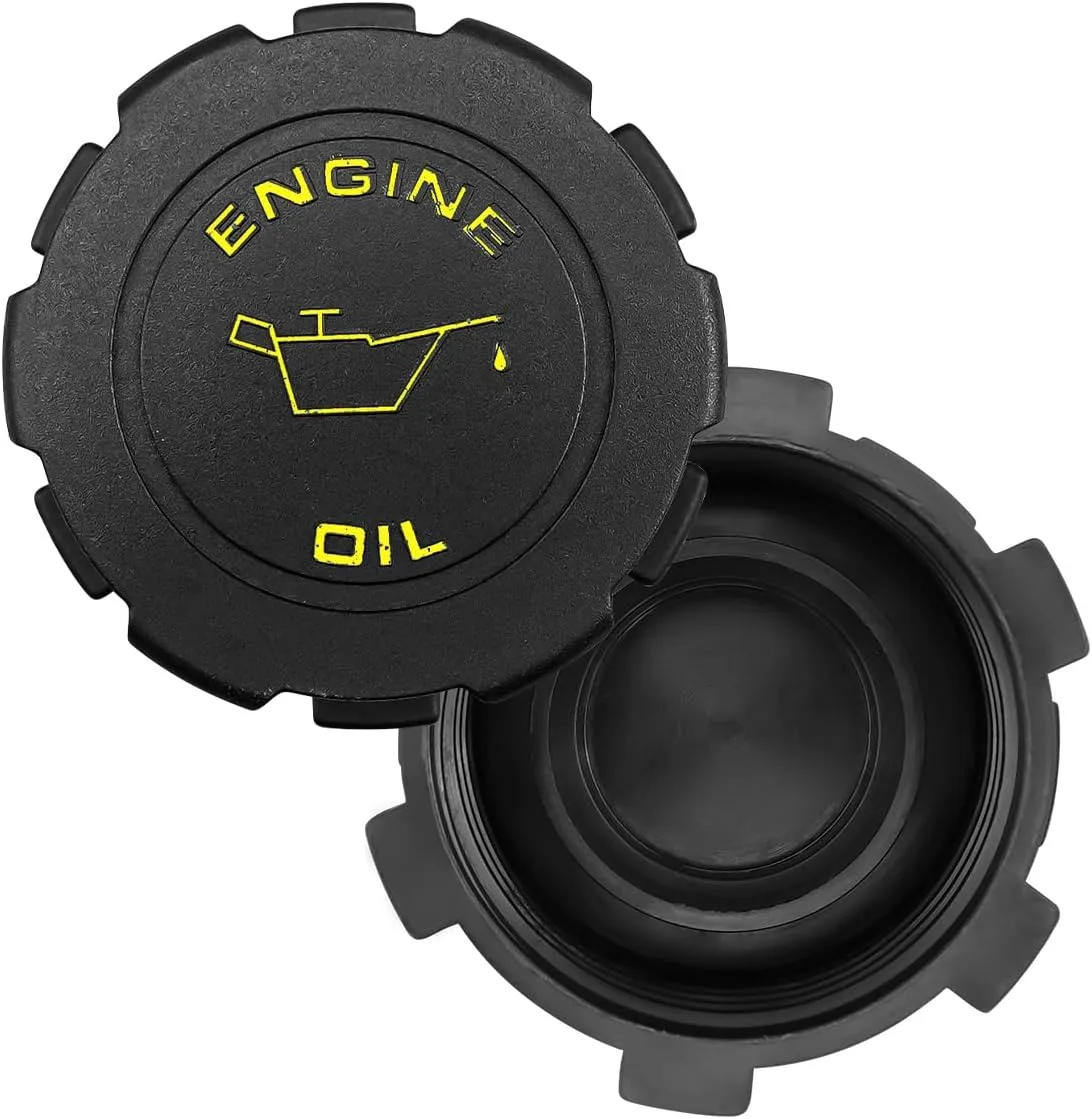

You can also pop the hood and look at the oil fill cap. If it says "0W-20" on the cap, you're good regardless of which engine you have. Both engines use the same viscosity.
The only difference is how much you pour in.
The Exact Oil Capacities for Both Engines
Let's get the numbers pinned down so there's no room for guesswork.
2.7L 4-Cylinder (2TR-FE): 5.3 Quarts
The factory service manual for the 2011 Tacoma specifies 5.3 US quarts (5.0 liters) for the 2.7L engine when you also change the oil filter.
Here's a quick breakdown:
| Fill scenario | Volume needed |
|---|---|
| Standard drain and refill with filter change | 5.3 quarts (5.0 L) |
| Standard drain and refill without filter change | 5.1 quarts (4.8 L) |
| Dry engine fill (new engine or rebuild) | 5.9 quarts (5.6 L) |
4.0L V6 (1GR-FE): 6.0 Quarts
The V6 is the bigger engine with a bigger oil pan. Factory spec calls for 6.0 US quarts (5.7 liters) with a new filter.
| Fill scenario | Volume needed |
|---|---|
| Standard drain and refill with filter change | 6.0 quarts (5.7 L) |
| Standard drain and refill without filter change | 5.8 quarts (5.5 L) |
| Dry engine fill (new engine or rebuild) | 6.6 quarts (6.2 L) |
Why "With Filter Change" Actually Matters
The oil filter on the 2011 Tacoma holds roughly 0.2 to 0.3 quarts of oil. That's not a trivial amount. If you drain the pan but leave the old filter in place, you're leaving that oil trapped.
Fill to the full 6.0 quarts on a V6 without swapping the filter and you'll be overfilled by roughly a quarter of a quart.
That might not sound like much, but a quarter quart above the full mark on the dipstick is enough to cause oil foaming at highway RPM.
Always change the filter with the oil. It's cheap and it takes five extra minutes. If you do skip the filter for some reason, reduce your fill by that quarter quart and check the dipstick carefully.
What Kind of Oil Should You Use? (It's Not Just Any 0W-20)
You need 0W-20. Full stop.
The oil fill cap stamped right there on your engine valve cover says it. Toyota's owner's manual says it. The Service Bulletins from Toyota Engineering say it.
This isn't a suggestion. It's the specification that the engine was designed around.
The "0W" part means the oil stays fluid at very low temperatures, down to around minus 30 degrees Fahrenheit. The "20" part means it thickens only to a specific viscosity at operating temperature, about 212 degrees Fahrenheit. Engineers picked that exact balance to ensure the oil pump can move oil quickly through tight passages at cold start while still providing a thick enough film at hot idle.
As of 2026, the current API standard is SP. Oil labeled SN Plus or SP is backward-compatible and perfectly fine for a 2011 Tacoma. Avoid anything older than SN, as those formulations lack the anti-wear additives that modern VVT systems need.
Conventional vs Synthetic: Does It Change the Capacity?
Synthetic oil is strongly recommended for the 2011 Tacoma. Here's why.
The 2TR-FE and 1GR-FE engines have timing chains, not belts. A timing chain is splash-lubricated by the oil. Synthetic oil holds its viscosity better over time, which means the chain tensioner gets consistent pressure.
Conventional oil shears down faster in heat, leading to chain noise and potential tensioner failure.
You can use conventional 0W-20 in a pinch. The capacity is the same either way because the volume of the oil pan doesn't change. But synthetic gives you longer intervals and better protection in extreme temperatures.
Most Tacoma owners we've researched run full synthetic and change it every 5,000 miles under normal driving.
The oil filter also matters for capacity. Toyota's OEM filter (part 04152-38020) is the standard reference. Aftermarket filters from brands like Mobil 1 or Fram can have slightly different internal volumes.
If you switch brands, the difference is tiny, maybe a few tablespoons. It won't throw off your reading if you check the dipstick properly. Just don't run a cheap no-name filter that might have a bypass valve set at the wrong pressure.
For more detail on synthetic versus conventional for older Toyotas, our guide on the correct fluid level covers what owners of earlier model years should consider.
Step-by-Step: How to Fill It Right the First Time
You've got the right oil, the right filter, and you know how many quarts your engine needs. Now it's time to actually do the work. The process is straightforward, but a few specific steps make the difference between a job done right and a mess that needs another drain.
Tools and Supplies You'll Need
Gather everything before you start. Running back and forth with oily hands gets old fast.
| Item | Purpose |
|---|---|
| 5.5 quarts (2.7L) or 6.5 quarts (4.0L) of 0W-20 synthetic | Account for the extra quart you might need when priming the filter |
| OEM or quality aftermarket oil filter | Part 04152-38020 or equivalent |
| 15mm socket or wrench | For the oil drain plug |
| Oil filter wrench | Toyota filters are tight from the factory |
| Drain pan (7+ quart capacity) | Bigger is better to avoid spills |
| Funnel with a long neck | The 4.0L V6 fill port sits at an awkward angle |
| Torque wrench (in-lb or ft-lb) | Critical for the drain plug |
| Rags and gloves | Oil gets everywhere |
The Drain, Filter Swap, and Refill Sequence
Let's walk through it step by step.
Step 1: Warm up the engine. Cold oil is thick and drains slowly. Run the engine for two to three minutes until the coolant gauge just starts to move. Hot oil is dangerous, so don't let it get to full operating temperature.
Lukewarm is the sweet spot.
Step 2: Get the truck level. Park on flat ground. If you're on an incline, the oil won't drain completely and your final fill will be wrong. This is a common mistake that leads to overfilling.
Step 3: Drain the oil. Put the drain pan under the oil pan. Use your 15mm socket to loosen the drain plug. Turn it counterclockwise by hand once it's loose.
Let the oil drain completely. This takes five full minutes for a complete drain. Give it time.
Step 4: Remove the old filter. The filter is located on the side of the engine block. For the 2.7L, it's on the passenger side near the front. For the 4.0L V6, it's on the driver's side near the back, mounted at an angle.
Use your filter wrench to break it loose. Some oil will spill, so have a rag ready.
Step 5: Prep the new filter. Put a thin coat of fresh oil on the rubber gasket of the new filter. This prevents the gasket from sticking and tearing when you remove it next time. Important: fill the new filter about halfway with fresh oil before installing it on the V6 engine.
The 1GR-FE has a long oil galleys and the pump can struggle to prime an empty filter. For the 2.7L, this is less critical but still a good practice.
Step 6: Install the new filter. Screw it on by hand until the gasket makes contact. Then tighten it another three-quarters of a turn by hand. Never use a wrench to tighten a filter.
Hand tight is correct.
Step 7: Reinstall the drain plug. Clean the drain plug threads and the sealing surface around the oil pan hole. Replace the crush washer if yours is flattened or dented. Torque the plug to 30 ft-lbs.
If you don't have a torque wrench, snug it firmly with a short ratchet but don't reef on it. The aluminum oil pan threads strip easily and that's a much bigger repair than replacing a crush washer.
Step 8: Refill with oil. Pour in the correct amount from the table above. For the 2.7L, start with 5 full quarts. For the V6, start with 5.5 quarts.
Then pour slowly and check the dipstick.

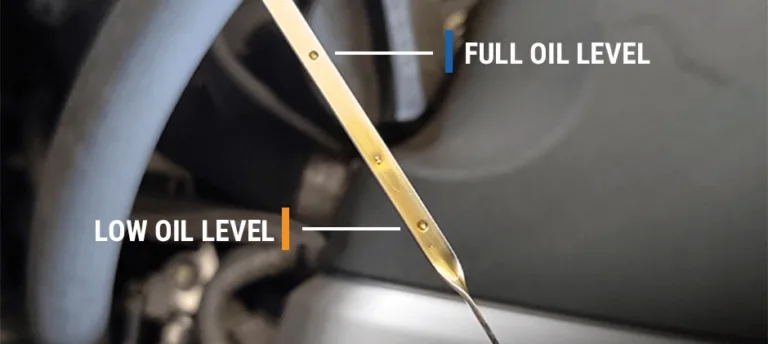

How to Read the Dipstick Like a Mechanic
This is where most DIYers get it wrong.
Here's the right way to do it:
- Start the engine and let it run for 30 seconds. This circulates oil through the filter and fills the oil galleys.
- Shut the engine off.
- Wait five minutes. This lets the oil drain back into the pan. If you check immediately, the dipstick reads low because oil is still draining from the top of the engine.
- Pull the dipstick, wipe it clean, and reinsert it fully.
- Pull it again and read the level. The oil should be between the low and full marks. Ideally, it's at the full mark or just below.
If it's low, add a quarter quart at a time. Wait one minute, then recheck. If it's over the full mark, you've added too much.
You'll need to drain some out.
The dipstick tube on the 4.0L V6 is notoriously hard to read. The oil film can be thin and transparent, especially with fresh synthetic. Hold the dipstick up to direct sunlight or a bright flashlight to see the actual level.
Some owners mark the dipstick with a file notch at the full level for easier reading.
Common mistake: reading the dipstick with the engine running. Don't do this. The oil level drops while the pump is running and you'll underfill.
The 5 Most Common Mistakes People Make
We've seen these errors over and over in owner forums, service records, and even in shops that should know better. Skip these and you're ahead of most.
Mistake #1: Guessing Based on the Old Tacoma
The 2011 model year is a transition point for Tacoma. Earlier first-generation models (1995 to 2004) had different engines with different capacities. Second-gen trucks from 2005 to 2015 share some parts but not all.
If you assume your 2011 takes the same oil volume as your buddy's 2003, you'll be wrong every time.
The 2.7L 2TR-FE and the older 2.7L 3RZ-FE have different oil pans. The capacities are not interchangeable. Always check the specific year and engine.
Mistake #2: Overfilling Because "A Little Extra Can't Hurt"
This is the most dangerous myth in engine maintenance. A little extra oil raises the oil level high enough that the crankshaft counterweights slap the surface of the oil. That whips air into the oil, creating foam.
Foam doesn't lubricate. Foam causes cavitation in the oil pump. Cavitation causes pump failure.
The oil pressure warning light might not come on until the damage is done.
Mistake #3: Not Priming the Oil Filter
On the 4.0L V6, the oil filter sits above the oil pan. Gravity drains the filter housing when the engine is off. If you install a dry filter and start the engine, the oil pump has to push air through the entire lubrication system before it moves any oil.
That delay means the timing chain tensioner and VVT actuators run dry for a few seconds. Those seconds add up over hundreds of starts. Fill the new filter halfway with oil before installation.
It costs nothing and protects the engine.
Mistake #4: Torquing the Drain Plug by Feel
The drain plug torque spec is 30 ft-lbs. That's not a suggestion.
Most people tighten it "snug plus a quarter turn." That usually ends up at 50 to 60 ft-lbs. Enough to strip the threads in the aluminum oil pan. Once the threads are gone, you're looking at a new oil pan or a time-sert repair, both of which cost way more than a torque wrench rental from the auto parts store.
If you don't own a torque wrench, buy a cheap beam-style one. They're accurate enough for oil drain plugs and cost under 20 dollars.
Mistake #5: Using a Different Filter That Changes Capacity
Some aftermarket oil filters are longer or shorter than the OEM Toyota filter. A longer filter has more internal volume. A shorter filter has less.
If you switch from a standard filter to a "performance" filter with a larger canister, your total oil capacity changes slightly.
The difference is usually less than a quarter quart. Enough to throw off your dipstick reading if you're filling to the exact spec. Always check the dipstick after a filter brand change.
Adjust your fill accordingly.
What Happens If You Get It Wrong (Real Risks)
The engine doesn't send you a warning text. It just starts wearing faster.
Underfilling: The Quiet Engine Killer
A quart low means the oil pickup tube can suck air during acceleration or off-road angles. Air in the oil pump causes cavitation. The pump loses pressure.
The cam journals and main bearings run dry. You won't hear it until the knock starts. By then, the bearing surfaces are already damaged.
Overfilling: More Dangerous Than Most People Realize
Extra oil lets the crankshaft whip the surface into a froth. Foam doesn't lubricate. The oil pressure light might stay off because the pump is still moving fluid.
But that fluid is aerated. The VVT actuators get inconsistent pressure. The timing chain tensioner rattles.
Seals can blow out from the added pressure.
Wrong Viscosity: Why Your VVT System Will Complain
The 1GR-FE and 2TR-FE both use oil pressure to adjust cam timing. Thicker oil delays flow to the VVT solenoid. The ECU sees the cam timing is off and throws a P0010 or P0012 code.
The fix isn't a new solenoid. It's draining the wrong oil and refilling with 0W-20.
How Often Should You Change the Oil in a 2011 Tacoma?
Toyota's official recommendation is every 5,000 miles for normal driving. The owner's manual also lists a 10,000 mile interval for synthetic. But here's the truth from real-world data.
Normal service means highway miles, moderate temperatures, and clean roads. Severe service means stop-and-go traffic, towing, off-road use, dusty conditions, or extreme cold. Most Tacoma driving counts as severe service.
That 5,000 mile interval is the safer bet.
Change the filter every time. It costs eight dollars and keeps the oil clean. Skipping the filter to save money means the new oil gets contaminated by the old filter's trapped debris immediately.
For a broader look at how different Toyota models handle oil specs across generations, the Toyota Corolla oil type guide covers the similarities and differences you'll see across the lineup.
When to Call a Pro Instead of Doing It Yourself
DIY oil changes work for most owners. But some situations call for a shop.
Call a pro if you see metal flakes in the drained oil. That means internal engine damage needs diagnosis, not just fresh oil. Call a pro if the drain plug threads are damaged.
Stripped threads need a thread repair insert or a new oil pan. Neither is a driveway job for most people.
Call a pro if you can't get the old filter off. Toyota filters are tight from the factory. A stuck filter can tear the mounting stud or damage the housing.
That turns a thirty minute job into a tow truck visit.
Otherwise, you've got this. The numbers are clear and the process is simple.
Quick Reference Specs Card
Here's everything in one place for next time.
| Spec | 2.7L 4-Cylinder | 4.0L V6 |
|---|---|---|
| Oil capacity with filter | 5.3 quarts | 6.0 quarts |
| Oil type | 0W-20 synthetic | 0W-20 synthetic |
| API rating | SN or higher | SN or higher |
| Oil filter part | 04152-38020 | 04152-38020 |
| Drain plug torque | 30 ft-lbs | 30 ft-lbs |
| Oil change interval | 5,000 miles | 5,000 miles |
Frequently Asked Questions
Can I use 5W-30 if 0W-20 isn't available?
In an emergency, yes. But switch back to 0W-20 at the next change. 5W-30 delays oil flow during cold starts and can trigger VVT codes. Toyota designed the engine for 0W-20.
Running thicker oil long term reduces fuel economy and accelerates timing chain wear.
Does a cold engine hold more oil than a warm one?
No. Oil expands slightly when hot, but the difference is negligible. The dipstick is calibrated for a warm engine that has been off for five minutes.
Cold oil is thicker and drains slower, which can give a false low reading. Always check with the engine warm and off.
Why does my dipstick show overfilled even though I measured correctly?
The oil filter might be holding oil that hasn't drained back into the pan. Or the truck wasn't level when you checked. Park on flat ground.
Wait five minutes after shutdown. Wipe the dipstick, reinsert, and read it again. If it's still over the full mark, you added too much.
Drain a quarter quart and recheck.
What happens if I mix synthetic and conventional oil?
Nothing catastrophic. The two oils are compatible. But mixing them dilutes the synthetic's additive package.
You lose some of the high-temperature stability and cold-flow benefits. Stick with one type per oil change for consistent protection.
Should I use a high mileage oil in my 2011 Tacoma?
High mileage oil is formulated with seal conditioners for engines over 75,000 miles. If your Tacoma has that many miles, it's a good choice. The capacity and viscosity are the same as standard 0W-20.
The only difference is the additive package. It won't hurt a lower mileage engine either.
