2011 Toyota RAV4 Oil Capacity: How Many Quarts?

The 2011 Toyota RAV4 is a reliable SUV that can easily pass 200,000 miles when maintained properly. But there's one number you absolutely have to get right, and it's the 2011 toyota rav4 oil capacity. Put in too little, and you risk engine starvation.

Pour in too much, and you can blow out seals or cause foaming that destroys lubrication. Either mistake can mean a tow truck and a repair bill that dwarfs the cost of a simple oil change.

Toyota specifies two different engines for this model year, and they do not share the same oil capacity. The 2.5L four-cylinder takes 4.5 quarts with a filter change, while the 3.5L V6 needs 5.6 quarts. As of 2026, these numbers haven't changed, and they won't.

Getting it right starts with knowing which engine is under your hood. Let's walk through exactly what you need.

Quick Answer

The 2011 Toyota RAV4 oil capacity is 4.5 quarts for the 2.5L four-cylinder engine. The 3.5L V6 engine takes 5.6 quarts. Both figures include the oil filter change.

Use SAE 0W-20 synthetic oil that meets API SN or ILSAC GF-5 standards. The wrong amount or weight can cause real damage.

Why Getting This Wrong Can Cost You an Engine

This isn't a "close enough" kind of measurement. Modern engines run tight tolerances, and the oil system is designed around a very specific volume. When you underfill, the oil pickup tube can suck air during hard cornering or steep hills.

Air in the oil pump means metal-on-metal contact inside the bearings. That's how you spin a rod bearing, and that's a new engine or a scrap heap.

Overfilling is just as dangerous. The crankshaft whips through the extra oil, aerating it into foam. Foam doesn't lubricate.

It also increases internal pressure, which can push oil past seals and gaskets. A rear main seal failure on a 2011 RAV4 is an expensive fix, and it's often caused by exactly this mistake.

The 2.5L 2AR-FE engine is especially sensitive. It has a known tendency to consume some oil as it ages, especially past 100,000 miles. Owners sometimes try to compensate by overfilling.

That's the wrong move. You want the correct level checked on level ground with a cold engine.

Image source: Bing (Web (fair-use with source credit))

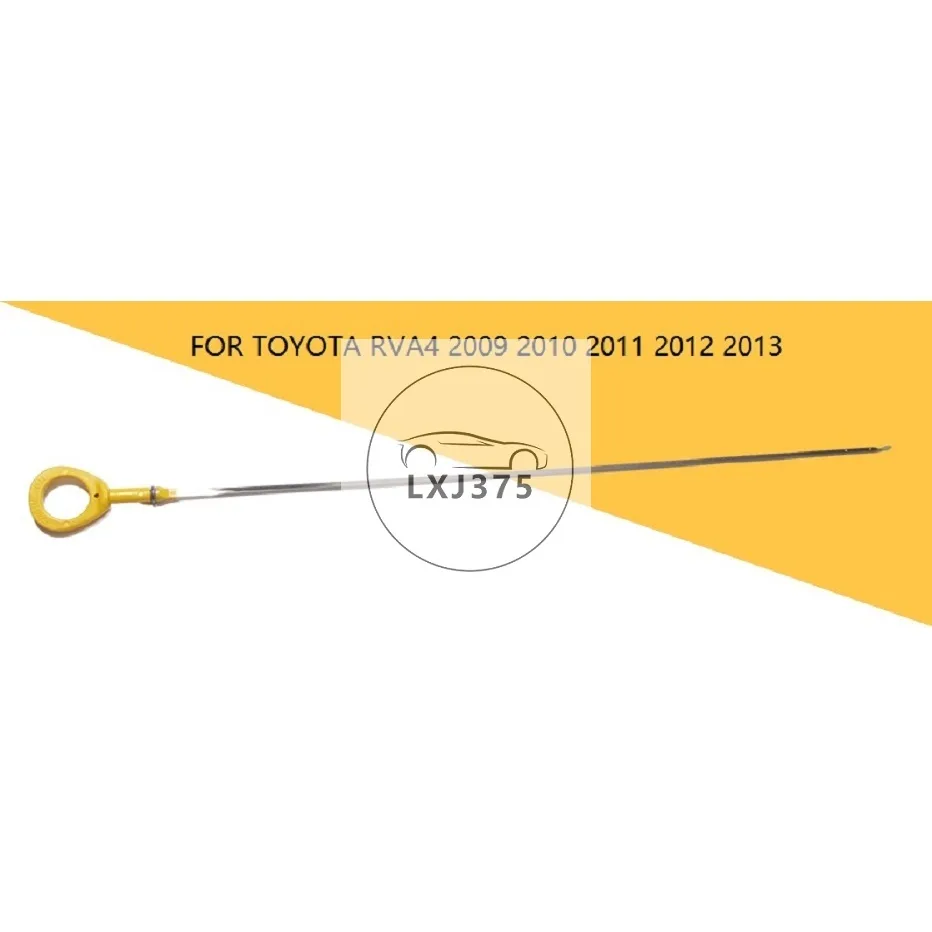

The dipstick is your best friend here. Learn to read it properly, and you'll never guess your way into a repair shop. We'll cover the exact check procedure later in this guide.

The Two Engines and Why They're Different

The 2011 model year sits in the third generation of the RAV4, and Toyota offered two engine choices. They share the same chassis and transmission options, but the oil systems are completely different.

2.5L 2AR-FE Four-Cylinder

This is the base engine, and it's what you'll find in most 2011 RAV4s. It's a 2.5-liter inline-four with Toyota's Dual VVT-i system. The valvetrain uses roller rocker arms, and the oil circuit is designed for low-viscosity oil to reach tight cam bearing clearances.

This engine is durable but needs the right oil to stay quiet and reliable. Many owners have taken these past 250,000 miles with regular care.

3.5L 2GR-FE V6

The V6 is the same 3.5-liter engine found in the Camry, Avalon, and Sienna of the same era. It's a stout 60-degree V6 with dual VVT-i and a timing chain. It requires more oil because it has a larger crankcase, more bearing surfaces, and an additional oil cooler circuit.

The V6 also runs hotter under load, which is part of why you need to use the correct viscosity.

You can tell which engine you have by looking at the VIN. The eighth character tells the story. If it's a "3," you have the 2.5L four-cylinder.

If it's a "4," you have the 3.5L V6. You can also pop the hood and look for the engine displacement sticker on the timing chain cover. Or just count the spark plug wires.

Four coils means four cylinders. Six means six.

For more on oil selection across the Toyota lineup, our Toyota RAV4 Oil Type: Full Guide for Owners covers the full range of compatible products.

Exact Oil Capacity for the 2.5L 4-Cylinder (2AR-FE)

This is the most common question we get, so let's be precise. The 2011 Toyota RAV4 with the 2.5L engine takes exactly 4.5 US quarts (4.3 liters) when you replace the oil filter at the same time. That figure comes straight from Toyota's factory service manual.

If you are changing the oil without replacing the filter, the capacity drops slightly to about 4.2 quarts. But honestly, you should always change the filter. Skipping it leaves a quart of dirty oil in the system, and the dirty filter restricts flow from the start.

Here's what that looks when you're at the auto parts store:

A common mistake is buying five quarts and dumping the whole jug in. If you pour all five quarts, you are overfilling by half a quart. That's enough to cause foaming and pressure issues.

Start with four quarts, check the dipstick, and add the remaining half quart slowly. The dipstick should show the level between the low and full marks after you run the engine and let it sit for a few minutes.

Image source: Bing (Web (fair-use with source credit))

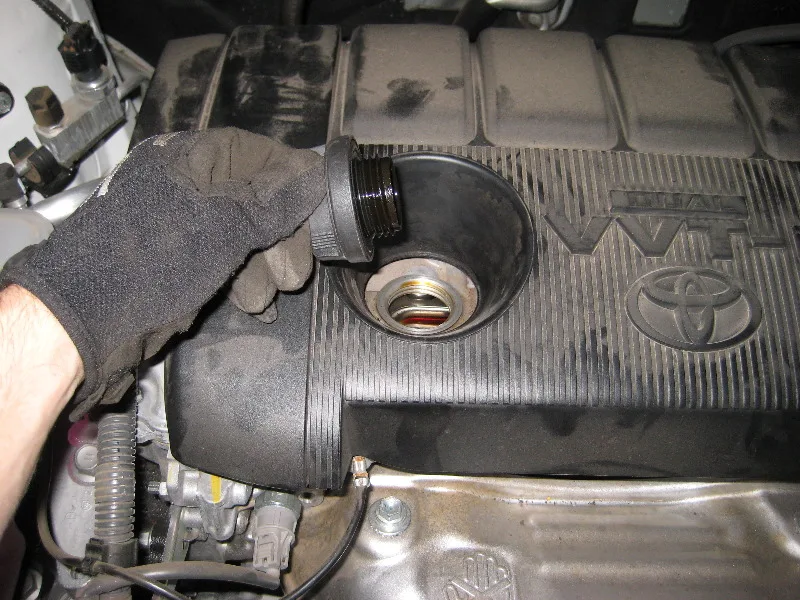

That yellow oil fill cap on top of the valve cover usually has the recommended viscosity printed right on it. If it's worn off, check your owner's manual or the sticker under the hood.

Exact Oil Capacity for the 3.5L V6 (2GR-FE)

The V6 version needs more oil, and it's important not to confuse the two. The 2011 Toyota RAV4 with the 3.5L engine requires 5.6 US quarts (5.3 liters) with a filter change.

That extra quart compared to the four-cylinder isn't just for show. The V6 has an additional oil cooler, longer oil galleries, and a larger oil pan to handle the higher thermal load. If you underfill it, the oil temperature spikes faster during towing or climbing, and the VVT-i actuators can get noisy.

Same rule applies here. Don't dump six quarts in. Pour five, check the dipstick, start the engine, let it run for 30 seconds to fill the new filter, shut it off, wait two minutes, and check again.

Top off as needed. You'll likely add about half a quart to hit the full mark.

The good news is that both engines use the same oil filter. That part number 90915-YZZD3 works across the board. If you're buying an aftermarket filter, just make sure it's listed for both the 2.5L and 3.5L applications.

Many chains have different part numbers for each, but the physical dimensions are identical.

Toyota also publishes a service bulletin that allows SAE 5W-30 in warmer climates, but 0W-20 remains the first recommendation. If you're in a hot region and towing regularly, some long-time Toyota techs prefer the slightly thicker 5W-30 for the V6. Just know that using 5W-30 may decrease fuel economy by a small margin.

We cover the viscosity choice in more depth in our Best Oil for Toyota RAV4: Weight & Capacity Guide.

What Oil Weight Should You Use? (Viscosity Guide)

Toyota recommends SAE 0W-20 synthetic oil for both engines in the 2011 RAV4. That is the factory fill, and it's what the variable valve timing system was designed around. The "0W" part means the oil flows like a thin 0-weight oil when cold, which protects during winter startups.

The "20" means it thickens to a 20-weight at operating temperature.

Some owners in hot climates wonder if they should switch to 5W-30. Toyota actually allows it. The owner's manual lists 5W-30 as acceptable for sustained driving above 100°F or for towing.

But here's the catch. Using 5W-30 will reduce your fuel economy slightly. The thicker oil creates more drag inside the engine, and the RAV4's computer doesn't adjust for it.

If you live in Phoenix or Death Valley and tow a trailer, 5W-30 is a reasonable choice. For everyone else, stick with 0W-20. It keeps the VVT-i actuators happy and delivers the best fuel economy.

The difference in protection at high mileage is negligible either way.

Here is a quick cheat sheet for viscosity based on your climate and use:

Look for the API donut symbol on the bottle. You want API SN or SN Plus. That standard ensures the oil has proper detergents and anti-wear additives for your engine.

ILSAC GF-5 or GF-6 certification is also fine. These are industry benchmarks, not marketing.

If you want to understand the broader picture for other Toyota models, our Toyota RAV4 Oil Type: What You Need to Know covers comparable vehicles from the same generation.

Synthetic vs. Conventional: What Toyota Actually Recommends

Toyota specified synthetic oil from the factory for the 2011 RAV4. That doesn't mean you can't use conventional, but you should understand the trade-offs.

Synthetic oil handles heat better. The 2.5L and 3.5L engines both run hot enough to break down conventional oil faster, especially if you do short trips or let the engine idle. Synthetic also resists sludge formation, which matters because the 2AR-FE engine can develop sludge if oil changes are stretched too long.

Conventional oil is cheaper up front. A conventional 5W-30 change might cost $20 less than synthetic. But you'll need to change it more often.

Conventional also doesn't flow as well in cold weather. If you live where temperatures drop below 20°F, conventional oil thickens and starves the cam journals on startup.

Our research says this. If you plan to keep the RAV4 for more than two years, use synthetic. The extra cost per change is around $15 to $20.

Spread over five oil changes a year, that's $75 to $100 annually. That same $100 can save you a $4,000 engine replacement down the road.

One common scenario we see is owners switching to a high-mileage synthetic blend after 100,000 miles. That's fine. High-mileage oils have additional seal conditioners that can reduce minor leaks.

Just make sure the bottle still carries the API SN certification.

Step-by-Step: How to Check and Fill Oil Correctly

Checking oil on a 2011 RAV4 is straightforward, but there are a few tricks that prevent false readings.

Step 1: Park on level ground. Any slope throws off the reading. Your driveway may be sloped more than you think. If the car tilts, the oil pools in one corner of the pan.

Step 2: Warm up the engine. Run it for about five minutes. Shut it off and wait three minutes. This lets the oil drain back into the pan.

Checking cold gives a higher reading because the oil hasn't fully settled.

Step 3: Pull the dipstick. Wipe it clean with a rag. Push it all the way back in. Pull it out again and read the level.

Step 4: Read the level. The dipstick has two marks: Low and Full. The level should be between them, ideally closer to Full. If it's at or below the Low mark, add oil.

Step 5: Add oil slowly. Remove the oil fill cap on top of the valve cover. Pour in half a quart at a time. Wait a minute between additions.

Recheck the dipstick.

Step 6: Don't overfill. The Full mark represents the maximum safe level. Going above it causes the same problems as a major overfill. Stop when the level reaches the Full mark.

For the V6 engine, the dipstick can be harder to read because the oil tends to smear up the tube. Pull it out, wipe it, and reinsert it several times if needed. You can also let the car sit longer, up to ten minutes, to get a cleaner reading.

If you are doing an oil change and have drained the old oil, follow the same process. Refill with 4 quarts (2.5L) or 5 quarts (V6), run the engine for 30 seconds to fill the filter, shut it off, wait three minutes, and top off. That final top-off is usually about half a quart.

Common Mistakes That Lead to Engine Damage

We see the same errors over and over in forums and service bays. Here are the big ones to avoid.

Using the wrong viscosity. 0W-20 is thin. Some people see it and think it's too thin for an older engine. So they pour in 10W-30 or 20W-50.

That thick oil won't flow through the VVT-i oil control valves fast enough. The engine can throw a cam timing code or run rough. Worse, it can starve the variable valve timing actuators at cold startup.

Forgetting the oil filter crush washer. The drain plug has a crush washer that should be replaced every change. Reusing the old one can cause a slow drip. A dry driveway is one thing.

Losing half a quart of oil over a month is another.

Over-tightening the drain plug. The spec is 29 lb-ft. That's not very tight. Many people lean into it with a breaker bar and strip the threads in the oil pan.

A stripped oil pan on a 2011 RAV4 means a new pan or a thread repair insert. Neither is fun on a weekend.

Not priming the oil filter. Some filters, especially the Toyota OEM, have a silicone anti-drainback valve that works best when you pre-fill the filter with fresh oil before installation. If you install a dry filter, it takes several seconds for oil to reach the bearings on the first startup. On a cold day, that's several seconds of metal-to-metal contact.

Skipping the oil change interval. Toyota says 10,000 miles for normal service and 5,000 for severe. Severe includes short trips under 10 miles, stop-and-go traffic, extreme temperatures, dusty roads, and towing. If any of those describe your driving, go with 5,000 miles.

The 2.5L engine especially benefits from frequent changes because it runs hot and can sludge up if oil gets old.

Mixing viscosities. If you are low and top off with 5W-30 when the system calls for 0W-20, it won't blow up. But you're diluting the additive package. Stick with the same weight and brand when possible.

The Drain Plug and Oil Filter: Torque Specs You Need

Getting the drain plug and filter right prevents leaks and stripped threads. This is the part where a torque wrench pays for itself.

The oil drain plug on both engines is a 14mm hex head. Toyota specifies 29 lb-ft (39 N·m) of torque. That's about hand tight with a standard ratchet plus a gentle tug.

If you use a torque wrench, set it to 29 lb-ft and stop when it clicks. No more.

The oil filter should be tightened to about 13 to 18 lb-ft. That's hand tight plus three-quarters of a turn after the gasket contacts the housing. Do not use an oil filter wrench to crank it down.

The housing is aluminum on the 2.5L and steel on the V6, but both can crack if overtightened.

Here is the full spec table for easy reference:

Image source: Web (Bing) / nepal.ubuy.com (Web image (fair-use with source credit))

The oil filter on the 2.5L sits on the front of the engine, easy to reach from below. The V6 has the filter up front and slightly toward the passenger side. Both spin off by hand after you loosen them.

Use a latex glove for grip if it's stuck.

Always lubricate the new filter's gasket with a smear of fresh oil. This prevents the gasket from sticking to the mounting surface. A stuck gasket can cause a double-gasket failure next change, where the old gasket stays attached and the new one leaks under pressure.

That's a rapid oil loss situation.

For the drain plug, replace the crush washer every time. Toyota sells them in packs of ten for a couple of dollars. The washer deforms to create a seal.

Reusing it means a potential slow leak that can look like a rear main seal failure. If you see a drip from the drain plug, change the washer before chasing bigger problems.

If you prefer an aftermarket filter, brands like Wix, Purolator, and Mobil 1 all make options that meet Toyota's specifications. Just verify the bypass valve pressure matches the OEM spec, which is around 8 to 11 psi for this application. The box usually lists the bypass setting.

When to Change It: Mileage Intervals That Make Sense

Toyota's official recommendation for the 2011 RAV4 is 10,000 miles between oil changes under normal driving conditions. But here is the reality. Most driving qualifies as "severe" under Toyota's definition.

Short trips, stop-and-go traffic, extreme temperatures, and dusty roads all count. If that sounds like your daily commute, change the oil every 5,000 miles.

The 2.5L engine is more sensitive to oil degradation than the V6. Owners reports show carbon buildup and sludge start forming around 7,000 miles with conventional oil. Synthetic holds up better, but even synthetic breaks down over time.

The additive package wears out, and the oil loses its ability to neutralize acids.

A good middle ground for most owners is 5,000 to 7,500 miles with full synthetic. That keeps the engine clean without wasting money. If you do mostly highway miles at steady speeds, 7,500 is safe.

If your commute is five miles of city traffic, stick to 5,000.

Time matters too. Even if you drive less than 5,000 miles a year, change the oil once a year. Moisture and fuel contamination build up over time, especially in cold climates.

High-Mileage RAV4s: What Changes After 100,000 Miles

Once your 2011 RAV4 passes 100,000 miles, the oil system needs a bit more attention. The 2.5L engine in particular can start consuming oil. Toyota even issued a technical service bulletin about piston ring sticking on early 2AR-FE engines.

The fix is more frequent oil changes with a good synthetic.

If you notice the dipstick level dropping between changes, don't just top it off and ignore it. Measure the consumption. Add a quart and note the mileage.

When it drops again, check how many miles you got. Toyota considers up to one quart per 1,200 miles acceptable. Many owners find that switching to a high-mileage synthetic blend reduces consumption by softening the valve stem seals.

Pay attention to the oil color at change time. Dark brown or black is normal. Milky or frothy oil means coolant contamination.

That is a head gasket or intake manifold leak. Stop driving and get it diagnosed.

The V6 engine is more forgiving at high mileage. It rarely develops oil consumption issues unless oil changes were neglected. If you buy a used 2011 RAV4 with the V6 and no service history, do an immediate oil change with synthetic and plan on 5,000-mile intervals for the first year.

How to Reset the Oil Maintenance Light

After you change the oil, the maintenance light on the dash needs to be reset. It does not clear itself. Here is the process for a 2011 RAV4.

Turn the ignition to the ON position without starting the engine. Make sure the odometer is showing the trip A reading. Press and hold the trip reset button located on the instrument cluster.

Keep holding it for about five seconds. The odometer display will start flashing. While it flashes, press the button again and release.

The light should go out.

If that doesn't work, try this alternate method. With the ignition off, press and hold the trip reset button. Turn the key to the ON position while still holding the button.

The maintenance light will flash and then turn off. Release the button.

Some RAV4s respond to one method and not the other. Try both before assuming something is broken. The light is just a timer, not a sensor.

It triggers every 5,000 miles regardless of oil condition.

Image source: Web (Bing) / wikihow.com (Web image (fair-use with source credit))

The reset confirms you performed the service. If you sell the car, the next owner will appreciate seeing the light off with a fresh change.

Where to Get Reliable Specs If You Lose Your Owner's Manual

If the owner's manual is long gone, you still have options. Toyota publishes the factory service manual online through their technical information system. A two-day subscription costs about $15 and gives you access to every spec for your VIN.

The oil fill cap on the engine itself often has the viscosity printed on it. The emissions label under the hood lists the engine family and sometimes the oil capacity. Toyota dealerships can look up the spec by VIN for free if you call.

For a quick reference, the specs in this article come from the 2011 Toyota RAV4 factory service manual and Toyota's official publications. They are the same numbers Toyota techs use in the shop.

Frequently Asked Questions

How much oil does a 2011 Toyota RAV4 take?

The 2.5L four-cylinder takes 4.5 quarts with a filter change. The 3.5L V6 takes 5.6 quarts with a filter change. Always check the dipstick after filling to confirm.

What type of oil does a 2011 RAV4 use?

Toyota recommends SAE 0W-20 full synthetic oil meeting API SN or ILSAC GF-5 standards. SAE 5W-30 is acceptable for high-temperature or towing conditions.

Can I use conventional oil instead of synthetic?

Yes, but you should change it more frequently. Conventional oil degrades faster in this engine and may lead to sludge formation over time. Synthetic is the safer long-term choice.

How do I know if I have the 2.5L or 3.5L engine?

Check the VIN. The eighth character is 3 for the 2.5L or 4 for the 3.5L. You can also look for an engine displacement sticker on the timing chain cover.

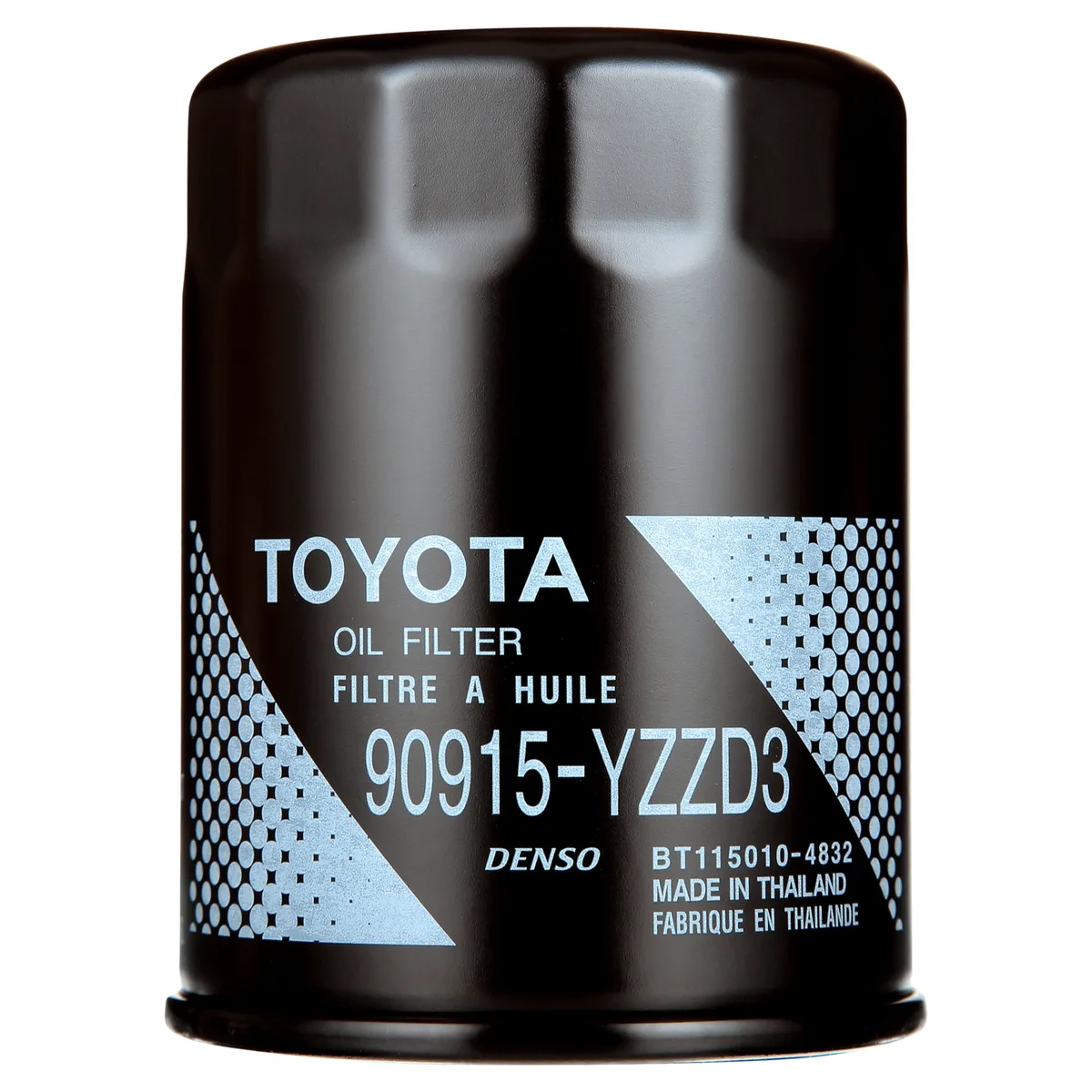

What is the oil filter part number for a 2011 RAV4?

The OEM part number is 90915-YZZD3. It fits both the 2.5L and 3.5L engines. Aftermarket equivalents from Wix, Purolator, and Mobil 1 also work.

Why does my RAV4 burn oil?

The 2.5L 2AR-FE engine can develop piston ring sticking around 100,000 miles. Switching to synthetic and changing oil every 5,000 miles often reduces consumption. Toyota considers up to one quart per 1,200 miles normal.

How often should I change the oil in a 2011 RAV4?

Toyota says 10,000 miles for normal driving. Most owners should aim for 5,000 to 7,500 miles with synthetic oil. Short trips, cold weather, and dusty roads all count as severe driving that requires shorter intervals.

What happens if I overfill the oil?

Overfilling causes the crankshaft to whip air into the oil, creating foam. Foam doesn't lubricate properly. It can also blow out seals and gaskets.

If you overfill, drain the excess immediately.

Can I use 5W-30 instead of 0W-20?

Yes, Toyota allows 5W-30 for sustained high-temperature driving or towing. Expect a small drop in fuel economy. For normal driving, 0W-20 remains the best choice for cold starts and VVT-i operation.

Final Verdict: What to Put in Your RAV4 and Why

The 2011 Toyota RAV4 is a well-engineered SUV that rewards consistent maintenance. Use 4.5 quarts of SAE 0W-20 synthetic oil for the 2.5L engine or 5.6 quarts for the 3.5L V6. Change the filter every time.

Stick with 5,000-mile intervals if your driving involves short trips or stop-and-go traffic. Check the dipstick monthly, especially as the engine passes 100,000 miles.

These are small habits that cost a few dollars and a few minutes. Neglecting them can cost you an engine. The specs are clear, the process is simple, and the payoff is thousands of miles of reliable driving.

Get the oil right, and your RAV4 will take care of the rest.
