You're essentially doing your own oil change on a 2014 Toyota RAV4. That's good, it's one of the most straightforward jobs you can do. But here's the catch: the 2014 Toyota RAV4 oil capacity isn't a single number you can just Google and pour in.
There are two different engines in this model year, and getting it wrong means engine trouble. Manufacturers specs indicate a 2.5‑litre four‑cylinder and a much rarer 3.5‑litre V6, each with a different fill. The 2.5‑litre engine, which is by far the most common, needs 5.5 quarts with a filter change.
The V6 needs 6.4 quarts. Use the wrong number and you're either starving the bearings or foaming the oil, both expensive fixes. As of 2026, even a used RAV4 is worth maintaining properly.
Let's walk through exactly what you need to know.
Image source: Web (Bing) / rav4resource.com (Web image (fair-use with source credit))
Why Getting This Wrong Can Cost You an Engine
Oil is your engine's lifeblood. Too little, and the moving parts grind metal on metal. Too much, and the crankshaft whips the oil into foam, which can't lubricate, plus it can blow seals and even damage the catalytic converter.
The 2014 RAV4's 2.5‑litre engine (the 2AR‑FE) is tough, but it's not invincible. Overfill it by a quart and you risk oil getting into the PCV system, causing a runaway engine or a hydraulic lock. Underfill it by a quart and you risk bearing failure within minutes.
Neither is a DIY fix. So the exact fill matters, not "close enough". That's why we're spending time on the precise numbers.
If you're already familiar with the basics of engine servicing, you'll find this straightforward. But if you're new to the RAV4, or to this specific year, pay close attention to the two‑engine detail. Our research on similar Toyotas, like the 2021 Camry's oil type, shows that many owners accidentally use the wrong spec.
Let's not make that mistake here.
The Quick Answer: Exact Oil Capacity for the 2014 RAV4
2.5‑litre four‑cylinder (2AR‑FE): 5.5 quarts (5.2 litres) with filter change.
3.5‑litre V6 (2GR‑FE): 6.4 quarts (6.1 litres) with filter change.
Without a filter change, subtract about 0.3 quarts. Always check the dipstick after filling.
| Engine | Capacity with filter | Capacity without filter | Recommended oil |
|---|---|---|---|
| 2.5L 4‑cyl | 5.5 qt (5.2 L) | 5.2 qt (4.9 L) | SAE 0W‑20 synthetic |
| 3.5L V6 | 6.4 qt (6.1 L) | 6.1 qt (5.8 L) | SAE 0W‑20 synthetic |
Use a high‑quality full synthetic that meets API SN or higher, and ILSAC GF‑5 or GF‑6. Toyota factory fill is 0W‑20. Stick with it.
Core Facts About the 2014 RAV4's Oil System
Two Engines, Two Different Capacities
The 2014 RAV4 came almost exclusively with the 2.5‑litre four‑cylinder. The V6 was dropped after 2012, but there are a few 2014 models with the 3.5‑litre, usually the Limited trim with a tow package. If you bought yours used, double‑check your engine.
Look under the hood: the 2.5L has a plastic engine cover that says "2.5L." The 3.5L has a metal intake manifold and a larger oil filler cap. If you're unsure, check your vehicle identification number (VIN) with a Toyota dealer. But for 99% of owners, it's the 2.5L.

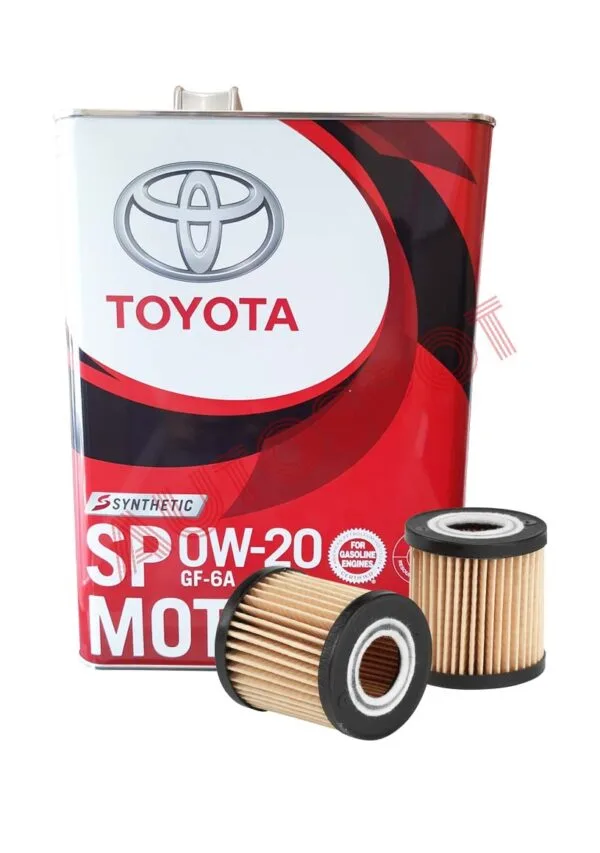

Why 0W‑20 Isn't Optional
Toyota designed the 2AR‑FE engine around 0W‑20 synthetic oil. It's thin enough to flow quickly at cold start, critical for the variable valve timing system. Using 5W‑20 or 5W‑30 will reduce fuel economy and accelerate wear over time.
In cold climates (below 20°F), 0W‑20 is essential. In hot climates, it still works fine because the engine's oil cooler keeps temps in check. Save yourself trouble and stick to 0W‑20 full synthetic.
Our full guide on RAV4 oil type covers the allowable alternatives if you're in a pinch.
Image source: Web (Bing) / autospot.lk (Web image (fair-use with source credit))

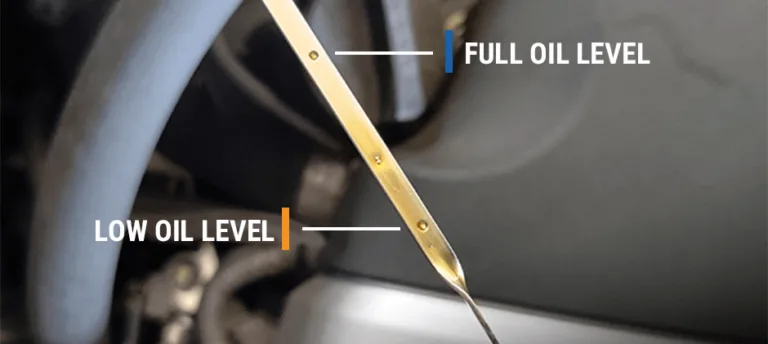

The Dipstick: Your Final Authority

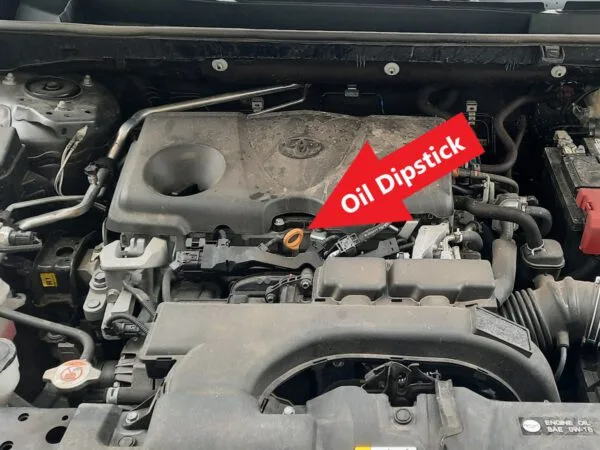

The dipstick on the 2.5L is located near the front of the engine, with a yellow or orange handle. On the V6, it's on the passenger side. Both are easy to reach.
Here's the trick: always wipe the dipstick, reinsert it fully, then pull it out again to read. The oil level should sit between the two holes or marks. If it's at the top hole, you're full.
If it's below the bottom hole, you're low. If it's above the top hole, you've overfilled. Never trust the number on a bottle alone, the dipstick is the final check.
Risk Factors and Common Mistakes
Overfilling: The Silent Killer
Overfilling by even half a quart can cause the oil level to rise into the crankshaft. The spinning crankshaft whips the oil into foam. Foam doesn't lubricate.
It also allows air into the oil pump, which can starve the bearings. Worse, it forces oil past the piston rings into the combustion chamber, where it burns and leaves carbon deposits. You might notice a rough idle or blue smoke from the exhaust.
Stop driving immediately if you suspect overfill. Drain some out.
Underfilling: Starvation and Wear
Underfilling is just as dangerous. The oil pickup tube sits near the bottom of the pan. If the oil level drops below the pickup, the pump sucks air.
That kills oil pressure instantly. Your engine will start knocking within seconds. The 2.5L has a relatively shallow oil pan, so even a quart low can be risky.
Always top up to the correct level before starting the engine.
Wrong Viscosity in Cold or Hot Climates
Using 5W‑30 in a 2014 RAV4 might seem fine for hot Arizona summers, but the hydraulic lifters and VVT system are designed for 0W‑20. Too‑thick oil doesn't flow well through the variable valve timing actuators, causing timing chain rattle and reduced performance. Too‑thin oil (like 0W‑16) can cause excessive wear at high temperatures.
Stick with 0W‑20. It's a synthetic blend at worst, full synthetic at best.
Stripping the Drain Plug
The drain plug on the 2.5L uses a 14mm bolt. Toyota specifies 29 ft‑lbs of torque. That's not "tight as you can." That's "grab a torque wrench." Hand‑tight and then a little extra with a ratchet is often too much, especially if the threads are dirty.
A stripped drain plug means a new oil pan (or a messy helicoil repair). Use a torque wrench.
Image source: Web (Bing) / fridayparts.com (Web image (fair-use with source credit))
Step-by-Step: How to Change the Oil Safely
Pre-Work: Warm Up and Level Ground
Run the engine for 2‑3 minutes to warm the oil. Warm oil drains faster and carries more contaminants. Park on level ground, engage the parking brake, and chock the rear wheels.
If you need to jack it up, use jack stands, never rely on a hydraulic jack alone. The RAV4's ground clearance is decent, so you might be able to slide under without lifting. But check for clearance first.
Draining the Old Oil
Locate the drain plug under the engine (14mm bolt). Place an oil drain pan underneath. Use a socket wrench to loosen the plug counter‑clockwise.
Remove the plug by hand and let the oil drain completely, at least 5 minutes. While it drains, inspect the crush washer on the plug. Replace it if it's flattened or cracked.
Once the oil stops dripping, install the new washer, clean the plug threads, and hand‑tighten it. Then torque to 29 ft‑lbs.
Replacing the Filter
The oil filter on the 2.5L is a cartridge type located under the engine near the front. You'll need a 24mm socket or a special filter cap tool. Place the drain pan under the filter, then use the socket to loosen it.
Remove the old O‑ring and clean the sealing surface. Lubricate the new O‑ring with fresh oil. Install the new filter and torque to about 25 Nm (18 ft‑lbs), or hand‑tighten firmly, then a quarter turn.
Don't overtighten.
Filling to the Correct Level
For the 2.5L, pour in about 5 quarts of 0W‑20. Then check the dipstick. You'll almost certainly need that extra half quart.
Add 0.4 quarts at a time until the dipstick reads full. For the V6, start with 6 quarts and add slowly. Never overfill, it's easier to add than to drain.
Image source: Web (Bing) / storage.googleapis.com (Web image (fair-use with source credit))
Reading the Dipstick Correctly
After filling, start the engine and let it run for 30 seconds. Shut it off, wait 5 minutes for the oil to settle, then pull the dipstick. Wipe it, reinsert, pull again.
The level should be between the two marks, ideally at the top mark. If it's over the top, you've overfilled. If it's below the bottom, add more.
This is your last chance to get it right before the engine runs under load.
Mistakes to Avoid (Even Experienced DIYers Make These)
Skipping the crush washer replacement. That tiny copper or aluminum washer on the drain plug is cheap. Reuse it too many times and it won't seal properly. You'll have a slow drip that leaves a puddle on your driveway.
Toyota specifies a new crush washer every oil change. Buy a pack of ten for a few dollars and keep them in your toolbox.
Tightening the oil filter with a wrench. The filter housing on the 2.5L is plastic. Overtightening it can crack the housing or strip the threads. Hand-tighten until the gasket contacts the surface, then give it another quarter turn.
That's it. If you're using the cartridge-style filter, torque it to 25 Nm (18 ft-lbs) with a proper socket. No gorilla arms allowed.
Forgetting to check the dipstick before starting. You pour in 5.5 quarts and assume it's perfect. But maybe you didn't drain all the old oil. Maybe your engine is slightly tilted.
Maybe the filter held an extra 0.2 quarts. Always check the dipstick after the first fill. It takes 30 seconds and saves you from a foaming disaster.
Using the wrong oil weight in cold weather. If you live in Minnesota or Canada, 5W-20 is noticeably thicker at startup. The oil pump has to work harder to push cold oil through the VVT actuators. This causes timing chain rattle and increased wear during the first few minutes of driving.
Stick with 0W-20 year-round. Your engine will thank you at 150,000 miles.
Not resetting the maintenance light. After an oil change, the 2014 RAV4's computer needs to know. The reset procedure is simple: turn the ignition to ON (don't start the engine), press the odometer button until the trip meter shows, then turn the ignition OFF. Hold the odometer button while turning the ignition back to ON.
Wait for the maintenance light to stop flashing and turn off. Done. If you skip this, the light stays on and annoys you for the next 5,000 miles.
Draining into an open container and spilling. Use a proper oil drain pan with a spout. The 2.5L holds over 5 quarts. That's a lot of hot oil to slosh around.
A spill on your driveway is an environmental hazard and a slip risk. Plus, used oil is hazardous waste. You'll need to take it to a recycling center.
Most auto parts stores accept it for free.
What You Need: Tools, Oil, and Filter Specs
Here's exactly what you need for a clean, safe oil change on a 2014 RAV4.
Tools Required
| Tool | Purpose |
|---|---|
| 14mm socket or wrench | Drain plug removal |
| Torque wrench (ft-lbs) | Tightening drain plug to 29 ft-lbs |
| 24mm socket or oil filter cap tool | Oil filter housing removal |
| Drain pan (minimum 7-quart capacity) | Catching old oil |
| Funnel | Clean oil filling |
| Jack and jack stands (if needed) | Lifting the vehicle |
| Shop rags or paper towels | Cleanup |
| Nitrile gloves | Hand protection |
Oil Specifications
| Specification | Required |
|---|---|
| Viscosity | SAE 0W-20 |
| API rating | SN or higher |
| ILSAC rating | GF-5 or GF-6 |
| Type | Full synthetic preferred |
| Capacity (2.5L) | 5.5 quarts with filter |
| Capacity (3.5L V6) | 6.4 quarts with filter |
Filter Specifications
| Part | OEM Number | Equivalent |
|---|---|---|
| Oil filter (2.5L) | 04152-0V010 | Wix 57046, Mobil 1 M1-102 |
| Oil filter (3.5L) | 04152-31090 | Wix 57202, Mobil 1 M1-209 |
| Crush washer | 90430-12031 | Generic 14mm copper/Al washer |
A note on filters. The 2.5L uses a cartridge-style filter with a plastic housing. The 3.5L uses a spin-on metal canister. Make sure you buy the right one.
If you're at an auto parts store, tell them "2014 RAV4 2.5L" or "2014 RAV4 V6." They're not interchangeable.
Where to buy. Genuine Toyota parts from a dealer are reliable but more expensive. Aftermarket brands like Wix, Mobil 1, and Purolator are perfectly fine. Avoid bargain-bin filters with no brand name.
They often have cheap bypass valves that stick open.
When to Call a Mechanic Instead
Not every oil change is a DIY job. Here are situations where it's smarter to pay a professional.
You don't have level ground. Working on a slope means the oil won't drain completely. More importantly, jacking up a vehicle on uneven ground is dangerous. If your driveway is sloped, either find a flat spot or take it to a shop.
You've never changed oil before. Start with a simpler vehicle or watch a few demonstration videos. The 2014 RAV4 is forgiving, but you can still strip the drain plug or crack the filter housing. A bad first experience might turn you off DIY maintenance forever.
The drain plug is rounded off. If a previous owner or a quick-lube shop overtightened the plug, the hex head might be stripped. Removing a rounded drain plug requires specialized tools. Vise grips sometimes work.
A bolt extractor set is safer. If you can't get it off without damaging the oil pan, call a mechanic.
You see metal flakes in the old oil. During your first oil change, check the drained oil for shimmer or glitter. Fine metallic particles mean bearing wear. Large chunks mean something broke.
Either way, don't just refill and hope. A mechanic should inspect the engine and possibly drop the pan.
The oil filter housing is stuck. The plastic housing on the 2.5L can seize over time. Heat and corrosion lock the threads. Forcing it with a breaker bar can crack the housing.
Use penetrating oil and a filter cap tool. If it still won't budge, a shop has professional tools to remove it without damage.
You don't have a torque wrench. Guessing the drain plug torque is risky. Too loose and it leaks. Too tight and you strip the threads.
A basic torque wrench costs about $30. If you don't own one and don't want to buy it, let a mechanic handle the job.
Frequently Asked Questions
What happens if I put too much oil in my 2014 RAV4?
Overfilling by more than half a quart causes the crankshaft to whip oil into foam. Foam doesn't lubricate. It also forces oil past the piston rings into the combustion chamber, creating blue smoke and carbon deposits.
Drain the excess immediately.
Can I use 5W-20 instead of 0W-20 in my 2014 RAV4?
In an emergency, 5W-20 is acceptable for one oil change. But it's thicker at cold startup, which reduces flow to the VVT system. Prolonged use accelerates engine wear.
Always return to 0W-20 at the next change.
How often should I change the oil in a 2014 RAV4?
Toyota recommends every 10,000 miles under normal driving conditions. For severe service (frequent short trips, extreme temperatures, towing, dusty roads), change it every 5,000 miles. Many owners split the difference at 7,500 miles for peace of mind.
Does the 2014 RAV4 take synthetic oil?
Yes. Toyota factory fills with 0W-20 full synthetic. You can use a synthetic blend in a pinch, but full synthetic provides better protection and longer intervals.
Stick with synthetic for the best engine life.
Where is the oil filter on a 2014 RAV4?
On the 2.5L four-cylinder, the oil filter is a cartridge located under the engine near the front, accessible from below. On the rare 3.5L V6, it's a spin-on filter on the passenger side of the engine block.
How do I reset the oil maintenance light on a 2014 RAV4?
Turn the ignition to ON without starting the engine. Press the odometer button until the trip meter displays. Turn the ignition OFF.
Hold the odometer button while turning the ignition back to ON. Wait about 5 seconds until the maintenance light stops flashing and turns off. Release the button.
Final Check: The Dipstick Always Wins
After you've filled and started the engine, the last step is the most important. Let the engine run for 30 seconds, then shut it off. Wait 5 minutes for the oil to settle.
Pull the dipstick, wipe it clean, reinsert it fully, and pull it again.
The oil level should sit right at the top mark. If it's below the bottom mark, add a little more. If it's above the top mark, you've overfilled.
Drain some out through the drain plug.
Don't trust the bottle alone. Don't trust the spec sheet alone. Trust the dipstick.
It's the only thing that knows exactly how much oil your engine actually holds at that moment.
And one more thing. Mark your calendar or set a phone reminder for your next oil change. Whether you go the full 10,000 miles or cut it in half at 5,000, consistency matters more than the exact interval.
A 2014 RAV4 with regular oil changes will easily run past 200,000 miles. Skip a few changes and you're chasing problems.
If you're working on other Toyotas in your driveway, the same principles apply. The 2025 Tacoma oil type and the 2025 Corolla oil specs follow similar logic. Different capacities, same attention to detail.
Proper oil and proper procedure. That's how engines last.
