How Much Oil Does a 2014 Tundra Need?

Getting the oil capacity wrong on a 2014 Toyota Tundra isn't just a minor inconvenience. It's the kind of mistake that can cost you an engine. The 2014 toyota tundra oil capacity depends entirely on which of the two V8 engines sits under your hood, and mixing them up by even a quart can lead to serious problems.

Manufacturer specifications from Toyota indicate a clear split: the 5.7L 3UR-FE engine takes 7.6 quarts with a filter change, while the 4.6L 1UR-FE engine takes 6.1 quarts. That 1.5-quart difference is easy to overlook if you're not paying attention. Let's break down exactly what you need to know before you pop the drain plug.

Quick Answer

The 2014 Toyota Tundra holds 7.6 quarts of oil with the 5.7L V8 engine. The 4.6L V8 holds 6.1 quarts. Both engines need SAE 0W-20 full synthetic oil.

Always check the dipstick after filling. Never rely on capacity numbers alone.

Why Getting the Exact Oil Capacity Matters for Your 2014 Tundra

Here's the thing about modern truck engines. They're built to extremely tight tolerances. The 3UR-FE and 1UR-FE families are no exception.

When you pour in the wrong amount of oil, you create problems that don't show up immediately but compound over time.

Overfilling is the more common mistake. Add too much oil and the crankshaft starts whipping the oil into a froth. That aerated oil doesn't lubricate bearings the way it should.

Foam doesn't pump well either. Oil pressure drops. Metal parts that should glide past each other start touching.

Over time, that contact wears down bearing surfaces.

Underfilling is worse in a different way. Running even a quart low means the oil pickup tube can suck air during hard cornering or steep hills. If you tow with your Tundra, that's exactly when oil starvation hits hardest.

A few seconds without oil pressure at highway speeds can spin a rod bearing. That repair runs thousands.

Toyota's own service documentation, available through the National Highway Traffic Safety Administration (NHTSA) database, confirms these capacities and warns against deviation. As of 2026, the same 0W-20 spec holds true for all 2014 Tundra variants.

How to Check Which Engine You Have (Without Opening the Hood)

You'd think every Tundra owner knows which engine they have. But plenty of people buy used trucks without asking. Or they forget.

Or they assume the bigger engine came with the trim package. It's worth confirming before you buy oil.

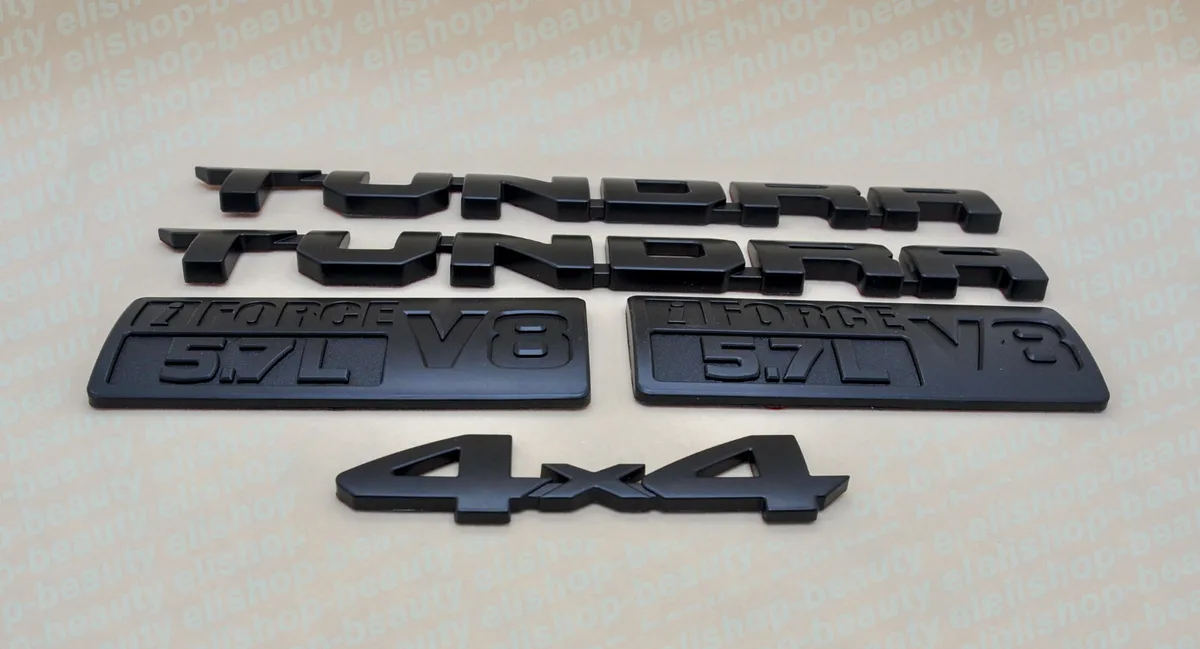

Image source: Bing (Web (fair-use with source credit))

Method one: Check the fender badge. Walk to the front of your truck. Look at the lower portion of the front fender, just behind the front wheel. You'll see a small chrome or black badge.

It reads either "5.7L V8" or "4.6L V8." That's your engine.

Method two: Use the VIN. The 8th character of your 17-digit VIN tells the story. If it's "E," you have the 4.6L engine. If it's "F," you have the 5.7L.

You can find the VIN on the driver's side dashboard near the windshield or on the driver's door jamb sticker.

Method three: Look at the intake manifold. The 5.7L has a visibly larger plastic intake cover with "3UR-FE" cast underneath. The 4.6L cover says "1UR-FE." Pop the hood and look toward the center of the engine.

Which trim came with which engine? The 4.6L was standard on base SR and some SR5 trucks. The 5.7L was optional on SR5 and standard on Limited, Platinum, and 1794 Edition trims. But never trust trim alone.

Previous owners swap parts. Check the badge.

Step-by-Step: How to Change Your Oil the Right Way

You can do this yourself in about 30 minutes. The first time takes longer. By the third time, you'll have it down to a smooth routine.

Here's the exact sequence that works for both engines.

Tools and Parts You'll Need

Step 1: Warm Up the Engine Safely

Cold oil drains slowly. Hot oil burns you. The middle ground is a 30 to 60 second idle.

That's enough to warm the oil to a flowing temperature without making it dangerous. Park on level ground. Engage the parking brake.

Chock both rear wheels.

If you just drove home, wait 10 to 15 minutes before getting under the truck. Exhaust components stay hot longer than you think.

Step 2: Drain the Old Oil (Don't Skip the Filter)

Slide under the passenger side of the truck. The oil pan drain plug is a 17mm bolt facing downward at the rear of the pan. Position your drain pan first.

Loosen the plug with your socket wrench. Then unscrew it by hand.

Here's a pro move: remove the oil filler cap on top of the engine before you pull the drain plug. It lets air flow through the system and speeds up draining. The oil comes out fast at first, then slows to a trickle.

Let it drip for a full five minutes.

While it drains, move to the oil filter. On the 5.7L engine, the filter sits on the passenger side of the block near the front. You can reach it from above or below.

The 4.6L places it in a similar spot. Use your filter wrench to break it loose, then unscrew by hand. Be ready for more oil to spill out when the filter comes off.

Step 3: Replace the Drain Plug Correctly to Avoid Stripping

This step causes more DIY disasters than any other. The oil pan is aluminum. The drain plug is steel.

Aluminum is soft. If you overtighten, you strip the threads in the pan. That repair means a new oil pan or a thread insert.

Neither is fun.

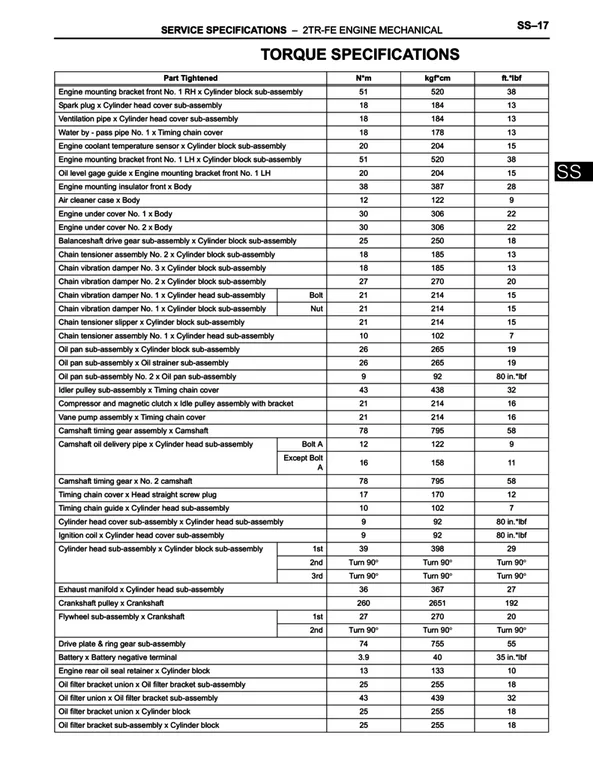

Image source: Web (Bing) / storage.googleapis.com (Web image (fair-use with source credit))

Here's the right way. Wipe the drain plug clean. Slide a new crush washer onto it.

Hand-thread the plug into the pan until it stops turning. Then use your torque wrench set to 25 ft-lbs. If your wrench clicks at 25, stop.

You're done. Do not exceed 33 ft-lbs under any circumstances.

The crush washer deforms slightly when you tighten the plug. That deformation creates the seal. Reusing the old washer means the seal won't hold.

Spend the dollar on a new one.

Step 4: Install the New Oil Filter (Pre-Fill Trick)

Take your new oil filter out of the box. Rub a thin layer of fresh oil around the rubber gasket on the top of the filter. This prevents the gasket from sticking or tearing when you next remove it.

Now the trick that separates a good oil change from a great one: pour fresh oil into the filter until it's about half full. Swirl it around to coat the inside. This pre-fills the filter so the engine doesn't run dry during those first few seconds after startup.

Thread the filter onto the engine by hand. Turn it until the gasket contacts the mounting surface. Then tighten it another three-quarters of a turn by hand.

Do not use a wrench for final tightening. Hand tight is tight enough.

Step 5: Add the Right Amount of 0W-20

Lower the truck off the ramps. Pour in your oil. For the 5.7L engine, start with 7 full quarts.

For the 4.6L, start with 5.5 quarts. Use a funnel. Pour slowly.

Watch for air bubbles that indicate the oil is flowing freely into the pan.

Wait one minute. Let the oil settle into the pan. Then check the dipstick.

Step 6: Check the Dipstick Like a Pro

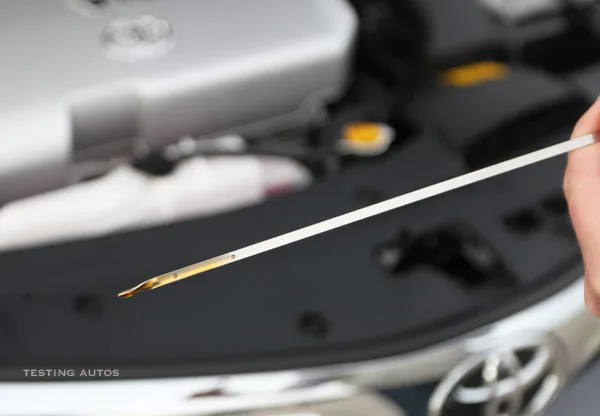

Image source: Bing (Web (fair-use with source credit))

Pull the dipstick out. Wipe it clean with a lint-free rag. Push it all the way back in.

Pull it out again and read the level.

The oil should sit between the low and full marks. If it's at the low mark, add half a quart and recheck. If it's above the full mark, you've overfilled.

Drain some out.

Here's the thing most people get wrong: the dipstick reads differently when the engine is cold versus hot. Cold oil is thicker and climbs higher on the stick. Hot oil is thinner and reads lower.

Always check when the engine is warm and has been off for two to three minutes. That gives the oil time to drain back into the pan.

Start the engine. Let it run for about 30 seconds. Shut it off.

Wait one minute. Check the dipstick one more time. Top off if needed.

The final level should land right at the full mark.

Common Mistakes That Can Damage Your Engine

You'd be surprised how many seasoned DIYers still mess up basic oil changes on these trucks. The Tundra's engine bay looks straightforward, but a few common errors cause real damage.

Overfilling vs Underfilling: What Actually Happens

Overfilling creates foam. The crankshaft whips through the excess oil like a blender. That foam contains air bubbles.

Air doesn't lubricate. Your oil pump sends aerated oil through the bearings, and metal starts contacting metal. You'll notice a ticking sound first.

Then the check engine light comes on. Eventually, the bearings fail.

Underfilling is just as dangerous for different reasons. When you're low on oil, the pickup tube can suck air during acceleration. If you tow a trailer up a steep grade, the oil sloshes to the back of the pan.

The pickup starves. Oil pressure drops to zero. In about 30 seconds of driving without oil pressure, you can spin a bearing.

The right approach is simple. Measure carefully. Pour slowly.

Check twice. Never trust the "it looks about right" method.

Using the Wrong Viscosity (Why 0W-20 Matters)

Toyota specifies 0W-20 for a reason. That "0W" means the oil flows like water at freezing temperatures. Cold starts are brutal on engines.

Thick oil doesn't pump fast enough to reach the top end of the engine before the starter cranks. Over time, that wear adds up.

Some owners think thicker oil protects better in hot weather or when towing. That's a myth for modern engines. Toyota engineered the 3UR-FE and 1UR-FE with tight bearing clearances that require thin oil.

Pouring in 5W-30 or 10W-30 increases drag, reduces fuel economy, and can actually starve bearings at cold startup.

Stick with 0W-20 full synthetic. That's what the oil filler cap says. That's what the manual says.

That's what keeps your truck running for 300,000 miles.

Stripping the Drain Plug from Over-Torquing

The oil pan is aluminum. The drain plug is steel. When you crank down on that plug like you're tightening lug nuts, the aluminum threads strip.

It's a gut-wrenching feeling when the plug starts spinning freely without tightening.

Prevention is easy. Use a torque wrench. Set it to 25 ft-lbs.

If you don't own a torque wrench, buy one. They cost about the same as a single oil change. Your engine will thank you.

If you already stripped the plug, don't panic. A thread repair kit with a helicoil insert can fix it. Or you can buy an oversize drain plug.

Or you can take it to a shop. Just don't drive around with a leaking drain plug.

The "Severe Service" Truth: Can You Really Go 10,000 Miles?

Toyota says 10,000 miles between oil changes for normal service. That sounds great. But the fine print matters.

Severe service means 5,000 mile intervals. What counts as severe service? According to Toyota's own maintenance schedule, it includes:

• Frequent towing or hauling heavy loads
• Driving on dusty or unpaved roads
• Extended idling (think construction sites or drive-thrus)
• Repeated short trips under 5 miles in cold weather
• Extreme temperatures (below freezing or above 90°F)

If you own a Tundra, you probably use it like a truck. You tow. You haul.

You drive on dirt roads. That's severe service. Plan for 5,000 mile oil changes.

The extra cost is minimal compared to an engine rebuild.

As a point of reference, the oil specifications for Toyota's other trucks follow similar logic. If you're curious about the correct fluid levels for a different model year, the Toyota Tundra V6 oil type guide covers the newer generation trucks. The same 0W-20 standard applies across many current Toyota models, including the 2025 Toyota Tacoma oil type and the 2025 Toyota Corolla oil capacity guide.

What Happens If You Use a Non-OEM Oil Filter

The dealership wants you to buy their filters. That's obvious. But are aftermarket filters actually risky?

The answer depends on which brand you pick.

Toyota's OEM filter (part number 04152-YZZA1) is made by Denso. It has a specific bypass valve pressure setting matched to the 3UR-FE and 1UR-FE engines. That valve opens when the filter gets clogged or when cold oil creates high pressure.

If the bypass opens too early, unfiltered oil circulates through your engine. If it opens too late, oil flow gets restricted.

Cheap aftermarket filters often use lower quality filter media and inconsistent bypass valves. Some don't have anti-drainback valves at all. That means every cold start runs dry while the oil pump refills the filter.

Stick with Toyota OEM, WIX, or Mobil 1 filters. They cost a few dollars more. They're worth it for the peace of mind.

How to Read the Dipstick Correctly (Cold vs Hot)

The dipstick is your best friend and your worst enemy. It tells the truth, but only if you read it right.

Cold reading: The oil has drained into the pan overnight. The level sits higher than it will when warm. This reading confirms you have oil in the engine, but it doesn't tell you the exact level for safe operation.

Hot reading: The oil has been circulating. The filter is full. Some oil is still clinging to internal surfaces.

This is the accurate reading. Wait two to three minutes after shutting off a warm engine. Pull the dipstick.

The oil should land between the low and full marks.

The full mark is not the maximum safe level. It's the target. The low mark is the minimum safe level.

If you're between them, you're fine. If you're below low, add oil. If you're above full, drain some.

One trick that saves headaches: mark your dipstick with a small file notch at the exact full level when you know it's correct. That way you always have a reference point.

When to Call a Mechanic Instead of Doing It Yourself

DIY oil changes save money. But they're not for everyone. Consider handing it to a professional if:

• You don't have a level surface to work on
• You can't safely get under the truck (ramps or jack stands required)
• You stripped the drain plug before and need a repair
• You're dealing with a seized oil filter that won't budge
• You don't have the time or patience to do it right

There's no shame in paying a shop. A professional oil change on a Tundra runs about $80 to $120. That includes oil, filter, and disposal.

Compare that to the $50 to $60 you'd spend on materials alone. The convenience might be worth the extra cost.

Just make sure the shop uses the right oil. Specify 0W-20 full synthetic. Ask what filter they use.

If they shrug, go somewhere else.

Frequently Asked Questions

Can I use 5W-30 instead of 0W-20 in my 2014 Tundra?

Toyota does not recommend it. The engine was designed for 0W-20. Using 5W-30 increases engine wear at cold startup and reduces fuel economy.

Stick with the manufacturer spec.

How much oil does a 2014 Tundra with the 4.6L engine take?

The 4.6L 1UR-FE engine takes 6.1 quarts of oil with a filter change. Use SAE 0W-20 full synthetic. Always verify with the dipstick after filling.

What type of oil filter does a 2014 Tundra use?

The OEM filter is Toyota part number 04152-YZZA1. It fits both the 5.7L and 4.6L engines. Quality aftermarket alternatives include WIX and Mobil 1 filters with the correct bypass valve specification.

How often should I change the oil in my 2014 Tundra?

Toyota recommends 10,000 miles for normal service. If you tow, haul, drive on dirt roads, or make short trips in cold weather, change it every 5,000 miles. Severe service conditions apply to most Tundra owners.

What happens if I overfill my Tundra's oil?

Excess oil gets whipped into foam by the crankshaft. Foam doesn't lubricate properly. This can cause bearing damage, oil leaks from seals, and eventual engine failure.

Drain the excess immediately if you overfill.

Can I switch from conventional to synthetic oil in my 2014 Tundra?

Yes. Toyota ships these engines with synthetic blend from the factory. Switching to full synthetic 0W-20 is fine and actually provides better protection.

Just make sure you use the correct viscosity and API SN or higher rating.

Why does my dipstick show low oil right after an oil change?

The new oil filter absorbs some oil. Air pockets settle out of the system. Run the engine for 30 seconds, shut it off, wait one minute, then recheck.

The level should rise as the system stabilizes.

What Oil Additives Should You Avoid in Your 2014 Tundra

The aftermarket is full of bottles promising better mileage, quieter engines, and longer oil life. Most of them are snake oil. Modern 0W-20 synthetic oil already contains a carefully balanced additive package.

Pouring in extra additives can throw that balance off.

Avoid oil thickeners or viscosity modifiers that claim to "restore" worn engines. They often contain polymers that clog oil passages over time. Also skip any additive that claims to reduce oil consumption.

If your Tundra is burning oil, fix the root cause rather than masking it with chemicals.

Stop-leak additives are another risk. They swell seals and gaskets to stop drips. That sounds helpful until the additives swell internal oil passages closed.

Stick with clean, high-quality 0W-20 synthetic and change it on schedule. That's the best additive strategy.

How to Dispose of Used Oil Properly

Pouring used oil down a drain or tossing it in the trash is illegal in most places. One quart of oil can contaminate a million gallons of water. Don't be that person.

Most auto parts stores accept used oil for free. Advance Auto Parts, AutoZone, and O'Reilly Auto Parts all have collection tanks. Call ahead to confirm.

Some locations limit how much you can drop off at once.

Store your used oil in a clean, sealable container. The original oil jugs work perfectly. Label them "used oil" so nobody mistakes it for fresh.

Never mix used oil with antifreeze, brake fluid, or solvents. That makes it hazardous waste and most collection centers won't take it.

Your local municipal waste facility often has a household hazardous waste drop-off. Check their hours before heading over.

When to Change Your Oil Filter Between Oil Changes

The oil filter catches contaminants and keeps them out of your bearings. Over time, the filter media loads up. But here's the question: should you replace the filter mid-cycle?

For normal driving, no. The filter lasts the full oil change interval. For severe service conditions, consider replacing the filter at 5,000 miles even if you plan to run the oil longer.

It's a cheap insurance policy.

The Tundra's filter holds about half a quart of oil. When you swap a filter without draining the pan, top off the lost oil afterward. Check the dipstick to confirm the level.

Final Verdict: The Exact Specs to Trust

Here's what matters for your 2014 Tundra. Write these numbers down. Keep them in your glove box.

Trust the dipstick over any chart. Trust the owner's manual over internet forums. And when in doubt, drain it and start fresh.

A quart too many or too few isn't worth the risk.

Your Tundra's 3UR-FE or 1UR-FE engine is a proven workhorse. Treat it right with the correct oil capacity and the right viscosity, and it will easily clear 300,000 miles. Skip the shortcuts.

Measure carefully. Your truck will thank you.
