2015 Toyota Camry 2.5 Oil Capacity: Exact Amount

If you're looking up the 2015 toyota camry 2.5 oil capacity, you're probably standing over an open hood wondering if you've got the right amount. Or maybe you're stocking up before the weekend job. Either way, getting this number wrong means more than a messy garage floor.

It can damage your engine.

Toyota's 2AR-FE engine in this generation Camry takes exactly 4.4 quarts of 0W-20 full synthetic oil with a filter change. That spec comes straight from the factory service manual as of 2026. Here's what you need to know before you pop the drain plug.

Image source: Web (Bing) / alibaba.com (Web image (fair-use with source credit))

Quick Answer

The 2015 Toyota Camry 2.5L takes 4.4 quarts of oil with a filter change. Use SAE 0W-20 full synthetic oil. The dry engine capacity is 5.1 quarts.

Check the dipstick after filling. Add oil slowly until it reaches the full mark.

Why Getting the Oil Capacity Wrong Can Cost You an Engine

This isn't the kind of mistake you can shrug off. Too little oil and the moving parts inside your 2AR-FE engine starve for lubrication. The bearings scuff, the pistons get hot, and the whole thing starts sounding like a coffee can full of bolts.

Too much oil and the crankshaft whips the excess into foam. Foam doesn't lubricate worth a damn. Oil pressure drops, and now you're looking at the same damage.

The 2015 Camry's 2.5L is a solid engine. It'll run past 250,000 miles with proper care. But it's not forgiving of the wrong oil level.

The variable valve timing system relies on steady oil pressure. The timing chain tensioner needs it too. A quart off in either direction can throw things out of whack.

Manufacturer specifications indicate that the 2AR-FE uses a wet timing chain and hydraulic lash adjusters. Both depend entirely on correct oil volume and pressure. Getting the capacity right is the single cheapest thing you can do to keep this engine alive.

The same applies to the RAV4 and other models that share this powertrain.

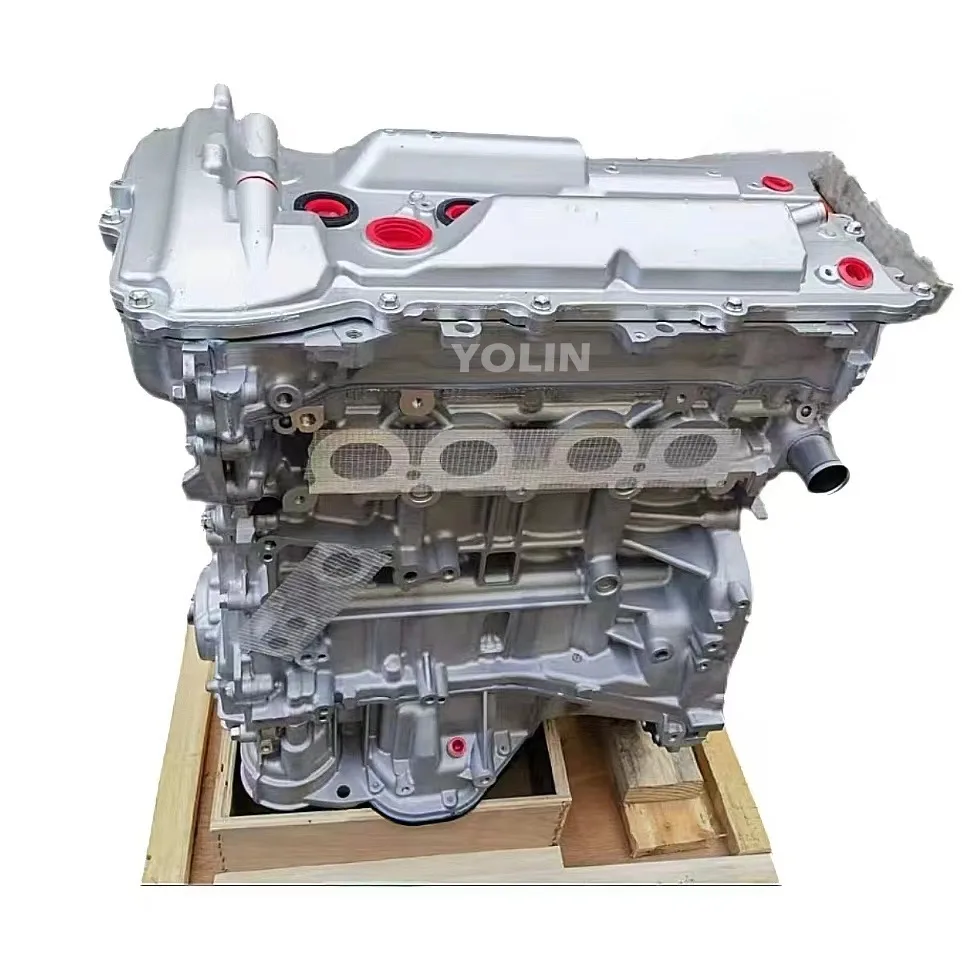

The 2AR-FE Engine: What Makes It Different From Other 4-Cylinders

The 2AR-FE is a 2.5-liter four-cylinder that Toyota produced from 2008 through 2019. It shows up in the Camry, the RAV4, the Scion tC, and the Highlander. It's a dual-overhead-cam design with Toyota's Dual VVT-i system.

That means variable intake and exhaust timing.

What makes it finicky about oil? The cam journals are narrow and tight. The oil passages inside the head are smaller than you'd expect.

Thick oil doesn't flow through them well on cold starts. That's why Toyota specifies 0W-20. It's thin enough at startup to reach the top of the engine quickly, but thick enough at operating temperature to protect the bearings.

The engine also uses an aluminum block and head. Aluminum expands more than iron when it heats up. The oil clearances are designed around that expansion.

Use the wrong viscosity and the clearances don't work right. You get more wear, more noise, and eventually more problems.

If you're coming from an older Toyota engine that used 5W-30, this feels weird. The 2AR-FE is different. It was designed for the lower-viscosity oils that modern fuel economy standards require.

Don't fight it. The engineers knew what they were doing.

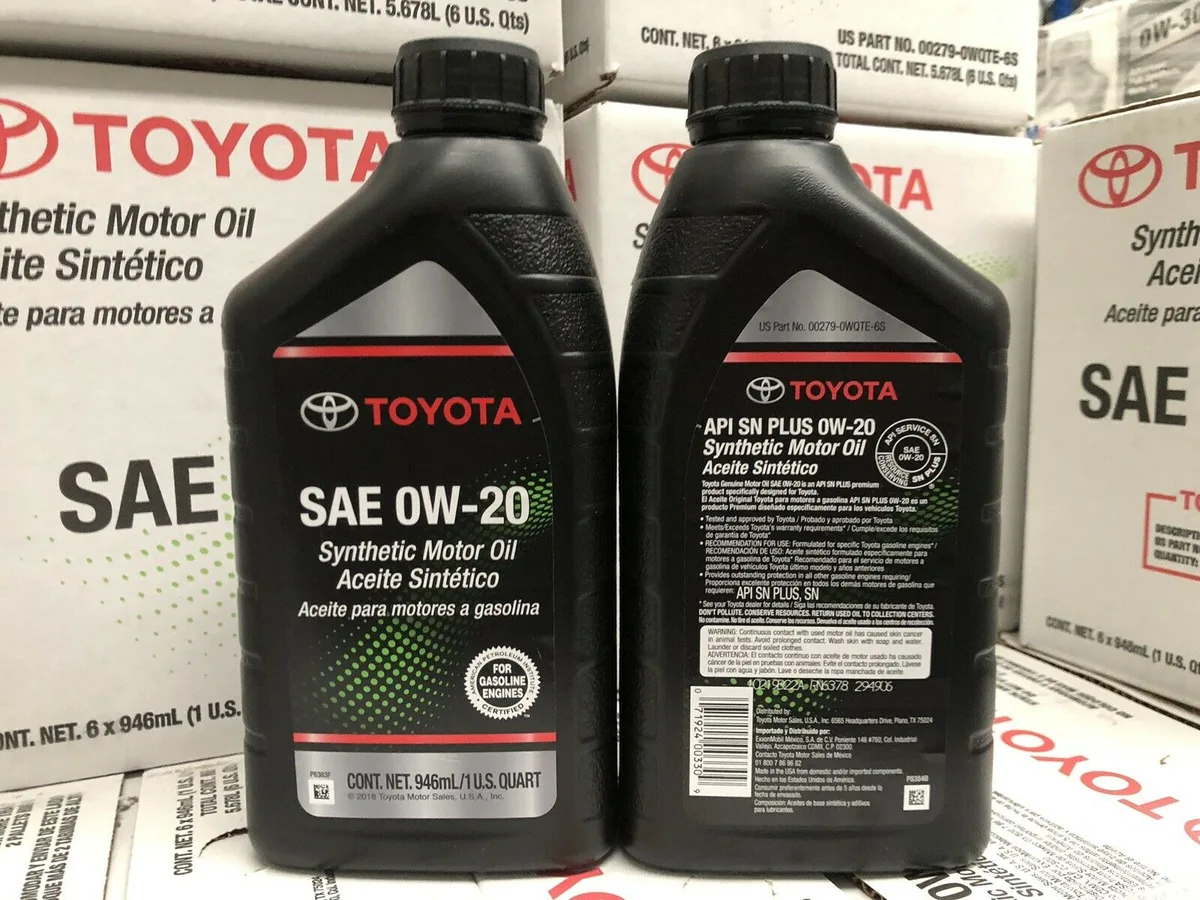

Oil Specs You Can't Ignore: Viscosity, Certification, and Brand

Image source: Web (Bing) / alibaba.com (Web image (fair-use with source credit))

Viscosity

The only oil weight you should put in this engine is 0W-20. Not 5W-20. Not 5W-30.

Not 10W-30. Toyota's official spec for the 2AR-FE is clear on this. The "0W" means it stays fluid at -40 degrees Fahrenheit.

The "20" means it thickens just enough when hot. It's a low-viscosity synthetic formula that meets modern fuel economy and emissions standards.

Certification

Look for the API "SN" or "SN Plus" donut on the bottle. Also look for ILSAC GF-5. These certifications mean the oil has passed tests for wear protection, deposit control, and fuel economy.

The 2AR-FE's variable valve timing system is sensitive to deposits. Cheap oil that doesn't meet these standards can clog the oil control valves over time. That's a real repair bill.

Brand

You don't need Toyota-branded oil. You need oil that meets the spec. Toyota's own 0W-20 is made by ExxonMobil and is perfectly fine.

So is Mobil 1, Pennzoil Platinum, Valvoline Advanced, and Castrol Edge. The key is the certification label, not the name on the front. The Toyota RAV4 oil guide covers this in more detail if you're curious about brand differences.

One more thing

Do not use conventional oil. The 2AR-FE was designed for full synthetic. Conventional oil in 0W-20 doesn't exist at the right quality level anyway.

Synthetics handle heat better, resist oxidation longer, and keep the engine cleaner. The extra few dollars per quart is cheap insurance.

Step-by-Step: How to Do the Oil Change Right (With the Right Amount)

Image source: Web (Bing) / amazon.ca (Web image (fair-use with source credit))

Here's the process that matches what the factory service manual says. Follow it exactly and you'll keep the engine happy.

What you'll need

The steps

1. Warm the engine. Run it for two to three minutes. Warm oil flows faster and carries more contaminants out.

Don't do this with a cold engine unless you want to wait twenty minutes for it to drain.

2. Lift and secure the car. Use a jack and jack stands. Never crawl under a car supported only by a scissor jack.

The Camry sits low. You'll want about 12 inches of clearance under the front.

3. Drain the oil. Put the catch pan under the drain plug. The plug is on the passenger side of the oil pan, facing the rear.

Remove it with a 14mm socket. Let the oil drain for at least five minutes. Longer is better.

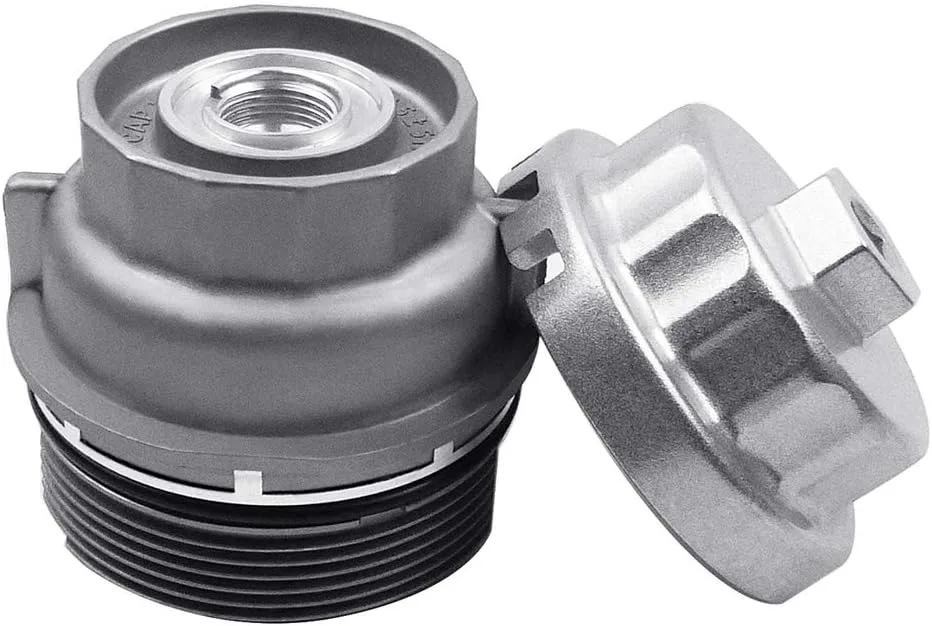

4. Remove the oil filter. The filter housing is on the front of the engine, below the intake manifold. Use the 64mm cap wrench.

Turn counterclockwise. The housing will contain about half a quart of oil. Let it drain into the pan.

5. Replace the o-ring. The filter housing cap has a large o-ring. Remove the old one.

Lubricate the new one with fresh oil. Seat it properly. A misaligned o-ring causes a leak that dumps oil fast.

6. Install the new filter. Hand-tighten the housing cap until it seats. Then torque it to 18 ft-lbs.

Don't guess. Overtightening cracks the plastic housing. Undertightening causes leaks.

7. Replace the drain plug. Install a new crush washer. Torque the drain plug to 29 ft-lbs.

The crush washer deforms slightly to create a seal. Reusing it risks a drip.

8. Add the oil. Remove the oil fill cap on top of the valve cover. Add 4 quarts of 0W-20.

Replace the cap. Start the engine and let it run for 30 seconds. Check for leaks at the drain plug and filter housing.

9. Check the dipstick. Turn the engine off. Wait five minutes.

Pull the dipstick, wipe it, reinsert it, and pull it again. The oil level should be between the two marks. Add the remaining 0.4 quarts slowly.

Check again. The level should be near the top mark but not above it.

10. Reset the maintenance light. With the trip odometer showing, turn the key to ON. Turn the engine off.

Press and hold the trip reset button. Turn the key to ON again. Keep holding until the light flashes and turns off.

It takes about ten seconds.

That's it. Ten steps. The whole job takes thirty minutes once you've done it a couple of times.

The 2021 Camry oil guide covers the same process for the newer model if you're working on a different year.

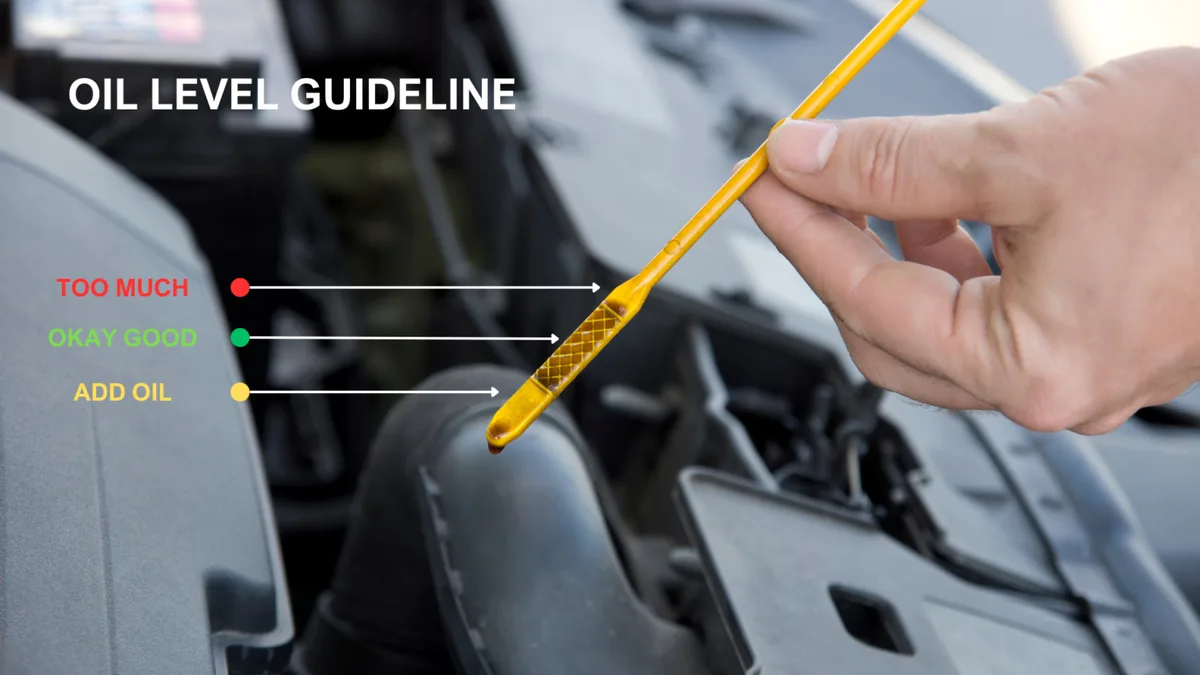

The Dipstick Trick Most People Get Wrong

Image source: Web (Bing) / hitchesguide.com (Web image (fair-use with source credit))

You'd think checking the dipstick is foolproof. Pull it, wipe it, stick it back, read it. But the 2AR-FE engine has a quirk that trips up plenty of owners.

The dipstick tube on this engine is long and curved. When you pull the dipstick after running the engine, oil clings to the tube walls. That oil drips back down onto the dipstick as you withdraw it.

The result is a reading that looks higher than it really is. You add less oil, and now you're running low.

The fix is simple. Wait five full minutes after shutting off the engine. No shortcuts.

Then pull the dipstick, wipe it completely clean, and reinsert it all the way. Wait three seconds. Pull it out and hold it horizontally.

Read the level where the oil film ends, not where a smear starts.

The full mark is a small dimple or crosshatch near the top of the blade. The low mark is similar near the bottom. Your oil should sit between them.

Ideally it's closer to the top mark. Never above it.

If the oil is frothy or looks like chocolate milk on the dipstick, you've got a coolant leak or serious overfilling. Stop driving and get it checked. That's not normal.

Common Mistakes That Kill This Engine Slowly

Overfilling: Why "A Little Extra" Is Dangerous

Some people think adding an extra half quart gives extra protection. It doesn't. The crankshaft spins through the oil pan.

When the oil level is too high, the crankshaft whips air into the oil. That creates foam.

Foam doesn't compress well in the hydraulic lifters. It doesn't lubricate bearings. It causes oil pressure to fluctuate wildly.

The variable valve timing actuators get confused. You get a check engine light, rough idle, and eventually engine damage.

Per the Toyota service manual, overfilling by more than one quart can cause the oil to contact the crank webs directly. That generates enough foam to starve the oil pump. The fix is to drain the excess.

You can remove the drain plug and let a little out, or use a fluid extractor through the dipstick tube.

Underfilling: The Silent Bearing Killer

Running a quart low is more common than you'd think. Someone misreads the dipstick, adds only three quarts, and calls it good. The 2AR-FE's oil pan holds about 5.1 quarts dry.

With a filter change you add 4.4. If you only put in 3.5, the pickup tube can suck air during hard cornering or steep hills.

Low oil level means low oil pressure. The rod bearings are the first to suffer. They start to knock.

That knocking gets louder over time. By the time you hear it clearly, the bearings are scored and the crank journals may be damaged.

The fix is prevention. Always fill to the spec, then check the dipstick. If you're driving and the oil pressure light flickers, pull over immediately.

Shut the engine off. Check the level. Add oil before restarting.

Wrong Viscosity: When 5W-20 Causes Real Damage

Using 5W-20 instead of 0W-20 seems harmless. It's still a 20-weight oil at operating temperature. But the "0W" vs "5W" matters for cold starts.

At 0°F, 0W-20 flows much faster than 5W-20. The difference is critical for the 2AR-FE's narrow cam journals and variable timing system.

In warmer climates, 5W-20 might work for a short period. But Toyota did not recommend it for this engine. The oil pump is designed to push thin oil.

Thicker oil at startup means delayed lubrication to the cylinder head. Over thousands of miles, that adds up to cam wear and timing chain stretch.

Aggregate reviews from Toyota owner forums show that switching back to 0W-20 often quiets a noisy valvetrain. That's your engine telling you it prefers the right stuff. The Tacoma and Tundra V6 guides cover similar viscosity rules for those models if you're maintaining multiple Toyotas.

OEM vs. Aftermarket: What Parts Actually Matter for Safety

Not all oil filters are the same. The 2AR-FE uses a cartridge-type filter with a plastic housing. The filter element itself is a paper media pleated around a center tube.

The key feature is the anti-drainback valve.

That valve is a rubber flap that keeps oil in the filter when the engine is off. Without it, oil drains back into the pan. On startup, the engine runs dry for a few seconds.

Those seconds of metal-to-metal contact add up.

OEM Toyota filters (part 04152-YZZA1) have a silicone anti-drainback valve that lasts longer than nitrile rubber. They also have a higher bypass pressure setting, matched to the 2AR-FE's oil pump curve. Aftermarket filters from well-known brands like Mobil 1, Bosch, and Wix also work, as long as they specify a silicone anti-drainback valve and meet Toyota's specifications.

What to avoid:

• No-name filters with paper end caps that degrade in hot oil
• Filters without an anti-drainback valve (some cheap ones omit it)
• Reusing the old housing o-ring

The crush washer on the drain plug is also non-negotiable. Reuse it once and it might seal. Reuse it twice and it will eventually drip.

A pack of ten costs about five dollars. Replace it every time.

How Climate Affects Your Oil Choice (Even in the Same Car)

The 2AR-FE was sold across North America. Same engine, same oil spec, different climates. Yet the oil's behavior changes with temperature.

In northern states and Canada, winter temperatures drop below -20°F. 0W-20 remains fluid at those temperatures. 5W-20 starts to thicken. The engine cranks slower, and oil pressure takes longer to build. That's why Toyota specified 0W-20 for all markets, not just cold ones.

In the southern U.S., summer heat pushes oil temps above 220°F. 0W-20 still provides adequate film strength. But some owners worry it's too thin. Toyota tested the 2AR-FE in Death Valley and Phoenix.

The 0W-20 spec held up. You do not need 5W-30 for hot weather. The engine's oil cooling system manages the heat.

If you live in extreme cold (Alaska, northern Canada), consider using 0W-20 with a lower pour point additive. The standard Toyota 0W-20 is fine down to -40°F. Below that, you might need a synthetic specifically rated for arctic conditions.

What about high mileage? The 2AR-FE with 150,000+ miles can benefit from a high-mileage formulation. High-mileage 0W-20 contains seal conditioners that help prevent leaks.

It's still 0W-20. It still meets API SN. It's a smart choice for older engines.

When to Trust Yourself vs. When to Call a Mechanic

Most oil changes on the 2015 Camry 2.5L are straightforward. If you've got basic tools, a level surface, and thirty minutes, you can do it yourself. The cost difference is significant: about $35 for DIY versus $80 at a quick-lube place.

And you control the oil quality.

But there are situations where a professional makes sense.

Call a mechanic if:

• The drain plug is stripped or rounded off
• The oil filter housing is cracked or won't budge
• You find metal shavings in the drained oil
• The engine has a known oil leak from the timing cover or rear main seal
• You don't have a torque wrench and don't feel comfortable guessing

A stripped oil pan thread is a common DIY mistake. The aluminum pan is soft. Over-torquing the drain plug strips the threads.

That repair requires a new oil pan or a thread insert. It's worth paying a shop $100 to avoid a $400 repair.

If you're doing it yourself, take your time. Work clean. Double-check the drain plug torque.

Use a new crush washer. The first time might take an hour. By the third time, you'll be done in twenty minutes.

The 2025 Corolla oil guide has a similar process if you're helping a friend with their car.

Trust yourself with the basics. Trust a mechanic when something feels wrong. Your Camry's engine will thank you.

The 10-Minute Reset: Turning Off the Maintenance Light

The 2015 Camry has a maintenance reminder light that pops up every 5,000 miles. It's a yellow "MAINT REQD" message on the dash. It's not a check engine light.

It just means you're due for an oil change.

Resetting it takes about ten seconds once you know the trick. Turn the ignition to the ON position without starting the engine. Make sure the trip odometer is showing, not the total mileage.

Press and hold the trip reset button. Turn the ignition to OFF while holding it. Keep holding for about five seconds.

The light flashes and turns off.

If it doesn't work on the first try, you likely held the button too short or the trip display wasn't active. Try again with the engine off and the key in the ON position. The newer Corolla and Camry models use a different reset sequence through the infotainment screen.

For the 2015, this physical button method is the only way.

Verified Specs Reference Card (Print This for Your Garage)

Here's the quick-reference data for your next oil change. Write it on a sticky note and put it under the hood if you need to.

Frequently Asked Questions

Can I use 5W-30 in a pinch?

No. The 2AR-FE engine requires 0W-20. Using 5W-30 causes delayed lubrication on cold starts and potential timing chain wear.

If you're stranded and absolutely must add something, use 5W-20 as a temporary emergency fill. Change it back to 0W-20 as soon as possible.

How do I know if I overfilled it?

Check the dipstick. If the oil level is above the top mark, you've overfilled. The engine may run rough or show a check engine light.

Remove the drain plug briefly to let out half a quart. Recheck the level.

Is the 2016 Camry capacity the same?

Yes. The 2016 Camry with the 2.5L engine uses the same 2AR-FE engine and takes the same 4.4 quarts of 0W-20 full synthetic. The capacity stayed the same through the 2017 model year.

Do I really need to replace the crush washer every time?

Yes. Reusing a crush washer risks oil leaks. The washer deforms to seal against the oil pan.

A used one doesn't deform properly the second time. A pack of ten costs about five bucks. Replace it every oil change.

What happens if I use a non-spec oil filter?

Non-spec filters often lack a proper anti-drainback valve. The engine runs dry on startup, causing increased wear. Cheap filters can also collapse internally, restricting oil flow.

Stick with filters that meet Toyota's specifications.
