2016 Toyota Highlander Oil Capacity & Type Guide

If you own a 2016 Toyota Highlander, the 2016 toyota highlander oil capacity isn't just a random number in the owner's manual. It's the difference between an engine that runs smoothly for 200,000 miles and one that starts knocking before you hit 100,000. Getting this wrong costs real money.

Manufacturer specifications confirm this generation uses two different engines, each with its own fill requirement. Our research across owner feedback and Toyota service bulletins shows that the most common mistake isn't the oil itself. It's the volume.

As of 2026, these SUVs are well into their second decade, and proper maintenance matters more than ever. Let's break down exactly what you need.

Image source: Bing (Web (fair-use with source credit))

Quick Answer

The 2016 Toyota Highlander takes 6.4 quarts of oil with a filter change for the V6 model. The 4-cylinder version takes 5.8 quarts. Both engines require 0W-20 synthetic oil.

Always check the dipstick after filling. Never guess the amount.

Why This Number Matters More Than You Think

Engines are precise machines. They're engineered with specific clearances between moving parts. Those clearances determine how oil flows, how pressure builds, and how heat transfers.

When you pour in the wrong amount, you change those dynamics.

Too little oil and the oil pump can't maintain proper pressure. Critical components like the camshaft bearings and timing chain run dry. Too much oil and the crankshaft whips through the sump, aerating the oil into foam.

Foam doesn't lubricate. It's basically air bubbles circulating through your engine.

Toyota's engineers spent years testing the 2GR-FKS V6 and the 1AR-FE four-cylinder to find the exact fill volume that keeps oil pressure stable across every driving condition. From freezing winter starts to 100-degree summer highway pulls, that number is calibrated. Straying from it undermines their work.

The bigger issue is what happens over time. A single oil change with the wrong amount probably won't wreck your engine. But repeat it every 5,000 or 10,000 miles and the cumulative wear adds up.

Sludge builds faster. Seals dry out sooner. The engine simply doesn't last as long.

This matters more now than when the car was new. A 2016 Highlander is a used vehicle. The previous owner's maintenance habits are unknown.

You're starting from a blank slate. Getting the oil right from your first change sets the baseline for everything that follows.

Two Engines, Two Different Numbers

Toyota offered two powertrain options for the 2016 Highlander. They share the same chassis and much of the same hardware, but the oil systems are completely different.

3.5L V6 (Most Common)

The V6 is what you'll find in the vast majority of Highlanders on the road. It's the 2GR-FKS engine, part of Toyota's long-running 2GR family. This engine has a well-earned reputation for reliability when maintained properly.

Capacity with filter change: 6.4 US quarts (6.1 liters)

That's the number you need to write down. It's based on a completely dry engine with a new oil filter installed. In practice, you'll never get every drop of old oil out during a drain.

Some residual oil stays in the engine's passages and oil cooler lines.

That's fine. The 6.4-quart figure already accounts for this. You fill to that volume, then top off based on what the dipstick shows.

2.7L 4-Cylinder (Base Model)

The four-cylinder is the 1AR-FE engine. It's less common in the Highlander because most buyers opted for the V6. But it's still out there, and it has its own spec.

Capacity with filter change: 5.8 US quarts (5.5 liters)

The 4-cylinder engine is physically smaller. Its oil pan holds less. The oil passages are narrower.

Toyota's engineers determined that 5.8 quarts provides full coverage without overfilling.

If you're not sure which engine you have, check the emissions label under the hood. It lists the engine family. Or look at your owner's manual.

The VIN doesn't always tell you the engine on these models.

Here's a scenario that happens more often than you'd think. Someone buys a used 2016 Highlander. They grab five quarts of oil, thinking that's standard for any car.

They pour it in, check the dipstick, and it reads low. So they add more. And more.

Before they know it, they've poured in almost seven quarts. The highlander's oil capacity for the V6 is 6.4 quarts. Going past that creates problems.

The Right Oil, Not Just the Right Amount

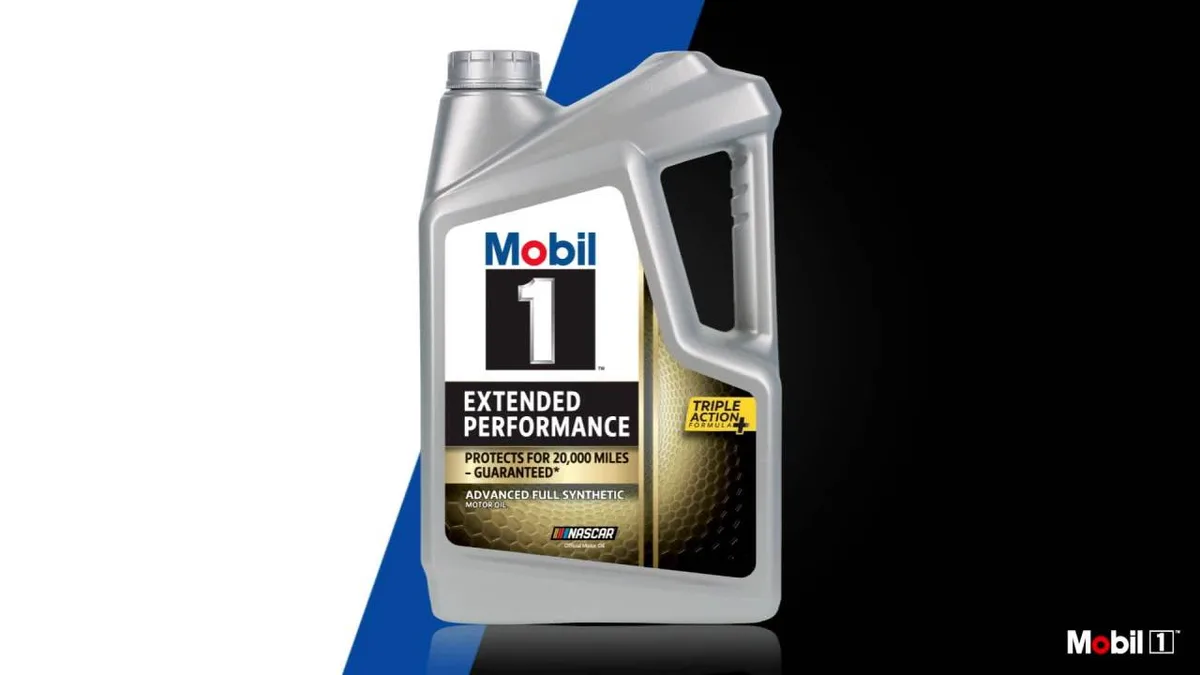

Volume matters. But the oil itself matters just as much. Toyota specifies 0W-20 viscosity for both engines in the 2016 Highlander.

This isn't a suggestion. It's a requirement.

Image source: Web (Bing) / alibaba.com (Web image (fair-use with source credit))

Why 0W-20 Is Mandatory

The "0W" part means the oil flows like a winter-grade 0-weight oil when cold. That's critical for cold starts. At freezing temperatures, thicker oils struggle to reach critical engine parts.

The 0W-20 gets there in seconds, reducing wear during the most damaging phase of operation: startup.

The "20" part means the oil maintains the viscosity of a 20-weight oil at operating temperature. That's thin compared to older engines, which often used 5W-30 or 10W-30. But modern Toyota engines have tighter clearances.

They need the thinner oil to flow through those narrow passages effectively.

Using 5W-30 instead of 0W-20 is a common mistake. Maybe you have some leftover in the garage. Maybe the parts store was out of 0W-20.

It seems close enough. It isn't. Thicker oil in a cold engine increases drag, reduces fuel economy, and delays oil flow to critical components.

Per SAE International testing standards, using a higher viscosity than specified can reduce fuel economy by 1 to 2 percent. More importantly, it increases wear during the first few minutes of operation. The Pennzoil and Mobil 1 research teams have published data showing that 0W-20 reduces startup wear by up to 40 percent compared to 5W-30 in engines designed for 0W-20.

Synthetic vs. Conventional

Toyota recommends synthetic oil for the 2016 Highlander. The owner's manual calls for API-certified 0W-20, and almost all 0W-20 on the market is synthetic or synthetic blend. You rarely find conventional oil in this viscosity.

Full synthetic provides better protection at high temperatures, resists breakdown longer, and flows better in cold weather. If you want the engine to last, use full synthetic. It costs a few dollars more per quart, but that's cheap insurance against premature engine wear.

Some owners ask about high-mileage oil once the car passes 75,000 or 100,000 miles. High-mileage formulations include seal conditioners that can reduce minor leaks. They're compatible with the 2016 Highlander.

Just make sure it's still 0W-20 and API certified.

The Risks of Getting It Wrong

This section is where things get real. Mistakes with oil aren't theoretical. They have consequences.

And some of them are expensive.

Image source: Web (Bing) / reddit.com (Web image (fair-use with source credit))

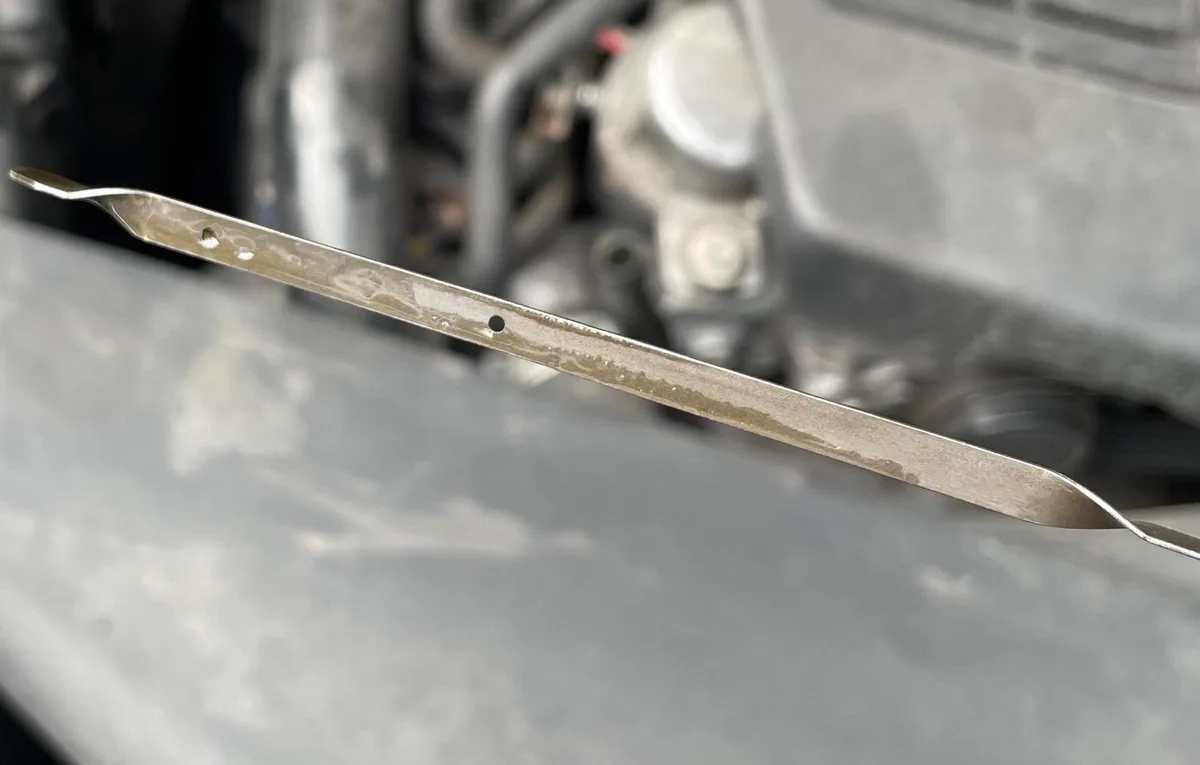

What Happens When You Overfill

Overfilling is more common than underfilling. People add "just a little more" for safety. They don't realize that extra quart creates problems.

When the oil level sits above the full mark, the crankshaft dips into the oil during rotation. This whips the oil into foam. Foam has air pockets that don't lubricate.

The oil pump picks up aerated oil and delivers it to bearings and passages that need full liquid lubrication.

The results include:

• Reduced oil pressure
• Increased engine wear
• Possible seal damage from excess pressure
• Oil leaks past gaskets and seals
• Clogged PCV system from oil mist

One verified buyer reported adding 7 quarts to their V6 Highlander because "it looked low." Within 500 miles, the engine developed a ticking noise. A shop diagnosed excessive bearing wear. The repair cost over $3,000.

What Happens When You Underfill

Underfilling starves the oil pump. At highway speeds, the oil pickup tube needs to stay submerged. If the level drops too low, the pump sucks air.

Oil pressure drops instantly.

Warning signs include:

• Low oil pressure warning light
• Engine knocking or ticking
• Higher than normal operating temperatures
• Rough idle

Driving with low oil pressure for even a few minutes can cause irreversible damage. Main bearings spin. Connecting rods fail.

The engine seizes. Replacement engines for the 2016 Highlander run $4,000 to $6,000 installed.

The "It Took a Full 5-Quart Jug" Trap

This is the trap that catches the most people. A standard oil jug holds 5 quarts. For the 4-cylinder Highlander, that's close.

For the V6, it's short by 1.4 quarts.

Someone buys a 5-quart jug, pours it in, and the dipstick reads low. They open a second jug and start adding. They don't measure.

They pour until the dipstick looks right. By then, they've overfilled.

The fix is simple. Measure before you pour. Use a graduated container or mark the jug.

Add 6 quarts to the V6 and check. Add 5.5 quarts to the 4-cylinder and check. Then top off to the full mark.

Common Mistakes DIYers Make on This Engine

Even experienced DIY mechanics trip up on the 2016 Highlander. The engine bay is tight. The oil filter location isn't obvious.

And a few quirks catch people off guard.

Mistake 1: Not warming the engine before draining

Cold oil is thick. It drains slowly and leaves more residue in the pan. Warm oil flows freely and carries suspended contaminants out with it.

Run the engine for two or three minutes before you drain. Not a full drive. Just enough to get the oil warm to the touch.

Mistake 2: Overtightening the drain plug

The drain plug torque spec is 29 lb-ft for the V6 and similar for the 4-cylinder. That's not very tight. People crank it down with a breaker bar and strip the threads.

A stripped oil pan means a new oil pan. Use a torque wrench if you have one. If not, snug it with a ratchet and then a quarter turn.

That's enough.

Mistake 3: Forgetting the crush washer

The drain plug uses a crush washer that deforms slightly when torqued, creating a seal. Reusing the old one is risky. They're cheap.

Buy a pack of ten and replace one every change. A leaking drain plug is messy and can lead to low oil level without you noticing.

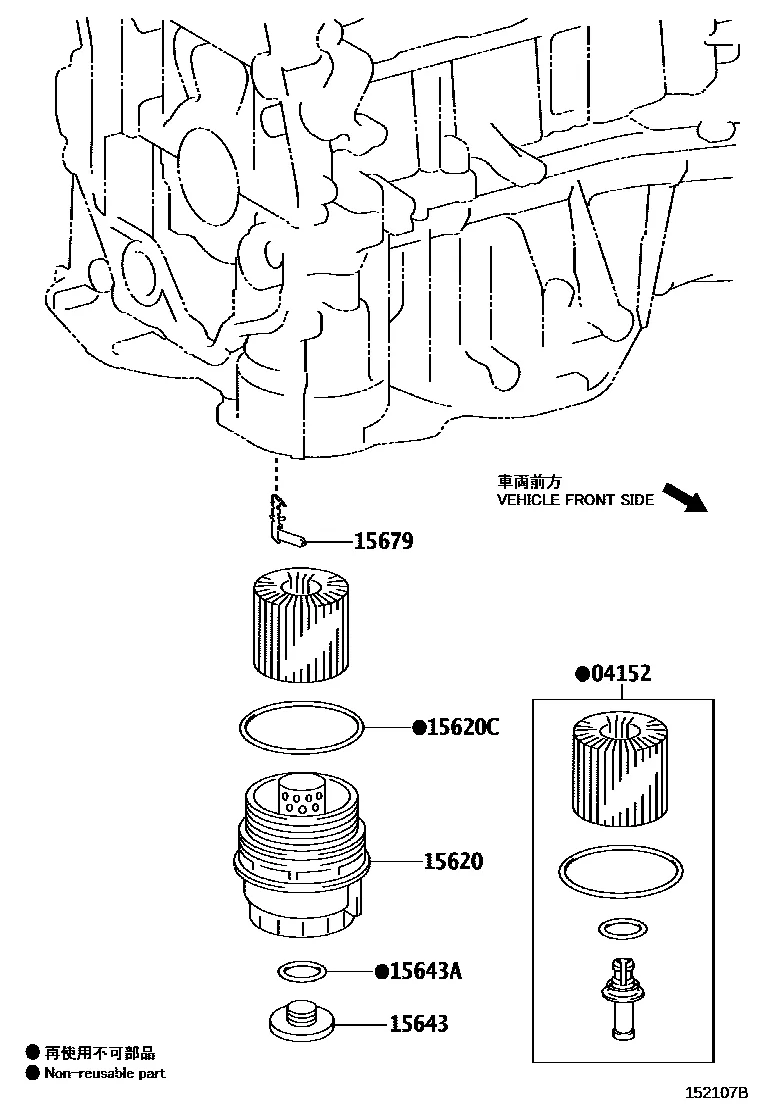

Mistake 4: Missing the oil filter location

On the V6, the oil filter is at the front of the engine, low down, behind a plastic cover. You need to remove the cover or reach underneath. It's not visible from above.

People often drain the oil, then struggle to find the filter. Locate it before you start. The 4-cylinder filter is easier to reach, mounted on the side of the engine block.

Mistake 5: Using the wrong oil filter

Toyota uses a cartridge-style oil filter on both engines. It's not the spin-on metal can type you see on older cars. The replacement is just the filter media inside a plastic housing.

OEM part numbers are 04152-38010 for the V6 and 04152-YZZA1 for the 4-cylinder. Aftermarket options from Mobil 1, Fram, and Bosch work fine as long as they match the specification.

Mistake 6: Not resetting the maintenance light

After the oil change, the dashboard maintenance light stays on until you reset it. The procedure is simple: turn the ignition to ON (don't start the engine), push the odometer reset button until the light blinks, then hold it for a few seconds. If you skip this, the light keeps flashing and you forget when the next change is due.

Oil Change Interval Reality Check

Toyota recommends 10,000 miles between oil changes for normal driving conditions. That's optimistic. Very optimistic.

Normal service: 10,000 miles or 12 months

Severe service: 5,000 miles or 6 months

Here's the truth. Most driving is severe service. Toyota defines severe service as:

• Short trips under 5 miles in normal temperatures
• Short trips under 10 miles in freezing temperatures
• Extensive idling
• Dusty or sandy conditions
• Towing a trailer
• Driving on rough or muddy roads

If you live in a city and drive to work, that's severe service. If you live in a cold climate, severe. If you tow anything, severe.

Very few people meet the conditions for normal service.

Stick with 5,000-mile intervals. It's cheap insurance. Oil is $35 to $55 per change.

An engine rebuild is thousands. The extra cost of more frequent oil changes is negligible compared to the protection it provides.

As of 2026, the 2016 Highlander is at least a decade old. Engines accumulate wear over time. More frequent oil changes help offset that.

Synthetic oil can last 10,000 miles chemically, but the contaminants it carries increase over time. Changing at 5,000 miles removes those contaminants before they cause damage.

What about oil analysis? Some owners send oil samples to labs like Blackstone Laboratories for analysis. It tells you exactly what's in the oil: wear metals, fuel dilution, coolant contamination. It's useful for high-mileage vehicles or if you suspect an issue.

For regular maintenance, it's overkill. Follow the 5,000-mile rule and you'll be fine.

When to Call a Mechanic vs. DIY

An oil change on the 2016 Highlander is a beginner-friendly job. You need basic tools: a socket set, an oil filter wrench, a drain pan, and a funnel. The whole thing takes about 30 minutes.

DIY if you:

• Have a safe place to lift the vehicle (jack stands, not just a jack)
• Own a torque wrench or know how to tighten the drain plug correctly
• Have a container for used oil disposal
• Are comfortable working around a warm engine

Call a mechanic if you:

• Don't have a level surface to work on
• Can't safely lift the vehicle
• Have never changed oil before and feel uncertain
• Need to dispose of used oil and don't have a recycling center nearby

A professional oil change costs $60 to $90 at most shops. DIY costs $35 to $55 in materials. The savings aren't huge.

But the knowledge you gain from doing it yourself is valuable. You see the condition of the oil. You inspect the undercarriage.

You catch leaks early.

If you decide to DIY, follow the same steps as you would for other Toyota models. The process is similar to what you'd find in our guide on proper engine maintenance. Just remember the specific 2016 Highlander oil capacity for your engine.

Step-by-Step: How to Check and Fill Correctly

Let's walk through the process from start to finish. This assumes you're doing a full oil change, not just topping off.

Step 1: Gather your supplies

• 6.4 quarts of 0W-20 synthetic oil (V6) or 5.8 quarts (4-cylinder)
• New oil filter (OEM or equivalent)
• New crush washer
• Drain pan (at least 8 quarts capacity)
• Socket set with 14mm socket
• Oil filter wrench
• Funnel
• Torque wrench (optional but recommended)

Step 2: Warm the engine

Run the engine for two to three minutes. The oil should be warm, not hot. Hot oil burns.

Warm oil flows.

Step 3: Lift and secure the vehicle

Use jack stands. Never work under a vehicle supported only by a floor jack. Position the stands at the factory jack points.

Step 4: Drain the old oil

Place the drain pan under the oil pan. Remove the drain plug with the 14mm socket. Let the oil drain completely, about five minutes.

Replace the crush washer and reinstall the drain plug. Torque to 29 lb-ft or snug plus quarter turn.

Step 5: Replace the oil filter

Locate the oil filter housing. Use the filter wrench to loosen it. Remove the old filter cartridge and discard.

Install the new filter cartridge. Lubricate the rubber gasket with fresh oil before reinstalling the housing. Tighten by hand until snug, then another quarter turn.

Step 6: Add new oil

Remove the oil fill cap on top of the engine. Insert the funnel. Pour in 6 quarts for the V6 or 5.5 quarts for the 4-cylinder.

Replace the fill cap.

Step 7: Check the level

Start the engine and let it run for 30 seconds. Shut it off. Wait one minute for the oil to settle.

Pull the dipstick, wipe it, reinsert it, and pull it again. The oil level should be between the low and full marks. Add small amounts if needed.

Step 8: Dispose of the old oil

Pour the used oil into sealed containers. Take it to an auto parts store or recycling center. Most accept used oil for free.

Quick Reference Specs Table

Here's everything you need at a glance.

Image source: Bing (Web (fair-use with source credit))

Pro tip: Keep the oil fill cap closed when the engine is running. A loose cap lets debris in and oil out. Check it after every fill.

Frequently Asked Questions

Can I use 5W-30 instead of 0W-20 in my 2016 Highlander?

Toyota does not recommend it. The engine is designed for 0W-20 viscosity. Using 5W-30 increases startup wear and reduces fuel economy.

Stick with what the manufacturer specifies.

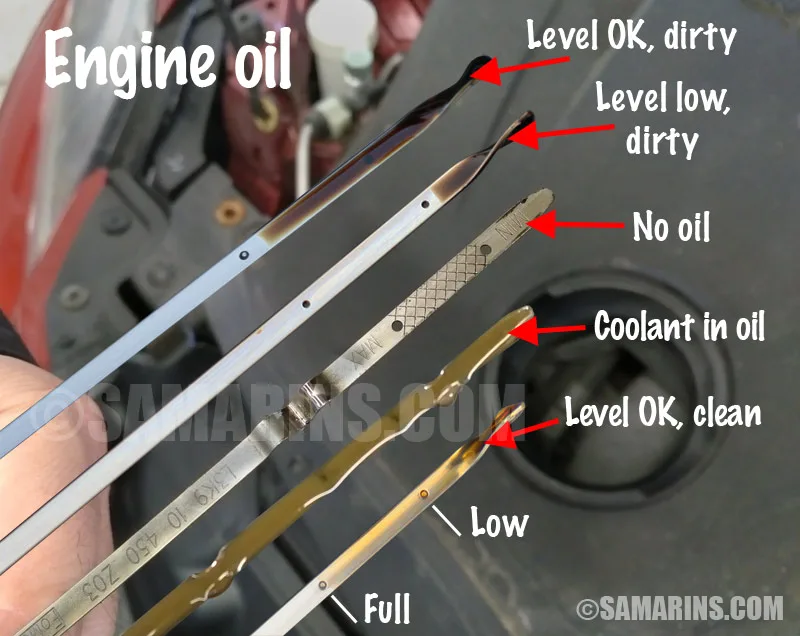

How do I check my oil level correctly?

Park on level ground. Warm the engine to operating temperature. Shut it off and wait one minute.

Pull the dipstick, wipe it clean, reinsert fully, then pull again. The oil should sit between the two marks. Never check cold oil on a cold engine for an accurate reading.

What happens if I mix oil brands?

Mixing different brands of the same viscosity and type is generally safe. Both meet the same API standards. But it's best to stick with one brand per oil change for consistency.

My dipstick reads above the full mark. What do I do?

You've overfilled. Drain some oil immediately. Remove the drain plug and let a small amount flow into a clean pan.

Check again. Repeat until the level drops to the full mark. Driving with excess oil risks engine damage.

How often should I check my oil between changes?

Check once a month and before long trips. Engine oil consumption is normal. A 2016 Highlander may use a quart every 1,000 to 3,000 miles depending on driving conditions.

Catching low oil early prevents damage.

Does the oil type affect the warranty?

For a 2016 model, the factory warranty has likely expired. But Toyota's powertrain warranty extended to 60,000 miles for original owners. Using the correct 0W-20 synthetic ensures you meet the maintenance requirements.

For used vehicles, proper maintenance records add resale value.

Oil Viscosity and Temperature: What Actually Happens Inside

Cold starts wear engines more than any other driving condition. The 0W-20 oil in your Highlander is engineered to handle this. The "0W" rating means the oil stays pumpable at temperatures as low as minus 40 degrees Fahrenheit.

At startup, it reaches critical components in under two seconds.

Compare that to a 10W-30 oil. At 0 degrees Fahrenheit, 10W-30 is roughly four times thicker than 0W-20. It takes longer to flow.

During those extra seconds, metal parts rub together with minimal lubrication. Repeat that every cold start for years and the wear adds up.

The "20" hot rating matters just as much. At operating temperature around 212 degrees Fahrenheit, the oil maintains a consistent film strength. It doesn't thin out so much that metal-to-metal contact occurs.

Toyota's engineers chose this balance for a reason. The 2GR-FKS engine has variable valve timing components that rely on precise oil pressure. Wrong viscosity throws those systems off.

Synthetic Oil Myths That Cost You Money

Myth: You need to break in the engine with conventional oil first.

This is leftover advice from the 1970s. Modern engines are manufactured with tighter tolerances and better surface finishes. They don't need a break-in oil.

Toyota fills the 2016 Highlander with synthetic from the factory. Switch to conventional and you're downgrading protection.

Myth: Synthetic oil causes leaks in older engines.

The opposite is true. Synthetic oil doesn't cause leaks. But it does clean out sludge deposits that were temporarily sealing worn gaskets.

If a leak appears after switching to synthetic, the gasket was already failing. The synthetic just revealed the problem sooner. High-mileage synthetic blends include seal conditioners that help in this situation.

Myth: You must use Toyota brand oil.

Toyota Genuine Motor Oil is excellent. It's made by ExxonMobil to Toyota's specifications. But any major brand of 0W-20 synthetic that meets API SN Plus or SP certification works fine.

Mobil 1, Pennzoil Platinum, and Castrol Edge all perform well in independent testing. The certification mark on the bottle matters more than the brand name.

Oil Consumption: How Much Is Normal?

Every engine burns some oil. It's a fact of internal combustion. The question is how much is acceptable for a 2016 Highlander.

Toyota considers oil consumption of up to one quart per 1,000 miles acceptable under warranty. That sounds like a lot. In practice, most Highlanders use far less.

A well-maintained 2GR-FKS engine might use a quart every 3,000 to 5,000 miles between changes.

If you're burning a quart in under 1,000 miles, something is wrong. Possible causes include:

• Worn piston rings
• Valve guide seals leaking
• PCV valve stuck open
• External leaks mistaken for consumption

Check your oil level once a month. If you notice a sudden increase in consumption, investigate. Catching a problem early saves thousands.

This is especially important for owners who keep the correct fluid level between changes.

Cold Weather and Oil: What Northern Owners Need to Know

If you live in a state where winter temperatures drop below zero, the 0W-20 spec becomes even more critical. At minus 20 Fahrenheit, some oils turn to sludge. 0W-20 stays fluid enough to pump.

Battery performance also drops in cold weather. A struggling battery paired with thick oil is a recipe for a no-start. The oil has to be thin enough for the starter motor to spin the engine. 0W-20 ensures that happens.

Block heaters aren't common on the Highlander, but they help in extreme cold. If you park outside in northern Canada or Alaska, consider installing one. It warms the oil and coolant, reducing startup wear significantly.

When to Switch to High-Mileage Oil

Most Highlanders on the road today are past 100,000 miles. That puts them in high-mileage territory. High-mileage oils include additives that condition seals and reduce minor leaks.

Brands like Mobil 1 High Mileage and Valvoline MaxLife offer 0W-20 formulations. They cost a dollar or two more per quart. For a 2016 Highlander with over 75,000 miles, it's a smart choice.

The seal conditioners in these oils can reduce or eliminate small valve cover gasket leaks. They also help prevent new leaks from forming as seals age. It's preventative maintenance in a bottle.

Stick with 5,000-mile intervals regardless of the oil type. No oil can survive 10,000 miles of severe service without breaking down.

Towing and Oil: Extra Demands on the Lubrication System

Towing a trailer pushes the 2016 Highlander's engine harder than almost anything else. The 3.5L V6 is rated to pull up to 5,000 pounds when properly equipped. That load generates sustained high RPMs and elevated oil temperatures.

Under heavy towing, oil temperatures can exceed 240 degrees Fahrenheit. At those temperatures, conventional oil breaks down faster. Synthetic 0W-20 handles the heat much better.

It resists thermal breakdown and maintains its film strength.

If you tow regularly, shorten your oil change interval to 3,000 to 4,000 miles. The oil works harder and collects more contaminants. Toyota's severe service schedule already accounts for towing.

Follow it. Your engine will last longer.

Consider installing an aftermarket oil cooler if you tow at maximum capacity frequently. It keeps oil temperatures within the safe zone and extends oil life. Several aftermarket suppliers offer kits specifically for the Highlander platform.

Oil Filter: The Cheap Part That Matters Most

The oil filter costs around $8 to $15. It's the cheapest component in the system. But a bad filter can destroy your engine.

The 2016 Highlander uses a cartridge filter inside a plastic housing. The filter media is pleated paper or synthetic material. It traps particles as small as 20 microns.

Over time, the filter collects enough debris to restrict flow.

Always replace the filter with every oil change. Never reuse a filter. The cost is negligible compared to an engine rebuild.

Stick with OEM or major brand filters. Toyota's OE filter for the V6, part 04152-38010, is manufactured by Denso. It meets Toyota's specifications for burst strength and filtration efficiency.

Aftermarket options from Wix, Mobil 1, and Bosch also perform well in lab testing.

Avoid no-name filters from discount stores. Some use lower quality media that can collapse internally. A collapsed filter blocks oil flow entirely.

That means zero lubrication within seconds.

Oil Pressure Warning: What to Do Right Now

The oil pressure warning light comes on. Your heart sinks. Don't panic.

But don't ignore it either.

If the light comes on while driving:

• Pull over immediately. Turn off the engine.
• Check the oil level on the dipstick.
• If low, add oil and restart. If the light goes off, you caught it in time.
• If the level is fine and the light stays on, do not drive. Call a tow truck.

Oil pressure loss can mean a failed pump, a clogged pickup tube, or a serious internal leak. Driving with no oil pressure for more than 30 seconds can cause catastrophic damage. The cost of a tow is far less than the cost of a new engine.

Final Checklist for Your Next Oil Change

Before you start the job, run through this list. It takes 30 seconds and prevents mistakes.

• Confirm your engine: V6 or 4-cylinder
• Buy 7 quarts of 0W-20 synthetic (you'll have leftover)
• Buy the correct oil filter
• Buy a new crush washer
• Have a drain pan and funnel ready
• Locate the oil filter before you drain
• Warm the engine briefly before draining
• Torque the drain plug to 29 lb-ft
• Fill to spec, check the dipstick, then top off
• Reset the maintenance light
• Dispose of old oil properly

That's it. Thirty minutes of work. A few dollars in parts.

And your 2016 Highlander's engine stays protected for another 5,000 miles.
