2023 Toyota Corolla Engine Oil Capacity Guide

If you looked up "2023 toyota corolla oil capacity" and found yourself staring at conflicting forum posts, you're not alone. There's a lot of half-right information floating around, and the wrong oil amount can cause real engine trouble. The 2023 Corolla is a fantastic car, but it demands precise fluid specs to run smoothly.

Toyota's engineers designed the 2.0L Dynamic Force engine around a specific oil viscosity and capacity. Getting it right means the difference between a well-lubricated engine that lasts 200,000 miles and one that starts showing wear long before its time. Let's cut through the noise and give you the exact numbers you need.

Quick Answer

The 2023 Toyota Corolla with the 2.0L engine takes 4.4 US quarts of oil with a filter change. That's 4.2 liters. The hybrid model uses 4.8 US quarts (4.5 liters).

Both require fully synthetic 0W-16 oil. These numbers come straight from the factory service manual. Use only that spec to keep your warranty valid.

Why Getting the Oil Capacity Right Matters for Your 2023 Corolla

Modern engines run tighter tolerances than ever. The 2023 Corolla's M20A-FKS engine uses low-friction piston rings and precise oil passages that depend on the correct oil level. Too little oil and you risk metal-on-metal contact at critical wear points.

Too much and the crankshaft whips the oil into a foam that can't lubricate properly.

Oil acts as a coolant, a cleaner, and a hydraulic fluid inside your engine. Each of those jobs requires the right volume. The oil pan is designed to hold a specific amount.

The pickup tube sits at a precise height. If you're off by even half a quart, you change the dynamics of the whole system.

Manufacturer specifications indicate that the 2023 Corolla's oil capacity was calculated with the engine's variable valve timing system in mind. The oil pressure needed to actuate the VVT components depends on having the correct fill level. Short-changing that system leads to sluggish performance and potential timing chain wear over time.

The 2023 Corolla Has Two Different Engines — Here's What That Means for Oil Capacity

Image source: Web (Bing) / en.1xmatch.com (Web image (fair-use with source credit))

The 2023 Corolla isn't a one-size-fits-all car. You have two distinct powertrain options under the hood. Each one needs a different amount of oil.

Mixing them up is the most common mistake we see in repair forums and quick-lube bay write-ups.

The 2.0L Dynamic Force Engine (Gas-Only Trims)

This is the M20A-FKS engine found in the LE, SE, and XSE trims. It's a 2.0-liter four-cylinder that uses Toyota's latest thermal efficiency tricks. That includes a high 13:1 compression ratio and a cooled exhaust gas recirculation system.

The oil pan on this engine is shallower than you might expect, which is why the capacity is lower than some competitors.

The 2.0L engine takes exactly 4.4 US quarts or 4.2 liters of oil when you replace the filter at the same time. If you're only draining and not swapping the filter, you'll get about 4.2 quarts out. That's a small difference, but it matters when you're filling from empty.

The 1.8L Hybrid Engine

The Corolla Hybrid uses the 2ZR-FXE engine, a 1.8-liter Atkinson-cycle four-cylinder. The Atkinson cycle runs a longer expansion stroke than compression stroke. That improves fuel economy at the cost of peak power.

The hybrid system's electric motor handles the low-end torque, so the engine can focus on efficiency.

The hybrid's oil capacity is 4.8 US quarts or 4.5 liters with a filter change. That's about 0.4 quarts more than the gas model. The larger capacity helps with heat management in the hybrid system.

The engine cycles on and off more frequently and needs stable oil temperatures.

The Exact Oil Capacity for Each Engine

Let's put the numbers in a format you can reference quickly. This table comes straight from the 2023 Toyota Corolla owner's manual and the factory service information.

Gas Models (LE, SE, XSE): 2.0L Capacity

The 4.4-quart figure is the number you need to write down. Buy a 5-quart jug of the correct oil and you'll have about 0.6 quarts left over for top-ups between changes. The 2023 Corolla's engine does consume a small amount of oil between services.

That's especially true if you drive hard or in hot climates.

Toyota doesn't recommend using the "without filter" figure for filling. Always fill with the filter change capacity and then adjust based on the dipstick reading. The 0.2-quart difference is small enough that it won't overfill if you're careful.

But it's best practice to add the full 4.4 quarts and then check the level.

Hybrid Models: 1.8L Capacity

The hybrid's 4.8-quart capacity means you'll use almost the entire 5-quart jug. Have a second quart on hand if you plan to top up between changes. The hybrid engine runs cooler than the gas version.

It also cycles on and off more frequently, which can cause oil dilution from fuel in some driving conditions.

Check your hybrid's oil level more often if you do mostly short trips. The engine may not reach full operating temperature on a 5-minute drive. Unburned fuel can accumulate in the oil pan.

That raises the oil level artificially. A dipstick reading taken when the engine is hot and has been running for at least 15 minutes will give you the most accurate picture.

Dry Fill vs. Oil Change Capacity

Dry fill capacity is the amount of oil a completely empty engine needs. That includes the oil cooler, oil lines, and all internal passages. For the 2.0L engine, that's 5.1 US quarts.

For the hybrid, it's about 5.5 quarts. You'll only need this number if you've rebuilt the engine or replaced the oil cooler.

For a routine oil change, stick with the numbers above. The oil filter holds about 0.2 quarts. The internal passages retain a thin film of oil that doesn't drain out.

Filling to the dry fill capacity would overfill the engine by nearly a quart. That leads to foaming and seal damage.

The Correct Oil Type and Viscosity

Capacity is only half the equation. The wrong oil weight can cause just as much damage as the wrong amount. The 2023 Corolla demands fully synthetic oil.

The recommended viscosity is something you might not be used to if you've owned older cars.

Why 0W-16 Is the Recommended Oil

Toyota specifies SAE 0W-16 for the 2023 Corolla's gas engine. That's a thinner oil than the 5W-20 or 5W-30 that many drivers are familiar with. The 0W-16 oil flows more easily at cold temperatures.

That reduces wear during startup and improves fuel economy by reducing internal friction.

The "0W" means the oil pumps easily at temperatures as low as -40°F. The "16" is the high-temperature viscosity. It's thinner than the more common 20-weight oils.

Toyota's engineers selected this viscosity because the M20A-FKS engine's bearings and piston clearances are designed for a thinner oil film. Running a thicker oil can actually reduce oil flow to critical components, especially at startup.

The hybrid model also uses 0W-16. It can accept 0W-20 if 0W-16 isn't available. The owner's manual is clear: 0W-16 is preferred. 0W-20 is an acceptable substitute for the hybrid only.

The gas model should use 0W-16 exclusively.

Can You Use 0W-20 Instead?

This is the most common question we get from Corolla owners. For the gas engine, stick with 0W-16. Toyota issued a technical service bulletin clarifying that 0W-20 is not recommended for the M20A-FKS engine in the 2023 Corolla.

The bulletin notes that using 0W-20 may reduce fuel economy and could affect cold-start oil pressure.

For the hybrid, 0W-20 is listed as an acceptable alternative. If you're in a remote area where 0W-16 isn't available, you can use 0W-20 in the hybrid without worry. Just switch back to 0W-16 at your next oil change.

The difference in fuel economy is small, maybe 1 to 2 percent. But it's worth noting if you're trying to maximize every mile.

The oil you choose should also meet API SP or ILSAC GF-6 certification. Those standards ensure the oil has the right additives for modern engines. That includes protection against low-speed pre-ignition and timing chain wear.

Look for the API donut symbol on the bottle. If it says SP or GF-6, you're good.

Step-by-Step: How to Do a 2023 Corolla Oil Change the Right Way

Image source: Bing (Web (fair-use with source credit))

A proper oil change on the 2023 Corolla takes about 30 minutes once you've done it a couple times. The first time, budget an hour. You'll need the right tools and a clean workspace.

The process is straightforward if you follow the sequence.

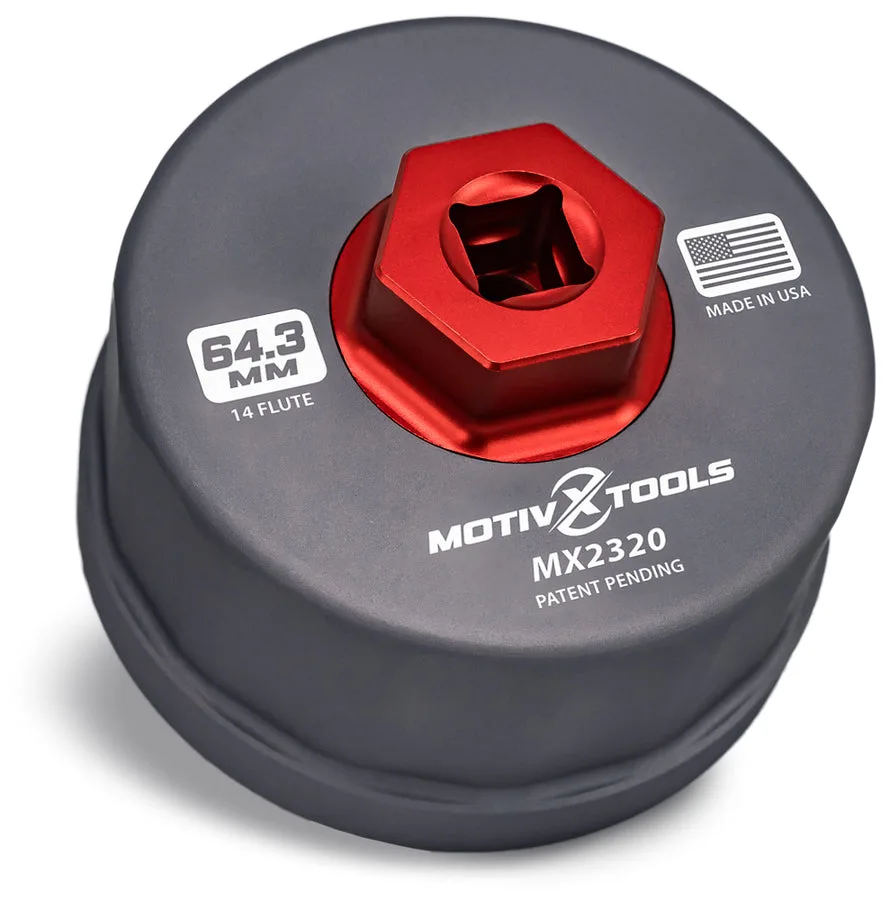

Tools and Parts You'll Need

The Complete Process

Warm the engine. Start the car and let it idle for 5 minutes. Warm oil drains faster and carries more suspended contaminants. Don't rev it, just let it idle.

Park on a level surface before you start.

Lift the car safely. Jack up the front of the car and place jack stands under the frame rails. Never work under a car supported only by a jack. The 2023 Corolla's oil drain plug is accessible from the front.

You need about 12 inches of clearance to work comfortably.

Remove the oil fill cap. This lets air enter the system and helps the oil drain completely. It also prevents a vacuum from forming that would slow the drain.

Drain the oil. Position the drain pan under the drain plug. Use the 14mm socket to loosen the plug counterclockwise. Remove it by hand and let the oil flow.

The oil will be hot, so wear gloves and keep your face clear. Let it drain for at least 5 minutes, or until you see only occasional drips.

Replace the crush washer. The old washer is crushed and won't seal properly if reused. Slide the new washer onto the drain plug. Torque the plug to 30 ft-lb.

Over-tightening strips the aluminum oil pan threads. That repair costs hundreds of dollars.

Remove the oil filter. The filter is located on the front of the engine, accessible from underneath. Use the filter wrench to loosen it. Some oil will spill when you remove it, so position the drain pan underneath.

Clean the filter mounting surface on the engine with a rag.

Install the new filter. Lubricate the rubber gasket on the new filter with a thin coat of fresh oil. Screw the filter on by hand until the gasket contacts the mounting surface. Tighten it another 3/4 turn by hand.

Don't use the wrench for the final tightening. Hand-tight is sufficient.

Fill with oil. Lower the car off the jack stands. Pour in 4.2 quarts of the 0W-16 oil for the gas engine, or 4.6 quarts for the hybrid. Check the dipstick.

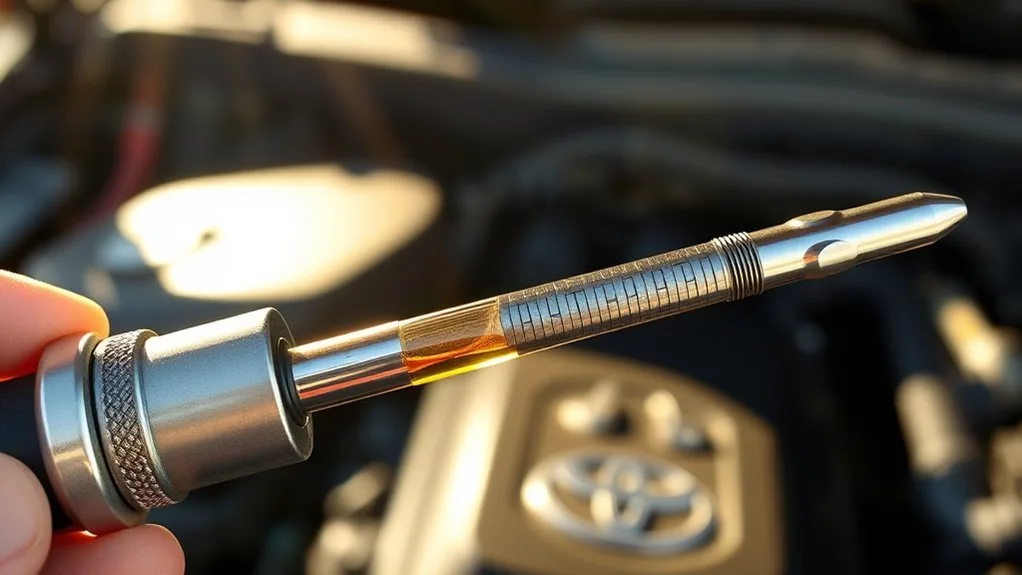

The level should be between the low and full marks. Start the engine and let it idle for 30 seconds to fill the new filter. Turn off the engine and wait 1 minute.

Check the dipstick again and add oil as needed to reach the full mark.

Check for leaks. With the engine running, inspect the drain plug and oil filter for any signs of oil seeping out. Wipe the areas clean before you start the engine so fresh leaks are easy to spot.

Reset the oil life monitor. Turn the ignition to ON without starting the engine. Press the trip meter reset button until the oil maintenance light flashes. Hold the button for 5 seconds until the light resets.

The exact procedure varies slightly by trim, so check your manual if this doesn't work.

Common Mistakes That Can Damage Your Engine

Image source: Web (Bing) / fridayparts.com (Web image (fair-use with source credit))

Even experienced DIYers make errors on the 2023 Corolla. The engine's design is different from older Toyota four-cylinders. Assumptions from previous models don't always carry over.

Overfilling vs. Underfilling

Overfilling is more dangerous than underfilling in most cases. A quart too much oil can cause the crankshaft to dip into the oil at high RPM. That whips air into the oil and creates foam.

Foam doesn't lubricate. It also increases pressure inside the crankcase, which can push oil past seals and gaskets.

Underfilling by half a quart is less catastrophic. But it still risks oil starvation during hard cornering or steep inclines. The dipstick on the 2023 Corolla has a range of about 1 quart between the low and full marks.

If you're at the low mark, add half a quart and recheck. Never add a full quart at once unless you know the engine is a quart low.

Stripping the Drain Plug

The 2023 Corolla's oil pan is aluminum. The drain plug threads into the pan directly, not into a steel insert. Overtightening the drain plug strips the threads.

The repair requires a new oil pan or a thread repair insert. Use a torque wrench set to 30 ft-lb every time. If you don't have a torque wrench, tighten the plug until it stops turning and then give it another quarter turn at most.

Forgetting the Crush Washer

The crush washer is a one-time-use aluminum ring that deforms under torque to create a seal. Reusing the old washer is the most common cause of a slow oil leak after an oil change. The leak might be small enough that you don't notice it on the ground.

But it can lose a quart over 3,000 miles. Always install a new crush washer. They cost about a dollar.

Using the Wrong Oil Filter

The 2023 Corolla uses a cartridge-style oil filter, not the spin-on metal canisters from older Toyotas. The filter is a paper element inside a plastic housing. Some aftermarket filters don't match the OEM bypass valve pressure.

That can cause the filter to collapse or bypass unfiltered oil into the engine. Stick with the Toyota OEM filter or a high-quality brand that explicitly lists compatibility with the 2023 Corolla.

When to Change the Oil: Normal vs. Severe Service Intervals

Toyota's recommended oil change interval for the 2023 Corolla is 10,000 miles or 12 months, whichever comes first. That's under normal driving conditions. But "normal" is more specific than you might think.

Normal service means driving on highways, maintaining consistent speeds, operating in moderate temperatures, and keeping trips long enough to warm the engine fully. That describes a typical commute of 20 miles or more each way.

Severe service includes short trips under 5 miles, stop-and-go traffic, extreme heat or cold, dusty roads, and towing. If you live in a city, drive in heavy traffic, or make frequent short trips, you're in the severe service category. Toyota recommends changing the oil every 5,000 miles or 6 months for severe service.

The 2023 Corolla's oil life monitor takes some of this into account. It tracks driving conditions and adjusts the reminder accordingly. But it's not perfect.

If you know you're driving in severe conditions, don't wait for the light to come on. Change the oil at 5,000 miles and you'll extend the engine's life significantly.

Expert Tips for a Clean, Leak-Free Oil Change

Warm the oil before draining. Cold oil is thick and drains slowly, leaving more old oil behind. A 5-minute idle brings the oil to about 100°F. That's warm enough to flow freely but not hot enough to burn you through gloves.

Use a torque wrench on the drain plug. This is the single best investment you can make for your Corolla's oil pan threads. A beam-style torque wrench costs about $20. It will save you from a $400 oil pan replacement.

Pre-fill the oil filter. Before installing the new filter, pour fresh oil into it until it's about half full. This reduces the time the engine runs without oil pressure on the first startup. It also helps the filter reach its full efficiency sooner.

Check the oil level twice. Check it immediately after the first fill. Then check it again after the engine has run and the filter has filled. The level will drop by about 0.2 quarts once the filter is saturated.

Add oil to bring it to the full mark.

Keep a log. Write down the date, mileage, oil type, and filter part number every time you change the oil. This helps you spot trends like increased oil consumption. It also provides proof of maintenance if you ever need to make a warranty claim.

Complete Oil Spec Sheet for the 2023 Toyota Corolla

Frequently Asked Questions About 2023 Corolla Oil Capacity

Does the 2023 Corolla Hybrid Use the Same Oil as the Gas Model?

Yes, both use SAE 0W-16 fully synthetic oil with API SP or ILSAC GF-6 certification. The hybrid can also use 0W-20 if 0W-16 isn't available. The gas model should stick with 0W-16 exclusively.

The capacity is different: 4.8 quarts for the hybrid versus 4.4 quarts for the gas model. Always check which engine you have before filling.

How Much Oil Does the 2023 Corolla Take Without a Filter Change?

If you're reusing the old oil filter, the 2.0L gas engine takes about 4.2 US quarts. The hybrid takes about 4.6 quarts. The filter holds roughly 0.2 quarts of oil.

Skipping the filter change reduces the total capacity by that amount. Toyota recommends replacing the filter every time.

What Happens If I Put 5W-30 in a 2023 Corolla?

The 2023 Corolla's engine is designed for low-viscosity oil. 5W-30 is much thicker than the recommended 0W-16. Using it increases internal friction. That reduces fuel economy.

It can also cause the variable valve timing system to operate slowly. In cold weather, the thicker oil struggles to reach critical components at startup. If you accidentally used 5W-30, change it as soon as possible.

When to Call a Mechanic vs. DIY

An oil change on the 2023 Corolla is a straightforward job for anyone with basic mechanical skills. You need a jack, stands, a socket set, and about an hour. The cost is roughly $35 for oil and a filter.

That compares to $70 to $100 at a dealership or quick-lube shop.

Call a mechanic if you don't have a safe place to work. Call one if you're unsure about lifting the car properly. Call one if you've never done an oil change before.

The first time is intimidating. A mistake like stripping the drain plug or overfilling the engine can cost more than paying for a professional change.

If you're comfortable with basic tools, this is a satisfying job. It saves you money. It gives you control over the quality of the oil and filter going into your car.

The 2023 Corolla is a well-designed car that makes the job easier than many competitors. Good access to the drain plug and filter helps.

Your Go-To Guide for a Safe Oil Change

The 2023 Toyota Corolla's oil capacity is 4.4 quarts for the gas engine and 4.8 quarts for the hybrid. Use 0W-16 fully synthetic oil with API SP certification. Change it every 10,000 miles under normal driving or 5,000 miles under severe conditions.

Always replace the crush washer and oil filter. Torque the drain plug to 30 ft-lb. Check the level twice.

These simple steps will keep your Corolla's engine running smoothly for years.
