2004 Toyota Avalon Oil Capacity Guide

If you're getting ready to change the oil on your 2004 Toyota Avalon, the first thing you need to know is the exact 2004 toyota avalon oil capacity. Adding too much or too little oil can cause serious engine damage. The 3.0L V6 engine in this car is known for its longevity, but only with proper maintenance.

Manufacturer specifications for the 1MZ-FE engine call for 5.5 quarts of 5W-30 oil when you replace the filter. Getting this right is the foundation of a healthy engine. Let's break down exactly what your Avalon needs.

Image source: Bing (Web (fair-use with source credit))

Why Getting the Exact Oil Capacity Matters for Your 2004 Avalon

The wrong amount of oil can kill your engine. The 1MZ-FE V6 is a tough motor, but it's picky about oil level. Overfilling causes the crankshaft to whip air into the oil, creating foam that starves bearings of lubrication.

Underfilling means the oil pump sucks air on hard corners or hills, leading to metal-on-metal contact.

Both scenarios shorten engine life fast. This engine can easily hit 250,000 miles with proper care. But a single oil change with the wrong capacity can leave you with a knocking engine.

The real risk is that you won't notice until it's too late. A low oil level won't always trigger the warning light until the pressure drops dangerously low. Overfilling often shows no symptoms at all until you hear a rod knock.

That's why the 5.5-quart figure isn't optional.

The same principle applies to other Toyota engines from this generation. If you've worked on a recent model, you'll notice similar attention to detail in the recommended oil specs for the latest RAV4.

Quick Answer: 2004 Toyota Avalon Oil Capacity at a Glance

The 2004 Toyota Avalon takes 5.5 quarts of oil. This is with a filter change. Without a filter change, it takes 5.0 quarts.

Use 5W-30 viscosity. Choose API SL or higher certification.

Always check the dipstick after filling. The level should sit between the two marks. Never overfill past the top mark.

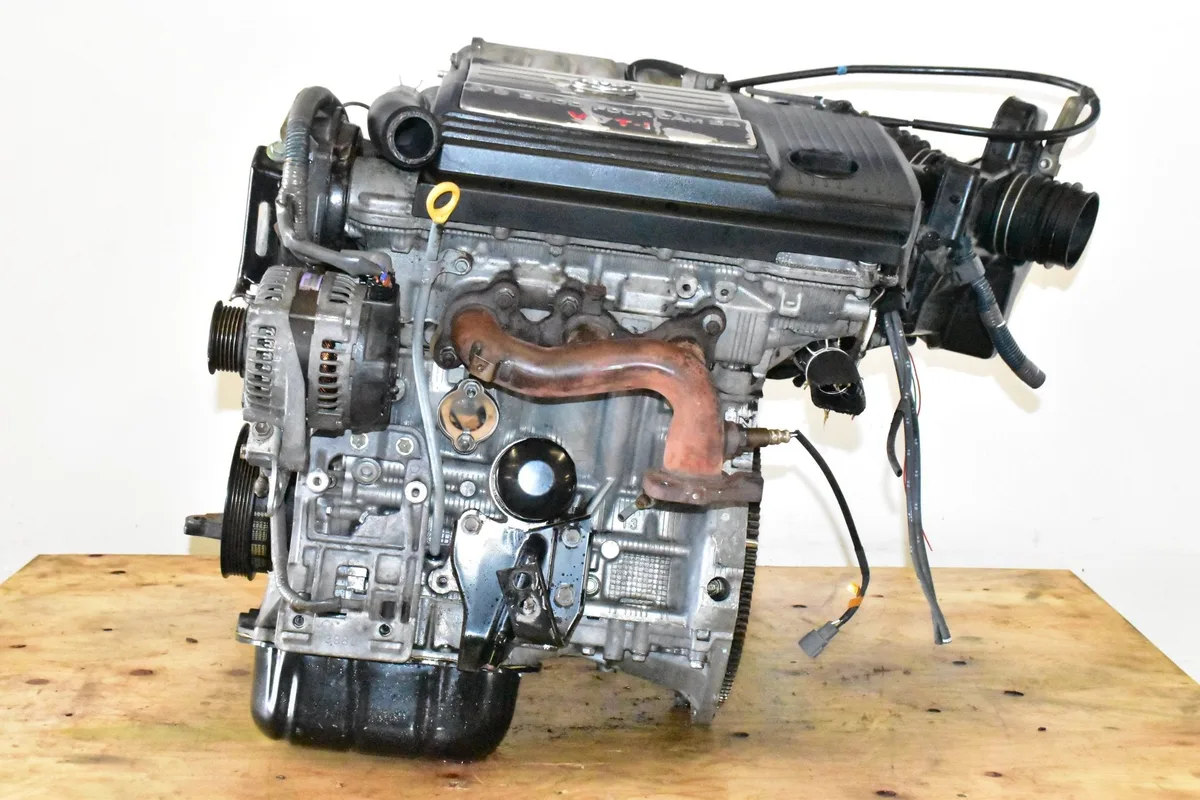

Engine Specs: The 3.0L 1MZ-FE V6 and What It Needs

The 2004 Avalon uses the 1MZ-FE engine, a 3.0-liter V6 that Toyota produced from the late 1990s through the mid-2000s. It's a DOHC, 24-valve design with a cast-iron block and aluminum heads. This engine is known for being smooth, quiet, and reliable.

The 1MZ-FE is a non-interference engine, meaning a timing belt failure won't destroy the valves. But that doesn't mean you can skip oil changes. The engine's hydraulic lifters and variable valve timing system rely on clean oil at the right level.

Clean oil at the right level is the secret to keeping this engine running past 200,000 miles. Many Avalon owners report getting 300,000 miles with regular 5,000-mile oil changes. The same care applies to the 4Runner engine from the same era, which is built for similar longevity.

Right Oil, Right Viscosity: Why 5W-30 Is the Spec

Toyota specifies 5W-30 for the 1MZ-FE engine in the 2004 Avalon. That's not a suggestion. It's the result of extensive testing to balance cold-start protection, fuel economy, and high-temperature film strength.

Image source: Bing (Web (fair-use with source credit))

The "5W" tells you the oil's viscosity at cold temperatures. A 5W oil flows well at temperatures down to about minus 30 degrees Fahrenheit. The "30" is the viscosity at operating temperature, around 212 degrees Fahrenheit.

A 30-weight oil provides the right film thickness for the bearing clearances in this engine.

Using 10W-30 in a cold climate will make the engine harder to start and increase wear during warm-up. Using 0W-30 is acceptable in extreme cold but offers no benefit in normal conditions. Using 5W-20 is not recommended by Toyota for this engine.

Both conventional and synthetic oil work. The 1MZ-FE was designed for conventional oil, but synthetic provides better protection at high temperatures and longer drain intervals. If you switch to synthetic, you can extend the interval to 7,500 miles under normal driving conditions.

The American Petroleum Institute sets the standards for engine oil quality. Look for the API starburst symbol on the bottle. As of 2026, the current API standard is SP, which is backward-compatible with your 2004 Avalon.

The same certification applies when choosing oil for other Toyota models of that era.

Step-by-Step: How to Do a Proper Oil Change on a 2004 Avalon

Doing an oil change on the 2004 Avalon is straightforward. The oil filter is located on the front of the engine, easy to reach from above or below. The drain plug is on the passenger side of the oil pan.

You need basic hand tools and about 30 minutes.

Image source: Web (Bing) / carpedia.club (Web image (fair-use with source credit))

The Drain and Filter Swap Process

1. Warm up the engine. Run it for 2 to 3 minutes. Warm oil drains faster and carries more suspended contaminants.

But don't let it get hot enough to burn you.

2. Park on level ground. Use ramps or jack stands. Never work under a car supported only by a jack.

Engage the parking brake.

3. Drain the old oil. Put the drain pan under the drain plug. Loosen the plug with a 14mm socket.

Turn it by hand once it's loose. Let the oil drain completely, about 5 minutes.

4. Remove the old filter. The oil filter is on the front of the engine, facing forward. Use an oil filter wrench to loosen it.

Turn it by hand the rest of the way. Expect some oil to spill.

5. Install the new filter. Lubricate the rubber gasket on the new filter with a little fresh oil. Screw it on by hand until the gasket touches the mounting surface.

Then tighten it another 3/4 turn by hand. Do not use a wrench. Overtightening can damage the gasket and cause leaks.

6. Install the new drain plug. Replace the old crush washer with the new one. Tighten the drain plug to 29 ft-lbs.

If you don't have a torque wrench, snug it firmly and then turn another 1/8 turn. Overtightening can strip the threads in the oil pan.

7. Add the new oil. Remove the oil fill cap on the valve cover. Insert a funnel.

Add 5.5 quarts of 5W-30. Replace the cap.

8. Check for leaks. Start the engine and let it run for 30 seconds. Check under the car for drips around the drain plug and filter.

If you see a leak, shut off the engine and tighten the component.

9. Check the dipstick. Turn off the engine. Wait 2 minutes for the oil to settle.

Pull the dipstick, wipe it clean, reinsert it, and pull it again. The level should be between the low and full marks. Add oil if needed, but never overfill.

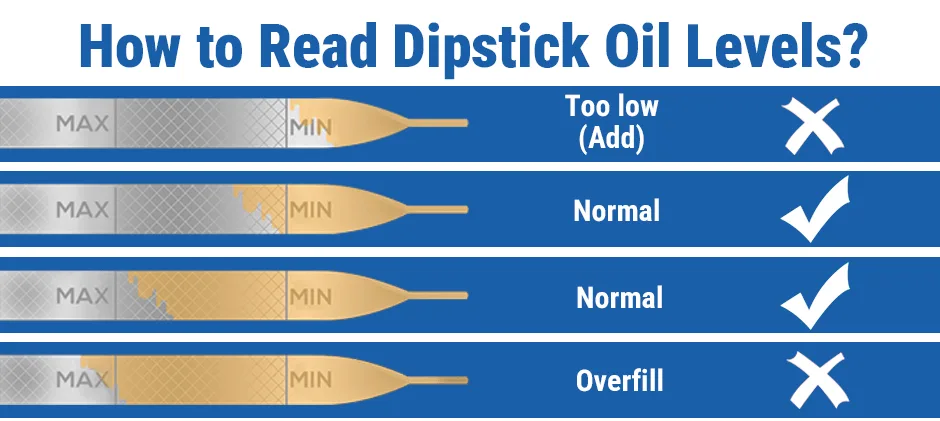

Filling and Checking the Dipstick Correctly

The dipstick on the 1MZ-FE is located on the passenger side of the engine, near the firewall. It has a yellow handle. Pull it straight out.

Wipe it with a clean rag. Push it all the way back in. Pull it out again and read the level.

The level should be between the two dots or notches. If it's at the bottom dot, you're one quart low. If it's at the top dot, you're full.

If it's above the top dot, you've overfilled and need to drain some oil.

After adding the full 5.5 quarts, the dipstick will often show the level slightly above the top mark. This is normal because the filter hasn't filled yet. Run the engine for 30 seconds, shut it off, wait 2 minutes, and check again.

The level will drop to the correct range.

This process is nearly identical for other Toyota models of the same era. If you've done an oil change on a Camry from the mid-2000s, you'll find the Avalon equally straightforward. The 1MZ-FE engine is a shared platform across several models.

Common Mistakes That Can Damage Your Engine

Most engine damage from oil changes comes from a few simple errors. The good news is they're all avoidable.

Image source: Bing (Web (fair-use with source credit))

Overfilling vs. Underfilling: The Risks

Overfilling is the more common mistake. When you pour in the whole 6-quart jug instead of measuring 5.5 quarts, the oil level rises above the full mark. The crankshaft then whips through the oil, creating foam.

Foam doesn't lubricate well. Bearings, lifters, and timing components starve for oil pressure.

The symptoms are subtle at first. You might notice a ticking sound from the valve train. The engine feels sluggish.

Eventually, the oil seals fail and you get leaks. Catalytic converter damage can follow from oil burning.

Underfilling is equally dangerous. If you only add 4 quarts, the oil pump can suck air during acceleration or cornering. This causes momentary loss of oil pressure.

Each time that happens, metal surfaces touch. The wear is cumulative.

Stripped Drain Plugs and Overtightened Filters

The drain plug hole is easy to strip. The oil pan is aluminum. The drain plug is steel.

If you overtighten the plug, you'll strip the threads in the pan. The fix requires a new oil pan or a helicoil repair.

The torque spec is 29 ft-lbs. That's snug plus a little more. You don't need to crank it with a breaker bar.

Use a torque wrench if you have one. Replace the crush washer every time.

Overtightening the oil filter is just as bad. The filter gasket can deform or crack. A damaged gasket leaks oil.

The filter can also seize onto the mounting base. Hand-tight plus 3/4 turn is all you need.

Using the Wrong Oil or Filter

Using 10W-30 in cold weather makes the engine hard to start. The oil is too thick to flow quickly. This delays oil pressure buildup on startup, which is when most engine wear occurs.

Using 5W-20 is too thin at operating temperature. The oil film can't protect the bearings under load.

The 1MZ-FE engine requires a filter with the correct bypass valve pressure. Cheap filters sometimes have a higher or lower bypass setting. A higher bypass means the filter goes into bypass mode sooner, sending unfiltered oil through the engine.

Stick with the Toyota OEM filter or a known quality brand.

Synthetic vs. Conventional: Which Oil Is Best for Your 2004 Avalon?

Both work, but the answer depends on your driving habits. The 1MZ-FE engine was designed for conventional oil. It has generous clearances that conventional oil handles fine.

But synthetic oil offers advantages that matter for some owners.

Conventional oil is the affordable choice. A 5-quart jug of conventional 5W-30 costs about $15 to $20. It meets the API SL specification that Toyota required when the Avalon was new.

If you change oil every 3,000 to 5,000 miles, conventional oil provides adequate protection.

Synthetic oil is better for extreme conditions. If you live in a very cold climate, synthetic oil flows better at startup. If you tow a trailer or drive in stop-and-go traffic, synthetic oil resists breakdown better.

If you want to extend drain intervals to 7,500 or 10,000 miles, synthetic is the only option.

If your Avalon has over 100,000 miles, high-mileage oil is a smart choice. It contains seal conditioners that help reduce leaks from aging gaskets. The 1MZ-FE engine is known for developing valve cover gasket leaks around 120,000 miles.

High-mileage oil can slow that process.

Can you switch between conventional and synthetic? Yes, without any issues. Modern synthetic and conventional oils are fully compatible.

You can run conventional for one change and synthetic for the next. The engine doesn't care. Just stick with 5W-30 viscosity and API certification.

For a car that's over 20 years old, synthetic oil is the safer bet. The extra protection is worth the small price difference.

How Often Should You Change the Oil? Interval Guidelines

The short answer is every 5,000 miles. That's the recommended interval for normal driving conditions with conventional oil. Toyota's official schedule for the 2004 Avalon is 5,000 miles or 6 months, whichever comes first.

Severe service conditions require more frequent changes. Toyota defines severe service as short trips under 5 miles in cold weather, extensive idling or stop-and-go traffic, driving on dusty roads, towing a trailer, or operating in extreme heat or cold. If any of these apply to your driving, change the oil every 3,000 miles.

With synthetic oil, you can stretch the interval. Full synthetic can go 7,500 to 10,000 miles under normal conditions. But change the filter every 5,000 miles.

The filter can only hold so much dirt before it goes into bypass mode.

Check the oil regularly. Pull the dipstick every 1,000 miles or every month. Look at the color and consistency.

Fresh oil is amber and translucent. Old oil is dark and opaque. If the oil looks black and smells like fuel, change it immediately.

The 1MZ-FE engine holds 5.5 quarts, which is a generous capacity. That helps the oil last longer and stay cleaner. Other Toyota models from the same era recommend similar intervals.

When to Call a Mechanic Instead of Going DIY

DIY oil changes are straightforward on the 2004 Avalon, but not for everyone. Here's when you should consider hiring a professional.

If you don't have a safe place to work, call a mechanic. You need level ground, jack stands or ramps, and enough space to move around. Working on a slope or with a bumper jack is dangerous.

If you can't reach the drain plug or filter, call a mechanic. The 2004 Avalon sits low. Some owners have trouble getting under the car even with ramps.

A mechanic has a lift.

If you're unsure about the oil capacity or type, call a mechanic. We've covered the specs here. But if you're nervous about making a mistake, a shop will get it right.

If you find metal shavings in the old oil, call a mechanic. This is a serious warning sign. The engine may have bearing damage.

A mechanic can diagnose the problem.

If your engine burns oil, call a mechanic. The 1MZ-FE is known to start burning oil around 150,000 miles. A mechanic can perform a compression test and leak-down test to determine the cause.

The Costs: DIY Oil Change vs. Shop Price

DIY is significantly cheaper. Here's a breakdown of the costs as of 2026.

The savings add up. If you drive 15,000 miles per year and change oil every 5,000 miles, you'll do three changes. DIY saves you $72 to $144 per year.

But there are hidden costs. You need tools. An oil filter wrench costs $10 to $15.

A drain pan costs $8 to $12. Jack stands cost $30 to $50. A torque wrench costs $25 to $60.

These are one-time purchases.

Disposal is another factor. Used oil must be recycled. Most auto parts stores accept it for free.

But you have to transport it. A shop handles disposal as part of the service.

If you have the tools and space, do it yourself. The 1MZ-FE engine is easy to service. If you don't have the tools or confidence, pay a shop.

The cost difference is small compared to the cost of an engine repair.

Verdict: Your Action Plan for a Healthy 2004 Avalon Engine

The 2004 Avalon's 1MZ-FE engine is a proven workhorse. It will last well past 200,000 miles with the right care. The single most important thing you can do is use the correct oil capacity and viscosity.

Here's the plan. Use 5.5 quarts of 5W-30 oil with a filter change. Change the oil every 5,000 miles with conventional oil or every 7,500 to 10,000 miles with synthetic.

Check the dipstick monthly. Never overfill or underfill. Use a quality filter and replace the crush washer each time.

Stick to these basics and your Avalon will reward you with years of reliable service. The engine doesn't ask for much. But what it asks for, it demands.

Frequently Asked Questions

How much oil does a 2004 Toyota Avalon take?

The 2004 Avalon takes 5.5 quarts of oil with a filter change. Without a filter change, it takes 5.0 quarts. Always confirm the level with the dipstick after filling.

What type of oil does a 2004 Toyota Avalon need?

Toyota specifies 5W-30 viscosity oil with API SL certification or higher. Both conventional and synthetic work. High-mileage oil is a good choice for engines over 100,000 miles.

Can I use 10W-30 instead of 5W-30 in my 2004 Avalon?

You can, but it's not recommended. The 5W-30 provides better cold-start protection. Using 10W-30 in cold weather increases engine wear during startup.

How often should I change the oil in my 2004 Avalon?

Every 5,000 miles with conventional oil under normal driving. Every 3,000 miles for severe service like short trips or towing. With synthetic oil, you can go 7,500 to 10,000 miles.

Is the oil filter the same for all 1MZ-FE engines?

Yes. The Toyota OEM part number is 04152-YZZA1. Most aftermarket filters that fit the 1MZ-FE engine work correctly.

Stick with known brands to ensure the bypass valve pressure is correct.

What happens if I overfill the oil in my 2004 Avalon?

Overfilling causes the crankshaft to foam the oil. This reduces lubrication and can damage bearings, seals, and the catalytic converter. Drain the excess oil immediately if you overfill.
