2004 Toyota Camry 2.4 Oil Capacity: How Many Quarts?

If you're working on a 2004 Toyota Camry with the 2.4L engine, you need the exact 2004 toyota camry 2.4 oil capacity before you start pouring. Get it wrong and you risk engine damage, oil leaks, or a costly repair. The good news is this is one of the most straightforward oil changes you can do at home.

Manufacturer specifications list the 2AZ-FE engine's oil capacity at 5.0 quarts with a filter change. That number applies across all 2004 model year trims. Let's walk through everything you need to get it right the first time.

Quick Answer

The 2004 Toyota Camry 2.4 oil capacity is 5.0 quarts with a new oil filter. Without a filter, it's 4.8 quarts. Use 5W-30 oil meeting API SL or ILSAC GF-3 standards.

The dipstick should read between the L and F marks when the engine is warm and parked on level ground.

Why Getting the Exact Capacity Matters

Overfilling by even half a quart causes problems. The crankshaft whips the extra oil into foam. Air bubbles get pumped through your bearings instead of a solid film of lubricant.

That leads to accelerated wear and can damage the catalytic converter.

Underfilling is just as bad. Low oil pressure starves the valvetrain and the VVT-i system. You might hear a ticking noise from the top end or see the oil pressure light flicker on hard corners.

Viscosity matters too. Toyota designed the 2AZ-FE around 5W-30 oil. Thicker oil like 10W-40 flows too slowly during cold starts.

Thinner oil like 0W-20 may not provide enough film strength at operating temperature.

Sticking to the factory spec is the safest choice. As of 2026, the 5W-30 recommendation remains unchanged for the 2AZ-FE. Toyota's general oil requirements for the Camry lineup reinforce this across multiple model years.

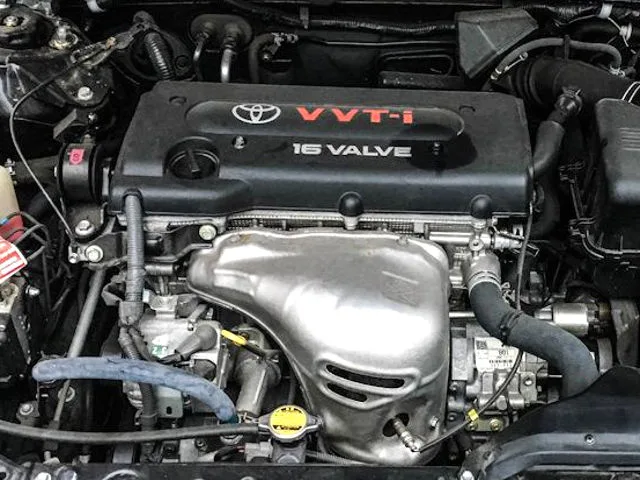

The 2AZ-FE Engine: Key Specs and Quirks

The 2.4L four-cylinder in the 2004 Camry has the engine code 2AZ-FE. It's a 16-valve DOHC engine with VVT-i on the intake cam. This engine also appeared in the RAV4 and Scion tC.

This engine has a known quirk. It can develop oil consumption issues as it ages. The piston rings are a common weak point on engines past 150,000 miles.

If you notice your Camry burning oil between changes, you're not alone.

The 2004 Camry 2.4L uses a spin-on metal canister oil filter. Make sure you get the right filter. A wrong filter can cause a pressure drop or a leak.

Oil Type and Viscosity: What Toyota Recommends

Toyota calls for 5W-30 oil in the 2004 Camry 2.4L. That's what the owner's manual says. Use it for year-round driving in most climates.

The 5W tells you the oil's viscosity at cold temperatures. The W stands for winter. A 5W oil flows well enough at startup to protect the engine in freezing weather.

The 30 is the viscosity at operating temperature. It's thick enough to maintain a strong oil film but thin enough to flow through tight bearing clearances.

You have a choice between conventional and synthetic oil. Both work fine as long as they meet the API SL rating. Synthetic oil offers better high-temperature stability and longer drain intervals.

It also flows better in extreme cold.

Avoid 10W-30 in this engine. The thicker cold-weather viscosity delays oil flow during startup. That increases wear on the timing chain and VVT-i actuator.

High-mileage oil is worth considering if your Camry has over 100,000 miles. These formulations contain seal conditioners that help reduce oil leaks. The 2AZ-FE is prone to valve cover gasket leaks, so high-mileage oil can help slow that down.

Step-by-Step: How to Do a Proper Oil Change

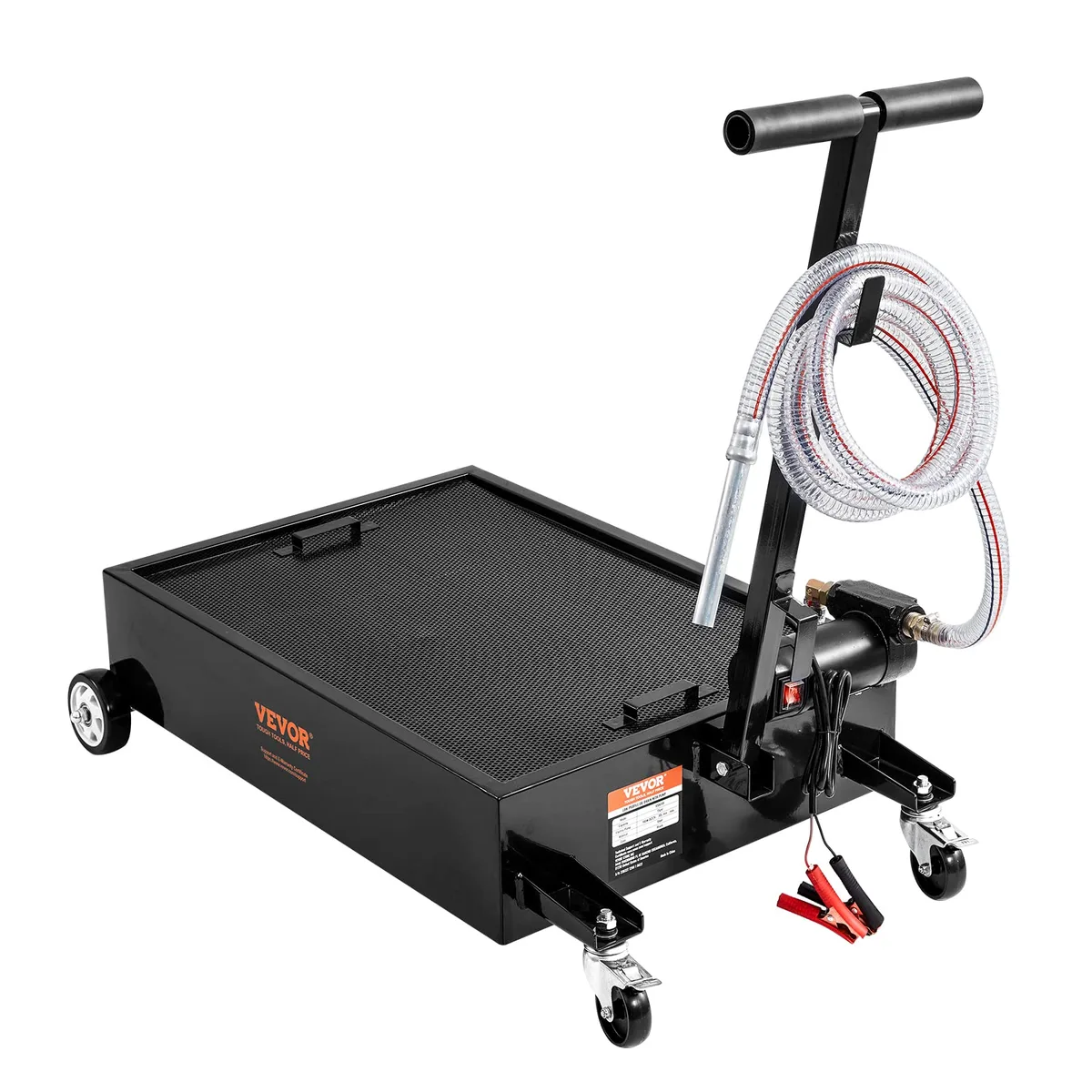

Tools and materials you'll need:

Step 1: Warm up the engine. Run it for two to three minutes. Warm oil drains faster and carries more contaminants out. Don't run it until it's fully hot.

Warm is good. Hot enough to burn you is not.

Step 2: Lift and secure the car. Park on level ground. Use ramps or a jack and jack stands. Never work under a car supported only by a jack.

Set the parking brake and chock the rear wheels.

Step 3: Drain the old oil. Place the drain pan under the drain plug. Use the 14mm socket to loosen the plug counterclockwise. Let the oil drain completely.

This takes about five minutes. Clean the drain plug and replace the crush washer.

Step 4: Remove the old filter. Move the drain pan under the oil filter. Use the filter wrench to loosen it. The 2AZ-FE filter is mounted on the front of the engine.

It's easy to reach.

Step 5: Prepare the new filter. Coat the rubber gasket with fresh oil. This prevents the gasket from sticking. Fill the filter about halfway with oil to reduce dry start time.

Step 6: Install the new filter. Thread it onto the mounting stud by hand. Turn it clockwise until the gasket contacts the sealing surface. Tighten it another three-quarters turn by hand.

Don't use the wrench to overtighten.

Step 7: Reinstall the drain plug. Thread it in by hand. Tighten to 29 lb-ft. If you don't have a torque wrench, snug it up and give it an eighth turn.

Step 8: Add new oil. Remove the oil fill cap. Insert a funnel. Pour in 4.8 quarts first.

Replace the cap. Start the engine and let it run for 30 seconds. Check for leaks.

Step 9: Check the level. Shut the engine off. Wait two minutes. Pull the dipstick, wipe it clean, reinsert it, and pull it again.

The level should be between L and F. Add the remaining 0.2 quarts if needed.

Step 10: Dispose of the old oil. Pour used oil into a sealed container. Take it to an auto parts store or recycling center. The EPA recommends recycling used oil rather than throwing it in the trash.

How to Read the Dipstick Correctly

Always check the oil on level ground. If your car is parked on a slope, the oil shifts to one side. That gives you a false reading.

Check with the engine warm but not running. Run it until operating temperature. Shut it off.

Wait two to three minutes. This gives the oil time to drain back into the pan.

Pull, wipe, insert, pull. The first pull often shows a splashed reading. Wipe it clean.

Reinsert the dipstick fully. Pull it again and read the level.

The oil should sit between the L and F marks. L means low. F means full.

If it's at L, you're about one quart low. If it's at F, you're exactly where you need to be.

Never fill above the F mark. Overfilling causes the oil to foam. Foam doesn't lubricate properly.

Cold readings are less accurate. If you check after the car has sat overnight, the level will read higher because all the oil has drained into the pan. Use the warm engine method for the final reading.

Common Mistakes That Can Damage Your Engine

Using the wrong oil filter. The 2004 Camry 2.4L needs a filter with the correct bypass valve pressure. A filter meant for a different engine may not have the right relief valve. Stick with a filter that matches the Toyota OEM spec.

Stripping the drain plug threads. The oil pan is made of aluminum. It's soft. Overtightening strips the threads.

Use a torque wrench set to 29 lb-ft.

Forgetting the drain plug washer. The crush washer creates a seal between the plug and the pan. Without it, oil seeps past the threads. Replace it every time.

Not priming the oil filter. A dry filter means the engine runs without oil pressure for a few seconds at startup. That causes bearing wear. Fill the new filter with oil before installation.

Ignoring oil consumption. If your Camry burns a quart every 1,000 miles, that's worn piston rings. It's a known 2AZ-FE issue. Check the oil level more frequently and keep it topped up.

Synthetic vs. Conventional: Which Is Better?

Conventional oil works fine. Toyota designed the 2AZ-FE to run on conventional 5W-30. Change it every 5,000 miles and the engine will last a long time.

Synthetic oil offers real advantages. It resists thermal breakdown better. It flows more easily in cold weather.

It also lasts longer. Many synthetic oils are rated for 7,500 to 10,000 miles.

High-mileage synthetic blends are a good middle ground. They contain seal conditioners that help reduce leaks. They also have higher levels of detergents to clean deposits.

The cost difference is small. Synthetic costs about $5 to $10 more per quart. Over a year, that's $30 to $50.

A small price for better protection in cold climates or stop-and-go driving.

The safest choice is 5W-30 synthetic. Our research shows that synthetic oil reduces wear in the 2AZ-FE, particularly in the VVT-i system. The same oil recommendations apply to the 2024 Tacoma, though the viscosity differs.

What to Do If You've Overfilled or Underfilled

If you overfilled: The extra oil needs to come out. Don't drive the car. Loosen the drain plug slightly until oil drips out.

Catch about half a quart. Tighten the plug. Check the dipstick.

Repeat until the level is right.

If you underfilled: Add oil through the fill cap until the dipstick reads correctly. Add a quarter quart at a time. Check between each addition.

It's easy to go from underfilled to overfilled if you pour too much at once.

If you used the wrong oil: You put in 10W-30 or 0W-20 by mistake. It's not a crisis. Drive gently to a shop and have the oil changed.

Or drain it yourself and refill with the correct 5W-30.

If you see a leak: Check the drain plug and the oil filter. Tighten the drain plug to 29 lb-ft. Tighten the filter by hand.

If the leak continues, the washer or filter gasket may be damaged.

When to Seek Professional Help

The drain plug threads are stripped. If the plug won't tighten, the threads in the oil pan are damaged. A mechanic can install a thread insert or replace the pan. Driving with a loose drain plug is dangerous.

You can't get the oil filter off. A mechanic has specialized tools to remove stubborn filters without damaging the mounting surface.

The engine is burning oil rapidly. If you're adding a quart every 500 miles, the engine has a serious problem. It could be worn piston rings, a clogged PCV valve, or a valve seal issue.

You see metal particles in the old oil. Shiny metallic flakes indicate internal engine wear. The engine needs professional inspection.

The check engine light comes on after the oil change. This could be a loose oil cap, a disconnected sensor, or something more serious. A mechanic can read the diagnostic code.

Frequently Asked Questions

What type of oil does a 2004 Camry 2.4 take?

The 2004 Camry 2.4L takes SAE 5W-30 oil. It should meet API SL or higher and ILSAC GF-3 or higher. Both conventional and synthetic work, but synthetic offers better cold-weather protection.

How much oil does a 2004 Camry 2.4 take with a filter?

It takes 5.0 US quarts when you replace the oil filter. Without a filter change, the capacity drops to 4.8 quarts. Always check the dipstick after filling.

Can I use 10W-30 in my 2004 Camry 2.4?

You can, but it's not recommended. The 2AZ-FE engine is designed for 5W-30. Thicker oil at cold temperatures delays lubrication on startup, increasing wear on the timing chain and VVT-i system.

How often should I change the oil?

Toyota recommends every 5,000 miles with conventional oil. With synthetic oil, you can extend to 7,500 or 10,000 miles. Check the oil level monthly regardless of the interval.

Why is my 2004 Camry 2.4 burning oil?

The 2AZ-FE engine is known for oil consumption due to worn piston rings. This typically starts after 150,000 miles. Check the oil level regularly and keep it topped up.

What oil filter does a 2004 Camry 2.4 use?

The OEM Toyota oil filter part number is 04152-YZZA1. Many aftermarket brands make compatible filters. Make sure the filter is designed for the 2AZ-FE engine with the correct bypass valve pressure.
