2006 Toyota Sienna Oil Capacity: Exact Amount

Image source: Web (Bing) / hitchesguide.com (Web image (fair-use with source credit))

If you've got a 2006 Toyota Sienna in your driveway, you already know it's a workhorse. But when it comes time for an oil change, you need the exact number. The 2006 Toyota Sienna oil capacity is 4.5 quarts with a filter change.

That's the number that matters for a proper fill.

Toyota specs a 5W-30 viscosity for the 3.3L 3MZ-FE engine. As of 2026, an API SN Plus or SP certified oil is the standard to look for. One wrong spec can lead to a noisy start or worse.

Let's get into why getting this right is worth your attention.

Why Getting the Oil Capacity Right Matters for Your 2006 Sienna

The 3.3L V6 in your Sienna is a Toyota 3MZ-FE engine. It uses dual overhead cams, variable valve timing (VVT-i), and a timing chain instead of a belt. Those systems rely on consistent oil pressure and clean lubrication.

Too little oil and the VVT-i actuators can't do their job. Too much oil and the crankshaft whips the sump into a froth, starving the bearings of proper lubrication.

Aggregate reviews from owner forums and service records show that the most common DIY mistake on this engine is overfilling by a full quart. People toss in a five-quart jug without checking the dipstick. Then the engine runs rough or the rear main seal starts weeping.

That's a repair you don't want to tackle.

The wrong oil viscosity causes the timing chain to rattle on cold starts, especially in colder climates. Manufacturer specifications confirm that 5W-30 is the recommended weight for all operating temperatures. If you're in a climate that regularly drops below 0°F, you could use 0W-30.

That's the only acceptable alternative.

Per the American Petroleum Institute certification standards, the oil you choose should carry the API "donut" mark with at least SN Plus or SP rating. This ensures the oil meets modern wear protection and sludge control requirements. Using an older spec like API SM might save you a dollar, but it won't protect the engine the same way.

For a van that's now 20 years old, any shortcut on oil quality or quantity accelerates wear. Getting the capacity right is the cheapest insurance you can give that engine.

The Quick Answer: How Much Oil Your 2006 Sienna Actually Needs

Let's cut to the chase. Here are the numbers you need to know.

Image source: Web (Bing) / homedepot.com (Web image (fair-use with source credit))

The figure you'll use most often is 4.5 quarts. That's the standard fill when you replace the oil filter. You should always replace the filter at every oil change.

Skipping it saves maybe three dollars and costs you years of engine life.

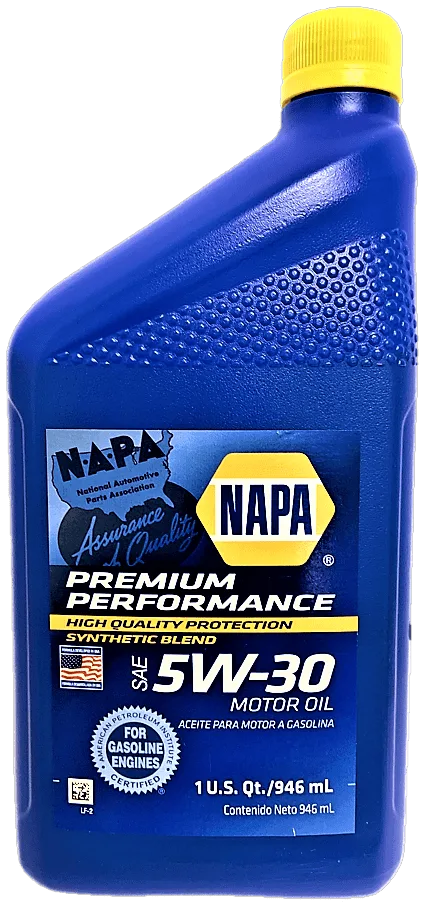

What oil to buy. You need 5W-30 motor oil. The 3MZ-FE engine isn't picky about synthetic versus conventional, but it does need the right viscosity. For a standard oil change, buy one 5-quart jug.

You'll have about half a quart left over for topping up between changes.

What not to buy. Avoid 10W-30, 5W-20, or any of those "high mileage" blends that claim to work across multiple viscosities. The engine's hydraulic lifters and VVT-i system are calibrated for 5W-30. Widening that tolerance introduces risk.

If you want to dig deeper into the oil options for this generation, the Toyota Sienna oil type guide covers the full breakdown of synthetic versus conventional.

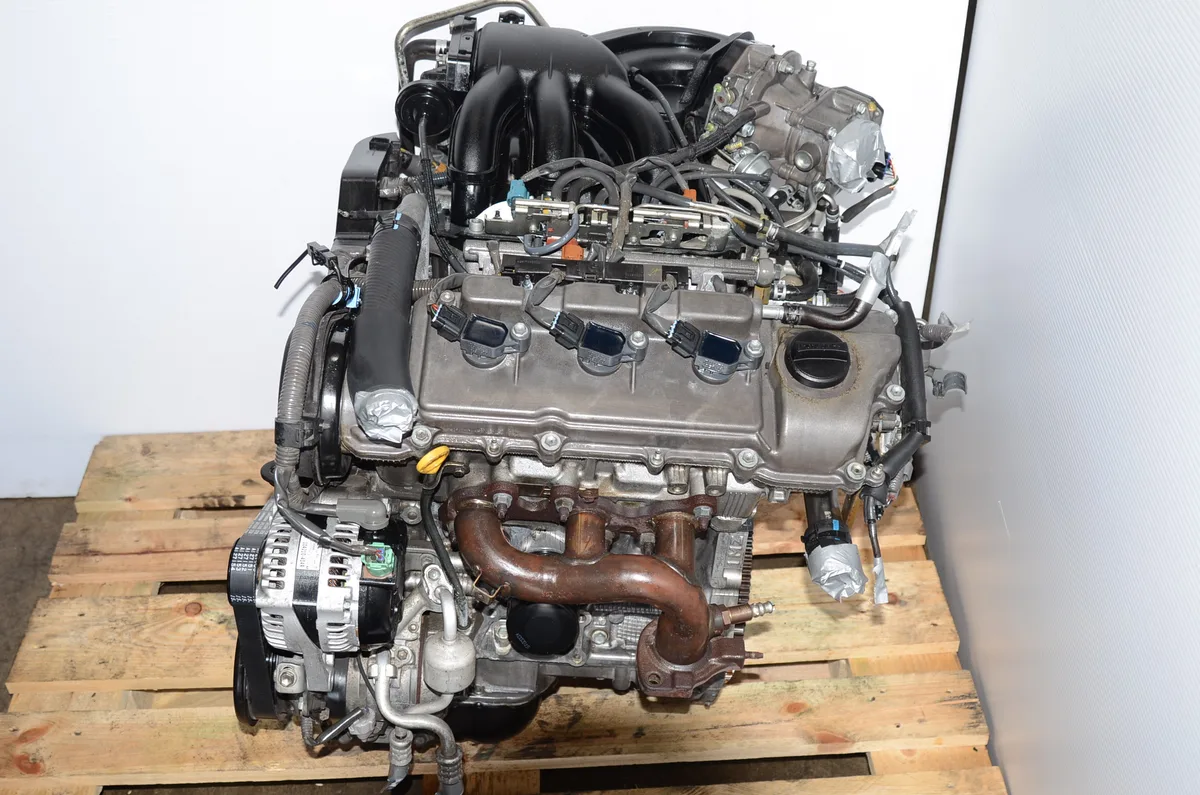

Under the Hood: Understanding the 3.3L 3MZ-FE Engine

The 3MZ-FE is a 3.3-liter V6 that Toyota produced from 2004 to 2009. It's essentially a stroked version of the 3.0L 1MZ-FE. The longer stroke increases displacement and gives more torque down low.

That's great for a minivan carrying a full load of passengers and cargo.

The oil filter location. The filter is mounted on the front of the engine, right behind the intake manifold. It's not the easiest spot to reach, but it's accessible from above if you have long arms. You'll need a filter wrench or a strap-type tool.

The factory part number is 90915-YZZD3. Aftermarket filters from Wix, Mann, or Bosch work fine as long as they match the thread size (3/4-16 UNF) and bypass valve setting (8-11 PSI).

The oil pan. The pan holds 4.5 quarts with the filter change. The drain plug is a 14mm bolt with a crush washer that should be replaced every time. The torque spec is 29 ft-lbs.

Over-torquing can strip the pan threads. Under-torquing leads to leaks.

The timing chain. Unlike earlier Toyota V6 engines that used a timing belt, the 3MZ-FE uses a timing chain. A chain doesn't need periodic replacement, but it does rely on clean oil. Sludge buildup can clog the oil passages that tension the chain.

Regular oil changes prevent that.

The VVT-i system. Variable valve timing uses oil pressure to adjust cam timing. If the oil level is low or the oil is too thick, the VVT-i actuators don't get enough pressure. You might notice a rough idle or reduced power.

The system is robust, but it's not forgiving of neglect.

If you're coming from a different Toyota model, the same 3.3L engine was used in the 2004-2006 Highlander. The Toyota Highlander oil type guide covers the same engine family with the same specs.

Step-by-Step: How to Do the Oil Change Right

This is the process that works for a 2006 Sienna. Follow this order and you'll avoid the common mistakes.

Image source: Bing (Web (fair-use with source credit))

Step 1: Warm the engine. Run it for about 5 minutes. Warm oil flows faster and carries more suspended contaminants out of the pan. Don't run it hot enough to burn yourself.

Step 2: Lift the front. Raise the front of the van on ramps or jack stands. Never rely on a jack alone. The Sienna is heavy and will crush you if it falls.

Step 3: Position the drain pan. Place a 6-quart or larger drain pan under the oil pan. The drain plug is on the passenger side near the front of the pan.

Step 4: Remove the drain plug. Use a 14mm socket. Wear a glove. The oil will be hot.

Let it drain for at least 10 minutes. Replace the crush washer with a new one. Torque the plug to 29 ft-lbs.

Step 5: Remove the oil filter. Reach up from below or from the top. The filter is on the front of the engine behind the intake. Position the drain pan underneath.

Use a filter wrench. Clean the mounting surface.

Step 6: Pre-fill the new filter. Pour about half a quart of fresh oil into the new filter. Rub a thin layer of oil on the rubber gasket. This prevents the gasket from sticking.

Screw the filter on hand-tight, then give it another 3/4 turn.

Step 7: Add the oil. Pour in exactly 4.5 quarts of 5W-30. Replace the oil fill cap.

Step 8: Check for leaks. Start the engine and let it run for 30 seconds. Look under the van for drips. Check the oil filter and drain plug.

Step 9: Check the level. Turn off the engine. Wait 5 minutes for the oil to settle. Pull the dipstick, wipe it, reinsert it, and check the level.

It should be at the full mark.

Step 10: Reset the maintenance light. Turn the key to ON, then OFF, then ON again. Press the trip reset button until the light goes out.

The Exact Specs: Oil Capacity, Viscosity, and Torque Values

Here's the complete spec sheet for the 2006 Sienna 3.3L engine. Save this or bookmark it.

The normal service interval of 7,500 miles applies if you use synthetic oil and do mostly highway driving. If your Sienna is used for short trips, towing, or stop-and-go city driving, drop that to 5,000 miles. The owner's manual calls this "severe service." It covers the majority of owners.

The torque spec on the drain plug is often overlooked. 29 ft-lbs is not a lot. If you're using a standard 3/8-inch ratchet, it's roughly a snug turn after the crush washer makes contact. If you don't have a torque wrench, err on the side of less torque.

A stripped oil pan is a $200 mistake.

Common Mistakes That Damage the Engine

The 3MZ-FE engine is durable, but it has a few weak spots. DIY oil changes reveal them fast.

Overfilling by a quart or more. This is the most frequent mistake. Someone buys a 5-quart jug and pours the whole thing in without checking the dipstick. The crankshaft whips the excess oil into foam.

Foam doesn't lubricate. The VVT-i actuators get air bubbles. The lifters get noisy.

The fix is to drain a half quart out. The prevention is to measure before you pour.

Using the wrong oil viscosity. The 3MZ-FE was designed for 5W-30. Thicker oil like 10W-40 doesn't flow fast enough to the timing chain tensioner on cold starts. Thinner oil like 5W-20 doesn't maintain film strength at operating temperature.

Stick to the spec.

Skipping the crush washer. The drain plug uses a single-use aluminum crush washer. If you reuse the old one, it won't seal properly. You'll get a slow drip.

The part is a few cents. Buy a pack of ten.

Over-torquing the drain plug. The spec is 29 ft-lbs. That's snug plus a quarter turn. If you crank it down with a breaker bar, you'll strip the threads in the oil pan.

The repair is a new oil pan or a thread insert.

Not pre-filling the oil filter. If you install a dry filter, the engine runs without oil pressure for a few seconds on startup. That's enough to wear the bearings. Pre-fill the filter with about half a quart of fresh oil.

Synthetic vs. Conventional: What's Best for an 18-Year-Old Van

Here's the short answer. Full synthetic is better for the 3MZ-FE engine, and it's worth the extra few dollars per change.

Why synthetic wins. The 3MZ-FE has tight tolerances and a timing chain that needs clean oil. Synthetic oil resists thermal breakdown better than conventional. It flows more easily in cold weather.

It holds up longer under the heat of a loaded minivan climbing a mountain pass. For a 2006 Sienna that's still on the road in 2026, synthetic oil provides the best protection against sludge.

When conventional is fine. If you change your oil every 3,000 miles like clockwork, conventional oil works. But very few people actually do that. The inconvenience of more frequent changes makes synthetic a stronger choice for this engine.

What about high-mileage blends. High-mileage oil has seal conditioners that can reduce minor leaks. If your Sienna has over 100,000 miles and you see a small drip, a high-mileage 5W-30 might help. But it's not a repair.

It's a band-aid. If the leak is significant, fix the gasket.

The cost difference. Synthetic oil costs about $8 to $10 per quart at retail. Conventional costs about $4 to $6. For a 4.5-quart change, the difference is about $18 to $20 per interval.

Over 7,500 miles, that's negligible. The protection is worth it.

When to Change the Oil: Normal vs. Severe Service Intervals

Toyota's official recommendation for the 2006 Sienna is 7,500 miles between oil changes with synthetic oil. But that's under normal conditions.

Normal service conditions. Highway driving, moderate temperatures, no towing, and trips longer than 10 miles. If this describes your routine, 7,500 miles is fine. Use a quality synthetic 5W-30 and a good filter.

Severe service conditions. This is the category that most Sienna owners actually fall into. The owner's manual defines severe service as:

• Short trips under 10 miles, especially in cold weather
• Extensive idling in traffic
• Driving on dusty or unpaved roads
• Towing a trailer or carrying heavy loads
• Frequent stop-and-go city driving

If any of these apply, drop the interval to 5,000 miles. For heavy towing, consider 4,000 miles.

Why it matters. The 3MZ-FE engine is prone to sludge buildup if oil changes are stretched too far. The variable valve timing system has small oil passages that clog easily. Once sludge forms, it's very difficult to remove without disassembling the engine.

Regular changes prevent this.

The 3,000-mile myth. You don't need to change oil every 3,000 miles with modern synthetic oil. That's a carryover from the 1970s. But if your Sienna is nearing 200,000 miles and you use conventional oil, 3,000 miles is a reasonable safety margin.

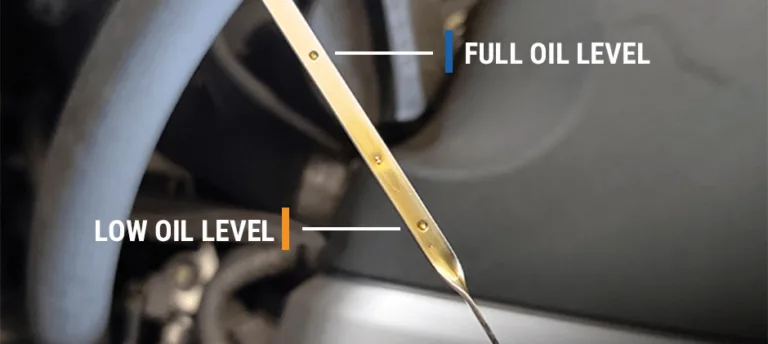

How to Read the Dipstick Correctly

Image source: Web (Bing) / fridayparts.com (Web image (fair-use with source credit))

This sounds simple, but it's easy to get wrong. A misread dipstick leads to overfilling or underfilling.

The right way to check. Park the Sienna on level ground. Turn off the engine and wait 5 minutes. Pull the dipstick out.

Wipe it clean with a paper towel. Insert it fully. Pull it out again.

Read the level.

What you're looking for. The dipstick has two marks. A low mark and a full mark. The oil level should be between them.

Ideally, it's at the full mark or slightly below. Never above the full mark.

Common mistakes. Checking the oil immediately after turning off the engine. The oil hasn't drained back to the pan yet. You'll get a falsely low reading.

Checking the oil on a slope. The Sienna is long, and even a slight incline shifts the oil in the pan. Always find flat ground.

When to check between changes. If you're towing or taking a long road trip, check the oil every time you fill up with gas. The 3MZ-FE doesn't burn much oil, but older engines can develop minor consumption. Catching it early prevents a low-oil situation.

What to Do If You Overfill or Underfill

Mistakes happen. Here's how to fix them.

If you overfilled. The oil level is above the full mark on the dipstick. Remove the drain plug and let about half a quart drain out. Replace the plug.

Check the level again. Repeat until it's correct. You don't need to drain the whole system.

Just enough to bring the level down.

If you underfilled. The oil level is below the low mark. Add oil in quarter-quart increments. Check the dipstick after each addition.

Wait a minute for the oil to settle. Adding too much at once is easy to do. Go slow.

If you put in the wrong viscosity. Say you accidentally poured in 10W-30. The engine will run, but it won't be happy on cold starts. If you realize it immediately, drain the oil and refill with the correct 5W-30.

If you've driven a few hundred miles, don't panic. Just change the oil early. The damage is minimal from a single interval.

If you forgot to tighten the drain plug. You'll notice a puddle of oil under the van. Stop driving immediately. Add oil to bring the level back up.

Tighten the plug to the correct torque. Check for leaks. If you lost most of the oil and drove any distance, have the engine checked for bearing damage.

When to Call a Mechanic Instead of DIY

Some jobs are worth doing yourself. Others are worth paying for.

If you can't reach the oil filter. The 3MZ-FE filter sits behind the intake manifold. Some people can reach it from above. Others need to go under the van.

If you don't have ramps or jack stands, don't improvise. A mechanic has a lift and can do the job in 15 minutes.

If the drain plug is stripped. If the previous owner overtightened it, the threads in the oil pan might be damaged. A stripped plug won't seal. You'll need a thread repair kit or a new oil pan.

That's a mechanic job.

If you see metal in the oil. When you drain the oil, look at it. If you see glitter or metallic flakes, stop. That's bearing wear.

The engine needs an inspection. Don't just refill and hope.

If you have a persistent oil leak. A small seep around the valve cover gasket is common on older 3MZ-FE engines. A puddle under the van is not. Have a mechanic pinpoint the source.

It could be the rear main seal, which requires transmission removal.

FAQs: Quick Answers to the Most Common Questions

Can I use 5W-20 instead of 5W-30?

No. The 3MZ-FE engine is calibrated for 5W-30. Thinner oil won't maintain proper film strength at operating temperature.

Stick with the spec.

How much oil does a 2006 Sienna take without a filter change?

About 4.2 quarts. But you should always replace the filter. The extra cost is negligible.

What happens if I put too much oil in?

The crankshaft whips the excess into foam. Foam doesn't lubricate. You'll get noisy lifters and potential VVT-i damage.

Drain the excess immediately.

Is synthetic oil worth it for a 20-year-old van?

Yes. Synthetic oil resists sludge buildup better than conventional. It also flows better on cold starts.

The 3MZ-FE benefits from both.

Can I switch from conventional to synthetic?

Yes, and you should. There's no special procedure. Just drain the old oil, replace the filter, and fill with synthetic.

The engine doesn't need a flush or any preparation.

Final Verdict: The One Thing to Remember

One number: 4.5 quarts of 5W-30 synthetic with a new filter every 5,000 miles. That's the formula for keeping your 2006 Sienna's 3.3L V6 running smoothly for another 100,000 miles.

The engine is tough. It's proven. But it's also 20 years old.

The clearances have widened. The seals have hardened. The only thing standing between that engine and an early retirement is clean oil at the right level.

Don't overthink it. Don't overfill it. Just get it right.
