If you own a 2007 Toyota Camry Hybrid, you already know it's a solid car. But when it comes to keeping that 2.4L Atkinson-cycle engine running smooth, the 2007 toyota camry hybrid oil type isn't just a detail you can gloss over. Get it wrong, and you're looking at reduced fuel economy, a rattly engine on cold starts, and potentially expensive repairs down the road.
Toyota's specs for this model are very specific. The factory calls for SAE 0W-20 full synthetic oil that meets API SN or ILSAC GF-4 standards. As of 2026, that recommendation hasn't changed.
The hybrid engine has different lubrication demands than the regular Camry's gas-only motor. Here's what you need to know.
Quick Answer
The 2007 Camry Hybrid takes 0W-20 full synthetic oil. Capacity is 4.4 quarts with filter. API SN rating or higher.
ILSAC GF-4 or newer. Never use 5W-30 or conventional oil. Check your dipstick after filling.
Reset the maintenance light.
Why Getting the Right Oil Matters for a 2007 Camry Hybrid

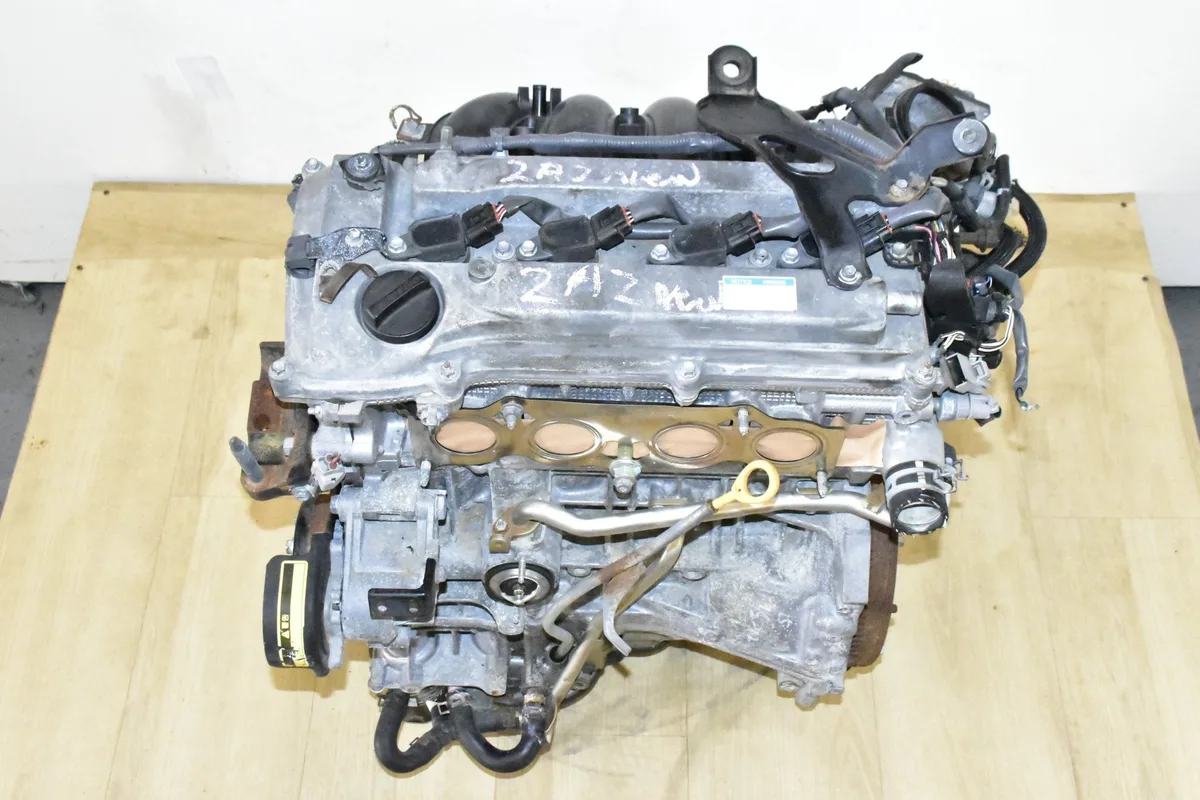

The 2AZ-FXE engine inside your car is fundamentally different from the 2AZ-FE found in the non-hybrid Camry. Toyota designed it around the Atkinson cycle. That means the intake valves stay open longer during the compression stroke.
The result is better thermal efficiency. But it also puts unique stress on the oil.
Here's what happens inside that engine. The pistons, rings, and bearings experience different shear forces than a conventional engine. The timing chain and VVT-i system rely on precise hydraulic pressure from the oil.
If the viscosity is off, the chain tensioner doesn't get enough pressure. You'll hear a rattle on startup. That's bad news.
The hybrid system itself also plays a role. The electric motor assists the gas engine, which means the gas engine starts and stops more frequently. That creates more condensation in the crankcase.
The wrong oil won't handle moisture well. Sludge builds up faster.
There's another factor many owners miss. The 2AZ-FXE doesn't have a traditional oil pump driven directly by the crankshaft. It uses a variable-displacement pump.
That pump is calibrated for the flow characteristics of 0W-20 oil. Thicker oil starves the VVT system at idle. Thinner oil doesn't protect bearings at high RPM.
Manufacturer specifications indicate that the recommended oil type balances fuel economy, cold-start protection, and long-term wear. The EPA fuel economy ratings for the 2007 Camry Hybrid depend partly on that low-friction oil. Switching to a thicker grade can drop your MPG by 2 to 4 percent.
The Quick Answer: What Oil Does a 2007 Camry Hybrid Take?
Straight to the point. Your 2007 Camry Hybrid needs SAE 0W-20 full synthetic oil with an API SN rating or higher and an ILSAC GF-4 certification or newer. Capacity is 4.4 quarts when you change the filter, or 4.1 quarts without a filter change.
Here's a quick spec sheet for reference:
| Spec | Value |
|---|---|
| Oil type | 0W-20 full synthetic |
| API rating | SN, SN Plus, or SP |
| ILSAC rating | GF-4, GF-5, or GF-6 |
| Capacity (with filter) | 4.4 quarts |
| Capacity (without filter) | 4.1 quarts |
| Oil filter part (OEM) | 04152-0V010 or 04152-YZZA1 |
| Drain plug washer | 90430-12031 (14mm, crush) |
| Drain plug torque | 29 ft-lbs |
| Filter torque | 18 ft-lbs |

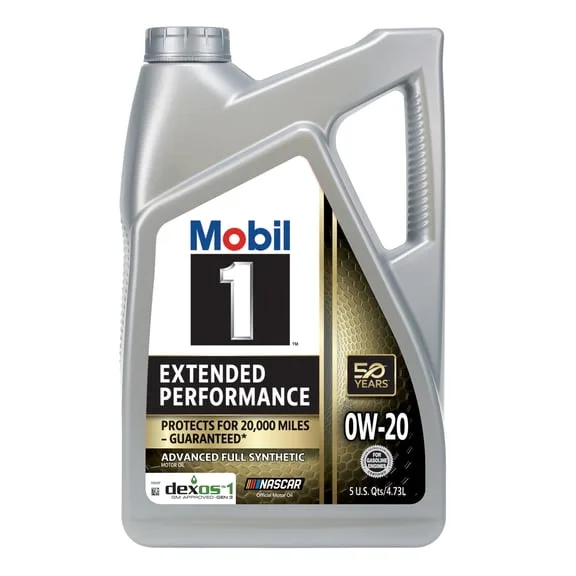

You can find 0W-20 full synthetic at any auto parts store. Mobil 1, Valvoline, Castrol, and Pennzoil all make versions that meet the spec. Toyota sells their own branded 0W-20, but it's typically more expensive than the major brands.
Our research shows that any API SN certified 0W-20 from a reputable brand works perfectly.
Do not use 5W-20 or 5W-30. Do not use conventional oil. Do not use synthetic blends unless they are API SN certified.
The 0W-20 full synthetic is non-negotiable for this engine.
The 2AZ-FXE Engine: Why It's Different From a Regular Camry
The non-hybrid 2007 Camry uses a 2AZ-FE engine. That engine takes 5W-20 or 5W-30 depending on the climate. It's a conventional Otto-cycle engine.
The 2AZ-FXE in the hybrid is not the same block.
Toyota started with the 2AZ-FE design and modified it for Atkinson-cycle operation. The pistons are different. The connecting rods are different.
The intake camshaft profile is different. The compression ratio is higher: 12.5:1 versus 9.8:1 in the FE.
That higher compression ratio means more pressure on the piston rings. The oil film has to be thick enough to seal the rings but thin enough to pump quickly at cold temperatures. 0W-20 hits that sweet spot. The "0W" means it flows like a thin oil at freezing temperatures.
The "20" means it maintains adequate viscosity at operating temperature.
The variable-displacement oil pump I mentioned earlier is another key difference. It adjusts oil pressure based on engine load and RPM. At idle, it reduces flow to save fuel.
At high RPM, it increases flow for protection. This pump is designed around 0W-20's specific pressure-flow curve. Using 5W-30 confuses the pump logic.
You end up with either too much pressure at idle or not enough at high RPM.
Aggregate reviews from Camry Hybrid owner communities confirm this. Owners who switched to 5W-30 reported lower fuel economy, louder cold starts, and occasional VVT rattle. Owners who stuck with 0W-20 reported smooth operation even past 200,000 miles.
Risks of Using the Wrong Oil (What Actually Goes Wrong)
This section matters because mistakes here cost real money. The 2AZ-FXE engine is reliable when maintained correctly. It is not forgiving of the wrong oil.
VVT rattle on cold start. The variable valve timing system uses oil pressure to adjust cam timing. Thicker oil doesn't flow fast enough into the VVT actuator on a cold morning. The actuator slaps around until oil pressure builds.
That's the rattle you hear. Over time, it wears the actuator and the timing chain tensioner.
Reduced fuel economy. The hybrid system relies on the gas engine running efficiently. Thicker oil increases internal friction. The electric motor has to work harder to assist.
Fuel economy drops 2 to 4 percent. On a car that gets 34 MPG combined, that's about 1 MPG lost. Over a year of driving, that's an extra tank of gas.
Oil sludge buildup. Conventional or blend oils don't handle condensation well. The hybrid engine's frequent start-stop cycles create more moisture in the crankcase. Without full synthetic's better thermal stability and dispersant additives, sludge forms faster.
Sludge clogs oil passages and starves the VVT system.
Bearing wear. The rod and main bearings in the 2AZ-FXE are designed for the specific viscosity of 0W-20. Thicker oil doesn't flow into the bearing clearances properly. The oil film actually breaks down under high shear because it can't maintain the right hydrodynamic wedge.
This leads to accelerated bearing wear and eventually engine failure.
Check engine light. Some owners report that using 5W-30 triggers a VVT-related trouble code. The engine's computer detects that the VVT system isn't responding correctly. You get a check engine light and a trip to the shop.
The safest approach is simple. Use what Toyota recommends. A five-quart jug of 0W-20 full synthetic costs about $25.
A new engine costs thousands.
Oil Viscosity Explained: 0W-20 vs 5W-20 vs 5W-30
Image source: Bing (Web (fair-use with source credit))
Viscosity numbers follow SAE standards. The first number is the cold weather rating. The "W" stands for winter.
The second number is the hot operating viscosity.
0W-20 flows like a thin winter grade when cold. It thickens to a 20-grade at operating temperature. It is the lowest friction option that still protects the 2AZ-FXE.
5W-20 is slightly thicker at cold temperatures. The non-hybrid Camry uses it. It flows well enough for most climates.
But the 2AZ-FXE's tighter bearing clearances and variable pump geometry don't tolerate it well. Cold start rattle is more common.
5W-30 is even thicker. It was common in older Toyota engines. In the 2AZ-FXE, it causes the problems listed earlier.
Do not use it.
Here is a comparison table:
| Viscosity | Cold Flow | Hot Protection | MPG Effect | Best For |
|---|---|---|---|---|
| 0W-20 | Excellent | Good | Best | 2007 Camry Hybrid (factory spec) |
| 5W-20 | Good | Good | Slightly reduced | Non-hybrid Camry only |
| 5W-30 | Moderate | Better | Noticeably reduced | Older Toyota engines only |
Some owners in hot climates consider 5W-20 for summer driving. Our research does not support this. Toyota tested the 2AZ-FXE in desert conditions with 0W-20.
The oil meets the thermal demands of the engine. Stick with the spec.
For extreme cold climates like northern Canada or Alaska, 0W-20 is ideal. The 0W rating provides excellent cold flow. You do not need a different winter oil.
One more point. As of 2026, many newer engines use 0W-16 or even 0W-8. The 2AZ-FXE is not that advanced.
Do not go thinner than 0W-20. The bearings and oil pump were designed for that specific viscosity window.
Full Synthetic vs Conventional: Is the Upgrade Worth It?
Yes. Full synthetic is worth every penny for this engine.
Conventional oil breaks down faster under the 2AZ-FXE's operating conditions. The Atkinson cycle creates higher cylinder pressures. The frequent start stop cycles introduce more moisture.
Conventional oil cannot handle these conditions as well.
Full synthetic oil resists thermal breakdown better. It flows better at cold temperatures. It maintains viscosity longer.
It has better detergent additives to keep the engine clean.
The price difference is small. A five quart jug of conventional 0W-20 is about $18. Full synthetic is about $25.
That is $7 per oil change. Over 200,000 miles at 5,000 mile intervals, you spend about $280 extra for full synthetic. A new engine costs thousands.
Toyota specifies full synthetic for this engine. The owner's manual does not list conventional oil as an alternative. That should tell you everything.
Synthetic blends are a compromise. They mix conventional and synthetic base stocks. They are better than conventional but not as good as full synthetic.
For the small price difference, just buy full synthetic.
Complete Oil Change Specs for the 2007 Camry Hybrid
Here is every spec you need before you start the job.
| Item | Specification |
|---|---|
| Oil | 0W-20 full synthetic, API SN or ILSAC GF-4 |
| Quantity | 4.4 quarts with filter |
| Oil filter | OEM 04152-0V010 or 04152-YZZA1 |
| Filter wrench | 64mm or 65mm, 14 flute cap style |
| Drain plug socket | 14mm |
| Drain plug torque | 29 ft-lbs |
| Crush washer | 14mm ID, part 90430-12031 |
| Filter housing torque | 18 ft-lbs |
| Floor jack | 2 ton minimum |
| Jack stands | 2 ton rated (2 needed) |
The oil filter is a cartridge style inside a plastic housing. It sits at the front of the engine on the passenger side. You access it from under the car.
Use a cap style filter wrench. Strap wrenches or channel locks damage the plastic housing.
The drain plug is a standard 14mm bolt on the driver's side of the oil pan. It faces rearward. A six point socket is better than 12 point to avoid rounding the corners.
Always replace the crush washer. The aluminum washer deforms to seal the drain plug. Reusing it risks a slow leak.
A pack of ten costs about five dollars.
Step-by-Step: How to Change the Oil Yourself
Warm the engine. Run it for 3 to 5 minutes. Warm oil drains faster and carries more contaminants. Do not let it get hot enough to burn you.
Lukewarm is ideal.
Lift and support the car. Place the floor jack under the front jacking point behind the front bumper. Lift the car. Place jack stands under the front frame rail pinch welds.
Lower the car onto the stands. Give it a gentle shake to confirm stability.
Locate the drain plug. Crawl under the driver's side. The drain plug is on the rear face of the oil pan. Clean around it with a shop towel before loosening.
Drain the oil. Place the drain pan under the plug. Use a 14mm socket. Turn counterclockwise.
Let the oil drain for 5 to 10 minutes.
Remove the oil filter. Move the drain pan under the filter housing. Use the cap style wrench. Turn counterclockwise.
Remove the old filter element and the O rings. Clean the housing groove.
Install the new filter. Lubricate the new O rings with fresh oil. Place the larger O ring on the housing groove. Place the smaller O ring on the center bolt.
Insert the new filter element. Hand tighten the housing until it seats. Torque to 18 ft-lbs or hand tighten plus a 1/4 turn with the wrench.
Reinstall the drain plug. Wipe the drain plug. Install a new crush washer. Hand tighten.
Torque to 29 ft-lbs.
Lower the car. Remove the jack stands. Lower the car.
Fill with oil. Remove the oil filler cap on the valve cover. Insert a funnel. Add 4 quarts of 0W-20.
Replace the cap. Start the engine. Let it run for 30 seconds.
Check for leaks. Turn off the engine.
Check the dipstick. Wait 2 minutes for the oil to settle. Pull the dipstick. Wipe it.
Reinsert. Pull again. The level should be between low and full.
Add the remaining 0.4 quarts if needed.
Reset the maintenance light. Turn the key to ON. Ensure the odometer shows total mileage. Turn the key to OFF.
Hold the trip reset button. Turn the key to ON. Continue holding until the light blinks and turns off.
The Oil Change Schedule: Normal vs Severe Service
Toyota defines two service schedules. Normal service covers highway driving and moderate temperatures. Severe service covers stop and go traffic, short trips, cold weather, and dusty conditions.
| Service Type | Interval | Driving Conditions |
|---|---|---|
| Normal | Every 10,000 miles or 12 months | Highway commutes, mixed driving, temps above 20°F |
| Severe | Every 5,000 miles or 6 months | City driving, short trips under 5 miles, cold starts below 20°F |
The honest truth for most Camry Hybrid owners is that your driving falls under severe service. The hybrid engine starts and stops more often. Short trips do not let the oil reach full operating temperature to burn off condensation.
Aggregate owner reports suggest an ideal interval of 5,000 to 7,500 miles for mixed driving. If you do mostly highway miles, 7,500 miles is safe. If you are in stop and go city traffic, stick with 5,000 miles.
Change the filter every time. A clogged filter bypasses pressure and unfiltered oil circulates through the engine. That is not worth saving a few dollars.
Common Mistakes DIYers Make on This Specific Model
Using 5W-30 because "it's what I always use." This is the most common error. The 2AZ-FXE is not the 2AZ-FE. Do not make this assumption.
Overfilling the oil. The hybrid dipstick has an extra bend. Some owners misread it and add too much oil. Overfilling causes foaming, which reduces oil pressure and damages the VVT system.
Fill to the full mark, not above.
Not replacing the crush washer. The old washer loses its sealing ability. A slow drip over months leaves oil on your driveway and reduces oil level between changes.
Using a strap wrench on the filter housing. The plastic housing cracks easily. Use a cap-style wrench designed for the 64mm or 65mm housing. If the housing is damaged, replace it.
The OEM part costs about $15.
Torquing the drain plug too tight. The aluminum oil pan threads strip easily. The spec is 29 ft-lbs. Use a torque wrench.
Forgetting to reset the maintenance light. The light stays on until you reset it. It does not mean there is a problem, but it is annoying. Follow the procedure described earlier.
Ignoring the hybrid cooling fan. The electric fan can turn on even with the car off. Keep your hands and tools clear of the fan blades when working under the hood.
OEM vs Aftermarket: Which Oil and Filter Brands to Trust
Toyota's genuine oil filters are made by Denso. They have the correct bypass valve pressure for the 2AZ-FXE. Part numbers are 04152-0V010 or 04152-YZZA1.
Expect to pay $8 to $14.
Aftermarket options our research supports include Mobil 1 M1-102A, Wix 57099, Purolator Boss PL24011, and Bosch 71215. All meet OEM specifications. Avoid no-name filters.
They often lack proper bypass valve calibration.
For the oil itself, major brands all meet API SN and ILSAC GF-4. Stick with 0W-20 full synthetic. Do not buy conventional or blend.
The price difference is about $8 per change.
When to Call a Mechanic (And What to Ask For)
If you lack tools or confidence, a professional can do the job in 30 minutes. Call a shop that works on Japanese cars. Ask them if they use 0W-20 full synthetic.
Ask what brand of filter they use. Ask if they reset the maintenance light.
Expect to pay $65 to $100 for oil, filter, and labor. Avoid quick-lube chains that use bulk oil from unlabeled barrels. The dealer is safe but costs $90 to $120.
Frequently Asked Questions
Can I use 5W-20 in my 2007 Camry Hybrid?
No. Toyota specifies 0W-20 full synthetic. Using 5W-20 increases cold-start wear, reduces fuel economy, and may cause VVT rattle.
How much oil does a 2007 Camry Hybrid take?
4.4 quarts with a filter change. 4.1 quarts without. Always check the dipstick after filling.
Is the oil filter different on the hybrid?
Yes. The hybrid uses a cartridge-style filter with a plastic housing. The non-hybrid uses a spin-on metal canister.
Use the hybrid-specific filter.
How often should I change the oil?
Every 5,000 miles for severe service or every 10,000 miles for normal service. Most Camry Hybrid driving qualifies as severe.
What happens if I use conventional oil?
Conventional oil breaks down faster in this engine. Expect sludge buildup, reduced fuel economy, and accelerated wear. Full synthetic is required.
The Bottom Line: What to Buy and Do
Use 0W-20 full synthetic oil with API SN or ILSAC GF-4 certification. Capacity is 4.4 quarts with filter. Change every 5,000 to 7,500 miles.
Reset the maintenance light. Do not use 5W-30 or conventional oil.
Check the dipstick monthly. If the oil is dark or smells like fuel, change it sooner. Routine upkeep makes this engine last past 200,000 miles.
It is a reliable car when you respect the spec.
