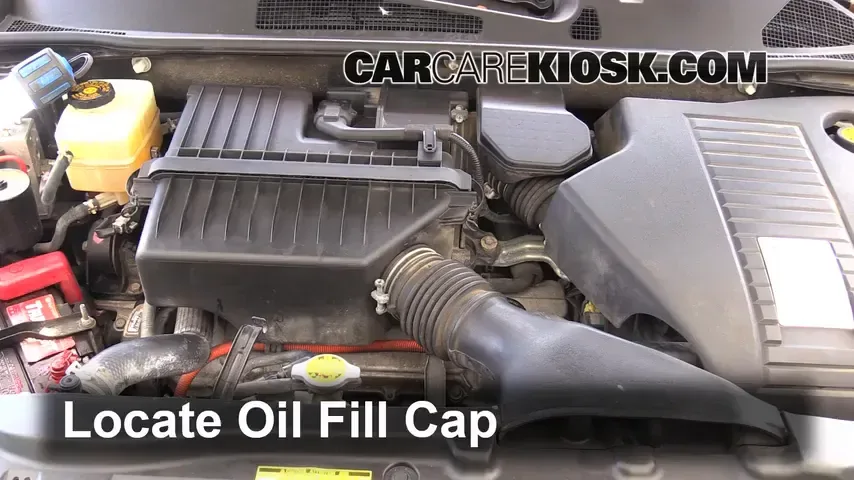

How Much Oil Does a 2009 Highlander Need?

If you own a 2009 Toyota Highlander, you're driving one of the most reliable SUVs Toyota ever built. But here's the thing: getting the oil change right isn't optional, it's the single easiest way to keep that engine running for another 100,000 miles. The exact 2009 toyota highlander oil capacity depends entirely on which engine is under your hood, and mixing them up can mean the difference between a smooth-running engine and a costly repair bill.

Manufacturer specifications confirm that the 2.4L four-cylinder takes 4.5 quarts with a filter change, while the 3.3L V6 needs 5.8 quarts. Both require 5W-30 viscosity oil as the standard recommendation. As of 2026, these numbers haven't changed, and they won't, because Toyota got them right the first time.

Let's walk through exactly what you need to know before you pop the hood.

Image source: Bing (Web (fair-use with source credit))

Quick Answer

The 2009 Toyota Highlander holds 4.5 quarts for the 2.4L four-cylinder engine. The 3.3L V6 engine holds 5.8 quarts. Both use 5W-30 viscosity oil meeting API SL or SM standards.

Always check the dipstick after filling. Never guess the engine size.

Why Getting This Right Actually Matters

Here's the honest truth: getting the oil capacity wrong on any vehicle is bad, but on a 2009 Highlander it's particularly risky. These engines are known for their longevity, the 2AZ-FE four-cylinder and the 3MZ-FE V6 can easily surpass 250,000 miles with proper care. But they're also sensitive to lubrication mistakes.

Overfill the engine by even a quart, and you risk foaming the oil. That sounds technical, but what it means is simple: air bubbles get into the oil pump, the engine doesn't get properly lubricated, and internal components start wearing out faster. Underfill by a quart, and you risk oil starvation, especially during hard acceleration or uphill driving.

Either way, you're looking at potential bearing damage or, in the worst case, a seized engine.

Toyota designed the 2009 Highlander with specific tolerances. The oil pan, the pickup tube, the pump, they're all engineered around a precise volume of oil circulating at a specific pressure. Deviating from that volume doesn't just affect the dipstick reading.

It changes how the whole lubrication system behaves under load, in hot weather, and over time.

This matters more for a 2009 model than a brand-new one. Why? Because as of 2026, the youngest 2009 Highlander is 17 years old.

These vehicles are at a stage where consistent, correct maintenance is what separates a daily driver from a parts car. One sloppy oil change won't kill it. But repeated mistakes will accelerate the wear that age is already bringing.

There's also the filter to consider. The capacity numbers we're about to cover assume you're replacing the oil filter at every change. That's non-negotiable, skipping the filter change to save eight bucks is how clean oil gets contaminated within minutes of starting the engine.

Two Engines, Two Different Numbers: 4-Cylinder vs. V6

Image source: Bing (Web (fair-use with source credit))

Before you buy a single quart of oil, you need to know which engine your Highlander has. Toyota offered two completely different powertrains for the 2009 model year, and they don't share a common oil system. The numbers are different, the filters are different, and the refill procedure differs slightly too.

Here's how to identify your engine quickly. Pop the hood and look at the engine cover. The 2.4L four-cylinder has a plastic cover that says "VVT-i" on it.

The 3.3L V6 has a larger cover spanning both cylinder banks with "3.3L V6" molded into the plastic. If the cover is missing, common on older vehicles, check the emissions label under the hood or the VIN. The eighth character of your VIN tells you the engine: "R" for the 2.4L, "3" for the 3.3L V6.

2.4L 4-Cylinder (2AZ-FE) — 4.5 Quarts

The 2.4L 2AZ-FE engine is a four-cylinder workhorse. Toyota used this engine across multiple models including the Camry, RAV4, and Scion tC, so parts are cheap and knowledge is widespread. It's not a high-performance motor, but it's reliable and fuel-efficient.

The oil capacity for this engine with a filter change is 4.5 quarts, which is 4.3 liters if you're buying metric. Without a filter change, which you should never skip, but it happens, the capacity drops to about 4.2 quarts. The difference comes from the oil that stays trapped in the old filter.

Most owners report that a single 5-quart jug gets the job done with a quarter quart left over. That leftover half-pint is perfect for top-ups between changes.

When filling this engine, pour in 4 quarts first, check the dipstick, then add the remaining half quart slowly. The 2AZ-FE has a known quirk: the dipstick can give a false reading if you check it immediately after filling. Always run the engine for 30 seconds, let it sit for five minutes, then check on level ground.

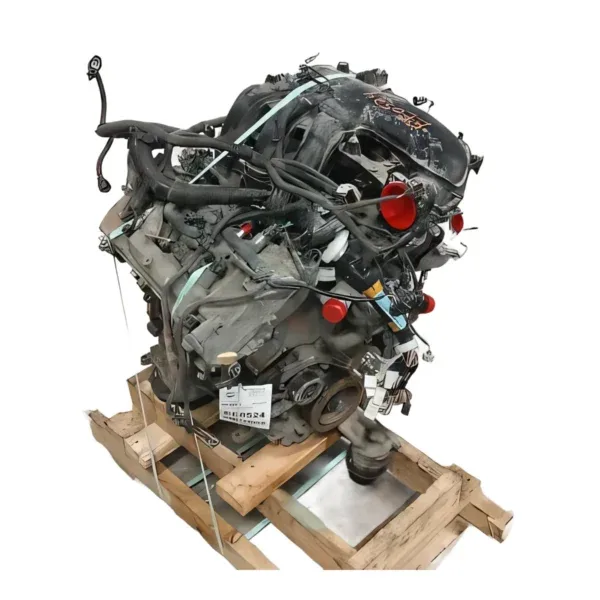

3.3L V6 (3MZ-FE) — 5.8 Quarts

The 3.3L 3MZ-FE V6 is the more powerful option, producing 270 horsepower and a buttery-smooth power delivery. It's the same basic engine design Toyota used in the Sienna and the Avalon, and it's known for exceptional durability when properly maintained.

The oil capacity for the V6 with a filter change is 5.8 quarts, or 5.5 liters. This is a significant step up from the four-cylinder, and it catches a lot of owners off guard. If you buy a single 5-quart jug, you'll come up nearly a full quart short.

The practical solution is to buy a 5-quart jug and a separate 1-quart bottle. Pour in the full 5-quart jug, then add about 0.8 quarts from the second bottle. Check the dipstick, and top off as needed.

The remaining 0.2 quarts in that second bottle is your top-up oil for the months ahead.

A quick note on the V6 filter location: it's mounted on the front of the engine, accessible from above, unlike some Toyota V6 engines where you have to reach underneath. That makes the V6 actually easier to service in some ways than the four-cylinder, whose filter is tucked behind the exhaust manifold on the passenger side.

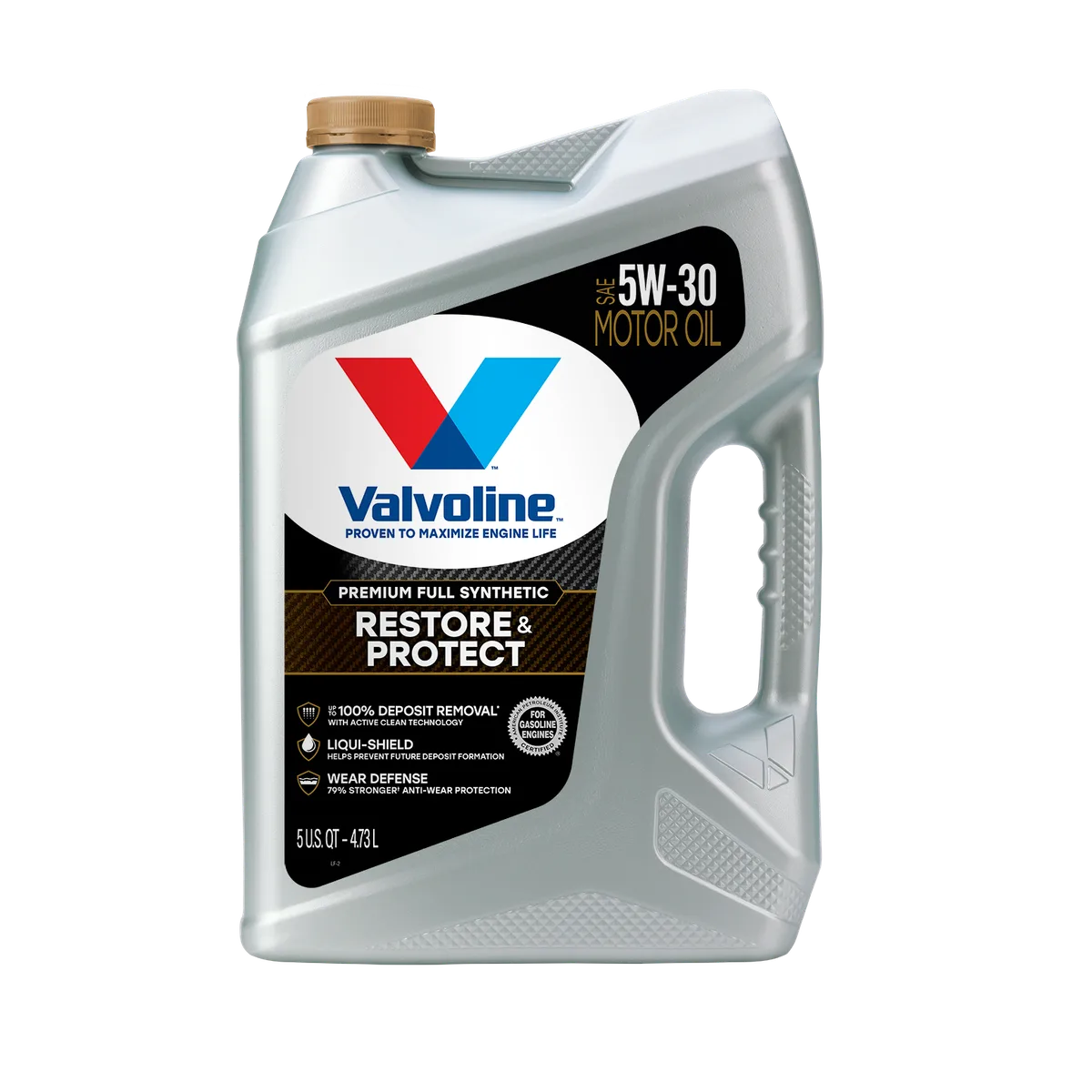

What Kind of Oil Goes In? Viscosity and Grade

Image source: Web (Bing) / valvolineglobal.com (Web image (fair-use with source credit))

Knowing the right capacity is half the battle. The other half is putting the right oil in. The 2009 Highlander doesn't have complicated oil requirements, but there are some specifics worth understanding so you don't accidentally grab the wrong bottle off the shelf.

Toyota's official recommendation for both the 2.4L and the 3.3L engine is SAE 5W-30 viscosity oil. That's been the standard for most Toyota engines from this era, and it's what the oil fill cap says on both engines. The "5W" part means the oil flows like a 5-weight when cold, which matters for winter starting.

The "30" means it thickens to a 30-weight at operating temperature, which provides proper protection under load.

The oil should meet either API grade SL or SM. Those are older certifications, but they're what Toyota specified when this vehicle was new. Any modern oil carrying the API "starburst" certification will meet or exceed those standards.

If you see API SN or SP on the bottle, those are newer grades that are backward-compatible.

Conventional vs. Synthetic — Does It Matter Here?

This is where opinions get loud. Conventional oil is fine for the 2009 Highlander. Toyota designed these engines for it, and millions of miles have been run on conventional 5W-30 without issue.

That said, there are legitimate reasons to consider synthetic.

Full synthetic 5W-30 flows better at low temperatures, resists breakdown under high heat, and can extend the oil change interval. For a 17-year-old vehicle with an aging engine, synthetic's better film strength can help reduce wear in bearings that have already seen significant use. If your Highlander has over 150,000 miles, which most do at this point, synthetic is a reasonable upgrade.

Synthetic blend oil sits in the middle. It's cheaper than full synthetic but offers better protection than conventional. Many owners use it as a compromise.

Here's the practical rule: if you're changing oil every 5,000 miles with conventional, you're fine. If you want to push to 7,500 miles or drive in severe conditions, go synthetic or at least a blend. Just make sure the viscosity stays 5W-30 regardless of which type you choose.

One exception worth mentioning: some owners in extremely cold climates, think northern Canada or Alaska, switch to 0W-20 for easier winter starting. Toyota did eventually recommend 0W-20 in some later engines, but the 2009 Highlander's original spec is 5W-30. If you live somewhere with brutal winters, 0W-20 won't hurt, but stick with 5W-30 for the rest of the year.

5 Common Mistakes That Send People to the Repair Shop

After years of research and aggregate feedback from Highlander owners, certain mistakes keep coming up. These are the ones that turn a simple 30-minute oil change into a trip to the mechanic. Avoid these, and you'll save money and frustration.

Mistake 1: Using the wrong viscosity. The oil fill cap says 5W-30 for a reason. Using 10W-30 in cold weather makes the engine harder to start and increases wear during warm-up. Using 5W-20 may not provide enough protection at high temperatures, especially in the V6 during summer towing.

Stick with 5W-30.

Mistake 2: Over-tightening the drain plug. The drain plug on the 2009 Highlander requires only 29 foot-pounds of torque. That's not very tight. Over-tightening strips the threads in the oil pan, which means a new oil pan or an expensive thread repair kit.

Use a torque wrench if you have one. If not, tighten until snug, then give it another quarter turn, no more.

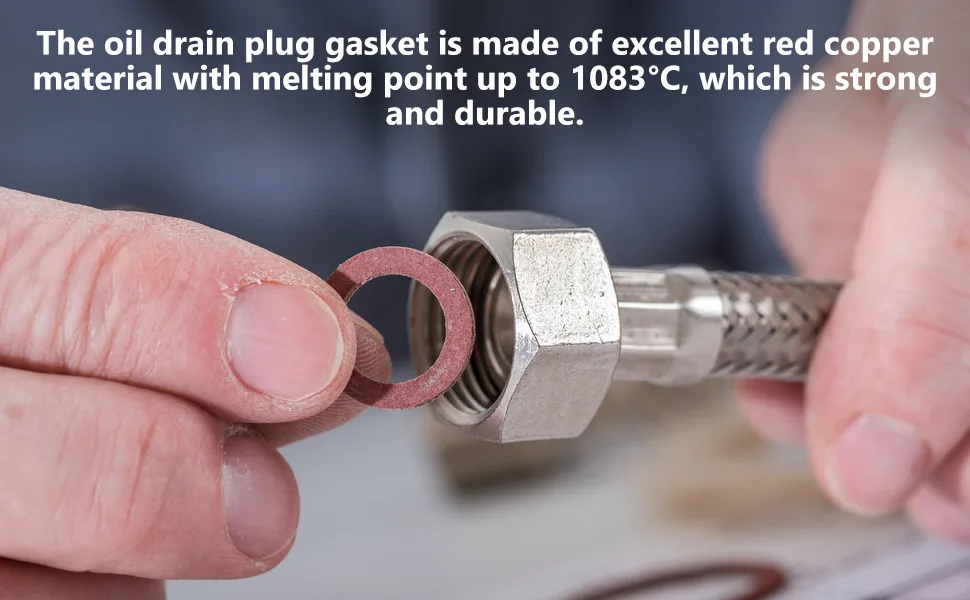

Mistake 3: Forgetting the crush washer. The drain plug uses a crush washer that should be replaced every time. It's a small copper or aluminum ring that deforms and seals against the pan. Using the old one risks a slow leak that you might not notice until your oil level drops dangerously low.

A pack of 10 costs about five bucks.

Mistake 4: Installing the oil filter wrong. The filter on both engines should be hand-tightened only. Tighten until the gasket contacts the mounting surface, then give it another three-quarters turn. That's it.

Over-tightening makes the next removal a nightmare, and under-tightening causes oil leaks.

Mistake 5: Checking the dipstick wrong. You'd think this would be simple, but it's where most people screw up. Check the dipstick on level ground after the engine has been off for at least five minutes. Pull it out, wipe it clean, reinsert it fully, then pull it again to read.

The oil should be between the two holes or marks. If you check it immediately after shutting off the engine, the reading will be low because oil hasn't drained back into the pan yet. If you check it while the engine is running, yes, some people do this, you'll get no reading at all because the pump is circulating the oil.

For more context on how Toyota's oil specifications compare across their lineup, the Toyota Highlander Oil Type guide covers the full model range. If you're also maintaining a second vehicle, the Toyota RAV4 Oil Type specs are worth knowing since many owners have both SUVs in the household.

Step-by-Step: How to Change the Oil Yourself Safely

Image source: Web (Bing) / amazon.ca (Web image (fair-use with source credit))

Changing the oil on a 2009 Highlander is a straightforward job. With the right tools and a clear process, you can finish in under an hour. Here's exactly what you need and how to do it without cutting corners.

Tools and Supplies You'll Need

The Right Way to Drain and Refill

Start with the engine warm, not hot, but warm enough that the oil flows freely. A quick five-minute drive or letting the engine idle for a few minutes does the trick. Warm oil drains faster and carries more suspended contaminants out with it.

Park on level ground. Engage the parking brake. If you're working on an uneven driveway, the oil pan won't drain completely, and your dipstick reading will be off.

Position the drain pan under the oil pan. The drain plug is on the passenger side of the oil pan for both engines. Use the 14mm socket to loosen it counterclockwise.

Once it's loose, unscrew it by hand, but keep pressure against it, because oil starts flowing immediately.

Let the oil drain completely. This takes three to five minutes. While it's draining, move to the oil filter.

The filter location differs by engine. On the 2.4L four-cylinder, it's tucked behind the exhaust manifold on the passenger side. You'll likely need to reach from underneath or use a filter wrench.

On the 3.3L V6, it's on the front of the engine, easy to reach from above. Either way, position the drain pan under the filter before unscrewing it, there's about half a quart of oil trapped inside.

Remove the old filter. Wipe the mounting surface clean with a rag. Apply a thin film of fresh oil to the new filter's rubber gasket, this prevents it from sticking during the next change.

Screw the new filter on by hand until the gasket contacts the mounting surface, then tighten another three-quarters turn. Never use a wrench to tighten it.

Now go back to the drain plug. Clean the plug and install the new crush washer. Thread it in by hand to avoid cross-threading, then tighten to 29 foot-pounds.

If you don't have a torque wrench, snug it up firmly, think "tight with a standard ratchet, not tight with a breaker bar."

How to Check the Dipstick Without Fooling Yourself

Pour in the correct volume of oil. For the 2.4L, that's the full 4.5 quarts. For the 3.3L V6, pour in the full 5-quart jug plus about 0.8 quarts from a separate quart bottle.

Replace the oil fill cap. Start the engine and let it run for 30 seconds. This circulates the new oil and fills the filter.

Shut the engine off.

Wait five minutes. This lets the oil drain back into the pan. Check the dipstick on level ground.

Wipe it, reinsert, pull again, and read the level. It should be in the crosshatched area between the low and full marks.

If it's low, add a quarter quart at a time and recheck. If it's over the full mark, you've overfilled and need to drain some out. Don't skip this step, running with too much oil causes the same damage as running with too little.

How Much Does a DIY Oil Change Cost vs. a Shop?

Here's the real-world breakdown as of 2026. A DIY oil change on a 2009 Highlander costs between $28 and $45, depending on whether you use conventional or synthetic oil and which brand of filter you buy.

A 5-quart jug of conventional 5W-30 runs about $18 to $22 at major retailers. A quart bottle of the same is $6 to $8. A quality oil filter costs $5 to $12.

A pack of crush washers is $5 for a 10-pack, so the per-change cost is negligible.

Full synthetic raises the price significantly. A 5-quart jug runs $30 to $40, and a single quart adds another $10 to $12. That puts a synthetic change at $45 to $65 for the V6, which requires nearly 6 quarts.

A shop charges anywhere from $60 for a conventional oil change to $100 or more for synthetic. The labor alone is typically $25 to $40, and shops mark up the oil and filter. If you're not comfortable doing it yourself, that's a fair price for peace of mind.

But here's the math that matters for DIY: over four oil changes per year, which is what severe service calls for at 5,000-mile intervals, you save between $128 and $220 annually by doing it yourself. On a vehicle approaching 20 years old, that's real money that can go toward other maintenance needs, like a timing belt service or a transmission fluid change.

If you're also maintaining a Toyota Tundra or a 2024 Toyota Tundra, the capacity differences are significant enough that you'll want to check the specific specs rather than assuming they match the Highlander.

What If You Overfill or Underfill?

Let's be direct about the consequences, because this is where a simple mistake can turn expensive.

Overfilling by even half a quart causes the crankshaft to dip into the oil as it spins. This whips air into the oil, that's the foaming we mentioned earlier. Foamy oil doesn't lubricate properly.

The oil pump can also cavitate, meaning it sucks air instead of oil. The result is accelerated bearing wear, and in extreme cases, the oil can force past seals and cause leaks. If you overfill, drain the excess.

The easiest way is to loosen the drain plug slightly and let a small amount out, then retighten and recheck.

Underfilling by a quart means the oil level drops below the pickup tube during hard cornering, braking, or acceleration. The engine briefly runs without oil pressure. That's called oil starvation, and it damages bearings, the crankshaft, and the valvetrain almost instantly.

The 3.3L V6 is particularly sensitive because of its higher oil pressure requirements. If you underfill, top it off immediately. If you've driven any distance with low oil, listen for knocking sounds, that's bearings telling you they're damaged.

The dipstick is your warning system. Check it at every fill-up if you're paranoid. Check it monthly if you're not.

An engine that loses a quart between changes has a problem. Don't ignore it.

When to Call a Mechanic (and When to Just Do It Yourself)

Not every job needs to be a DIY project. Here's the honest guidance on when to hand it over to a pro.

Do it yourself if: you have basic hand tools, a safe place to work, and 45 minutes. The 2009 Highlander is one of the easiest vehicles to change oil on. The filter is accessible, the drain plug is standard, and the capacities are clearly documented.

If you can follow a checklist, you can do this.

Call a mechanic if: the drain plug is stripped or rounded off, the oil filter is stuck so tight you can't budge it, or you find metal shavings in the drained oil. Those are signs of deeper problems that need professional diagnosis. Also call a mechanic if you don't have a safe place to work, changing oil on a sloped driveway with cinder blocks for ramps is how people get crushed.

Call a mechanic if: the check engine light comes on after an oil change. That shouldn't happen unless you forgot to tighten the oil fill cap or the filter, but if it does, don't ignore it. A low oil pressure warning is especially urgent, shut the engine off and get it towed.

For owners who want to understand how other Toyota models compare, the 2024 Toyota Tacoma oil specs and the Toyota 4Runner oil requirements are both worth reviewing if you maintain multiple Toyota vehicles.

Frequently Asked Questions

Can I use 0W-20 instead of 5W-30 in my 2009 Highlander?

Not as a direct replacement. Toyota eventually switched to 0W-20 for newer engines, but the 2009 Highlander was designed around 5W-30. Using 0W-20 in warm climates may not provide enough high-temperature protection.

In extreme cold, a winter switch to 0W-20 is acceptable, but return to 5W-30 for warmer months.

How often should I change the oil on a 2009 Highlander?

Toyota recommends every 5,000 miles under severe service and every 7,500 miles under normal service. Most driving counts as severe: short trips, stop-and-go traffic, extreme temperatures, or dusty conditions. Stick with 5,000-mile intervals for maximum engine life.

Do I really need to change the oil filter every time?

Yes. The filter traps contaminants and debris. Skipping a filter change means the new oil immediately passes through a dirty filter, reducing its effectiveness.

The filter costs about eight bucks. A new engine costs thousands. Change the filter.

What happens if I put 6 quarts in the V6 instead of 5.8?

The engine will be overfilled by 0.2 quarts. That's not catastrophic, but it's not ideal. The excess oil can cause foaming and put extra pressure on seals.

Drain the excess if possible. If you've already driven it, check the dipstick after the engine has cooled and remove oil if it reads over the full mark.

Can I use high-mileage oil in a 2009 Highlander?

Absolutely. High-mileage oil contains seal conditioners that help reduce leaks in older engines. If your Highlander has over 75,000 miles, which every 2009 model does at this point, high-mileage 5W-30 is an excellent choice.

It won't hurt anything, and it may help slow oil consumption.

Is synthetic oil worth the extra cost for this engine?

It depends on your goals. If you plan to keep the Highlander for another five years, synthetic's better wear protection makes sense. If you're just maintaining it until you sell, conventional oil with 5,000-mile changes is perfectly adequate.

Either way, 5W-30 is the viscosity to use.

One last thing worth mentioning

If you’re the type of owner who keeps detailed maintenance records, and I hope you are, write down the exact oil capacity and viscosity for your specific engine on a sticky note inside the owner’s manual. That way, five years from now when you’re standing in the auto parts aisle, you won’t be guessing. The 2009 toyota highlander oil capacity isn’t complicated once you know your engine. 4.5 quarts for the 2.4L. 5.8 quarts for the 3.3L. 5W-30 for both.

Change it every 5,000 miles with a new filter. Check the dipstick monthly.

Do that consistently on a 17-year-old Highlander, and that engine will outlast the body around it. That’s the kind of reliability Toyota built into these SUVs, and the kind of maintenance that keeps them rolling past 300,000 miles without major repairs. The oil change is simple.

The payoff is enormous.

For other Toyota models in your garage, the Toyota Corolla oil specs and the Toyota Camry oil type guide follow the same logic, correct capacity, correct viscosity, consistent intervals. Every Toyota engine from this era rewards the same straightforward care.

Stick with those fundamentals, and you're giving every engine in your driveway the same fighting chance at a long, trouble-free life.

That's the whole playbook. Know your engine. Use the right amount.

Don't overcomplicate it. Your 2009 Highlander will thank you for the next hundred thousand miles.

Oil Filter: Don't Skip This Part

The oil filter on a 2009 Highlander is small, cheap, and easy to overlook. Don't. A dirty or wrong filter strangles oil flow and sends contaminants through your engine.

OEM vs. Aftermarket

Toyota's OEM filter (part number 04152-YZZA1) is the safe bet. It costs about $8 to $12. Aftermarket options from brands like Fram, Mobil 1, and Purolator work fine too.

The key is matching the correct bypass valve pressure and thread size. For the 2.4L engine, the filter thread is 3/4-16. For the 3.3L V6, it's M20x1.5.

A mismatch means the filter won't seal or flow properly.

Torque Specs That Actually Matter

Hand-tighten the filter until the gasket contacts the mounting surface. Then give it another three-quarters turn. That's it.

No wrench needed. Over-tightening crushes the gasket and makes removal a nightmare. Under-tightening causes leaks.

The gasket needs a thin film of fresh oil before installation to prevent sticking.

What If You Overfill or Underfill?

We covered the risks earlier, but let's be direct about what to do if it happens.

If the dipstick reads above the full mark, you've overfilled. Loosen the drain plug slightly and let a small stream of oil out into your drain pan. Retighten, recheck.

Repeat until the level drops to the full mark. Do not drive with overfilled oil. The crankshaft whips air into the oil, causing foaming and potential bearing damage.

If the dipstick reads below the low mark, you've underfilled. Add oil a quarter quart at a time. Recheck after each addition.

If you've driven any distance with low oil, listen for knocking or ticking sounds after refilling. Those sounds mean bearing damage. If you hear them, have a mechanic inspect the engine.

How Much Does a DIY Oil Change Cost vs. a Shop?

Over four changes per year at 5,000-mile intervals, DIY saves you $128 to $220 annually. On a 17-year-old vehicle, that money matters.

When to Call a Mechanic (and When to Just Do It Yourself)

Do it yourself if: you have a 14mm socket, a drain pan, a funnel, and 45 minutes. The 2009 Highlander is among the easiest vehicles to change oil on. The filter is accessible, the drain plug is standard, and the capacities are documented.

Call a mechanic if: the drain plug is stripped or rounded, the filter is stuck, you find metal shavings in the drained oil, or the check engine light comes on after your change. Also call if you lack a safe level work surface. Changing oil on a sloped driveway with cinder blocks is how people get hurt.

Verdict: The One Spec You Should Commit to Memory

Write this down. 4.5 quarts for the 2.4L four-cylinder. 5.8 quarts for the 3.3L V6. 5W-30 viscosity for both. Change every 5,000 miles with a new filter. Check the dipstick monthly.

That's the formula that keeps a 2009 Highlander running past 300,000 miles.

Everything else is just details. Get the capacity right, and you're giving that engine exactly what it needs.

Oil Disposal: Don't Skip This Step

Used motor oil is hazardous waste. Pouring it down a drain or onto the ground is illegal in most places and damages the environment. One quart of oil can contaminate 250,000 gallons of water.

Where to Drop It Off

Most auto parts stores accept used oil for free. Advance Auto Parts, AutoZone, O'Reilly, and Napa all have collection tanks. Some local waste management facilities also accept it.

Call ahead to confirm.

How to Transport It Safely

Pour the used oil back into the original containers or a sealed jug. Never mix it with antifreeze, brake fluid, or solvents. That makes it unrecyclable.

Secure the jug upright during transport. A spill in your trunk is a headache you don't need.

Seasonal Considerations for Oil Changes

Your 2009 Highlander's oil needs vary with the seasons, especially if you live somewhere with extreme temperature swings.

Winter Driving

Cold oil is thick oil. 5W-30 is designed to flow at low temperatures, but if you regularly start your Highlander in subzero conditions, consider switching to 0W-30 for the coldest months. It flows better at startup and reduces wear during those first critical seconds after ignition.

Summer Towing

If you tow a trailer or haul heavy loads in summer, the 3.3L V6 works harder and runs hotter. Synthetic 5W-30 resists thermal breakdown better than conventional oil under those conditions. If you tow regularly, synthetic is worth the upgrade just for the extra protection margin.

Altitude Adjustments

Driving at high altitudes doesn't change your oil viscosity needs. But the thinner air can cause your engine to run slightly hotter, which accelerates oil breakdown. If you live above 5,000 feet, stick with your standard 5W-30 but consider shorter change intervals.

Verdict: The One Spec You Should Commit to Memory

Write this down. Keep it in your phone or tape it inside the owner's manual.

2.4L four-cylinder: 4.5 quarts of 5W-30 with filter.

3.3L V6: 5.8 quarts of 5W-30 with filter.

Change interval: Every 5,000 miles.

Oil filter: Hand-tighten plus three-quarters turn.

Drain plug torque: 29 foot-pounds.

That's everything you need to keep a 2009 Highlander running reliably for another 100,000 miles. The oil change is simple. The consequences of getting it wrong are not.

Know your engine, use the right amount, and check the dipstick monthly. Your Highlander will reward you with the kind of durability that made Toyotas famous in the first place.
