2010 Toyota Tundra Oil Capacity: Exact Specs

If you own a 2010 Toyota Tundra, one number matters more than most: the oil capacity. Get it wrong, and you're looking at anything from a small leak to a full engine rebuild. The 2010 toyota tundra oil capacity isn't a single number, though.

It changes depending on which engine you've got under the hood.

Manufacturer specifications show three different engines were available that year, and each one takes a different amount. Using the wrong fill, even off by half a quart, can cause real problems over time. As of 2026, these trucks are old enough that many are on their second or third owner, so assuming someone before you did it right is a gamble.

Let's sort out exactly what your truck needs, step by step.

Quick Answer

The 2010 Tundra's oil capacity depends on its engine. The 5.7L V8 takes 6.5 quarts. The 4.6L V8 takes 6.0 quarts.

The 4.0L V6 takes 5.0 quarts.

All three engines require 0W-20 synthetic oil meeting API SN or higher. That's for a standard filter change. A dry engine rebuild fill is slightly different.

Always check the dipstick after adding. Never trust a single number blindly.

Why Getting the Oil Capacity Wrong Can Cost You an Engine

Oil is the only thing keeping metal parts from welding themselves together inside your engine. Too little, and critical components starve. Too much, and the crankshaft whips the oil into foam, which means air bubbles get pumped through the bearings instead of lubricant.

Both scenarios lead to the same place: expensive repairs.

The 2010 Tundra uses a variable-valve timing system (VVT-i) that's especially sensitive to oil level and pressure. Low oil can throw a timing code long before you hear a knocking sound. Overfilling can blow out the front crankshaft seal, which is a messy, labor-intensive fix.

Our research across owner forums and service bulletins shows that the most common mistake isn't using the wrong viscosity. It's adding the wrong volume because someone assumed all Tundra engines take the same amount. They don't.

Not even close.

The risk is higher now because these trucks are 16 years old. Seals harden over time. Gaskets become brittle.

An overfilled crankcase that might have been fine in 2010 can now push oil past a worn rear main seal without warning.

The Three Engines in the 2010 Tundra — Know Which One You Have

Before you buy oil, you need to know which engine sits between the frame rails. Toyota offered three choices in 2010, and they look nearly identical under the hood. The badging on the side of the truck isn't always reliable either, especially on used models where someone might have swapped panels.

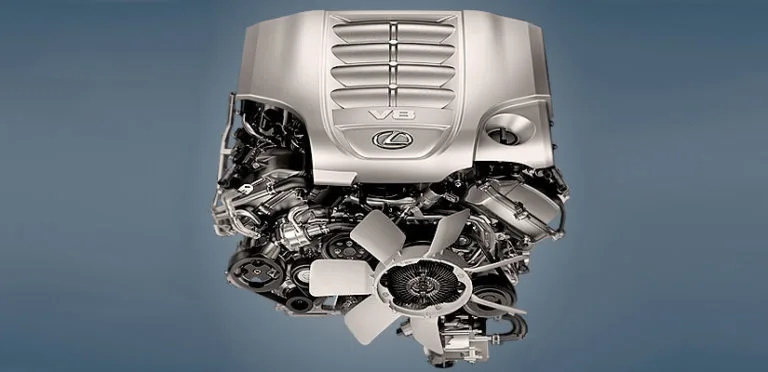

5.7L 3UR-FE V8

This is the powerhouse. It displaces 5.7 liters, makes 381 horsepower, and it's the engine most people think of when they hear "Tundra." The oil capacity is 6.5 quarts with a filter change. That's the largest fill of the three.

You'll find a "5.7L" badge on the front fender, but the easiest way to confirm is by looking at the engine cover. The 5.7L has a large plastic cover that says "3UR-FE" or "5.7L V8" on it. The oil fill cap sits on the passenger side valve cover.

4.6L 1UR-FE V8

This one confuses people because it's also a V8, just smaller. It displaces 4.6 liters and makes 310 horsepower. The oil capacity is 6.0 quarts with a filter change.

The engine cover is smaller and sits lower. It will say "4.6L V8" or "1UR-FE." The oil fill cap is still on the passenger side, but the valve cover shape is noticeably different from the 5.7L.

4.0L 1GR-FE V6

The base engine. It's a V6, not a V8, and it's physically smaller in the engine bay. The oil capacity is 5.0 quarts with a filter change.

If you're not sure which one you have, pop the hood and look at the emissions label on the underside of the hood. It lists the engine family. You can also check your VIN online through Toyota's owner portal for the exact build sheet.

Dry Fill vs. Change Fill — Why That Number Matters

This is where a lot of confusion starts. The "dry fill" capacity is what the engine holds when it's completely empty. That includes the oil cooler, all the passages, and the filter housing with zero residual oil.

A "change fill" is what you put in during a routine oil change, where about half a quart of old oil stays trapped in the engine.

For the 5.7L 3UR-FE, the dry fill is 6.9 quarts. The change fill is 6.5 quarts. That 0.4-quart difference matters.

If you pour in the dry fill number during a change, you're overfilling by nearly half a quart. That's enough to cause foaming at high RPM, especially when towing. If you use the change fill number on a freshly rebuilt engine, you're running it low from the start.

Always confirm whether the spec you're reading is dry or wet. The owner's manual lists the change fill. The service manual lists both.

For 99% of DIY oil changes, use the change fill spec.

Step-by-Step: How to Do It Right the First Time

An oil change on a 2010 Tundra is straightforward, but getting the level perfect takes a little care. Here's the process that works every time, based on factory service procedures and what experienced Tundra owners have refined over the years.

Tools and Supplies You'll Need

The 5.7L engine uses a cartridge-style oil filter on some 2010 builds and a spin-on on others. Check yours before you buy. The cartridge requires a special cup wrench.

The Fill Procedure That Prevents Mistakes

Start with a warm engine. Run it for about two minutes after a cold start, then shut it off. Warm oil drains faster and carries more suspended contaminants.

Get the truck level. Ramps are fine, but jack stands are safer. Never work under a truck supported only by a hydraulic jack.

Check the angle, if the truck is tilted, the oil won't drain completely, and you'll misread the dipstick later.

Remove the oil fill cap. This lets air in and helps the oil drain faster. Then remove the drain plug and let the oil flow into your pan.

Give it a full 10 minutes. The 5.7L has a deep oil pan, and residual oil keeps dripping long after the main flow stops.

Replace the drain plug with a new crush washer. Torque it to 29 ft-lbs. That's hand-tight plus about a quarter turn with a normal ratchet.

Over-tightening strips the aluminum threads in the oil pan, which means a new pan or an expensive thread repair.

Remove the old filter. Let any oil in the filter drain into the pan. Coat the new filter's rubber gasket with fresh oil, then screw it on hand-tight plus three-quarters of a turn.

Never use a wrench to tighten it.

Now add oil. Pour in about a quart less than the full spec. For the 5.7L, that means 5.5 quarts.

Then check the dipstick. Add the remaining oil in half-quart increments, checking after each addition, until the level reaches the full mark.

Run the engine for 30 seconds to fill the filter and oil passages. Shut it off and wait three minutes. Check the dipstick again.

Top off if needed.

The final level on the dipstick should be between the low and full marks, closer to full. Never above full.

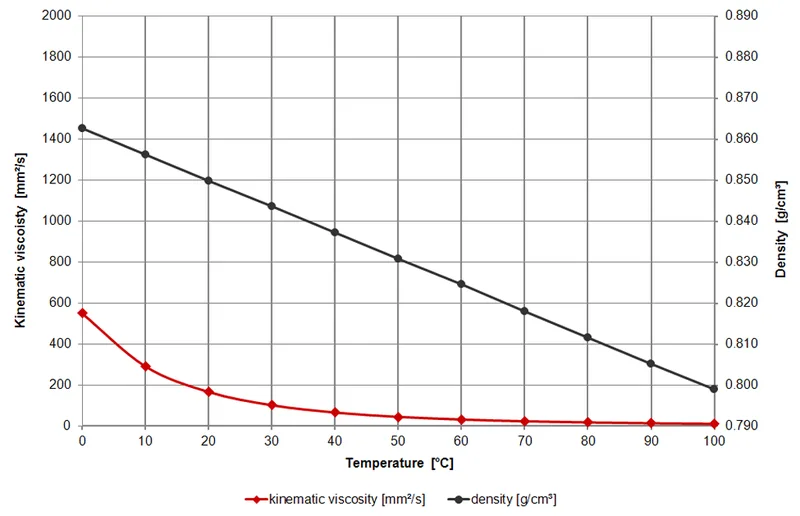

The Viscosity Question: 0W-20 vs. 5W-30

Toyota recommended 0W-20 for the 2010 Tundra across all three engines. That's what the oil fill cap says and what the owner's manual lists. But there's a persistent debate among owners about whether 5W-30 is acceptable, especially for high-mileage trucks used for towing.

Here's the straightforward answer. Toyota designed the 5.7L and 4.6L engines around 0W-20 for fuel economy and cold-start protection. The hydraulic timing chain tensioners and VVT-i actuators rely on specific oil pressure characteristics.

Thicker oil changes those pressure curves.

That said, Toyota issued service bulletins allowing 5W-30 in certain conditions. Specifically, if you're consistently towing heavy loads in high ambient temperatures (above 100°F), 5W-30 provides a thicker oil film at the bearings. The same applies if the truck has over 150,000 miles and shows signs of oil consumption.

But here's the catch, 5W-30 reduces fuel economy by about 3 to 5 percent. It also makes cold starts harder on the engine in winter. In freezing temperatures, 0W-20 flows significantly better.

For most owners in most climates, stick with 0W-20. It's what the engine was designed for. If you switch to 5W-30 for a towing season, switch back in the winter.

The oil you choose also needs to meet the correct standard. API SN is the minimum for a 2010 engine. API SP offers better protection against low-speed pre-ignition and timing chain wear.

ILSAC GF-6 is the current passenger car standard. Both are backward-compatible. For Toyota models from the same era, the same standards apply.

Common Mistakes That Wreck Tundra Engines

The 2010 Tundra engine is tough. But it has weak points. Knowing what goes wrong helps you avoid becoming a cautionary tale on a forum somewhere.

Overfilling: The Silent Seal Killer

You might think a little extra oil is cheap insurance. It's not. Overfilling by even half a quart lets the crankshaft slap the oil surface at high RPM.

That whips air into the oil. Air bubbles don't lubricate. The oil pump pushes aerated fluid through the bearings and into the VVT-i actuators.

The result: timing chain rattle on cold starts, reduced oil pressure at idle, and eventually a blown front seal. The front main seal replacement requires pulling the radiator and fan. That's a $600 job at a shop.

If you accidentally overfill, drain the excess. The easiest way is to loosen the drain plug slightly and let a stream run into a clean container until the level drops. Don't just run the engine and hope it burns off.

It won't.

Underfilling: Starvation and Bearing Failure

Underfilling is faster to kill the engine. At highway speeds, the oil pickup tube sits near the bottom of the pan. If the level is low, hard cornering or steep grades can uncover the pickup.

Loss of oil pressure for even five seconds can damage rod bearings.

The 5.7L holds 6.5 quarts with a filter. Ignore the dipstick and pour in exactly 6.5 quarts. Then run the engine and check.

If the dipstick shows low, you have a different issue. Either the oil cooler hasn't filled yet or you have a leak.

Stripping the Drain Plug (and How to Avoid It)

The Tundra oil pan is aluminum. Aluminum threads are soft. A moment of over-torque with a long ratchet strips them permanently.

The fix is either a new oil pan (about $200 for the part plus labor) or a thread repair insert. Neither is fun. Use a torque wrench set to 29 ft-lbs.

That's barely more than hand-tight with a stubby ratchet. If you don't own a torque wrench, tighten until the crush washer compresses and the plug feels snug. Stop there.

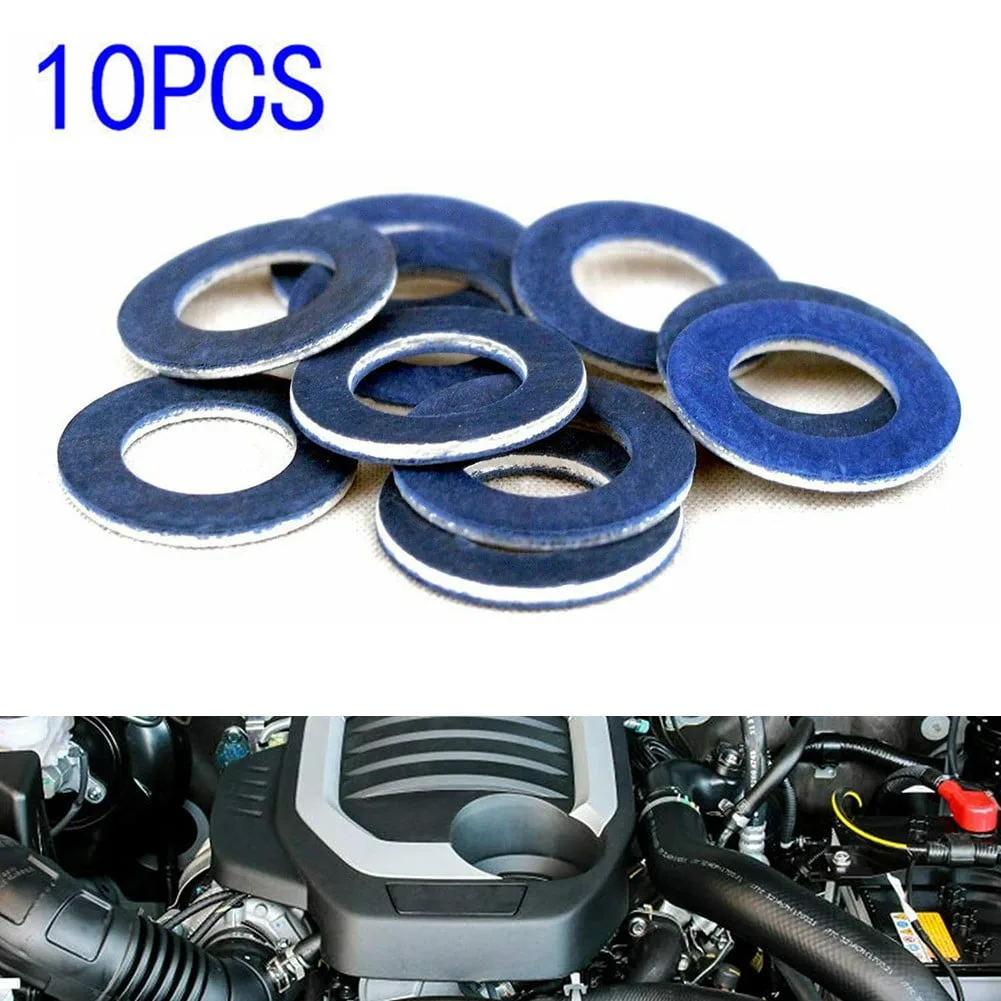

Not Replacing the Crush Washer

That little copper or aluminum ring under the drain plug head is a one-time-use sealing device. It deforms when you tighten the plug, creating a leak-proof seal. Reusing it is false economy.

A pack of ten costs about eight dollars.

A reused crush washer won't always leak immediately. But after a few heat cycles, it hardens and stops conforming. You'll find a slow drip on your driveway, and over thousands of miles, that drip becomes a noticeable oil loss.

How to Check the Oil Level Correctly (It's Not What Most People Do)

Checking oil sounds simple. Open hood, pull dipstick, wipe, reinsert, read. But most people get one detail wrong that throws the reading off by half a quart.

The engine must be at operating temperature and then shut off for exactly three to five minutes. Not cold. Not immediately after shutdown.

Three to five minutes gives the oil time to drain back into the pan without leaving the filter and passages empty.

If you check it cold, the oil has fully drained into the pan overnight. The reading reads high by about half a quart. If you check it immediately after shutting off, the oil hasn't drained yet.

The reading reads low.

The correct procedure: warm up the engine, park on level ground, shut it off, wait three minutes, pull the dipstick, wipe it clean, reinsert fully, pull it again, and read the level. The oil should be between the low and full marks. If it's at the full mark, you're good.

If it's at the low mark, add half a quart and check again.

Never add oil when the dipstick shows mid-range. Wait until it drops to the low mark. Overfilling is easier than you think.

When to Change It: Severe vs. Normal Service

Toyota's recommended oil change interval for the 2010 Tundra is 10,000 miles under normal service. But "normal service" is a narrow definition. Most Tundra owners fall into the severe service category without realizing it.

Severe service includes:

• Frequent short trips under five miles
• Driving in dusty or sandy conditions
• Towing or hauling heavy loads
• Extended idling (common for work trucks)
• Operating in extreme heat or cold
• Stop-and-go city driving

Per Toyota's own maintenance guide, severe service cuts the interval to 5,000 miles. Most Tundra owners tow at least occasionally or live in suburbs with short trips. That means most owners should be on the 5,000-mile schedule.

If you're using conventional oil instead of synthetic, reduce that further to 3,000 to 4,000 miles. Synthetic handles heat breakdown and contamination better. The longer intervals in the manual assume synthetic oil.

The oil life monitor in the 2010 Tundra helps. It tracks engine temperature, RPM, and mileage to estimate oil degradation. But it's conservative.

Many owners report it triggers around 7,500 miles under mixed driving. That's a reasonable middle ground.

Should You Use Synthetic or Conventional?

The short answer: synthetic. The 2010 Tundra was designed around 0W-20 synthetic oil, and Toyota filled it with synthetic from the factory. Conventional oil didn't meet the cold-flow requirements for the VVT-i system at that viscosity grade.

But there's nuance. If your Tundra has over 200,000 miles and leaks oil past every seal, switching to a high-quality conventional or a high-mileage synthetic blend is a valid strategy. Thicker base oils can slow leaks through worn seals.

However, if your engine is healthy, stick with full synthetic. The benefits are real. Synthetic resists thermal breakdown at high towing temperatures.

It flows better in winter. It holds contaminants in suspension longer. Over the long term, it reduces sludge buildup in the timing chain area, which is a known weak point on the 5.7L.

The price difference is about $10 to $15 per oil change. For the added protection, that's cheap insurance. The 4.6L and 4.0L engines benefit just as much, though they tend to sludge less than the 5.7L in our research.

What the Owner's Manual Actually Says

If you still have your original owner's manual, it's worth pulling out. The 2010 Tundra manual specifies 0W-20 synthetic oil meeting API SL, SM, or SN. It lists the capacity for each engine and notes that the oil filter holds additional oil.

The manual also states that a Toyota-approved oil filter should be used. The genuine Toyota filter (part 04152-YZZA1) costs about the same as a premium aftermarket filter and has the correct bypass valve pressure for the 5.7L and 4.6L engines.

What the manual doesn't say: the specific dry fill numbers. It only lists the change fill. It also doesn't explicitly state that the crush washer should be replaced every time, though Toyota's service manual does.

One overlooked detail in the manual is the oil change interval for severe service. It's buried in the maintenance schedule section. Many owners never read past the 10,000-mile number and end up running oil too long.

The manual is a good starting point. But the service manual, available online for about $15, gives you the full picture including torque specs, filter types, and inspection procedures. For a 16-year-old truck, that extra detail matters more than it did new.

When to Call a Mechanic vs. DIY

Most 2010 Tundra owners can handle an oil change. It's one of the easiest jobs on the truck. But there are situations where a professional makes more sense.

Call a mechanic if you can't get the drain plug loose. Stuck plugs often mean someone overtightened it or used thread locker. A breaker bar with too much force can snap the plug or strip the pan threads.

That tow to a shop is expensive.

Call a mechanic if you see metal flakes in the old oil. That signals bearing wear or timing chain damage. An oil change won't fix it.

A professional diagnosis will save you from throwing money at a dying engine.

Call a mechanic if the oil filter is seized. The filter housing on some 2010 builds is plastic. Over-torquing it cracks the housing.

That means a tow and a replacement part you can't install without the right tools.

DIY is fine if you have a torque wrench, a drain pan, and twenty minutes. The cost difference is about $30. For that, you get the satisfaction of knowing it was done right.

Quick Reference Specs Table

All capacities assume a standard filter change. Dry fill numbers are about 0.4 quarts higher across the board. Drain plug torque is 29 ft-lbs for all three engines.

Use a new crush washer every time.

Frequently Asked Questions

Can I put 5W-30 in a 2010 Tundra that calls for 0W-20?

Toyota allows 5W-30 for heavy towing in high heat. It reduces fuel economy and makes cold starts harder. Switch back to 0W-20 in winter.

How much oil does the filter hold?

The filter holds about 0.5 to 0.7 quarts. That's why you add less oil than the dry spec. The filter fills during the first engine run.

What happens if I overfill by half a quart?

The crankshaft can whip the oil into foam. Foam causes air pockets in the bearings. Over time, this wears the timing chain tensioners and main seals.

Where is the dipstick on a 2010 Tundra?

The dipstick is on the passenger side of the engine, near the front. It has a yellow or orange handle. Pull it straight out to check the level.

Does the 2010 Tundra have an oil life monitor?

Yes. It tracks engine temperature, RPM, and mileage. It triggers around 7,500 miles under mixed driving.

Use it as a guide, not a replacement for the 5,000-mile severe service interval.
