2013 Toyota Highlander Problems: Common Issues & Fixes

The 2013 toyota highlander problems cluster around three safety-critical defects and two expensive pattern failures that Toyota eventually acknowledged with warranty extensions. Owners face sudden power steering loss, sinking brake pedals, and airbag inflators that can rupture in high-humidity regions. Head gasket seepage and transfer case shudder round out the top-tier issues that drive four-figure repair bills.

Understanding which defects have manufacturer coverage, and which do not, changes the math on every ownership decision.

NHTSA data shows roughly 1,200 complaints filed for this model year as of 2026, with electric power steering and brake master cylinder reports leading the list. The 2GR-FE V6 and U660E transmission remain fundamentally sound when maintained, but the surrounding systems have design margins that proved too thin. Next we break down why this specific defect profile demands a different diagnostic approach than typical used-SUV shopping.

Quick Answer

The 2013 Toyota Highlander has five major defect categories. Three are safety-related: Takata airbag inflators, electric power steering loss, and brake master cylinder failure. Two are high-cost mechanical patterns: head gasket seepage and transfer case shudder.

Toyota extended warranty coverage on EPS, head gaskets, and brake master cylinders to 10 years or 150,000 miles. Takata recalls remain open. Fuel pump, EVAP, sunroof drain, and dashboard cracking issues are common but less dangerous.

Why the 2013 Highlander's Defect Profile Demands Expert Attention

This model year sits at the intersection of a carryover platform and new-for-2013 regulatory pressure. The second-generation Highlander (2008, 2013) received electric power steering on V6 models to meet CAFE targets, but the rack-mounted motor and ECU lacked the thermal margin for real-world engine-bay heat. Simultaneously, Takata PSDI-5 inflators entered the supply chain across multiple Toyota lines.

Aisin-sourced brake master cylinders used a primary cup seal material that degraded with brake fluid hygroscopy. These are not wear items. They are design decisions that created failure clusters at predictable mileage windows.

Treating them as routine maintenance leads to missed warranty claims and unsafe vehicles.

The defect profile also splits by drivetrain. V6 AWD models carry the rack-assist EPS, the torque-vectoring transfer case, and the higher thermal load on the 2GR-FE head gaskets. FWD I4 models avoid the EPS rack failure and transfer case issues but share the brake master cylinder, Takata, and fuel pump defects.

Any pre-purchase inspection or ownership plan must account for this split. A V6 AWD Limited at 110,000 miles carries a different risk ledger than a FWD LE at the same mileage.

The 2013 Highlander at a Glance: Platform, Powertrains, and Production Context

The Highlander rides on the Toyota K platform shared with the Camry (XV40) and Lexus RX 350. Two engines were offered: the 2GR-FE 3.5L V6 (270 hp, 248 lb-ft) and the 1AR-FE 2.7L I4 (187 hp, 186 lb-ft). Both pair with six-speed automatics, U660E for the V6, U760E for the I4.

Drivetrain choices were FWD or AWD. The AWD system on V6 models uses an open center differential with brake-based torque vectoring; the Limited and Platinum trims added a clutch-pack transfer case for active torque distribution. Curb weight ranges from 4,130 lbs (I4 FWD) to 4,520 lbs (V6 AWD Platinum).

Towing capacity reaches 5,000 lbs on V6 models with the factory tow prep package.

Production ran from late 2012 through August 2013 at Toyota Motor Manufacturing Indiana. The 2014 model year introduced the third generation with an eight-speed transmission, direct injection on the 2GR-FKS, and standard torque-vectoring AWD. This makes the 2013 a final-year carryover with known defects but no mid-year running changes to address them.

VIN decoding is essential: the 10th character "D" confirms 2013 model year, while positions 4, 6 identify engine, drivetrain, and grade.

Critical Safety Defects: Takata Airbags, EPS Loss, and Brake Master Cylinder Failure

Three defects on the 2013 Highlander carry "do not drive" or crash-risk classifications from NHTSA. Each has an active recall or warranty extension as of 2026. Missing any of them leaves a known hazard unaddressed.

Takata PSDI-5 Inflator Rupture

Driver, passenger, and side curtain inflators use ammonium nitrate propellant without a desiccant. In high heat and humidity, the propellant degrades and can burn too fast, rupturing the inflator housing and spraying metal fragments. NHTSA zones the risk: Zone A (FL, TX, AL, GA, HI, LA, MS, SC, PR, USVI, Guam, Saipan) carries the highest rupture probability.

Recalls 13V-133, 14V-355, 15V-321, 16V-342, 19V-749, and 20V-200 cover various inflator positions. Remedy parts are now plentiful. Completion rates sit near 90% for driver and passenger inflators but lower for side curtains.

Check your VIN at NHTSA.gov or the Toyota Owner portal. If you live in Zone A and any inflator remains unrepaired, NHTSA advises against driving the vehicle until fixed.

Electric Power Steering Sudden Loss (V6 Models)

The rack-mounted EPS unit on V6 models combines a brushless motor, torque sensor, and ECU in a single housing bolted to the steering rack. Two failure modes dominate: motor winding insulation breakdown from thermal cycling, and ECU solder joint cracking under vibration. Either causes instant loss of power assist with no warning light until the system sets a code, often after the event.

Steering effort at parking speeds exceeds 30 lbs. NHTSA investigations PE14-024 and EA15-003 led to warranty extension ZJB: 10 years / 150,000 miles from original sale date. Coverage includes the rack assembly, motor, ECU, and labor.

The remedy is a revised rack with improved motor insulation and conformal-coated ECU. If your VIN qualifies, the dealer replaces the entire unit at no cost. I4 models use a column-assist EPS that does not share this defect.

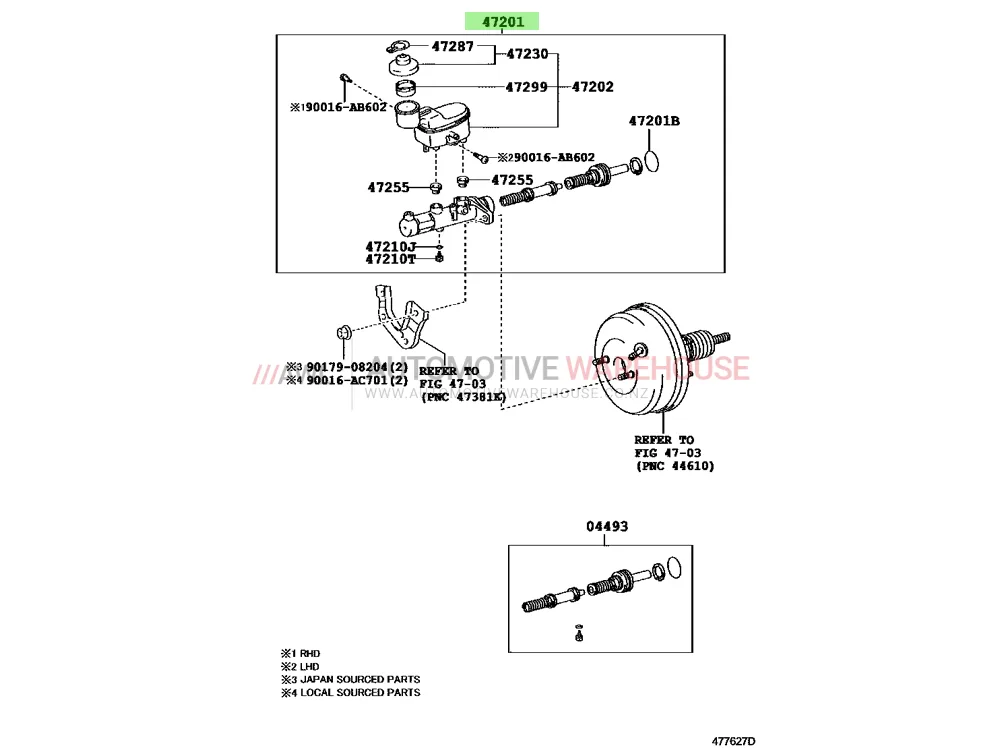

Brake Master Cylinder Internal Bypass

The Aisin master cylinder uses a primary piston cup seal that can swell and lose sealing force as brake fluid absorbs moisture. The result: a pedal that sinks slowly at a stoplight with no external leak. Stopping distance increases.

The driver may not notice until an emergency stop. Recall 20V-344 (superseding interim 19V-839) covers replacement of the master cylinder with an updated seal material. Warranty enhancement 20TA09 extends coverage to 10 years with no mileage limit.

The repair requires Techstream ABS bleed sequence after installation; a standard pressure bleed is insufficient. Both FWD and AWD, I4 and V6, are affected. If your pedal feels soft or travels farther than it used to, schedule the recall repair immediately.

High-Cost Pattern Failures: Head Gasket Seepage, Transfer Case Shudder, Torque Converter Issues

These three patterns do not trigger safety recalls but generate repair bills that often exceed the vehicle's trade-in value. Toyota issued warranty extensions for two of them.

2GR-FE Head Gasket External Seepage

The multi-layer steel head gasket on the 3.5L V6 can weep oil and coolant at the block-head interface. Two locations dominate: the right rear (cylinder 6) and left front (cylinder 3). Seepage appears as a damp film or dried residue, not a drip.

Coolant loss is slow, often ounces per 1,000 miles, and oil consumption stays within Toyota's 1 qt / 1,200 miles spec. TSB EG013-07 documents the pattern. Warranty extension ZJC covers replacement of both head gaskets (parts 11115-0H010 supersede 11115-31050) to 10 years / 150,000 miles.

The job runs 12, 14 hours book time. Dealer cost out of warranty: $2,800, $3,500. Independent shops: $2,200, $2,800.

If seepage is caught early, monitoring coolant level and topping off may defer the repair, but the gasket will not reseal itself. Compression testing and hydrocarbon detection in the coolant confirm internal leakage if the external weep is ambiguous.

Transfer Case Shudder (AWD Limited/Platinum)

The clutch-pack transfer case on torque-vectoring AWD models develops a groan or shudder at 15, 25 mph on tight turns. The cause is clutch pack wear and fluid breakdown. TSB DR006-07 prescribes a three-cycle fluid flush using Toyota 08885-02305 (75W), drain, refill 1.3 quarts, drive 10 minutes, repeat twice.

This resolves roughly 60% of cases if caught early. Persistent shudder means the clutch packs are glazed or the actuator ramps are worn. Transfer case replacement runs $2,800, $3,500 at dealers; independents charge $2,200, $2,900.

No warranty extension exists, though some dealers have goodwilled repairs under 60,000 miles. The base AWD system (open differential + brake vectoring) does not have this component and does not shudder.

Torque Converter Lockup Shudder

A vibration at 40, 55 mph under light throttle (typically 4th, 6th gear lockup) indicates torque converter clutch chatter. TSB AX007-06 addresses this with an ECU reflash and a full WS ATF exchange (6.9 quarts drain/refill capacity). The reflash adjusts lockup timing and slip control.

If deferred, the clutch lining wears unevenly and the valve body solenoids can develop stick-slip behavior. Fluid exchange alone sometimes masks the symptom temporarily. Dealer cost for reflash + fluid: $350, $500.

Independent: $250, $400. Use only Toyota WS ATF (08886-02305); aftermarket "universal" fluids lack the correct friction modifiers.

Secondary but Common Problems: Fuel Pump, EVAP, Sunroof Drains, Dashboard Cracking, Hatch Struts

These issues rarely strand the vehicle but add up in annoyance and cost. Most have no manufacturer coverage beyond the standard 3yr/36k warranty.

Denso High-Pressure Fuel Pump Failure

The low-pressure impeller inside the in-tank pump can delaminate, causing fuel pressure drop, stall, or no-start. Codes P0087 and P0191 are common. Recalls 20V-200 and 21V-002 replace the pump with a revised impeller coating.

Coverage is 10 years / 150,000 miles under the recall remedy. If your vehicle stalls after a hot soak or cranks long before firing, check the VIN for open fuel pump recalls.

EVAP Purge Valve Stuck Open

The purge VSV (vacuum switching valve) on the intake manifold can stick open, pulling fuel vapor into the intake during refueling. Result: rough idle, hard start, and P0441 after fill-ups. The charcoal canister saturates faster if owners routinely top off past the click.

Replacement valve (part 25810-0H010) costs ~$65; labor is 0.5 hr. Clean the canister vent line while you're there.

Sunroof Drain Clog → Body ECU Corrosion

Four drain tubes exit at the rocker panels. Pine needles, pollen, and debris clog the rear tubes first. Water backs up, overflows the headliner, and soaks the carpet, eventually reaching the body ECU under the driver seat.

Corrosion causes door lock, window, and lighting faults. Clean the drains annually with weed-whacker line and compressed air. Verify water exits at each rocker.

Dashboard Cracking (Hot Climates)

The polypropylene dash substrate cracks at the passenger airbag door and center speaker grille in sustained 100°F+ heat. No recall exists. Toyota's customer support program (CSP) expired in 2018.

Replacement dash skin runs $1,200, $1,800 installed. Dash covers ($80, $150) hide cracks and reduce glare.

Rear Hatch Gas Strut Failure

OEM struts (Stabilus/Lift-O-Mat) lose pressure at 8, 10 years. The hatch drops suddenly in cold weather. Replace in pairs ($80, $120 each OEM; $40, $60 aftermarket).

Takes 15 minutes with a flat blade and a helper.

Decoding Your VIN: Recall Status, Warranty Extensions (ZJB, ZJC, 20TA09), and Dealer Coverage

Start at the Toyota Owner portal or NHTSA.gov/recalls. Enter the 17-character VIN. The report lists open safety recalls, completed remedies, and any customer satisfaction programs.

Three warranty enhancements apply specifically to the 2013 Highlander: ZJB covers the electric power steering rack assembly (motor, ECU, rack) to 10 years / 150,000 miles. ZJC covers both head gaskets (parts 11115-0H010) to the same term. Enhancement 20TA09 covers the brake master cylinder replacement with no mileage limit for 10 years from original sale date.

These are not recalls, dealers will not proactively contact you. You must present the VIN and request the coverage verification. Print the warranty enhancement letter from the Toyota Technical Information System (TIS) if the service advisor is unfamiliar.

The Takata inflator recalls (13V-133, 14V-355, 15V-321, 16V-342, 19V-749, 20V-200) remain open until every position is remedied. Fuel pump recalls 20V-200 and 21V-002 carry 10-year / 150,000-mile coverage. Check every six months; new campaigns can appear years after production ends.

Pre-Purchase Inspection Checklist: What to Verify Before You Buy or Keep

A focused 30-minute inspection reveals the high-dollar defects before you commit. Bring a flashlight, mirror, and OBD-II scanner capable of reading pending codes.

Cold Start and Idle

Listen for timing chain rattle on the 2GR-FE (indicates tensioner wear). Watch for blue smoke, valve stem seals, not head gasket. Let the engine reach operating temperature.

Check the right-rear and left-front block-head junctions with a mirror. Any damp film or crystalline residue signals active seepage. UV dye in the coolant confirms the source if ambiguous.

Brake Pedal Hold Test

With the engine running, apply firm steady pressure to the brake pedal for 30 seconds. The pedal should not sink. If it does, the master cylinder is bypassing internally, recall 20V-344 applies.

Verify the repair was completed by checking the service history for the updated master cylinder part number (47201-0K010 or later).

EPS Assist Feel (V6 Only)

Turn the steering lock-to-lock at idle. Feel for notchy resistance, sudden heavy spots, or a brief loss of assist that returns. No codes may be stored.

The ZJB warranty covers the rack assembly if the VIN qualifies. I4 models use column-assist EPS and do not share this failure mode.

Figure-Eight Transfer Case Test (AWD Limited/Platinum)

Drive slow figure-eights in a parking lot with windows down. Listen for a groan or shudder at 15, 25 mph. That is clutch pack wear.

Three-cycle fluid flush (TSB DR006-07) may resolve it. Persistent shudder means the transfer case needs replacement.

Recall and Campaign Verification

Run the VIN through NHTSA.gov and the Toyota Owner portal. Confirm all Takata positions, brake master cylinder, fuel pump, and EPS campaigns show "REMEDIED." Ask the seller for repair orders. Missing documentation is a negotiation point.

Rear Cargo Area Water Check

Pull back the cargo floor carpet. Feel for dampness at the spare tire well and left rear quarter panel. Water indicates clogged sunroof drains.

The body ECU under the driver seat is the real casualty.

Ownership Action Plan: Monitoring, Maintenance Intervals, and Fluid Specs That Actually Matter

The factory maintenance schedule understates several critical intervals for this platform. Adjust based on the defect profile.

Monitor coolant level monthly at the reservoir cold. A drop of more than 1/4 inch in six months warrants a hydrocarbon test. Check brake pedal feel every oil change.

If travel increases, schedule the master cylinder recall. For V6 owners, note any steering effort change at parking speeds, that is the EPS warning sign. Keep a printed copy of warranty enhancements ZJB, ZJC, and 20TA09 in the glove box.

Dealers rotate staff; the letter speaks for you.

When to DIY vs. When to Require Techstream: EPS Calibration, ABS Bleed, Transfer Case Service

Some tasks are genuine DIY territory. Others need the Toyota Techstream scan tool for calibration or bleed sequences. The line is firm.

Safe DIY Tasks

• Transfer case fluid flush (drain plug, fill plug, 1.3 qt x 3 cycles)
• Transmission drain/refill (drain plug, overflow plug, WS ATF)
• Sunroof drain cleaning (roof access, weed-whacker line, verify rocker exit)
• EVAP purge valve replacement (one 10 mm bolt, electrical connector)
• Rear hatch strut replacement (flat blade, helper, 15 minutes)
• Cabin and engine air filters

Requires Techstream or Dealer

• EPS rack replacement: zero-point calibration and torque sensor learning are mandatory. Without them, the system defaults to failsafe mode (heavy assist) and sets C1511/C1512.
• Brake master cylinder replacement: ABS bleed sequence (Solenoid-by-solenoid activation) cannot be replicated with pressure or vacuum bleeders alone.
• Takata airbag inflator replacement: SRS system disarm/arm sequence, seat occupancy sensor recalibration.
• Head gasket replacement: VVT learn values reset, throttle body relearn, coolant bleed procedure with vacuum fill.
• Transfer case actuator replacement (if shudder persists after flush): clutch touch-point learn.

Independent shops with a current Techstream subscription ($1,500/year) can perform all the above. Verify the shop has the J2534 pass-thru device and a Windows laptop. Shops without Techstream will either sublet the calibration or return a vehicle with unresolved codes.

Real-World Repair Costs: Dealer vs. Independent vs. Warranty Coverage Scenarios

Costs vary by region and labor rate. The table below reflects 2024, 2025 survey data from repair orders shared on enthusiast forums and independent shop invoices.

If your VIN qualifies for ZJB, ZJC, or 20TA09, the dealer repair is free. Independents cannot bill Toyota for warranty enhancements. For non-covered repairs, independents save 30, 40% on labor and often use OEM parts.

Always confirm the shop has Techstream for any repair requiring calibration. A $2,000 EPS rack job that skips zero-point calibration is a $2,000 paperweight.

Climate and Geography Factors: Zone A Takata Risk, Salt Belt Corrosion, Heat-Related Degradation

Takata rupture probability is highest in Zone A (FL, TX, AL, GA, HI, LA, MS, SC, PR, USVI, Guam, Saipan). Unrepaired inflators in these states should be treated as "do not drive." Salt-belt roads accelerate brake master cylinder corrosion and EPS rack housing rot. Wash the undercarriage monthly in winter.

Hot, dry climates (AZ, NV, inland CA) crack dashboards, brittle sunroof drains, and degrade EVAP canisters. Park in shade; use a dash cover. High altitude increases torque converter shudder sensitivity, thinner air raises engine load at lockup.

Decision Framework: Repair Thresholds, Sell-Triggers, and Long-Term Viability by Mileage Band

Under 80k miles: fix everything under warranty extensions. 80k, 120k: repair head gaskets and transfer case if shudder appears; budget $4k, $6k. 120k, 160k: defer head gasket seepage if monitoring only; replace transfer case only if flush fails. Over 160k: treat as run-to-failure on non-safety items. Sell triggers: unrepaired Takata in Zone A, EPS loss on V6, master cylinder bypass.

The 2GR-FE and U660E easily pass 250k with fluid discipline. Your exit point is when cumulative repair estimates exceed 40% of retail value.

Frequently Asked Questions

Does the 2013 Highlander have a timing belt or chain?

The 2GR-FE V6 and 1AR-FE I4 both use timing chains. No replacement interval exists. Listen for cold-start rattle indicating tensioner wear.

Is the 2013 Highlander AWD full-time or part-time?

Base AWD is full-time with open center differential and brake vectoring. Limited/Platinum add a clutch-pack transfer case for active torque distribution.

What transmission fluid does the 2013 Highlander take?

Toyota WS ATF (part 08886-02305) only. Capacity is 6.9 quarts for drain and refill. Do not use universal or multi-vehicle fluids.

How do I know if my head gasket is leaking?

Check the right-rear (cylinder 6) and left-front (cylinder 3) block-head junctions for damp film or dried coolant residue. Hydrocarbon test confirms internal leakage.

Verified Summary: What's Covered, What's Not, and Your Next Steps by Situation

Safety recalls (Takata, brake master cylinder, fuel pump) are free forever. Warranty enhancements ZJB (EPS), ZJC (head gaskets), and 20TA09 (master cylinder) cover 10 years / 150k miles or unlimited miles. Transfer case, torque converter, sunroof drains, dashboard, and hatch struts have no coverage.

Check your VIN today at NHTSA.gov. Print the three enhancement letters. Schedule all open recalls.

Then follow the adjusted maintenance table. If you're buying, run the pre-purchase checklist. If you're keeping, set calendar reminders for fluid intervals.

The platform rewards diligence.
