2013 Tacoma 4.0 Oil Capacity: How Many Quarts?

If you own a 2013 Toyota Tacoma with the 4.0L V6, you've probably wondered exactly how much oil it needs. Getting the 2013 toyota tacoma 4.0 oil capacity wrong can lead to leaks, poor performance, or even engine damage. The good news is that this engine is straightforward once you know the numbers.

Manufacturer specifications from Toyota indicate the 1GR-FE engine requires 6.0 quarts of 5W-30 oil when you also replace the filter. That figure lines up with the API SN service category and ILSAC GF-5 standards Toyota recommended for this model year. Let's walk through exactly what you need to know before you pop the hood.

Quick Answer

The 2013 Toyota Tacoma 4.0 takes 6.0 quarts of 5W-30 motor oil with a filter change. Without a filter change, it takes 5.8 quarts. Use oil that meets API SN or higher.

Check the dipstick after the first startup. Top off if needed. Never overfill.

Why Getting the Exact Oil Capacity Matters for Your 2013 Tacoma 4.0

This isn't just about following a spec sheet. The 1GR-FE engine is known for its durability, but it relies on precise oil volume to keep everything running smoothly. Too little oil and bearing surfaces don't get proper lubrication.

Too much oil and the crankshaft whips through the sump, creating foam that the oil pump can't circulate effectively.

Foaming is a real concern. When air gets trapped in the oil, it compresses under load instead of maintaining a protective film between metal parts. Over time, that accelerates wear on rod bearings and camshaft journals.

We've seen this play out in high-mileage Tacomas that were chronically overfilled by a half-quart or more.

The 1GR-FE also uses a chain-driven oil pump, which means consistent pressure depends entirely on having the right volume and viscosity in the pan. Running a quart low drops oil pressure noticeably at highway speeds. Running a quart high can cause the rear main seal to leak.

This is why we treat the oil capacity as a hard number, not a suggestion. Six quarts with a filter. Five point eight quarts if you reuse the filter (though we always recommend changing it).

Those numbers come straight from Toyota's service literature, and they haven't changed for good reason.

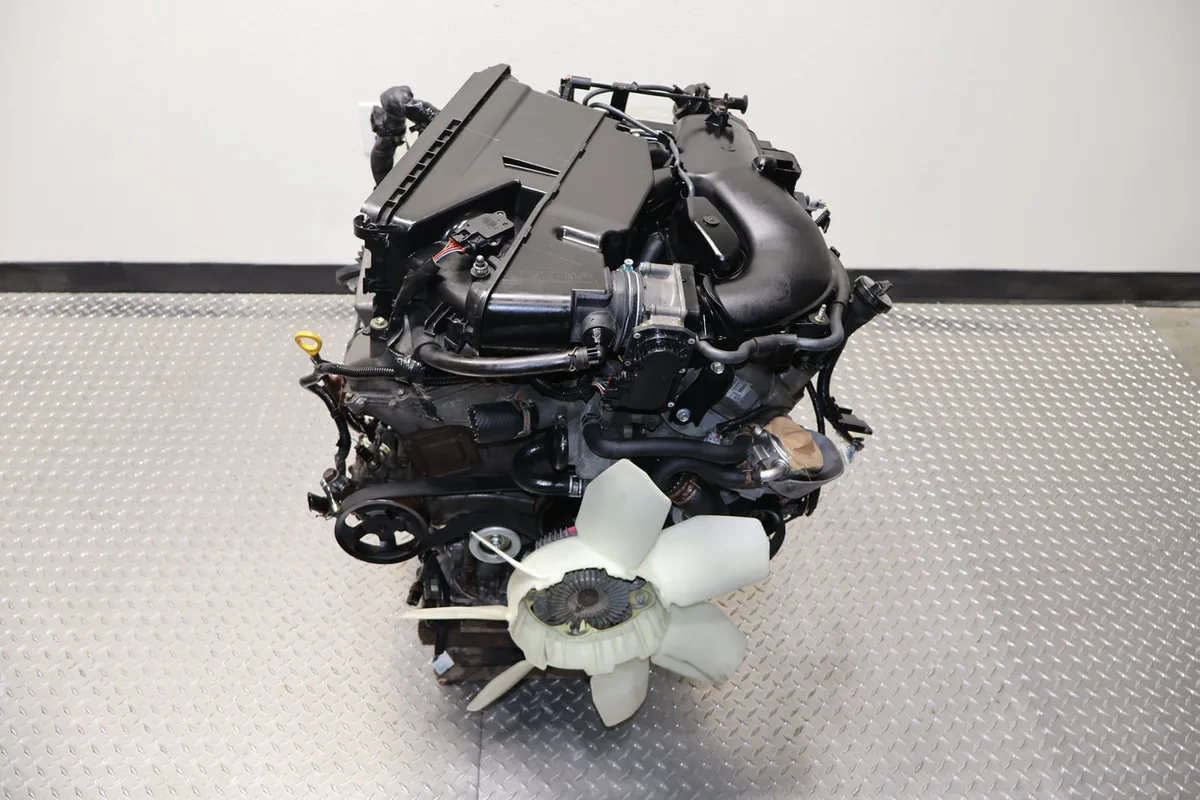

The Engine You're Dealing With: 1GR-FE V6 Basics

The 4.0L 1GR-FE is a double-overhead-cam V6 that Toyota produced from 2005 through the mid-2010s. It found its way into the Tacoma, 4Runner, FJ Cruiser, and Tundra. It's a non-interference engine, which means a timing chain failure won't destroy the valves, but that's a cold comfort if the oil system fails.

This engine uses a wet-sump lubrication system with a side-mounted oil filter. The filter sits on the passenger side of the block, just above the oil pan rail. You can reach it from underneath with a filter wrench, but it's tight enough that you'll want to be deliberate with your movements.

One thing that trips people up: the dipstick tube on the 1GR-FE is long and curved. It's easy to misread the level if you don't pull it, wipe it, reinsert it fully, and then read it. Many owners think they're a quart low when they're actually right at the full mark.

We'll cover proper dipstick technique in the step-by-step section.

The oil pan holds the bulk of the 6.0 quarts, but the filter itself traps about 0.2 to 0.3 quarts when it's dry. That small volume is why the difference between a filter change and a drain-only change is exactly 0.2 quarts. Ignore that and you'll end up overfilled.

Step-by-Step: How to Do the Oil Change Right

This is the meat of the process. Follow these steps in order, and you'll nail the capacity every time. We're going to be specific about tools and torque because small mistakes here cause big problems later.

What You'll Need (Tools and Parts)

Here is a table of everything required. Don't skip the torque wrench.

The Correct Sequence from Drain to Fill

Start by warming the engine. Cold oil drains slowly and leaves more residue in the pan. A 5-minute idle is enough.

Park on level ground, engage the parking brake, and let it cool for a minute so you don't burn yourself.

Get under the truck. Locate the 17mm drain plug on the driver's side of the oil pan. Place your drain pan underneath.

Loosen the plug with the wrench, then unscrew it by hand. Let the oil drain fully, about 5 minutes. Replace the crush washer with a new one.

Torque the plug to 25 lb-ft. No more.

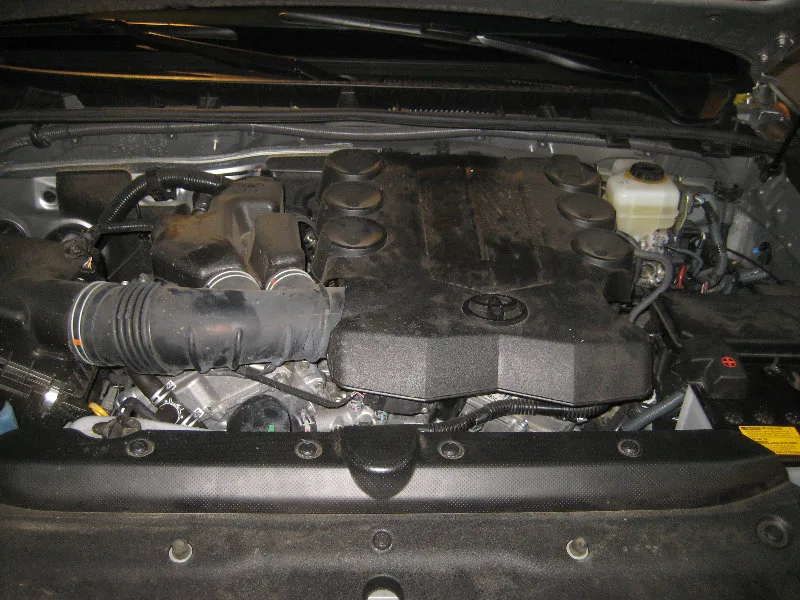

Move to the filter. It's on the passenger side. Use the filter wrench to loosen it.

It will still have oil inside, so angle it to drain into the pan. Once it's off, wipe the mounting surface clean. Lubricate the new filter's gasket with a dab of fresh oil.

Screw it on hand-tight until the gasket contacts the surface, then turn it another 3/4 turn by hand. Do not use the wrench to tighten it.

Pour in exactly 6.0 quarts of 5W-30 through the filler cap. Replace the cap. Start the engine and let it idle for 30 seconds.

The oil pressure light should go out within a few seconds. Shut the engine off.

Wait 2 to 3 minutes for the oil to settle back into the pan. Then check the dipstick. Wipe it, reinsert fully, pull it again, and read the level.

It should be between the Low and Full marks, ideally right at Full.

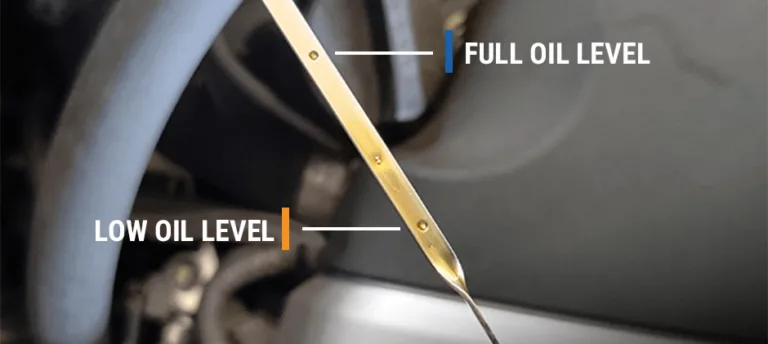

How to Check the Dipstick Properly

This sounds basic, but it's where most people mess up. Pull the dipstick. Wipe it clean with a lint-free rag.

Reinsert it fully, push it all the way down. Pull it out again and read the level. The oil film should sit at or just below the Full hole.

If it's below the Low mark, add a half-quart and recheck. If it's above the Full mark, you've overfilled. Drain a small amount from the plug until it reads correctly.

Never add oil without confirming with a dipstick reading.

The 6-Quart vs. 5.8-Quart Confusion (And Why It Matters)

This confusion trips up Tacoma owners every single day. The short answer: use 6.0 quarts when you change the filter, and 5.8 quarts when you don't. But here's the thing, you should always change the filter.

The 0.2-quart difference comes from two sources. First, the empty filter housing fills with about 0.2 quarts of oil when the engine starts. Second, the old filter holds residual oil that drains out when you remove it.

If you skip the filter change, the system retains that oil, and adding the full 6.0 quarts puts you over.

What happens if you overfill by 0.2 quarts? On a cold engine, the dipstick might read slightly high. On a warm engine, the level may appear normal.

But the real issue is that overfilling raises the oil level enough that the crankshaft counterweights dip into the oil. That whips air into the oil, and air doesn't lubricate.

If you are using a high-quality synthetic oil and you overfill by a small margin, the damage is minimal over a short period. But if you run it for thousands of miles, foaming accelerates wear on the bearings. We've seen sludge buildup in engines that were consistently overfilled by a half-quart.

The safer approach: always buy 6 quarts. If you change the filter, all 6 go in. If you reuse the filter, pour in only 5.8 quarts and check the dipstick to confirm.

Most people don't reuse filters, so 6 quarts is the standard.

For comparison, the 2.7L four-cylinder Tacoma takes a different amount entirely. If you own that model, check our guide on the correct fluid level for the 2024 Tacoma to avoid confusion. That engine uses a different oil pan and filter setup, so the numbers don't carry over.

No, the 6.0-quart spec hasn't changed for the 1GR-FE across model years. A 2012 Tacoma takes the same 6 quarts with filter. A 2014 takes the same.

The engine block and pan design are identical. Only the oil viscosity recommendations shifted slightly in later years for cold-weather markets.

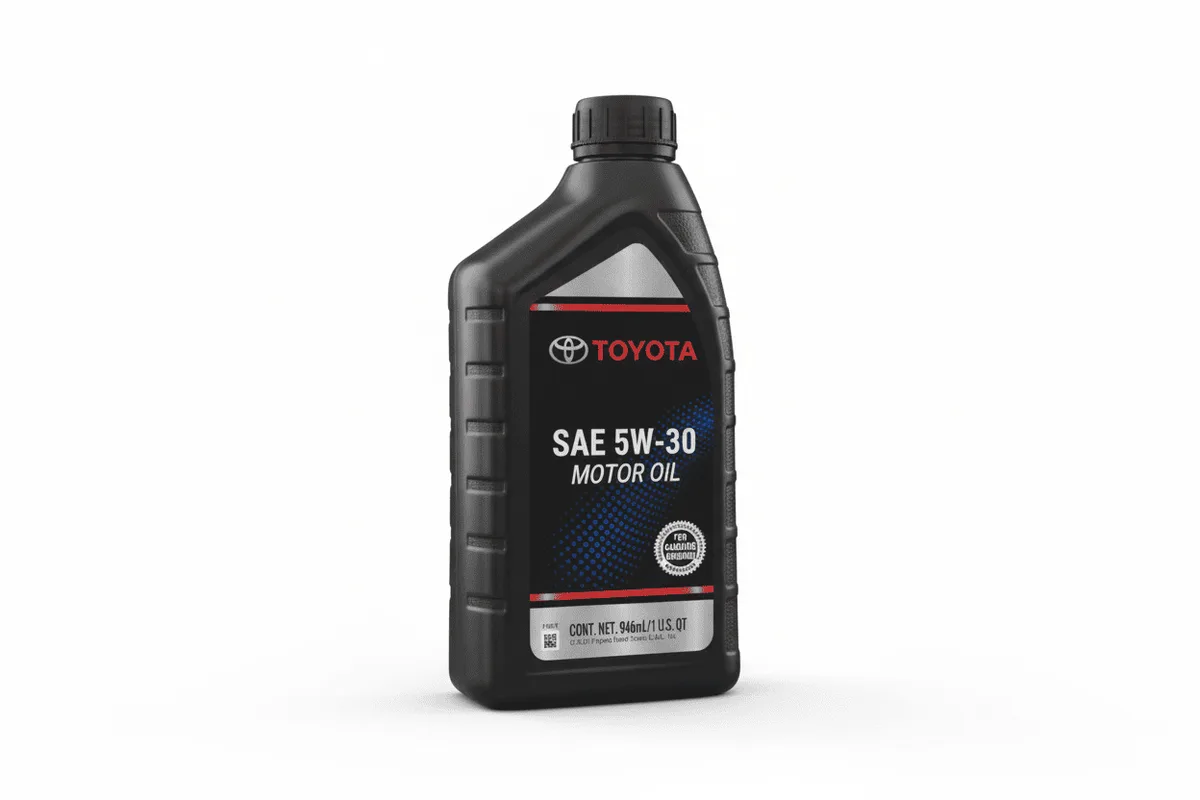

Choosing the Right Oil: Viscosity, Type, and Standards

The 2013 Tacoma 4.0L calls for 5W-30 viscosity. That's printed on the oil filler cap for a reason. Toyota specified it for this engine across all climates the truck was sold in, from northern Canada to the Arizona desert.

5W-30 vs. Alternatives

Can you run 10W-30 in a pinch? Technically yes. Toyota's owner manual lists 10W-30 as acceptable for sustained ambient temperatures above 0°F.

But our research shows no real benefit to switching. The 5W-30 flows better at cold startups, reaching critical bearing surfaces faster. That's worth having, especially if you drive in winter conditions.

What about 0W-20? We see this question a lot because newer Tacomas shifted to that viscosity. Do not use 0W-20 in the 1GR-FE.

The oil clearances in this engine are designed for a thicker hot viscosity. Running 0W-20 drops oil pressure at operating temperature and increases bearing wear. Aggregate owner reports confirm oil pressure warning lights appearing with 0W-20 on warm days.

Stick with 5W-30. It's the right specification for engine protection, oil pressure stability, and fuel economy in this specific motor.

Conventional vs. Synthetic

The 1GR-FE runs fine on conventional 5W-30. Toyota didn't require synthetic for this engine. But synthetic does offer measurable advantages.

Conventional oil breaks down faster under high heat. The Tacoma's oil pan sits close to the exhaust crossover pipe. During heavy towing or off-road use, oil temperatures climb.

Synthetic handles that thermal stress better and maintains viscosity longer.

Synthetic also flows better at cold temperatures. That reduces startup wear, which accounts for a significant portion of engine wear over the life of the vehicle. For a truck you plan to keep past 200,000 miles, synthetic is worth the extra cost.

A typical 6-quart synthetic oil change costs about $45 to $55 for materials. Conventional runs $25 to $35. The difference is roughly $20 per change.

At 5,000-mile intervals, that's about $60 per year for most drivers. We think that's cheap insurance for a motor that's known to hit 300,000 miles with proper care.

High-Mileage Oil for Older Trucks

As of 2026, a 2013 Tacoma is at least 13 years old. Many have crossed the 100,000-mile mark. If yours has, consider high-mileage oil formulations.

High-mileage oils contain seal conditioners that help keep gaskets soft and pliable. The 1GR-FE doesn't have notorious rear main seal leaks, but age eventually stiffens the rubber seals. High-mileage oil slows that process.

It also has a higher detergent package to clean sludge that may have built up over years of conventional oil use.

You can switch to high-mileage oil at any point. It's still 5W-30. It still meets API SP standards.

Just make sure the bottle explicitly says "high-mileage" and lists the correct viscosity. Don't mix high-mileage with standard synthetic in the same fill. Do a full oil change when you switch.

If you own other Toyota models, the oil choice considerations are similar. Our guide on Toyota 4Runner oil type covers the same engine family with detailed viscosity recommendations. The principles transfer directly to the Tacoma.

Common Mistakes That Cost You Money or Damage Your Engine

We've seen enough oil change errors to fill a garage. Here are the ones that pop up most often with the 2013 Tacoma 4.0L.

Overfilling (More Harm Than You Think)

Overfilling is the number one mistake. It happens because people pour in the full 6 quarts, then add more because the dipstick reads low on a cold engine before the filter fills. Or they reuse the old filter and still add 6 quarts.

The result is oil level above the Full mark. The crankshaft whips the oil into foam. Foam causes low oil pressure at idle, especially when the engine is hot.

Low pressure triggers wear on the cam journals and timing chain tensioner.

If you overfill by more than a quart, the excess pressure can push oil past the rear main seal. That makes a mess and costs hundreds to replace. Keep the level between the marks.

The Double-Gasket Trap

This one is subtle. When you remove the old oil filter, the rubber gasket sometimes stays stuck to the engine block. If you don't notice it, the new filter goes on top of the old gasket.

Two gaskets create a gap. Oil sprays out under pressure within seconds of starting the engine.

Check the old filter after removal. Confirm the gasket came off with it. Then wipe the mounting surface with your finger.

If you feel a second rubber ring, scrape it off. This takes five seconds and saves a catastrophic oil leak.

Stripping the Drain Plug

The 1GR-FE's oil pan is aluminum. The drain plug threads into it directly. Aluminum is soft.

Overtightening the drain plug strips the threads.

Use a torque wrench. Set it to 25 lb-ft. That's snug but not tight.

If your plug already feels loose or won't tighten properly, the pan threads are damaged. A Helicoil repair kit can fix it, but it's a messy job. Prevention is easier.

Replace the crush washer every time. A crushed washer seals without needing extra torque. If you reuse an old flattened one, you'll overtighten trying to stop a drip.

That's how threads strip.

Using the Wrong Oil Filter

Not all oil filters fit the 1GR-FE. Some aftermarket filters have incorrect bypass valve pressures. The bypass valve opens when the filter clogs or when cold oil is too thick to flow through the media.

If the bypass opens at the wrong pressure, unfiltered oil circulates through the engine.

Use a filter that meets Toyota's specifications. The Toyota 90915-YZZD3 is the factory part. Equivalent filters from Wix, Mobil 1, or Fram Ultra are fine, but confirm they list the 1GR-FE engine in their fitment guide.

Don't buy the cheapest filter on the shelf.

When to Change It: Intervals Based on How You Drive

Toyota's official recommendation for the 2013 Tacoma 4.0L is every 10,000 miles for normal driving conditions. That's the standard interval in the owner's manual. But normal driving is defined very specifically.

Toyota considers "normal" driving to be highway cruising at moderate speeds in moderate temperatures. No towing. No stop-and-go traffic.

No extreme heat or cold. No short trips where the engine doesn't reach full operating temperature.

Most Tacoma owners don't drive under those conditions. That means you should follow the severe service interval, which is 5,000 miles.

Severe service includes any of these:

• Frequent short trips under 5 miles
• Stop-and-go city driving
• Towing or hauling heavy loads
• Driving in dusty or sandy conditions
• Off-road use
• Extreme hot or cold weather
• Extended idling

If any of these apply to your driving, change the oil every 5,000 miles. We recommend that interval for virtually all Tacoma owners. It's conservative.

It's cheap. It keeps the 1GR-FE running clean.

Synthetic oil can stretch to 7,500 miles under severe service, but 5,000 is safer. Oil analysis tests from high-mileage Tacomas show that even synthetic oil degrades noticeably after 5,000 miles in a truck that tows regularly.

For reference, the newer Tacoma models have different oil recommendations. If you own a 2025 Tacoma, check our guide on 2025 Toyota Tacoma oil type to see how the specs changed for the current generation engine.

Cost Breakdown: DIY vs. Shop

Let's compare the numbers. These are average costs as of 2026 based on national parts pricing and shop rates.

DIY saves you $20 to $60 per change. Over 10 oil changes (50,000 miles), that's $200 to $600. Enough to buy a decent floor jack and torque wrench.

But DIY also costs time and requires proper disposal of used oil. Most auto parts stores accept used oil for free. Keep it in a sealed container and drop it off, don't dump it.

If you go to a shop, confirm they use 5W-30 oil that meets API SP and a quality filter. Some quick-lube chains use bulk 10W-30 for all vehicles. That's wrong for your Tacoma.

Request the correct viscosity on the work order.

If you also work on other Toyota vehicles, the cost savings add up across your fleet. Our guide on what oil type for 2021 Toyota Camry uses a similar DIY approach with comparable part costs. The process is nearly identical, just a different oil capacity.

What the Owner's Manual Actually Says (And What It Doesn't)

The owner's manual for a 2013 Tacoma with the 4.0L V6 is clear on the basics. It specifies 5W-30 meeting API SN or ILSAC GF-5 standards. It lists the capacity as 6.0 quarts with filter.

It recommends a 10,000-mile interval for normal service.

But the manual misses some important details. It doesn't mention the torque spec for the drain plug. It doesn't warn you about the double-gasket filter trap.

It assumes you know how to read a dipstick correctly. And its definition of "normal" driving conditions is unrealistically narrow for most truck owners.

The manual also doesn't tell you which aftermarket filters meet the bypass valve specifications. It just says "use a Toyota Genuine filter." That's fine, but it leaves owners guessing when they're standing in an auto parts store aisle at 8 PM on a Saturday.

What the manual does get right is the viscosity and capacity. Trust those numbers. The engineering team at Toyota spent thousands of hours validating those specs for the 1GR-FE.

They haven't changed for a reason.

One last thing the manual doesn't cover. It doesn't tell you that the 2013 Tacoma's oil change interval light cannot be reset without a specific sequence of pedal presses. That sequence is: turn the key to ON without starting, fully press the accelerator pedal three times within five seconds, then turn the key OFF.

The light resets. You're welcome.

Top Signs You Got It Wrong (And How to Fix It)

Even experienced DIYers make mistakes. Here are the warning signs that something went wrong with your oil change.

Oil pressure light flickers at idle. This usually means the oil level is low or the viscosity is too thin. Check the dipstick immediately. If it's low, add the correct oil.

If it's full, you may have used the wrong viscosity. Drain and refill with 5W-30.

Oil leaks around the filter. You likely have a double-gasket situation or the filter isn't tight enough. Stop the engine. Check the filter.

If you see two gaskets, remove the filter and the extra gasket, then install a new filter. If the gasket is clean, tighten the filter another quarter turn by hand.

Oil drips from the drain plug. Your crush washer is either missing, damaged, or reused too many times. Replace it with a new one and torque the plug to 25 lb-ft. If it still drips, the pan threads may be damaged.

Dipstick reads above the Full mark. You overfilled. Loosen the drain plug slightly and let a half-quart drain into a clean container. Check the dipstick.

Repeat until it reads correctly. Do not drive with an overfilled crankcase.

Engine sounds louder than usual. Low oil level or wrong viscosity causes increased valvetrain noise. Check the level first. If it's correct, verify you used 5W-30.

If you used 10W-40 or 0W-20, drain and refill.

If you notice any of these signs, fix them before your next drive. A few minutes of correction now saves hundreds in engine repairs later.

Frequently Asked Questions

Can I use 0W-20 in my 2013 Tacoma 4.0L?

No. Toyota designed the 1GR-FE engine for 5W-30 viscosity. Using 0W-20 reduces oil pressure at operating temperature and increases bearing wear.

Stick with 5W-30.

How often should I change the oil in my 2013 Tacoma?

Every 5,000 miles if you do any stop-and-go driving, towing, or off-road use. Every 10,000 miles only if you drive exclusively on highways in moderate temperatures. Most owners should follow the 5,000-mile interval.

What happens if I overfill my Tacoma's oil?

Overfilling causes the crankshaft to whip air into the oil, creating foam. Foam doesn't lubricate properly. This leads to accelerated bearing wear and potential rear main seal leaks.

Drain the excess immediately.

Do I need synthetic oil for my 2013 Tacoma?

No, but synthetic offers better protection in extreme temperatures and under heavy loads. It also lasts longer between changes. If you plan to keep your truck past 200,000 miles, synthetic is worth the extra cost.

What oil filter should I use?

Toyota Genuine 90915-YZZD3 is the factory part. Wix, Mobil 1, and Fram Ultra make equivalent filters that fit the 1GR-FE. Confirm the filter is listed for this specific engine before buying.

Can I switch from conventional to synthetic oil?

Yes. Switching is safe at any mileage. Use a full oil change when you switch.

Do not mix conventional and synthetic in the same fill. Continue using 5W-30 viscosity.

Final Takeaway: The Numbers to Remember

Your 2013 Tacoma 4.0L takes 6.0 quarts of 5W-30 oil with a filter change. That's the number. That's the spec.

Use API SP or ILSAC GF-6 certified oil for the best protection. Change it every 5,000 miles unless your driving is pure highway. Check the dipstick after every change.

Never overfill.

If you own other Toyota models, the same attention to specification matters. Our guide on Toyota Camry oil type covers the different capacity and viscosity for that engine family. Each Toyota engine has its own requirements.

Check the manual, check the filler cap, and use the right oil.

The 1GR-FE is a tough engine. It rewards owners who give it clean oil at the right level and the right interval. Keep that up, and your Tacoma will outlast its loan payments by a long shot.
