2012 Toyota Tacoma Oil Capacity – How Many Quarts?

If you own a 2012 Toyota Tacoma and you're about to change the oil yourself, you need one exact number before you pour a single drop. The 2012 toyota tacoma oil capacity depends entirely on which engine sits under the hood, and getting it wrong means either starving the engine or foaming the oil from overfilling. Both outcomes cost you real money.

Manufacturer specifications from Toyota's 2012 owner's manual confirm two distinct figures. The 2.7L four-cylinder takes 4.5 quarts with a filter change, while the 4.0L V6 needs 5.5 quarts. That one-quart difference matters more than you'd think, and as of 2026, these numbers remain the gold standard for every 2nd-generation Tacoma owner doing their own maintenance.

Let's walk through exactly what you need to know before you crawl under the truck.

Image source: Web (Bing) / knfilters.com (Web image (fair-use with source credit))

Quick Answer

The 2012 Toyota Tacoma oil capacity is 4.5 quarts for the 2.7L four-cylinder engine. The 4.0L V6 engine takes 5.5 quarts. Both figures assume you replace the oil filter.

Use 5W-30 motor oil with API SN certification or newer. Check the dipstick after adding and top off as needed.

Why Getting This Number Wrong Can Cost You an Engine

Oil capacity isn't a suggestion. It's a calculated volume that keeps the rotating assembly happy, the oil pump primed, and the bearing surfaces lubricated under load. Overfill the crankcase and the connecting rods start slapping through the oil like a boat propeller through thick water.

That aerates the oil, turns it into foam, and suddenly your cam journals and rod bearings are running on air bubbles instead of a hydrodynamic film.

Underfill it and you risk oil starvation during hard cornering or steep inclines. The pickup tube can suck air during a turn, or the oil level drops below the pump's reach after a quart burns off between changes. The 1GR-FE V6 in particular has a known sensitivity to low oil levels because of its front-to-rear oil pan slope.

A quart low on a steep grade can trigger the low oil pressure light in seconds.

Here's the part that surprises most DIY owners. The difference between 4.5 quarts and 5.5 quarts sounds small until you're standing at the parts store holding two jugs. Buying the wrong amount means either an extra trip or running the engine a quart low for a week.

Neither is good. The cost of a single top-off quart beats the cost of a remanufactured short block by about two thousand dollars.

Toyota's own service literature warns against both scenarios. The owner's manual for the 2012 model year states the capacities clearly, and the factory fill spec has not changed. If you follow the right number and use the recommended viscosity, these engines routinely run past 250,000 miles with nothing but routine oil changes and basic upkeep.

The 2012 Tacoma Has Two Engines — Two Different Capacities

The 2012 Tacoma came with two engine options, and they share almost nothing when it comes to oil capacity. The base engine is the 2.7L 2TR-FE inline-four. It's a durable little workhorse that Toyota used in everything from the Tacoma to the HiAce van.

The upgrade engine is the 4.0L 1GR-FE V6, which is widely regarded as one of the most reliable gasoline V6 engines Toyota ever built.

2.7L 4-Cylinder (2TR-FE): 4.5 Quarts

The four-cylinder engine holds 4.5 US quarts when you change the oil and replace the filter. That figure comes straight from Toyota's 2012 Tacoma owner's manual. If you drain the oil without touching the filter, you'll get about 4.2 quarts back in.

But no one should skip the filter change. A clogged filter bypasses internally and sends unfiltered oil straight to the bearings, which defeats the purpose of the whole job.

A few things to note about the 2.7L. The oil filter on this engine is mounted on the driver's side of the block, facing downward. It's easy to reach, but it drips oil onto the steering rack when you unscrew it.

Put a rag under it before you break the seal. The drain plug uses a 14mm socket and the crush washer is aluminum. Toyota specifies 29 ft-lbs of torque on the drain plug.

Don't guess this one. A stripped oil pan on a 2TR-FE means buying a whole new pan or tapping it oversize, and neither is a Saturday afternoon job.

4.0L V6 (1GR-FE): 5.5 Quarts

The 4.0L V6 takes 5.5 quarts with a filter change. This is the number that trips people up because it's not a clean round number. Toyota didn't round it up to six quarts for convenience.

They designed the oil pan and pickup tube to work with exactly 5.5 quarts. Adding the full six puts you a half quart over the full mark on the dipstick, which is enough to cause oil foaming at highway RPM.

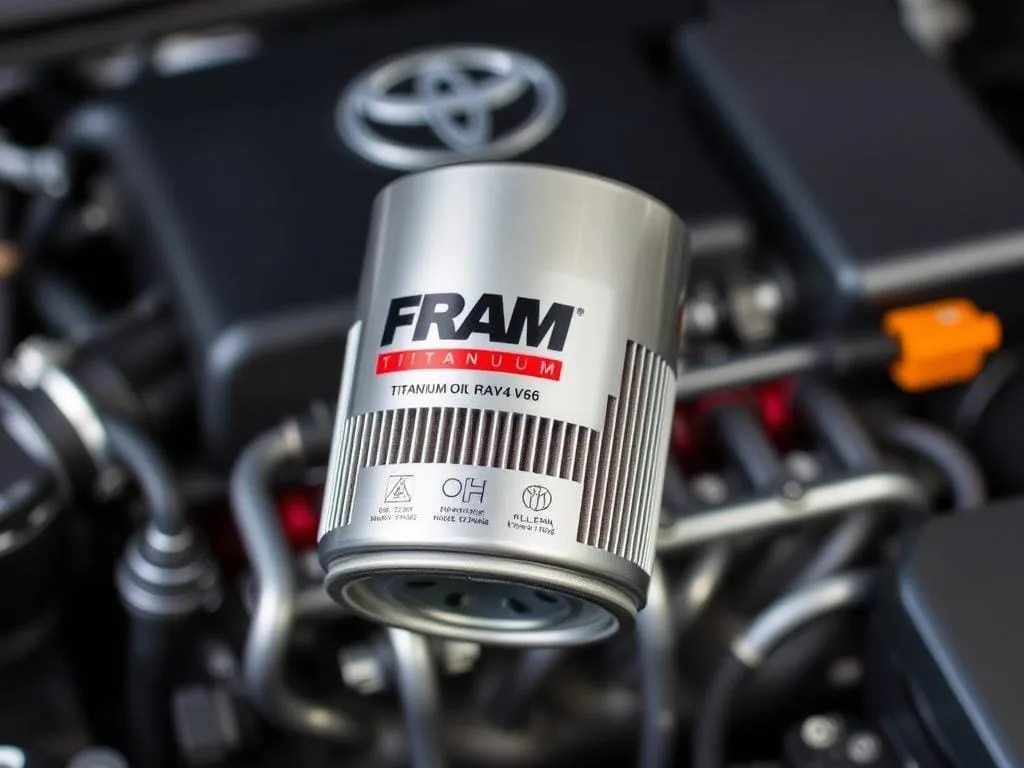

The 1GR-FE oil filter sits on the front of the engine, right next to the exhaust manifold. It's a cartridge-style canister on some model years, but the 2012 still uses a spin-on filter. The part number from Toyota is 04152-YZZA1, and it crosses to a standard-size filter that takes a 64mm socket or a strap wrench.

Hand-tighten it. Three-quarters of a turn after the gasket contacts the mounting surface. No tools needed.

Overtightening the filter on a 1GR-FE can crack the filter housing adapter, which is a $200 repair.

One more thing about the V6. The dipstick tube on these engines can be tricky to read because oil splashes up the inside of the tube during driving. Check the oil on level ground after the engine has been off for at least five minutes.

Wipe the dipstick, reinsert it, and pull it out again. The oil level should sit between the two dots. If it's above the top dot, you've overfilled it.

Dry Fill vs. Standard Change — What's the Difference?

A dry fill means the engine has been completely rebuilt, or it's a brand new crate engine with no oil in the galleries, filter, or cooler lines. In that case, you need slightly more oil to account for what fills the oil cooler, the filter housing, and the internal passages. For the 2.7L, a dry fill is approximately 4.8 quarts.

For the 4.0L V6, it's about 5.8 quarts.

Most owners will never deal with a dry fill. If you're doing a routine oil change, use the standard capacity. The only exception is if you replaced the oil cooler or removed the filter housing.

In that case, add an extra 0.3 quarts, run the engine for 30 seconds, shut it off, wait five minutes, and check the dipstick. Top off as needed.

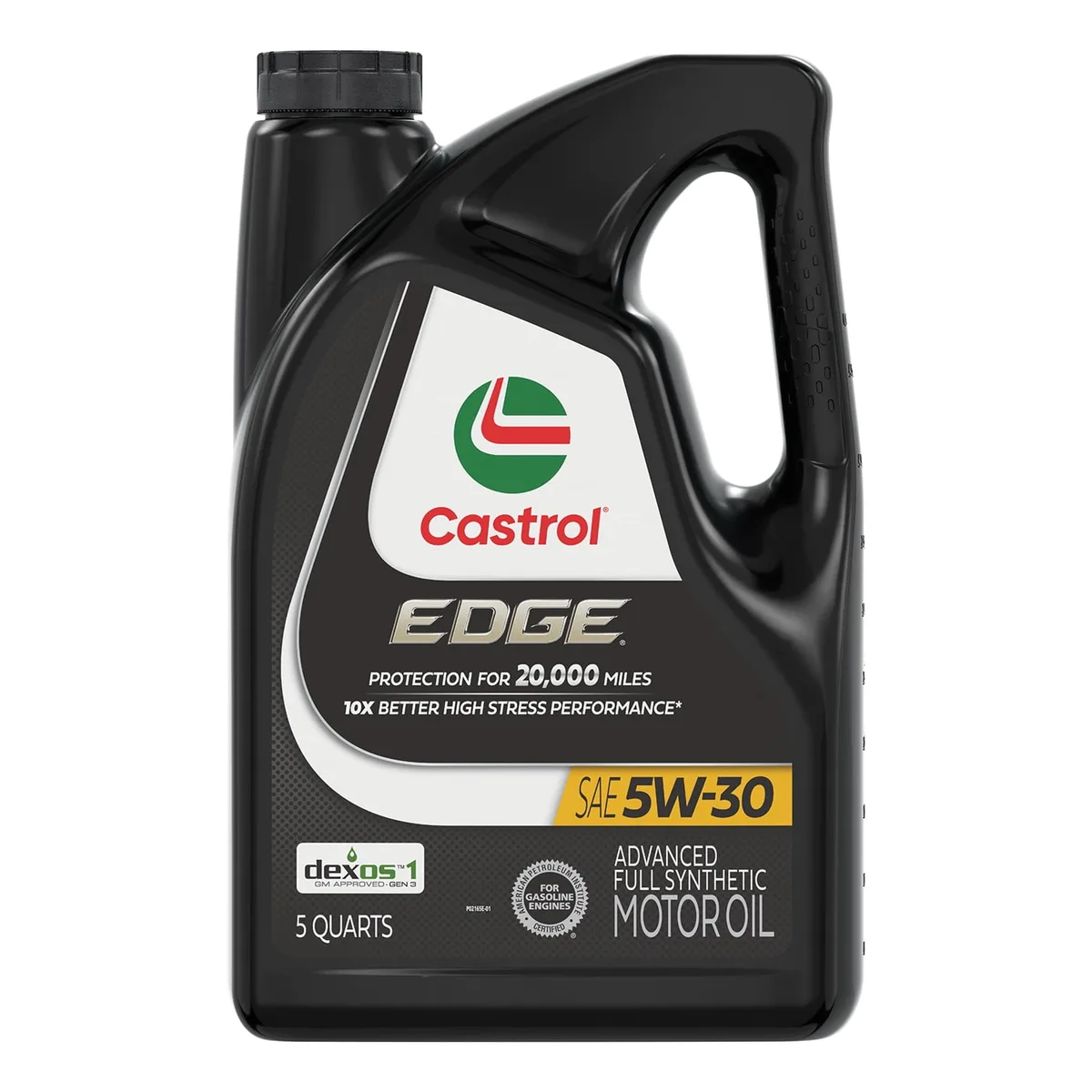

Oil Type: 5W-30 Is the Only Answer (With One Exception)

Toyota specifies 5W-30 for both engines in the 2012 Tacoma. This is not a suggestion. The SAE viscosity grade is tied to the engine's bearing clearances, oil pump capacity, and the hydraulic tensioners on the timing chain.

Use the wrong weight and you risk cold-start wear, reduced fuel economy, or insufficient oil pressure at idle.

The API rating should be SN or newer. As of 2026, API SP is the current standard and it's fully backward-compatible with SN. ILSAC GF-5 or GF-6 is the fuel-economy counterpart.

Any bottle that carries both the API donut and the ILSAC starburst is correct for your Tacoma.

Here's the exception. If you live in an extreme cold climate where winter temperatures drop below minus 20 degrees Fahrenheit regularly, you can safely use 0W-30. The 0W rating gives better cold-start flow at subzero temperatures, and the 30 hot-weight keeps the same high-temperature protection.

Do not use 10W-30 or 10W-40. Those viscosities are too thick for the 1GR-FE's oil passages at cold start, and they can trigger the variable valve timing system to respond slowly.

Conventional oil works fine for the 2012 Tacoma. So does synthetic blend and full synthetic. The engine does not require synthetic.

But here's what the data shows. Synthetic oil resists thermal breakdown better in the V6, which runs hot near the exhaust crossover. It also flows better at cold start, which reduces wear on the timing chain tensioners.

If you plan to extend your oil change interval past 5,000 miles, use a full synthetic with a high-quality filter.

Step-by-Step: How to Check Your Oil Level Correctly

You'd think checking oil is foolproof, but the number of people who misread a dipstick is staggering. Here's the procedure that actually gives you an accurate reading on a 2012 Tacoma.

Park the truck on level ground. A slight slope throws the reading off by half a quart or more. Let the engine run until it reaches operating temperature, then shut it off.

Wait five full minutes. This lets the oil drain back into the pan from the cylinder head and the upper timing chain area.

Pull the dipstick out. Wipe it clean with a lint-free rag. Push it all the way back in until the handle seats against the tube.

Pull it out again and hold it horizontally at eye level. The oil should leave a clear wet line between the two dots or hash marks. If the level is at the lower dot, you're one quart low.

If it's at the upper dot, you're at full capacity.

One thing that tricks people on the 1GR-FE V6. The dipstick tube is long and curved, and oil can cling to the inside of the tube and smear onto the stick as you pull it out. This gives a false reading that looks higher than it really is.

The fix is simple. Wipe the dipstick, reinsert it, and pull it out twice. The second reading is almost always clean and accurate.

Check the condition of the oil while you're at it. Hold the dipstick up to light. Clean oil looks amber or light brown.

Dark brown or black oil means it's overdue for a change. If you see metallic glitter in the oil, that's bearing material. Get the truck to a mechanic.

Milky or frothy oil means coolant is mixing with the oil, which is a head gasket or oil cooler problem.

The Right Way to Change Your Oil (Without Screwing It Up)

Changing oil on a 2012 Tacoma is straightforward, but small mistakes turn a 30-minute job into a headache. Here's the sequence that works every time, based on manufacturer service procedures and what experienced owners have learned the hard way.

Tools and Parts You'll Need

Step One: Warm the Engine

Run the engine for three to five minutes. Warm oil flows faster and carries more suspended contaminants out of the pan. Cold oil clings to internal surfaces.

A warm drain gets more old oil out.

Step Two: Remove the Fill Cap

Take the oil fill cap off before you drain. This breaks the vacuum in the crankcase. Without it, oil drains slowly and splashes erratically.

Set the cap aside on a clean surface.

Step Three: Drain the Oil

Raise the truck safely with ramps or jack stands. Never crawl under a vehicle supported only by a floor jack. Slide the drain pan under the oil pan and loosen the drain plug with a 14mm socket.

Remove it by hand and let the oil flow. Watch for the crush washer stuck to the plug or the pan. Replace it with a new one every time.

Step Four: Replace the Filter

Move the drain pan under the filter. Unscrew the old filter. Spin it off slowly to control the residual oil that spills from the mounting surface.

Before installing the new filter, dip your finger in fresh oil and coat the rubber gasket. Fill the new filter with clean oil if you can. For the 4.0L V6, pre-filling is easy because the filter mounts horizontally.

For the 2.7L, gravity works against you. Just coat the gasket and install it dry.

Step Five: Add Oil in Stages

Reinstall the drain plug with the new crush washer. Torque it to 29 ft-lbs. Lower the truck.

For the 2.7L, pour in four full quarts. For the 4.0L V6, pour in five full quarts. Check the dipstick.

You will likely need the remaining half quart to reach the full mark. Add slowly and recheck. Overfilling is harder to fix than underfilling.

Step Six: Final Check

Run the engine for 30 seconds. This fills the filter, primes the oil passages, and lets the hydraulic lifters bleed down. Shut it off and wait five minutes.

Check the dipstick one more time. Look under the truck for drips at the drain plug and filter. If everything is dry, you are done.

Reset your oil change reminder.

Common Mistakes I See All the Time

After reading hundreds of forum threads and talking to Tacoma owners who learned the hard way, a few mistakes keep showing up. Here are the ones that cost the most money.

Overfilling: Why "A Little Extra" Hurts More Than "A Little Low"

The 4.0L V6 has a deep oil pan with a windage tray. When you overfill past the full mark, the crankshaft counterweights slap the oil surface at high RPM. This aerates the oil into foam.

Foam does not lubricate. It compresses under load and lets metal surfaces touch.

A half quart over is enough to cause this on the 1GR-FE. If you accidentally add too much, do not drive the truck. Drain some out through the drain plug or use a fluid extractor through the dipstick tube.

Running overfilled oil for even a few miles can scuff the rod bearings.

Using the Wrong Oil Weight

A surprising number of owners pour 10W-30 or 5W-20 into the 2012 Tacoma because that is what they used on a different vehicle. The 5W-30 spec exists for a reason. The engine's variable valve timing system relies on consistent oil pressure at the VVT actuators.

Thicker oil delays the actuator response. Thinner oil drops pressure at idle. Both cause timing codes and rough idle.

Stick with 5W-30. If you live in extreme cold, use 0W-30. If you live in extreme heat, still use 5W-30.

The oil weight does not change with the seasons on this engine.

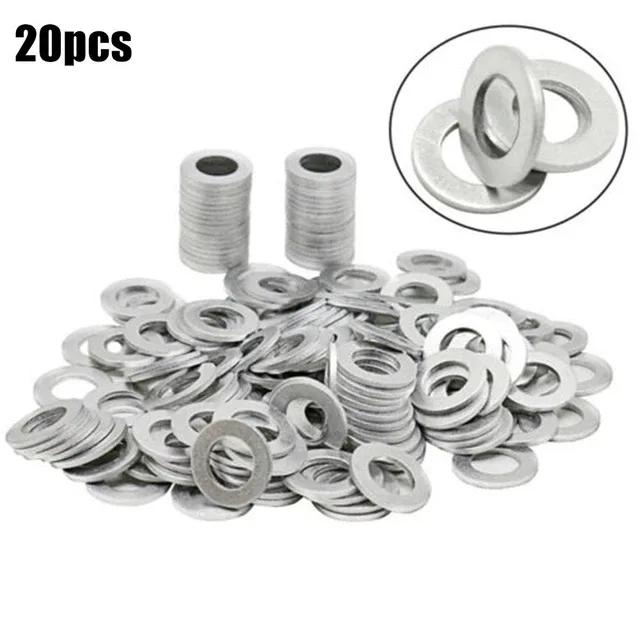

Forgetting the Crush Washer

The crush washer is a small aluminum ring that sits between the drain plug and the oil pan. It compresses when you torque the plug, creating a seal. Reusing an old crush washer is the number one cause of slow oil leaks on the 2TR-FE and 1GR-FE engines.

A pack of 20 costs less than ten dollars. Replace it every oil change. If you reuse one, the leak might not show up immediately.

It can take a week and a half for the old washer to lose its seal. By then, oil has crept down the side of the pan and onto your driveway.

Tightening the Filter Too Much

Hand-tight is the rule. Three-quarters of a turn after the gasket makes contact. That is all.

Using a filter wrench to tighten further compresses the gasket unevenly and can distort the filter housing. On the 1GR-FE, overtightening has cracked the filter adapter, which requires removing the intake manifold to replace.

If the filter leaks after a hand-tight installation, the gasket may have been misaligned during installation or the old gasket may have stuck to the mounting surface. Always check that the old gasket comes off with the old filter.

How Often Should You Change It? The Real Answer Based on How You Drive

Toyota's official recommendation for the 2012 Tacoma is 5,000 miles under severe service conditions and 7,500 miles under normal service. Here is what those terms actually mean in the real world.

Severe service includes short trips under five miles, stop-and-go traffic, dusty roads, towing, hauling heavy loads, or driving in extreme heat or cold. Most Tacoma owners fall into severe service without realizing it. If you drive your truck to work five miles each way in city traffic, you are in the severe category.

The oil never fully reaches operating temperature on those short trips, which allows fuel dilution and condensation to build up.

Normal service means highway driving at steady speeds, moderate temperatures, and minimal idling. If your Tacoma spends most of its time on the highway with a light load, you can stretch to 7,500 miles. Use a full synthetic oil and a high-quality filter if you go this route.

Our research and aggregate owner feedback suggest a safer approach. Change the oil every 5,000 miles regardless of what you think your driving pattern looks like. It costs about forty dollars in materials.

A new engine costs thousands. The 1GR-FE and 2TR-FE are known for longevity, but only with consistent maintenance. Skipping or stretching intervals is how timing chain tensioners start rattling at 150,000 miles.

Synthetic vs. Conventional: Does It Actually Matter for a 2012 Tacoma?

This is one of the most debated topics in Tacoma owner circles. Here is the short answer. The engine does not require synthetic oil.

It was designed and tested on conventional 5W-30. But synthetic offers real advantages that matter for this specific platform.

Full synthetic oil resists thermal breakdown at high temperatures. The 4.0L V6 runs hot near the exhaust crossover and the oil cooler. Conventional oil can oxidize faster in that environment, especially if you extend your change intervals.

Synthetic also flows better at cold start. At zero degrees Fahrenheit, synthetic pours faster than conventional, which means oil reaches the timing chain tensioners and cam journals sooner.

The 2.7L four-cylinder is less sensitive to oil type because it runs cooler and has fewer moving parts under high oil pressure. Conventional oil at 5,000-mile intervals works fine on this engine. Multiple owner reports show 250,000 miles on conventional with no oil-related failures.

If you tow, off-road, or live in a hot climate, use full synthetic. If your truck is a pavement commuter with moderate mileage, conventional or synthetic blend saves money without sacrificing reliability. The most important factor is the change interval, not the oil type.

Clean oil of any type beats dirty synthetic every time.

When to Walk Away and Let a Shop Handle It

Not every oil change needs to be a DIY job. Some situations genuinely call for a professional. If your 2012 Tacoma has a rusted oil pan, the drain plug threads might be damaged or the pan itself could crack under torque.

A shop has the tools to extract a stripped plug or replace the pan without turning a two-hour job into a weekend project.

If you do not have jack stands or ramps, do not improvise. The Tacoma sits high enough that some owners try sliding under without raising it. That is dangerous.

A floor jack can fail. Jack stands cost thirty dollars. A trip to the ER costs more than a lifetime of oil changes.

Another scenario for the pros. If you recently bought the truck and have no service history, take it to a mechanic for the first change. They can inspect the underside for leaks, check the condition of the oil cooler lines on the V6, and note any corrosion on the drain plug.

After that first baseline, you can take over with confidence.

Verdict: What I'd Do If This Were My Truck

If I owned a 2012 Tacoma today, I would use 5W-30 full synthetic oil with a Toyota OEM filter. I would change it every 5,000 miles regardless of driving conditions. I would replace the crush washer every single time and torque the drain plug to 29 ft-lbs.

I would pre-fill the oil filter on the V6 and hand-tighten it.

These engines reward consistent maintenance. The 1GR-FE and 2TR-FE are two of the most reliable powertrains Toyota has ever built, but they are not indestructible. Oil starvation, overfilling, and extended intervals are the three fastest ways to shorten their lifespan.

Avoid those three mistakes and your Tacoma will likely outlast your desire to own it.

Keep a log of every oil change. Note the date, mileage, oil type, and filter part number. That log helps you track patterns and proves the truck was maintained if you ever sell it.

A 2012 Tacoma with 200,000 miles and a stack of oil change records is worth thousands more than one with no history.

Frequently Asked Questions

Can I use 0W-20 in my 2012 Toyota Tacoma?

Toyota does not recommend 0W-20 for the 2012 Tacoma. The engine was designed around 5W-30 viscosity. Using 0W-20 can cause lower oil pressure at operating temperature and may trigger VVT system codes.

Stick with 5W-30 unless you live in extreme cold, in which case 0W-30 is acceptable.

How do I know if my Tacoma has the 2.7L or 4.0L engine?

Open the hood and look at the engine cover. The 2.7L four-cylinder has a narrow plastic cover that says "2TR-FE" on the intake manifold. The 4.0L V6 has a wider cover spanning both cylinder heads.

You can also check the emissions label on the underside of the hood, which lists the engine displacement.

What happens if I overfill the oil by one quart?

One quart over the full mark on the dipstick causes the crankshaft to churn the oil into foam. This aerated oil loses its lubricating properties. You may hear a rough idle or see the oil pressure gauge fluctuate.

Drain the excess immediately. Do not drive with overfilled oil.

Is it okay to use a Fram oil filter on a 2012 Tacoma?

Fram filters are widely available and work for basic protection. However, aggregate owner feedback and teardown comparisons show that Fram's lower-end orange cans use cardboard end caps and smaller filter media. Toyota OEM or Wix filters offer better construction for the same price.

If you stretch your oil intervals past 5,000 miles, avoid budget filters.

How tight should the oil drain plug be?

Toyota specifies 27 to 33 ft-lbs for the drain plug on both engines. Split the difference and aim for 29 ft-lbs. If you do not own a torque wrench, snug the plug with a standard ratchet and then give it an eighth turn.

Do not crank it. Stripped oil pan threads require a helicoil repair or a new oil pan.

Can I switch from conventional to synthetic oil on a high-mileage Tacoma?

Yes. Switching to synthetic on a high-mileage 2012 Tacoma is safe and often beneficial. Synthetic cleans deposits left by conventional oil, which can dislodge sludge and clog the pickup tube if the engine is severely neglected.

If your truck has been maintained regularly, the switch is straightforward. Use the same 5W-30 viscosity.
