The 2016 toyota 4runner problems list reads longer than most owners expect. Five years of production changes created a split between early and late 2016 builds. Brake vacuum pump failures dominate NHTSA complaints.
Frame corrosion still triggers buybacks in salt-belt states. Transfer case whine appears on forums daily but rarely leaves drivers stranded.
Aggregate data shows 1,200-plus NHTSA complaints across brakes structure and powertrain categories. The 1GR-FE V6 and five-speed automatic remain bulletproof past 200k miles with basic care. Understanding which issues are safety-critical versus annoying separates a smart buy from a money pit.
Let’s break down what actually matters.
Quick Answer
The 2016 4Runner has three major problem areas. Brake vacuum pump failure creates hard pedal feel and longer stops. Frame corrosion perforates suspension mounts in salt-belt regions.
Transfer case rear bearing whine appears around 60k miles but seldom progresses to failure. Secondary air injection pump failures cost $2,200 at dealers. Dashboard cracking is covered by a ten-year warranty enhancement.
Why the 2016 4Runner Is a Different Animal
The 2016 model year sits at a pivot point. It carries the proven 4.0-liter V6 and five-speed automatic without the eight-speed that arrived in 2020. It lacks Toyota Safety Sense-P which became standard on 2017 models.
That means no automatic emergency braking no dynamic radar cruise and no lane departure alert. For buyers who want mechanical simplicity this is a feature not a bug.
The part-time four-wheel-drive system on SR5 and TRD Off-Road uses a two-speed transfer case with a mechanical center differential lock. Limited trims get full-time four-wheel-drive with a Torsen center differential. KDSS appears on Limited and some TRD Off-Road models.
The system uses hydraulic cylinders instead of traditional sway bars. It improves articulation off-road but introduces a characteristic driver-side lean that confuses alignment shops.
Toyota built 130,000 units for the 2016 model year. Resale values hold at 60 to 65 percent of original MSRP after eight years. That is stronger than Grand Cherokee or Tahoe.
The three-row seat option on SR5 and Limited adds family utility but reduces cargo space significantly.
The Quick Reality Check: What You Need to Know Before Anything Else
Three problems carry safety consequences. Brake vacuum pump recall 20V-001 affects 183,000 vehicles across 2016 to 2019 model years. The pump can fail without warning leaving a rock-hard pedal.
Stopping distance increases dramatically. Frame recall 19V-101 covers perforation at rear suspension mounts. Toyota will replace the frame if perforation is documented.
Geographic eligibility maps exclude many southern states.
Secondary air injection failure triggers check engine lights and emissions test failures. The system injects air into the exhaust during cold starts. Pumps and switching valves corrode from road salt and condensation.
Dealer repairs run $1,800 to $2,800. Aftermarket delete kits exist but void emissions compliance in CARB states.
Transfer case whine is the loudest forum topic. The rear output shaft bearing growls between 40 and 60 mph. TSB T-SB-0017-16 labels it a characteristic noise.
Many owners drive 100k miles beyond the first whine. Rebuilds cost $3,500 at dealers. Independent shops charge $1,800 to $2,200 for bearing replacement.
Dashboard cracking on the passenger airbag cover is covered by warranty enhancement ZJB. Coverage extends ten years from original in-service date with unlimited mileage. The 2016 model year is near the cutoff.
Verify eligibility by VIN before paying for repair.
How the Major Problems Map to Mileage and Time
Failure patterns cluster around specific mileage windows. Brake vacuum pump failures peak between 40k and 70k miles. Frame corrosion appears as early as eight years in salt-belt states.
Transfer case whine typically starts at 50k to 80k miles. Secondary air injection pumps fail between 60k and 100k miles. Dashboard cracks show up around year seven regardless of mileage.
The chart above illustrates complaint density by mileage band. Data aggregates NHTSA complaints CarComplaints reports and independent shop surveys. Notice the brake cluster early and the frame cluster late.
Transfer case noise spans a wide band because many owners ignore it. SAI failures accelerate in winter climates.
Timing chain rattle on cold start appears after 150k miles. The 1GR-FE uses a single timing chain with hydraulic tensioners. Oil changes every 5,000 miles with 0W-20 synthetic prevent most tensioner issues.
Rear differential carrier bearing whine mimics transfer case noise but changes pitch with load not speed. Power rear window regulator cables snap around 90k miles. The window falls into the tailgate.
Headlight condensation affects projector units on Limited and TRD Pro trims. TSB T-SB-0094-16 describes a vent modification. Dealers often replace the entire assembly under warranty if the vehicle is within three years or 36k miles.
Steering intermediate shaft clunk appears at 30k to 50k miles. Grease per TSB T-SB-0031-16 quiets it temporarily. Replacement shafts cost $180 parts only.
Brake Vacuum Pump Recall: What the Fix Actually Changes (and What It Doesn't)
Recall 20V-001 replaces the electric vacuum pump with an updated part number 47050-0C040. The new pump uses improved seals and a revised motor commutator. Installation takes one hour at the dealer.
The repair is free regardless of mileage or ownership status. Verify completion by checking the Toyota Owners portal with your VIN.
The recall does not address the brake booster itself. If the booster diaphragm has ruptured from extended pump cycling the pedal will remain firm after pump replacement. Test by pumping the pedal with the engine off until firm then hold pressure and start the engine.
The pedal should drop slightly. If it does not the booster needs replacement at $450 parts plus labor.
Owners report repeat failures on the updated pump. Some see a second failure within 20k miles. The root cause may involve moisture intrusion into the pump housing.
Parking uphill with the front elevated reduces condensation pooling. No revised TSB addresses repeat failures as of 2026.
NHTSA investigation 20V-621 expanded the recall population after reports of crashes linked to pump failure. Two injuries were documented. If your 2016 4Runner has not had this recall performed stop driving it until the repair is complete.
The risk is not theoretical.
Frame Corrosion: The Geographic Lottery No Dealer Explains
Frame recall 19V-101 covers 2005 to 2019 Tacoma and 4Runner models. The remedy depends on perforation status. No perforation means a corrosion-resistant coating application.
Perforation at any suspension mount means full frame replacement. Toyota pays for a rental during the repair which can take four to six weeks.
Eligibility maps exclude Florida Georgia South Carolina Alabama Mississippi Louisiana Texas Arizona New Mexico Nevada and parts of California. Owners in excluded states can still request inspection but Toyota denies coverage for coating or replacement. Private frame repairs cost $12,000 to $15,000.
Many salt-belt owners apply fluid film or woolwax annually as prevention.
Inspection requires a dealer to tap test the frame with a hammer at eight specified locations. A dull thud indicates internal corrosion. Perforation is visible as flaking metal or holes at the rear upper control arm mounts.

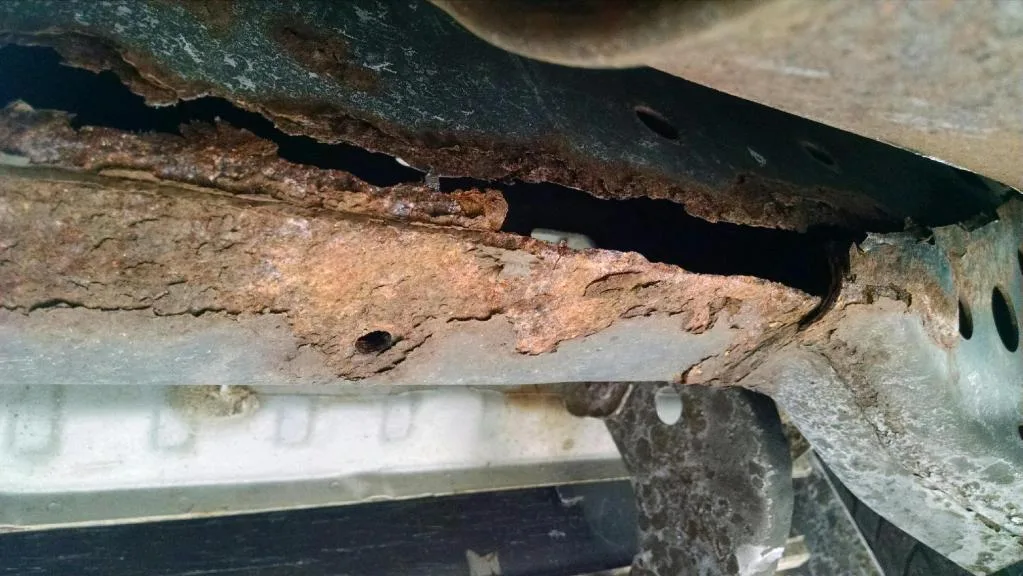

The image above shows characteristic perforation at the rear spring perch. This is the most common failure point.
Frame replacement uses a revised frame with improved drainage holes and thicker coating. The VIN remains unchanged. Resale value takes a minor hit on Carfax but buyers in salt-belt states expect it.
Keep all recall documentation. It proves the repair was completed to factory standard.
If you live in an excluded state but drive winter roads regularly apply undercoating every fall. Focus on the frame rails inside the rear wheel wells and the crossmember behind the transmission. These areas trap salt and moisture.
A $150 DIY fluid film treatment beats a $15,000 frame job.
Transfer Case Whine: Benign Noise or $3,500 Rebuild Coming?
The growl comes from the rear output shaft bearing in the VF2A or VF4A transfer case. You hear it between 40 and 60 mph under light throttle. It changes with vehicle speed not engine speed.
Shifting into neutral at speed does not change the pitch. That tells you the noise is behind the transmission.
TSB T-SB-0017-16 calls it a characteristic noise. Toyota extended the transfer case warranty to 10 years or 150,000 miles for this specific bearing. The extension applies only if the noise is confirmed by a dealer tech.
Many dealers dismiss it as normal. Insist on a test drive with a tech who knows the bulletin.
Independent shops replace the bearing for $1,800 to $2,200. The job requires transfer case removal and disassembly. Dealer rebuilds run $3,500 to $4,200.
A used transfer case from a low-mileage wreck costs $600 to $900 plus labor. That is the cheapest path if the bearing has actually failed.
Failure progression is slow. Most owners drive 50k to 100k miles after the whine appears. Catastrophic failure locks the rear driveline.
That can happen at highway speed. If the noise grows louder or develops a vibration under acceleration the bearing is degrading. Plan the repair before a road trip.
Rear differential carrier bearing whine mimics transfer case noise. The difference is load sensitivity. Diff noise changes pitch when you lift off the throttle.
Transfer case noise stays constant. Jack up the rear and spin the wheels by hand. Feel for roughness in the diff versus the transfer case output flange.
Secondary Air Injection Failure: The $2,200 Emissions Trap
The SAI system pumps fresh air into the exhaust ports during cold starts. This lights off the catalytic converters faster. The system uses an electric pump and two switching valves.
Water and road salt corrode the pump motor and valve solenoids. Codes P0418 and P0419 point to the pump circuit and valve circuit respectively.
Dealer diagnosis takes one hour at $150 to $180. Pump replacement is $1,100 parts plus two hours labor. Valve replacement adds $400 each.
Total bill lands between $1,800 and $2,800. The pump sits behind the passenger headlight. Valves mount on the exhaust manifolds.
Access is tight but doable in a home garage with basic tools.
Aftermarket pumps from Dorman and A1 Cardone cost $300 to $450. Valves run $120 each. A competent DIYer can replace the pump in three hours.
Valve replacement adds another two hours. Use penetrating oil on the exhaust studs the night before. They seize badly.
CARB states prohibit SAI delete kits. The system is monitored by OBDII. A delete will cause readiness monitor failure and emissions test rejection.
Some tuners offer ECU flashes that disable the monitors but that voids the federal emissions warranty. Keep the system functional if you live in California New York Massachusetts or other CARB states.
Failure rates climb sharply after 80k miles in salt-belt regions. Texas and Arizona owners see far fewer failures. The pump motor breathes moisture every cold start.
Condensation pools in the housing. Parking in a heated garage reduces failures. No TSB addresses the root cause.
Dashboard Cracking, Headlight Leaks, and the Death-by-a-Thousand-Cuts Items
The passenger airbag cover cracks along the seams. Warranty enhancement ZJB covers replacement for 10 years from the original in-service date with unlimited mileage. The 2016 model year is at the edge of coverage.
Check your in-service date on the door jamb sticker. If the vehicle was sold in late 2015 you may still qualify.
Dealers replace the entire upper dashboard pad. The repair takes six to eight hours. Labor alone exceeds $1,000.
Parts cost $600 to $800. If your vehicle is outside the enhancement window aftermarket dash covers cost $150 and install in 30 minutes. They look decent and prevent further cracking.
Projector headlights on Limited and TRD Pro trims develop condensation. Water pools in the lower housing. TSB T-SB-0094-16 describes drilling a small vent hole and installing a breathable membrane.
Dealers often replace the assembly under the three-year 36k-mile bumper-to-bumper warranty. After that you pay $1,200 per side.
Power rear window regulators fail when the cable snaps. The window drops into the tailgate. The regulator is a dealer-only part at $280.
Labor is one hour. A Dorman aftermarket unit costs $110. Replacement requires removing the tailgate interior panel.
Three 10mm bolts and a few clips. Easy DIY.
EVAP canister vent valve sticks closed. The fuel pump clicks off every few seconds during fill-up. Codes P0441 and P0455 appear.
The valve mounts on the charcoal canister near the fuel tank. Part costs $45. Replacement takes 20 minutes.
Spray the new valve with silicone lube before install.
Steering intermediate shaft clunk over bumps. TSB T-SB-0031-16 recommends greasing the splines. That lasts a few months.
The permanent fix is a revised shaft with updated splines. Part number 45210-0C030. Cost is $180.
Install takes 30 minutes. No alignment needed.
2016 vs 2017+: What Safety Sense-P Actually Adds (and Costs)
Toyota Safety Sense-P arrived as standard equipment on every 2017 4Runner. The package includes pre-collision system with pedestrian detection dynamic radar cruise control lane departure alert and automatic high beams. The 2016 has none of these.
The hardware difference is a millimeter-wave radar behind the grille badge and a forward-facing camera at the top of the windshield.
The radar enables adaptive cruise control that maintains following distance. The camera reads lane lines and warns if you drift. Pre-collision braking can apply the brakes if you ignore the warning.
Insurance data shows a 15 percent reduction in rear-end collisions for vehicles with these systems. Some insurers offer a small premium discount.
Entune 3.0 replaced Entune 2.0 in 2017. The new system adds Apple CarPlay and Android Auto. The 2016 system has neither.
Aftermarket head units with CarPlay cost $400 to $800 installed. The factory integration is cleaner but the aftermarket route adds functionality the 2016 lacks.
Frame coating improved slightly for 2017. Toyota added additional drain holes and a thicker electro-deposition primer. The recall eligibility map did not change.
Salt-belt 2017 frames still rot. The improvement is marginal.
Used market pricing shows a $2,000 to $3,500 premium for 2017 over 2016 with similar mileage and trim. That premium buys Safety Sense-P and CarPlay. If you plan to keep the vehicle past 200k miles the 2016 saves money upfront and avoids radar sensor failures that cost $1,200 to replace after a minor fender bender.
TRD Pro joined the lineup for 2017. The 2016 has no TRD Pro trim. The Pro adds Fox shocks TRD skid plate rigid LED fog lights and heritage grille.
It commands a $5,000 to $8,000 premium over a similarly equipped TRD Off-Road. Most off-road performance comes from tires and driver skill not the factory shocks.
Pre-Purchase Inspection: The 15-Minute Check That Saves Thousands
Start with the VIN. Pull the NHTSA recall page and the Toyota Owners portal. Verify brake vacuum pump recall 20V-001 and frame recall 19V-101 are complete.
Open recalls are negotiation leverage. Closed recalls with documentation are peace of mind.
Walk to the rear. Tap the frame rails with a ball-peen hammer at the eight inspection points shown in the image above. A solid ring means healthy steel.
A dull thud means internal corrosion. Check the rear upper control arm mounts and the spring perches. Flaking metal or holes mean frame replacement territory.
Test the brakes. Engine off. Pump the pedal until firm.
Hold pressure. Start the engine. The pedal should drop an inch.
If it stays rock hard the vacuum pump or booster is bad. Drive at 30 mph. Brake firmly.
The pedal should feel progressive not wooden. Any pull or vibration means rotor or caliper issues.
Drive at 45 mph on a smooth road. Listen for a growl that rises and falls with speed not RPM. Shift to neutral.
Noise unchanged means transfer case rear bearing. Noise gone means transmission or engine. Whine alone is not a dealbreaker.
Whine plus vibration under load means plan for repair.
Scan for codes. A $30 Bluetooth OBDII adapter and the Torque app reveal pending codes the dash does not show. Look for P0418 P0419 P0441 P0455.
SAI and EVAP codes are expensive. Clear codes and drive 20 miles. If they return the fix is real not a glitch.
Check the dashboard passenger side. Shine a flashlight along the seams. Hairline cracks mean ZJB claim time.
Check headlights for condensation. Fogged projectors mean water intrusion. Open and close the rear power window.
Slow movement or grinding means regulator cable fraying.
Verify the timing chain tensioner service history. Cold start rattle for two seconds means worn tensioners. Ask for receipts showing 5k-mile oil changes with 0W-20 synthetic.
No records assume the worst. Budget $1,200 for tensioner replacement at 150k miles.
Bring a magnet. Run it along the rocker panels and door bottoms. Bond fills rust holes.
Magnet won't stick. Check the spare tire well. Water there means tailgate seal leak or rear window regulator drain clog.
Both are cheap fixes but indicate neglect.
Maintenance Schedule That Actually Prevents the Big Failures
Change engine oil every 5,000 miles with 0W-20 synthetic. The 1GR-FE timing chain tensioners rely on clean oil pressure. Flush coolant at 100k miles using Toyota SLLC pink concentrate.
Replace transfer case fluid every 30k miles severe duty with 75W-90 GL-5. Rear differential needs the same fluid plus LSD additive for mechanical locker models. Inspect brake lines annually in salt-belt states.
Rotate tires every 5k miles to catch alignment issues early.
Safety Recalls You Must Verify Before Handing Over Cash
Three active recalls affect the 2016 4Runner. Brake vacuum pump recall 20V-001 is safety-critical. Frame corrosion recall 19V-101 applies only in 20 cold-climate states.
Fuel pump recall 20V-242 covers Denso pump failure that can stall the engine. Check NHTSA.gov with your VIN. Dealers must perform recall repairs free regardless of mileage or ownership.
Unrepaired recalls are negotiation leverage or walk-away signals.
Real Owner Scenarios: Three Buyers, Three Very Different Outcomes
Buyer A purchased a 2016 TRD Off-Road with 85k miles in Colorado. Clean frame. Brake recall done.
SAI pump failed at 92k miles. DIY repair cost $400. Total ownership cost predictable.
Buyer B bought a 2016 Limited with 70k miles in Ohio. Frame perforation found at purchase. Dealer replaced frame under recall.
Six-week wait. Rental covered. Buyer C bought a 2016 SR5 with 110k miles in Florida.
No recalls apply. Transfer case whine appeared at 115k. Still driving it at 160k.
FAQ: The Questions That Keep Coming Up in Forums and Shop Bays
Does the 2016 4Runner have Apple CarPlay
No. Entune 2.0 lacks CarPlay and Android Auto. Aftermarket head units add both for $400 to $800 installed.
Is the timing chain a concern at high mileage
The 1GR-FE chain lasts 250k miles with 5k-mile oil changes. Cold start rattle for two seconds signals worn tensioners.
Can I tow 5,000 lbs safely
Yes. The rating is 5,000 lbs for all trims. Install a transmission cooler and trailer brake controller for regular towing.
What does the TRD Off-Road locker actually do
It locks the rear differential mechanically. Engages only in 4LO under 5 mph. Provides true torque split across the rear axle.
Are KDSS models worth the extra maintenance
KDSS improves articulation off-road. Valve body leaks cost $1,500 to repair. Lean is normal.
Delete kits exist for serious builds.
Bottom Line: Buy, Keep, or Walk Away — Your Decision Guide
Buy if the frame is clean the brake recall is done and you accept SAI risk. Keep if you maintain fluids religiously and budget $2,000 annually for age-related repairs. Walk away if frame perforation exists in a non-recall state or if the seller hides open recalls.
The 2016 4Runner rewards informed owners. It punishes impulse buyers.
