If you own a 2016 Toyota Tundra and you are wondering what oil to pour in, you are not alone. The wrong oil can cost you thousands in engine repairs, so getting it right matters more than most drivers realize. The 2016 toyota tundra oil type is a 0W-20 full synthetic that meets API SN or ILSAC GF-5 standards.
That is the short answer, but the details are worth knowing.
Manufacturer specifications confirm that both the 4.6L and 5.7L V8 engines in this truck share the same oil recommendation. As of 2026, that spec has not changed. Using something different might save you a few dollars per quart, but the long term trade off is reduced engine life and potential warranty headaches.
Let us walk through exactly what you need, why it matters, and how to do the job right.
Image source: Web (Bing) / okpetroleummarketplace.com (Web image (fair-use with source credit)
Quick Answer
Your 2016 Tundra needs 0W-20 full synthetic oil. It must meet API SN or ILSAC GF-5. Use 5W-20 only if 0W-20 is unavailable.
Capacity is 6.5 quarts for the 4.6L engine. The 5.7L engine takes 7.7 quarts. Do not use 5W-30 or 10W-30 unless it is an emergency.
Why Getting the Wrong Oil Can Cost You an Engine
The Tundra's variable valve timing system relies on thin, clean oil. Thicker oil like 5W-30 can cause the VVT-i solenoids to clog or stick. That leads to rough idle, reduced power, and eventually a check engine light.
Sludge buildup is another risk. The 2016 Tundra runs a closed PCV system that recirculates blow by gases. If you use conventional oil that breaks down faster, sludge forms in the valve covers and oil passages.
That starves the timing chain tensioners of lubrication.
The Toyota warranty (if still active) requires the correct viscosity and API certification. A warranty claim for engine failure could be denied if you used 5W-30 or a non certified oil. Even out of warranty, the repair costs are steep.
A new long block for a 5.7L V8 runs over $4,000 without labor.

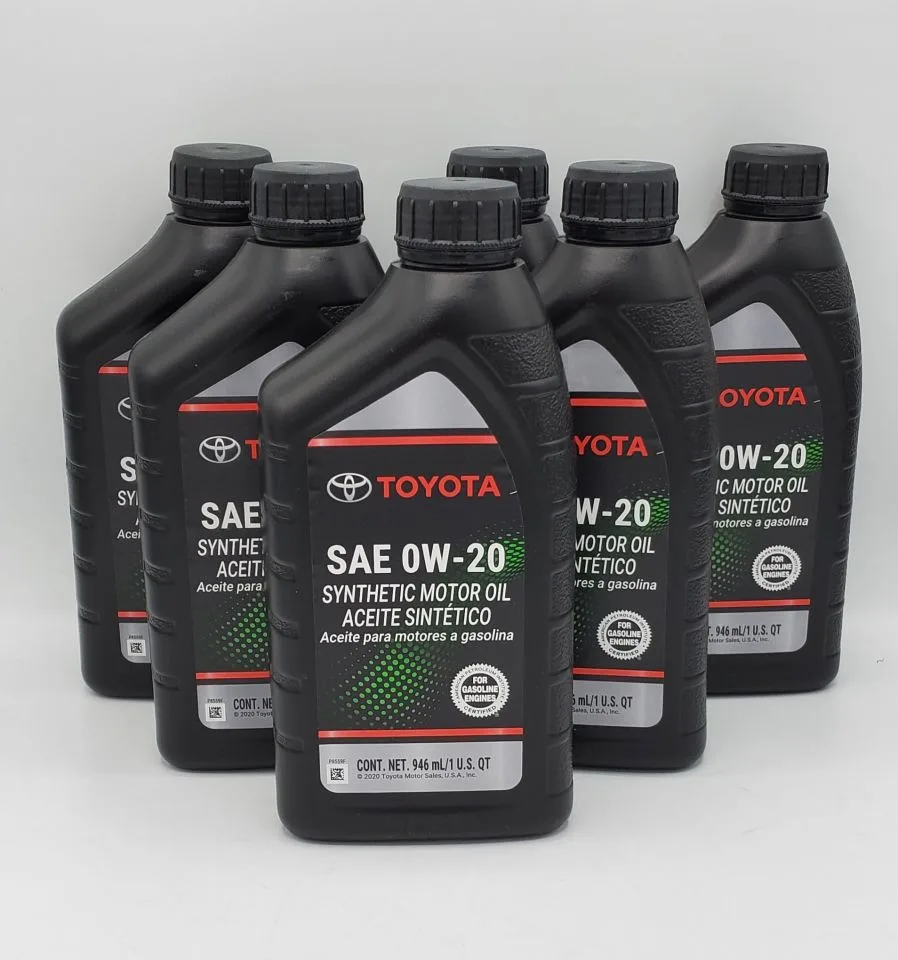

The Short Answer: Exactly What Oil Your 2016 Tundra Needs
Here is the factory recommendation, straight from the 2016 Tundra owner's manual:
- Viscosity: 0W-20 (SAE)
- Type: Full synthetic
- Certification: API SN "Resource Conserving" or ILSAC GF-5
- Capacity with filter: 4.6L, 6.5 quarts; 5.7L, 7.7 quarts
- Alternative: 5W-20 is acceptable if 0W-20 is not available, but only until your next oil change
If you live in a northern climate where winter temperatures drop below 0°F, 0W-20 is mandatory for reliable cold starts. In the South or desert regions, 5W-20 may be used temporarily but the manual still recommends 0W-20 for best fuel economy.
The oil fill cap on your engine should say 0W-20. If it does not, someone may have replaced it with the wrong cap. Check it.

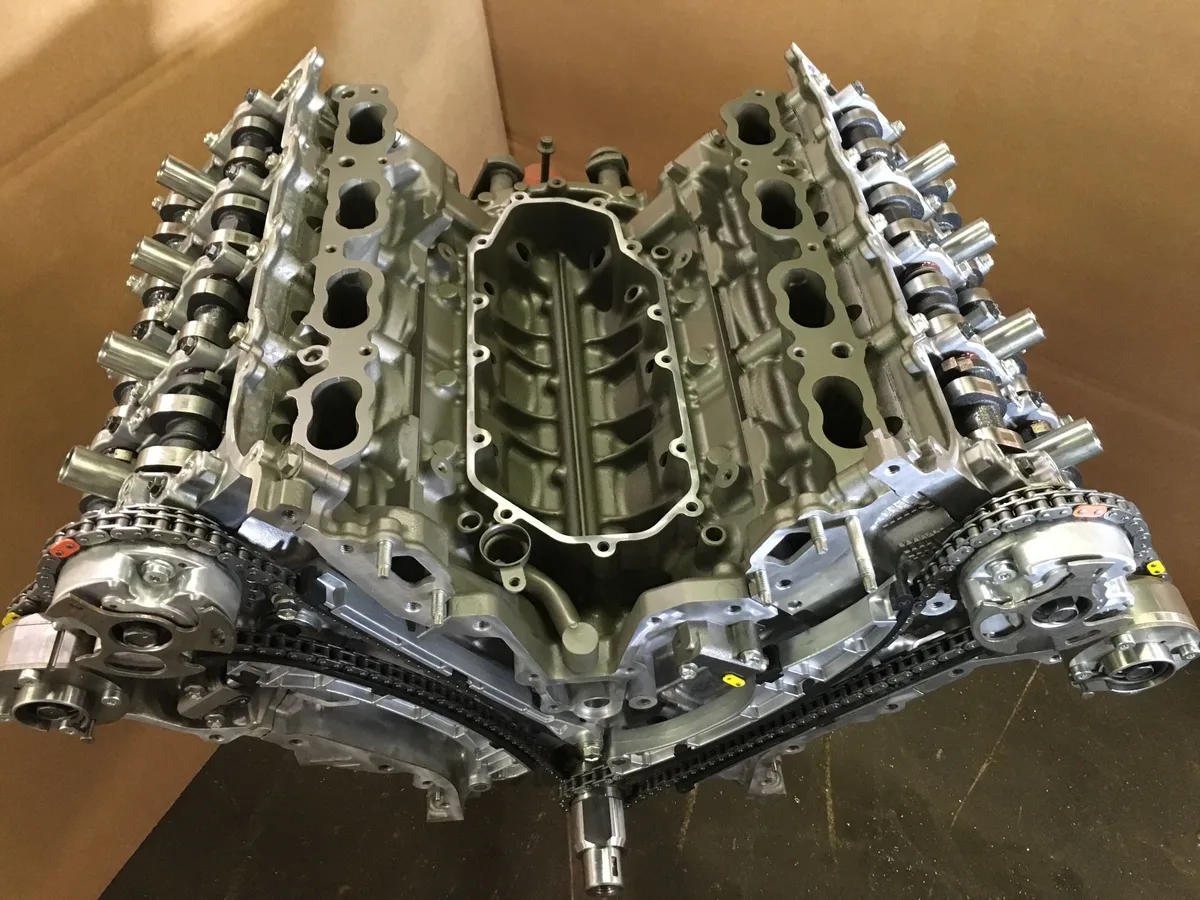

Breaking Down the Two Engines – 4.6L vs 5.7L V8
Image source: Web (Bing) / garagefixmorse77.s3-website-us-east-1.amazonaws.com (Web image (fair-use with source credit)
Oil Capacity Differences
The 4.6L V8 (1UR-FE) holds 6.5 quarts of oil with a filter change. The 5.7L V8 (3UR-FE) holds 7.7 quarts. Do not rely on dipstick readings alone.
Fill with the correct amount, run the engine for 30 seconds, shut it off, wait 5 minutes, then check the dipstick.
| Engine | Oil capacity (with filter) | Recommended oil |
|---|---|---|
| 4.6L V8 | 6.5 qt (6.15 L) | 0W-20 synthetic |
| 5.7L V8 | 7.7 qt (7.3 L) | 0W-20 synthetic |
Why 0W-20 and API SN Matter
0W-20 is a low viscosity oil that flows easily in cold weather. It helps the VVT system respond quickly and reduces internal friction. The API SN certification means the oil contains additives that control sludge, protect against wear, and keep emissions systems clean.
ILSAC GF-5 certification is essentially the same but adds fuel economy requirements and seal compatibility. Either is fine. Look for the starburst symbol on the bottle.
If neither is present, do not use that oil.
What Happens If You Use 5W-30 or 10W-30? (The Real Risks)
Image source: Web (Bing) / amazon.com (Web image (fair-use with source credit)
Cold-Start Wear and VVT-i System Damage
Thicker oil like 5W-30 does not circulate as quickly during a cold start. In freezing temperatures, the delay can be several seconds. That means metal on metal contact inside the engine until oil pressure builds.
Over a single winter, that wear is measurable.
The VVT-i system uses oil pressure to adjust cam timing. Thick oil can slow the response, causing the engine to run with incorrect cam timing. That triggers a P0010 or P0016 code.
The repair for a clogged VVT solenoid runs $300 to $600.
Fuel Economy and Sludge Buildup
Your Tundra was designed for 0W-20 to achieve its EPA fuel economy ratings. Switching to 5W-30 reduces MPG by about 2 to 4 percent. On a truck that already averages 15 to 17 mpg, that adds up to about $100 more per year in fuel costs.
Sludge formation is worse with thicker conventional oils. The 5.7L V8 runs hot under load, and conventional 10W-30 can break down and form deposits in the oil cooler and valve train. Synthetic 0W-20 resists oxidation and stays fluid at high temperatures.
When You Can Safely Use 5W-20 or 5W-30 (Emergency Substitutes)
Sometimes you are on a road trip and the only oil available is 5W-20 or 5W-30. That is okay for a limited time. Toyota's manual explicitly allows 5W-20 if 0W-20 is not available.
It also says you can use 5W-30 in an emergency, but only until your next oil change.
Here are the rules for emergency substitutes:
- 5W-20: Use only if 0W-20 is not in stock. Run it for no more than one oil change interval (10,000 miles normal driving, 5,000 miles severe). Switch back at the next change.
- 5W-30: Only use in extreme emergencies when no other option exists. Drive gently and drain it as soon as possible. Do not let it stay in for a full interval.
- 10W-30 or higher: Never use. It will cause startup wear and VVT issues, especially in cold weather.
If you use 5W-20 or 5W-30, expect slightly lower fuel economy. Watch for any unusual engine noise or delayed VVT response. And get the oil changed to 0W-20 at your earliest opportunity.
The Correct Oil Change Process – Step by Step
Image source: Web (Bing) / storage.googleapis.com (Web image (fair-use with source credit)
Doing your own oil change on a 2016 Tundra is straightforward. You will need a few tools and the right parts.
Tools and parts needed:
- 0W-20 full synthetic oil (6.5 qt for 4.6L, 7.7 qt for 5.7L)
- OEM or high-quality oil filter (Toyota part #04152-YZZA6 for 4.6L, #04152-YZZA5 for 5.7L)
- New drain plug gasket (Toyota part #90430-12031)
- 17mm socket or wrench for the drain plug
- Oil filter wrench (cap-style for the 5.7L top-mount filter)
- Funnel, drain pan, rags
Step 1: Warm up the engine.
Run it for 2 to 3 minutes so the oil flows easily. Do not let it get hot enough to burn you.
Step 2: Drain the old oil.
Place the drain pan under the plug. Remove the 17mm plug and let it drain fully. Replace the gasket and tighten the plug to 29 ft-lb.
Do not overtighten.
Step 3: Remove the oil filter.
On the 4.6L the filter is underneath, on the 5.7L it is on top at the front of the engine. Turn it counterclockwise. Lube the new filter's o-ring with fresh oil.
Hand-tighten it 3/4 turn after contact.
Step 4: Add new oil.
Pour in 0W-20 synthetic. Start with 6 qt on the 4.6L or 7 qt on the 5.7L, then check the dipstick. Add slowly until it reaches the full mark.
Step 5: Reset the oil life monitor.
Turn the key to ON without starting. Press and hold the odometer button until the light blinks. Release.
It is done.
Severe Service vs Normal Driving – Which Schedule Should You Follow?
Toyota defines severe service as: frequent short trips under 5 miles, extensive idling, towing, off-road driving, or operating in extreme temperatures.
| Condition | Normal service interval | Severe service interval |
|---|---|---|
| Oil change | 10,000 miles | 5,000 miles |
| Oil filter change | Every oil change | Every oil change |
| Check oil level | Every fuel fill | Every fuel fill |
If you tow a trailer or haul heavy loads regularly, stick to the 5,000-mile schedule. The 5.7L V8 works hard under load and the oil breaks down faster.
If you live in a cold climate where winter trips are short, change oil at 5,000 miles. Condensation builds up in the crankcase and never fully evaporates on short runs.
Common Mistakes Tundra Owners Make (And How to Avoid Them)
Even experienced DIYers slip up. Here are the most frequent errors.
- Overfilling. Adding too much oil causes foaming and can damage the catalytic converter. Use the exact capacity. The 5.7L takes 7.7 quarts with filter, not 8.
- Underfilling. The dipstick might show oil even when you are a quart low. Low oil can starve the VVT solenoids. Measure carefully.
- Using the wrong viscosity. 5W-30 is not a permanent substitute.
- Reusing the drain plug gasket. Replace the crush washer every oil change. A reused gasket can leak.
- Forgetting to reset the oil life monitor. If you do not reset it, your next change may be delayed.
- Using a cheap filter. Budget filters often lack the correct bypass valve pressure. Stick with OEM or a name brand.
Synthetic vs Conventional – Is It Worth Paying More?
The short answer is yes. The 2016 Tundra was designed for 0W-20 full synthetic, and the benefits go beyond cold starts.
| Factor | Full synthetic | Conventional (or blend) |
|---|---|---|
| Cold flow at 0°F | Excellent | Poor |
| Oxidation resistance | High | Moderate |
| Fuel economy gain | 2-4% | Baseline |
| Interval length | 10,000 miles (normal) | 5,000 miles max |
| Cost per quart | $6-$9 | $4-$6 |
Synthetic oil maintains its viscosity longer. It resists thermal breakdown when towing in summer heat. It also cleans existing deposits from the engine.
Conventional oil costs less upfront. But you need to change it twice as often under severe service. The total cost over 60,000 miles is about the same, and you get less protection.
Where to Buy the Right Oil and Filter
You can find 0W-20 synthetic at most auto parts stores. Just check that the bottle says "API SN Resource Conserving" or "ILSAC GF-5."
OEM Toyota oil is blended to Toyota's spec. It costs about $7 to $8 per quart at a dealership. Aftermarket brands like Mobil 1, Pennzoil Platinum, and Castrol Edge all meet the spec.
They are often cheaper.
For the oil filter, OEM is recommended. Aftermarket filters from WIX or Purolator also work if they match the bypass valve setting.
What the Owner's Manual Says – And What It Doesn't
The 2016 Tundra owner's manual specifies 0W-20 with API SN or ILSAC GF-5 certification. It lists 5W-20 as an acceptable temporary alternative. It shows the severe service schedule and the exact capacities.
But the manual does not explain why thicker oil harms the VVT system. It does not warn that non-certified oil can void a warranty. It also skips practical tips like checking the dipstick on a level surface with the engine warm.
When to Ask a Mechanic (And When DIY Is Fine)
DIY oil changes are safe if you have the tools and follow the process. Use the correct oil, the right filter, and the proper torque.
Ask a mechanic if you see any of these signs: oil leaks, a check engine light, unusual engine noise, or oil on the dipstick that looks milky. Milky oil means coolant contamination. Do not drive the truck.
Also ask a mechanic if you do not have a level driveway, if the drain plug is stripped, or if you are unsure which engine you have. A shop can do a full synthetic change for around $80 to $120.
Final Verdict – Simple Checklist for Your Next Oil Change
- Confirm your engine type (4.6L or 5.7L)
- Buy 0W-20 full synthetic, API SN certified
- Buy the correct oil filter (OEM or quality aftermarket)
- Buy a new drain plug gasket
- Warm the engine for 2 minutes
- Drain oil, replace gasket, torque plug to 29 ft-lb
- Remove and replace filter (hand-tighten 3/4 turn)
- Add correct capacity (6.5 qt or 7.7 qt)
- Check dipstick, top off if needed
- Reset oil life monitor
- Log the mileage and date
- Dispose of old oil at a certified collection center
Stick to 5,000 miles if you tow, idle, or drive short trips. Stick to 10,000 if you mostly cruise highways. Use 0W-20 synthetic every time.
Your Tundra will reward you with hundreds of thousands of miles.
Frequently Asked Questions
What happens if I put 5W-30 in my 2016 Tundra?
It is not recommended for long-term use. Thicker oil causes cold-start wear and can clog VVT solenoids. If you must use it in an emergency, drain it at the next opportunity and switch back to 0W-20.
Can I use conventional oil instead of synthetic?
You can, but the manual calls for synthetic. Conventional oil breaks down faster, especially under towing or extreme temperatures. You will need more frequent changes and may see increased oil consumption.
How often should I change the oil in a 2016 Tundra?
Toyota says 10,000 miles for normal driving and 5,000 miles for severe service. Severe service includes towing, short trips, idling, and extreme temperatures. Most Tundra owners fall into the severe category.
What is the oil capacity for a 2016 Tundra 5.7L?
The 5.7L V8 holds 7.7 quarts of oil with a filter change. The 4.6L V8 holds 6.5 quarts. Always check the dipstick after filling.
Is it okay to use 5W-20 in my Tundra?
Toyota lists 5W-20 as an acceptable temporary substitute if 0W-20 is not available. Use it for one interval and switch back. Do not use 5W-20 in freezing temperatures.
Does the 2016 Tundra have an oil life monitor?
Yes. It calculates remaining life based on driving conditions. When it reaches 0 percent, it is time for a change.
Reset it after every oil change using the odometer button.
