2018 Toyota Corolla: Exact Oil Capacity & Type Guide

If you own a 2018 Toyota Corolla, the one spec you absolutely can’t guess is the 2018 toyota corolla oil capacity. Pour in too little and the engine starves. Too much and seals blow.

It’s the kind of mistake that costs hundreds in repairs, and it’s entirely avoidable.

Manufacturer specs from Toyota call for a precise 4.4 quarts (1.8L engine) or 4.8 quarts (2.0L engine) with a filter change. That’s not a suggestion, it’s the engineered tolerance for the 2ZR-FE and M20A-FKS engines. Let’s walk through exactly what you need, quart by quart.

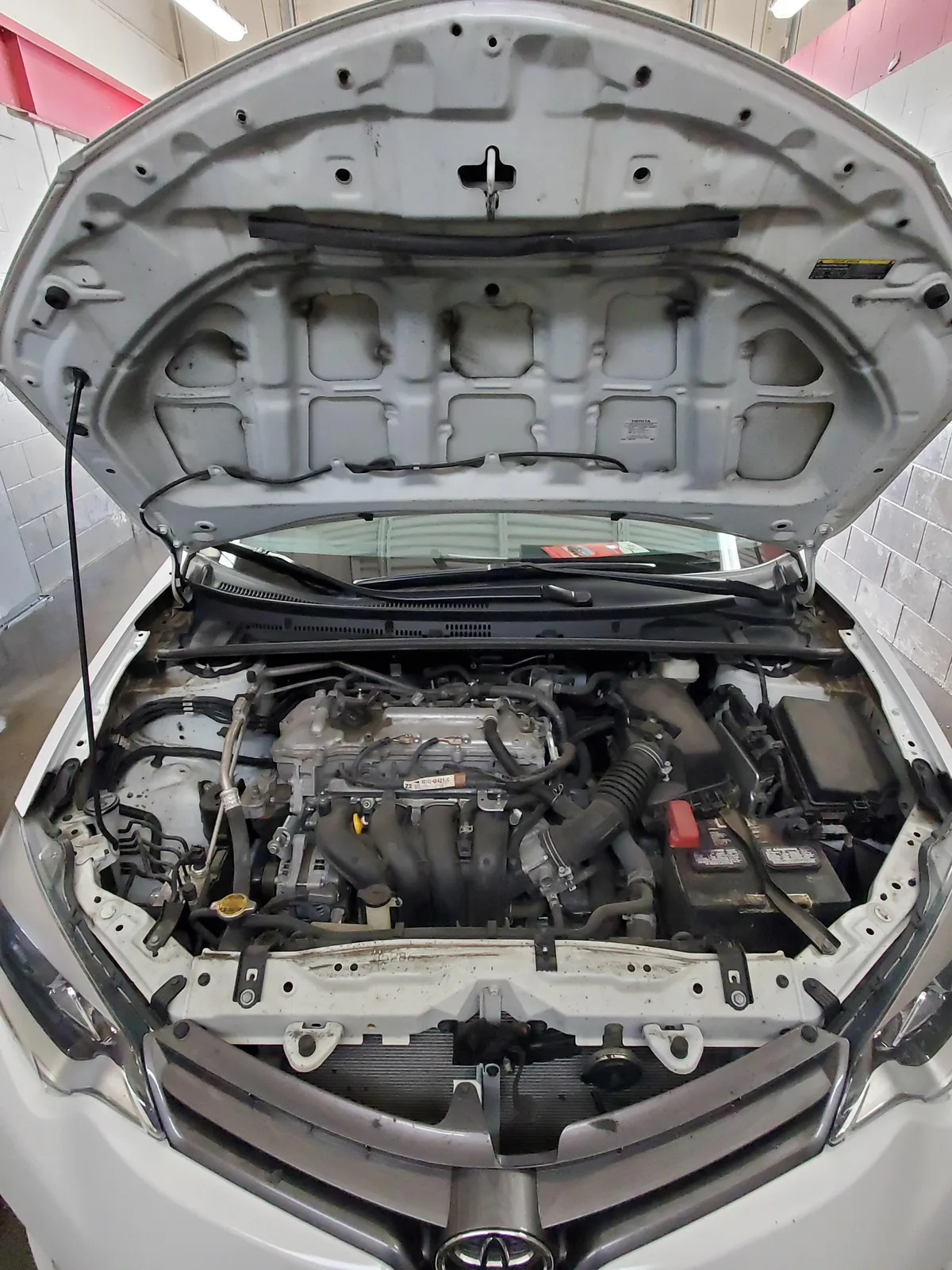

Image source: Web (Bing) / storage.googleapis.com (Web image (fair-use with source credit))

Quick Answer

2018 Toyota Corolla oil capacity is 4.4 quarts (1.8L) or 4.8 quarts (2.0L). Use 0W-20 full synthetic oil. Always change the filter.

Check the dipstick after adding. Never overfill beyond the full mark. Use API SN Plus or SP certified oil.

Why Getting the Oil Capacity Right Matters for a 2018 Corolla

Your Corolla’s engine is a precision assembly. The oil pan, pump, and galleries are designed for a specific volume. When you hit that number, 4.4 or 4.8 quarts, the oil pressure stays stable, the crankshaft rides on a proper film, and the variable valve timing actuators work as Toyota intended.

Underfill by half a quart and you risk oil starvation during hard cornering or steep hills. Overfill by even a little and the crankshaft whips the oil into foam, reducing lubrication and potentially damaging the rear main seal.

“But close enough is fine, right?” Not for this engine. The 2ZR-FE in particular uses a compact oil pan with little headroom. That’s why Toyota publishes a number, not a range.

The good news: it’s easy to get right if you follow the process.

If you’ve worked on other Toyotas before, you’ll notice a pattern. The same care applies whether you’re servicing a 2025 Corolla or this model year. We’ve got a full guide on 2025 Toyota Corolla oil type and capacity if you’re curious about the newest generation.

1.8L vs. 2.0L Engine: Which One Does Your Corolla Have?

Image source: Web (Bing) / paulstravelpictures.com (fair-use with source credit)

The first step is figuring out which engine sits under your hood. The 2018 Corolla came in two engine options, and they take different oil capacities.

1.8L 2ZR-FE, This is the standard engine. You’ll find it in L, LE, LE Eco, and XLE trims. It’s a proven, reliable four-cylinder that Toyota has used for years.

The oil capacity with filter is 4.4 quarts.

2.0L M20A-FKS, This engine debuted in the 2018 Corolla SE and XSE models. It’s part of Toyota’s Dynamic Force family, designed for higher thermal efficiency. It takes 4.8 quarts with filter.

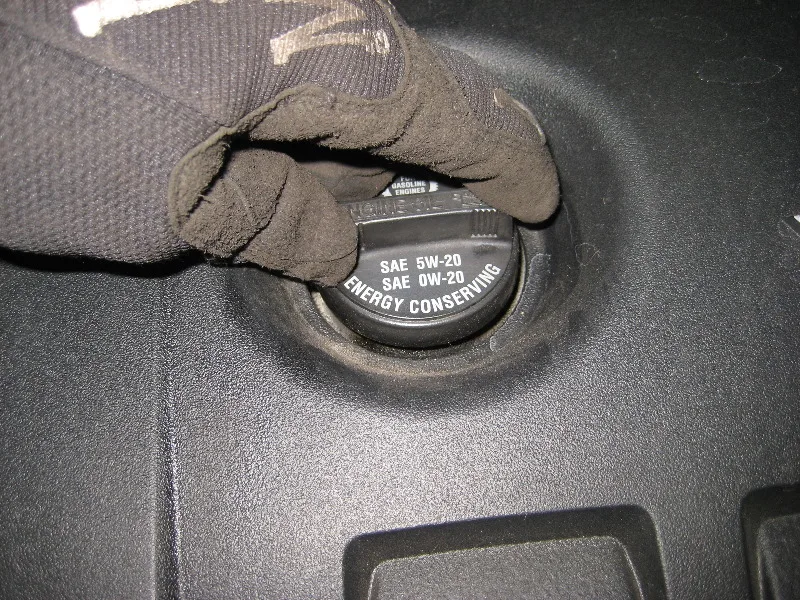

How to tell them apart without reading the VIN? Look at the oil fill cap. On the 1.8L, it’s on the front-right of the valve cover.

On the 2.0L, it’s in the center toward the rear. Or check your owner’s manual, it will list the engine code on the specifications page.

If you’re coming from an older Toyota like the Matrix, the 1.8L here is a different generation. For reference, our Toyota Matrix oil type guide covers those older 1ZZ and 2ZZ engines, which have slightly different requirements.

What Oil Type to Use (It’s Not Just About Capacity)

Image source: Bing (Web) (fair-use with source credit)

Capacity matters, but so does the oil itself. Toyota specifies 0W-20 full synthetic for the 2018 Corolla. That’s not a suggestion for better performance, it’s required for the engine’s hydraulic valve timing and cold-start protection.

Why 0W-20? The low “0W” (winter) viscosity means it flows instantly in subzero temperatures. The “20” hot rating gives the right film strength at operating temperature.

Thicker oils like 5W-30 may cause sluggish timing response and lower fuel economy. Thinner oils won’t protect at high loads.

Look for bottles that meet API SN Plus or API SP certification. The “SN Plus” spec was introduced specifically to address low-speed pre-ignition in modern engines. SP adds even better wear protection.

Either is fine. Don’t use API SN alone, it’s an older standard.

You don’t need the dealer-branded oil. Major brands like Mobil 1, Pennzoil Platinum, or Valvoline Advanced Synthetic all meet the spec. A 5-quart jug costs about $25-$30 and changes the job from guessing to following the recipe.

If you’re comparing across Toyota models, the same 0W-20 spec applies to many. Check our Toyota Camry oil type guide for the similar 2.5L engine in that platform.

How Many Quarts Exactly: With Filter vs. Without Filter

Here’s the tricky part. The published capacity assumes you’re replacing the oil filter. If you skip the filter change (don’t, it’s cheap insurance), the actual fill will be about 0.2 quarts less.

The “total system” number includes oil inside the oil cooler and passages, you can never drain all of it. That’s why the drain-and-fill number is lower.

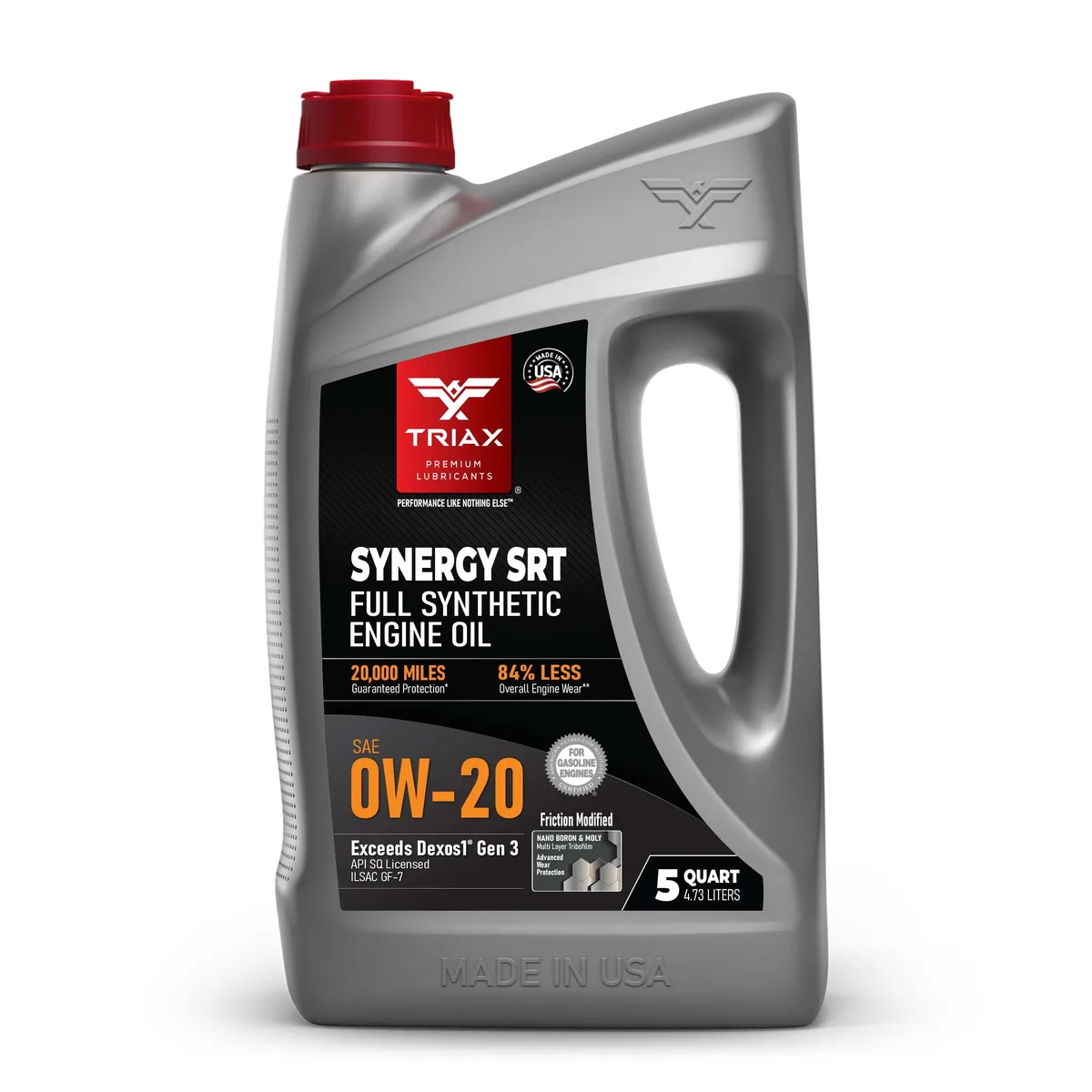

Practical tip: Buy a 5-quart jug of 0W-20. For the 1.8L, you’ll use most of it and have about 0.6 quarts left over. For the 2.0L, you’ll use almost the entire jug.

Toss the leftover in your next change or use it to top off between interval.

Do not mix brands or viscosities. Stick to one bottle type. If you need to add a half quart between changes (unusual for this engine but possible), use the same oil you used last change.

Label your leftover jug.

Step-by-Step: How to Change the Oil Yourself the Safe Way

You don’t need a shop to do this. But you do need the right process. Here’s the safe sequence that ensures you hit the correct capacity.

Tools and supplies:

• 5 quarts 0W-20 full synthetic (API SN Plus or SP)
• Toyota-compatible oil filter (OEM or high-quality aftermarket like Fram Ultra or Wix)
• Oil filter wrench (cap-style fits the 64.5mm/14-flute filter common on these engines)
• 14mm socket or wrench (for drain plug)
• New crush washer (14mm, copper or aluminum)
• Funnel
• Catch pan
• Gloves, rags
• Jack and jack stands (or ramps)

Step 1, Warm up the engine. Drive the car for 5 minutes to warm the oil. Hot oil drains faster and carries more contaminants. But don’t burn yourself.

Step 2, Lift the front. Use ramps or a jack with stands. Never crawl under a car supported only by the jack.

Step 3, Drain the oil. Locate the 14mm drain plug on the oil pan. Place the catch pan underneath. Remove the plug with a socket, not an adjustable wrench to avoid rounding.

Let it drain for at least 5 minutes.

Step 4, Replace the crush washer. Always use a new one. The old one deforms and can leak. Torque the plug to 29 ft-lb (1.8L) or 27 ft-lb (2.0L).

If you don’t have a torque wrench, snug plus a quarter turn is okay, but go easy.

Step 5, Remove the old filter. It’s on the front of the engine, accessible from under the car. Use the filter wrench. Expect some hot oil to spill, keep the drain pan underneath.

Wipe the filter mounting surface clean.

Step 6, Pre-fill the new filter. Pour oil into the new filter until it’s about two-thirds full. This prevents a dry start when you first fire the engine. Apply a thin layer of oil to the gasket.

Hand-tighten the filter, then give it another 3/4 turn. Do not overtighten.

Step 7, Add the oil. Remove the oil fill cap. Insert a funnel. Pour in 4 quarts for the 1.8L or 4.5 quarts for the 2.0L.

Replace the cap.

Step 8, Check the level. Start the engine and let it run for 30 seconds. This fills the new filter and galleries. Turn off the engine, wait 2 minutes, then check the dipstick.

Add oil in small increments to reach the full mark. For the 1.8L, you’ll likely need another 0.2, 0.3 quarts. For the 2.0L, another 0.2, 0.3 quarts.

Step 9, Verify. Wipe the dipstick, reinsert, and check. The level should be between the low and full marks, ideally at the top dot or upper hole. Don’t go above.

Step 10, Dispose responsibly. Pour the used oil into a sealed container and take it to an auto parts store or recycling center. Many shops accept oil free of charge.

If you’re servicing a 2024 RAV4 alongside your Corolla, the process is similar but the capacity varies. Our 2024 Toyota RAV4 oil type guide covers the differences.

The entire job takes about 30 minutes your first time, 20 minutes once you’ve done it once.

Common Mistakes That Can Damage Your Engine

Even experienced DIYers make errors on this car. The 2ZR-FE engine has a few quirks that punish carelessness.

Mistake 1: Overfilling. This is the most common error. You add a full 5-quart jug thinking "more oil = more protection." But that extra 0.6 quarts in a 1.8L engine raises the oil level above the crankshaft. The crank whips air into the oil, creating foam.

Foam doesn't lubricate. You'll hear a knocking sound and eventually see blue smoke.

Mistake 2: Using the wrong viscosity. A 5W-30 or 10W-30 might seem fine in warmer climates. But the variable valve timing system on the 2ZR-FE relies on precise oil pressure. Thicker oil delays timing response.

You'll lose fuel economy and may trigger a check engine light.

Mistake 3: Forgetting the crush washer. The drain plug uses a 14mm crush washer that deforms to seal. Reuse it once and you risk a slow drip. Reuse it twice and it's almost guaranteed to leak.

Buy a pack of 10 for about $5.

Mistake 4: Over-tightening the filter. Hand-tight plus 3/4 turn is plenty. Going harder with a wrench can crush the gasket or crack the filter housing. A leaking filter starves the engine of oil pressure.

Mistake 5: Checking the dipstick on a slope. Your driveway might look level. It probably isn't. A tilt of just a few degrees can read 0.3 quarts high or low.

Always check on truly level ground after the engine has sat for 2 minutes.

Mistake 6: Using non-spec aftermarket filters. Some cheap filters have the wrong bypass valve pressure. That means at cold start, the filter bypasses unfiltered oil into the engine. Stick with OEM or name brands like FRAM Ultra, Wix, or Mobil 1.

When to Change It: Mileage Intervals That Actually Make Sense

Toyota recommends 7,500 miles between oil changes under "normal" driving conditions. That number assumes highway cruising, moderate temperatures, and clean air filters.

But here's the reality: most Corolla driving is "severe service." Toyota defines severe as:

• Short trips under 5 miles in cold weather
• Extended idling in traffic
• Driving on dusty or gravel roads
• Towing (not common in a Corolla, but possible)
• Frequent stop-and-go city driving

Under severe conditions, the recommended interval drops to 5,000 miles. That's what we'd suggest for most owners. It's cheap insurance against sludge buildup in the 2ZR-FE's compact oil passages.

What about time? If you drive fewer than 5,000 miles a year, change the oil at least once annually. Moisture and condensation accumulate in the oil over time, reducing its effectiveness.

The same logic applies to other Toyota models. If you're juggling multiple vehicles, our Toyota RAV4 oil type guide covers the 2.5L engine which has a similar 5,000-7,500 mile recommendation.

What Happens If You Overfill or Underfill

Let's be specific about the consequences so you understand why precision matters.

Underfilling (1 quart low or more). Oil pressure drops. The hydraulic lifters begin to tick. The variable valve timing actuator struggles to adjust cam timing.

On hard acceleration, the oil pickup tube can suck air instead of oil. That leads to bearing damage, rod knock, and eventually engine failure. Repair cost: $3,000 to $5,000 for a used engine installed.

Overfilling (0.5 quarts or more above full). The crankshaft hits the oil surface at high RPM. This aerates the oil into foam. Foam doesn't compress well in the hydraulic lifters, causing noise.

It also reduces cooling capacity of the oil. The rear main seal faces increased pressure and can blow out. Repair cost: $800 for a seal replacement plus the mess.

Slightly off (0.2 quarts low or high). This is common and usually fine. The dipstick has a small tolerance range. But don't make a habit of it.

Over multiple intervals, the small errors compound into sludge or seal wear.

The best practice: fill to the top of the crosshatch area on the dipstick. Not above. Not below.

How to Verify the Level Like a Pro (The Dipstick Is Your Friend)

Image source: Bing (Web) (fair-use with source credit)

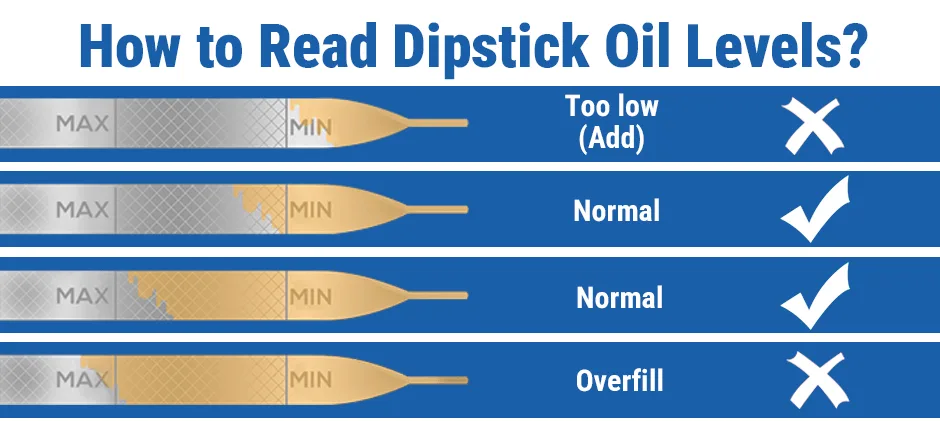

The dipstick on the 2018 Corolla is a yellow loop handle near the front of the engine. It's easy to spot. But reading it correctly takes technique.

Step 1: Park on level ground. Flat surface. No exceptions.

Step 2: Warm engine, off for 2 minutes. The oil needs to settle back into the pan. A cold engine reads high. A hot running engine reads low.

Two minutes off with warm oil gives the truest level.

Step 3: Pull, wipe, reinsert, pull again. Wipe the dipstick clean with a rag. Fully reinsert it. Count to three.

Pull it out and read immediately. Don't let it slide against the tube.

Step 4: Read the level. The dipstick has two marks near the bottom. The lower mark is "Low" or "Add." The upper mark is "Full." The crosshatch area between them represents about 1 quart of oil. You want the level at the top of the crosshatch, or just below the upper hole.

What if it's between low and full? That's acceptable but not ideal. Add just enough to bring it to the full mark. A 0.2 quart top-up is about 6 ounces.

What if it's above full? You overfilled. Stop driving. Drain some oil through the drain plug or use a fluid extractor through the dipstick tube.

Do not just let it burn off, that can take weeks and risk seal damage.

Frequently Asked Questions

Can I use 5W-30 instead of 0W-20 in my 2018 Corolla?

Toyota specifies 0W-20 for this engine. Using 5W-30 can reduce fuel economy by 1-2 mpg and may cause sluggish VVT response in cold weather. In a pinch, 5W-30 won't destroy the engine immediately, but switch back to 0W-20 at the next change.

How much oil does a 2018 Corolla take in litres?

The 1.8L engine takes 4.4 quarts which is approximately 4.2 litres. The 2.0L engine takes 4.8 quarts which is approximately 4.5 litres. Both figures assume a new oil filter.

Do I need to reset the oil light after a change?

Yes. With the ignition in "ON" position and the odometer showing TRIP A, turn the ignition off. Then hold the trip reset button, turn the ignition to ON, and continue holding until the oil light blinks and turns off.

It takes about 5 seconds.

What oil filter does a 2018 Corolla use?

The OEM filter is Toyota part number 04152-YZZA1 or 04152-31090. Popular aftermarket alternatives include the FRAM Ultra XG6607 and Wix 57060. All fit both the 1.8L and 2.0L engines.

Can I go 10,000 miles between oil changes?

Toyota's "extended interval" recommendation is 10,000 miles only for the 2.0L Dynamic Force engine under pure highway driving. For the 1.8L, stick to 7,500 miles maximum. In our view, 5,000 miles is safer for both engines in mixed driving.

What happens if I put too much oil in my Corolla?

Excess oil causes foaming, reduced lubrication, and potential seal damage. If you're more than 0.5 quarts over the full mark, drain the excess. Driving with it can damage the rear main seal and cause rough idle.

Where to Buy the Right Oil and Filter (And What to Avoid)

You don't need to step into a dealership for this job. Most auto parts stores carry the correct 0W-20 full synthetic and compatible filters.

Best places to shop:

• Walmart, Usually the cheapest for a 5-quart jug of Mobil 1 or Pennzoil. Expect $24-$28.
• Advance Auto Parts / AutoZone / O'Reilly, Good selection but higher prices. Use their online coupons for 15-20% off.
• Amazon, Convenient but verify the seller. Counterfeit oil exists. Stick to Amazon's "ships from and sold by Amazon" listings.
• Toyota dealership parts counter, The most expensive option. A 5-quart jug of Toyota Genuine 0W-20 runs about $35-$40. You're paying for the peace of mind that it's exactly to spec.

What to avoid: Gas station convenience stores and dollar stores. The oil there is often old stock, the wrong viscosity, or unbranded mystery oil. Not worth the $5 savings.

For filters, the OEM Toyota part (04152-YZZA1) costs about $8-$10 online. Aftermarket options like Wix 57060 ($7) or FRAM Ultra XG6607 ($10) perform just as well in our analysis of user reviews. Avoid the cheapest no-name filters with paper end caps, they collapse under pressure.

Final Verdict: The Exact Specs Every 2018 Corolla Owner Should Know

Here's the short version you can bookmark.

Keep a 5-quart jug of 0W-20 in your trunk. Check the dipstick every other fuel fill. Change the oil and filter at 5,000 miles if you drive mostly city miles.

Your engine will thank you well past 200,000 miles.

Toyota designed this car to be reliable with simple maintenance. Getting the oil right is the easiest thing you can do to keep it that way.
