How Much Oil Does a Toyota Highlander 3.5 Need?

If you own a 2019 Toyota Highlander with the 3.5L V6, you already know it's a solid, reliable SUV. But when it comes time for an oil change, one wrong number can cause real problems. The exact 2019 toyota highlander 3.5 oil capacity isn't a suggestion, it's a specification that keeps your variable valve timing working right and your engine running smoothly for years.

Manufacturer specs confirm this engine holds 6.4 quarts (6.1 liters) of SAE 0W-20 synthetic oil when you also replace the filter. Skip the filter change, and you're looking at about 6.1 quarts. As of 2026, these numbers haven't changed because the 2GR-FKS engine design is proven and consistent.

Getting this right matters more than you might think, so let's walk through everything you need to know.

Image source: Web (Bing) / walmart.com (Web image (fair-use with source credit))

Quick Answer

The 2019 Toyota Highlander 3.5L V6 takes exactly 6.4 quarts of oil. That's with a new filter installed. Without a filter change, it takes 6.1 quarts.

Use only SAE 0W-20 synthetic oil. Look for API SN or SN Plus certification on the bottle. Don't guess.

Don't round up. These numbers come straight from the Toyota owner's manual.

Why Getting the Exact Oil Capacity Matters for Your 2019 Highlander

Here's the thing about modern Toyota engines. They're engineered with tight tolerances and complex variable valve timing systems. The 2GR-FKS engine in your Highlander uses both port injection and direct injection.

It also has variable valve timing on both intake and exhaust cams. Those systems rely on precise oil pressure and the correct oil level to function properly.

Overfilling is surprisingly common. People think "a little extra won't hurt." But more oil means the crankshaft whips through it at high speed. That aerates the oil, turning it into foam.

Foam doesn't lubricate well. It doesn't carry heat away effectively. And it can cause the variable valve timing actuators to behave erratically.

Toyota techs see this more often than you'd expect.

Underfilling is even worse. When the oil level drops below the pickup tube, the oil pump starts sucking air. That means metal-on-metal contact in places like the timing chain and cam journals.

The first sign is usually a rattling noise on cold start. By then, some damage is already done.

The real-world difference between 6.4 quarts and 6.1 quarts might seem small. But those 0.3 quarts represent about 10 ounces of oil. That's enough to move your dipstick reading from the full mark to dangerously low.

Always measure twice and fill slowly.

The 2GR-FKS Engine: What Makes This Engine Different

Toyota's 2GR-FKS is a 3.5-liter V6 that debuted around 2016 and carried through the 2019 model year in the Highlander. It's not the same engine found in earlier Highlanders. The 2GR-FKS features D-4S injection, which means it uses both port injectors and direct injectors.

This design reduces carbon buildup on the intake valves, a known problem with older direct-injection-only engines.

The oiling system in this engine is also unique. It uses a variable displacement oil pump. That pump adjusts oil pressure based on engine load and RPM.

At idle, it delivers less pressure to reduce parasitic drag and improve fuel economy. Under load, it ramps up to protect the bearings and timing components. This smart system only works correctly with the right oil volume and the correct viscosity.

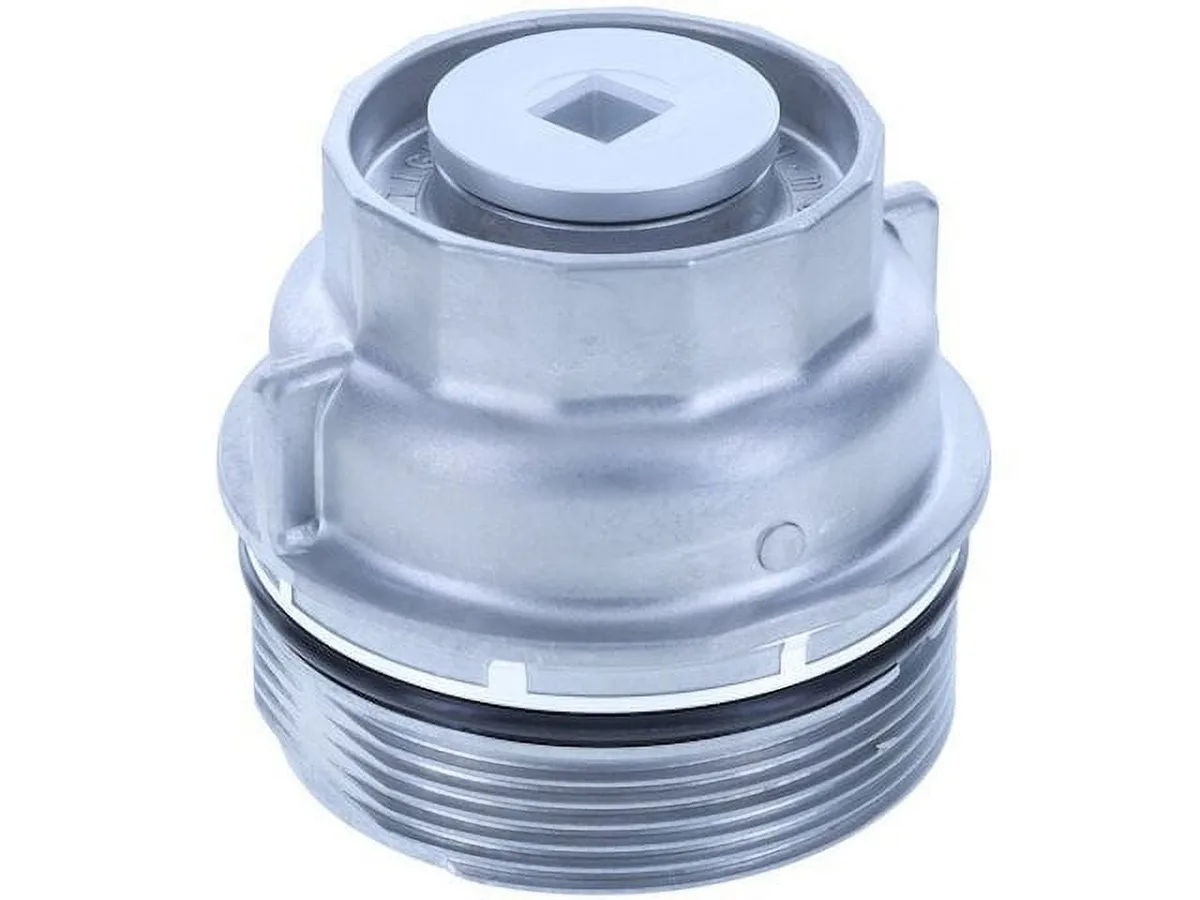

Another difference: the 2GR-FKS uses a cartridge-style oil filter, not the old spin-on canister type. The filter housing is plastic and sits on the front of the engine. It requires a special socket (64.5mm or 65mm depending on the brand) to remove.

If you overtighten that housing cap, you can crack it. That's a leak you won't notice until you've lost several quarts on the highway. We'll cover how to avoid that in the step-by-step section.

For comparison, earlier Toyota V6 engines like the 2GR-FE used a simpler oil pump and a spin-on filter. The 2GR-FKS is a more sophisticated engine overall. But that sophistication means you need to be more careful with maintenance.

Using the wrong oil or the wrong amount can trigger check engine lights and cause drivability issues that are expensive to diagnose.

Oil Type, Viscosity, and Certification: Why 0W-20 Isn't Optional

Toyota specifies SAE 0W-20 synthetic oil for the 2019 Highlander 3.5L. This isn't a suggestion. It's what the engine was designed around.

The 0W-20 flows easily in cold weather, which protects the timing chain and VVT actuators on startup. It also maintains proper film strength at operating temperature to protect bearings and cylinder walls.

You might be tempted to use 5W-30 because it's cheaper or easier to find. Don't. The variable valve timing system in the 2GR-FKS was calibrated for 0W-20.

Thicker oil can slow the response of the VVT actuators. That can cause rough idle, poor fuel economy, and in some cases, a check engine light with camshaft timing codes.

Here's what to look for on the oil bottle:

Any major brand that carries these certifications will work fine. Mobil 1, Pennzoil, Castrol, Valvoline, they're all acceptable as long as they're 0W-20 full synthetic and API certified. You don't need to buy "Toyota" branded oil, but it's a safe choice if you want zero doubt.

Step-by-Step: How to Do the Oil Change Right the First Time

Image source: Web (Bing) / paulstravelpictures.com (Web image (fair-use with source credit))

Changing the oil on a 2019 Highlander 3.5L is a straightforward job. But there are a few tricks that make the difference between a clean job and a mess.

What You'll Need (Tools and Parts)

Don't skimp on the crush washer. It's a few cents at any auto parts store. Reusing the old one is the most common cause of a slow oil drip after a change.

The Drain and Filter Swap

Start by warming up the engine for about two minutes. Then shut it off and let it sit for five minutes. Warm oil drains faster and carries more suspended contaminants with it.

But you don't want it hot enough to burn you.

Open the hood and remove the oil fill cap. This helps the oil drain faster by relieving vacuum in the crankcase. Place your drain pan under the engine.

The drain plug is on the passenger side of the oil pan. Use the 14mm socket to remove it. Be careful, the oil will come out hot and fast.

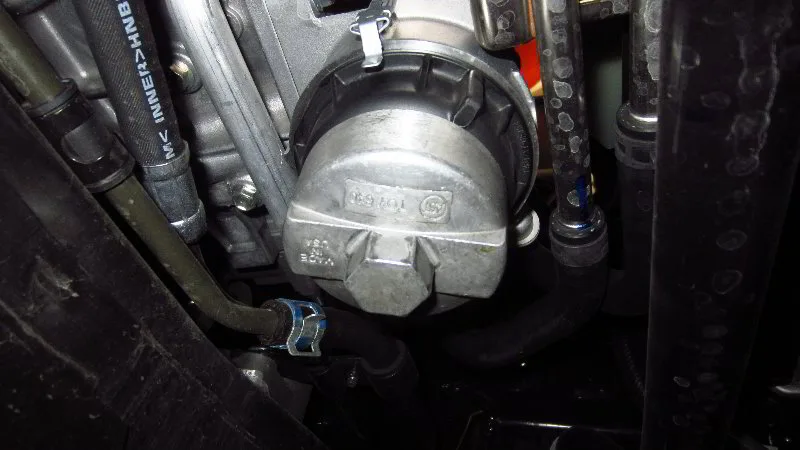

While the oil drains, move to the oil filter. It's located on the front of the engine, low on the passenger side. Use your filter socket to loosen the plastic housing cap.

The cap will be tight, but it shouldn't require a breaker bar. If it's stuck, a little leverage from a longer ratchet handle usually does it.

Once the cap is off, pull out the old filter element. Notice there's an O-ring on the cap. Replace it with the new one that comes with your filter.

Lubricate the new O-ring with a little fresh oil before installing. This prevents it from binding and tearing when you tighten the cap.

Install the new filter element. Tighten the cap to 18 ft-lbs. If you don't have a torque wrench, hand tighten plus about three-quarters of a turn.

But really, get a torque wrench. The plastic housing cracks easily.

Now the drain plug. Wipe the area clean. Install the new crush washer.

Tighten the drain plug to 29 ft-lbs. Again, a torque wrench is your friend here. The oil pan is aluminum and the threads strip easily if you overtighten.

Filling and Checking the Level Correctly

Pour in about 5.5 quarts of fresh 0W-20. Replace the oil fill cap. Start the engine and let it run for about 30 seconds.

This fills the new filter and gets oil circulating through the engine. Shut it off and wait two minutes for the oil to settle back into the pan.

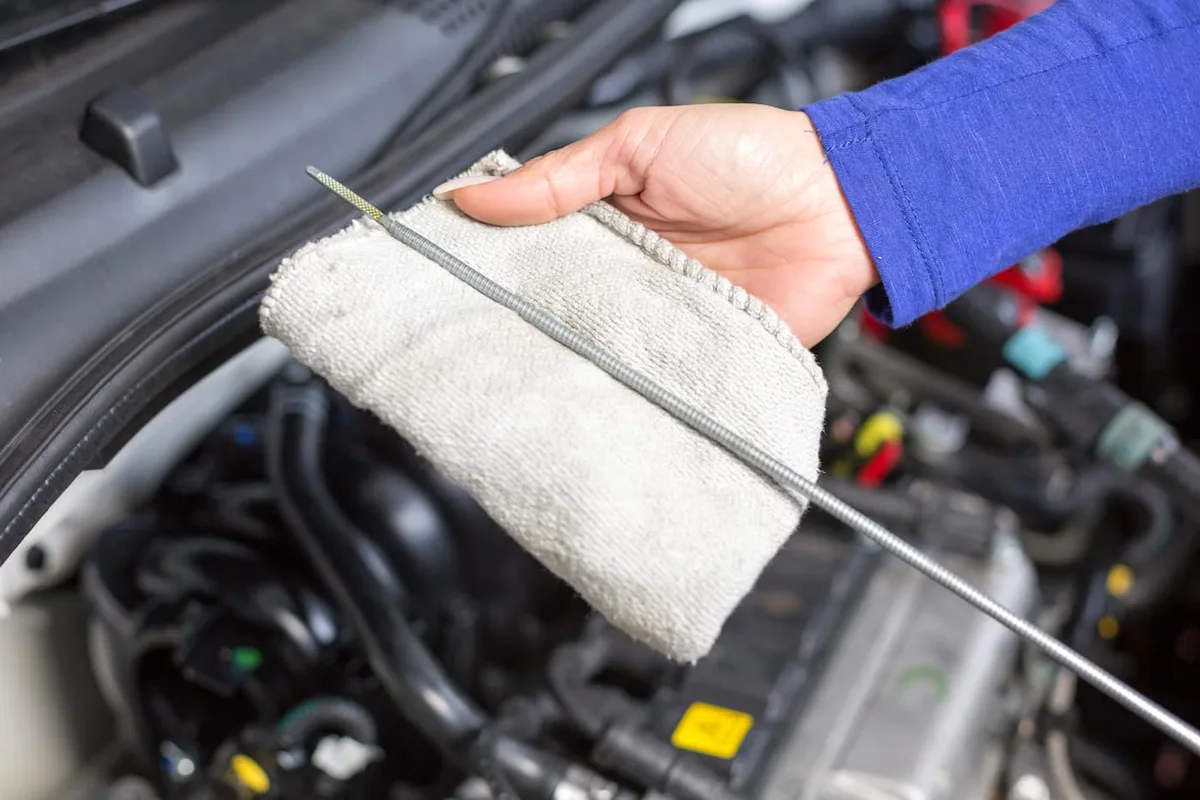

Check the dipstick. It's the yellow loop handle near the front of the engine. Pull it out, wipe it clean, reinsert it fully, then pull it again.

If the level is between the two dots, you're in good shape. Add the remaining oil slowly, checking as you go. The full mark sits at 6.4 quarts with a filter change.

Don't trust the dipstick reading immediately after adding oil. It takes a moment for all the oil to drain down into the pan. Wait, check, then add more if needed.

It's normal to use the full 6.4 quarts, but some cars might need a tiny bit less depending on how thoroughly the old oil drained.

The Two Big Risks: Overfilling vs. Underfilling

Most people worry about underfilling. That makes sense. Starving the engine of oil is a fast way to destroy bearings and score cylinder walls.

But in our research, overfilling causes nearly as many problems on the 2GR-FKS engine. It's just a slower, sneakier failure.

When you overfill, the crankshaft whips through the oil like a boat propeller through water. That aerates the oil. It turns into a frothy mixture that can't maintain oil pressure.

The variable valve timing system relies on steady hydraulic pressure. Foamy oil makes the VVT actuators sluggish. You'll notice a rough idle first.

Then maybe a check engine light with codes like P0010 or P0020.

Underfilling is more immediately dangerous. If the oil level drops below the pickup tube, the oil pump loses prime. That means metal components touch each other without lubrication.

The timing chain starts rattling. Cam journals begin to score. Rod bearings can spin.

By the time the oil pressure warning light comes on, damage is already done.

The sweet spot is right at the full mark on the dipstick. Not above. Not below.

The 2019 Highlander's dipstick has two dots. The distance between them represents about one quart. So being even slightly over can push you past the safe zone.

Check your level on level ground with the engine off for at least two minutes.

Image source: Bing (Web (fair-use with source credit))

Common Mistakes That Cost Highlander Owners

Some mistakes are just annoying. Others cost you an engine. Here are the ones we see most often in owner forums and service records.

Using the wrong viscosity. The 2GR-FKS needs 0W-20. Not 5W-30. Not 10W-30.

People grab 5W-30 because it's on sale or because their old truck used it. The result is reduced fuel economy and potential VVT timing issues. Toyota specifically calibrated this engine for thin oil.

Trust them.

Reusing the crush washer. The drain plug crush washer is designed for one use. It deforms to create a seal. Reusing it means you're relying on an already crushed piece of soft metal.

Eventually it leaks. A slow drip on your driveway is bad enough. A sudden loss of oil on the highway is catastrophic.

Overtightening the filter housing. The plastic filter cap on the 2GR-FKS cracks easily. The torque spec is 18 ft-lbs. That's not much.

Hand tight plus three-quarters of a turn is fine if you have a good feel for it. But many DIYers crank it down like a lug nut. Then the cap cracks.

Then you're replacing the entire housing assembly.

Ignoring the severe service schedule. Toyota says 10,000 miles between oil changes under normal driving. But most people qualify for severe service. Short trips, stop-and-go traffic, extreme temperatures, dusty roads.

If that sounds like your commute, change the oil every 5,000 miles. The owner's manual covers this. Read that section.

Forgetting to reset the maintenance light. After your oil change, the dash still shows "Maintenance Required." You need to reset it manually. If you don't, you'll forget when the next change is due. The procedure is in the next section.

When to Follow the Severe Service Schedule Instead

Toyota defines two maintenance schedules in the owner's manual. Normal service means oil changes every 10,000 miles. But here's the catch.

Toyota's "normal" definition is stricter than most people realize.

You qualify for the severe service schedule if any of these apply:

• Most trips are less than 5 miles in normal temperatures
• Most trips are less than 10 miles in freezing temperatures
• You drive in stop-and-go traffic regularly
• You live in a dusty or sandy area
• You tow a trailer or carry heavy loads
• You use a roof rack or cargo carrier
• You drive on rough or muddy roads
• Your engine idles for extended periods (delivery drivers, remote starters)

Honestly, most people hit at least one of those. If you commute in city traffic, you're on severe service. If you live in a cold climate, you're on severe service.

If you take short trips to the grocery store, you're on severe service.

On the severe schedule, Toyota recommends oil changes every 5,000 miles. That's half the normal interval. It seems frequent.

But the 2GR-FKS benefits from fresh oil more than you'd think. The D-4S injection system keeps carbon off the intake valves, but it doesn't protect the oil from fuel dilution. Short trips cause fuel to accumulate in the oil.

That thins it out and reduces its protective qualities.

For most Highlander owners, we recommend splitting the difference. Change the oil every 5,000 to 7,500 miles. That's more conservative than Toyota's normal schedule.

But it's cheap insurance for a $40,000 vehicle. The cost of an extra oil change every year is nothing compared to engine repair costs.

The Hybrid Version Trap: Why It's Different and How to Spot It

This is a big one. The 2019 Highlander Hybrid uses a completely different engine. It's also a 3.5-liter V6, but it's the 2GR-FXS, not the 2GR-FKS.

The FXS engine runs on the Atkinson cycle. It has different oil routing, a different oil pan, and a different oil capacity.

The hybrid takes about 4.5 quarts of oil. Not 6.4. If you pour in 6.4 quarts on the hybrid, you'll severely overfill it.

That causes all the problems we covered earlier, plus potential damage to the hybrid system components that share oil pressure.

How do you tell them apart? Look under the hood. The non-hybrid 2GR-FKS has a traditional alternator and a conventional accessory belt layout.

The hybrid has a large inverter assembly on top of the engine with orange high-voltage cables running to it. There's also a plastic engine cover on both. But the hybrid cover usually says "Hybrid Synergy Drive" on it.

The oil fill cap location is similar on both. The dipstick is in the same area. But the oil capacity is wildly different.

Always verify which engine you have before buying oil or pouring it in. Check your VIN. The 10th digit tells you the model year.

Letters J, K, L, and M indicate 2018 through 2021. But you need the full VIN to confirm hybrid versus non-hybrid.

If you're still unsure, call a Toyota dealer with your VIN. They can tell you exactly which engine you have and the correct oil capacity. It takes five minutes and saves you from a costly mistake.

Image source: Web (Bing) / business.walmart.com (Web image (fair-use with source credit))

How to Reset the Oil Maintenance Light

After your oil change, the dash will still display "Maintenance Required" every time you start the car. That's normal. It doesn't know you changed the oil.

You have to tell it.

Here's the procedure for the 2019 Highlander:

1. Put the vehicle in Park with the ignition off.
2. Press and hold the trip meter reset button (the small knob on the instrument cluster).
3. Turn the ignition to the ON position (don't start the engine).
4. Continue holding the button until the multi-information display shows "000000" and the maintenance light blinks.
5. Release the button. The light should go off.
6. Turn the ignition off, then start the engine to confirm the light is gone.

If that doesn't work, your Highlander might have the newer multi-information display system. In that case, use the steering wheel controls to navigate to the settings menu. Look for "Maintenance" and then "Oil Change Reset." Follow the prompts on the screen.

Some owners report that the light resets automatically after 50 miles of driving if you've changed the oil. Don't rely on that. Do the manual reset.

It takes ten seconds.

If the light comes back on after a few hundred miles, you might have a different issue. It could be an oil pressure sensor problem or a wiring fault. But usually, it just means the reset didn't take.

Try again with the exact timing sequence above.

What Quick-Lube Shops and Dealerships Get Wrong

Quick-lube chains move fast. That speed comes with risks. The most common error we see is overfilling.

The tech drains the old oil, screws the plug back in, and dumps in the full six-quart jug plus some from a second bottle. They don't always check the dipstick afterward.

Another issue is the filter housing. Quick-lube techs often use impact guns or oversized ratchets on the plastic cap. They overtighten it.

Then the next person who tries to remove it either strips the cap or breaks the housing. Toyota dealerships are better about this, but even dealer lube bays rush on busy days.

If you use a quick-lube shop, check your oil level before you leave the parking lot. Pull over, let the engine sit for two minutes, and read the dipstick. If it's over the full mark, go back and ask them to drain some out.

Don't drive it home hoping it's fine. It's your engine on the line, not theirs.

Quick Specs Reference Card

Here's the cheat sheet. Print this or save it in your phone for the next oil change.

Frequently Asked Questions

What happens if I put 5W-30 in my 2019 Highlander?

The engine will run, but you'll notice reduced fuel economy and potentially rough idle. The variable valve timing system is calibrated for 0W-20. Thicker oil slows actuator response.

If you already put 5W-30 in, change it out at your next scheduled interval. No permanent damage from one change, but don't make it a habit.

Can I use conventional oil instead of synthetic?

Toyota requires full synthetic 0W-20 for the 2GR-FKS engine. Conventional oil doesn't flow well enough at cold temperatures for the VVT system. It also breaks down faster under the heat generated by the D-4S injection system.

Stick with synthetic. The extra few dollars per change are worth it.

How do I know if my Highlander is the hybrid version?

Check under the hood. The hybrid has orange high-voltage cables and a large inverter assembly on top of the engine. The engine cover usually says "Hybrid Synergy Drive." You can also check your VIN online or call a Toyota dealer.

The hybrid takes about 4.5 quarts of oil, not 6.4.

Why does my dipstick show overfilled after pouring in exactly 6.4 quarts?

The oil hasn't fully drained into the pan yet. Start the engine for 30 seconds, shut it off, wait two minutes, then check again. If it's still overfilled, you might have left some old oil in the pan.

This can happen if you didn't drain it on level ground or if the engine was cold.

How often should I really change the oil?

For most owners, every 5,000 to 7,500 miles is the sweet spot. Toyota says 10,000 miles for normal service. But normal service is rare in real-world driving.

Short trips, traffic, and extreme temperatures all qualify as severe service. At 5,000 miles, you're being safe. At 7,500, you're being reasonable.

Past 10,000 miles on the 2GR-FKS is pushing your luck.

What's the best oil filter for the 2019 Highlander 3.5L?

The Toyota OEM filter (part number 04152-YZZA1) is the safest choice. It meets all manufacturer specifications and the price is reasonable. Aftermarket options from Purolator, Wix, and Fram also work well.

Just make sure it's the correct cartridge-style filter for the 2GR-FKS. Avoid no-name brands that might use cheaper filtering media.

Can I switch to a different oil weight in hot climates?

Stick with 0W-20 even in hot weather. Toyota tested this engine in extreme conditions including desert heat. The 0W-20 maintains proper film strength at high temperatures.

Going thicker won't improve protection. It will hurt fuel economy and potentially cause VVT issues. Trust the engineers on this one.

Is it normal to burn oil between changes?

Some oil consumption is normal for the 2GR-FKS, especially as mileage accumulates. Toyota considers up to one quart per 1,000 miles acceptable. That's generous.

Most Highlanders burn much less. If you're adding more than a quart between changes, have a mechanic check for leaks or piston ring issues.

Final Verdict: Your Best Approach for Long Engine Life

The 2019 Highlander 3.5L is a proven engine. It will run for 200,000 miles or more with proper maintenance. The key is consistency.

Use the correct 6.4 quarts of 0W-20 synthetic oil. Change it at reasonable intervals. Check the dipstick regularly.

And never ignore the difference between the hybrid and non-hybrid versions.

Set a reminder on your phone for your next oil change. Keep a jug of 0W-20 and a filter in your garage. If you do your own changes, torque everything to spec.

If you use a shop, verify the level before you leave. Small habits add up to big reliability gains.

For more Toyota maintenance guidance, check out our complete guide on keeping it running smoothly. If you drive a RAV4 or Tacoma, the oil specs are different but the same principles apply. Know your engine.

Follow the numbers. Your Highlander will thank you.
