If you've ever searched for your Toyota Tundra's oil capacity and landed on a single number like "6.9 quarts," you've already found the problem. That figure works for some Tundras, but it's flat wrong for others. The toyota tundra oil capacity depends entirely on which engine is under your hood, which generation you're driving, and whether it's a hybrid or not.
Get it wrong and you risk costly engine damage or voiding your warranty.
Manufacturer specifications from Toyota confirm that capacities range from 6.4 quarts on the 4.6‑liter V8 to 7.1 quarts on the latest twin‑turbo V6. As of 2026, the lineup includes four distinct powertrains with different requirements. That's why a one‑size‑fits‑all answer doesn't work.
In this guide, we'll walk you through exactly how to find your truck's correct number, step by step.
Image source: Web (Bing) / exclusivemotors.co.nz
Quick Answer
The toyota tundra oil capacity (with filter change) breaks down like this:
| Engine | Approximate Capacity (Quarts) | Models & Years |
|---|---|---|
| 4.7L V8 (2UZ‑FE) | 6.5 | 2000–2006 |
| 5.7L V8 (3UR‑FE) | 6.9 | 2007–2021 |
| 4.6L V8 (1UR‑FE) | 6.4 | 2010–2021 (base engine on some trims) |
| 3.4L Twin‑Turbo V6 (V35A‑FTS) | 7.1 | 2022+ non‑hybrid |
| 3.4L Twin‑Turbo V6 Hybrid (i‑Force Max) | 6.4 | 2022+ hybrid |
Always verify your specific model with the owner's manual or the oil fill cap sticker. The numbers above assume a filter change.
Image source: Bing (Web (fair-use with source credit))
Step 1 – Identify Your Engine (Year, Displacement, Hybrid or Not)
Your first task is simple: find out which engine lives in your Tundra. It's not guesswork.
If you drive a 2000 to 2006 model: You have the 4.7‑liter 2UZ‑FE V8. It's non‑hybrid and takes 6.5 quarts with a new filter.
If you drive a 2007 to 2021 Tundra: Most have the 5.7‑liter 3UR‑FE V8. Some 2010, 2021 trucks, especially base trims, use the smaller 4.6‑liter 1UR‑FE V8. Check your VIN or the sticker under the hood.
If you drive a 2022 or newer Tundra: You have either the 3.4‑liter twin‑turbo V35A‑FTS (non‑hybrid) or the 3.4‑liter i‑Force Max hybrid. The hybrid version has a smaller oil capacity (6.4 quarts) because the electric motor shares some of the lubrication system.
How do you tell the hybrid from the non‑hybrid? Look for an orange high‑voltage cable on the engine, or a hybrid badge on the tailgate. The owner's manual clearly lists which powertrain you have.
For reference, if you're dealing with other Toyota models, you might find the process similar to the guide for the 2016 Toyota Tundra Oil Type & Specs or the 2017 Toyota Tundra Oil Type & Specs to cross‑check your findings.
Step 2 – Choose the Correct Oil Viscosity and API Grade
Once you know the engine, you need the right oil. It's not just about capacity; using the wrong viscosity can cause poor lubrication or excessive wear.
For most Tundras (2007, 2021 and 2022+ non‑hybrid): Toyota specifies SAE 0W‑20 synthetic oil with API SN or SP, or ILSAC GF‑6. That's the standard modern recommendation.
For the 4.7‑liter V8 (2000, 2006): Use SAE 5W‑30, API SL or higher. In extremely cold climates (below -18°C / 0°F), you can switch to 0W‑30 for better cold‑start flow.
For the i‑Force Max hybrid (2022+): It also takes 0W‑20, but look for the official Toyota Genuine Oil or a full‑synthetic that meets GF‑6A. The hybrid system's oil cooler and pump are designed around that viscosity.
Important notes:
- Full synthetic is always preferable because it handles higher temperatures and longer intervals better.
- Never use conventional oil in a modern Tundra. It can lead to sludge buildup.
- If you're towing heavy loads or driving in extreme heat, you might consider 5W‑30 (check your manual first). Some Toyota service bulletins allow it for severe service.
Per API certification standards, look for the donut symbol on the bottle. Avoid bargain‑brand oils that don't list an API rating.
Step 3 – Fill the Right Amount (With Filter Change)
Now we get to the actual fill. The numbers from the table are your starting point, but you must always verify with the dipstick.
The process:
- Drain the old oil and remove the old filter.
- Install a new filter (pre‑fill it with a little fresh oil to prevent a dry start).
- Replace the drain plug with a new crush washer.
- Pour in about 90% of the listed capacity. For a 6.9‑quart engine, that means roughly 6.2 quarts.
- Run the engine for 30 seconds to circulate the oil.

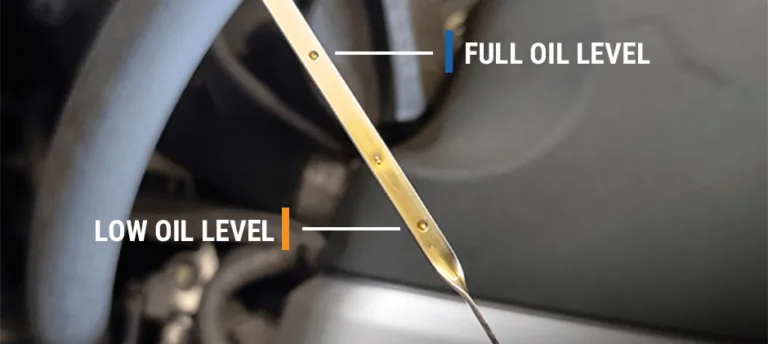

- Turn it off, wait two minutes, then check the dipstick.
- Top off small amounts until the oil reaches the full mark.
Never overfill. That causes foaming, pressure spikes, and seal leaks. Underfilling is equally dangerous, it starves bearings and can lead to catastrophic failure.
Quick decision tree for the final pour:
- If the dipstick reads low after the initial fill, add half a quart, recheck, and repeat until full.
- If it reads overfull, you must drain some out. There's no shortcut.
Image source: Web (Bing) / fridayparts.com
Decision Branch – What If You're Towing, in Extreme Cold, or High Mileage?
Your Tundra's oil needs change based on how you use it. Here's when you should adjust:
If you regularly tow heavy trailers or drive in hot desert conditions:
- Consider using SAE 5W‑30 full synthetic if your manual allows it.
- Shorten your oil change interval to 5,000 miles instead of the standard 10,000.
- Always use the higher‑capacity filter (some aftermarket filters are slightly larger and hold more oil, but keep the same overall system capacity).
If you live in a northern climate with sub‑zero winters:
- Stick with 0W‑20. It flows better at cold start, reducing wear.
- Never let the oil get below 20% life on the maintenance indicator before changing.
If your Tundra has over 150,000 miles:
- Switch to a high‑mileage synthetic oil (same viscosity). These have seal conditioners that help prevent leaks.
- Check the dipstick more often, high‑mileage engines sometimes consume a little oil.
For the hybrid i‑Force Max:
- The hybrid system's electric motor operates independently of engine oil, so towing doesn't change the oil capacity. But the engine still works hard, keep to the 5,000‑mile severe schedule when towing.
One more tip: if you own a different Toyota (like a 2017 Toyota Tacoma or a 2018 Toyota Tacoma), the same decision‑tree logic applies: identify the engine, match the viscosity, and check the owner's manual before you pour.
