If you're about to change the oil on your 2024 Toyota RAV4, you need the exact number. The 2024 toyota rav4 oil capacity isn't the same for every version. It comes down to whether you have the gas engine or the hybrid.
Pour the wrong amount and you risk engine damage or at least a messy cleanup.
Toyota's own specs for the 2.5-liter Dynamic Force engine confirm 4.9 quarts with a filter change for the gas model. The hybrid holds 4.4 quarts. These numbers are straight from the 2024 owner's manual.
As of 2026, they haven't changed. Let's walk through what you need to know before you get started.
Image source: Web (Bing) / walmart.com (Web image (fair-use with source credit))
Quick Answer: How Much Oil Does a 2024 RAV4 Take?
| Engine Variant | Oil Capacity (with filter) | Oil Capacity (without filter) |
|---|---|---|
| 2.5L Gas (A25A-FKS) | 4.9 US quarts (4.6 L) | 4.6 US quarts (4.4 L) |
| 2.5L Hybrid (A25A-FXS) | 4.4 US quarts (4.2 L) | 4.1 US quarts (3.9 L) |
Fill to the dipstick mark. Always check after adding. The filter change adds about 0.3 quarts.
Use 0W-16 full synthetic oil. Do not guess.
Why Getting the Oil Capacity Right Matters for Your 2024 RAV4
This isn't just about avoiding a puddle on your garage floor. Using the wrong oil amount can cause real damage. Overfilling leads to foaming, which means the oil pump can't maintain proper pressure.
That foamy oil also puts extra strain on seals and can damage the catalytic converter.
Underfilling is just as bad. The engine starves for lubrication at high rpm or during towing. Bearings wear faster.
In extreme cases, the engine can seize.
Using the wrong viscosity is another risk. Toyota specifies 0W-16 for a reason. Thicker oil doesn't flow fast enough during cold starts, especially in winter.
Thinner oil may not protect at high temperatures. The warranty on your RAV4 requires the correct oil grade. If a dealer finds 5W-30 in the crankcase during a warranty claim, they can deny it.
Getting the right amount and the right oil is simple. Get it wrong, and you're looking at costly repairs. The same principle applies to other Toyota models, which is why we've covered the specifics for the 2019 RAV4 and the 2018 RAV4 in detail.
The Two Engines: Gas vs. Hybrid
The 2024 RAV4 comes with two powertrain options. Both use a 2.5-liter four-cylinder engine, but they are not the same.
The gas model uses the A25A-FKS engine. It runs on the traditional Otto cycle. It has a different oil pan and oil cooler setup compared to the hybrid.
The hybrid uses the A25A-FXS engine. It runs on the Atkinson cycle, which is more efficient but produces less power from the same displacement. The oil system is different because the hybrid engine doesn't always run at idle.
It shuts off and restarts frequently. The oil pan is shaped differently to accommodate the electric motor components.
These differences mean the hybrid holds less oil. The gas engine takes 4.9 quarts with a filter. The hybrid takes 4.4 quarts.
You cannot use the same amount for both.
The filler cap and dipstick locations are the same. But the oil capacity is not. Always check which model you have before buying oil.
The same logic applies across the lineup, so if you're servicing a 2017 Tacoma or another Toyota, always verify the engine variant first.
The Right Oil: Why 0W-16 Is Non-Negotiable
Image source: Web (Bing) / autofactorng.com (Web image (fair-use with source credit))

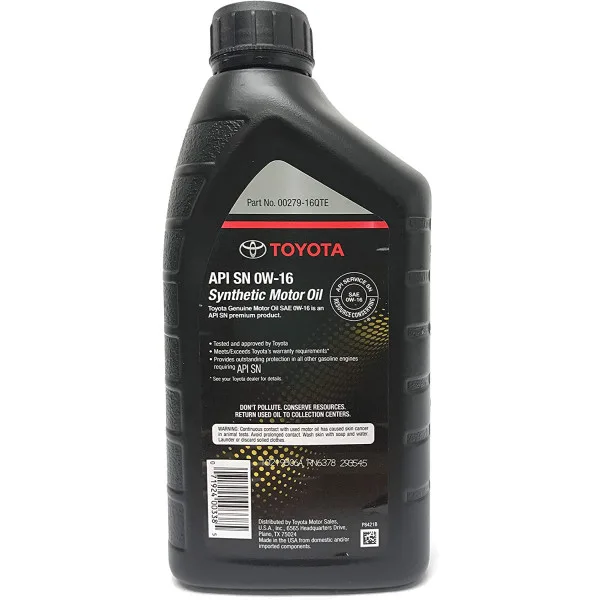

Toyota specifies 0W-16 full synthetic oil for the 2024 RAV4. This is a low-viscosity oil designed to reduce friction and improve fuel economy. It meets the API SN Plus or SP standard and the ILSAC GF-6 standard.
The "0W" means the oil flows like a thin oil at low temperatures. This is critical for cold starts. The "16" means it stays thin enough at high temperatures to reduce drag on the engine.
Thicker oils like 0W-20 or 5W-30 create more resistance and lower fuel economy.
Can you use 0W-20? Only as a backup. The owner's manual says 0W-20 is acceptable if 0W-16 is not available.
But you should switch back to 0W-16 at the next oil change. Using 0W-20 long-term will slightly reduce fuel economy and may not provide optimal protection in extreme cold.
Never use 5W-30, 10W-30, or any other viscosity. These are not designed for the tight clearances in the Dynamic Force engine. The American Petroleum Institute sets the standards for these oils.
The API certification mark on the bottle confirms the oil meets the required quality level.
Always look for the API donut symbol and the ILSAC starburst on the bottle. These guarantee the oil meets Toyota's requirements. If you're working on an older Toyota, the specs may differ, so check the guide for the 2018 4Runner as a comparison.
Step-by-Step: How to Do the Oil Change Yourself
Image source: Bing (Web (fair-use with source credit))
Changing the oil on a 2024 RAV4 is straightforward. You can do it at home with basic tools.
Tools and Parts You'll Need
- 14mm socket or wrench for the drain plug
- Oil filter wrench (if the filter is tight)
- Drain pan
- Funnel
- 5 quarts of 0W-16 full synthetic oil
- OEM oil filter (part number 04152-YZZA6 or 04152-YZZA1)
- Crush washer (14mm)
- Torque wrench (recommended)
- Gloves and rags
The Process
- Warm up the engine. Run it for a few minutes to thin the oil. Then shut it off.
- Jack up the vehicle if needed. The RAV4 sits low enough that you may not need a jack. But you need access to the drain plug and filter.

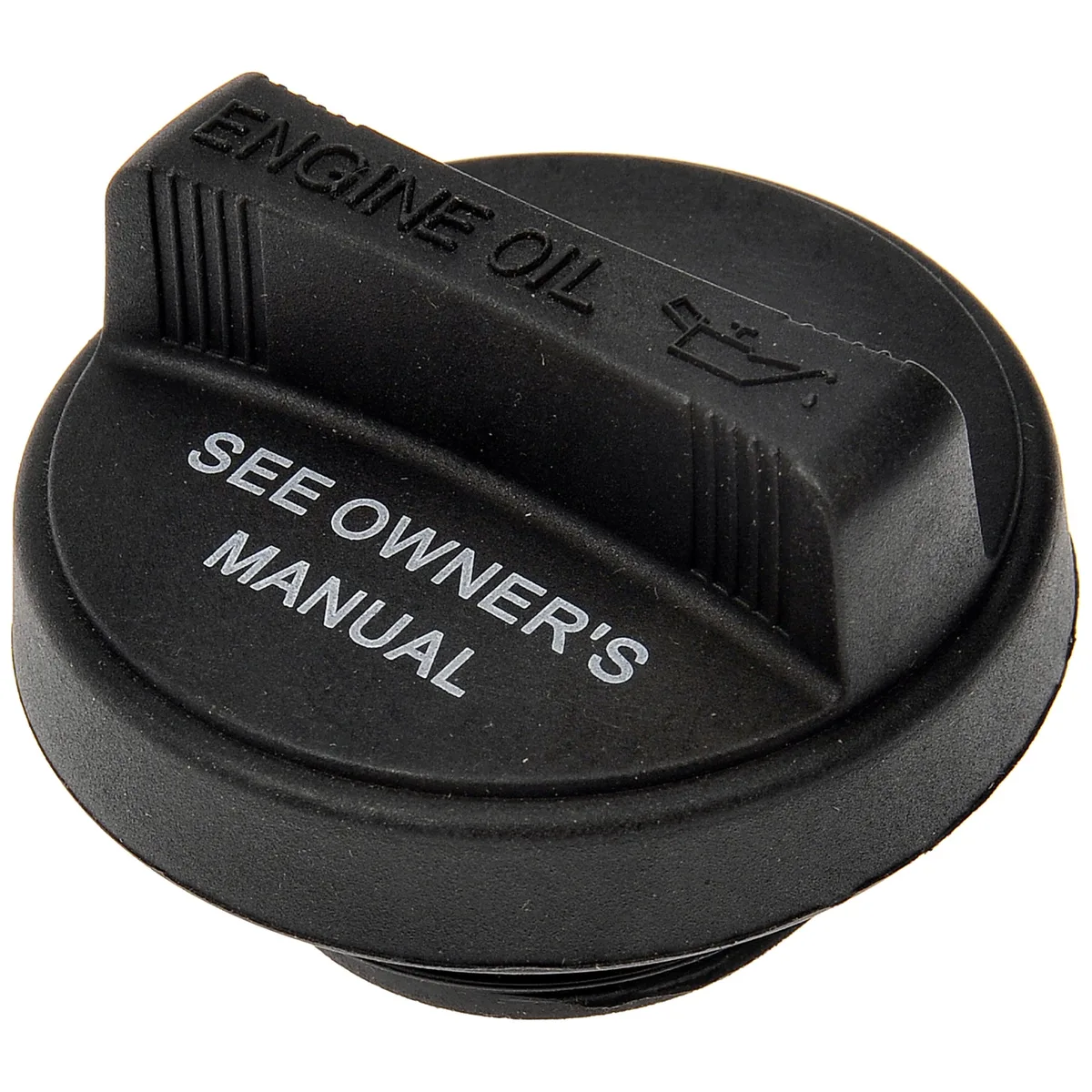

- Remove the oil filler cap. This helps the oil drain faster.
- Place the drain pan under the drain plug. Use a 14mm socket to loosen the plug. Remove it by hand. Let the oil drain completely.

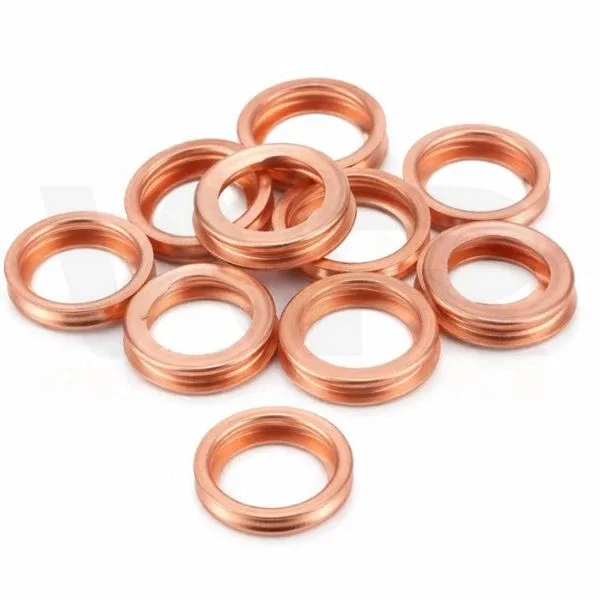

- Replace the crush washer. The old one is compressed and may leak. Use a new one every time.
- Torque the drain plug to 29 ft-lb (39 N-m). Do not overtighten. The oil pan is aluminum and can strip easily.
- Move the drain pan under the oil filter. Remove the filter. Some oil will spill.
- Pre-fill the new filter with fresh oil. This prevents a dry start. Rub a little oil on the gasket.
- Install the new filter. Tighten it by hand, then give it three-quarters of a turn. Or torque it to 18 ft-lb (25 N-m).
- Add the oil. Remove the filler cap. Use a funnel. Add 4.9 quarts for the gas model or 4.4 quarts for the hybrid.
- Check for leaks. Start the engine and let it run for 30 seconds. Look under the vehicle.

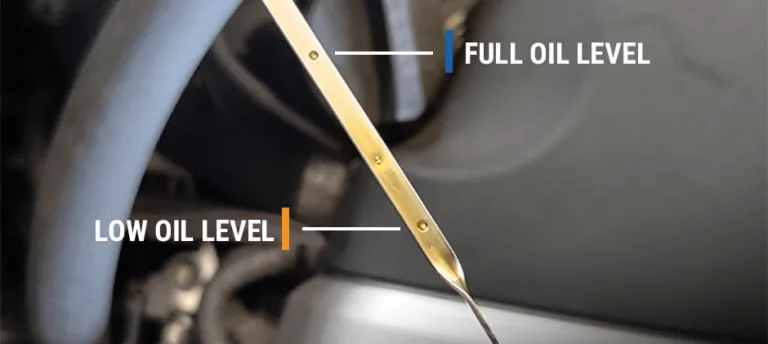

- Turn off the engine. Wait 5 minutes. Check the dipstick. The level should be between the low and full marks.
- Top off if needed. The difference between low and full is about 0.3 quarts.
- Reset the oil maintenance light. Follow the dashboard procedure.
The same process applies to other Toyota models. We've covered the details for the 2017 Tundra if you're working on a different truck.
The Most Common Mistakes (and How to Avoid Them)
Image source: Bing (Web (fair-use with source credit))
Even experienced DIYers slip up on an oil change. A few simple mistakes cause most of the problems we see.
Overfilling. You pour in the full 5-quart jug without checking. That extra 0.1 or 0.2 quart pushes the level above the full mark. The crankshaft whips the oil into foam.
Foam doesn't lubricate. In severe cases, the catalytic converter gets damaged from burning oil.
Underfilling. You drain the old oil but forget that the filter holds nearly half a quart. You add only 4.5 quarts. The engine runs low on oil during a hard corner or steep hill.
Low oil pressure warning comes on. If you ignore it, bearings fail.
Skipping the crush washer. The old crush washer gets reused. It's already flattened. A tiny gap opens between the drain plug and the oil pan.
Oil seeps out slowly. You notice the puddle hours later.
Stripping the oil pan threads. The drain plug gets overtightened. The aluminum pan's threads strip. Now you need a new oil pan or a thread repair kit.
Torque it to 29 ft-lb and no more.
Using the wrong filter. A generic filter may not have the correct bypass valve pressure. It can collapse or starve the engine of oil. Stick with OEM or a brand that meets Toyota's specifications.
Forgetting to pre-fill the filter. Installing a dry filter means the engine runs without oil pressure for a few seconds. That's enough to wear the bearings on a cold start. Always pour fresh oil into the new filter before installation.
The same attention to detail applies to older Toyotas. If you're servicing a 2017 Camry, the process is similar but the torque specs and capacities differ.
When to Change It: Normal Service vs. Severe Service
Toyota's maintenance schedule for the 2024 RAV4 recommends an oil change every 10,000 miles or 12 months, whichever comes first. That's under normal driving conditions.
But most people don't drive under "normal" conditions. Toyota defines severe service as:
- Frequent short trips under 5 miles
- Extended idling or stop-and-go traffic
- Driving in dusty or sandy conditions
- Towing a trailer or carrying heavy loads
- Driving in extreme cold or hot weather
- Using the vehicle for delivery, police, or taxi service
If you do any of the above, you should cut the interval in half. Change the oil every 5,000 miles or 6 months. The owner's manual says so explicitly.
How do you know which category you're in? Be honest about your driving. A 15-minute commute in city traffic with four stoplights counts as severe.
A 30-mile highway cruise at steady speed counts as normal. If you're unsure, go with severe service. It's cheaper than engine repairs.
The oil life monitor in the RAV4 will adjust based on driving patterns. But it's not perfect. It can't measure fuel dilution or moisture buildup.
A 5,000-mile interval gives a generous safety margin.
The same principle applies to other vehicles in the family. The maintenance schedule for a 2018 Corolla also separates normal from severe.
What Happens If You Use the Wrong Oil
Using the wrong oil is more common than you think. Someone grabs a bottle of 5W-30 because that's what they keep in the garage. Or they fill up with conventional oil instead of full synthetic.
Thicker oil. Oil that is too thick (like 5W-30 or 10W-30) doesn't flow fast enough during cold starts. The variable valve timing system relies on oil pressure to operate. With thick oil, the camshaft timing advances slower.
Fuel economy drops. Engine wear increases, especially in winter.
Thinner oil. Oil that is too thin (like 0W-8 or 0W-12) may not maintain film strength at high operating temperatures. Under heavy load, metal-to-metal contact can occur. Toyota does not recommend these viscosities for the RAV4.
Conventional oil in a synthetic-only engine. The 2024 RAV4 engine is designed for full synthetic. Conventional oil will sludge up the variable valve timing components. Oil change intervals must be halved if you use conventional.
Even then, sludge is a real risk.
Wrong API rating. Oil that isn't API SN Plus or SP may not handle low-speed pre-ignition (LSPI). This is a problem in turbocharged engines, but even naturally aspirated engines can benefit from the latest additive packages.
The warning signs. You may notice rough idle, ticking noises, reduced fuel economy, or the check engine light. If you suspect the wrong oil was used, drain it and refill with 0W-16 immediately. The damage is usually not permanent if caught early.
The consequences are similar across the Toyota lineup. A 2016 Tundra with the wrong viscosity will also run poorly and wear faster.
Dealer vs. DIY: What's the Real Cost?
Let's compare what you pay.
Dealer oil change. The typical Toyota dealer charges between $70 and $100 for an oil change on a 2024 RAV4. That includes genuine Toyota oil (0W-16), an OEM filter, a new crush washer, labor, disposal, and a multi-point inspection. Some dealers offer coupons that drop the price to $50 or $60.
Independent shop. A local mechanic might charge $50 to $80. They may or may not use OEM oil and filter. Some use bulk oil from a drum.
You don't always know what brand or viscosity you're getting unless you ask.
DIY cost. A 5-quart jug of 0W-16 full synthetic costs about $25 to $35. An OEM oil filter costs $8 to $12. A crush washer costs $1 to $2.
Total: $34 to $49. You also need basic tools and a drain pan, but those last for years.
| Option | Typical Cost | Time Required | Warranty Impact |
|---|---|---|---|
| Dealer | $70-$100 | 30-60 min | No risk, records verified |
| Independent shop | $50-$80 | 30-60 min | Low risk if receipt kept |
| DIY | $34-$49 | 45-90 min | Must keep receipts and log |
Hidden costs of DIY. You need to dispose of used oil properly. Most auto parts stores accept it for free. You also need to reset the oil maintenance light yourself.
It's a simple button sequence, but some owners forget.
Warranty considerations. Toyota cannot deny a warranty claim just because you did your own oil changes. But you must keep receipts proving you used the correct oil. A logbook helps.
If a dealer suspects you used the wrong oil, they may push back.
For many owners, DIY saves $30 to $50 per change. Over 100,000 miles, that's $300 to $500. The trade-off is your time and the risk of a mistake.
The same cost analysis applies to other vehicles. A 2018 Highlander costs about the same to service at home.
Verified Specs at a Glance
Here's a quick reference you can bookmark.
| Specification | Value |
|---|---|
| Engine (gas) | 2.5L A25A-FKS |
| Engine (hybrid) | 2.5L A25A-FXS |
| Oil capacity (gas, with filter) | 4.9 qt / 4.6 L |
| Oil capacity (hybrid, with filter) | 4.4 qt / 4.2 L |
| Recommended oil viscosity | SAE 0W-16 |
| Acceptable alternative viscosity | SAE 0W-20 (temporary) |
| API performance rating | SN Plus or SP |
| ILSAC performance rating | GF-6 |
| OEM oil filter part number | 04152-YZZA6 or 04152-YZZA1 |
| Drain plug torque | 29 ft-lb (39 N·m) |
| Oil filter torque | 18 ft-lb (25 N·m) |
| Oil change interval (normal) | 10,000 mi / 12 months |
| Oil change interval (severe) | 5,000 mi / 6 months |
Keep this table handy. It saves you a trip to the manual. If you're working on a different Toyota generation, the specs change.
For example, the 2007 Camry uses 5W-30 and holds about 4.5 quarts.
Now we move into the FAQ and final verdict sections. The next TOC headings are: Frequently Asked Questions and Final Verdict: Just Follow the Manual. We'll cover those in the final batch.
Frequently Asked Questions
Can I use 0W-20 instead of 0W-16 in my 2024 RAV4?
Yes, but only as a temporary replacement. The owner's manual permits 0W-20 if 0W-16 is unavailable. You should switch back at the next oil change.
Long-term use of 0W-20 slightly reduces fuel economy and may not protect as well in extreme cold.
How do I reset the oil maintenance light on a 2024 RAV4?
Turn the ignition to ON without starting the engine. Navigate the dashboard menu to "Settings" then "Vehicle Settings." Select "Oil Maintenance" and choose "Reset." Confirm the reset. The light should go out and the interval counter resets to 100 percent.
What happens if I overfill the oil by half a quart?
The crankshaft whips the excess oil into foam. Foam does not lubricate properly. Oil pressure drops.
Seals may leak. In severe cases, the catalytic converter can be damaged from burning oil-laden crankcase vapors. Check the dipstick and drain any excess.
Can I use conventional oil instead of synthetic?
Not recommended. The 2024 RAV4 engine was designed for full synthetic oil. Conventional oil will sludge up the variable valve timing components.
If you must use conventional, cut the oil change interval to 5,000 miles. Even then, sludge risk remains higher.
How often should I change the oil if I tow with my RAV4?
Towing counts as severe service. Change the oil every 5,000 miles or 6 months, whichever comes first. The extra heat and load from towing accelerates oil breakdown.
The oil life monitor may not fully account for towing conditions, so follow the manual's severe schedule.
Why does my dipstick show a different level than what I poured in?
You may have measured before the oil fully drained into the pan. Wait 5 minutes after shutting off the engine. The level should stabilize between the low and full marks.
If it's still low, add 0.2 quarts at a time. If it's high, you overfilled.
Final Verdict: Just Follow the Manual
The 2024 Toyota RAV4 is not complicated when it comes to oil. Use 0W-16 full synthetic. Pour 4.9 quarts for the gas engine or 4.4 quarts for the hybrid.
Replace the crush washer. Torque the drain plug to 29 ft-lb. Change it every 5,000 to 10,000 miles depending on your driving.
The owner's manual covers all of this. Read it. Keep a copy of your receipts and a log of your oil changes.
That's all you need to protect your engine and your warranty.
Skipping the details might save you five minutes today. Getting it wrong costs you an engine tomorrow. Stick with the specs.
Your RAV4 will reward you with 200,000 miles of trouble-free driving.
